PPHP1042B - Speaker Pyle - Free user manual and instructions

Brand	Pyle
Model	PPHP1042B
Product Type	Portable Wireless PA Speaker
Max Output Power	400 Watts
Audio System	2 x 8" subwoofers + 1" tweeter
Impedance	3.6 Ohm
Frequency Response	40 Hz - 16 kHz
Bluetooth Version	4.2
Bluetooth Range	Up to 32 ft (approx. 10 m)
Bluetooth Network Name	PYLEUSA
Built-in Players	USB, MicroSD, FM Radio
Supported Audio Formats	MP3
Max USB/MicroSD Capacity	32 GB
Inputs	AUX 3.5mm, microphone 6.5mm, DC 9V
Special Features	Recording, Mic Priority, TWS, LED Lights, Bass/Treble/Echo Control
Rechargeable Battery	3.7V, 3600mAh (13.32Wh)
Battery Life	Up to 3 hours
Charging Time	Approx. 5 hours
Power Supply	120/240V AC (power adapter 9V/1.5A)
Dimensions (L x W x H)	34.5 x 25.1 x 52.6 cm
Weight	Approx. 15 kg (estimated)
Cabinet Material	Polypropylene (PP)
Usage	Indoor and outdoor
Included Accessories	Remote control, power adapter, wired microphone
Care and Cleaning	Wipe with a soft, dry cloth. Do not use solvents or abrasive cleaners.
Safety Precautions	Do not expose to water or moisture. Do not block ventilation openings. Do not disassemble.
Customer Service	Contact Pyle at (1) 718-535-1800 or at PyleUSA.com/ContactUs

Frequently Asked Questions - PPHP1042B Pyle

How do I connect my smartphone via Bluetooth to the PPHP1042B speaker?

Enable Bluetooth on your smartphone and search for devices. Select 'PYLEUSA' from the list. If prompted, confirm pairing. The connection is established.

How do I use the TWS function to pair two speakers?

Enable Bluetooth on your device and connect to the first speaker. Then, on each speaker, press and hold the 'TWS' button for more than 3 seconds until 'ON' appears on the display. The speakers will automatically connect in stereo.

What is the battery life and how do I charge it?

Battery life can reach up to 3 hours depending on volume. To charge, use the supplied power adapter (9V/1.5A) and plug it into the DC input. Charging time is about 5 hours. The red LED indicator shows charging, and it turns off when the battery is full.

How do I record with this speaker?

Press the record button briefly to start recording. Press again to stop. To play recordings, press and hold the button. To delete a recording during playback, press and hold the microphone priority button.

Why is there no sound?

Check that the audio source is connected and the volume is not at minimum. Ensure the correct mode is selected (BT, AUX, USB, etc.). If the sound is muted, press the Mute button on the remote control.

The sound is distorted, what should I do?

Reduce the overall volume or bass/treble levels. If distortion persists, the speaker may be damaged. Contact customer service for repair.

How do I use the FM radio?

Press the MODE button until FM radio is selected. Use the search buttons (previous/next) to find stations. Auto-scan function is available in FM mode.

The microphone is not working, what should I check?

Ensure the microphone is properly plugged into the 6.5mm input and its switch is on. Increase the microphone volume using the corresponding knob. Also check that the microphone priority function is not accidentally activated.

What audio formats are supported by the USB input?

The USB and MicroSD player supports MP3 files. The maximum supported capacity is 32 GB.

How do I clean and maintain my Pyle speaker?

Use a soft, dry cloth to wipe the surface. Do not use chemical or abrasive cleaners. Avoid dusty or humid environments. Do not block ventilation openings.

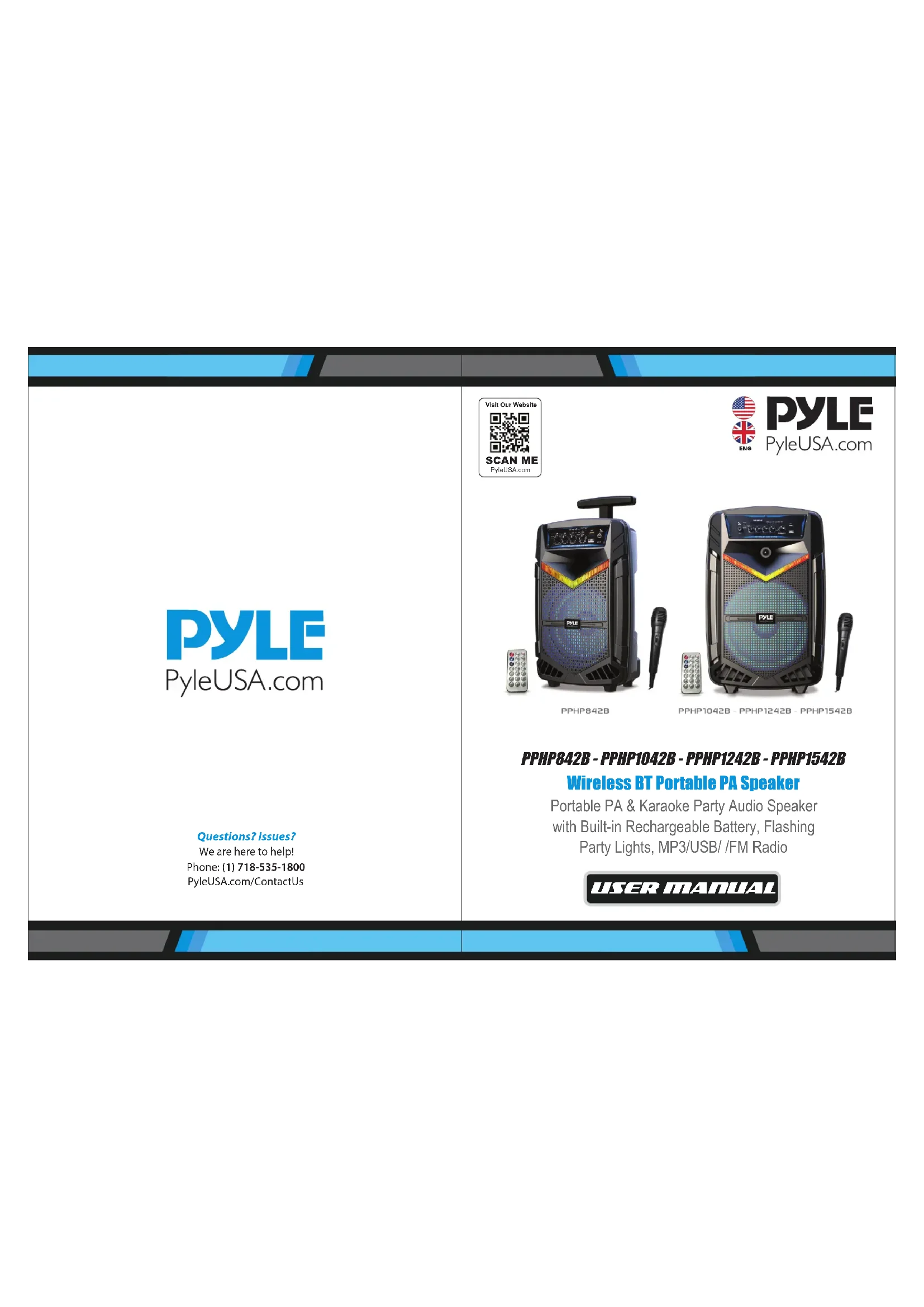

USER MANUAL PPHP1042B Pyle

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs

Visit Our Website

PyleUSA.com

PPHP842B
PPHP1042B-PPHP1242B-PPHP1542B

PPHP842B-PPHP1042B-PPHP1242B-PPHP1542B

Wireless BT Portable PA Speaker

Portable PA & Karaoke Party Audio Speaker

with Built-in Rechargeable Battery, Flashing

Party Lights, MP3/USB/ /FM Radio

USERMANUAL

WARNING

1. DO NOT place objects on top of the device, as objects may scratch the device.

1. DO NOT expose the device to dirty or dusty environments.

1. DO NOT insert any foreign objects into the device.

1. DO NOT expose the device to strong magnetic or electrical field.

1. DO NOT use the device in the rain

1. Please check with your Local Authority or retailer for proper disposal of electronic products.

1. DO NOT disassemble the device. Only a certified service technician should perform repair.

1. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

Illegal operation may cause personal injury, which could be fatal and may cause damage to property.

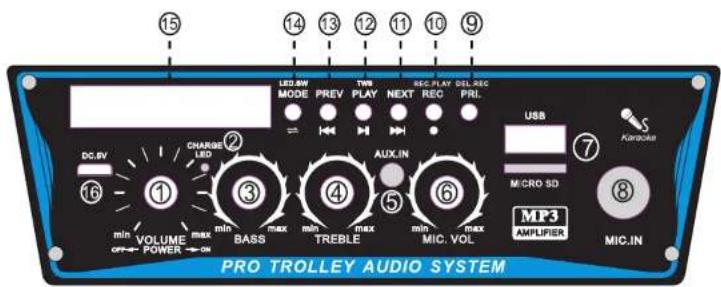

PPPHP842B CONTROL BOARD FUNCTIONS

1. Master volume control/Power switch
2. Charge LED indicator, red color is on charge mode, light off is full charge mode
3. Bass volume control knob
4. Treble volume control knob
   5.3.5MM AUX input jack
5. Microphone volume control knob

6. USB and Micro SD Memory Card Slot
   8.6.5MM microphone input jack

7. Microphone priority button:

When playing the recorded file, press and hold to delete current recording.

1. Short press to start recording, and short press again to save and play recording Press and hold to play recording files, and press and hold again to quit recording
2. Next
3. Play/Pause/press and hold for TWS function
4. Previous
5. Short press to choose mode/Press and hold to turn ON/OFF light
6. Display screen
7. DC 5V input jack

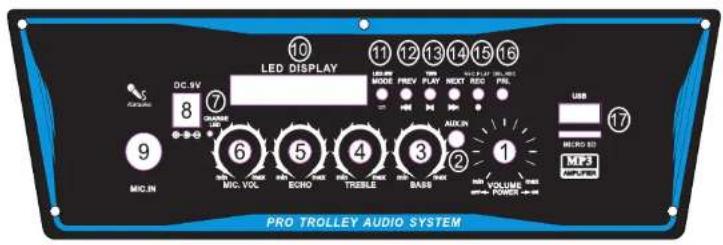

PPHP1042B-PPHP1242B-PPHP1542BCONTROL BOARD FUNCTIONS

1. Master volume control/Power switch
   2.3.5MM AUX input jack
2. Bass volume control knob
3. Treble volume control knob
4. Echo control knob
5. Microphone volume control knob
6. Charge LED indicator, red color is on charge mode, light off is full charge mode
7. DC 9V input jack
   9.6.5MM microphone input jack
8. Display screen
9. Short press to choose mode/Press and hold to turn ON/OFF light
10. Previous
11. Play/Pause/press and hold for TWS function
12. Next
13. Short press to start recording, and short press again to save and play recording Press and hold to play recording files, and press and hold again to quit recording
14. Microphone priority button
    When playing the recorded file, press and hold to delete current recording.
15. USB and Micro SD Memory Card Slot

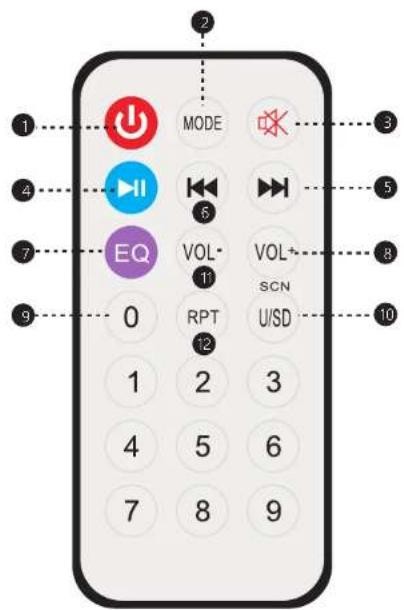

REMOTE CONTROL FUNCTIONS

1. Power: Used to turn on and off
   the MP3 player power
2. MODE: Used to switch the AUX/
   USB/Wireless BT/Radio
3. Mute button
4. Play/Stop button

5. Next song on USB

6. Previous song on USB

7. EQ solution
8. Increase volume
9. Choose song number directly
10. Choose USB signal directly
11. Decrease volume
12. Repeat song

TWS FUNCTION

For increase sound effect, our unit provides TWS function as follows:

Step-1: Turn ON BT mode on your device and connect the machine.

Step-2: Press and hold each control board "TWS" button more than 3's, and you will see "ON" on display, unit will start to connect the other unit automatically, now you can enjoy stereo sound, and adjusting one unit volume will affect the other unit.

Remark:

1. After connection, press and hold again one of control board "TWS" button more than 3's, you will see "OFF" on display, unit's TWS disconnection.

TROUBLESHOOTING

Fault	Possible Cause	Solution
No sound	1. No input sound source. 2. Volume is too low.	1. Use a better music signal. 2. Adjust volume.
Distortion of sound	1. Volume too high. 2. Speaker may be damaged	1. Turn down the volume. 2. If speaker is damaged, repair or replace it.
Karaoke does not work	1. Microphone plug is not fully inserted. 2. Microphone switch is not on. 3. Microphone volume knob is at the lowest position.	1. Plug microphone properly into the socket. 2. Turn on microphone switch. 3. Adjust microphone volume properly.
MP3 does not play	1. The audio format in the U disc is incorrect. 2. Improper operation has caused a process disorder. 3. USB disc is disconnected.	1. Convert audio format into Mp3 format. 2. Reboot the machine. 3. Insert USB disc properly.

Wireless BT Streaming:

Built-in BT for Wireless Music Streaming
- Simple & Hassle-Free Pairing
- Works with All of Today's Latest Devices Smartphones, Tablets, Laptops, Computers, etc.
Wireless BT Version: 4.2
- Wireless BT Network Name: 'PYLEUSA'
- Wireless Range: Up to 32^ ft.

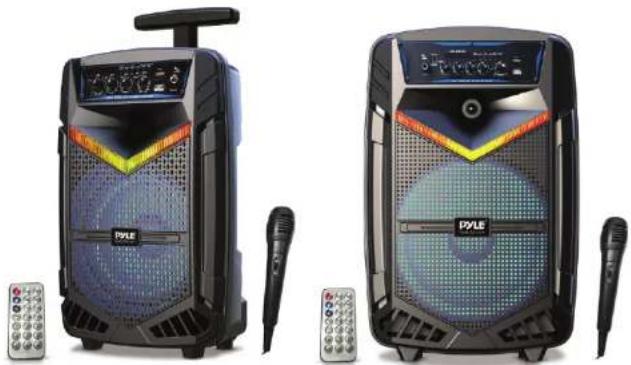

What's in the Box:

• PA Speaker System
  Remote Control
• Power Adapter
  Wired microphone

This product can expose you to a chemical or group of chemicals, which may include "Lead and lead compounds" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.

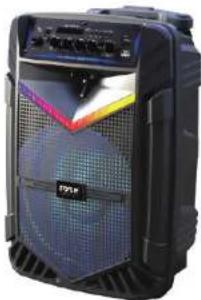

PPHP842B

Features:

True Wireless Stereo System
- Portable Speaker System
High-Powered PA Loudspeaker Style
Wireless BT Music Streaming Ability
Multi-Color Flashing LED Party Lights
Built-in Rechargeable Battery
FM Radio with Digital LED Display
- Connect & Stream Audio from External Devices
- Aux (3.5mm) Input Connector Jack
- USB Flash Memory Reader
- Micro SD Card Reader
- 6.5mm Microphone input
Battery Level LED Indicator Lights
- Recording Function
- Microphone Priority Function
- Bass & Treble Adjust Knobs
Rugged & Durable Molded Cabinet Design
- Convenient Trolley & Wheels
For Indoor/Outdoor Use

Technical Specs:

• Construction Material: Polypropylene (PP)
  Max Power Output: 400 Watt Max
  Sound System: 8" -inch Subwoofer + 1" Tweeter
  Impedance: 3.6 Ohm
  Frequency Response: 40Hz-16KHz
• USB Interface Type: 2.0
  Digital Audio File Support: MP3
  Maximum USB Flash Support: 32GB
  Remote Control Battery Operated, 1 Piece Button Cell Battery CR-2025 (Included)
  Battery Life: Up to 3 Hours (Charge Time: Approx. 5Hours)
  Rechargeable Battery: 3.7V, 3600mAh - 13.32Wh
• Power Supply: 120/240V, Switchable (5V/2A Power Adapter)
  Product Dimensions (L x W x H): 9.3" x 7.8" x 14.3" -inches/ 23,6 x 19,8 x 36,3 cm

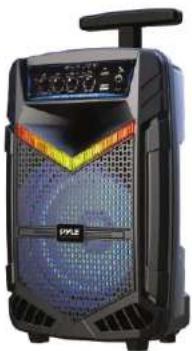

PPHP1042B

Features:

True Wireless Stereo System
- Portable Speaker System
High-Powered PA Loudspeaker Style
- Wireless BT Music Streaming Ability
- Multi-Color Flashing LED Party Lights
Built-in Rechargeable Battery
FM Radio with Digital LED Display
- Connect & Stream Audio from External Devices
- Aux (3.5mm) Input Connector Jack
- USB Flash Memory Reader
- Micro SD Card Reader
- 6.5mm Microphone input
- Battery Level LED Indicator Lights
- Recording Function
- Microphone Priority Function
- Microphone Echo Adjust Knob
- Bass & Treble Adjust Knobs
Rugged & Durable Molded Cabinet Design
- Convenient Trolley & Wheels
For Indoor/ Outdoor Use

Technical Specs:

• Construction Material: Polypropylene (PP)
  Max Power Output: 600 Watt Max
  Sound System: 10^ -inch Subwoofer + 1" Tweeter
  Impedance: 3.6 Ohm
  Frequency Response: 40Hz-16KHz
• USB Interface Type: 2.0
  Digital Audio File Support: MP3
  Maximum USB Flash Support: 32GB
  Remote Control Battery Operated, 1 Piece Button Cell Battery CR-2025 (Included)
• Battery Life: Up to 3.5 Hours (Charge Time: Approx. 5 Hours)
  Rechargeable Battery:7.4V, 3600mAh -26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.5A Power Adapter)
  Product Dimensions (L x W x H): 11.6" x 8.4" x 17.9" -inches/ 29,5 x 21,3 x 45,5 cm

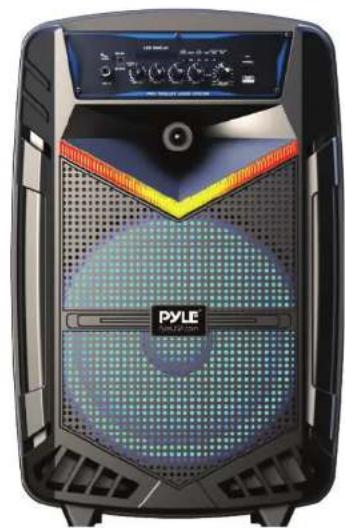

PPHP1242B

Features:

True Wireless Stereo System
- Portable Speaker System
High-Powered PA Loudspeaker Style
Wireless BT Music Streaming Ability
Multi-Color Flashing LED Party Lights
Built-in Rechargeable Battery
FM Radio with Digital LED Display
- Connect & Stream Audio from External Devices
- Aux (3.5mm) Input Connector Jack
- USB Flash Memory Reader
- Micro SD Card Reader
- 6.5mm Microphone input
Battery Level LED Indicator Lights
- Recording Function
- Microphone Priority Function
- Microphone Echo Adjust Knob
Bass & Treble Adjust Knobs
Rugged & Durable Molded Cabinet Design
- Convenient Trolley & Wheels
For Indoor/Outdoor Use

Technical Specs:

• Construction Material: Polypropylene (PP)
  Max Power Output: 800 Watt Max
  Sound System: 12" -inch Subwoofer + 1" Tweeter
  Impedance: 3.6 Ohm
  Frequency Response: 40Hz-16KHz
• USB Interface Type: 2.0
  Digital Audio File Support: MP3
  Maximum USB Flash Support: 32GB
  Remote Control Battery Operated, 1 Piece Button Cell Battery CR-2025 (Included)
  Battery Life: Up to 3 Hours (Charge Time: Approx. 5 Hours)
  Rechargeable Battery:7.4V, 3600mAh -26.64 Wh
  Power Supply: 120/240V, Switchable (9V/1.5A Power Adapter)
  Product Dimensions (L x W x H): 13.6" x 9.9" x 20.7" -inches/ 34,5 x 25,1 x 52,6 cm

PPHP1542B

Features:

True Wireless Stereo System
- Portable Speaker System
High-Powered PA Loudspeaker Style
- Wireless BT Music Streaming Ability
- Multi-Color Flashing LED Party Lights
Built-in Rechargeable Battery
FM Radio with Digital LED Display
- Connect & Stream Audio from External Devices
- Aux (3.5mm) Input Connector Jack
- USB Flash Memory Reader
- Micro SD Card Reader
- 6.5mm Microphone input
- Battery Level LED Indicator Lights
- Recording Function
- Microphone Priority Function
- Microphone Echo Adjust Knob
- Bass & Treble Adjust Knobs
Rugged & Durable Molded Cabinet Design
- Convenient Trolley & Wheels
For Indoor/ Outdoor Use

Technical Specs:

• Construction Material: Polypropylene (PP)
  Max Power Output: 1200 Watt Max
  Sound System: 15^ -inch Subwoofer +1 "Tweeter
  Impedance: 3.6 Ohm
  Frequency Response: 40Hz-16KHz
• USB Interface Type: 2.0
  Digital Audio File Support: MP3
  Maximum USB Flash Support: 32GB
  Remote Control Battery Operated, 1 Piece Button Cell Battery CR-2025 (Included)
  Battery Life: Up to 2.5 Hours (Charge Time: Approx. 5 Hours)
  Rechargeable Battery:7.4V, 3600mAh - 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.5A Power Adapter)
  Product Dimensions (L x W x H): 17.8" x13.3" x 27.4" -inches/ 45,2 x 33,8 x 70 cm

PYLE

PyleUSA.com

Preguntas? Problemas?

Specifications techniques:

Specifications techniques:

Specifications techniques:

Streaming BT wireless:
