Tulip - Fire pit Blumfeldt - Free user manual and instructions

Product type	Brazier / outdoor fire pit
Brand	Blumfeldt
Model	Tulip
Use	Outdoor only
Main material	Metal
Fuel	Wood or charcoal
Functions	Decorative fire pit and barbecue
Recommended ignition	Paper or dry wood, matches or lighter
Barbecue grill included	Yes
Lid included	Yes
Poker included	Yes
Spare parts provided	Handle, lid, wood grate, brazier, metal ring, decorative trim, bar, M6x12 screw, nuts, poker
Assembly required	Yes, screwing the feet and installing the grate
Cleaning	Damp cloth, mild soapy water; avoid abrasive products
Maintenance	Regularly check the condition of parts, replace if damaged
Safety	Do not use in an enclosed space, away from flammable materials, heat-resistant gloves
Storage	After complete cooling, ashes removed
Country of origin	Not specified

Frequently Asked Questions - Tulip Blumfeldt

Where can I use the Tulip brazier?

The brazier must be used only outdoors, on a flat, heat-resistant surface away from any flammable materials. Never use it in a garage, tent, or enclosed space.

What type of fuel to use?

Use dry firewood or charcoal. Never use gasoline, alcohol burner, or lighter fluid to light or relight the fire.

How to assemble the brazier?

Unpack all parts. Attach the legs by screwing the M6x12 screws and nuts. Place the brazier on the base, insert the wood grate, then add the barbecue grill or lid depending on use.

Can I use the brazier as a barbecue?

Yes, a barbecue grill is provided. Place about 0.5 kg of charcoal on the wood grate, light it, and wait until it is covered with ashes before placing food. Only grill when the fuel is well glowing.

How to safely extinguish the fire?

Stop adding fuel or smother the fire with sand. Never use water, as it could damage the brazier and cause dangerous splashes.

Does the brazier get very hot?

Yes, the metal surface becomes very hot. Never touch the brazier while in use and wear heat-resistant gloves. Keep children and pets away.

How to clean the brazier after use?

Wait until the brazier has completely cooled. Remove the ashes. Clean the exterior with a damp cloth and mild detergent. For stubborn stains, use a citrus-based cleaner and a nylon brush. Avoid abrasive cleaners.

Can I leave the brazier unattended?

No, never leave the brazier unattended while it is lit. Embers may fall and cause a fire.

What to do if a part is damaged?

Regularly inspect all parts. If you notice damage, have the brazier repaired before using it again. Spare parts are not listed as available separately in the manual; contact the manufacturer.

Why is my barbecue grill discoloring?

A slight discoloration of the metal surface is normal after several uses. It does not affect the operation of the brazier.

USER MANUAL Tulip Blumfeldt

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

WARNING

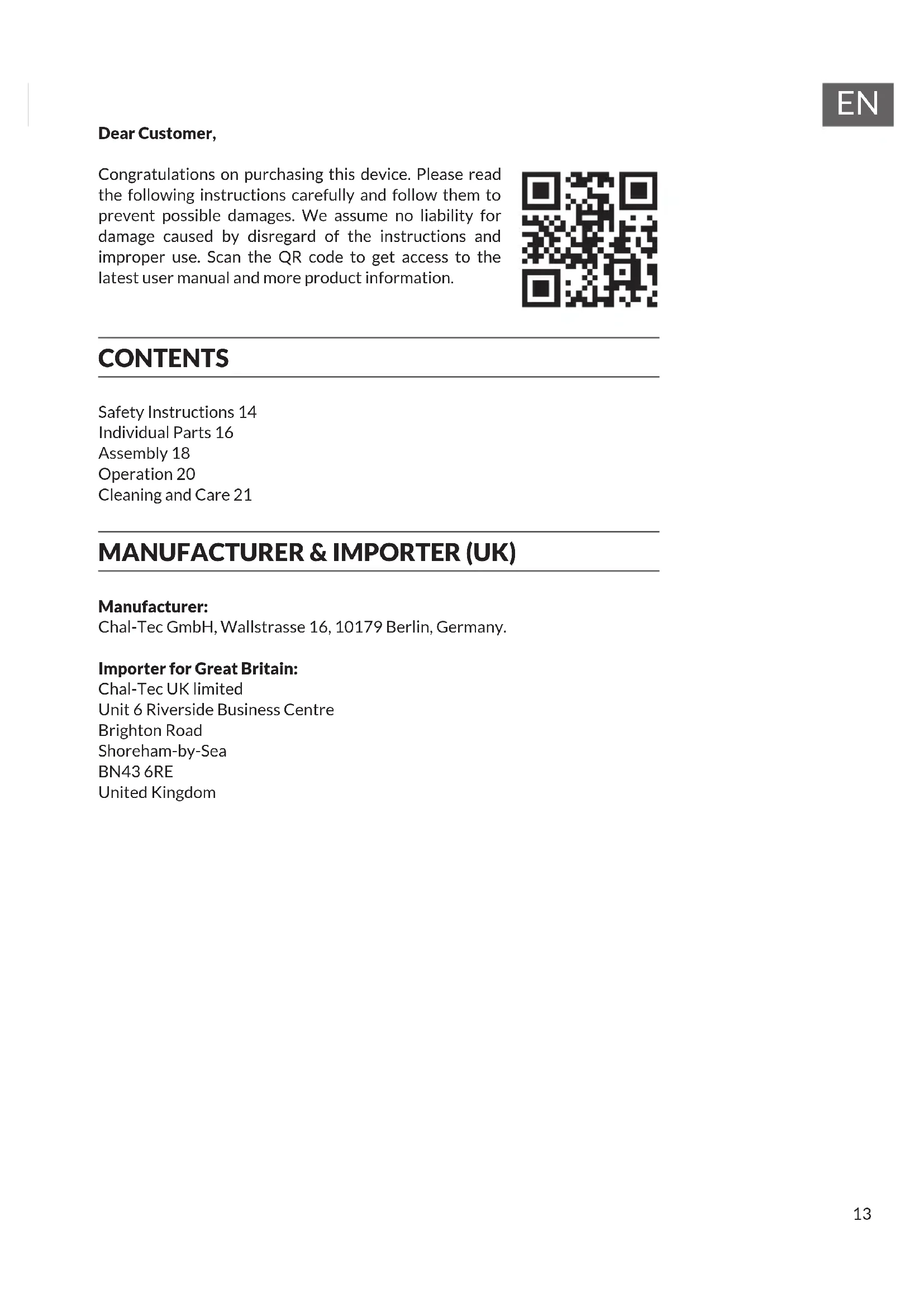

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 14

Individual Parts 16

Assembly 18

Operation 20

Cleaning and Care 21

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

WARNING

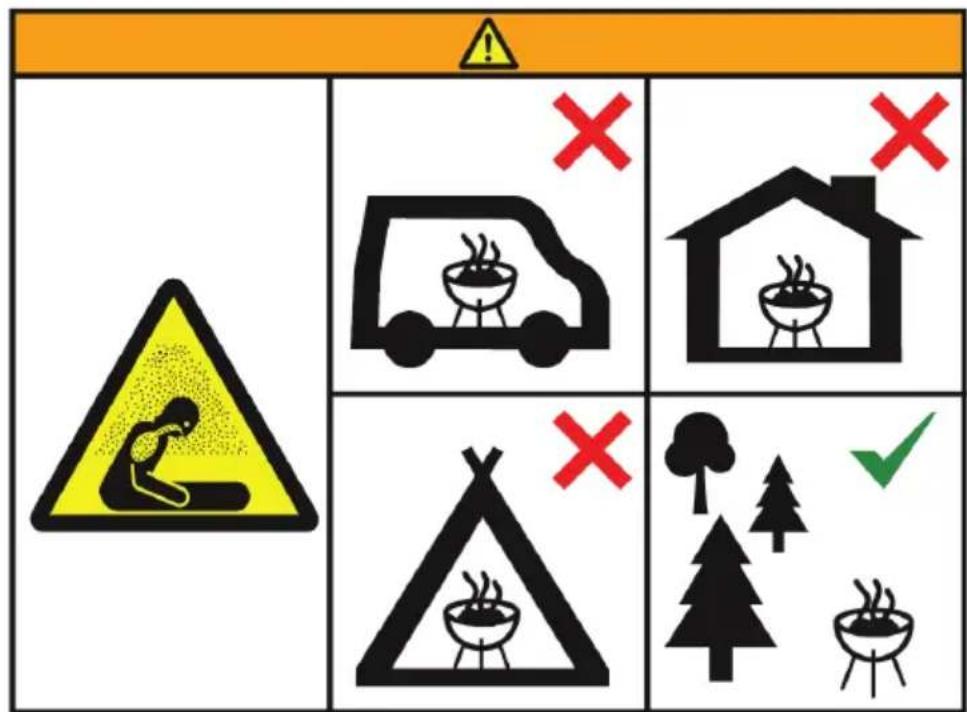

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoal are completely extinguished.
• Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire bowl with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
• Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

Special instructions for grills

• Do not place the food on the grill until the fuel is covered with a layer of ash!
• The appliance becomes very hot and must not be moved during operation.
• Do not use the appliance in closed rooms.
• Do not use spirit or petrol for ignition or reignition. Only use ignition aids in accordance with EN 1860-3.
• Keep children and pets away from the appliance.

INDIVIDUAL PARTS

No. Quantity Picture Description
11		∅	Handle
21			Cover
31			Grate for firewood
41			Fire bowl
51			Metal ring
66			Decorative cover
71			Foot
No. Quantity Picture	ure Description
8 18			M6x12 bolt
9 7			Nut
10 1			poker
11 1	Grill grate

ASSEMBLY

1

Select a flat surface for assembly. Unpack all parts from the packaging. Store the packaging for future transport.

2

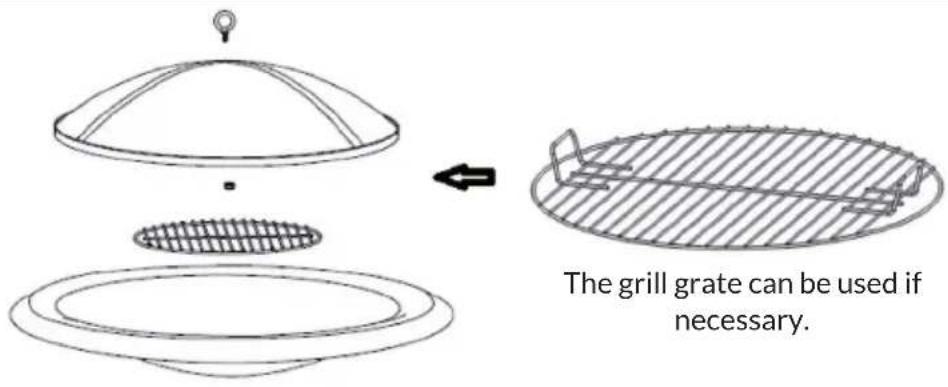

Insert the handle (1) through the hole in the apex of the cover (2) as shown here and fix with a nut (9).

3

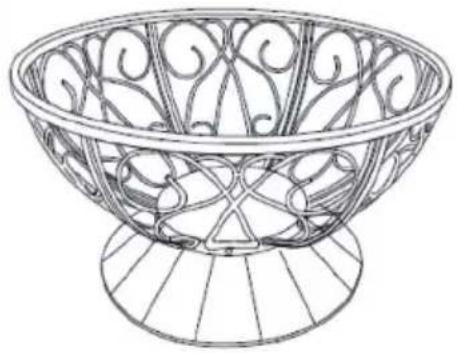

Take the foot (7) and fit it with the decorative covers (6). Fix them with the metal ring and 3 screws and nuts each.

4

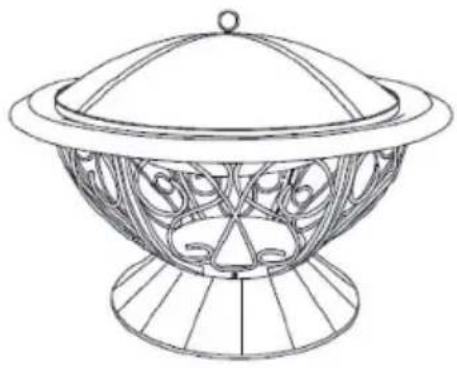

Place the fire bowl on the resulting base. Insert the grate. Your fire bowl is now ready for use. Insert the grill grate (11) for grilling and/or place the cover on top to finish.

OPERATION

Ignite Fire

1 Make sure that the fire bowl is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
2 Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

3 Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fire bowl with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fire bowl, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

Use as a grill

• The grill and the equipment must be clean and free of residues before grilling.
• Put approx. 0.5kg of coal on the coal grid and ignite the coal according to the instructions above.
• Place the grill on the fire bowl. Make sure that the grille is firmly in place.
• Start grilling when the fuel has an ash layer.
• The food must be completely cooked before consumption.
• Do not remove the grate until the grill has completely cooled down.
• Always clean the grill rack and cutlery after grilling.

CAUTION

Danger of burns! Allow the fire bowl to cool completely before inspecting or cleaning it for damage.

Inspect the fire bowl for damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1 Check all parts to make sure they are tight.
2 Check the components for damage.
3 If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.
