USER MANUAL Versailles Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SICHERHEITSHINWEISE

WARNUNG

Warning sign with pictograms and symbols, including a yellow warning triangle and four quadrants with red X marks.

VORSICHT!

VERWENDEN SIE KEINEN ALKOHOL ODER BENZIN ZUM ANZÜNDEN ODER WIEDERANZÜNDEN!

Line drawing of a fire pot with fleur-de-lis motifs and a tool labeled 'G' (no text or symbols on the main diagram)

VORSICHT

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 12

Individual parts 14

Assembly 15

Operation 17

Cleaning and Care 18

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

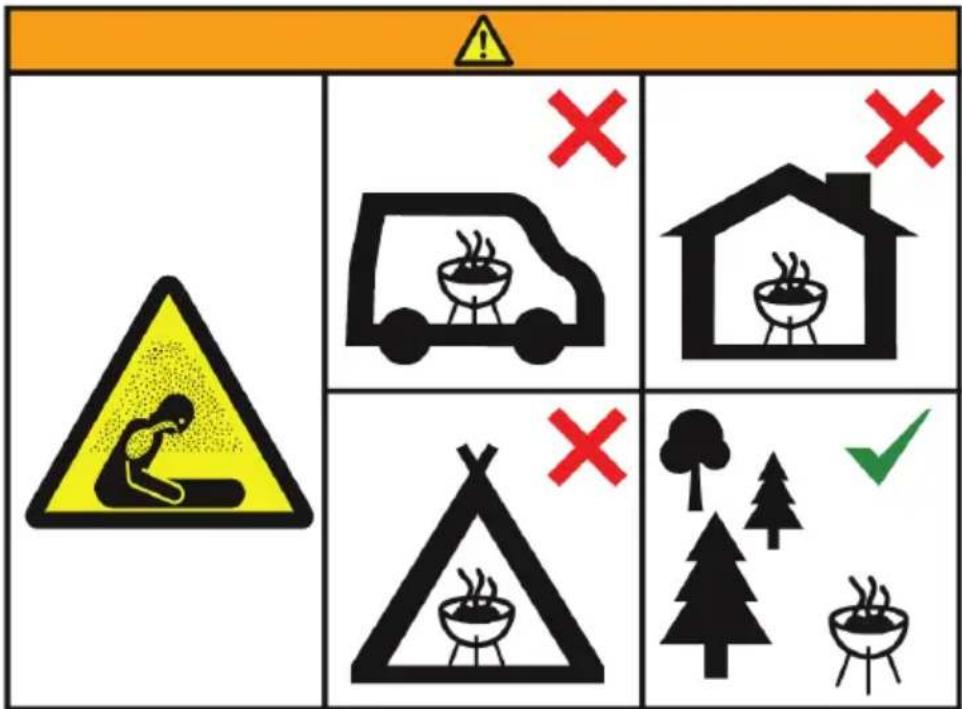

WARNING

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fi re bowl with fuel. Do not add additional fuel until the fi re burns down. If an portion of the fi re bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

Warning sign with pictograms and symbols, including a yellow warning triangle, four black-and-white icons representing heating, cooking, heating room, camping, and gathering.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

INDIVIDUAL PARTS

No.	Quantity Description Picture
A 1	Fire bowl
B 3	Support legs
C 2	Handles
D 1	Handle for cover grill
E 1	Cover grille
G 1	Gripper
S1 10	Screws
S2	5	Hexagon nuts with integrated washer
S3	3	Sleeves

ASSEMBLY

Required tools

• Wrench
• Screwdriver

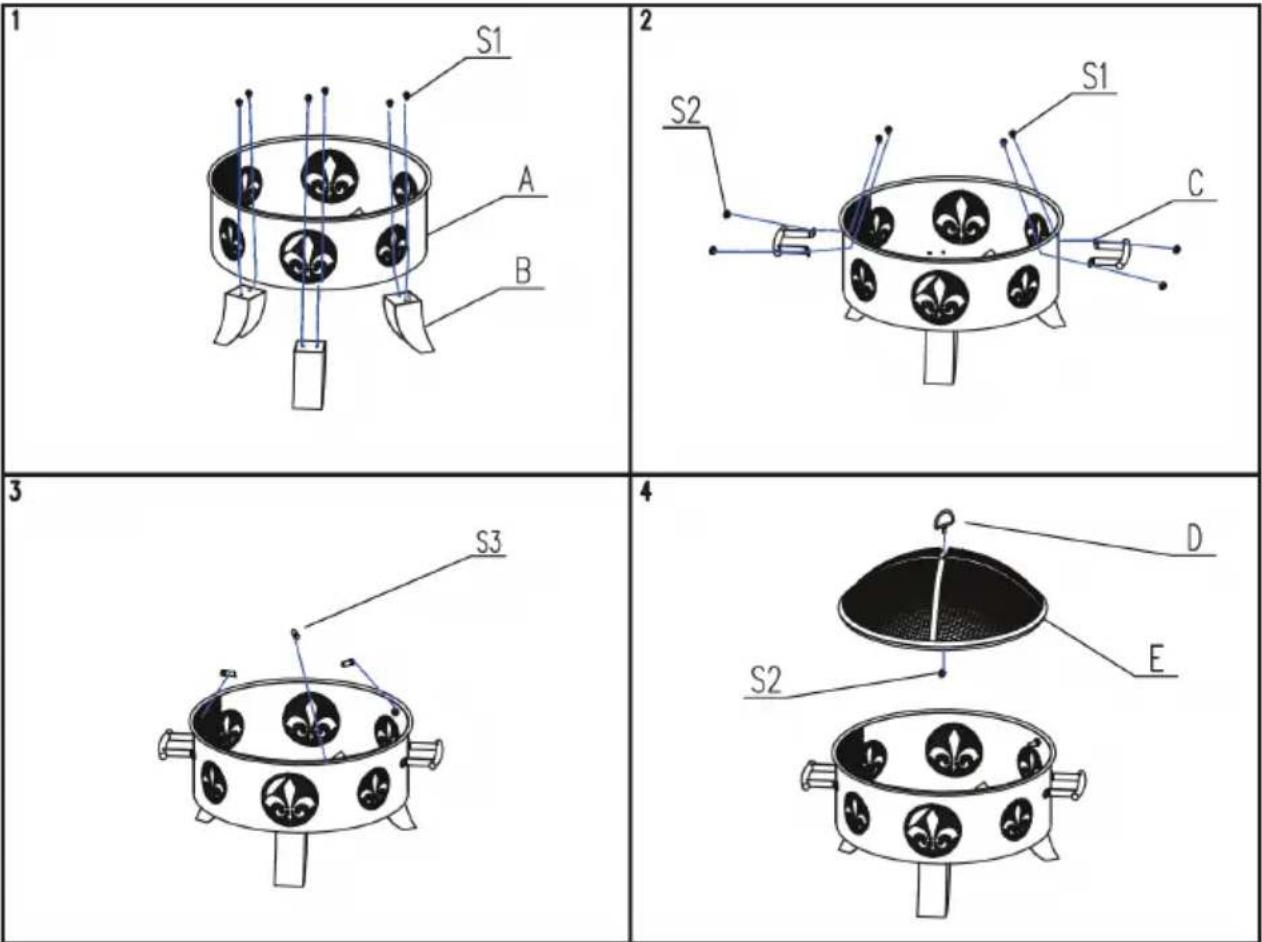

1 S1 A B 2 S2 S1 C 3 S3 4 D E S2

1. Attach the legs (B) and fasten them to the fire bowl (A) using the screws (S1).
2. Attach handles (C) and tighten bolts (S1) and nuts (S2) from both sides.
3. Screw in sleeves (S3) on the inside.
4. Fasten the cover grille handle (D) to the cover grille (E) from below using the union nut (S2).

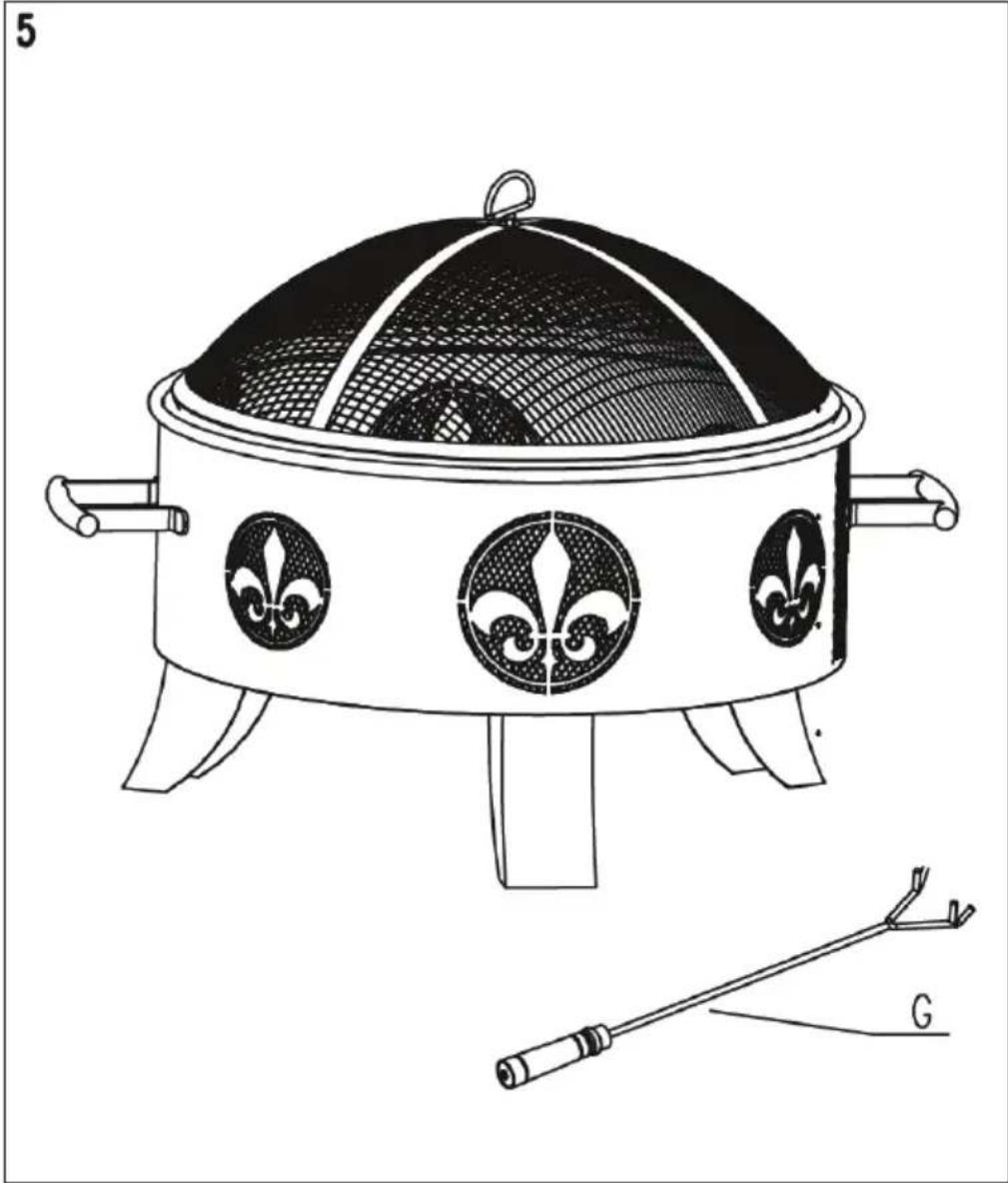

Line drawing of a fire pot with fleur-de-lis motifs and a handle, no text or symbols present

CAUTION

Danger of burns! Always use the gripper (G) to remove the cover grille.

Never touch the cover grille with bare hands.

OPERATION

Ignite Fire

1 Make sure that the fire bowl is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
2 Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

3 Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fire bowl with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fire bowl, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fi re bowl to cool completely before inspecting or cleaning it for damage.

Inspect the fire bowl for damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1 Check all parts to make sure they are tight.
2 Check the components for damage.
3 If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Warning sign with pictograms and symbols, including a yellow warning triangle, black house icons, and green checkmark for cooking.

¡Atención!

¡NO UTILICE ALCOHOL O GASOLINA PARA ENCEDER LA CHIMENEA!

PARTES INDIVIDUALES

Line drawing of a fire pot with fleur-de-lis motifs and a handle, no text or symbols present

PRECAUCIÓN

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

CONSIGNES DE SÉCURITÉ

MISE EN GARDE

Warning sign with pictograms and symbols, including a yellow warning triangle, black house icons, and green checkmark for cooking.

ATTENTION!

N'UTILISEZ PAS D'ALCOOL OU D'ESSENCE POUR ALLUMER OU RALLUMER LE FEU !

Line drawing of a fire pot with fleur-de-lis motifs and a tool labeled 'G' (no text or symbols on the main diagram)

ATTENTION

QR code image containing encoded data, no visible human-readable text

INDICE

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

AVVERTENZE DI SICUREZZA

AVVERTIMENTO

Warning sign with pictograms and symbols, including a yellow warning triangle, black house icons, and green checkmark

ATTENZIONE!

NON UTILIZZARE ALCOOL O BENZINA PER ACCENDERE O RIATTIVARE IL FUOCO!

Line drawing of a fire pot with fleur-de-lis motifs and a tool labeled 'G' (no text or symbols on the main diagram)

ATTENZIONE
