DVDUSB02SV - DVD player Gembird - Free user manual and instructions

Product type	External DVD drive
Brand	Gembird
Model	DVDUSB02SV
Interface	USB 2.0 (USB 3.0 compatible)
Supported disc formats	DVD-ROM, DVD-R, DVD+R, DVD-RW, DVD+RW, CD-ROM, CD-R, CD-RW
DVD read speed	Up to 8x
CD read speed	Up to 24x
DVD write speed	Up to 8x (DVD-R/DVD+R)
CD write speed	Up to 24x
Power supply	USB (5V, 1A)
Dimensions (L x W x H)	141 x 141 x 15 mm
Weight	220 g
Housing material	ABS plastic
Compatible operating systems	Windows 7/8/10/11, macOS 10.9 or later, Linux (driverless)
Included accessories	USB cable, protective case, user manual
Main functions	DVD/CD playback and burning, plug-and-play function, slim and portable design
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Safety	Do not expose to moisture or extreme temperatures. Unplug after use.
Spare parts and repairability	No user-serviceable parts. Contact after-sales service in case of defects.
Warranty	2 years, subject to the conditions of Gembird Europe B.V.

Frequently Asked Questions - DVDUSB02SV Gembird

The DVD drive is not recognized by my computer, what should I do?

Check that the USB cable is properly connected and that the USB port works. Try another port. On some PCs, a driver may be required. Visit the Gembird website for updates.

Can I use this drive to watch video DVDs on a TV?

No, this drive is designed to be connected to a computer via USB. It does not have an HDMI or direct video output for a TV.

The drive cannot read some DVDs, why?

Make sure the disc is not scratched or dirty. Clean it with a soft cloth. Also check that the DVD format is supported (DVD-R, DVD+R, etc.). Some DVDs protected by regional coding may not be read if the region code does not match.

How do I clean the drive?

Use a soft, dry cloth to wipe the exterior. For lens cleaning, use a special cleaning disc for optical drives. Avoid liquids.

What is the power consumption of the drive?

The drive is powered via the USB port and consumes about 5 V / 1 A (5 W) under normal operation. It can be used directly on a standard USB port.

Can I burn data to a DVD with this drive?

Yes, this drive supports burning DVDs and CDs. Use burning software like Windows Disc Image Burner or third-party software. Make sure to use compatible discs (DVD-R, DVD+R, etc.).

Does the drive get hot during use?

Slight heat is normal during playback or burning. If the temperature becomes too high, stop use and let it cool. Do not block the ventilation openings.

Where to find drivers for macOS?

On macOS, the drive is usually recognized automatically without additional drivers. If necessary, download drivers from the Gembird website in the support section.

How to change the region code of the drive?

Under Windows, the region code can be changed via Device Manager in the DVD drive properties. Note that the number of changes is limited (usually 5). Choose the code corresponding to your region.

What to do if the drive makes an abnormal noise?

Stop using it immediately. Check if a foreign object is stuck or if the disc is damaged. If the noise persists, contact Gembird after-sales service.

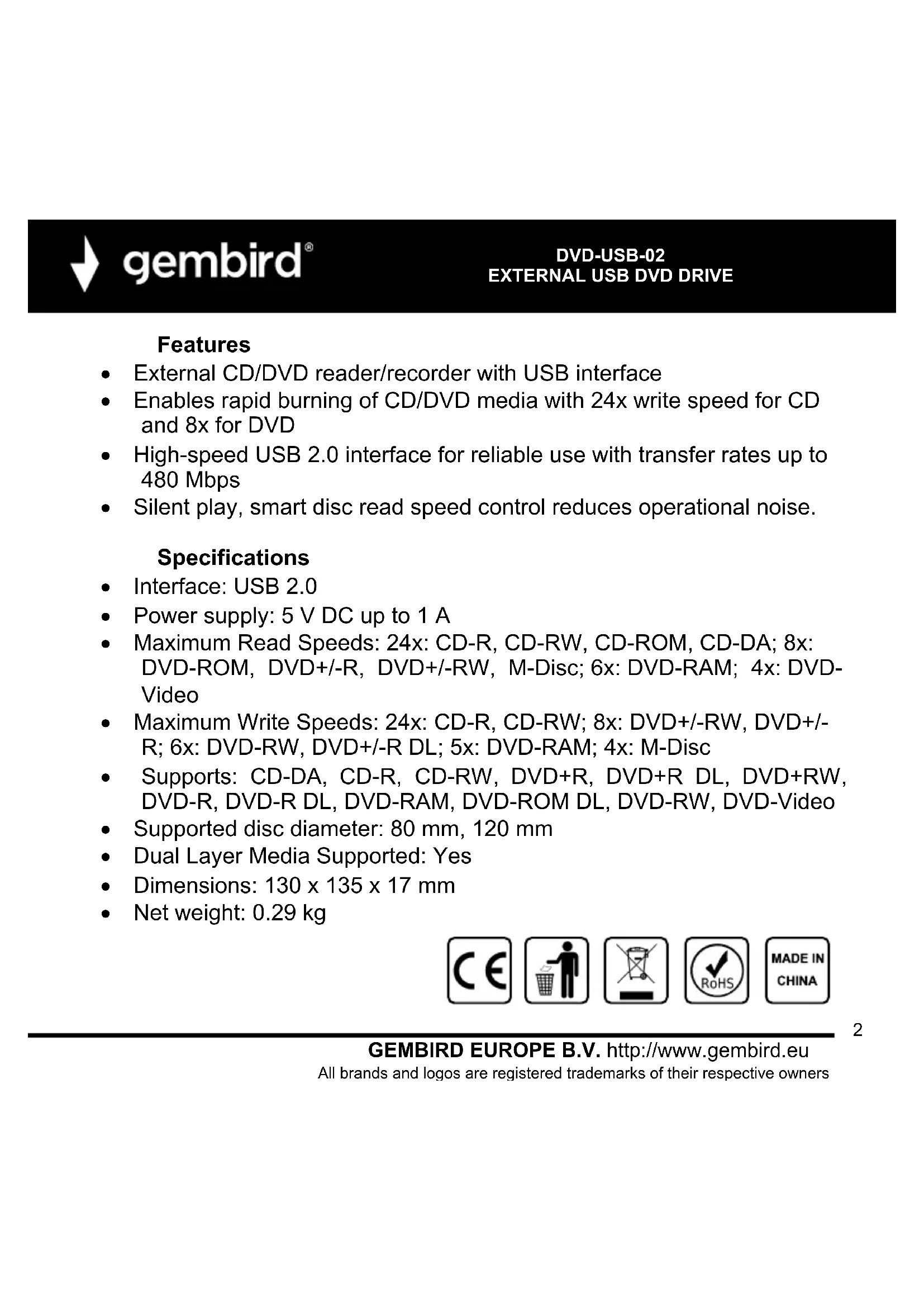

USER MANUAL DVDUSB02SV Gembird

• External CD/DVD reader/ recorder with USB interface
• Enables rapid burning of CD/DVD media with 24x write speed for CD and 8x for DVD
• High-speed USB 2.0 interface for reliable use with transfer rates up to 480 Mbps
• Silent play, smart disc read speed control reduces operational noise.

Specifications

• Interface: USB 2.0
  Power supply: 5 V DC up to 1 A
  Maximum Read Speeds: 24x: CD-R, CD-RW, CD-ROM, CD-DA; 8x: DVD-ROM, DVD+/-R, DVD+/-RW, M-Disc; 6x: DVD-RAM; 4x: DVD-Video
  Maximum Write Speeds: 24x: CD-R, CD-RW; 8x: DVD+/-RW, DVD+/-R; 6x: DVD-RW, DVD+/-R DL; 5x: DVD-RAM; 4x: M-Disc
  Supports: CD-DA, CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM, DVD-ROM DL, DVD-RW, DVD-Video
  Supported disc diameter: 80~mm 120 mm
  Dual Layer Media Supported: Yes
• Dimensions: 130 × 135 × 17 mm
  Net weight: 0.29kg

gembird

DVD-USB-02 EXTERNAL USB DVD DRIVE

1

gembird

DVD-USB-02 EXTERNAL USB DVD DRIVE

2

3

gembird

DVD-USB-02 EXTERNAL USB DVD DRIVE

4

gembird

DVD-USB-02

EXTERNAL USB DVD DRIVE

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

(DE) Konformitätserklärgung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärgung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.

(ES) Declaración de conformidad Este produit está probado y cumple con los requisitos esenciales de las leyes de los Estados miembrlos con respecto a EMC(2014/30/EU), RoHS (2011/65/EU). Ladeclaración CE se pueda encontrar en www.gembird.eu

(CZ) Prohlášeni o shodě Tento produit je testován a splnju základní pržadavyký právních prépisů Členských stavů týkajcích se EMC(2014/30/EU), RoHS (2011/65/EU). Prohlášeni CE nalezne t na www.gembird.eu

(FR/BE) Déclaration de conformità Le produit est contrôle et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontré et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu

(HR) Izjava o sukladnosti Ovaj je proizvod testiran i udovoljava osnovim zahtjevima zakona država Članica u vezi EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE se moze naci pod www.gembird.eu

(IT) Dichiarazione di conformità Questo prodotto è testato ed è conforme ai requisiti essenziali delle leggi degli stati membini in materia di EMC(2014/30/EU), RoHS (2011/65/EU). La dichiarazione CE è disponibile all'indirizzo www.gembird.eu

(PT) Declariação de conformidade Este produits foste testado e está em conformidade com os requisitos essenciais das leis dos estados membros sobre EMC(2014/30/EU), RoHS (2011/65/EU). A declariação CE pode ser encontrar em www.gembird.eu

(PL) Deklaracja zgodnosci Ten produkt zostal przytestowany i jest zgodny z zasadniczymi wymaganiami prawnymi państwo członowskich dotyczącymi EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znejduje sie na stronie www.gembird.eu

(RO) Declaratie de conformitate Acest produs este testat și respecţă cerintele esentiale ale legislājilor stateor membres privind EMC(2014/30/EU), RoHS (2011/65/EU). Declaratóa CE se găsește pe www.gembird.eu

(SK) Vyhlásenie o zhode Tento produit je testovaný a splnă základné požiadovy právnych predpisov Členských státov týkajúcích sa EMC(2014/30/EU), RoHS (2011/65/EU). Vyhlásenie CE najdete na strânke www.gembird.eu

(SL) Izjava o skladnosti Ta izdelek je preizkušen in ustreza bistvenim zahtevam zakonov držav Članic o EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE je na voljo pod www.gembird.eu

(GR) Δнλωση συμρόρωσης Аuto to пточöν éxei ελέγχθεί και συμρόρωνεται με ΠIC βασικεις απαπιθοεις τών νομοθειών τών κρατών μελών σόσου αφορá τήνΕρωταικη σδηγίαg EMC(2014/30/EU), RoHS (2011/65/EU).H δнλωση CE μπορείνα βρεθεί στην δίεύθυση www.gembird.eu

gembird

DVD-USB-02

EXTERNAL USB DVD DRIVE

gembird

DVD-USB-02

EXTERNAL USB DVD DRIVE

(ENG) Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

(DE) Entsorgungshinweise:Werfen Sie ces des Gerät nicht in den Hausmüll. Unsachgemäß Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden.Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihr Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.

(ES) Deposito de basura:No deposite este equipo con la basura domestica. La eliminación inadequada pode fazer tanto el medio ambiente como la salute humana. Para obtener información sobre las instalaciones de recolección de desechos para dispositivos electricos y electrónicos usados, comúniquese con su ayuntimiento o una Empresa autorizada para la eliminación de equipos electricos y electrónicos.

(CZ) Nakladání s opdady:Toto zařízení nevkládeje do domovniho opadu. Nesoprávná likvidace muze poškoditŽivotní prostředí i lidské zdraví. Informace o zařízení pro sběr opadu použitych elektrických a elektronických zařízení ziskáte u městské rady nebo autorizované společnosti o likvidacić elektrických a elektronických zařízení.

(FR/BE) Traitement des déchets:Ne jetez pas cet apparil dans les déchets domestiques. Un traitement inapproprié peut être dommageable à l'environnement et à la santé humain. Vous trouvez des informations sur les centres de rassemblment des appareils vieux chez l'administration municipale ou chez un centre autorisé pour letraitement des appareils ELECTriques ou électroniques.

(HR) Odlaganje smeca:Ovu opremu ne odlažite zajedno s kučnim opdatom. Nepravilno odlaganje moze našetiti okolísu i judskom zdravlju. Za informacije o objektima za príkupljanje opada za rabljene elektrICIne i elektronické uredaje obrataje se gradkom vijecu ili ovlašenom drustvu za odlaganje elektrICIne i elektronické opreme.

(IT) Smaltimento dei rifiuti:Non depositare esta apparecchiatura con i rifiuti domestici. Lo smaltimento improprio può darrendagliare sua ambiente che la salute umana. Per informazioni sulle strutture di raccolta dei rifiuti per i dispositivi elettrici ed elettronici usati, contattare il comune o una società autorizzata per lo smaltimento delleapparecchiatura elettriche ed elettroniche.

(PT) Deposito de lixo:Não deposite este equipoamento no lixo dométrico. O descarte inadequado pode prejudicar o meio ambiente e a saúde humana. Para obter informações sobre instalagoes de coleta de lixo para dispositivos electricos e eletrónicos usados, entre em contato con o conselho da cidad ou uma Empresa autorizada para o descarte de equipartimentos electricos e eletrónicos.

(PL) Utylizacja odpadów:Nie naleźwy deponować tego sprętu razem z opadami domowymi. Niewlasciwa utylizacja要去 czaskodzić zarowyno sądowisku, jak i zdrowiu ludzkiemu.Aby uzyskać informacja na temat urzadźne do zbierania zuzytych urzadźne elektrycznych i elektronicznych, naleź skontatratóć sie z radą miasta lubupożniónafirmá welu usunięcia sprȩtu elektryczné i elektroniczné.

(RO) Eliminarea deseurilor:Nu depuneti acest echipament cu deseurile menajere. Eliminarea necorespunzātoare poate dàuna atăt mediolui, CATs sānătatii umane. Pentru informazionidespre instalațiile de colectare a deseurilor pentru dispositiviyelectrici si Electronice folosite, vărugam sā contactați consiliul municipal tau o companie autoritàţă pentru eliminarea echipamentelor electrice si electronice.

(SK) Likvidácia odpadu:Toto zariadenie nevkladajte do domového opadu. Nesoprávná likvidácia moze poškoditŽivotné prostredie a fudské zdravie. Informácie o zariadeniach na zberpoužitého opadu z elektrických zariadeni ziskade od mustekého zastupitefstva alebo od autorizovaneyj spoločnosti o likvidáciélektrických aelektronických zarieni.

(SL) Odlaganje odpadkov:Te opreme ne odlagajte skupaj z gospodinskimi odpadki. Nepravilno odstranjevanje lahko škoduje okolju in zdravju ljudi. Za informacije o napravah za zbiranje odpadnih elektrickñih in elektronskihnaprav se obrnite na mestni svet al pooblačné podjetje za odstranjevanje elektricne in elektronics opreme.

(GR) Δiaxερίση ατορριμάνν:Mύν καταθέτετε autόν τον εξοτλισό στα Μικίακα ατορριμάντα. H ακαταλληλη ατορριμη μτορείν αβλάμε τός τοῦ το περιβάλλου σός και τήν ανθρωτπυν ηεία. Γία πληρορορίες σχετικά με τός εγκατατάεις συλλούης ατορριμάντων γία χρημιστοιπημένες ήλεκτρικός και λεκτρονικός συκεύες, ἀπικοινυνότης με το δημοτίκος συμβουύlius ἡμι εξουσιδόθιμένη έταρεία γία τή διαθεση ήλεκτρικών και

gembird

DVD-USB-02

EXTERNAL USB DVD DRIVE

(ENG) WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products.

Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands
