LRD905UBRXTT - Fridge BERTAZZONI - Free user manual and instructions

Brand	Bertazzoni
Model	LRD905UBRXTT
Product type	Frost Free Refrigerator
Gross capacity	370 L
Net refrigerator capacity	360 L
Net freezer capacity	No freezer compartment
Refrigerant	R600a (isobutane)
Supply voltage	220-240 V ~ 50/60 Hz
Current consumption	1.2 A
Climate class	SN/T (subtropical temperate)
Lighting	Integrated LED
Special functions	Shopping, Vacation, Sabbath, Demo Mode
Control panel	Touchscreen with display
Temperature settings	+2 °C to +8 °C (refrigerator)
Number of shelves	1 adjustable (sliding)
Number of drawers	2 in AISI 304
Number of door balconies	Large door balconies

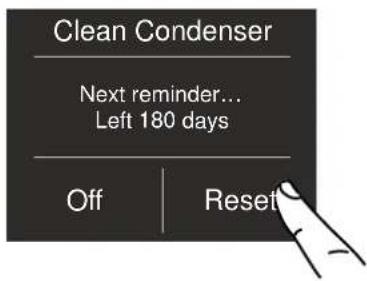

Condenser cleaning	Every 6 months (automatic reminder)
Safety	Visual and audible alarms, setting lock
Supplied accessories	Cleaning kit (microfiber cloth, sponge)
Repairability	Bertazzoni technical support, no specific spare parts mentioned

Frequently Asked Questions - LRD905UBRXTT BERTAZZONI

How to adjust the refrigerator temperature?

On the home screen, tap the refrigerator compartment icon. Scroll up or down to select a temperature from +2 °C to +8 °C, then press OK to confirm.

What to do in case of a prolonged power outage?

When power returns, the appliance emits an audible alarm and displays the highest recorded temperatures. Press the Alarm icon to deactivate the alarm and check the condition of the food.

How to activate Vacation mode?

From the home screen, tap the Functions icon, then select Vacation. Confirm with Yes and set the duration (1 to 90 days). This function sets the refrigerator temperature to +14 °C to save energy.

How to clean the condenser?

Turn off the appliance for 30 minutes. Remove the front ventilation grille and clean the condenser with a vacuum cleaner equipped with a soft brush. Replace the grille and turn on the appliance. An automatic reminder appears every 6 months.

What does the message 'Unit Open' mean on the screen?

This message appears if the refrigerator door remains open for more than one minute. Close the door to make it disappear. If it persists, check that nothing prevents it from closing completely.

How to deactivate the audible alarm?

Press the Alarm icon (triangle) on the main control panel to deactivate the audible alarm. The screen will display the corresponding alert message.

Can I freeze food with this refrigerator?

This model is a refrigerator only, without a freezer compartment. It does not allow freezing of food. Use it only for cold storage.

How to reset to factory settings?

Go to Settings > Reset. Confirm with Yes to restore default values. All your custom settings will be erased.

What to do in case of an error code on the screen?

Note the displayed error code. Press the Alarm icon to deactivate the alarm. If the problem persists after 12 hours, contact Bertazzoni after-sales service with the error code.

How to activate Sabbath mode?

In Settings, scroll to the Sabbath icon. Confirm with Yes to activate. This mode disables thermostat control, interior lighting, and alarms during religious observance.

USER MANUAL LRD905UBRXTT BERTAZZONI

LRD...5UB...TT Series

1 INFORMAZIONI IMPORTANTI PER LA SICUREZZA E L'AMBIENTE 4

Hand inserting a plug into an electrical socket (no text or symbols visible)

Importante

in Spagna https://universal.bertazzoni.com/more/care-service

in Olanda https://nl.bertazzoni.com/zorg-en-service

in Svezia https://se.bertazzoni.com/more/care-service

in Danimarca https://dk.bertazzoni.com/more/care-service

Image showing a row of icons including a circular emblem, a square with 'SALAD' text, and directional arrows below.

Image containing a circular logo with 'SARAYA' and three symbols: a small circle, a black square with a white circular symbol, and a hand gesture pointing left.

7 8 Ora | 9 | 10 11 OK

7 8 Ora | 9 | 10 1 OK

D) Scorrere verso

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Ripiani

Line drawing of a hand holding a tool interacting with a vertical rod (no text or symbols)

Line drawing of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

7.1 Illuminazione

Pure electrical circuit lines without any symbols

Diagram of a door frame with an open door and a slatted panel, showing structural components without any text or symbols.

Illustration of a hand inserting a tube into a ventilation duct (no text or symbols)

1.1 For your safety.... 2
1.2 Important information when using the appliance.... 2
1.3 Caring for the environment 4
1.4 Information for control bodies.... 4
1.5 To save energy.... 5

2 INSTALLATION 6

2.1 Installation.... 6
2.2 Connection to electrical power supply 6
2.3 Refrigerant.... 6

3 BEFORE STARTING 7

3.1 Know your appliance.... 7
3.2 Main components.... 8
3.3 Electric Control.... 9
3.4 Main control panel.... 9

4 APPLIANCE SWITCHING ON AND OFF 10

4.1 Turning the appliance on and off.... 10
4.2 How to adjust the temperature for different requirements.... 11
4.3 Information signals of anomaly on the display.... 12

5 CUSTOMIZE FUNCTIONS AND SETTINGS 12

5.1 Functions.... 12
5.2 Settings.... 13

6 INTERNAL LAYOUT 19

6.1 Internal layout (positioning, adjustment, removal) 19

7 LIGHTING 20

7.1 Lighting.... 20

8 FOOD STORAGE 20

8.1 General directions.... 20
8.2 How to best preserve food quality.... 21
8.3 Conservation Tips 21

9 CARE AND CLEANING 23

9.1 Care and Cleaning.... 23
9.2 Internal cleaning.... 23
9.3 Cleaning of the ventilation grille, filter and condenser.... 24

0 TROUBLESHOOTING GUIDE 25

0.1 Troubleshooting Guide.... 25
0.2 Malfunction messages appearing on the display.... 26

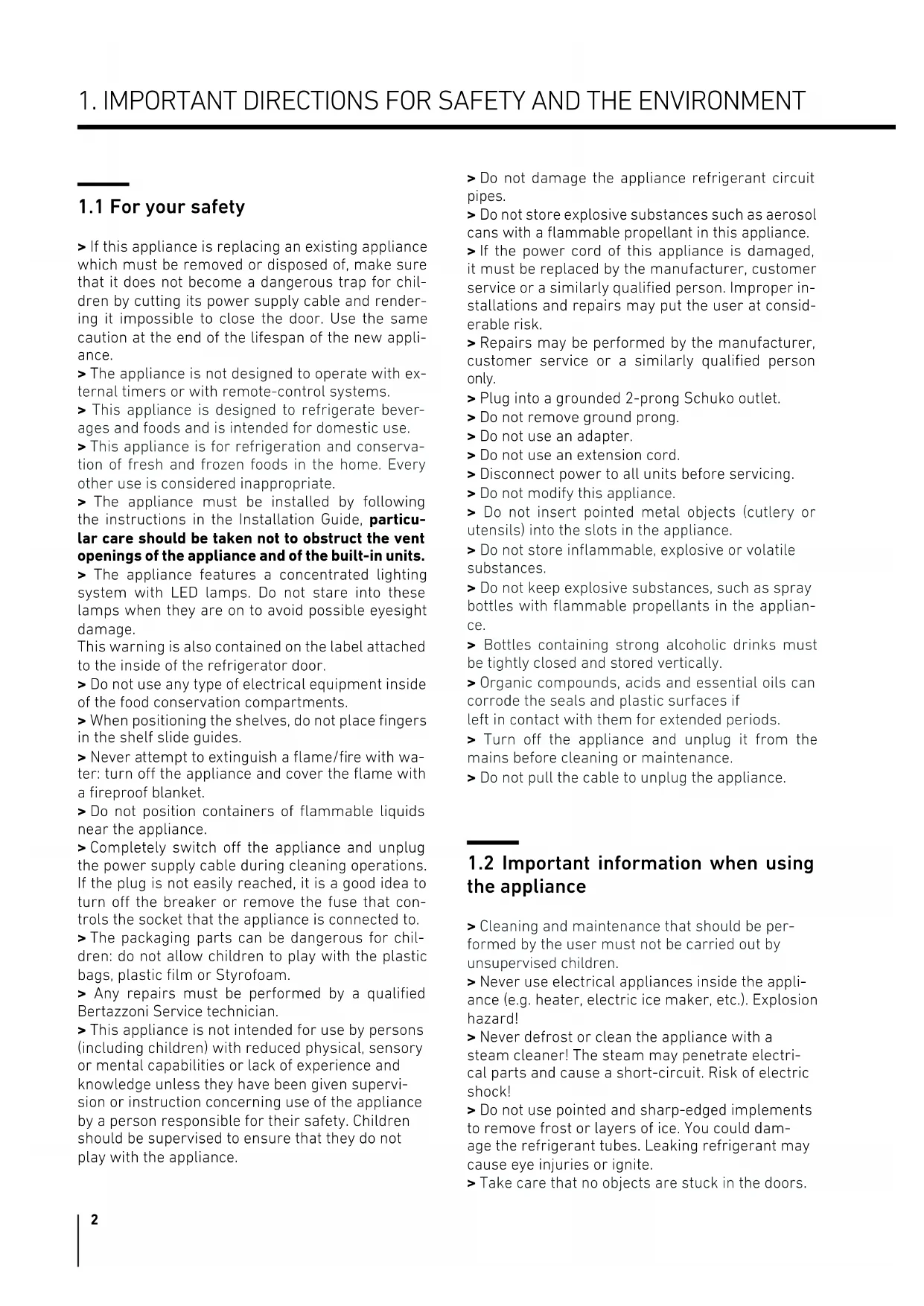

1.1 For your safety

If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance.

The appliance is not designed to operate with external timers or with remote-control systems.

This appliance is designed to refrigerate beverages and foods and is intended for domestic use.

This appliance is for refrigeration and conservation of fresh and frozen foods in the home. Every other use is considered inappropriate.

The appliance must be installed by following the instructions in the Installation Guide, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units.

The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.

This warning is also contained on the label attached to the inside of the refrigerator door.

Do not use any type of electrical equipment inside of the food conservation compartments.

When positioning the shelves, do not place fingers in the shelf slide guides.

Never attempt to extinguish a flame/fire with water: turn off the appliance and cover the flame with a fireproof blanket.

Do not position containers of flammable liquids near the appliance.

Completely switch off the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn off the breaker or remove the fuse that controls the socket that the appliance is connected to.

The packaging parts can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam.

Any repairs must be performed by a qualified Bertazzoni Service technician.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Do not damage the appliance refrigerant circuit pipes.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.
Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.
Plug into a grounded 2-prong Schuko outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Disconnect power to all units before servicing.
Do not modify this appliance.
Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.
Do not store inflammable, explosive or volatile substances.
Do not keep explosive substances, such as spray bottles with flammable propellants in the appliance.
Bottles containing strong alcoholic drinks must be tightly closed and stored vertically.
Organic compounds, acids and essential oils can corrode the seals and plastic surfaces if left in contact with them for extended periods.
Turn off the appliance and unplug it from the mains before cleaning or maintenance.
Do not pull the cable to unplug the appliance.

1.2 Important information when using the appliance

Cleaning and maintenance that should be performed by the user must not be carried out by unsupervised children.
Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
▶ Take care that no objects are stuck in the doors.

Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

Explosion hazard!

Do not stand on or lean heavily against base of appliance, drawers or doors, etc.

Before cleaning the appliance, pull out the power cord plug or switch off the fuse. Do not pull out the power cord plug by tugging on the power cord.

Store high-percentage alcohol tightly closed and standing up.

Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.

Never cover or block the ventilation openings of the appliance.

According to current regulations, children between 3 and 8 years of age can take or load food from the appliance, but it is highly discouraged to allow children under 8 years of age to perform these operations and in general to use the appliance.

Keep children under the age of eight at a safe distance unless they are constantly supervised and make sure that they do not play with the appliance.

Do not use mechanical, electrical, chemical devices other than those recommended by the manufacturer to speed up the defrosting process.

Do not damage the cooling circuit (if it can be accessed).

Do not use electrical appliances inside food storage compartments unless these are of the type recommended by the manufacturer.

In the event of damage to the cooling circuit, avoid the use of naked flames and ventilate the area properly.

Do not use the appliance or parts of it in ways other than those specified in this manual.

Opening the door for long periods can cause the temperature in the appliance compartments to rise considerably.

Clean surfaces that may come into contact with food and accessible drainage systems regularly.

Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with other food or drip on it.

If the appliance is left empty for long periods of time, switch it off, thaw it, clean it, dry it and leave the door open to prevent the development of mould inside.

Never rest sharp metal objects such as knives, forks, spoons and lids on the appliance during use.

Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts.

Do not sit on the appliance.

Do not sit or lean on the door or any open drawers.

Do not prize the door or handle to move the appliance.

Do not use electrical appliances (e.g. hair dryers) or sprays for defrosting, the plastic parts could be damaged.

Do not use the appliance to cool rooms for any reason.

Always unplug the appliance in the event of a fault or when performing cleaning or maintenance.

Do not place heavy objects on the top of the appliance.

Symbols used in the Guide:

Note

Recommendations for correct use of the appliance

Important

Directions for avoiding appliance damage

Warning

Indications for avoiding injury to people

1.3 Caring for the environment

This appliance conforms to the WEEE European directive (2012/19/EU) and must be disposed of separately from other waste at the end of its service life.
The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives.
Pay special attention to correct disposal procedure for all the packaging materials.

Power voltage Danger of electrocution

Disconnect the mains power supply. Unplug the appliance.

The appliance must not be disposed of with urban waste. Contact local waste disposal centres for how to dispose of recyclable waste.

Prior to disposal, cut the power supply cord and make it impossible to close the door.
During disposal, avoid damage to the refrigeration circuit.
The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.
Our appliances are packaged in non-polluting and recyclable materials.
Deliver the packing materials to the appropriate recycling centre.

Plastic packaging Danger of suffocation

Do not leave the packaging or any part of it unattended.

Do not let children play with the plastic bags.

Warning

To avoid contamination of food, please respect the following instructions:

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.4 Information for control bodies

For EcoDesign checks, the installation and preparation of the appliance must comply with EN 62552 standard.
Ventilation requirements, dimensions and minimum space from the rear wall are indicated in the "Installation" chapter of this manual.
Contact the manufacturer for more information.

1.5 To save energy

Correct use of the appliance, correct packaging of foodstuffs, a constant temperature and food hygiene have effects on the quality of storage.
Reduce the number of times that the doors are opened and the length of time they remain open to prevent the compartments from heating up excessively.
Clean the condenser (if it can be accessed) at the rear of the appliance periodically to prevent the appliance from losing efficiency.
Defrost frozen food in the refrigerator compartment in order to make use of the cold stored in the frozen foods.

2.1 Installation

Make sure that installation is performed correctly, adhering to all directions in the specific installation manual provided with the appliance.

2.2 Connection to the electrical power supply

The appliance is equipped with a Schuko type 16A plug and must be connected to the electrical power supply through a corresponding Schuko socket.

Do not use extension cords and/or multiple adapters for the power supply connection.

Hand inserting a plug into a wall socket (no text or symbols visible)

Important

Do not use extension cords and/or multiple adapters for the power supply connection.

Warning

If energy is supplied through an alternative energy power source (solar, geothermal, etc..) or if home automation systems are installed, it is necessary to install the Alternative Energy Kit to integrate the unit into the power grid.

2.3 Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged: - avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.

7010 W021

Caution: risk of fire / flammable materials.

Important Carry out transportation, installation and/or clearing with extra care so that no damage occurs to the refrigeration circuit.

3.1 Know your appliance

Congratulations for having purchased your new refrigerator column: from now on you can use our innovative conservation system, which will allow you to keep all of your food in the best way possible.

This manual will answer most of your questions about the product's features. Should you require further information or technical assistance, please refer to your dealer or visit our website:

in the UK https://uk.bertazzoni.com/more/care-service

in France https://fr.bertazzoni.com/customer-care in Spain https://universal.bertazzoni.com/more/care-service

in the Netherlands https://nl.bertazzoni.com/zorg-en-service

in Sweden https://se.bertazzoni.com/more/care-service

in Denmark https://dk.bertazzoni.com/more/care-service

Before calling, write down the model type and serial number which are available on the rating plate, and any messages which may have appeared on the display.

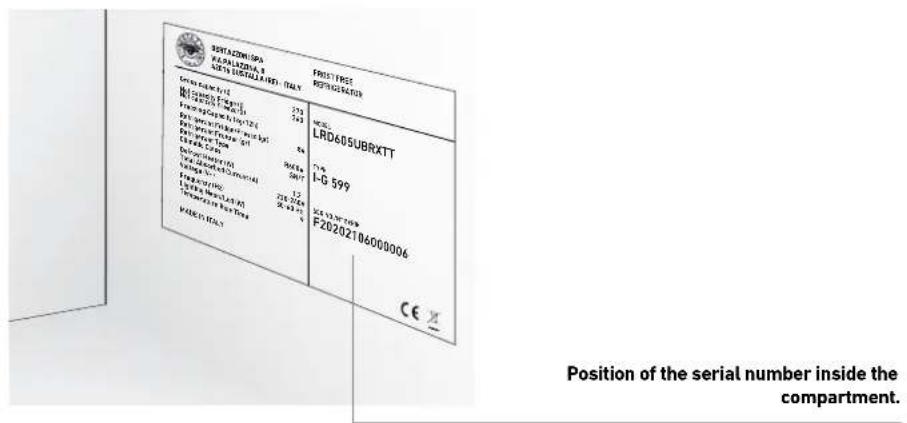

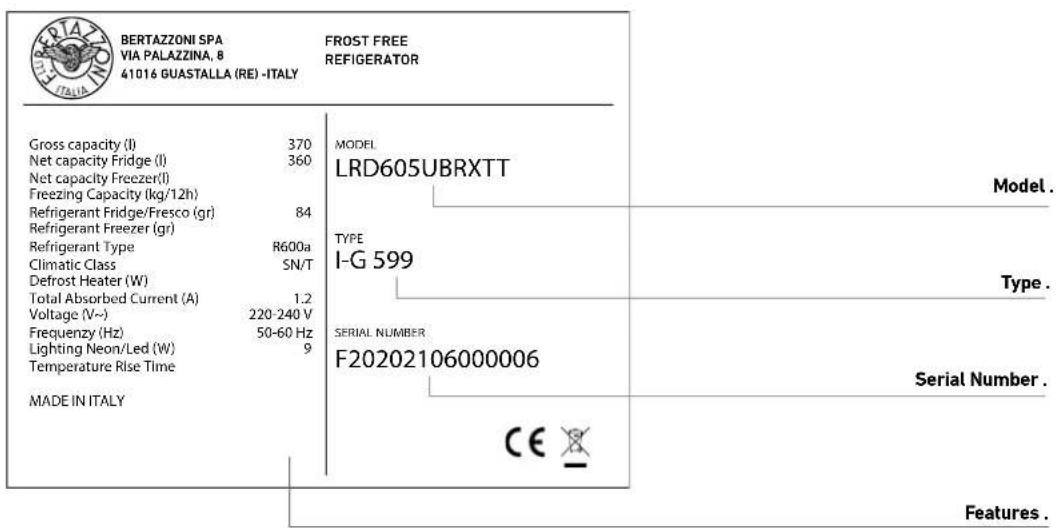

The rating plate is located into the appliance, on side cabinet, close to the shelves.

Before calling, please make sure to have the following information ready:

- Date of Purchase;

- Name of dealer where product was purchased.

SOTRAZONORA KARLAZONA, 8 SOTRA ZHINDIAIRE - ITALY FRUITTREE REFRIGATOR SOTRAZONORA 273 743 LRD60SUBRXTT 1-G 599 F20202106000006 Position of the serial number inside the compartment. SOTRAZONORA 273 743 LRD60SUBRXTT 1-G 599 F20202106000006 FRUITTREE REFRIGATOR SOTRAZONORA 273 743 LRD60SUBRXTT 1-G 599 F20202106000006 SOTRAZONORA 273 743 LRD60SUBRXTT 1-G 599 F20202106000006 SOTRAZONORA 273 743 LRD60SUBRXTT 1-G 599 F20202106000006 SOTRAZONEAIRE - ITALY SOTRAZONEAIRE - ITALY SOTRAZONEAIRE - ITALY SOTRAZONEAIRE - ITALY SOTRAZONEAIRE - ITALY SOTRAZONEAIRE - ITALY SOTRAZONEAIRE - ITALY SOTRAZONEAIRE - ITALY SOTRAZONEAIRE - ITALY SOTTRAZONEAIRE - ITALY SOTTRAZONEAIRE - ITALY SOTTRAZONEAIRE - ITALY SOTTRAZONEAIRE - ITALY SOTTRAZONEAIRE - ITALY SOTTRAZONEAIRE - ITALY SOTTRAZONEAIRE - ITALY SOTTRAZONEAIRE - ITALY SOTTRAZONEAIR - ITALY SOTTRAZONEAIR - ITALY SOTTRAZONEAIR - ITALY SOTTRAZONEAIR - ITALY SOTTRAZONEAIR - ITALY SOTTRAZONEAIR - ITALY SOTTRAZONEAIR - ITALY SOTTRAZONEAIR - ITALY SOTTRAZONEAIR - ITAL Y SOTTRAZONEAIR - ITAL Y SOTTRAZONEAIR - ITAL Y SOTTRAZONEAIR - ITAL Y SOTTRAZONEAIR - ITAL Y SOTTRAZONEAIR - ITAL Y SOTTRAZONEAIR - ITAL Y SOTTRAZONEAIR - ITAL Y SOTTRAZONEAIR - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITALY SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTRAFERIAIRE - ITAL Y SOTTURGARTIARE - ITAL Y SOTTURGARTIARE - ITAL Y SOTTURGARTIARE - ITAL Y SOTTURGARTIARE - ITAL Y SOTTURGARTIARE - ITAL Y SOTTURGARTIARE - ITAL Y SOTTURGARTIARE - ITAL Y SOTTURGARTIARE - ITAL Y SOTTUTRAGUARE - ITAL Y SOTTUTRAGUARE - ITAL Y SOTTUTRAGUARE - ITAL Y SOTTUTRAGUARE - ITAL Y SOTTUTRAGUARE - ITAL Y SOTTUTRAGUARE - ITAL Y SOTTUTRAGUARE - ITAL Y SOTTUTRAGUARE - ITAL Y SOT TURGARTIARE - ITAL Y SOT TURGARTIARE - ITAL Y SOT TURGARTIARE - ITAL Y SOT TURGARTIARE - ITAL Y SOT TURGARTIARE - ITAL Y SOT TURGARTIARE - ITAL Y SOT TURGARTIARE - ITAL Y SOT TURGARTIARE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITALY SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y SOT TRAVELTAIRE - ITAL Y

BERTAZZONI SPA VIA PALAZZINA, 8 41016 GUASTALLA (RE) -ITALY FROST FREE REFIGERATOR Gross capacity (l) 370 Net capacity Fridge (l) 360 Net capacity Freezer(l) Freezing Capacity (kg/12h) Refrigerant Fridge/Fresco (gr) 84 Refrigerant Freezer (gr) Refrigerant Type R600a Climatic Class SN/T Defrost Heater (W) Total Absorbed Current (A) 1.2 Voltage (V--) 220-240 V Frequency (Hz) 50-60 Hz Lighting Neon/Led (W) 9 Temperature Rise Time MADE IN ITALY MODEL LRD605UBRXTT TYPE I-G 599 SERIAL NUMBER F20202106000006 Serial Number. CE Features.

3.2 Main components

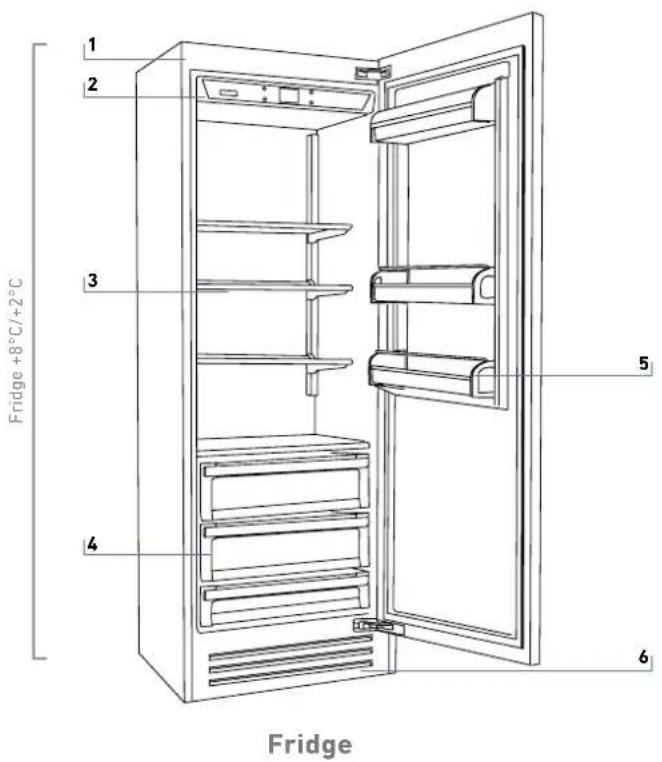

1 2 3 4 5 6 Fridge +8°C/+2°C Fridge

1) Prepainted white aluminium structure.
2) Interactive control panel.
3) Adjustable height shelf.
4) AISI 304 drawers fridge compartment.
5) Door bins.
6) Removable toe kick.

3.3 Eletronic Control

The innovative electronic control system designed by Bertazzoni maintains constant temperature on the entire compartment and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.

3.4 Main control panel

⊕
△

△
←

On/Off

Touch the icon to turn the unit on or off.

Home

Touch the icon home for going back to the main display screen.

Alarm

Touch the icon to view the allarm tone functions and to deactivate them.

Back

Touch the arrow icon for going back to the previous display screen.

4.1 Turning the appliance on and off

First time starting the unit

Touch the button Ⓤ. The display shows the following launch screens:

BERTAZZO ITALIA

1) Bertazzoni Logo.

Initial test... Functions Settings

2) Initial test (lasts 3 minutes).

3) The display shows the main screen with the environment temperature measured from the fridge inside the compartments. Automatically the unit starts to cool down until reaching the set temperatures.

+ 5 °C Functions Settings

4) Home screen. - fridge compartment +5°C (41°F)

When the appliance is first switched on is recommended to wait at least 12 hours without opening the doors and before placing any food inside the unit. During such period deactivate any error message by pressing the Alarm button.

Shutdown

Three circular icons with symbols: a white circular seal, a black square with 'SRAA' and 'MILK' text, and a left-pointing triangle symbol.

1) touch the button ☑ off.

Are you sure you want to power off this unit? Yes No

2) Touch the icon Yes to switch off.

Are you sure? Yes No

3) Confirm shutdown by touching the Yes icon.

When the fridge is off there are no warning signs that prove that the fridge is plugged to a socket.

Switching off for long periods

During long absence periods it is recommended to switch off the refrigerator by pressing the Unit button ☐ for three seconds and disconnecting the electrical plug or the breaker controlling the socket. Completely empty the refrigerator, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors.

If at the first startup the Standby message does not appear, but another message appears, it means that the appliance has already started the cooling process.

During the first startup, it will not be possible to use the Menu to modify the factory settings until the preset temperature has been reached.

Each time the appliance is switched on it goes through a self-diagnosis procedure lasting three minutes before completely starting up.

4.2 How to adjust the temperature for different requirements

Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low power consumption. Usually, it is not necessary to modify the settings.

How it looks on the home screen:

Fridge Compartment + 5 °C Preset temperature

Modify the temperatures compartment

How to modify the Fridge compartment temperature.

Functions + 5 °C Settings

1) Home screen. Touch the icon 🖱 of fridge compartement.

OFF + 6 + 5 + 4 °C | + 3 + 2 OK

2) Scroll up/down to select the desired temperature.

fridge from +2°C to +8°C (from 36°F to 46°F).

OFF + 6 + 5 + 4 °C | + 3 + 2 OK

3) Touch the icon ok to confirm the desi-der temperature.

The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods. 6 to 12 hours are necessary to reach the selected temperature.

Padlock icon

The padlock icon shows up when the temperatures are set up.

The padlock open/close shows that the compartment's temperatures can or can not be modified by the user.

Usually a yellow padlock will show open, in that case you can scroll up or down with a finger on the display, select the desired temperature and press OK to confirm.

OFF + 6 + 5 + 4 °C | + 3 + 2 OK

Whereas a closed padlock will be seen if the user has activated a function that modifies the settings of the refrigerator and prevents the user from changing the temperature of the compartment.

OFF + 6 + 5 + 4 °C | + 3 + 2 OK

If the icon function is touched and a specific function is set (for example holiday, shopping trimode, ect...), the yellow padlock will be seen closed and it won't be possible to change the temperature of the compartments as long as the function won't be completed or if it is manually deactivated as long as the function is active.

4.3 Information signals of anomaly on the display

An integrated control system will give information through messages you will see on the display.

There is an alarm tone that occurs with some error messages which can be turned off by touching the alarm button △ on the main control panel.

You can find the list of the error messages at the end of this manual.

Simple line drawing of a finger pointing at a hand gesture with icons (no text or symbols)

INFORMATION FOR THE USE OF THE DISPLAY

It is possible to personalize the operation of your Bertazzoni unit in order to adapt it to the different ways you might want to use it.

5.1 Functions

After touching the icon Functions 📄 on the home screen, the user will be shown the icons of the following available functions.

1) Shopping Mode Fridge.

2) Vacation Mode.

1) Shopping Mode Fridge

The function lowers the refrigerator temperature to +2°C (36°F) a factory default of 12 hours, permitting more rapid cooling of food that has just been placed in. Once the 12 hours have expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a timed activation of the function.

After a prolonged interruption of power supply, it is necessary to reactivate the function.

Functions + 5 °C Settings

A) Home screen. Touch the icon functions.

Shopping Mode Fridge Vacation Mode

B) Touch the icon Shopping Mode Fridge.

Activate Shopping Mode: Fridge? Yes No

c) Touch the icon Yes to activate the function.

7 8 Hour | 9 | 10 11 OK

D) Scroll up / down to setting the desired time and then pres ok.

2) Vacation Mode

This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the refrigerator compartment temperature to +14°C (57°F).

It is possible to program the duration, or it can be manually deactivated upon re-entry after a period of absence. This function remains active even if during the period of absence there is a prolonged interruption of electrical power.

It is possible to program a period from 1 to 90 days.

+ 5 °C Functions Settings

A) Home screen. Touch the icon functions.

Shopping Mode Fridge Vacation Mode

B) Touch the icon Vacation Mode.

i Activate Vacation Mode Yes No

C) Touch the button Yes to activate the function.

Day | 7 8 9 10 1 r OK

D) Scroll up / down to set the desired time (in days) and then press ok.

It is possible to program a period from 1 to 90 days.

5.2 Settings

It is possible to personalize the settings of your Bertazzoni fridge for adapting it to the different ways you might want to use it.

1) Date.

2) Time.

3) Celsius or Fahrenheit.

4) Language.

5) Sabbath.

6) Reset.

7) Demo Mode.

8) Maintenance.

9) Service.

10) Info System.

1) Date

The display will show the date in the format (day:month:year).

By touching the display you can modify the settings.

2) Time

The display shows the hours and minutes in the format hh:mm.

This function selects the display at 12 or 24 h.

Functions Settings + 5 °C

A) Home screen. Touch the Settings icon.

Functions + 5 °C Settings

A) Home screen. Touch the Settings icon.

Date Time 1 *c:/t Language

2017 2018 Year | 2019 | 2020 2021 OK

C) Scroll up or down until the desired year appears and press Ok.

Hour? 12 24

C) Touch the desired method which you want the time to display: 12 hour or 24 hours.

7 8 Month | 9 | 10 11 OK

D) Scroll up or down until the desired month appears and press Ok.

7 8 9 10 1 OK

D) Scroll up / down to set the hour and then press Ok.

7 8 Day | 9 | 10 1 OK

E) Scroll up or down until the desires date appears and press Ok.

35 36 Min | 37 | 38 3 OK

E) Scroll up / down to set the minutes and then press Ok.

3) Set °C/°F

This function allows the temperature to be displayed in Centigrade or Fahrenheit. The factory setting is in Centigrade.

4) Language

To set the language of the fridge, simply touch the settings button on the display.

Functions + 5 °C Settings

A) Home screen. Touch the Settings icon.

Functions + 5 °C Settings

A) Home screen. Touch the Settings icon.

Date Time 1 % / ° Language

B) Touch the icon ^ C/ ^ F.

Date Time 1 °C / °C Language

B) Touch the Language icon.

°C °F OK

C) Scroll up / down to select either Centigrade or fahrenheit degrees and press Ok.

Italiano English Français Español Du OK

C) Scroll up / down to select the desired language and press Ok.

5) Sabbath Mode

The function makes it possible to comply to certain religious observances requiring the operation of the appliance to not be affected by the opening or closing of the doors. The thermostatic control, inner lighting and ice maker are deactivated.

6) Reset

This option allows you to restore the appliance to the original factory settings, cancelling all the changes that have been made previously.

+ 5 °C Functions Settings

A) Home screen. Touch the Settings icon.

Functions + 5 °C Settings

A) Home screen. Touch the Settings icon.

Satobath Reset Demo

B) Scroll right once and touch the Sabbath icon.

Saboath Reset Demo

B) Scroll right once and touch Reset icon.

i Confirm Sabbath Mode Yes No

C) Touch the Yes button to confirm the Sabbath Mode.

i Confirm resetting to factory default settings? Yes No

C) Touch the yes button to confirm the selection of the resetting of factory default settings.

Sabbath Mode Yes No

D) Touch the Yes button to activate the function.

Reset Yes No

E) The fridge will work accordingly to this configuration.

Reset Reset complete

E) The reset has been performed. The fridge's factory settings have been restored.

7) Demo Mode

It is possible to simulate the functioning of the fridge, for showroom display or for trade shows.

Functions + 5 °C Settings

A) Home screen. Touch the Settings icon.

Sabbath Reset Demo

B) Scroll right once and touch Demo icon.

i Turn Demo Mode On? (no cooling) Passcode required Yes No

c) Touch Yes.

Demo Mode 1 | 2 3 | 4

D) Insert the password for the activation.

Default password 1-2-3-4.

Demo Mode Yes No

8) Maintenance (through alarm sign)

For proper operation, the unit requires cleaning of the toe kick cover, of the filter and the condenser. The default setting of the unit is "Warning disabled".

The required cleaning every 6 months is denoted by an audible and visual message on the display. It is possible to disable the warning signal and see the time left before the next cleaning that has to be done. For details see following pages.

Functions Settings

A) Home screen. Touch the Settings icon.

Maintenance Service Info System

B) Scroll to the right twice and touch the Maintenance icon.

Clean Condenser Are you sure? On

c) To enable it, touch the On icon.

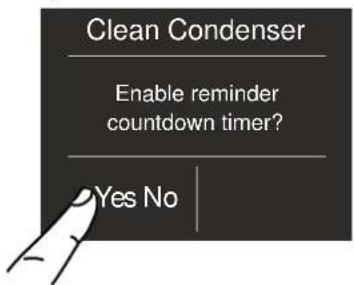

Clean Condenser Enable reminder countdown timer? Yes No

D) To enable it, touch the Yes icon.

Clean Condenser Next reminder... Left 180 days Off Reset

E) If you want to enable the warning, touch the Reset icon.

If you want to disable the reminder, at step C touch Off, then touch Yes as below.

Clean Condenser Disable reminder? Yes No

9) Service

The service function is reserved for the Bertazzoni service technicians.

10) Info System

The Info System function shows the product data, for example the software code, serial number and the factory code of the refrigerator.

Functions Settings

A) Home screen. Touch the Settings icon.

Maintenance Service Info System

B) Touch the Info System icon.

Sk Power HW: 0504 SW: 0518 Sk User HW: 1002 SW: 1069 - G1011

C) The display will show the data specific to the appliance.

6.1 Internal Layout (positioning, adjustment, removal)

Crisper

Fixed to the slide guides with two thumbscrews.

to remove the drawer, unscrew the thumbscrews and remove the drawer.

Line drawing of a drawer with a hand holding the handle (no text or symbols)

Shelves

The shelves are moveable and can be easily re-positioned by the user as follows:

hold the shelf at the sides and push it upwards to detach from the side rails, then pull it outwards.

lift or lower the shelf to the desired position.

Illustration of a hand holding a tool interacting with a surface (no text or symbols visible)

to remove a shelf it is necessary to slide it up to the top.

Line drawing of a hand holding a tool above a mechanical component with arrows indicating motion (no text or symbols)

Door Bins

The door bins can be easily removed for cleaning:

Hold the door shelf at the sides and push it upwards to release it from its seat, then pull it outwards.

Reverse the procedure to reinstall.

Technical line drawing of a mechanical component with labeled parts (1, 2), no readable text or symbols present.

7.1 Lighting

Pure electrical circuit lines without any symbols

To provide optimum interior lighting, LED strips illuminate the refrigerator compartment from the top and sets of LED lights directly illuminate different areas of the refrigerator compartment.

In case of malfunction and/or wearing out of the lighting system, the repair should be carried out by a qualified Bertazzoni Service technician.

8.1 General directions

Your appliance is designed to ensure precise, constant temperatures and appropriate humidity levels in all compartments.

Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent refrigerator. It is also necessary to know the rules for correct food preservation.

Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multiply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels.

It is therefore recommended to follow the directions presented below which will permit using your refrigerator in the most effective and safe manner to keep your foods in the best way for as long as possible.

Periodically check that all foods are in a perfect state of preservation. It is usually quite clear when a food item is deteriorated, due to mold, unpleasant odor and unpleasant aspect. Nevertheless, there are cases in which these conditions are not so evident. If you believe that a food item was kept for an excessive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness. When in doubt, throw the food away.

Refrigerator from +2° to +8 °C (from 36°F to 46°F)

8.2 How to best presere food quality

When buying groceries

Always take the following precautions:

Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods.
Purchase meat, poultry and fish last. Do not leave your groceries in a warm car after shopping. Keep a freezer bag in your car and use it in case of very high temperatures or long trips.
Check the production dates and "best before" times on foods to be sure that they are fresh.
Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period.
When possible, let warm foods adjust to room temperature for at least two hours before placing them in the refrigerator, unless you have activated the Shopping function before.

When placing foods in

Check the refrigeration temperature of the various compartments on the control panel:

The refrigerator temperature must be 8°C (45°F) or lower.
Follow the recommendations regarding the preservation times and temperatures indicated in the tables to follow.
Keep raw meat, fish and poultry separate from other foods and avoid any possible drippings.

When placing foods in

When placing your meat, fish or poultry in the refrigerator, leave them in the original packaging, unless the packaging is ripped or punctured. Repeated handling could introduce bacteria into these foods.
To keep food in the fridge is a good idea to use fridge containers.
Label and date the packages
Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment.

Warning

After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if the temperature has been raised above normal levels. In addition to this

the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items.

After one minute the display will resume normal operation, while the Alarm button △ will continue to blink.

Press the Alarm button △to display the highest recorded temperatures.

8.3 Conservation Tips

Temperatures

The appliance working temperatures are set at the recommended degrees of +5°C for the refrigerator.

FOOD ARRANGEMENT

Refrigerator door.

Refrigerator compartment door

Keep eggs, butter, cheese etc. in the upper and central parts.
Keep drinks, bottles, cans etc. in the lower part.

Refrigerator compartment

Keep conserves, wine, biscuits etc. in the upper part.
Keep dairy products, ready meals, pastries, fruit juices, beer etc. in the central part.
Keep meats, cold cuts etc. in the lower part.
Keep fresh and tropical fruit, vegetables, carrots, potatoes, onions, etc. in the fruit and vegetable drawer.

FRESH FOODS PRESERVATION AREA TIME

Raw meats

Large cuts Refrigerator Drawer 4 days

Beef steaks, poultry and wild game Refrigerator Drawer 3 days

Ground meat Refrigerator Drawer 1-2 days

Carpaccio Refrigerator Drawer Immediately

Cooked meat

Boiled meat and roasted meat Refrigerator Compartment 2 days

Meat sauce Refrigerator Compartment 6 days

Fish

Raw and cooked fish Refrigerator Drawer 2 days

Other

Soups and broths Refrigerator Compartment 2 days

Pasta Refrigerator Compartment 2 days

Opened cold cuts Refrigerator Drawer 3 days

Fresh cheeses Refrigerator Drawer 2-3 days

Well sealed aged cheeses

Refrigerator Compartment

Several months

Eggs (fresh and unwashed)

Refrigerator Compartment 2 weeks

Opened cans

Refrigerator Compartment 2-3 days

Raw vegetables (in perforated bags)

Refrigerator Drawer 1 week

9.1 Care and Cleaning

To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel's satin finish.

Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth.

Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves. You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions.

Scrupulously follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently.

Before performing any sort of cleaning, disconnect the appliance from the electrical power supply.

Make sure you do not damage the refrigerant circuit in any way.

Warning

The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

9.2 Internal cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent.

Rinse and dry right away.

Do not use mechanical devices or other methods to speed up defrosting.

Warning

Do not use water on the electrical parts, lights and control panel.

Warning

Do not use chlorine-based detergents or cleaning agents.

Do not bring cold glass parts into contact with boiling water.

Do not wash any parts of the refrigerator in a dishwashing machine since this could damage or irreparably deform the parts.

9.3 Cleaning of the toe kick cover, filter and condenser

The unit requires, for a correct operation, the cleaning of the toe kick cover, filter and condenser.

It is recommended to perform the following cleaning steps very 6 months. An audio and visual message on the display will serve as a reminder.

Behind the frontal toe kick cover is the condenser. To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits. In case of a significant dust build up, the toe kick cover can be removed to allow a more accurate cleaning of the filter.

On the maintenance settings, 📄 after the installation of the unit and after it has been turned on, you can set the condenser cleaning warning.

In the case the warning sign is enabled, there will be an audible signal every 6 months, alerting that it is time to clean the condenser.

After cleaning it, touch the reset icon in order to reactivate the warning signal in 6 months.

If you do not want the cleaning signal alert for the condenser, touch the Off icon.

Lower condenser

For cleaning the condenser follow the instructions:

Switch off the appliance by pressing the Unit button ☐ on the main control panel for approx 3 seconds.
Wait approx 30 minutes, until the finned condenser cools down to room temperature.
Remove the removable grille under the door.

Diagram of a door frame with an open door and a slatted panel, showing structural components without any text or symbols.

Clean it thoroughly of any dust build up as shown in the picture, taking care not to damage the condenser.

Illustration of a hand inserting a pipe into a vented chamber (no text or symbols)

Restart the unit again, pressing on the unit button for three second.

Warning

The edges of the condenser are sharp, therefore use adequate protection for hands and arms when cleaning the condenser.

10.1 Troubleshooting Guide

If you notice malfunctions in your appliance, use this guide before calling for service: this guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and effective repair.

Display message and audible alarms.

A malfunction is usually indicated by the display. Problems that cannot be solved by the user are reported through a fault code. Keep in mind, however, that in messages or alarms they may appear for particular conditions of use or during start-up. In these cases, deactivate the audible alarm by pressing the Alarm button △ and leave the

appliance running and limit the opening of the doors to the maximum for about 10-12 hours.

The refrigerator does not work.

Is the appliance connected to the electrical power supply?

Is electrical power available at the electricity socket? Is the Unit button ① activated?

Is the unit in 'Demo' Mode?

The refrigerator is warmer than usual.

Does the display show a malfunction code?

Is the temperature adjusted correctly?

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

Is the unit in 'Demo' Mode?

The appliance remains in function for a long time period.

Bear in mind that during very hot weather and with very high temperatures in the room it is normal that the compressor remains on for prolonged periods of time.

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door.

Is one or more compartments in Shopping Mode?

If you hear unusual noises.

It is normal to hear noises from the ventilators or compressors during operation or during the defrost phase.

Noise could be more marked depending on the position of the appliance and the surrounding environment.

Condensation inside and outside of the refrigerator.

If the climate is very humid, the formation of condensation is normal. Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation.

In any case, make sure that the doors are always completely closed.

Ice or frost build up inside the refrigerator.

Did you leave the doors open for a long period of time?

Do the doors close completely?

If the doors do not close completely, contact your installer.

Unpleasant odors inside the refrigerator.

Clean the appliance completely according to the instructions.

Hermetically cover all the food. Do not conserve food for prolonged periods of time.

The doors are difficult to open.

The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door.

Appliance is cooling but lights and display are not working.

Check to see if the appliance was accidentally placed into Sabbath Mode.

If the unit you purchased was used as a showroom model it may be in a special energy-saving mode called Demo Mode where the appliance appears to be operating (lights work and false temperatures are displayed) but no cooling actually takes place. If you suspect your appliance is in Demo Mode please contact your dealer or distributor for assistance with disabling this feature.

10.2 Malfunction messages appearing on the display

Display message Malfunction description

Power Failure!!	Prolonged interruption of electrical powerthe appliance resumes work automatically, the display shows the warmest temperatures achieved.
Door Fridge OPEN	Fridge door openthe message appears after few minutes from the door opening.
Fridge too warm	Fridge too warmsee Troubleshooting Guide.
Fridge too cold	Fridge too coldwait for 12 hours: if malfunction persists call Customer Care for advice.
Error Code...	Functional problemscall Customer Care who may help you to salve the problem or put you in contact with the nearest Service Agent may help you solve the problem.
Check condenser	Check CondenserEvery 6 months the display shows the message “Check Cond”, clean the condenser and follow the instructions above about how to clean the condenser.

In case of errors, touch the button Alarm △ and the display will show the error message with its error number code.
The message will be shown for 3 seconds, then it will go back to the home screen.
For blocking the message on the screen, press on the display, the button info (i). The message will be on the screen for 30 seconds, then it will go back to the home screen.
In the case there is more than one error message, the display will show in time sequence the different error messages.

1 INSTRUCTIONS IMPORTANTES EN MATIÈRE DE SÉCURITÉ ET POUR L'ENVIRONNEMENT 2

Hand inserting a plug into an electrical socket (no text or symbols visible)

Important

User interface toolbar with icons for ID card, folder, and directional buttons

Image containing a symbolic icon set with a circular emblem, a square with a clock face, and a hand gesture pointing to it.

INFORMATIONS POUR L'UTILISATION DE L'ÉCRAN

Fargo Shopping Vacance

B) Touchez l'icône Frigo Shopping.

i Voulez-vous activer le mode Frigo? Oui Non

Frigo Shopping Vacance

Heure? 12 24

Line drawing of a hand holding a folded paper or drawer (no text or symbols)

Clayettes

Line drawing of a hand holding a tool interacting with a surface (no text or symbols)

Line drawing of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

7.1 Éclairage

Pure electrical circuit lines without any symbols

Diagram of a door frame with structural components and directional arrows indicating movement (no text or symbols)

Illustration of a hand inserting a tube into a ventilation duct (no text or symbols)

Hand inserting a plug into an electrical socket (no text or symbols visible)

Importante

BERTAZION SP SALTA LIZZIA, A 2018 DE INSTALLARIA (SLT - OIL) FROZEN ZERI 12 M. 375 LRD605UBRXTT Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 M. 375 LRD605UBRXTT Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 Festur in line 100/124 Festur in line 100/100 Festur in line 100/100 Festur in line 100/100 Festur in line 100/100 Festur in line 100/100 Festur in line 100/100 Festur in line 100/100 Festur in line 100/100 M. 375 LRD605UBRXTT Festur in line 124 Festur in line 124 Festur in line 124 Festur in line 124 Festur in line 124 Festur in line 124 Festur in line 124 Festur in line 124 Festur in line 124 Festur in line 124 Festur in line 128 Festur in line 128 Festur in line 128 Festur in line 128 Festur in line 128 Festur in line 128 Festur in line 128 Festur in line 128 Festur in line 128 Festur in line 128 Festur in line 129 Festur in line 129 Festur in line 129 Festur in line 129 Festur in line 129 Festur in line 129 Festur in line 129 Festur in line 129 Festur in line 130 Festur in line 130 Festur in line 130 Festur in line 130 Festur in line 130 Festur in line 130 Festur in line 130 Festur in line 130 Festur in line 130 Festur in line 130 Festur in line 132 Festur in line 132 Festur in line 132 Festur in line 132 Festur in line 132 Festur in line 132 Festur in line 132 Festur in line 132 Festur in line 132 Festur in line 132 Festur in line 133 Festur in line 133 Festur in line 133 Festur in line 133 Festur in line 133 Festur in line 133 Festur in line 133 Festur in line 133 Festur in line 133 Festur in line 133 Festur in line 134 Festur in line 134 Festur in line 134 Festur in line 134 Festur in line 134 Festur in line 134 Festur in line 134 Festur in line 134 Festur in line 134 Festur in line 134 Festur in line 135 Festur in line 135 Festur in line 135 Festur in line 135 Festur in line 135 Festur in line 135 Festur in line 135 Festur in line 135 Festur in line 135 Festur in line 135

Image showing a circular logo with the text 'TRAIL' and four surrounding icons: a plus sign, a triangle, a square with 'TRAIL' and a left-pointing arrow.

Simple line drawing of a finger pointing at a circular icon with a heart symbol, no text or labels present.

Line drawing of a hand opening a drawer with a handle (no text or symbols)

Estantes

Line drawing of a hand holding a tool interacting with a vertical rod (no text or symbols)

Illustration of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (1, 2), no readable text or symbols beyond labels

7.1 Iluminación

Pure electrical circuit lines without any symbols

Diagram of a door frame with structural details and directional arrows indicating movement or force (no text or symbols present)

Illustration of a hand inserting a cylindrical tube into a rack inside a cabinet (no text or symbols)

0 GIDS VOOR PROBLEEMOPLOSSING 25

Hand inserting a plug into an electrical socket (no text or symbols visible)

Belangrijk

in Spanje https://universal.bertazzoni.com/more/care-service

in Zweden https://se.bertazzoni.com/more/care-service

in Denemarken https://dk.bertazzoni.com/more/care-service

Three circular icons with symbols: a shield, a square with 'SUNION' text and a triangle symbol, and a left-pointing arrow.

Simple line drawing of a finger pointing at a circular icon with a triangle symbol, no text or labels present.

INFORMATIE VOOR HET GEBRUIK VAN HET DISPLAY.

i Activate Shopping Mode: Fridge? Yes No

Maintenance Service Info System

Line drawing of a drawer with a hand holding the handle (no text or symbols)

Schappen

Illustration of a hand holding a tool interacting with a vertical rod (no text or symbols visible)

Line drawing of a hand holding a metal object with arrows indicating movement or force (no text or symbols)

Deurvakken

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

7.1 Verlichting

Pure electrical circuit lines without any symbols

Diagram of a door frame with an open door and slatted panel, showing structural components without any text or symbols.

Illustration of a hand inserting a pipe into a ventilation duct (no text or symbols)

Hand inserting a plug into a socket on an electrical outlet (no text or symbols visible)

Viktigt

Initial test... Functions Settings

2) Starttest (tar tre minuter).

+ 5 °C Functions Settings

4) Startsidan. - Kylfack +5°C (41°F).

Three circular icons with symbols: a white circular seal, a black square with 'SARAYA' logo, and a black triangle with an arrow.

Are you sure you want to power off this unit? Yes No

Are you sure? Yes No

Functions Settings + 5 °C

Simple diagram showing a hand pointing at a finger with three circular icons (no text or symbols)

INFORMATION FÖR ANVÄNDNING AV SKÄRMEN

+ 5 °C Functions Settings

Shopping Mode Fridge Vacation Mode

Activate Shopping Mode: Fridge? Yes No

+ 5 °C Functions Settings

Shopping Mode Fridge Vacation Mode

Day | 7 8 9 10 11 OK

Functions Settings + 5 °C

Functions + 5 °C Settings

2017 2018 Year | 2019 | 2020 2021 OK

7 8 Month | 9 | 10 11 OK

7 8 Day | 9 | 10 1 OK

Functions + 5 °C Settings

Functions + 5 °C Settings

Functions + 5 °C Settings

Functions + 5 °C Settings

Confirm resetting to factory default settings? Yes No

Functions + 5 °C Settings

i Turn Demo Mode On? (no cooling) Passcode required Yes No

c) Rör Ja.

Demo Mode 1 | 2 3 | 4

Functions + 5 °C Settings

Maintenance Service Info System

Clean Condenser Are you sure? On

Clean Condenser Enable reminder countdown timer? Yes No

Functions Settings

Maintenance Service Info System

B) Rör symbolen Systeminformation.

Sk Power HW: 0504 SW: 0518 Sk User HW: 1002 SW: 1069 - G1011

Line drawing of a drawer with a hand holding the handle (no text or symbols)

Hyllor

Illustration of a hand using a tool to lift a vertical rod (no text or symbols present)

Line drawing of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Dörrhyllor

Technical line drawing of a mechanical component with labeled parts (1, 2), no readable text or symbols present.

7.1 Belysning

Pure electrical circuit lines without any symbols

Refrigerator from +2° to +8 °C (from 36°F to 46°F)

Diagram of a door frame with an open door and slatted panel, showing structural components without any text or symbols.

Illustration of a hand inserting a pipe into a ventilation duct (no text or symbols)

4 TÆNDING OG SLUKNING AF APPARATET 10

0 GUIDE PROBLEML∅SNING 25

Hand inserting a plug into an electrical socket (no text or symbols visible)

Vigtigt

i UK https://uk.bertazzoni.com/more/care-service

i Frankrig https://fr.bertazzoni.com/customer-care

i Spanien https://universal.bertazzoni.com/more/care-service

i Holland https://nl.bertazzoni.com/zorg-en-service

i Sverige https://se.bertazzoni.com/more/care-service
i Danmark https://dk.bertazzoni.com/more/care-service

Initial test... Functions Settings

2) Initial test (varer 3 minutter).

+ 5 °C Functions Settings

Image showing three circular icons with symbols: a shield, a square with 'SAR' logo, and a triangle with an arrow.

1) Tryk på knappen off.

Are you sure you want to power off this unit? Yes No

Are you sure? Yes No

Functions Settings + 5 °C

Image containing a symbolic icon set with a heart, a circular emblem, and a hand gesture.

INFORMATIONER FOR BRUGEN AF DISPLAYET

+ 5 °C Functions Settings

Shopping Mode Fridge Vacation Mode

i Activate Shopping Mode: Fridge? Yes No

7 8 Hour | 9 | 10 1 | OK

D) Rul op/ned for at indstille den ønskede tid og tryk herefter på Ok.

2) Vacation Mode

+ 5 °C Functions Settings

Shopping Mode Fridge Vacation Mode

B) Tryk på ikonet Vacation Mode.

i Activate Vacation Mode Yes No

c) Tryk på knappen Ja, for at aktivere funktionen.

7 8 Day | 9 | 10 OK 11

D) Rul op/ned for at indstille den ønskede tid (i dage) og tryk herefter på Ok.

Functions Settings + 5 °C

Functions + 5 °C Settings

2017 2018 Year | 2019 | 2020 2021 OK

C) Rul op eller ned, indtil det ønskede år vises, og tryk på Ok.

Hour? 12 24

7 8 Month | 9 | 10 11 OK

7 8 9 10 1 OK

7 8 Day | 9 | 10 1 OK

E) Rul op eller ned, indtil den ønskede dato vises, og tryk på Ok.

35 36 Min | 37 | 38 3 OK

E) Rul op/ned for at indstille minutter og tryk derefter på ok.

3) Set °C/°F

Functions + 5 °C Settings

Functions + 5 °C Settings

+ 5 °C Functions Settings

Functions + 5 °C Settings

i Confirm resetting to factory default settings? Yes No

Functions + 5 °C Settings

i Turn Demo Mode On? (no cooling) Passcode required Yes No

C) Tryk på Ja.

Demo Mode 1 | 2 3 | 4

D) Indtast adgangskoden for aktivering.

Standard adgangskode 1-2-3-4.

Demo Mode Yes No

Functions + 5 °C Settings

Maintenance Service Info System

Clean Condenser Are you sure? On

c) For aktivering, tryk på ikonet On.

Clean Condenser Enable reminder countdown timer? Yes No

D) For aktivering, tryk på ikonet Ja.

5. TILPASNING AF FUNKTIONER OG INDSTILLINGER

Clean Condenser Next reminder... Left 180 days Off Reset

E) Hvis du vil aktivere advarslen, tryk på ikonet Reset.

Hvis du vil deaktivere påmindelsen, skal du ved trin C trykke på Off og derefter trykke på Ja, som vist nedenfor.

Clean Condenser Disable reminder? Yes No

9) Service

Functions Settings

Maintenance Service Info System

Line drawing of a hand holding a drawer with a handle, no text or symbols present

Hylder

Illustration of a hand using a tool to lift or lift a curved surface (no text or symbols)

Line drawing of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Dørbeholdere

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

7.1 Belysning

Pure electrical circuit lines without any symbols

Refrigerator from +2" to +8 °C (from 36°F to 46°F)

Diagram of a door frame with an open door and a slatted panel, showing structural components without any text or symbols.

Illustration of a hand inserting a pipe into a ventilation duct (no text or symbols)

Genstart enheden igen, tryk på knappen enhed i tre sekunder.

Advarsel
