Product Type	Air Circulator Fan
Brand	Vornado
Model	160
Technology	Whole Room Circulation
Speeds	Multiple speeds (variable speed)
Airflow Direction	Adjustable airflow (pivotable)
Front Grille	Removable for cleaning (4 screws)
Child Safety	Finger-safe design
Feet	Non-slip silicone feet, mark-free
Power	120 V, 60 Hz (polarized plug)
Fuse	2.5 A, 125 V (in plug)
Protection	Overload fuse, do not use with dimmer
Cleaning	Grille washable with soapy water (not dishwasher safe)
Motor Maintenance	Lubricated for life, no oiling required
Use	Indoor use only, Canada and USA
Warranty	5 years (according to instructions)
Customer Service	800-234-0604 / [e-mail]

Frequently Asked Questions - 160 Vornado

How to clean the grille of the Vornado 160 fan?

First unplug the device. Remove the 4 screws on the back of the inlet grille (positions 2 o'clock, 5 o'clock, 7 o'clock, and 10 o'clock). Clean the grille with a damp cloth or mild detergent. Do not put in dishwasher. Use a vacuum with brush for air inlets.

How to replace the fuse of the Vornado 160?

Turn off and unplug the fan. Open the fuse cover in the plug with a small screwdriver. Carefully remove the fuse (2.5 A, 125 V) and insert the new one. Close the cover. If the fuse blows again, contact customer service.

The fan does not turn on, what to do?

Check that the cord is plugged in and the outlet works. Make sure you have selected a speed. If the fuse has blown, replace it. If the problem persists, stop use and contact Vornado.

The airflow is weak, how to improve it?

Increase the fan speed. Check that nothing is blocking the air inlet or outlet. Direct the airflow toward you. Clean the grille if it is dirty.

Can I use the Vornado 160 with a speed controller?

No, do not use this fan with a dimmer (solid-state speed controller). This could overload the circuit and damage the appliance. Use only the built-in speeds.

Why does the GFCI trip?

In some cases, changing speed may trip a GFCI. Plug the fan into an outlet not protected by GFCI. If the problem persists, the GFCI outlet may be defective; have it checked by an electrician.

The fan makes noise, is that normal?

A slight ventilation noise is normal. If the noise is abnormal (squeaking, clicking), check that the blade is not loose and that nothing is blocking the grille. If the noise persists, contact customer service.

How to remove the blade for cleaning?

Unplug the fan. Remove the shaft nut by turning clockwise (to loosen), then the washer. Pull the blade. Clean it with a damp cloth. Replace the blade by aligning the flat side of the shaft with the blade housing.

Where to find the model and serial number?

The model number (160) and serial number are on the rating label on the back or bottom of the fan. Note them before contacting customer service.

What is the warranty of the Vornado 160?

The warranty is 5 years against defects in material and workmanship. For any claim, contact Vornado at 800-234-0604 or email [e-mail]. Keep the proof of purchase.

USER MANUAL 160 Vornado

Close-up of a Vornado air fan with intricate mesh grille and central logo (no readable text beyond logo)

models 160, 360, 460, 560, 569, 660

WHOLE ROOM CIRCULATOR OWNER'S GUIDE

READ AND SAVE THESE INSTRUCTIONS

LEER Y GUARDAR ESTAS INSTRUCCIONES

LISEZ ET CONSERVEZ CES INSTRUCTIONS

vornado.com

We expect this product to be perfect.

If it is not, we will make it right.

vornado.com

800-234-0604

[e-mail]

CONTENTS

Important Safety Instructions....4

Whole Room Circulation....7

Features 8

Circulation 101 9

Cleaning 10

Troubleshooting 14

Warranty 15

Lasselp.16 rangsp.31

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.vonade.com to view, download and print the most current version of these instructions.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use of product modification. Failure to follow these directions will void the product warranty.

WARNING: Risk to Children and Impaired Persons

Supervision is required during the installation, operation, cleaning and maintenance of this product by children 12 years of age and younger and anyone with reduced physical, sensory or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.

INSTALLATION WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

Place this product away from curtains, draperies, tolaocloths and other fabrics, since they may be drawn into the product, damage the motor and/or cause a fire.

No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.

The apolience, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product outdoors or expose it to weather or elements.

Do not run cord under carpeting. Do not cover cord with throw rings, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

WARNING: To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a climmer control switch.

Do not operate any fan with a damaged core or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not operate unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only origins replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer's service agent, or similarly excelled persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-6601 (phone) or [e-mail] (email) for further

instructions about replacement and repair

Before plugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet's power supply.

DO NOT OF SAAG 5H producer.

Never use the cord as a handle or otherwise yard, strain or stretch the power cord.

While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause risk of electric shock or fire, or damage the product.

A loose fit between w- outlet (receptacle) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a out- tied electrician to replace loose or worn outlets

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electric clan. Do not attempt to defeat this safety feature.

Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

SERVICING WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. Do not use gasoline, thinners, solvents, ammonics or other chemicals for cleaning. Refer to the CLEANING instructions provided. Do not open appliance housing while product is plugged in. To

avoid risk of shock, all service and/or repairs must be done by a Varnaco Authorized Service Center.

This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (fellow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

User Servicing Instructions

1. Using the product controls, turn off the appliance.

2. Grasp the plug (not the cord) and disconnect from the outlet.

3. Risk of Fire. Replace fuse only with 2.5 Amp, 125 Volt fuse as

approved by Vornado Consumer Service. For an authorized

replacement fuse, please contact Vornado Consumer Service.

1. Once the replacement is received, use a small flat-head screwdriver to slice open the fuse cover (located on the plug); (See Next Page, Fig. A).

2. Remove fuse by using the screwdriver to gently lift each end of the fuse (See Next Page, Fig. 8).

3. Install the replacement fuse by using the screwdriver to gently push each metal end of the fuse into the receptacle one at a time. Do not push or the center of the fuse, it is fragile and may break.

4. Slice the fuse cover closed using the screwdriver. When closed, the cover should fit completely in the plug. No part of the cover should stick out (See Next Page, Fig. C).

5. Plug your appliance into the outlet and turn the power on.

6. If the replacement fuse blows, a short circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Risk of fire. Do not replace attachment plug. Contains a safety device (Use, AFCI, LCD) that should not be removed. Discard product if the attachment plug is damaged

FCC Compliance Statement (Models 560, 569, 660 only) NOTE: This equipment has been tested and complicity with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna.

English

Increase the separation between the product and the receiver.
- Connect the product into an outlet on a circuit different from that to which the receiver is connected.
- Contact Vornado Consumer Service or dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian CES 003.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Supplier's FCC Declaration of Conformity Unique Identifier: Varnaco Models 560, 569, 660 Responsible Party: Varnaco A+ LLC Mailing Address: 415 F. 13th St., Andover, KS 67002

SAVE THESE INSTRUCTIONS

WHOLE ROOM CIRCULATION

The Vornado's signature Whole Room Circulation delivers continuous, uniform air circulation to the entire room. Cool only the rooms that you are in and not the entire house.

3D wireframe cube with internal dashed lines and a small circular mark on the bottom right corner (no text or symbols)

A Vornado circulates all the air in the room as everyone is comfortable. An air motion feels cooler than air that is stagnant. By providing whole room circulation, a Vornado allows you to turn the thermostat up 5°F - saving energy and money - without sacrificing comfort.

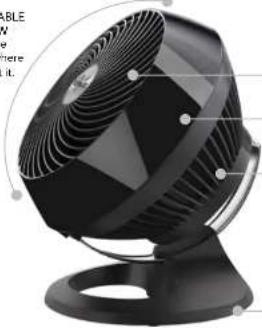

FEATURES

Save energy by maximizing the performance of heating and cooling systems. When you use a Vornado Air Circulator, you will not have to set your summertime thermostat as low or your wintertime thermostat as high. Refer to page 9 for further details.

DIRECTABLE

AIRFLOW

Direct the

arllow where

you want it.

Black desktop fan with visible blades and mounting base (no text or symbols)

MULTIPLE SPEEDS

Speed setting for every

comfort level

FINGER FRIENDLY DESIGN

Resists curious fingers.

REMOVABLE GRILLE

For easy cleaning.

AIR INLETS

5 signature inlets and

powerful motor to move

more air.

SILICONE FEET

Non-marking feet added for

stability.

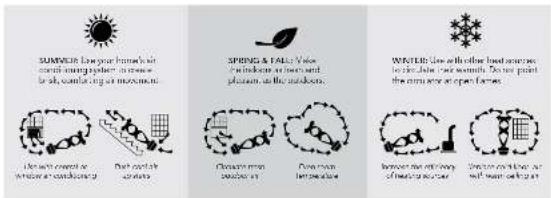

CIRCULATION 101

GETTING THE MOST OUT OF YOUR VORNADO - ALL YEAR LONG

With Vomado Air Circulators, you can save money on energy bills by adjusting your thermostat several degrees and still maintaining the same comfort level.

HOW TO USE

Before use, check appliance for visible damage. DO NOT USE THIS

CIRCULATOR if there is evidence of damage. If any damage is found, contact Vomado Air LLC at 1-600-234-0504.

1. Plug in end position the circulator so airflow is not obstructed.

2. Set desired speed and allow a few minutes for an airflow pattern to be established. Different airflow patterns can be established by changing the location, angle and speed. Adjust until a desired comfort level is achieved.

CLEANING

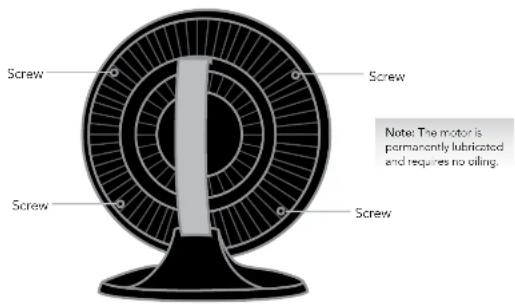

GRILLE REMOVAL (MODELS 160, 560 & 569) Screwdriver required.

⚠ WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. To release the Front Grille, remove the 4 screws located on the back of the inlet grille, located roughly at 2, 5, 7 and 10 o'clock positions.
2. Dust or wash Front Grille with a mild dishwashing soap. Do not place grille in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - position the Front Grille so the Vornado logo in the center of the Front Grille is straight. Replace all the screws.
   Tip Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grills and Air Inlets.

10 English

CLEANING

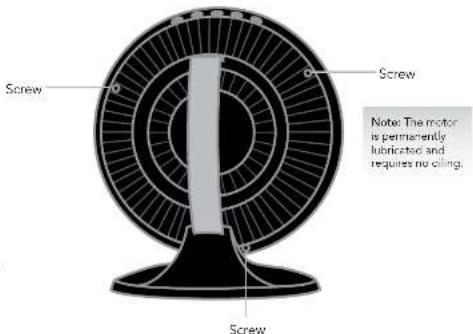

GRILLE REMOVAL (MODELS 360 & 460) Screwdriver required.

⚠ WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. Feel for bumps on back of product, close to inlets, that help to locate screws at roughly 12, 3, 6 and 9 o'clock positions. Remove the 4 screws located at these positions, releasing the grille.
2. Dust or wash Front Grille with a mild dishwashing soap. Do not place grille in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - position the Front Grille so the Vornado logo in the center of the Front Grille is straight. Replace all the screws.
   Tip Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grille and Air Inlets.

CLEANING

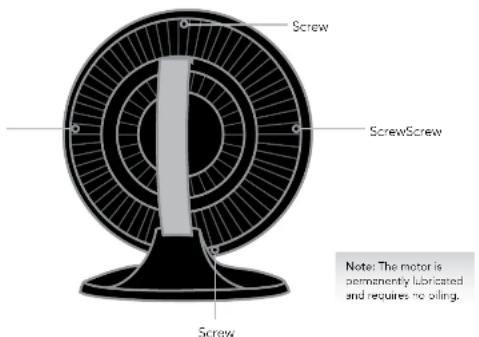

GRILLE REMOVAL (MODELS 660)

Screwdriver required.

⚠ WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. To release the Front Grille, remove the 3 screws on the back of the inlet grille, located at roughly 10.2 and 6 o'clock positions.
2. Dust or wash Front Grille with a mild dishwashing soap. Do not place grille in the dishwasher. The excessive meal can distort the plastic.
3. To reattach - position the Front Grille so the Vornado logo in the center of the Front Grille is straight. Replaces all the screws.

Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grille and Air Inlets.

12 English

CLEANING

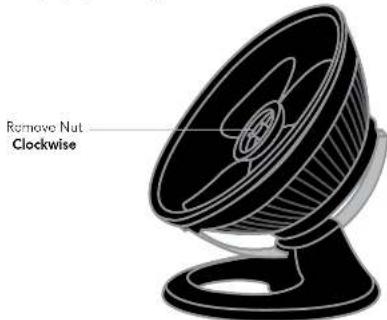

BLADE REMOVAL

Pliers recommended.

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing blade.

1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
2. Wipe the Blade with a damp cloth. If your circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place blade in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - be certain she flat side of the she's a-gne directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer as this could result in bearing damage. Reinstall nut

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

The unit fails to power on.

Unit is not plugged in. Plug Power Cord into electric outlet.

Ensure unit fan speed setting is selected.

Plug fuse has blown. Replace fuse (See USER SERVICING INSTRUCTIONS on page 6).

Unit is damaged or in need of repair. Cease usage and upplug. Contact Consumer Service for assistance.

The outlet is worn or damaged. Try another outlet or contact a qualified electrician,

Airflow is weak or slow.

Unit set to a low speed setting. Adjust to a higher speed setting.

Airflow is blocked. Remove obstruction

Adjust direction of airflow towards the user.

GFCI has tripped.

Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit interrupter) outlet to trip when the user is charging speeds on a Vornado circulation. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet.

14 English

WARRANTY

We expect this product to be perfect. If you're not satisfied with this product, let us know.

We're Here To Help

800.234.0604

vornado.com

[e-mail]

Vorrada Air (1C) ("Vorrada") means on the original consumer or purchases this Vorrada! Whole Room Circulator ("Product") is free from defects in material or workmanship for a portion of five (5) years from the time of purchase. If any such items is sufficient within the warranty period, Vorrada, at its failure, will require an explanation the Product is not equal.

For warranty service, Call 1 800 234-0604 or email helps their reader to obtain a Retail Authorization (PISA). This has no or include your product's mode number and some number, as well as your name, address, city, state, zip code, e-mail, and phone number when contacting the mode for warranty service. To file a contact as warranty claim, visit www.pwado.com/contact-us

After receiving the RA form, ship your Product for Vornado Air LLC Arm. Warranty & Repair 415 East 13th Street Auditor, CA 67202. For your maintenance, please have your model number and serial number when contacting Variances with service in cui co. To ensure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be delivered at the second door. Please allow 2-5 weeks for warranty service and return of your product after the product is received.

This warranty does not apply to defects resulting from abuse of the product, modification, alteration, Maryland, manpower maintenance, commercial use or repair or reuse of the product. By Argentina or more than Vornado, damage of infection in shipment or use attributed to acts of God Immoor product use, which includes using an external device that allows contracts the village or frequency of electricity, or shipping a Vornado product to a country not intended for use will void all warranties. Any unauthorized product

modification, partly by unauthorized repair center, or use of non-approved replacement parts in not as soon intended and any consequences will not be covered by support services. The following is to be required to provide the necessary information of the relevant services provided in the country, intended for INDIR OR THE COMPLINA IS PROVIDED UNIFIED THIS WARRANTY IS THE FUND LIME REFIVE OF THE COMPLINA WORKING SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL BALDAMYERS FOR BEACH OF THE YEAR OF THIS WARRANTY. This warranty is not intended for any person to purchase, but the sole responsibility from APPSICR LAW, ANY IMP. IF WARRANTY OF MERC-AUTARIITY OR UNLESS TO AUTHORICUANT YOU, ON THIS DOCUMENT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states are not allowed to acquire any liability for any purpose of infringement or violation, and you may have no further right to any other state state. The market uses assumption that any potential for damage caused by failure is not suitable for any structure or improper product use. Any such portion will initiate the permanent company.

All company names and product names are trademarks of their respective owners. © All rights reserved. All other information, data and structure, etc. is established, connected, and operation contained in these instructions for use correspond to the latest available information at time of printing. The contents of this manual may still be slightly from the actual product. Observe any additional supplements.

Designed, engineered and supported in Andover, KE

© 2022 Vorrado Ar LLC Anderson, KS 67002 U.S. Patent Pending. Specifications subject to change manual notice. Vorrado® is a legal or written by Vorrado Ar LLC.

3D wireframe diagram of a rectangular container with internal dashed lines and a small circular object at the bottom (no text or symbols)

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

Pure diagram of a circular fan or fan with radial lines and central vertical bar, no text or symbols present.

Tomillo

Illustration of a desktop fan with a spool and base (no text or symbols)

28 Equai

3D wireframe diagram of a rectangular container with internal dashed lines and a small circular mark on the bottom (no text or symbols)

MAXIMISEZ L'EFFICACITÉ DU REFROIDISSEMENT

Black electric fan with visible blades and mounting base (no text or symbols)

CAUSE POSSIBLE ET SOLUTIONPROBLÈME

415 East 13th Street, Andover, Kansas 67002

800.234.0604 | vornado.com

CL3-0415 RB, V01
