USER MANUAL W10536162 WHIRLPOOL

INSTALLATION INSTRUCTIONS

SIDE TRIM COVER KIT FOR

ELECTRIC BUILT-IN SINGLE OVEN, DOUBLE OVEN AND

Built-In Single Oven Side Trim Cover Kit W10536160

UL listed for use with models: WOS51EC7A, WOS92EC7A, MEW7527A, MEW9527A, WOS51EC0A, WOS92EC0A, MEW7530A, and MEW9530A

Built-In Double Oven Side Trim Cover Kit W10536161

UL listed for use with models: WOD51EC7A, WOD93EC7A, MEW7627A, MEW9627A, WOD51EC0A, WOD93EC0A, MEW7630A, and MEW9630A

Built-In Microwave/Oven Combination Side Trim Cover Kit W10536162

UL listed for use with models: WOC54EC7A, WOC54EC0A, WOC95EC0A, and MMW9730A

INSTRUCTIONS D'INSTALLATION

ENSEMBLE DE GARNITURES DÉCORATIVES LATÉRALES

POUR FOUR ÉLECTRIQUE ENCASTRÈ SIMPLE, DOUBLE ET

COMBINÉ MICRO-ONDES/CONVENTIONNEL

BUILT-IN SINGLE OVEN, DOUBLE OVEN AND

MICROWAVE/OVEN COMBINATION SAFETY....2

INSTALLATION REQUIREMENTS....2

Tools and Parts 2

Location Requirements....2

INSTALLATION INSTRUCTIONS....3

Install Side Trim Cover Kit....3

Install Electric Built-in Single Oven, Double Oven and MWO/Combination Oven....4

Complete Installation ....4

SÉCURITÉ DU FOUR ENCASTRÉ SIMPLE, DOUBLE ET

COMBINÉ MICRO-ONDES/CONVENTIONNEL....5

EXIGENCES D'INSTALLATION....5

INSTRUCTIONS D'INSTALLATION....6

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

■ Phillips screwdriver

Level

■ Measuring tape

■ Flat-blade screwdriver

Parts supplied

Pure mechanical diagram showing two parallel rods with labeled points A and B, no text or symbols present.

A. Left side trim cover

B. Right side trim cover

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

■ Follow the instructions below along with the instructions in the Electric Built-In Single Oven, Double Oven and Microwave/Oven Combination Installation Instructions.

Product Dimensions

Side Trim Cover Kits

L

Single Built-In Oven L = 23 ^1/16 " (58.5 cm)

Double Built-In Oven L = 45 ^13/16 " (116.4 cm)

MWO/Combination Built-In Oven L = 36 ^7/8 " (93.6 cm)

INSTALLATION INSTRUCTIONS

Install Side Trim Cover Kit

Follow the instructions below to install the Side Trim Cover Kit on a built-in oven.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.
2. Remove the oven door(s). For more information, see the "Remove Oven Door" section in the oven Installation Instructions. If the built-in oven is already installed in the cabinet, continue with Step 3. If the built-in oven is not installed into the cabinet, go to Step 5.

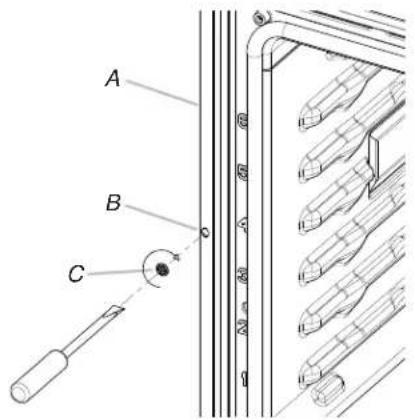

3. Use a Philips screwdriver to remove the #8-14 x1" screws fastening the oven to the cabinet. Use a flat-blade screwdriver to remove the grommets from the mounting rail hole by inserting the screwdriver into the grommet and giving a clockwise 14 turn.

A B C

A. Mounting rail
B. Mounting rail hole
C. Grommet

WARNING

Excessive Weight Hazard

Use two or more people to move and install oven.

Failure to do so can result in back or other injury.

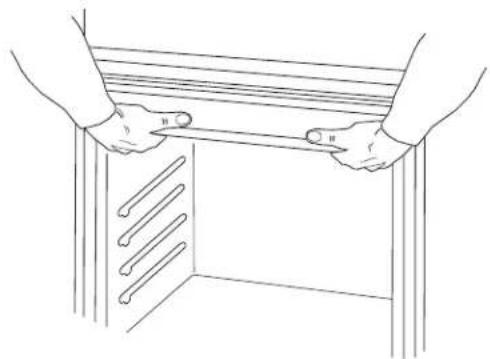

1. Using 2 or more people, pull the oven 1" (2.5 cm) out of the cabinet cutout. Use the oven opening as an area to grip. NOTE: Pull against the seal area of the oven front frame when lifting the oven out of the cabinet. Do not pull against the outside edges.

Line drawing of two hands holding a rectangular object with parallel rods inside a cabinet (no text or symbols)

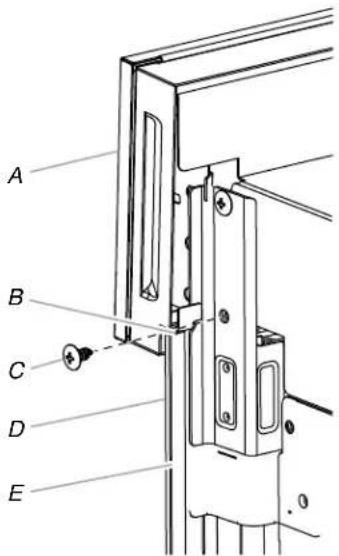

1. Remove the lower screw from each side of the control panel. Tilt the control panel out enough to insert the left and right side trim covers behind the control panel. Align the side trim cover to the top and side of the mounting rail.

A B C D E .0

Right side rear view shown

A. Control panel
B. Mounting rail top
C. Lower screw
D. Right side trim cover
E. Mounting rail side

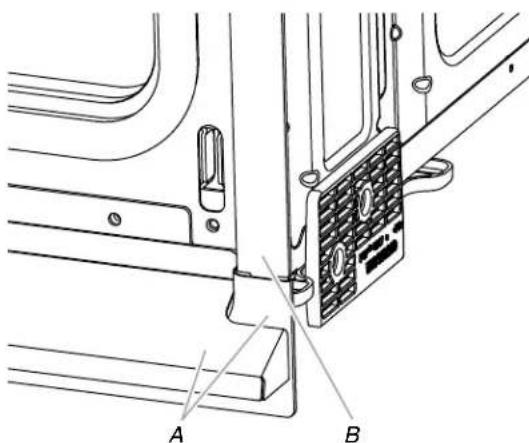

1. Insert the bottom of the side trim covers behind the oven vent.

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

Right side front view shown

A. Oven vent
B. Right side trim cover

1. Tilt in the control panel against the side trim cover and replace the lower screw on each side of the control panel. Do not overtighten screws.

Install Electric Built-in Single Oven, Double Oven and MWO/Combination Oven

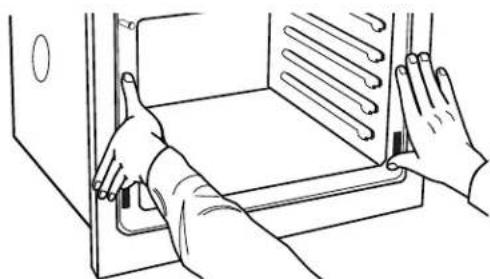

1. Using 2 or more people, push against the seal area of the front frame to push the oven into the cabinet until the back surface of the front frame touches the front wall of the cabinet.

Line drawing of hands installing or adjusting a door panel with heat sinks (no text or symbols)

1. Securely fasten oven to cabinet using the #8-14 x 1" screws provided. Insert the screws through hole in the side trim cover. Do not overtighten screws.
2. Follow the oven Installation Instructions to complete installation.

NOTE: If the built-in oven was not installed into the cabinet, read the "Electrical Requirements" and "Electrical Connection" sections, along with all other sections of the Installation Instructions, before installing the oven.

1. Reconnect power.
2. The display panel will light briefly, and "PF" should appear in the display.
3. If the display panel does not light, reference the "Assistance or Service" section of the Use and Care Guide, or contact the dealer from whom you purchased your oven.

Complete Installation

1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.

If you need Assistance or Service:

Please reference the "Assistance or Service" section of the Use and Care Guide or contact the dealer from whom you purchased your built-in microwave oven spacer kit.
