USER MANUAL BRB100033AP SAMSUNG

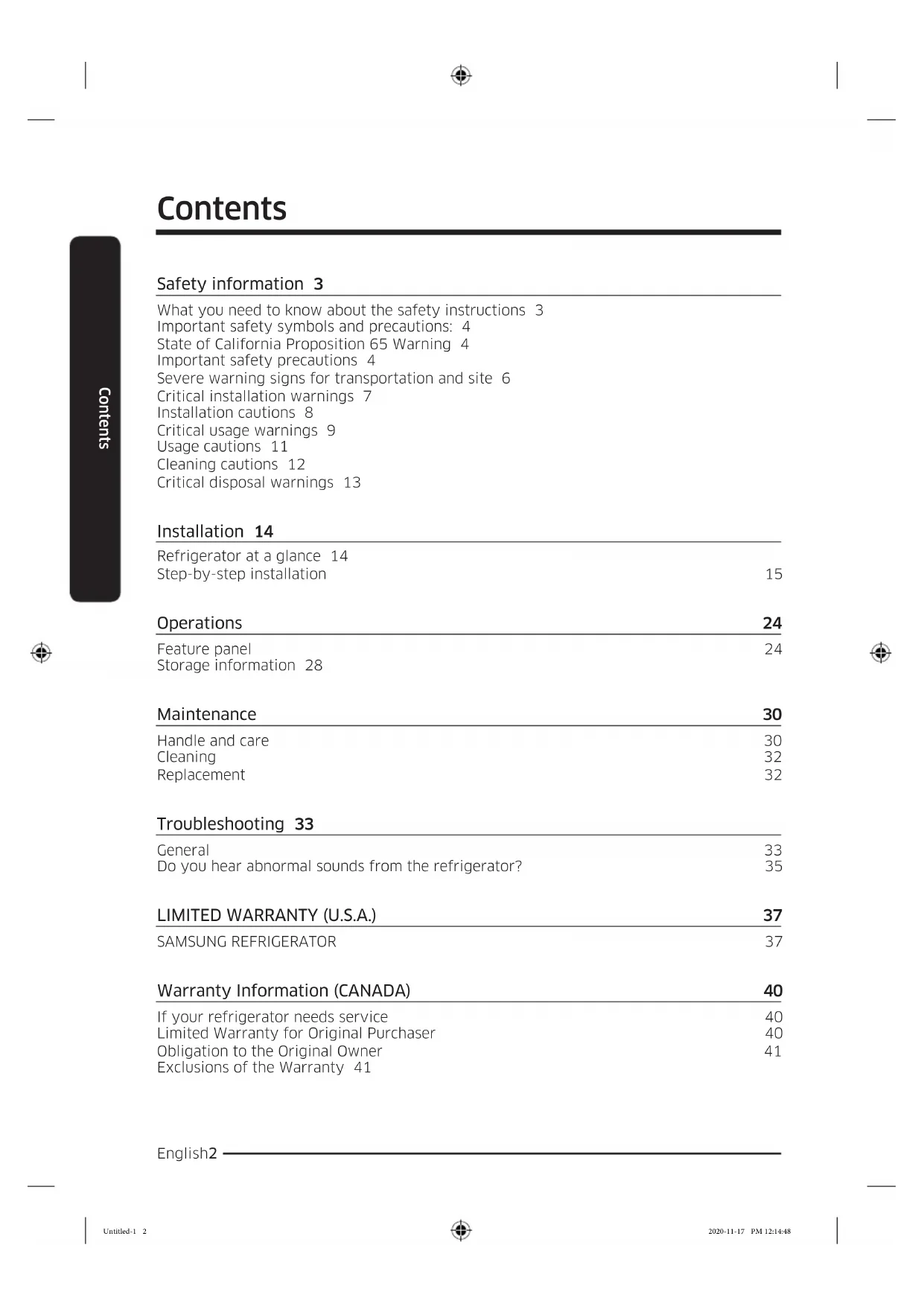

What you need to know about the safety instructions 3
Important safety symbols and precautions: 4
State of California Proposition 65 Warning 4
Important safety precautions 4
Severe warning signs for transportation and site 6
Critical installation warnings 7
Installation cautions 8
Critical usage warnings 9
Usage cautions 11
Cleaning cautions 12
Critical disposal warnings 13

Installation 14

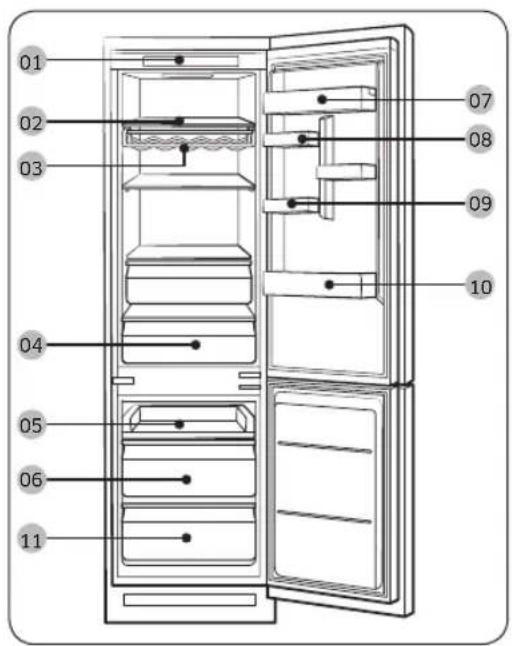

Refrigerator at a glance 14 Step-by-step installation 15

Operations 24

Feature panel 24
Storage information 28

Maintenance 30

30
Cleaning 32
Replacement 32

Troubleshooting 33

General 33
Do you hear abnormal sounds from the refrigerator? 35

LIMITED WARRANTY (U.S.A.) 37

SAMSUNG REFRIGERATOR 37

Warranty Information (CANADA) 40

If your refrigerator needs service 40
Limited Warranty for Original Purchaser 40
Obligation to the Original Owner 41
Exclusions of the Warranty 41

English2

Safety information

Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.

What you need to know about the safety instructions

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.
  If you have any question, contact us at 1-800-SAMSUNG or find help and information online at www.samsung.com.

• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.

• Failing to do so may result in fire or explosion.

• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance.

The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.

Safety information

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 Warning

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Important safety precautions

Warning; Risk of fire / flammable materials

WARNING

• R-600a is used as a refrigerant. This product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3ft^3 in size for every 8 g of R-600a refrigerant inside the appliance.
• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.

English4

• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.
• Connect to potable water supply only.
• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

WARNING

• Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.

• Leave the shelves in place so that children may not easily climb inside.

Safety information

CAUTION

• Risk Of Fire Or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing.
• Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
• Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner's Guide Before Attempting to Service This Product. All Safety Precautions Must Be Followed.
• Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used.
• Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used.
• To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer Or Refrigerator.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Severe warning signs for transportation and site

WARNING

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

• Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

• This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also flammable.

English6

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances and the refrigerator into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.
• This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a fire hazard.
• If the wall socket is loose, do not insert the power plug.
  There is a risk of electric shock or fire.
• Do not use a power cord that has cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• This may result in an electric shock or fire.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
• Damage to the cord may cause a short-circuit, fire, and/or electric shock.
• Do not install this appliance near a heater or flammable material.
• Do not install this appliance in a location where gas may leak.
• This may result in an electric shock or fire.
• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
• There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible after installation.
• Failing to do so may result in an electric shock or fire due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops).
• Deteriorated insulation on electrical parts may cause an electric shock or fire.

Safety information

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact a Samsung Electronics service center.
• Otherwise there is a risk of fire.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in an electric shock, fire, problems with the product, or injury.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.
• There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.

• The refrigerator must be safely grounded.

• Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.

• You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.

• Current leakage may result in an electric shock, fire, explosion, or problems with the product.

• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.

• This may result in an electric shock or fire.
• Only a qualified technician or service company should be allowed to change the fuse in the refrigerator.
• Failing to do so may result in an electric shock or personal injury.

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.
• Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.
• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.
• It is strongly recommended you have a qualified technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.
• Overloading one door may make the refrigerator fall, causing physical injury.

English8

Critical usage warnings

WARNING

• Do not insert the power plug into a wall socket with wet hands.
• This may result in an electric shock.
• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
• This may cause frostbite.
• Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.
• Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
• This refrigerator is for storing food only.
• This may result in fire or explosion.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep fingers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the area under the appliance.
• Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.
  If you smell smoke, pull out the power plug immediately, and then contact a Samsung Electronics service center.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.
• Do not let children step on a drawer.
• The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.
• Do not allow babies or children to go into a drawer.
• It can cause death from suffocation by entrapment or personal injury.

Safety information

• Do not overfill the refrigerator with food.

• When you open the door, an item may fall out and cause personal injury or material damage.

• Do not spray volatile material such as insecticide onto the surface of the appliance.

• As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.

• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.

• It may cause a personal injury or material damage.

• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.

• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors.

• This may result in an electric shock or fire.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).

• Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.

• If spilled, there is a risk of fire or electric shock.

• Never stare directly at the UV LED lamp for long periods of time.

• This may result in eye strain due to the ultraviolet rays.

• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work.

• The glass shelf could fall and cause personal injury.

• Keep fingers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.

• Do not touch the appliance or power cord.

• Do not use a ventilating fan.

• A spark may result in an explosion or fire.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• Bottles should be stored tightly together so that they do not fall over or out.

• This product is intended only for the storage of food in a domestic environment.

• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.

• This can cause a personal injury or material damage.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself.

• Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.

• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

English10

• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung service center.

• Failing to do so may result in an electric shock, fire, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service center.

• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Samsung service center.

• Failing to do so may result in an electric or fire hazards.

• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.

• Otherwise, there is a risk of electric shock.

• If you experience difficulty changing a non-LED light, contact a Samsung service center.

• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.

• Contact a Samsung service center.

• Plug the power plug into the wall socket firmly.

• Do not use a damaged power plug, damaged power cord, or loose wall socket.

• This may result in an electric shock or fire.

Usage cautions

CAUTION

• Do not re-freeze frozen foods that have thawed completely.

• Use only the ice maker provided with the refrigerator.

To get the best performance from the product:

• Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.
• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.

• Please observe maximum storage times and expiration dates of frozen goods.

• Do not put glass containers or bottles or carbonated beverages into the freezer.

• The container may freeze and break, and this may result in injury.
  Service Warranty and Modification.
• Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.
• Do not block the air vents inside the refrigerator.
• If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water filter may break and cause water leakage.
• If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a Samsung service center.

Safety information

• Do not strike or apply excessive force to any glass surface.

Broken glass may result in a personal injury and/or property damage.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).

Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

• If the refrigerator is flooded, shut off the power to the refrigerator and contact your nearest Samsung service center.

• There is a risk of electric shock or fire.

• Do not keep vegetable oil in your refrigerator's door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.

• Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

Cleaning cautions

CAUTION

• Do not spray water directly on the inside or outside of the refrigerator.

• There is a risk of fire or electric shock.

• Do not use a hair dryer to dry the inside of the refrigerator.

• Do not place a lighted candle in the refrigerator to remove bad odors.

• This may result in an electric shock or fire.

• Do not spray cleaning products directly on the display.

Printed letters on the display may come off.

• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Samsung service center.

• Failing to do so may result in an electric shock or fire.

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades.

Do not use a wet or damp cloth when cleaning the plug.

• Otherwise, there is a risk of fire or electric shock.

• Do not clean the appliance by spraying water directly onto it.

• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.

• They may damage the surface of the appliance and may cause a fire.

• Never put fingers or any objects into the dispenser outlet.

• This can cause a personal injury or material damage.

• Before cleaning or performing maintenance, unplug the appliance from the wall socket.

• Failing to do so may result in an electric shock or fire.

• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.

• These can scratch or damage the material.

English12

• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

Critical disposal warnings

WARNING

Children trapped inside a refrigerator can hurt themselves or suffocate to death.
- Please dispose of the packaging material from this product in an environmentally friendly manner.
- Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
- This product contains R-600a, a flammable gas, which is used as the refrigerant. Contact your local authorities regarding safe disposal of this product.
- When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.

• If trapped inside, the child could be injured or suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

• If a child places a bag over his or her head, the child could suffocate.

Installation

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power cord before servicing or replacements.

Refrigerator at a glance

The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

01 Control panel
02 Fridge shelf
03 Wine rack
04 Fridge drawer
05 Slide shelf
06 Freezer middle drawer
07 Dairy guard
08 Variety guard
09 Egg tray *

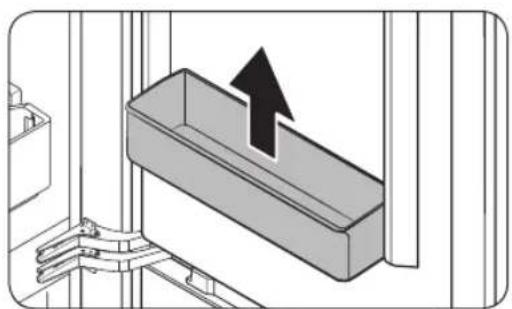

10 Fridge guard
11 Freezer bottom drawer

• applicable models only

NOTE

• To quickly freeze large quantities of food, use the freezer after removing the bottom drawer of the freezer.
• For best energy efficiency, make sure all of shelves, drawers, and baskets are placed in their original position.

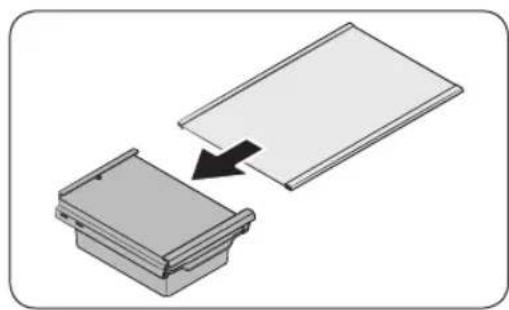

• To get more space, you can remove the slide shelf (5) and two freezer drawers (6,11) under it but keep the freezer shelf on the bottom drawer of the freezer. They do not affect thermal and mechanical characteristics. The declared storage volume of the frozen food storage compartment is calculated with the shelf and the freezer drawers removed.

English14

Step-by-step installation

STEP 1 Select a site

Select a site that:

• Has a solid, level surface without carpeting or flooring that may obstruct ventilation
• Is away from direct sunlight
• Has adequate room for opening and closing the door
  Is away from any heat sources
• Provides room for maintenance and servicing
• Has a temperature range between 50^ F ( 10^ C ) and 109^ F ( 43^ C )

NOTE

To facilitate moving your refrigerator to its final location, be sure to measure the width and height of doorways, thresholds, ceilings, stairways, and anything else that needs to be taken into consideration to ensure you can move your refrigerator safely. The following diagram illustrates the exact height and depth (factory specifications) of your refrigerator.

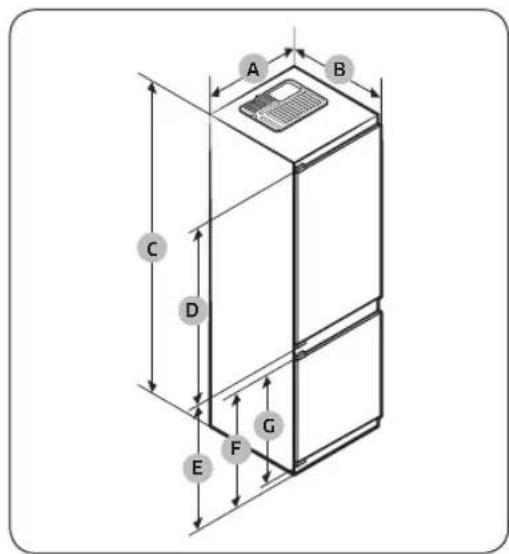

Product dimension

A 21	\( {}^{1}/{}_{4} \pm {}^{1}/{16}\left( {{540} \pm 2}\right) \)
B 21	\( {}^{5}/{}_{8} \pm {}^{1}/{16}\left( {{550} \pm 2}\right) \)
C 69	\( {}^{7}/{}_{n} \pm {}^{1}/{16}\left( {{1775} \pm 2}\right) \)
D 38	\( {}^{1}/{}_{4}\left( {971}\right) \)
E 28	\( {}^{15}{/}_{16}\left( {735}\right) \)
F 26	\( {}^{7}/{16}\left( {671}\right) \)
G 24	\( {}^{7}/{16}\left( {621}\right) \)

(unit: inch (mm))

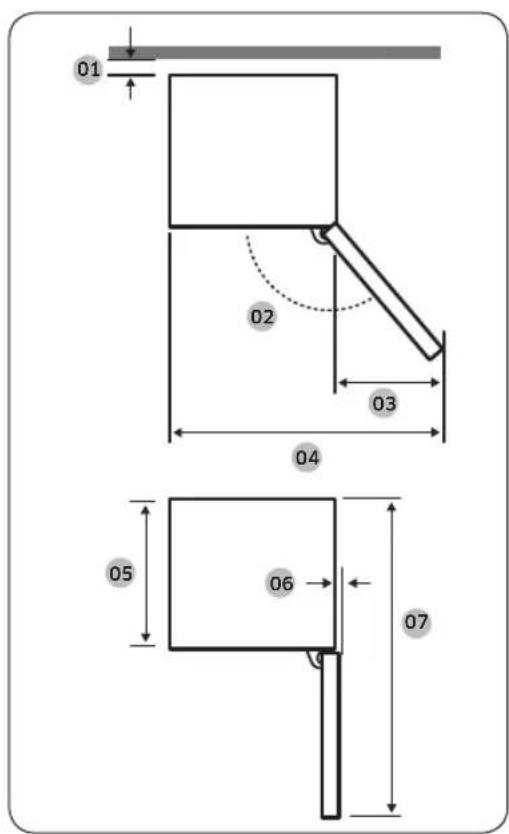

Installation

Product Overall Dimension

Model B	RB1000*
01*1	3/15(30)Recommend
02 95°	Recommend
038	3/15(218)
04 29	13/16(758)
05 20	1/16(510)
06	1/16(1)
07 41	3/15(1055)

(unit: inch (mm))

• 01: From cabinet to rear of product.

NOTE

• The specified energy consumption is based on the condition of a 1^3 / 16 in (30mm) gap from cabinet to rear of product. The product will work properly even with a gap which is less than 1^3 / 16 in (30mm) , however it consumes slightly more energy.

We recommend using a cabinet that is 11/16 in (18 mm) thick with hinges less than 13/16 in (20 mm) thick.

NOTE

• The measurements in the above table may differ, depending on the measuring method.
• For built-in installation, see the Installation Manual.

English16

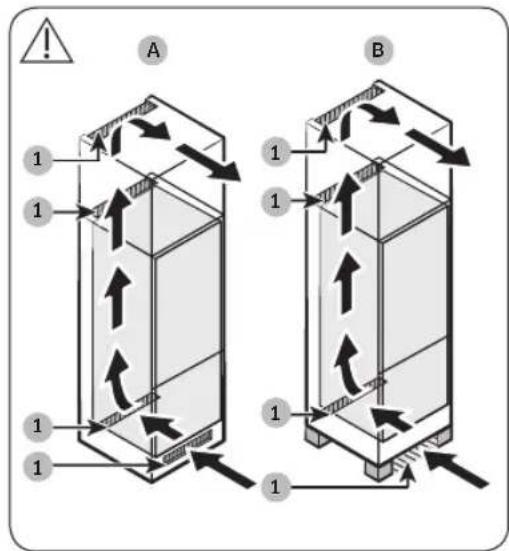

Ventilation system of the cabinet

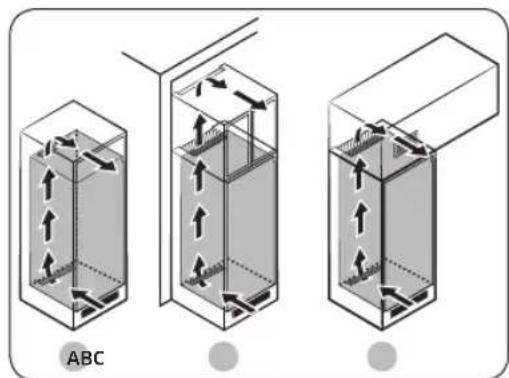

As shown in the figure, the air entering the refrigerator circulates along the ventilation path (see the arrow direction) of the cabinet. The cabinet must have at least 31 in ^2 (200~cm^2) (WxH: 19^1116 in (500mm)× 1^916 in (40mm)) of space both for the air inlet and air outlet. Also, the cabinet must have a rear vent of at least 31 in ^2 (200~cm^2) (WxH: 19^1116 in (500mm)× 1^916 in (40mm)) of space at the rear bottom.

Air inlet

Air outlet

131 in

2 (200 cm3)

The air inlet must be positioned in one of the examples below, or a similar position, depending on your cabinet type.

A. A ventilation hole included in the cabinet.
B. A cabinet with feet.

The air outlet must be positioned in one of the examples below, or a similar position, depending on your cabinet type.

A. Immediately above the refrigerator with an optional vent grille
B. Close to the cabinet ceiling
C. Above the refrigerator with a separately built-in vent

CAUTION

Regardless of the cabinet design, the air ventilation system must not be blocked by any kind of installation.

Installation

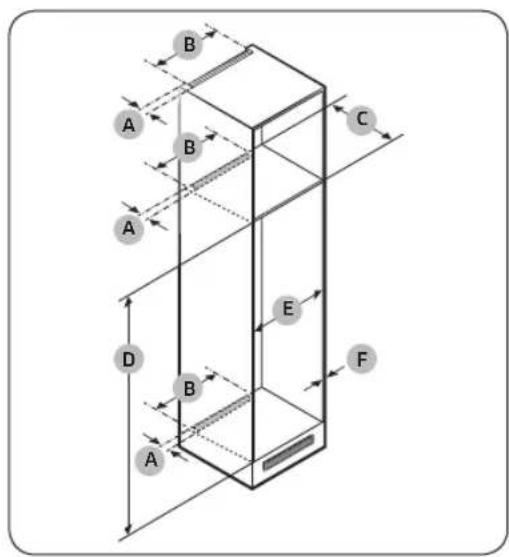

Cabinet dimension

CAUTION

If the cabinet has a door, make sure the door is not heavy to prevent it from tipping or falling off.

Cabinet door Thickness (in. (mm))		Weight (lb (kg))
Fridge side	Min. 3/8 (16)Max. 3/4 (19)	Max. 39.7 (18)
Freezer side Max. 26.5 (12)°

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes
2. Defective cabinet
3. Mistakes by the installer or the user

Clearance

See the pictures and tables below for space requirements for installation.

Model A B C D E F Remark
BRB1000*	Min.	19/16(40)	19/16(500)	221/16(560)	70(1778)	221/16(560)	-Hinge : 13/16 (17)
	Recommend			227/8(580)	70/16(1780)	221/8(562)	-
	Max. -				701/16(1782)	-	3/4(19)

(unit: inch (mm))

NOTE

• The specified energy consumption is based on a cabinet depth of 22^7/8 in (580mm) . The product will work properly at a cabinet depth of 22^2/16 in (560mm) also, however it consumes slightly more energy.
• If the cabinet is higher than the maximum dimension (70^3 / 16 in (1782mm) , you must use other finishing materials to fill the gap.

English18

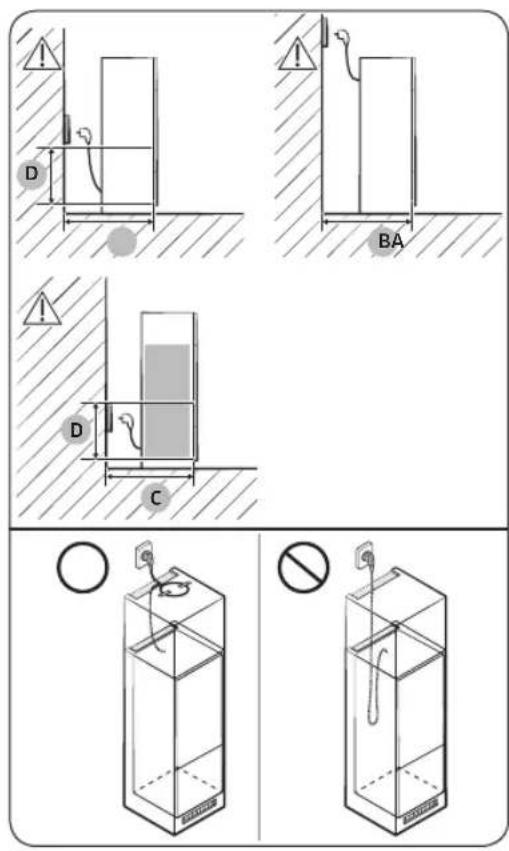

Minimum cabinet depth excluding the depth of the refrigerator door

A Min. 23	\( {}^{1}/{}_{4} \) (590)
B Min. 22	\( {}^{7}{/}_{36}\left( {560}\right) \)
C Min. 22	\( {}^{7}/{}_{8}\left( {580}\right) \)
D 9	\( {}^{7}/{}_{16}\left( {240}\right) \)

(unit : in (mm))

NOTE

If you install the refrigerator in a cabinet with a 22^1 / 16 in (560 mm) depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.

Cabinet type

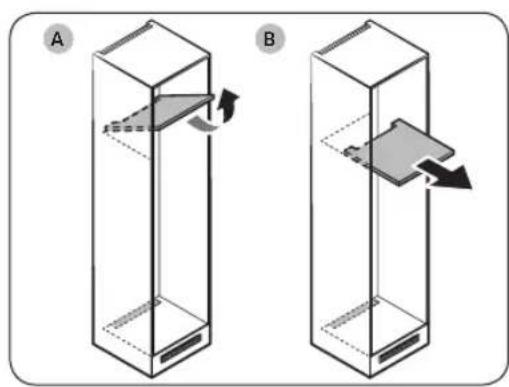

The recommended cabinet type is one of the following:

NOTE

If using any of these cabinet types, you don't need to remove the main unit from the cabinet for servicing a defective main PBA. If using another cabinet type, you must remove the main unit from that cabinet for servicing.

A. Flipping type
B. Sliding type

Installation

NOTE

• Using an unrecommended-sized cabinet can cause the gasket between the refrigerator and the cabinet to be loose after the refrigerator is inserted in the cabinet.

NOTE

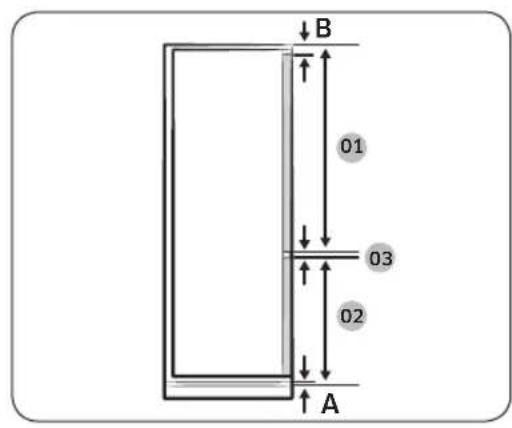

To install a cabinet requiring a 1/8 in (3 mm) gap (03), see the cabinet reference table below.

Model BRB1000*
01	Min. 41 (1041+B)Max. \( 43^3 \)/s (1102+B)
02	Min. \( 26^{3}/8 \)(670+A)Max. \( 28^{3}/4 \)(731+A)
03	\( ^1/8 \) in (3 mm)(fridge and freezer door gap)

A. Lower edge of the front panel above the air ventilation
B. Front panel overhang

English20

STEP 2 Flooring

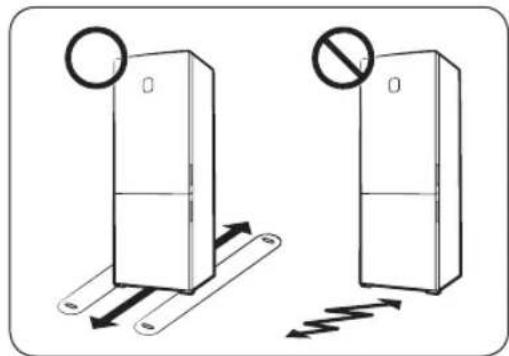

• The surface to install the refrigerator must support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard on each foot of the refrigerator.
  Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you have to, use a thick paper or cloth such as old carpet along the movement path.

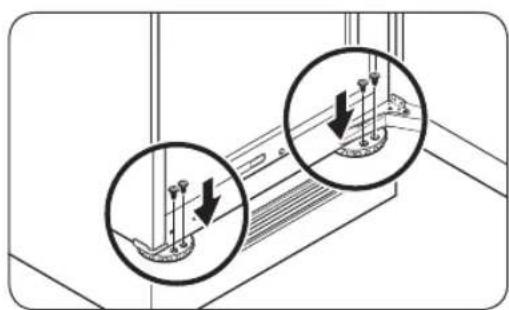

STEP 3 Adjust the levelling legs

CAUTION

• The refrigerator must be levelled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury.
• Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.

The refrigerator can be levelled using the front legs that have a special screw (leveller) for levelling purposes. Use a flat-head screwdriver for levelling.

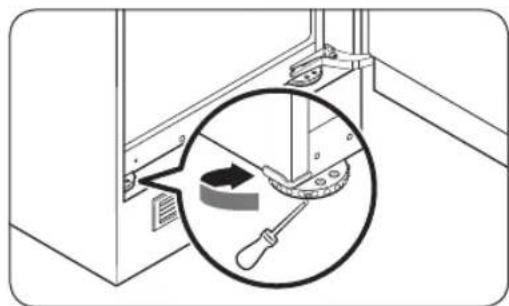

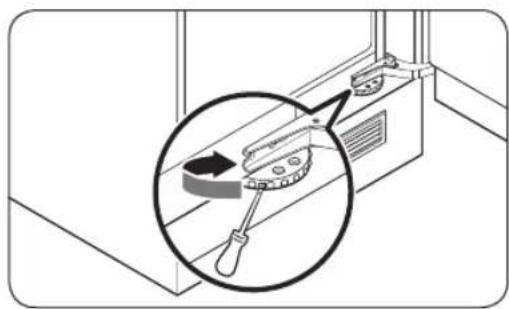

To adjust the height of the left side. Insert a flat-head screwdriver into leveller of the front left leg. Turn the leveller clockwise to raise, or turn in counter clockwise to lower.

Installation

To adjust the height of the right side:

Insert a flat-head screwdriver into the leveller of the front right leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.

NOTE

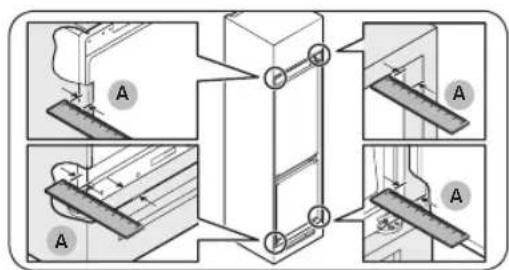

Make sure to secure a 1^5 / 8 in (41 mm) (A: for both the sliding hinge and the fixed hinge) gap between the refrigerator and the closet or alcove. Then, fix the front legs using the screws.

STEP 4 Initial settings

By completing the following steps, the refrigerator should be fully functioning.

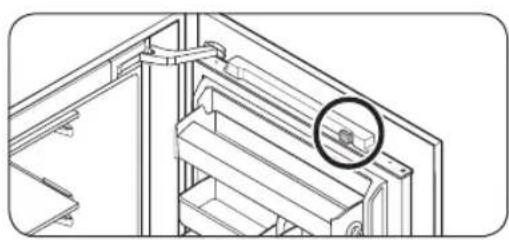

1. Remove the PE foam sheet on each shelf corner, which is attached to protect the refrigerator during transportation.
2. Open the door, and check if the interior light lights up.

1. Remove the PE foam on the magnet from the top of the door.

English22

1. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be slightly chilled, and the motor will run smoothly.
2. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready for use.

NOTE

When the refrigerator powers on, the alarm will sound. To turn off the alarm, press Freezer or Fridge.

STEP 5 Temperature Alarm (applicable models only)

Type 1

• The refrigerator blinks '- ' on the temperature display with an alarm if the freezer compartment is too warm. This may occur if the freezer becomes too warm after there has been a power failure.
• If this happens, press Freezer or Fridge. Whichever warmer temperature is displayed for 5 seconds. Then the actual temperature is displayed. To deactivate the alarm, press Door Alarm.

Type 2

• The refrigerator blinks the temperature indicator with an alarm if the freezer compartment is too warm. This may occur if the freezer becomes too warm after there has been a power failure. To deactivate the alarm, press Freezer or Fridge.

STEP 6 Final check

When installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with a reasonable clearance from the wall or the cabinet.
• The refrigerator is level and is sitting firmly on the furniture.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

Operations

Feature panel

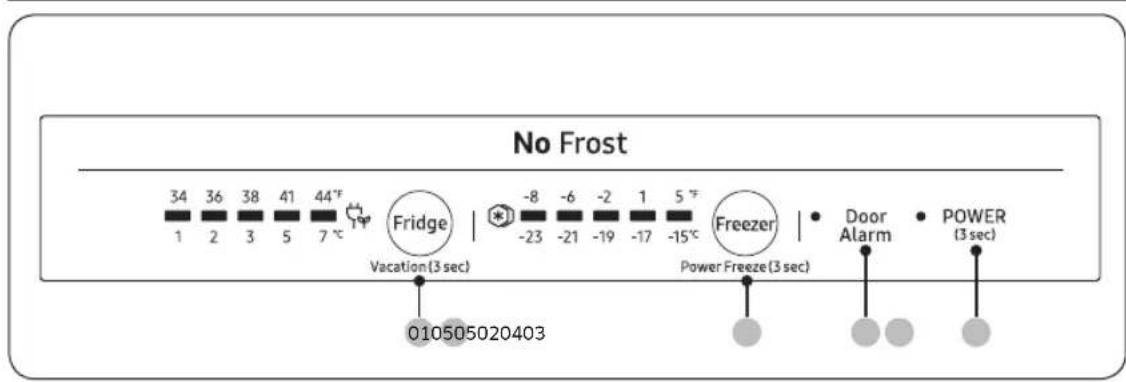

01 Fridge / Vacation 02 Freezer / Power Freeze

03 Door Alarm 04 POWER

05 Sabbath Mode

NOTE

• To ensure optimal performance, we recommend setting the temperature to -2^ (-19^) for the freezer, and 38^ (3^) for the fridge.
• The temperature in the refrigerator may rise if you open the door frequently or put a large amount of food into the refrigerator.
• The display of the main panel turns on only if the door is opened and turns off if the door is closed.

English24

01 Fridge / Vacation (3 sec)

Fridge

To adjust the fridge temperature, press Fridge to select the corresponding temperature. You can change the temperature between 34 °F (1 °C) and 44 °F (7 °C). Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature. • To activate Power Cool, select temperature 1 °C, and then press Fridge to select Power Cool. The corresponding indicator (▲) lights up, and the refrigerator will speed up the cooling process for you. • To deactivate Power Cool, press Fridge again. Then, the temperature of the fridge will be set back to 7 °C.

Vacation

If you are going on vacation or a business trip, or if you do not intend to use the fridge for an extended time, use the Vacation mode. • To activate Vacation mode, press and hold Fridge for 3 seconds. The Vacation On indicator (▲) turns on while the display of the fridge temperatures will turn off. The fridge temperature will be controlled under 59 °F (15 °C), but the freezer remains active as previously set. • To deactivate Vacation mode, press and hold Fridge again for 3 seconds. The fridge temperature will return to the previous setting. ▲ NOTE • Make sure to remove foods in the fridge compartment before using Vacation mode. • The Vacation mode will be disabled if you adjust the temperature.

Operations

02 Freezer / Power Freeze (3 sec)

Freezer

The Freezer button can be used to set the freezer temperature. Available temperatures are between 5 °F (-15 °C) and -8 °F (-23 °C).

Power Freeze

Power Freeze uses maximum fan speed to speed up the freezing process. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature.. • To activate Power Freeze, press and hold Freezer for 3 seconds to select Power Freeze. The corresponding indicator (lights up, and the refrigerator will speed up the freezing process for you. • To deactivate Power Freeze, press and hold Freezer for 3 seconds again. The freezer returns to the previous temperature setting, and the indicator turns off. • To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer. NOTE Using Power Freeze increases power consumption. Make sure you turn it off and return to the previous temperature if you do not intend to use it.

03 Door Alarm

You can set the alarm for a reminder. If the door is left open for more than 2 minutes, the alarm will sound with the Alarm indicator blinking.

You can toggle to enable and disable the alarm by pressing Door Alarm.

04 Power (3 sec)

To turn the refrigerator on, press and hold Power for 3 seconds. Both the fridge and the freezer turn on, and do the lamps accordingly.

If you press and hold Power for 3 seconds again, the refrigerator (both the fridge and the freezer) turns off, and the room lamps also turn off.

English26

05 Sabbath Mode

The Sabbath Mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

• To activate Sabbath Mode, press and hold Door Alarm and Fridge button simultaneously for 6 seconds. When the refrigerator is in Sabbath Mode, the buttons, the display, and the internal lights do not function. The refrigerator and freezer, however, continue to cool.
• To deactivate Sabbath Mode, press and hold Door Alarm and Fridge button simultaneously again for 6 seconds.

NOTE

If the refrigerator powers off and restarts (for example, if there is a power failure), the Sabbath Mode remains active. To end Sabbath Mode, you must deactivate it as described above.

Operations

Storage information

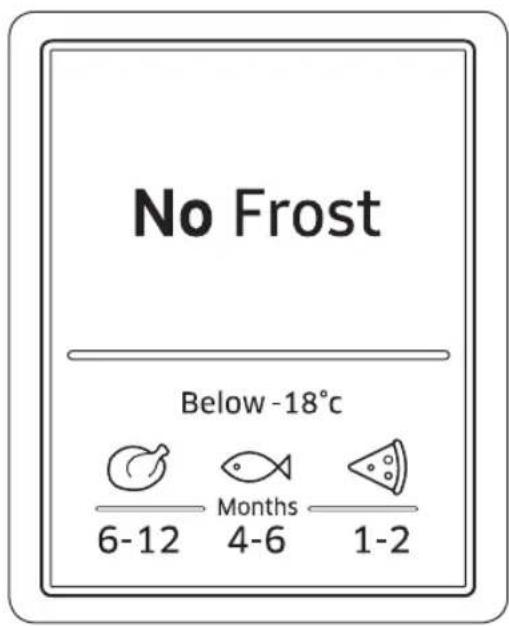

The numbers marked in the bottom section of this figure indicate the storage period for the immediately above food item. For example, 4-6 months for fish.

To freeze food

1. Wrap the food airtight with suitable wrapping materials.
2. Seal the wrapping.
3. Label the wrapping with the content and date.

Wrapping materials

• Materials suitable for wrapping food: plastic film, polyethylene blown film, aluminium foil, and freezer tins.
• Materials not suitable for wrapping food: wrapping paper, greaseproof paper, cellophane, food garbage bags, and used shopping bags.

Sealing materials

Rubber bands, plastic clips, string, cold-resistant adhesive tape or similar. Bags and polyethylene blown film can be sealed with a film sealer.

English28

Storage period of frozen food

The storage period differs with food types and storing temperatures. The following specification is based on a temperature of -18^ (0°F):

• Fresh poultry (whole chickens), fresh meat (steaks, roasts): up to 12 months
• Fish (lean fish, cooked fish), fresh shrimp, scallops, squid: up to 6 months
• Pizza, sausage: up to 2 months

NOTE

For more information, visit the FDA web site (http://www.fda.gov/).

Thawing

Frozen food can be thawed in the following ways:

• Naturally at room temperatures
  Naturally in the fridge
• By using an electric oven with or without heat support
• By using a microwave oven

NOTE

• Do not refreeze thawed food. Some parts of the food may not freeze completely.
• Do not store frozen food for longer than the max storage period.

Maintenance

Handle and care

Shelves / Wine Rack (applicable models only)

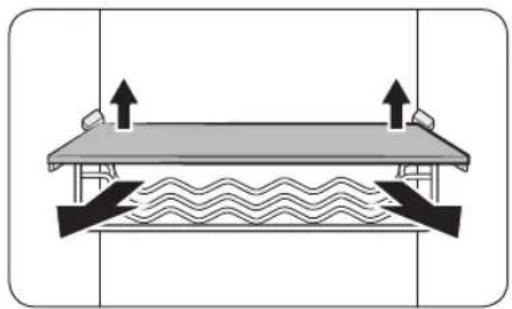

1. Slightly lift up the rear side of the shelf (or wine rack) to pull out.

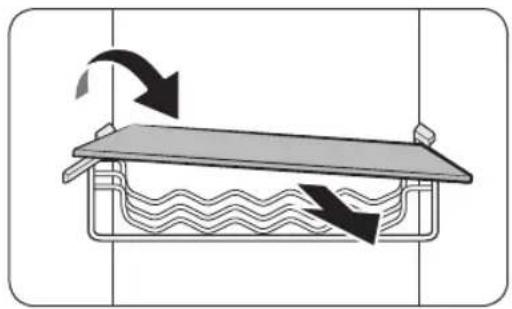

1. Twist the shelf (or wine rack) diagonally to remove.

Fridge guard / Variety guard

Hold the guard with both hands, and then lift up to remove.

CAUTION

To prevent accidents, empty the guards before removing

English30

Fridge drawer / Freezer drawer

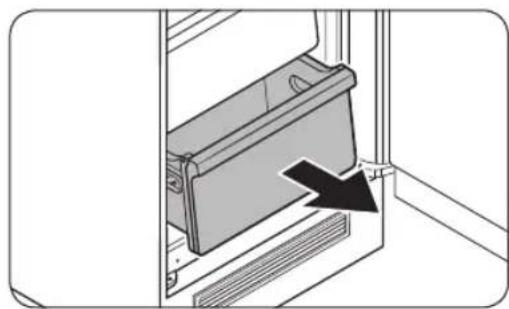

Gently lift up the front of the drawer and slide out.

Moving tray shelf (applicable models only)

1. Slightly lift up the rear side of the shelf to pull up to the front.
2. Slide out the shelf to the side to remove.

Maintenance

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

Replacement

LED Lamps

To replace the lamps of the refrigerator, contact a local Samsung service centre.

WARNING

• The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

English32

Troubleshooting

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

General

Temperature

Symptom Possible causes Solution
Fridge/freeze does not operate.Fridge/freeze temperature is warm.	Power cord is not plugged in properly.Temperature control is not set correctly.Refrigerator is located near a heat source or direct sunlight.Not enough clearance between refrigerator and sides/rear.Vacation mode is activated.The refrigerator is overloaded.Food is blocking the refrigerator vents.Fridge/freeze is over-cooling.	Properly plug in the power cord.Set the temperature lower.Keg the refrigerator away from direct sunlight or a heat source.Make sure to secure at least 1/4 in (7 mm) of space from the rear and side walls of the cabinet.Deactivate vacation mode.Do not overload the refrigerator.Do not allow food to block ventilation.Set the temperature higher.
Interior wall is hot.	Refrigerator has heat-proof piping in the interior wall.Refrigerator has heat-proof piping in the interior wall.	To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners.If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.

Troubleshooting

Odors

Symptom Possible causes Solution
Refrigerator has odors.	Spoiled food.
	Food with strong odors.
Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	·Food is blocking the vents.
Frost on interior walls.	·Door is not closed properly.
Fruits or vegetables are frozen.	·Fruits or vegetables are stored in the Fresh/Chef Zone.

Condensation

Symptom Possible causes Solution
• Condensation forms on the interior walls.	• If door is left open, moisture enters the refrigerator.
	• Food with high moisture content.
	• Make sure food is wrapped airtight.

English34

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

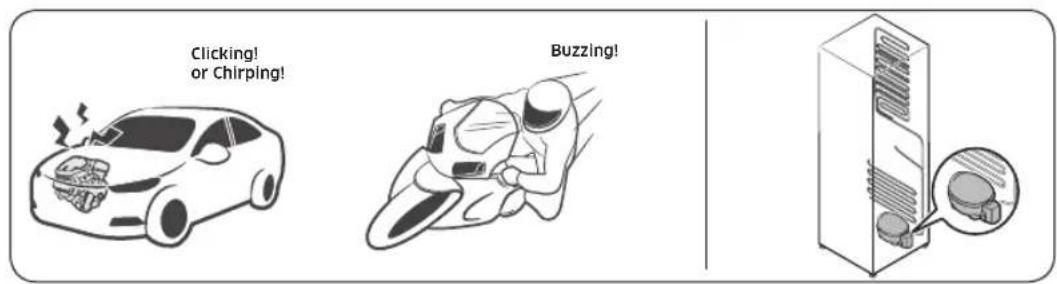

• When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

• While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

Troubleshooting

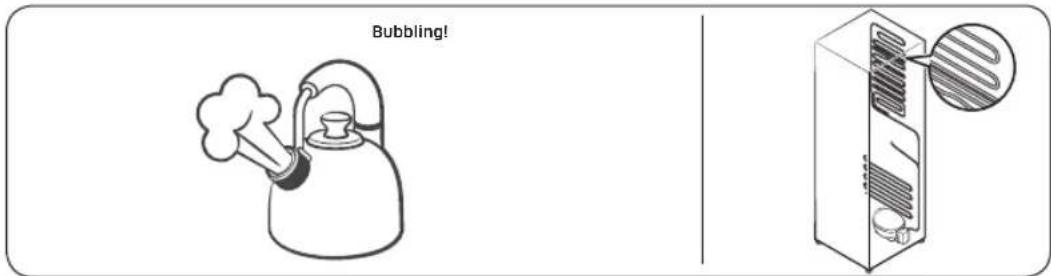

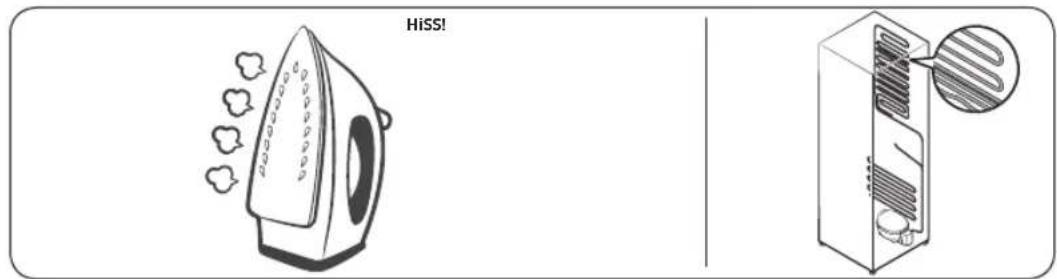

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

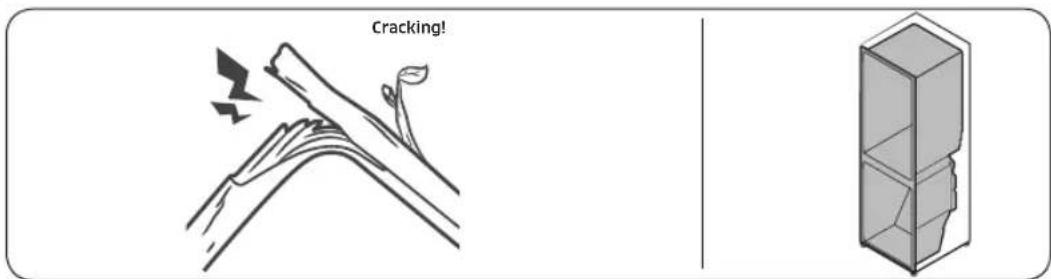

• As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

English36

LIMITED WARRANTY (U.S.A.)

SAMSUNG REFRIGERATOR

LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period of:

One (1) year parts and labor

Five (5) years parts and labor on Sealed Refrigeration System Only (Compressor, Evaporator, Condenser, Drier, and Connecting Tubing)

Ten (10) years part and Five (5) years labor on Digital Inverter Compressor Only

This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to receive warranty service.

SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer's geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.

To receive in-home service, product must be unobstructed and accessible to the service agent.

During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product's warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.

LIMITED WARRANTY (U.S.A.)

This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modification or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product's finishes; damage caused by abuse, misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fluctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer's responsibility.

Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

EXCLUSION OF IMPLIED WARRANTYES

IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

English38

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, firm, or corporation with respect to this product shall be binding on SAMSUNG.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

If your refrigerator needs service

Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number if your product is not functioning properly.

Limited Warranty for Original Purchaser

This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods:

Labor: 1 year (in-home)

Parts:1year

Inverter Compressor : 10 years (Part only)

SECA further warrants that if this product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to find out if in-home service is currently available in your area by using the contact information at the back of this warranty.

All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To find the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca)

English40

Obligation to the Original Owner

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer.

Exclusions of the Warranty

This warranty does not cover damage due to accident, fire, flood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

SAMSUNG CUSTOMER CARE CENTER

Samsung Electronics Canada Inc.

2050 Derry Road West

Mississauga, Ontario L5N 0B9

Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Memo

Memo

Scan this with your smartphone

Scan the QR code* or visit

www.samsung.com/spsn

to view our helpful

How-to Videos and Live Shows

• Requires reader to be installed on your smartphone.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG Customer Care Center.

Country Contact Center Web Site
U.S.A	1-800-SAMSUNG (726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/us/support
CANADA	1-800-SAMSUNG(726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/ca/support (English)www.samsung.com/ca_fr/support (French)

DA68-03592R-00

Refrigerador

Manual del usuario

BRB100033

SEA, SECA

Electrodométrico incorporado

Contidente

Ridgefield Park, NJ 07660

Samsung Electronics Canada Inc.

2050 Derry Road West,

Mississauga, Ontario L5N 0B9

Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)
