USER MANUAL SC07M25F0WP SAMSUNG

• Before operating this unit, please read the instructions carefully.
• For indoor use only.

SAMSUNG

PREPARATION

Safety information 3

Important safety instructions 4

INSTALLATION

Name of the parts 10

Accessories 11

OPERATIONS

Using the vacuum cleaner 12

Using the body 12

Using the handle 12

Using the brushes 13

MAINTENANCE

Cleaning and maintaining 14

When to empty the dust bag 14

Cleaning the inlet filter 14

Cleaning the dust bag 14

Cleaning the outlet filter 15

Cleaning the cyclone filter 15

Cleaning the brush 16

Cleaning the pipe 16

Cleaning the hose 16

Storing the vacuum cleaner 16

APPENDICES

Notes and cautions 17

In use 17

Cleaning and maintenance 17

Troubleshooting 18

Product information 19

Safety information

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Caution/Warning symbols used

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

Other symbols used

NOTE

Indicates that the following text contains additional important information.

- For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.htm

Important safety instructions

When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

This vacuum cleaner is designed for household use only.

Use the vacuum cleaner only for its intended use as described in these instructions.

Always install the filters in the correct position as shown in this manual.

Failure to meet these requirements could cause damage to the internal parts and void your warranty.

Please contact the manufacturer or service agent for a replacement.

General

• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance. Do not allow the vacuum cleaner to run unattended at any time.

Power related

• Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before emptying the dust bag. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• Slide to the Min. position before inserting a plug into the electrical outlet
• The use of an extension cord is not recommended.
• Please prevent any risk of electric shock or fire.

- Do not damage the power cord.

- Do not pull the power cord too hard or touch the power plug with wet hands.

- Do not use a power source other than the national rated voltage and also do not use a multi-outlet to supply power to number of devices at the same time.

- Do not leave the power cord carelessly on the floor.

- Do not use a damaged power plug, power cord or loose power outlet.

- Turn off the power before connecting or disconnecting the power plug to the power outlet and make sure your fingers don't come in contact with the pins of the power plug.

- Do not disassemble or modify the vacuum cleaner. When power cord is damaged, contact the manufacturer or service agent to get it replaced by certified repairman.

- Clean dust or any foreign matters on the pin and contact part of the power plug.

• Unplug the cleaner when not in use. Turn off the power switch before unplugging.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

In use

• Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set for lifting or carrying vacuum cleaner.
• Unplug the cleaner when not in use. Turn off the power switch before unplugging.
• Do not use outdoors, or on wet rugs or surfaces.
• Do not use the vacuum cleaner when rug or floor is wet.
• Do not use this product outdoors since it's designed for household use only.

- There is a risk of malfunction or damage.

* Outdoor cleaning : Stone, Cement

* A billiard room : Powder of a chalk

* An aseptic room of a hospital

- Do not use the vacuum cleaner to suction up liquids(such as water), blades, pins or embers.

- There is a risk of malfunction or damage.

- Be sure children do not touch the vacuum cleaner when you use it.

- The children may get burned if the body is overheated.

- Do not mount or make any physical impacts on the body.

- It may result in injury or damage.

- Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.
• Do not block the suction or the exhaust port.
• Do not use the vacuum cleaner without a dust bag and filters in place.
• Do not use worn, deformed or damaged filters and insert filter properly without gap between filter and cover filter.

- It can be a reason of penetration of dust and debris into motor.

- If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.

- If there's any gas leak or when using combustible sprays such as a dust remover, do not touch the power outlet and open the windows to ventilate the room.

- There is a risk of explosion or fire.

- Do not use this vacuum cleaner to clean building waste and debris, toner of laser printer. Regularly keep the filters in clean conditions to prevent of collecting fine dust in them.

- Dry carpet cleaners or fresheners, powders and fine dust such as flour should be only vacuumed in very small amounts.

- Use extra care when cleaning on stairs.

- Do not use to suction up water.

- Do not immerse in water for cleaning.

- The hose should be checked regularly and must not be used if damaged.

- Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

Cleaning and maintenance

• Do not lift or carry the vacuum cleaner putting a brush in the groove for storage.
• Use a dry cloth or towel to clean the body and make sure to unplug the vacuum cleaner before cleaning. Do not spray water directly or use volatile materials (such as benzen, thinner or alcohol) or combustible sprays (such as a dust remover) for cleaning.

- If water or other liquid gets into the product and causes malfunction, turn off the vacuum cleaner, unplug the power plug and then consult a service agent.

- Do not use alkaline or industrial detergents, air fresheners or (acetic) acids to clean the washable parts of the vacuum cleaner. (Refer to the following table.)

- It may cause damage, deformation or discoloration of the plastic parts.

Available detergent Neutral detergent Kitchen cleaner
Unavailable detergent Alkaline detergent Bleach, Mold cleaner, etc.
		Acid detergent Paraffin oil, Emulsifier, etc.
		Industrial detergent NV-I, PB-I, Opti, Alcohol, Acetone, Benzene, Thinner, etc.
		Air freshener Air freshener(Spray)
		Oil Animal or vegetable oil
		Etc. Edible acetic acid, Vinegar, Glacial acetic acid, etc.

- Do not stand on the hose assembly. Do not put weight on the hose.

CAUTION

In use

- Do not use the pipe for anything other than its intended purpose.

- It may result in injury or damage.

- When you lift up the body cover of the product while using the vacuum cleaner, safety device will be activated and there might be changes in operating noise.

- Operating noise may change when you hold the body cover of the product while using the vacuum cleaner, but the circular tube on bottom of the dust bag prevents dust from spilling out.

- Do not pull the power cord beyond the yellow mark and hold the power cord with one hand when rewinding it.

- If you try to pull it beyond the yellow mark, power cord can be damaged and if you don't hold the power cord while rewinding, it may lose control and cause injury or damage to people or objects around it.

- If any abnormal sounds, smells or smoke come from the vacuum cleaner, immediately unplug the power plug and contact a service agent.

- There is a risk of fire or electric shock.

- Do not use the vacuum cleaner in any places near heating appliances (such as stove), combustible spray or flammable materials.

- It may cause fire or deformation of the product.

- Empty the dust bag before it is full in order to maintain the best efficiency.

Cleaning and maintenance

- Unplug the vacuum cleaner if you do not use it for a long time.

- It may cause electric shock or fire.

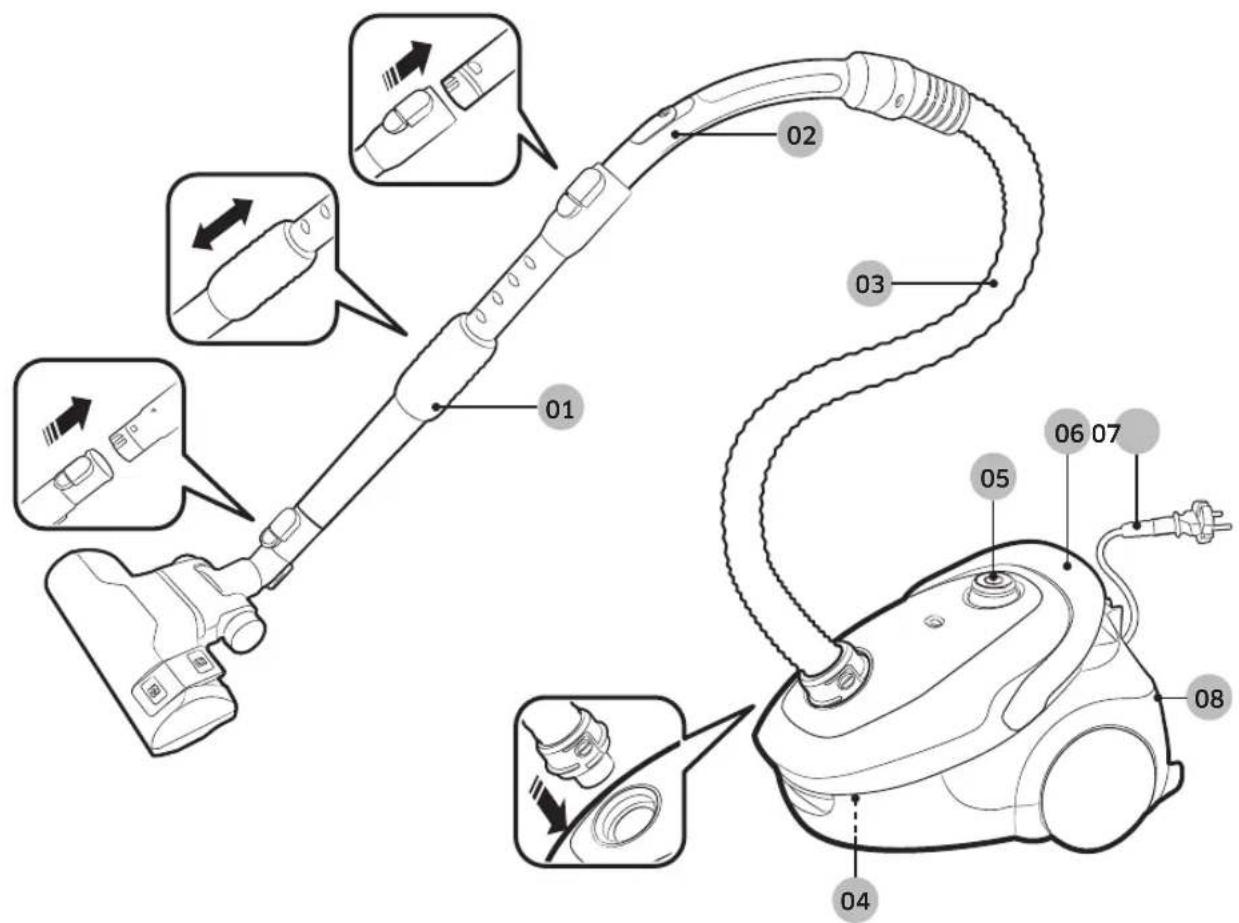

Name of the parts

Product design may differ depending on the models.

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating assembly steps

01 Pipe
02 Handle
03 Hose
04 Dust bag
05 Power button

06 Cord rewind button / Carry handle
07 Power cord
08 Outlet filter

Accessories

Accessories may differ depending on the models.

Line drawing of a flexible hose with a bulbous end cap (no text or symbols)

Hose Pipe Pipe

Line drawing of a cylindrical mechanical tool or rod with a flanged end and central shaft (no text or symbols)

Simple line drawing of a cylindrical tool or rod with a flanged tip (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a handheld device with a control panel and cylindrical port (no text or symbols)

Line drawing of a mechanical clamp or bracket component (no text or symbols)

2-step brush 2-step brush Pet Brush

Line drawing of a mechanical clamp or connector (no text or symbols)

Porch brush EzClean Cyclone 2-in-1 accessory

User manual

Using the vacuum cleaner

Suction control may differ depending on the models.

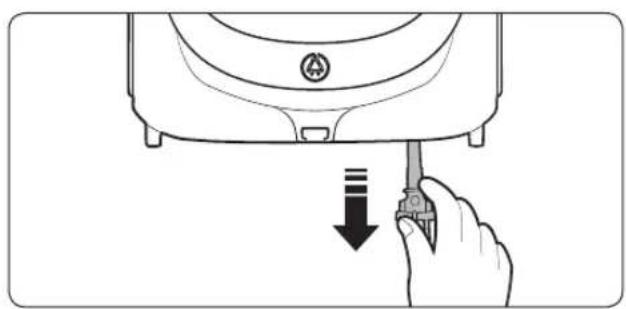

Using the body

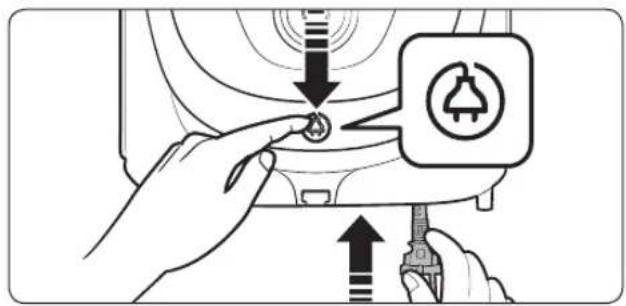

Power cord

Line drawing of a hand using a tool to press down a device component (no text or symbols)

Diagram showing hands installing a button on a device with a warning symbol and directional arrows

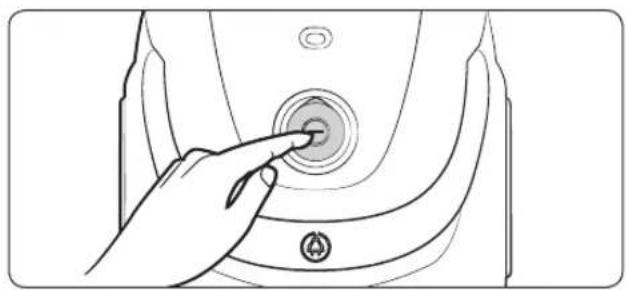

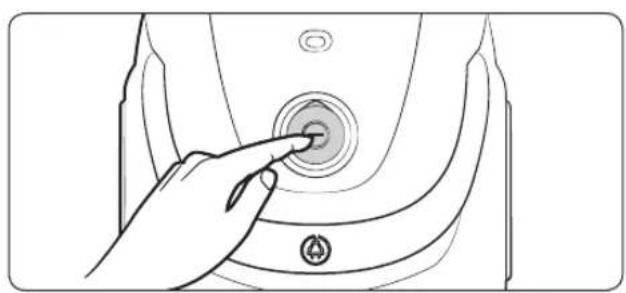

On/Off

Line drawing of a hand pressing a circular button on a device component (no text or symbols)

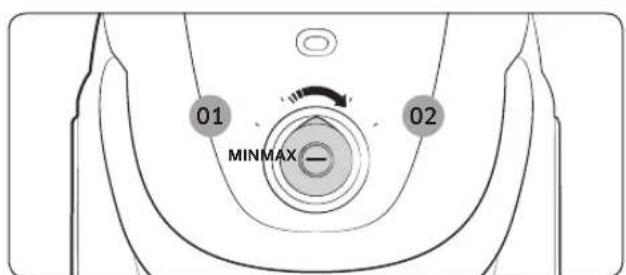

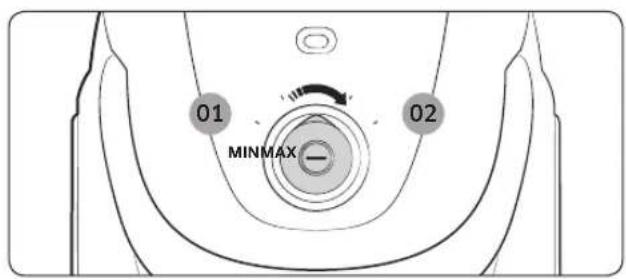

Suction

01 MINMAX 02

01 Low power

02 High power

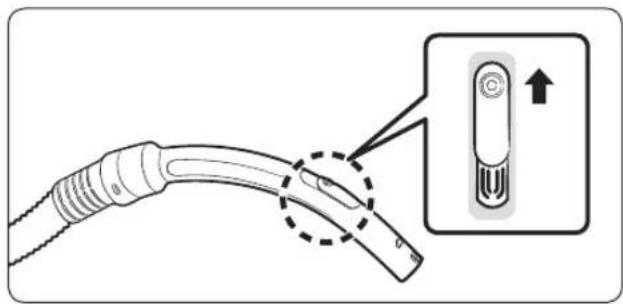

Using the handle

Diagram of a cable connector with an inset showing a close-up of the cable (no text or symbols present)

NOTE

• To vacuum fabrics, push the cover downward to reduce suction.
- The handle does not control the power of the product.

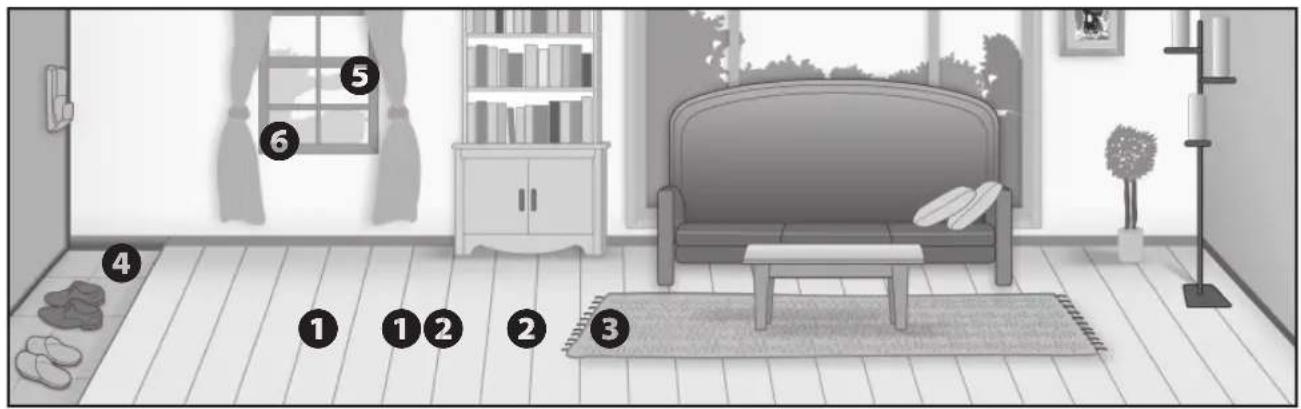

Using the brushes

Illustration of a cozy living room with numbered furniture placement, including a sofa, rug, and wall-mounted window.

Where to use the brushes

Diagram of a vacuum cleaner with an arrow indicating motion direction (no text or symbols)

① 2-step brush
* Floor
Carpet

Diagram of a vacuum cleaner with a handle and angle indicator (no text or symbols)

② 2-step brush

Illustration of a mop handle with an arrow indicating direction (no text or symbols)

3 Pet brush

Simple line drawing of a mop handle with an arrow indicating direction (no text or symbols)

4 Porch brush

Diagram of a medical or surgical tool with two curved arms and directional arrows indicating movement (no text or symbols)

⑤ Dusting brush ⑥ Crevice tool

Diagram of two medical or surgical instruments with arrows indicating movement or force direction (no text or symbols)

Cleaning and maintaining

You must unplug the vacuum cleaner before cleaning it.

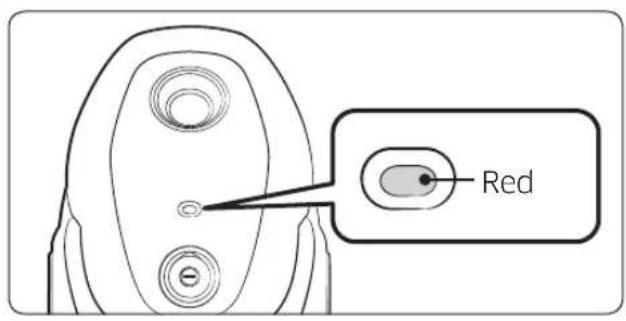

When to empty the dust bag

Red

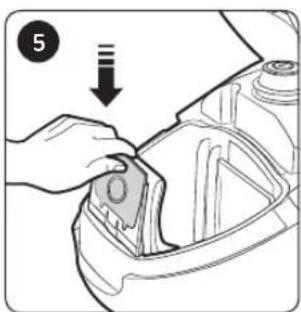

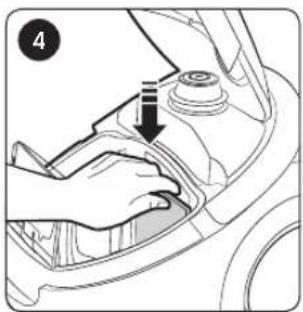

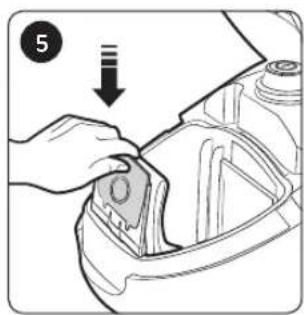

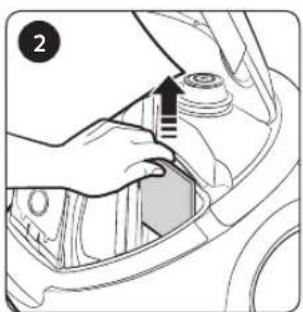

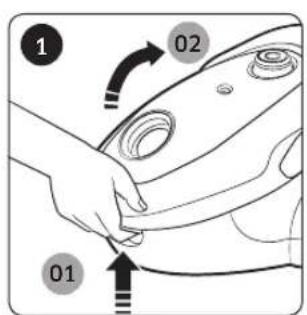

Cleaning the inlet filter

1 02 01

Diagram of a hand pressing down on a car's hood with a valve and handle (no text or symbols)

Illustration of a hand placing a small electronic component into a container with granular contents (no text or symbols)

Illustration of a hand using a tool to adjust or install a component on a car hood (no text or symbols visible)

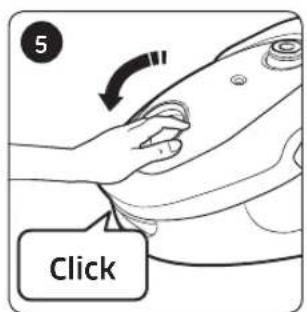

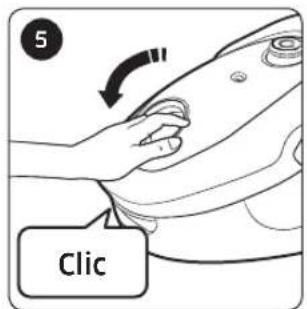

5 Click

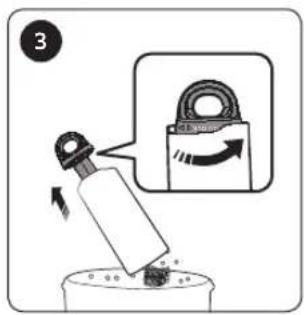

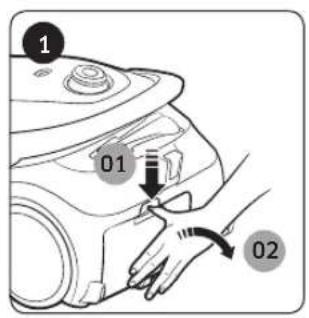

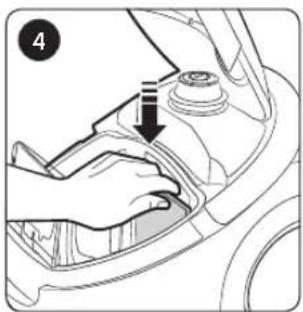

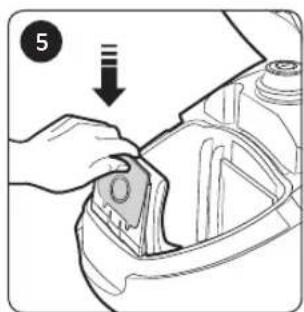

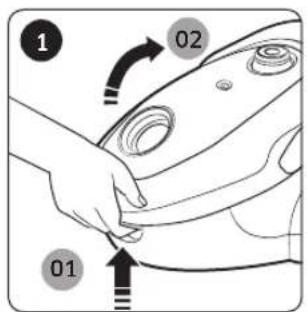

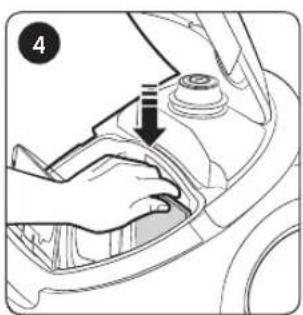

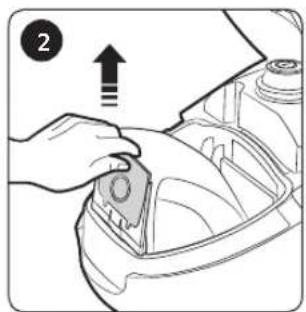

Cleaning the dust bag

Clean or replace the dust bag if there is a lot of dust in the bag.

1 02 01

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of two sailboats pouring liquid into a container (no text or symbols)

Simple line drawing of a folded paper or plastic sheet with an arrow indicating direction (no text or symbols)

Cloth Bag

Illustration of a hand pouring leaf into a container with an arrow (no text or symbols)

Simple line drawing of a door handle with a circular opening and a curved arrow indicating rotation (no text or symbols)

Paper bag

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

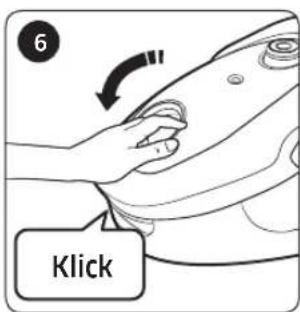

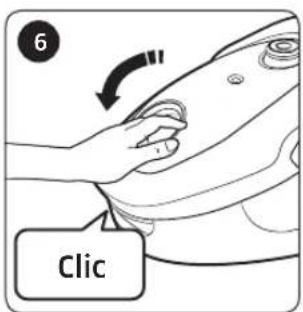

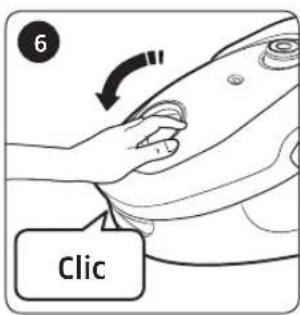

6 Click

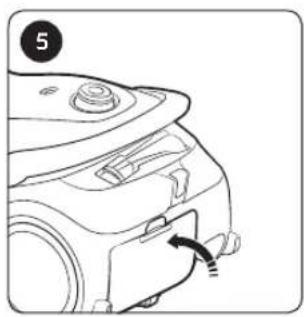

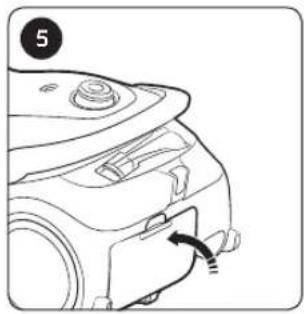

Cleaning the outlet filter

1 01 02

Illustration of two briefcases with an arrow indicating transformation (no text or symbols)

3

Illustration of two briefcases with a directional arrow indicating transformation (no text or symbols)

Line drawing of a car's front bumper and side panel (no text or symbols)

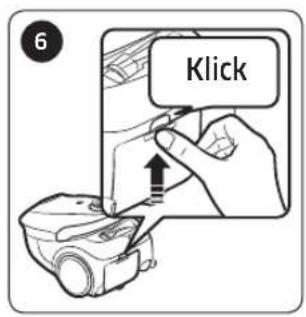

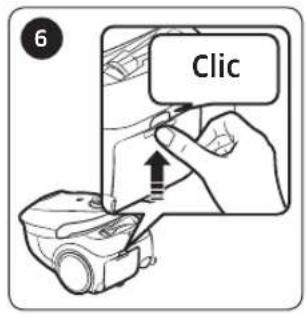

6 Click

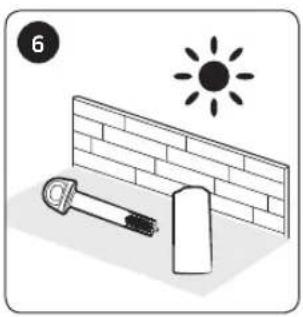

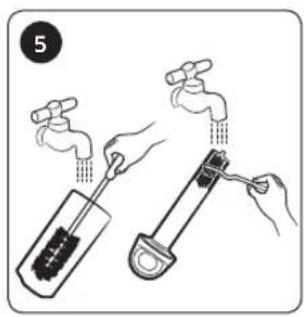

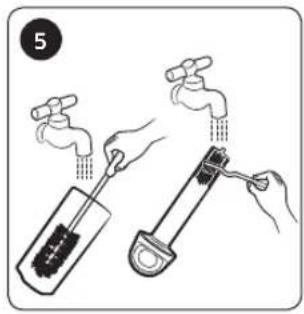

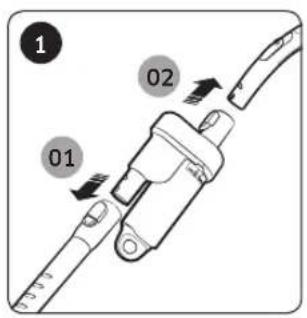

Cleaning the cyclone filter

1 01 02

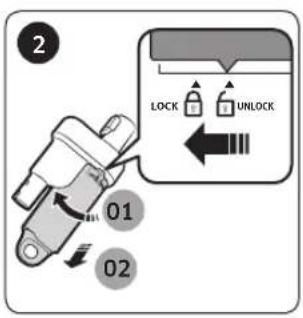

2 01 02 LOCK UNLOCK

3

Illustration of hands using a tool to interact with a mechanical component (no text or symbols visible)

5

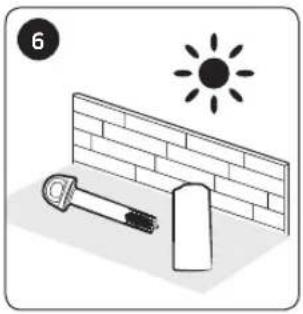

Illustration of a wall-mounted tool next to a brick wall with a sun symbol above (no text or symbols present)

7

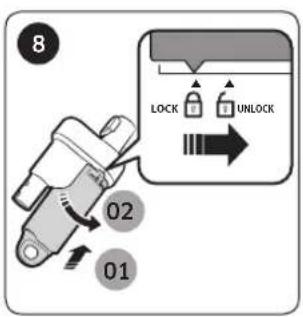

8 02 01 LOCK UNLOCK

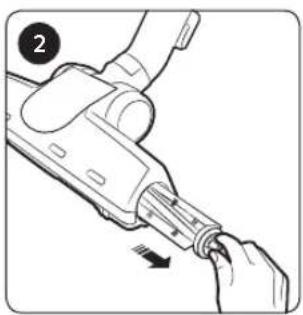

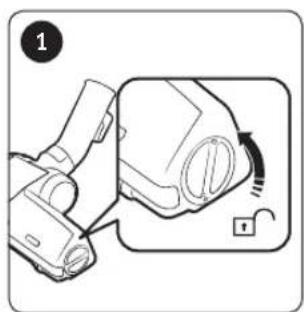

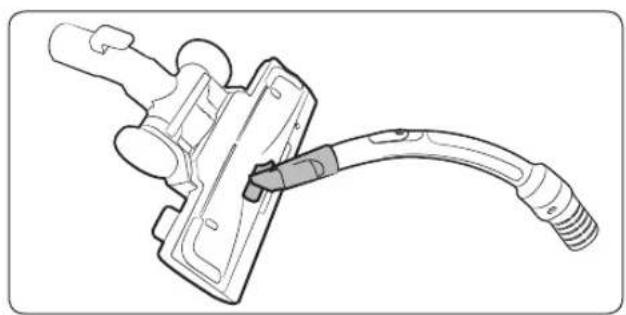

Cleaning the brush

Technical line drawing of a mechanical connector or clamp assembly (no text or symbols)

2-step brush
* Cleaning method for the 2-step and Porch brushes is the same.

Diagram showing a mechanical device with a close-up view of its internal components (no text or symbols)

Illustration of a hand holding a tool with a circular indicator (no text or symbols)

Illustration of a pair of scissors cutting a cylindrical object with a base, showing mechanical components and motion lines (no text or symbols)

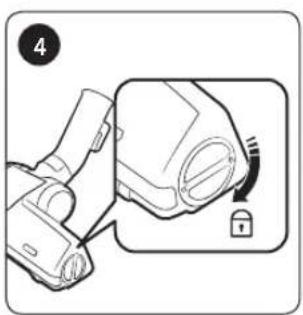

4

Pet brush

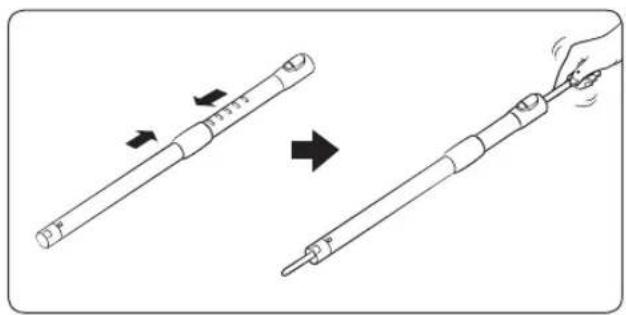

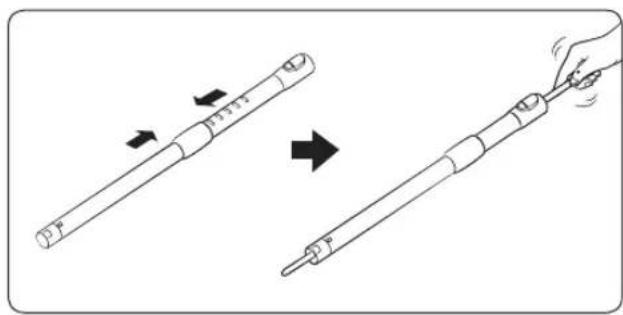

Cleaning the pipe

Illustration of a hand holding a pen with arrows indicating motion (no text or symbols)

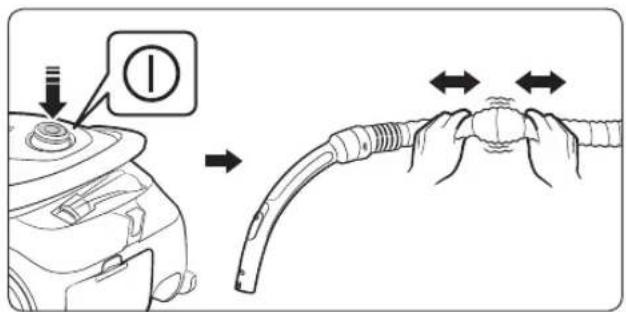

Cleaning the hose

Diagram illustrating a hand holding a cable with directional arrows and a numbered label pointing to the device.

Storing the vacuum cleaner

Technical line drawing of a mechanical component with two views showing assembly or assembly steps (no text or symbols present)

In use

NOTE

• Product features may vary according to model.
• When you use the dusting brush or crevice tool, you may feel vibration from the vacuum cleaner.
• The operating noise may change once the safety device is activated to prevent the dust bag from getting detached.
• The circular tube on bottom of the dust bag prevents dust from spilling out.

CAUTION

• When removing the power plug from the electrical outlet, grasp the plug, not the cord.
• Make sure you don't open the body cover by pressing the button under the cover when carrying the vacuum cleaner.

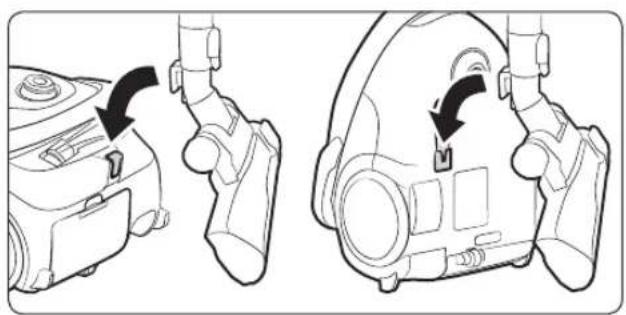

• For storage of the product, park the floor nozzle in the small groove on the bottom of the body.

Cleaning and maintenance

NOTE

• Do not wash the outlet filter with water.
• To maintain the best performance of the outlet filter, replace it once a year.
• To prevent floors from scratches, inspect condition of the brush and replace it if it is worn down.
• Replacement filters are available at your local Samsung service agent.
• Hold the power cord and then press the Cord rewind button since you can get injured if the power cord may lose control while rewinding it.
• If the power cord is not rewinding well, press the Cord rewind button again after pulling the power cord about 2 \~ 3 m.
• When suction power is noticeably reduced continuously, please clean the inlet filter by referring to the "Cleaning the inlet filter" section.

CAUTION

• When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats, please clean the outlet filter.
• Suction may reduce noticeably due to wrong reassembling of the inlet filter.
• Please contact a nearest service agent if you cannot remove foreign matters from the hose.
• Store the vacuum cleaner in the shade to prevent deformation or discoloration.

Symptom Checklist
Motor does not start. • Check the cable, the power plug and outlet.
Suction force is gradually decreasing.	• Check if there is any blockage, and remove it if required.• Please check the filters, and if required, clean as illustrated in this manual.- If filters are out of condition, replace them with new ones.
Cord does not rewind fully.	• Pull the power cord out 2 - 3 m and press the Cord rewind button.
Body overheating	• Check the filters, and clean as illustrated in this manual if required.
Static electricity discharge.	• Reduce suction.• This may also occur when air in the room is very dry. Ventilate the room so that air humidity becomes normal.
During using, stop the unit.	• This vacuum cleaner has a special thermostat that protects the motor in case of its overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust bag, a blocked hose, pipe, or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner.

• This Vacuum cleaner is approved the following.
• Electromagnetic Compatibility Directive : 2004/108/EEC
• Low Voltage Directive : 2006/95/EC

[English]

According to Commission Regulation (EU) No 666/2013

A	Supplier Samsung Electronics Co., Ltd.
B	Model SC07M25F0WP
C	Annual Energy Consumption (kWh/yr)	28.0
D	Sound Power Level (dBA)	79
E	Rated Input Power (W)	700
F	Type General purpose	vacuum cleaner

1 Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.
2 Measurements for power consumption and performance are based on methods in EN 60312 - 1 and EN 60704.

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Customer Care Center Web Site
SWITZERLAND	0800 726 78 64(0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
AUSTRIA	0800 72 67 864(0800-SAMSUNG)	www.samsung.com/at/support

This product is RoHS compliant

Staubsauger

Benutzerhandbuch

Serien SC07M25****

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating assembly steps

Line drawing of a flexible hose with a bulbous end cap (no text or symbols)

Schlauch Rohr Rohr

Line drawing of a cylindrical mechanical tool with a flanged end and central shaft (no text or symbols)

Simple line drawing of a cylindrical object with a protruding handle (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a handheld device with a handle and control panel (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a mechanical clamp or lever component (no text or symbols)

Line drawing of a hand using a tool to press down a device component (no text or symbols)

Diagram showing hands installing a button on a device with a warning symbol and directional arrows

Netztaste

Line drawing of a hand pressing a button on a device component (no text or symbols)

Saugleistung

01 MINMAX 02

Diagram showing a cable being inserted into a plug, with an inset highlighting the insertion point.

HINWEIS

Illustration of a cozy living room with numbered furniture placement, including a sofa, rug, and wall-mounted window.

Diagram of a vacuum cleaner with an arrow indicating motion direction (no text or symbols)

Diagram of a vacuum cleaner with a handle and valve, showing mechanical components and an arrow indicating motion (no text or symbols)

② Zweistufenbürste

Diagram of a mop handle with an arrow indicating direction (no text or symbols)

③ Haustierbürste

Simple line drawing of a mop handle with an arrow indicating direction (no text or symbols)

4 Verandabürste

Diagram of a medical or surgical tool with two curved arms and directional arrows indicating movement (no text or symbols)

5 Staubbürste

Diagram of two medical or surgical instruments with curved ends and directional arrows indicating movement (no text or symbols)

⑥ Flachdüse

Diagram of a hand inserting a component into a car's hood, showing mechanical parts and a directional arrow (no text or symbols)

Illustration of a hand holding a small electronic device above a container with granular contents (no text or symbols)

Diagram of a hand inserting a component into a car hood, showing a valve and handle (no text or symbols)

5 Klick

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of two sailboats collecting particles from a container (no text or symbols)

Simple line drawing of a folded paper or sheet with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring leaf into a container with an arrow (no text or symbols)

Simple line drawing of a door handle with a circular button and an arrow indicating rotation (no text or symbols)

Einwegstaubbeutel

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

6 Klick

Illustration of two briefcases with an arrow indicating transformation (no text or symbols)

3

Illustration of two briefcases with a directional arrow indicating transformation (no text or symbols)

Line drawing of a car's front bumper and side panel (no text or symbols)

6 Klick

Reinigen des Zyklonfilters

1 01 02

2 01 02 LOCK UNLOCK

3

Illustration of hands using a tool to interact with a device (no text or symbols visible)

5

Illustration of a wall-mounted tool next to a brick wall with a sun symbol above (no text or symbols present)

7

8 02 01 LOCK UNLOCK

Reinigen der Bürste

Technical line drawing of a mechanical connector or clamp assembly (no text or symbols)

Diagram showing a device being connected to a lock, with no visible text or symbols

Line drawing of a hand holding a tool with a circular arrow indicating direction (no text or symbols)

Illustration of a pair of scissors cutting a cylindrical object with motion lines indicating movement (no text or symbols)

4

Haustierbürste

Reinigen des Rohrs

Illustration of a hand holding a pen with arrows indicating motion (no text or symbols)

Diagram illustrating the step of refueling a car, showing valve insertion and cable attachment with directional arrows.

Technical line drawing of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Im Betrieb

HINWEIS

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating assembly steps

Line drawing of a flexible hose with a bulbous end cap (no text or symbols)

Flexible Tuyau Tuyau

Line drawing of a cylindrical mechanical tool with a flanged end and central shaft (no text or symbols)

Simple line drawing of a cylindrical object with a protruding handle (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Brosse 2 positions Brosse 2 positions

Line drawing of a handheld device with a lever and ports (no text or symbols)

Line drawing of a mechanical clamp or bracket component (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand using a tool to press down a device component (no text or symbols)

Diagram showing hands installing a button on a device with a warning symbol and directional arrows

Marche/Arrêt

Line drawing of a hand pressing a circular button on a device component (no text or symbols)

Aspiration

01 MINMAX 02

Diagram showing a cable being inserted into a plug, with an inset highlighting the insertion point.

REMARQUE

Illustration of a cozy living room with numbered furniture placement, including a sofa, rug, and wall-mounted window.

Diagram of a vacuum cleaner with an arrow indicating motion (no text or symbols present)

① Brosse 2 positions
* Sol
Moquette

Diagram of a vacuum cleaner with a handle and angle indicator (no text or symbols)

② Brosse 2 positions

Simple line drawing of a mop handle with an arrow indicating direction (no text or symbols)

Simple line drawing of a mop handle with an arrow indicating direction (no text or symbols)

Diagram of a medical or surgical tool with two curved arms and directional arrows indicating movement (no text or symbols)

Diagram of two medical or surgical instruments with arrows indicating movement or force direction (no text or symbols)

⑥ Suceur plat

Hand inserting a component into a car's hood, showing mechanical parts and a valve (no text or symbols)

Illustration of a hand placing a small electronic component into a container with granular contents (no text or symbols)

Illustration of a hand inserting a component into a car hood, showing a valve and handle (no text or symbols)

5 Clic

Illustration of two sailboats collecting water from a container (no text or symbols)

Simple line drawing of a folded paper or sheet with an arrow indicating downward motion (no text or symbols)

Sac en tissu

Illustration of a hand pouring liquid into a container with an arrow indicating flow (no text or symbols)

Simple line drawing of a door handle with a circular button and arrow indicating rotation (no text or symbols)

Sac en papier

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

6 Clic

Illustration of two briefcases with an arrow indicating transformation (no text or symbols)

3

Illustration of two briefcases with a directional arrow indicating transformation (no text or symbols)

Line drawing of a car's front bumper and side panel (no text or symbols)

6 Clic

Illustration of hands using a tool to interact with a mechanical component (no text or symbols visible)

5

Illustration of a wall-mounted tool next to a sun, no text or symbols present

7

8 02 01 LOCK UNLOCK

Technical line drawing of a mechanical connector or clamp assembly (no text or symbols)

Brosse 2 positions

Diagram showing a device being connected to a lock, with no visible text or symbols

Diagram of a hand holding a tool with an arrow indicating direction (no text or symbols present)

Illustration of a pair of scissors cutting a cylindrical object with motion lines indicating movement (no text or symbols)

4

Illustration of a pen being adjusted to form a cylindrical object, showing motion direction (no text or symbols)

Diagram showing a hand holding a hose with directional arrows and a numbered label pointing to the device.

Technical line drawing of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating assembly steps

Line drawing of a flexible hose with a bulbous end cap (no text or symbols)

Line drawing of a cylindrical mechanical tool or rod with a flanged end and central shaft (no text or symbols)

Simple line drawing of a cylindrical object with a protruding shaft (no text or symbols)

Tubo flessibile Tubo rigido Tubo rigido

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a handheld device with a mounted cylindrical component (no text or symbols)

Line drawing of a mechanical clamp or bracket component (no text or symbols)

Line drawing of a mechanical clamp or connector (no text or symbols)

Line drawing of a hand using a tool to press down a device component (no text or symbols)

Diagram showing hands using a tool to adjust or install a device with a bell icon and directional arrows indicating process flow.

Line drawing of a hand pressing a circular button on a device casing (no text or symbols)

Aspirazione

01 MINMAX 02

Diagram of a cable being inserted into a plug, showing the connector and insertion direction (no text or symbols)

NOTA

Illustration of a cozy living room with numbered furniture placement, including a sofa, rug, and wall-mounted window.

Diagram of a vacuum cleaner with an arrow indicating motion direction (no text or symbols)

① Spazzola 2-step

* Pavimento

Tappeti/Moquette

Diagram of a vacuum cleaner with a handle and arrow indicating motion (no text or symbols)

② Spazzola 2-step

Simple line drawing of a mop handle with an arrow indicating direction (no text or symbols)

Simple line drawing of a mop handle with an arrow indicating direction (no text or symbols)

④ Spazzola veranda

Diagram of a medical or surgical tool with two curved arms and directional arrows indicating movement (no text or symbols)

⑤ Spazzola polvere

Diagram of two medical or surgical instruments with arrows indicating movement or force direction (no text or symbols present)

Diagram of a hand inserting a component into a car's hood, showing mechanical parts and a highlighted section (no text or symbols)

Illustration of a hand placing a small electronic component onto a container with heat lines (no text or symbols)

Illustration of hands installing or adjusting a component on a car hood (no text or symbols visible)

5 Clic

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of two sailboats on a boat with a pile of water nearby (no text or symbols)

Simple line drawing of a folded paper or plastic sheet with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pouring liquid into a container with an arrow indicating flow (no text or symbols)

Simple line drawing of a door handle with a circular opening and a curved arrow indicating rotation (no text or symbols)

Sacchetto in carta

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

6 Clic

Illustration of two briefcases with an arrow indicating transformation (no text or symbols)

3

Illustration of two briefcases with a directional arrow indicating transformation (no text or symbols)

Line drawing of a car's front bumper and side panel (no text or symbols)

6 Clic

Illustration of hands performing a manual task with a tool, no text or symbols present

5

Illustration of a sun shining on a brick wall next to a tool and a spray bottle (no text or symbols)

7

8 02 01 LOCK UNLOCK

Technical line drawing of a mechanical connector or clamp assembly (no text or symbols)

Diagram showing a mechanical device with a close-up view of its internal components (no text or symbols)

Illustration of a hand holding a tool with a circular indicator (no text or symbols)

Illustration of scissors cutting a cylindrical object with a base, showing mechanical components and motion lines (no text or symbols)

4

Illustration of a hand holding a pen-like tool with arrows indicating motion (no text or symbols)

Diagram illustrating the step of refueling a car, showing valve insertion and cable attachment with directional arrows.

Technical line drawing of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Utilizzo

NOTA
