Product Type	Mobile Phone
Brand	LG
Model	LGA290
Supported Networks	GSM 850 / E-GSM 900 / DCS 1800 / PCS 1900
Number of SIM Cards	Triple SIM (3 cards)
Camera	Built-in camera
Video Camera	Video recording
Media Player	Audio player (MP3, etc.)
FM Radio	Built-in FM radio with recording
Bluetooth	Built-in Bluetooth
Connectivity	USB, headphone jack
External Memory	Micro SD card (optional)
Battery	Rechargeable Lithium-ion battery
Power Supply	AC charger included
Available Languages	Multiple languages (including French)
Maintenance and Cleaning	Clean with a dry cloth, do not use solvents
Safety	Do not disassemble, use approved accessories, follow instructions
Spare Parts and Repairability	Consult a qualified technician, use original LG parts
Included Accessories	Travel charger, user guide

Frequently Asked Questions - LGA290 LG

How to insert the SIM card and charge the battery?

Remove the back cover, remove the battery, insert the SIM cards into the slots, then replace the battery and cover. Plug the charger into the socket on the side of the phone. It is recommended to charge the battery before first use.

How to make a call from the phonebook?

From the home screen, select Phonebook. Enter the first letter of the contact using the keypad, then use the navigation keys to scroll. Press the call key to make the call.

How to send an SMS/MMS?

Press Menu > Messaging > New message. Enter your text (T9, Abc or 123 mode). To add an image or sound, press Options > Add. Enter the recipient and press Send.

How to use T9 mode for text input?

Switch to T9 mode by pressing the mode change key. Press once per letter of the word; the dictionary suggests the word. If the word is not correct, use the navigation keys to see other suggestions. Finish with a space.

How to take a photo or record a video?

For a photo: Menu > Multimedia > Camera, frame and press the OK key. For a video: Menu > Multimedia > Video camera, press the OK key to start recording and the right navigation key to stop.

How to listen to the FM radio?

Plug in the headset (required for FM antenna). Press Menu > Multimedia > FM Radio. Use the navigation keys to search for stations or select Options > Auto search. You can listen via the speaker by enabling the option in settings.

How to set up an email account?

Press Menu > Messaging > E-mail. Follow the setup wizard: enter your email address, password, and POP3 or IMAP4 server settings. Once configured, you can send and receive emails.

How to activate SOS mode?

Go to Menu > Messaging > SOS Message and activate the option. From the standby screen, press and hold the 9 key to send an SOS message to predefined recipients. The phone will automatically accept incoming calls.

How to reset the phone to factory settings?

Press Menu > Settings > Restore default settings. Enter the security code (default 0000). Confirm to reset all settings. Note: This action erases your personal data.

What to do if the phone does not turn on?

Remove the battery, reinsert it and press the Power key. If that does not work, recharge the battery (check the charge indicator). If the problem persists, contact an authorized service center.

USER MANUAL LGA290 LG

4 Adepele street, Computer Village, Lagos, Nigeria

English

LG-A290 User Guide

This guide will help you understand your new mobile phone. It will provide you with useful explanations of features on your phone.

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.

Contents

Getting to know your phone ..4

Installing the SIM Card and

Charging the Battery ......6

Menu Tree ......7

Calls......8

Making a call ....8

Making a call from your contacts ....8

Answering and rejecting a call 9

Using the speakerphone .....9

Speed dialling .....9

Viewing your call logs .....10

Changing the call settings ..10

Contacts ....10

Searching for a contact .....10

Adding a new contact .....10

Adding a contact to a group .... 11

Messaging......11

Sending a message .....11

Entering text ......12

T9 mode ......12

Using the T9 Mode .....13

Abc mode 13

123 mode 13

Inserting symbols ......13

Changing the language .....14

Message folders .....14

E-mail 15

Setting up your e-mail.....15

Sending an e-mail using your new account ....15

Camera....15

Taking a quick photo .....15

Video camera ......16

Shooting a quick video .....16

Media Player ......16

Playing a song 16

FM radio ....17

Searching for stations .....17

Listening to the radio .....17

Recording your radio .....17

Voice recorder ....18

Recording your voice memo ....18

Applications......18

Organizer....18

Setting your alarm .....18

Using the calendar .....18

Adding an item to your to do list 19

Adding a note 19

Adding a city to your world time ....19

Using your calculator......19

Converting a unit .....19

Using the stopwatch .....19

Shortcuts 19

Torch....20

Internet....20

Accessing the internet browser....20

Settings ......20

Switching your SIM cards ...20

Activating SIM cards ......20

Setting ringtones .....20

Changing your display settings 20

Changing your date & time 21

Changing your connectivity settings ....21

Changing your Bluetooth settings ....21

Pairing with another Bluetooth device ....21

Changing your phone settings 22

Changing your security settings ....23

Resetting your phone .....24 SOS mode .....24

Installing LG PC Suite on your computer ....24

Phone Software update .....25

Guidelines for Safe and Efficient Use ....26

Accessories 33

Technical Data ....34

Troubleshooting......35

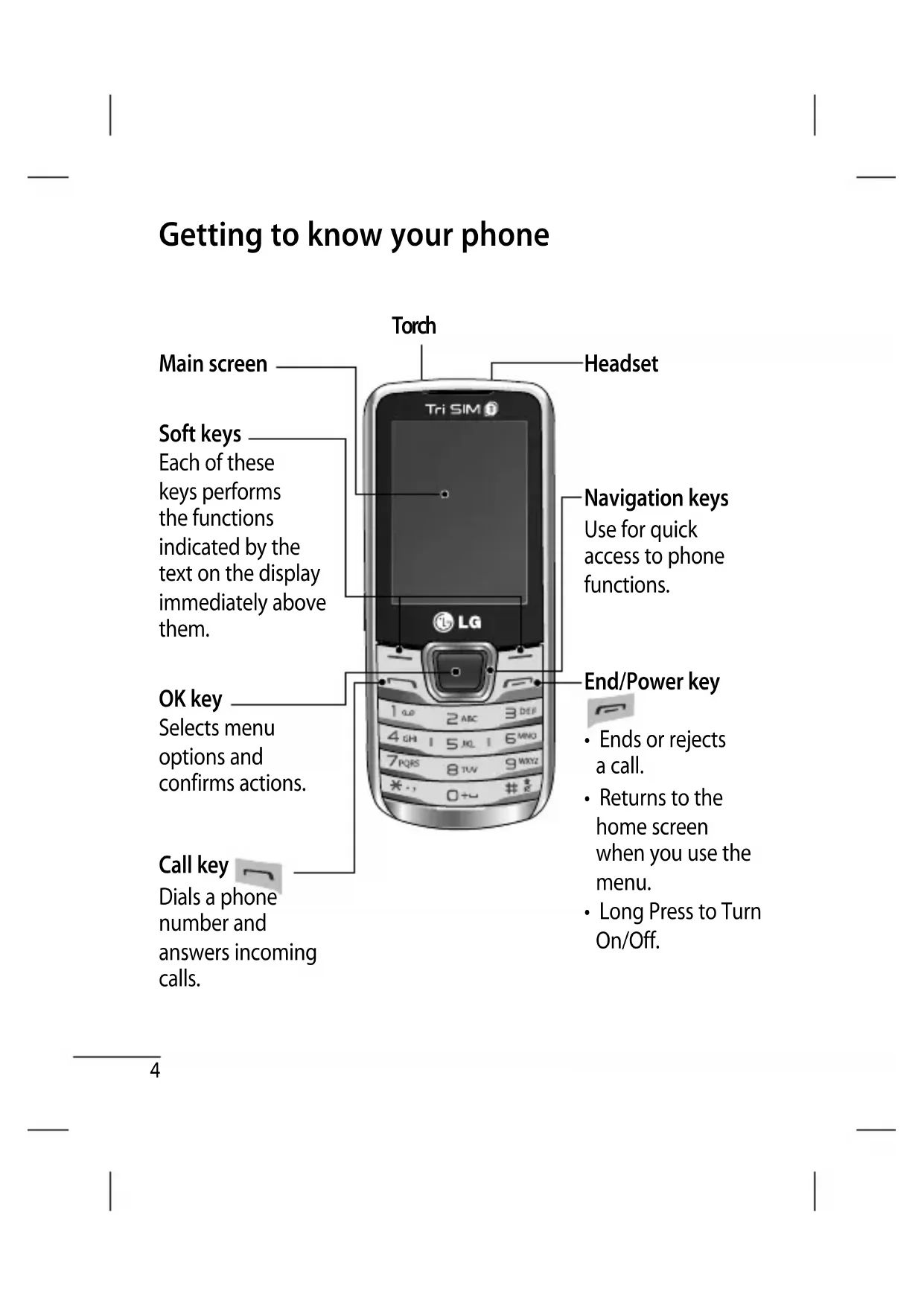

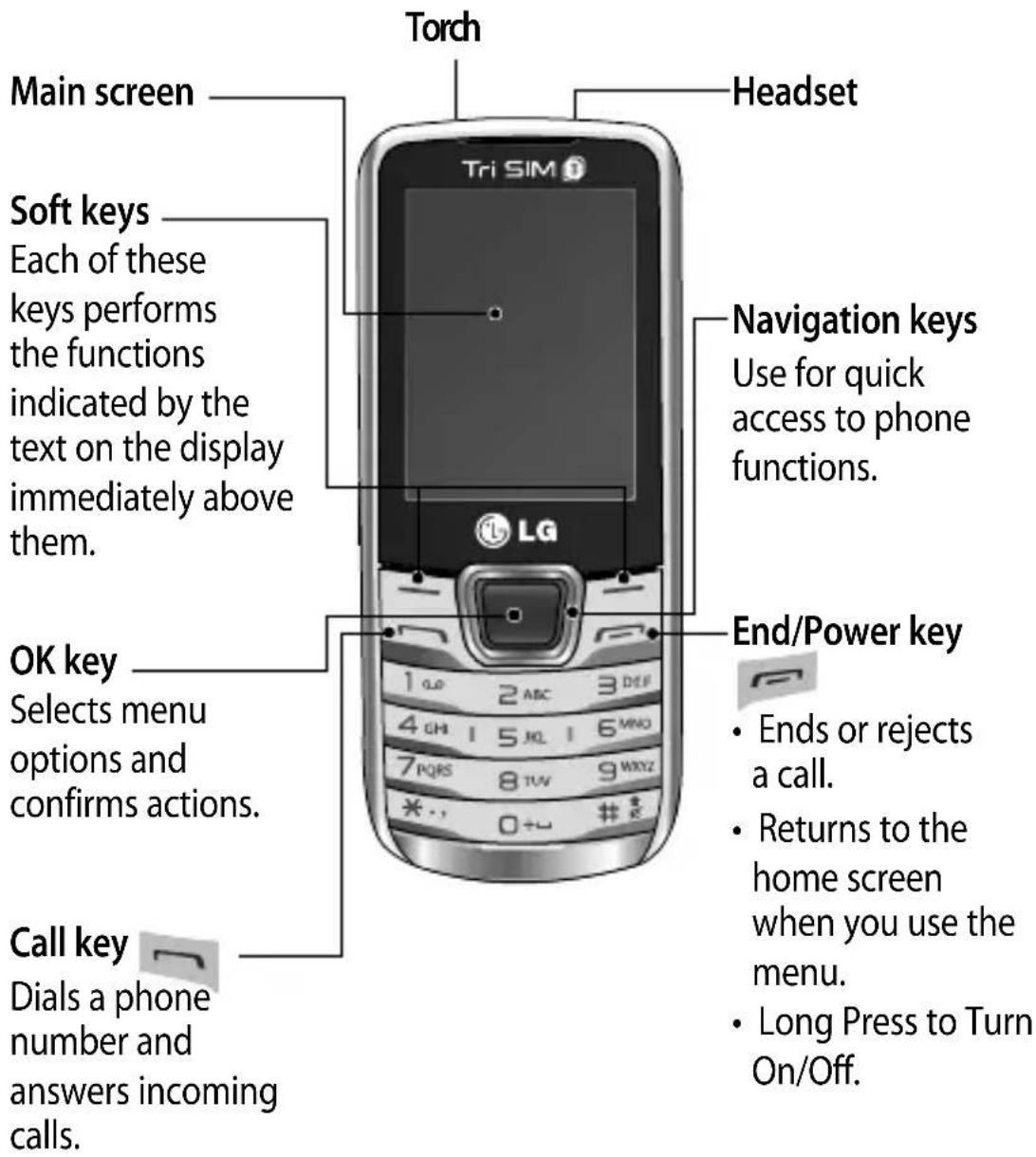

Getting to know your phone

Close-up of a metallic cylindrical object with a small circular mark and a small dot, no visible text or symbols.

Charger / USB Cable connector

Installing a memory card

Remove the Back cover and insert a micro SD card with the golden contact area facing Upwards as shown in the diagram. To remove the memory card, gently push it.

Black mobile phone casing with visible battery and port (no text or symbols)

Pure electrical circuit lines without any symbols

SIM Switch Key

SIM Switch Key is used to switch between 3 SIM cards (Contacts, Messages, MMS, Call Logs) and you can move along the SIM Slots by pressing the SIM Switch Key more than 0.5 seconds.

Note: A memory card is an optional accessory.

Formatting the memory card

From your home screen, Press Menu and select Gallery, Select External Memory and From Options choose Format and insert Phone Password to format the memory card.

WARNING: When you format your memory card, all the content will be Erased. If you do not want to lose the data on your memory card, take a backup first.

Installing the SIM Card and Charging the Battery

Installing the SIM Card

When you subscribe to a cellular network, you are provided with a SIM card loaded with your subscription details, such as your PIN, any optional services available and many others.

Important!

The SIM card can be easily damaged by scratches or bending, so be careful when handling, inserting or

removing the card. Keep all SIM cards out of the reach of small children.

only 2G/2.5G SIM supported

Illustrations

1. Open back cover.
2. Remove the battery.
3. Insert your SIM Cards.
4. Insert your battery.
5. Close the back cover.
6. Charge your battery.

1

Close-up of a flip phone showing the lid and keypad (no visible text or symbols)

2

Interior view of a smartphone showing internal components (no visible text or symbols)

3

Black-and-white photo of a mobile phone showing internal components and a magnified inset (no text or symbols visible)

456

Interior view of a black mobile phone showing internal components (no visible text or symbols)

Open smartphone showing internal components and a slide (no text or symbols visible)

Illustration of a silver mobile phone with a black cable and attached plug (no text or symbols visible)

WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone.

Menu Tree

1. Gallery

2. Contacts

Add new contact

3. Log

All calls

Missed calls

Received calls

Dialled calls

Call duration

Call Cost

Text msg. counter

Data information

4. Multimedia

Camera

Image viewer

Video camera

Media player

Photo editor

Voice recorder

FM radio

5. Messaging

Write message

Inbox

Drafts

Outbox

Sent messages

Archive

Email

Broadcast messages

Templates

Message settings

SOS Message

6. Organizer

Alarm clock

Calendar

To-do list

Notes

Calculator

Stopwatch

Converter

World time

Shortcuts

Torch

7. Applications

My Games & Apps

Settings

8. Internet

Internet service

Licence manager

9. Settings

Triple SIM switch

Tri SIM

Profiles

Display

Date & Time

Connectivity

Call

Phone

Network

Security

Restore factory settings

Turning Your Phone On and Off

You can power the phone on and off by pressing and holding the power key.

Lock/Unlock Your Keypad

To lock, press Menu (LSK) in main screen and then press Keylock (RSK).

To Unlock, press Unlock(LSK) and then press Yes(RSK).

Calls

Making a call

1. Key in the number using the keypad. To delete a digit press Clear.
2. Press → to initiate the call.
3. To end the call, press
   TIP! To enter + when making an international call, press and hold 0.
   TIP! To control the volume during a call, press the up and down navigation keys.

TIP! You can record your conversation during a call.

Press Options and select Voice recorder.

Making a call from your contacts

1. Select Contacts from the home screen.
2. Using the keypad, enter the first letter of the contact you want to call.
3. Press → to initiate the call.

TIP! To scroll through your contacts, use the up and down navigation keys.

TIP! You can make a call from any of the three SIM cards, by selecting SIM Switching Key.

Answering and rejecting a call

When your phone rings, press to answer the call.

While your phone is ringing, select Silent to mute the ringing.

This is useful if you have forgotten to change your profile to Silent for a meeting.

Press ☐ or select Reject to reject the incoming call.

TIP! You can change the settings on your phone to answer your calls in different ways. Press Menu, select Settings and choose Call. Select Advanced settings then select Answer mode and choose from Any key, Auto answer when headset mode.

Using the speakerphone

During a call, you can activate speakerphone by pressing RSK (H-Free) and you can use the handset in hands-free mode. If the speakerphone is active, press RSK (H-Held) again to resume normal handset conversation mode.

Speed dialling

Press Menu and select Contacts > Options > Phonebook settings, then choose Speed dial. Assign contacts to any keys between 5 and 8.

Speed dial 1 is set to your voice mail, 9 key is set to SOS mode and 2,3 & 4 keys are assigned to Speed SIM Budget. so you can not change these keys.

TIP! Speed SIM budget is the function that is easy way for checking SIM budget. If you register Speed SIM budget, you can get the information of SIM budget by long press of '2' / '3' / '4' in idle screen.

Note : To activate Speed dial, status should be On (Speed dial > Status)

Viewing your call logs

Press to view your missed, received and dialled call logs.

Changing the call settings

You can set the menu relevant to a call. Press Menu, select Settings and choose Call.

Advanced settings

Blacklist - This menu shows you the phone numbers of person you have chosen to reject. You can add the new number in Blacklist numbers. The incoming calls received from the Blacklist numbers will be automatically rejected.

Cost save mode - Every contact is added along with assigned SIM when adding in phone book. During Calling, matching operator SIM is identified and the operation is completed using the matching operator SIM. This makes possible to use benefit from using same operator.

To use Cost save mode feature, make sure the feature is On [Settings -> Call ->

Advanced settings -> Cost save mode]

Note: Cost save mode doesn't work during in-call.

Contacts

Searching for a contact

1. Select Contacts from the home screen.
2. Using the keypad enter the first letter of the contact you want to call.
3. To scroll through the contacts.

Adding a new contact

1. Select Contacts from the home screen. Select Add new contact.

2. Enter the first and last name of your new contact.

3. Enter the number and select Options then choose Save.

TIP! Assign SIM field is used to assign the Contact to Default SIM/SIM1/SIM2/SIM3. Call will be originated via assigned SIM for the Contact when Cost Save mode is ON.

Adding a contact to a group

You can save your contacts into groups, for example, keeping your work colleagues and family separate. To make a group press Option from the Contacts menu. And select Caller groups. You can set the Group name, Group picture, Group ringtone in Add new group.

Messaging

Sending a message

1. Press Menu, select Messaging, and choose Write message to send an SMS or MMS.
2. A new message editor will open. The message editor combines text message and multimedia messages into one intuitive and easy to switch between editor. The default setting of the message editor is text message.
3. Enter your message using either the T9 predictive mode or Abc manual mode or 123 mode. You can switch text input modes by pressing the # key.

4. If you want to add some images or videos etc, select Options and choose Add Picture, Add sound, Add video, Add subject.

5. Select Enter recipient or Add from Phonebook. You can even add multiple contacts by marking the contacts.

Note: Message can be sent to a group also. Edit the message then press send and select Add from phonebook.navigate to the right to select caller groups and select the group you want.

1. Press 📄 Send icon to send the message.

TIP! You can select your message type as SMS or MMS when you enter text by pressing Options > Switch to MMS/SMS.

WARNING: Image, Video clip, Sound clip, Schedule, Business card, Text field or Subject is added to the message editor, it will be automatically converted to MMS mode and you will be charged accordingly.

Entering text

You can enter alphanumeric characters using the phone's keypad. The following text input methods are available in the phone: T9 mode, Abc mode and 123 mode.

To change modes, press the #3 key.

Note: Some fields may allow only one text input mode (e.g. telephone number in address book fields).

T9 mode

T9 mode uses a built-in dictionary to recognise words you're writing based on the key sequences you press.

Simply press the number key associated with the letter you want to enter, and the dictionary will recognise the word once all the letters are entered.

Using the T9 Mode

1. When you are in the T9 predictive text input mode, start entering a word by pressing keys 2 to 9 press one key per letter.

- If the word is still incorrect after typing completely, press the right & left navigation key to scroll through the other word options. - If the desired word is missing from the word choices list, add it by using the Abc mode.

1. Enter the whole word.

2. To delete letters, press Clear.

3. Complete each word with a space by pressing the key.

Abc mode

This mode allows you to enter letters by pressing the key labeled with the required letter once, twice, three or four times until the letter is displayed.

123 mode

Type numbers using one keystroke per number. You can also add numbers while remaining in letter modes by pressing and holding the desired key.

Inserting symbols

If you want to insert symbols, press the ✦ key, then you can choose a symbol. Or you can press Options and then choose Insert symbol.

Changing the language

LG-A290 supports various languages.

There are two ways to change the writing language from the writing screen. You can press Options, go to Writing language and then set the language you want or long press #2 key in editor.

Message folders

Press Menu, select Messaging. And select the folder you want. Inbox - You will be alerted when you have received messages. They will be stored in Inbox.

TIP! Messages can be sorted with the given sorting options for an easy access of messages (Inbox > Options > Sort by : Sender, Subject, Unread/read, Message size and Message type).

Drafts - If you don't have time to finish writing a message, you can save what you have written so far in here.

Outbox - This is a temporary storage folder used while messages are being sent.

Sent messages - After sending out the message, the text message or multimedia message is saved in the Sent folder.

Archive - You can access your saved messages.

Broadcast messages - Choose whether to receive, block, view or edit channels to receive information service messages (broadcast messages). Also choose the languages of information service messages.

Message settings - Your message settings are pre-defined so that you can send messages immediately. If you would like to change the settings, you can do this using the settings options.

E-mail

Setting up your e-mail

You can stay in touch on the move using e-mail on your LG-A290. It's quick and simple to set up a POP3 or IMAP4 e-mail account.

1. Press Menu Select Messaging and choose E-mail.
2. The first time you open the E-mail, you need to setup an email account. A setup wizard opens to help you add an e-mail account.
3. Follow the pop up instruction and enter the information required.

Sending an e-mail using your new account

To send/receive an e-mail, you should set up an e-mail account.

1. From Menu Select Messaging and choose E-mail.

2. From Options Choose Write e-mail and a new e-mail editor screen will open.

3. Enter the recipient's address and write a subject.
4. Enter your message.
5. Press Options, select Add attachments to add a file.
6. From Options Choose Send to sent your e-mail.

Camera

Taking a quick photo

1. Press Menu and select Multimedia. Select Camera to open the viewfinder.
2. Holding the phone and, point the lens towards the subject of the photo.
3. Press key to take a photo.

Video camera

Shooting a quick video

1. Press Menu and select Multimedia, then choose Video camera.
2. Point the camera lens towards the subject of the video.
3. Press ■ key to start recording.
4. Recording will start in the viewfinder and a timer will show the length of your video.
5. Select RSK [☐] to stop recording and LSK [Yes] to save the recorded Video.

Media Player

Your LG-A290 has a built-in Media player so you can play all your favourite music.

Playing a song

1. Press Menu and select Multimedia, then choose Media Player.

2. Choose My playlists then select the song you want to play.

3. Select ■ to pause the song.
4. Select ▶to skip to the next song.
5. Select ◀ to skip to the previous song.
6. Select Back to minimise the music and return to the Media player menu.
   Note: Music is copyright protected in international treaties and national copyright laws. It may be necessary to obtain permission or licence to reproduce or copy music. In some countries national law prohibits private copying of copyrighted material. Please check the national legislation of the applicable country concerning the use of such materials.

FM radio

Your LG-A290 has an FM radio feature so you can tune into your favourite stations and listen on the move.

During listening to the FM radio, you can also record a short clip and save it.

Note: You will need to insert your headset in order to listen to the radio. Insert the plug into the headset connector in order to listen to the radio and keep the good radio reception.

Searching for stations

1. Press Menu and select Multimedia, then choose FM radio.
2. Select Options and choose Auto search. You can also use the left and right navigation keys to search for stations.

Listening to the radio

1. Press Menu and select Multimedia, then choose FM radio.
2. Select the channel number of the station you would like to listen to.

TIP! You can listen to the radio via built-in speaker. Press Options, select Settings then choose Loud speaker status as On.

Recording your radio

1. Press key during listening to the radio.
2. The recording time is displayed on your phone. If you want to stop the recording, press Stop. The recorded contents will be saved in Gallery as .amr file.

Note: After recording your radio, you can listen to all of the radio recordings by selecting Options and Choose File list.

TIP! To configure your settings such as the Background play, Loud speaker or Record storage, press Options and select Settings.

Voice recorder

Use your Voice recorder to record voice memos or other sounds.

Recording your voice memo

1. Press Menu and select Multimedia, then choose Voice recorder.
2. Press key to begin recording.
3. Choose Stop to end the recording and Press Yes to Save audio.
4. Press Options and select Play to listen to the last recorded audio.

Applications

Your LG-A290 comes with preloaded games to keep you amused when you have time to spare. If you choose to download any additional games or applications they will be saved into this folder. Press Menu and select Applications. Choose My games & apps.

Organizer

Setting your alarm (Menu > Organizer > Alarm clock)

You can set up to 5 alarms to invoke on a specified time.

Using the calendar (Menu > Organizer > Calendar)

When you enter this menu, a calendar appears. A square cursor is located on the current date. You can move the cursor to another date using the navigation keys.

Adding an item to your to do list

(Menu > Organizer > Todo list)

You can view, edit and add tasks to do.

Adding a note

(Menu > Organizer > Notes)

You can register your own notes here.

Adding a city to your world time

(Menu > Organizer > World time)

You can add a required city to the list of world clock. You can also check the current time of major cities around the world.

Using your calculator

(Menu > Organizer > Calculator)

The calculator provides the basic arithmetic functions: addition, subtraction, multiplication, division and Scientific applications also.

Converting a unit

(Menu > Organizer > Converter)

This converts many measurements into a unit you want.

Using the stopwatch

(Menu > Organizer > Stopwatch)

This option allows you to use the function of a stopwatch.

Shortcuts

(Menu > Organizer > Shortcuts)

It helps you to go to the menu you search for. You can set the item as Shortcuts.

Torch

(Menu > Organizer > Torch)

It allows you to turn on/off the light on the top of you phone.

TIP! Switch On/Off the Torch by long pressing down navigation key from standby screen.

Internet

Accessing the internet browser

You can launch the wap browser and access the homepage of the activated profile on Internet Profiles. You can also manually enter an URL address and access the associated wap page. Press Menu and select Internet.

Note: An additional cost is incurred when connecting to this service and downloading content. Check your data charges with your network provider.

Settings

Switching your SIM cards (Menu > Settings > Triple SIM switch)

You can choose which SIM card you're going to use between manually or automatically.

Activating SIM cards (Menu > Settings > Tri SIM)

You can choose one or all of SIM cards you would like to activate.

Setting ringtones (Menu > Settings > Profiles)

You can adjust and customize the phone tones for different events, or environments.

Changing your display settings

(Menu > Settings > Display)

You can change the settings for the phone display.

Changing your date & time (Menu > Settings > Date & Time)

You can set functions relating to the date and time.

Changing your connectivity settings (Menu > Settings > Connectivity > Data account)

Your connectivity settings have already been set up by your network operator, so you can enjoy your new phone from switch on. If you want to change any settings, use this menu. You can configure the Data account in this menu.

Changing your Bluetooth settings

1. Press Menu and select Settings > Connectivity then choose Bluetooth.

- Status - Select Status as On/Off.

• Visibility - Choose whether to Permanent visible, Temporary visible or Off your device to others.
• My name - Enter a name for your LG-A290.
• Advanced - Set your Bluetooth settings for Audio path, Storage, Sharing permission and View your Bluetooth address by choosing My address.

Pairing with another Bluetooth device

1. Check your Bluetooth is On and Visible. You can change your visibility in the Bluetooth menu, by selecting Visibility, then Permanent Visible or Temporary visible.

2. Select My device and choose Search new device from the Bluetooth menu.

3. Your LG-A290 will search for devices. When the search is completed Pair and Back will

appear on screen.

1. Choose the device you want to pair with, then handset create passcode by default everytime you connect.
2. Your phone will then connect to the other device.
3. Your passcode protected Bluetooth connection is now ready.

TIP!

1. When you use a Bluetooth headset, A2DP and AVRCP profiles are not supported while you play video. It means you will not listen video sound if you use Bluetooth headset.
2. Bluetooth file transferring function will be blocked under some applications running. (Camera/Camcorder/UMS)

Changing your phone settings

(Menu > Settings > Phone)

Enjoy the freedom of adapting how your LG-A290 works for your own style.

• Language/Preferred writing language - You can change the language for the display texts in your phone. This change will also affect the Language Input mode.
• Greeting text - This menu allows you to customize the greeting text upon the phone's power on. You can also choose whether you want the greeting text on or off upon power on.
  • Dedicated key - Allows you to change the preferences on the Hotkeys that are currently assigned for your navigation keys (when in standby mode).
• Flight mode - You can use this function to switch the flight mode on. You will

not be able to make calls, connect to the Internet, send messages when flight mode is switched on.

- UART settings - User will be able to perform the operation from PC using modem for selected SIM card in UART settings (like AT command using HyperTerminal, PC dialup). User will be able to make the GPRS dialup on PC using the SIM which is selected in UART setting for e.g. if SIM1 is selected then user will be able to make the connection using selected SIM card.

- Misc. settings - You can set the brightness and time of the display screen.

Changing your security settings

(Menu > Settings > Security)

Change your security settings to keep your LG-A290 and the important information safe.

• SIM1, SIM2, SIM3 security - You can change security setting for each SIM card.
• Phone security - You can change password or set phone lock on/off.
• Auto keypad lock - You can set keypad lock on/off.
• Anti-theft mobile tracker - When the handset is stolen, handset sends the SMS to the numbers configured by real owner. To activate the ATMT(Antitheft mobile tracker) feature, enter the security code. And you will need to set ATMT on, and configure the ATMT settings with Sender name, numbers. Default security code is

"0000." ATMT SMS will contain information about the stolen phone IMEI & number of the person who is using that handset.

Resetting your phone (Menu > Settings > Restore factory settings)

Use Restore factory settings to reset all the settings to their factory definitions. You need the security code to activate this function. The default security code is set to "0000".

SOS mode (Menu > Messaging > SOS Message)

In an emergency situation, press and hold '9' in Idle Screen to send SOS message when SOS mode is On. This will send to the assigned receivers. If they call you back, your phone will be automatically accepted. At that time, all notification sound will be muted. And other menus will be unavailable. To exit the SOS mode, press the End key in home screen.

Installing LG PC Suite on your computer

1. Go to www.lg.com and choose your country.
2. Select Support and Go to Mobile Phone Support.
3. Follow the instructions on screen to complete the LG PC Suite Installation on your PC.

Phone Software update

LG Mobile Phone Software update from internet

For more information on using this function, please visit the http://update.lgmobile.com or http://www.lg.com/common/index.jsp ----> select country. This Feature allows you to update the firmware of your phone to the latest version conveniently from the internet without the need to visit a service centre.

As the mobile phone firmware update requires the user's full attention for the duration of the update process, please make sure to check all instructions and notes that appear at each step before proceeding. Please note that removing the USB data cable or battery during the upgrade may seriously damage your mobile phone.

Guidelines for Safe and Efficient Use

Please read these simple guidelines. Not following these guidelines may be dangerous or illegal.

Exposure to radio frequency energy

Radio wave exposure and Specific Absorption Rate (SAR) information. This mobile phone model LG-A290 has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health.

- The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the phone transmitting at its highest

certified power level in all used frequency bands.

• While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.
• The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2W/kg averaged over 10g of tissue.
• The highest SAR value for this model phone tested by DASY4 for use at the ear is 1.14 W/kg (10 g) and when worn on the body is N/A W/kg(10 g).

- This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 1.5 cm away from the body. When a carry case, belt clip or holder is used for body-worn operation, it should not contain metal and should position the product at least 1.5 cm away from your body. In order to transmit data files or messages, this device requires a quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure the above separation distance instructions are followed until the transmission is completed.

Product care and maintenance

WARNING

Only use batteries, chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone and may be dangerous.

• Do not disassemble this unit. Take it to a qualified service technician when repair work is required.
• Repairs under warranty, at LG's discretion, may include replacement parts or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.

Guidelines for Safe and Efficient Use (Continued)

• Keep away from electrical appliances such as TVs, radios, and personal computers.
• The unit should be kept away from heat sources such as radiators or cookers.
• Do not drop.
• Do not subject this unit to mechanical vibration or shock.
• Switch off the phone in any area where you are required to by special regulations. For example, do not use your phone in hospitals as it may affect sensitive medical equipment.
• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock and can seriously damage your phone.

• Do not charge a handset near flammable material as the handset can become hot and create a fire hazard.

• Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).

• Do not charge the phone when it is on soft furnishings.
• The phone should be charged in a well ventilated area.
• Do not subject this unit to excessive smoke or dust.
• Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.
• Do not tap the screen with a sharp object as it may damage the phone.
• Do not expose the phone to liquid or moisture.
• Use the accessories like earphones cautiously. Do not touch the antenna unnecessarily.
• Your phone is an electronic device that generates heat during normal operation.

Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your phone during or immediately after operation.

Efficient phone operation Electronic devices

All mobile phones may receive interference, which could affect performance.

• Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over pacemakers, for example, in your breast pocket.
• Some hearing aids might be disturbed by mobile phones.
• Minor interference may affect TVs, radios, PCs, etc.

Road safety

Check the laws and regulations on the use of mobile phones in the area when you drive.

• Do not use a hand-held phone while driving.
• Give full attention to driving.
• Use a hands-free kit, if available.
• Pull off the road and park before making or answering a call if driving conditions require you to do so.
• RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.
• If your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.
• If you are listening to music whilst out and about, please ensure that the volume

Guidelines for Safe and Efficient Use (Continued)

is at a reasonable level so that you are aware of your surroundings. This is of particular importance when near roads.

Avoid damage to your hearing

Damage to your hearing can occur if you are exposed to loud sounds for long periods of time. We therefore recommend that you do not turn the handset on or off close to your ear. We also recommend that music and call volumes are set to a reasonable level.

NOTE: Excessive sound pressure from earphones can cause hearing loss.

Glass Parts

Some parts of your mobile device are made of glass. This glass could break if your mobile device is dropped on a hard surface or receives a substantial impact. If the glass

breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by an authorised service provider.

Blasting area

Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.

Potentially explosive atmospheres

• Do not use your phone at a refuelling point.
• Do not use near fuel or chemicals.
• Do not transport or store flammable gas, liquid or explosives in the same compartment of your vehicle as your mobile phone or accessories.

In aircraft

Wireless devices can cause interference in aircraft.

• Turn your mobile phone off before boarding any aircraft.
• Do not use it on the ground without permission from the crew.

Children

Keep the phone in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached.

Emergency calls

Emergency calls may not be available on all mobile networks. Therefore you should never depend solely on your phone for emergency calls. Check with your local service provider.

Battery information and care

• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance.
• Use only LG batteries and chargers. LG chargers are designed to maximise battery life.
• Do not disassemble or short-circuit the battery pack.
• Keep the metal contacts of the battery pack clean.
• Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times before it needs replacing.
• Recharge the battery if it has not been used for a long time to maximise usability.

Guidelines for Safe and Efficient Use (Continued)

• Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom.
• Do not leave the battery in hot or cold places, as this may deteriorate battery performance.
• There is risk of explosion if the battery is replaced with an incorrect type.
• Dispose of used batteries according to the manufacturer's instructions. Please recycle when possible. Do not dispose as household waste.
• If you need to replace the battery, take it to your nearest authorised LG Electronics service point or dealer for assistance.
  • Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger.

- Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions.

Accessories

There are various accessories for your mobile phone. You can select these options according to your personal communication requirements.

Travel Adapter

User Guide LG-A290

Close-up of a black electrical plug connected to a coiled cable (no text or symbols visible)

Standard Battery

Headset

NOTE

• Always use genuine LG accessories. Failure to do this may invalidate your warranty.
• Accessories may be different in different regions; please check with our regional service company or agent for further enquires.

Technical Data

Ambient Temperatures

Max.: +55°C (discharging)

+45°C (charging)

Min.: -10°C

Declaration of Conformity

LG Electronics

Suppliers Details

Name

LG Electronics Inc

Address

LG Twin Tower 20,Yeouido-dong, Yeongdeungpo-gu Seoul, Korea 150-721

Product Details

Product Name

GSM 850 / E-GSM 900 / DCS 1800 / PCS 1900 Quad Band Terminal Equipment

Model Name

LG-A290

Trade Name

LG

CE 0168

Applicable Standards Details

R&TTE Directive 1999/5/EC

EN 301 489-01 V1.8.1 / EN 301 489-07 V1.3.1 / EN 301 489-17 V2.1.1

EN 300 328 V1.7.1

EN 60950-1:2006+A11:2009

EN 50360:2001 / AC:2006 / EN62209-1:2006

EN 301 511 V9.0.2

Supplementary Information

The conformity to above standards is verified by the following Notified Body(BABT)

BABT, Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, United Kingdom Notified Body Identification Number : 0168

Declaration

I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above mentioned standards, regulation and directives

LG Electronics Inc. – EU Representative Veluwezoom 15, 1327 AE Almere, The Netherlands

Name

Issued Date

Doo Haeng Lee/Director

25.November 2011

Signature of representative

Troubleshooting

Problem Possible Solution
Telephone cannot be switched on	Please take out battery and insert again. Then press Power on key to power on the phone.
Battery empty Charge	battery. Check charging indicator on display.
The battery doesn’t charge properly or the phone sometimes turns itself off	Wipe the charging contacts, both on the phone and on the battery, with a clear soft cloth.
Usage time of battery becomes shorter	If the battery time is short, it may be due to the user environment, a large volume of calls, or weak signals.
Charging error—Temperature out of range	Make sure the ambient temperature is right, wait for a while, and then charge again.
Charging error—Wrong charger	Only use original LG accessories.
Charging error—Battery defective	Replace battery.
Charging error—No battery icon appears when charging	The battery is empty or has been not used for a long time. It may take a while before the battery icon appears on the screen.

Troubleshooting

Problem Possible Solution
Forgot the phone code or password	The default phone code is “0000”.
Enter PUK The PIN code	de has been entered incorrectly three times in succession, and the phone is now blocked. Enter the PUK supplied by your service provider.
Loss of Network You may be in a weak signal area. Move and try again. You are trying to access an option for which you have no subscription with your service provider. Contact the service provider for further details.
You have entered a number but it was not dialed	Be sure that you have pressed Call key. Be sure that you have accessed the right network service. Be sure that you have not set an outgoing call barring option. Be sure that you have entered the area code.
Your correspondent cannot reach you	Be sure that your phone is switched on. Be sure that you are accessing the network service. Be sure that you have not set an incoming call barring option.
Your correspondent cannot hear you speaking	Be sure that you have switched off the loudspeaker. Be sure that you are holding the phone close enough to your mouth. The microphone is located at the bottom of the phone.
The voice quality of the call is poor	Check the signal strength indicator on the display. The number of bars indicates the signal strength. Try moving the phone slightly or moving closer to a window if you are in a building.
No number is dialed when you recall a contact	Use the Phonebook Search feature to ensure the number has been stored correctly. Resave the number, if necessary.
Cannot use the Browser	Your subscription does not include data capability. You will need to contact your service provider to enable the service.
If the above guidelines do not help you to solve the problem	Take note of the model number of your mobile phone and a clear description of the problem. Contact your phone dealer or LG Service Center for help.

Exterior view of a modern office building (no signage)

Black mobile phone casing with visible internal components and a small attached card (no readable text or symbols)

Close-up of a metallic cylindrical object with a small hole and a label 'L' on its side (no readable text or symbols)

Close-up of a smartphone showing the lid and keypad with an arrow pointing to a button (no text or symbols visible)

2

Black smartphone with open rear panel showing internal components (no visible text or symbols)

3

Black-and-white photo of a mobile phone with visible internal compartments and a magnified inset showing internal components (no text or symbols)

456

Interior view of a black mobile phone showing internal components (no visible text or symbols)

Diagram of a flip phone showing internal components and labeled parts (no text or symbols present)

Illustration of a silver mobile phone with a USB cable (no text or symbols visible)

Illustration of a handheld electronic device with a cable and connector (no text or symbols visible)

Batterie standard

Oreillette

REMARQUE

R&TTE Directive 1999/5/EC

EN 301 489-01 V1.8.1 / EN 301 489-07 V1.3.1 / EN 301 489-17 V2.1.1

EN 300 328 V1.7.1

EN 60950-1:2006+A11:2009

EN 50360:2001 / AC:2006 / EN62209-1:2006

EN 301 511 V9.0.2

BABT, Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, United Kingdom Notified Body Identification Number: 0168

Déclaration

LG Electronics Inc. – EU Representative

Veluwezoom 15, 1327 AE Almere, The Netherlands

Nom

Date de publication

Close-up of a metallic cylindrical device with a black panel and a small circular mark on the side (no visible text or symbols)

Black mobile phone casing with visible battery and card slot (no text or symbols)

Close-up of a metallic cylindrical object with a small protrusion and a small mark on the side (no visible text or symbols)

Tecla de alternância de SIM

Close-up of a flip phone showing the lid and keypad (no visible text or symbols)

2

Interior view of a smartphone showing internal components (no visible text or symbols)

3

Black-and-white photo of a mobile phone showing internal components and a magnified inset (no text or symbols visible)

456

Black electronic device with exposed internal components and a partially open top panel (no visible text or symbols)

Open mobile phone showing internal components and a screen (no visible text or symbols)

Illustration of a silver mobile phone with a black cable and attached plug (no text or symbols visible)

Illustration of a handheld electrical plug connected to a cable (no text or symbols visible)

Bateria padrão

Auricular

OBSERVAÇÃO

R&TTE Directive 1999/5/EC

EN 301 489-01 V1.8.1 / EN 301 489-07 V1.3.1 / EN 301 489-17 V2.1.1

EN 300 328 V1.7.1

EN 60950-1:2006+A11:2009

EN 50360:2001 / AC:2006 / EN62209-1:2006

EN 301 511 V9.0.2

BABT, Forsyth House, Churchfi eld Road, Walton-on-Thames, Surrey, KT12 2TD, United Kingdom Notifi ed Body Identifi cation Number: 0168

Declaração

LG Electronics Inc. – EU Representative Veluwezoom 15, 1327 AE Almere, The Netherlands

Nome

Doo Haeng Lee/Director

Data de e missão
