USER MANUAL LGT300 LG

* Make sure the number is correct before making a call.

PRINTED WITH

SOYINK

C€0168

LG

Life's Good

DEUTSCH

FRANÇAIS

ITALIANO

ENGLISH

Benutzerhandbuch

LG-T300

P/N : MMBB0390550 (1.0)

www.lg.com

Bluetooth QD ID B016849

Front view of a black LG mobile phone with two buttons and a blank screen (no visible text or symbols on the device body)

Black rounded rectangular object with two small circular cutouts on the side (no text or symbols visible)

Black handheld electronic device with control panel and buttons (no visible text or symbols)

Close-up of a black handheld device with a circular arrow pointing to a component, labeled '3' (no text or symbols on the device itself)

Close-up of a black mobile phone casing with a control panel and indicator lights (no visible text or symbols)

Black plastic object with two small holes, labeled '5' in the top-left corner (no other text or symbols visible)

Black handheld electronic device with a USB cable and control buttons, labeled '6' in the top-left corner (no visible text or symbols on device body)

Close-up of a black cylindrical device with a handle and control buttons (no visible text or symbols)

Lautstärketasten

Simple diagram of a rounded rectangular object with two circular holes and a labeled button (no text or symbols)

Social Networking Services (SNS)

Facebook (Forts. SNS)

Black electrical plug connected to a cable (no visible text or symbols)

Akku

HINWEIS

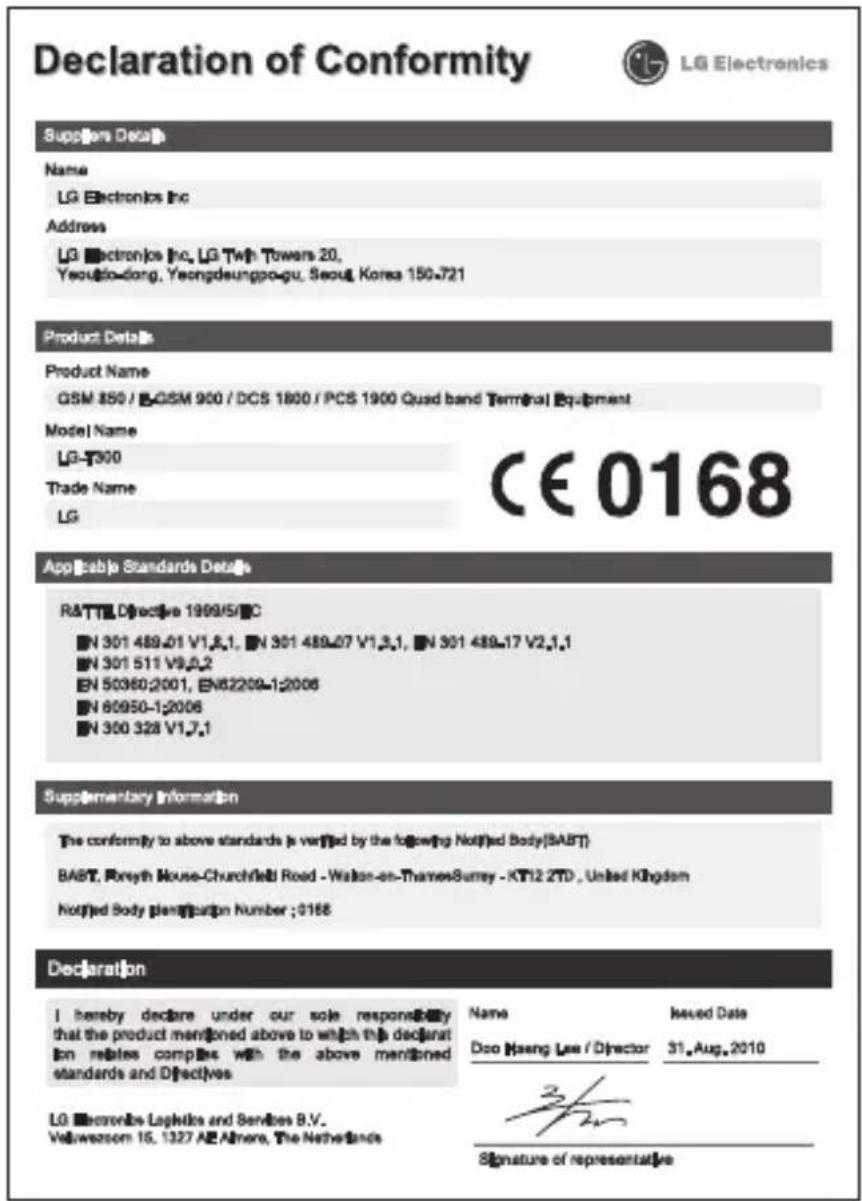

Declaration of Conformity LG Electronics Suppliers Details Name LG Electronics Inc Address LG Electronics Inc, LG Tech Towers 20, Yeouido-dong, Yeongdeungpo-gu, Seoul, Korea 150-721 Product Details Product Name GSM 850 / ■GSM 900 / DCS 1800 / PCS 1900 Quad band Terminal Equipment Model Name LG-T300 Trade Name LG CE 0168 Applicable Standards Details RATTEDirective 1999/SEC EN 301 489-01 V1.8.1, EN 301 489-07 V1.3.1, EN 301 489-17 V2.1.1 EN 301 511 V9.0.2 EN 50360:2001, EN82209-1:2006 EN 60950-1:2006 EN 300 328 V1.7.1 Supplementary Information The conformity to above standards is verified by the following NofRed Body(BAST) BAFT, Forsyth House-Church/Rid Road = Walton-on-Shames/Surrey = KT12 2TD , United Kingdom NofRed Body Identification Number ≥5168 Declaration I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complete with the above mentioned standards and Directives Name Issued Date Doo Huang Lee / Director 31 Aug. 2010 LG Electronics Logistics and Services B.V. Vejawazoom 15, 1327 AEAjmen, The Netherlands Signature of representative

Front view of a black LG mobile phone with control buttons (no visible text or symbols on screen)

Black rectangular device with two small circular features on the side, labeled '1' in the top-left corner (no other text or symbols visible)

Black handheld device with control buttons and a small knob, labeled '2' in the corner (no readable text or symbols on body)

Close-up of a black mobile phone casing with a hand inserting a button, showing a circular arrow indicating rotation (no text or symbols present)

Close-up of a black handheld electronic device with a control panel and display (no visible text or symbols)

Black rectangular electronic device casing with two small ports and a handle (no visible text or symbols)

Black handheld electronic device with a cable and connector, no visible text or symbols

Close-up of a black cylindrical device with two labeled buttons (X and Y) and a small circular mark on the side (no readable text or symbols)

Touches de volume

05:27 Reports Messages Mail Actions Music Navigates

7 00:04 HAPPY

Close-up of a small electronic device with a coiled cable and connector (no visible text or symbols)

REMARQUE

Front view of a black LG smartphone with two buttons and a blank screen (no visible text or symbols on the device body)

Black rectangular device with two small protrusions on the side (no visible text or symbols)

Black handheld device with control panel and buttons, no visible text or symbols

Close-up of a smartphone back panel with a hand inserting a screwdriver (no text or symbols visible)

Close-up of a black handheld electronic device with a control panel and buttons (no visible text or symbols)

Black rectangular object with two small protrusions, labeled '5' in the top-left corner (no other text or symbols visible)

Black handheld electronic device with a cable and a screen, labeled with number 6 (no visible text or symbols on the device itself)

Close-up of a black cylindrical device with a handle and control buttons, no visible text or symbols.

Tasti volume

Declaration of Conformity LG Electronics Suppliers Details Name LG Electronics Inc Address LG Electronics Inc, LG Twin Towers 20, Yeouido-dong, Yeongdeungpo-gu, Seoul, Korea 150-721 Product Details Product Name GSM 850 / GSM 900 / DCS 1800 / PCS 1900 Quad band TermhaI Equipment Model Name LG-T300 Trade Name LG CE 0168 Applicable Standards Details R&TTE Directive 1999/5/EC EN 301 488-01 V1.8.1, EN 301 488-07 V1.3.1, EN 301 488-17 V2.1.1 EN 301 511 V9.0.2 EN 50360:2001, EN62209-1:2006 EN 60950-1:2006 EN 300 328 V1.7.1 Supplementary Information The conformity to above standards is verified by the following Notified Body(BAST) BAST Ponyth House-Churchfield Road -Woltonon-ShamesSurvey -KT12 21D , United Kingdom Notified Body Identification Number :0168 Declaration I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complexs with the above mentioned standards and Directives LG Electronics Logitips and Services B.V. Vollwazoom 15, 1327 AG Ajmere, The Netherlands Name Issued Date Doo Haeng Lee / Director 31, Aug, 2010 Signature of representative

Memo

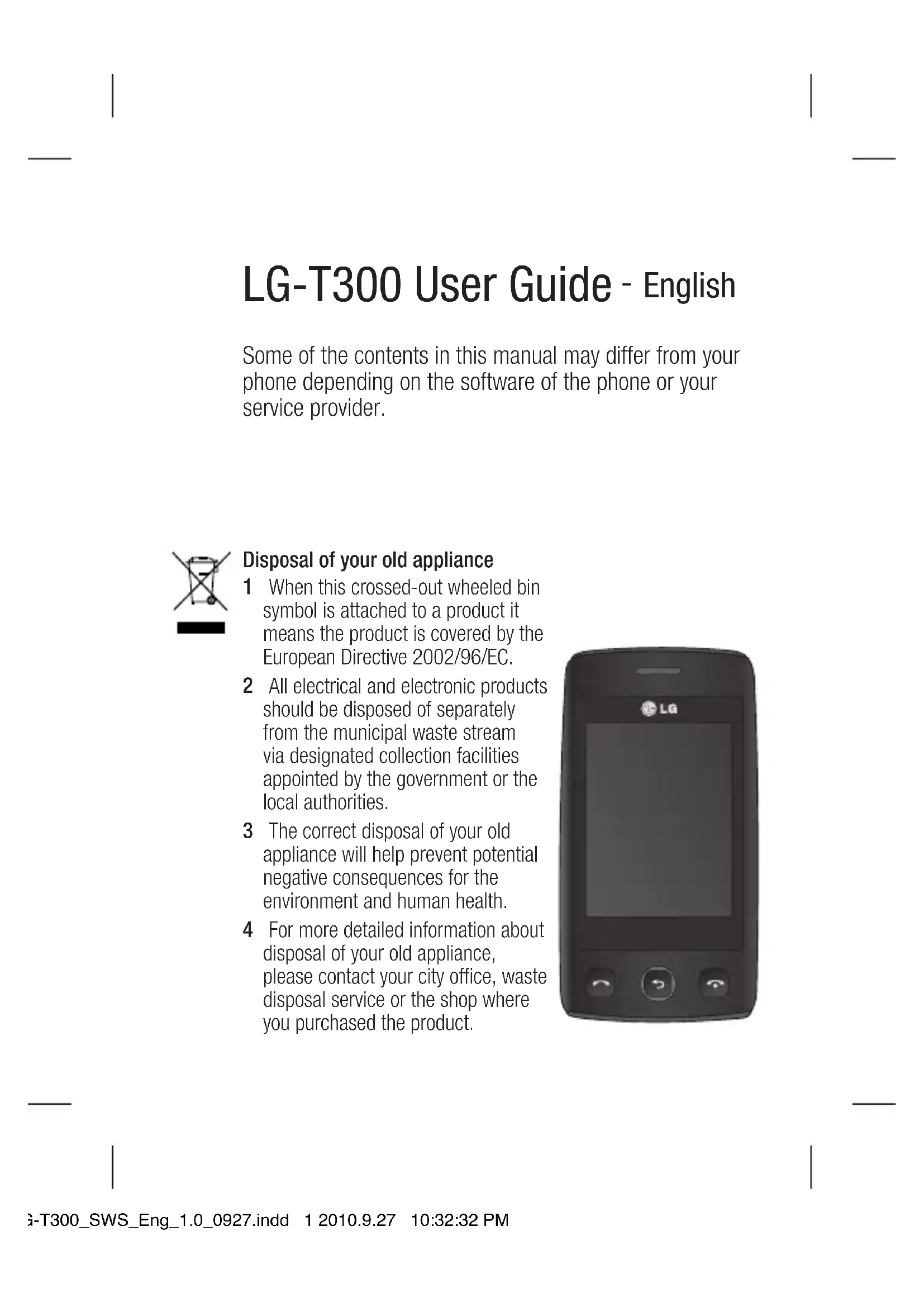

LG-T300 User Guide - English

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.

Disposal of your old appliance

1 When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2 All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3 The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4 For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Front view of a black LG mobile phone with two buttons and a blank screen (no visible text or symbols on the device body)

Guidelines for safe and efficient use

Please read these simple guidelines. Not following these guidelines may be dangerous or illegal.

Exposure to radio frequency energy

Radio wave exposure and Specific Absorption Rate (SAR) information

This mobile phone model LG-T300 has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all users, regardless of age and health.

- The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using

standardised methods with the phone transmitting at its highest certified power level in all used frequency bands.

- While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.

- The SAR limit recommended by the International Commission on Non-Ionising Radiation Protection (ICNIRP) is 2W/kg averaged over 10g of tissue.

- The highest SAR value for this model phone tested by DASY4 for use close to the ear is 1.19 W/kg (10g) and when worn on the body is 1.50 W/kg (10g).

- SAR data information for residents in countries/regions that have adopted the SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE), which is 1.6 W/kg averaged over 1g of tissue.

Product care and maintenance

⚠ WARNING: Only use batteries, chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.

• Do not disassemble this unit. Take it to a qualified service technician when repair work is required.
• Keep away from electrical appliances such as TVs, radios, and personal computers.
• The unit should be kept away from heat sources such as radiators or cookers.
• Do not drop.
• Do not subject this unit to mechanical vibration or shock.
• Switch off the phone in any area where you are required by special regulations. For example, do not use your phone in hospitals as it may affect sensitive medical equipment.

Guidelines for safe and efficient use

• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock and can seriously damage your phone.
• Do not charge a handset near flammable material as the handset can become hot and create a fire hazard.
• Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).
• Do not charge the phone when it is on soft furnishings.
• The phone should be charged in a well-ventilated area.
• Do not subject this unit to excessive smoke or dust.

• Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.

• Do not tap the screen with a sharp object as it may damage the phone.

• Do not expose the phone to liquid, moisture or humidity.
• Use accessories like earphones cautiously. Do not touch the antenna unnecessarily.
• Do not use the phone or accessories in places with high humidity such as pools, greenhouses, solariums or tropical environments, it may cause damage to the phone and invalidation of warranty.

Efficient phone operation

Electronic devices

- Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over pacemakers, i.e. in your breast pocket.

• Some hearing aids might be disturbed by mobile phones.
• Minor interference may affect TVs, radios, PCs, etc.

Road safety

Check the laws and regulations on the use of mobile phones in the area when you drive.

• Do not use a hand-held phone while driving.
• Give full attention to driving.
• Use a hands-free kit, if available.
• Pull off the road and park before making or answering a call if driving conditions so require.
• RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.
• When your vehicle is equipped with an air bag, do not obstruct it with installed or portable

wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.

- If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is particularly important when near roads.

Avoid damage to your hearing

Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn the handset on or off close to your ear. We also recommend that music and call volumes are set to a reasonable level.

NOTE! Excessive sound pressure from earphones can cause hearing loss.

Guidelines for safe and efficient use

Blasting area

Do not use the phone where blasting is in progress. Observe restrictions, and follow the rules and regulations.

Potentially explosive atmospheres

• Do not use the phone at a refuelling point.
• Do not use near fuel or chemicals.
• Do not transport or store flammable gas, liquid, or explosives in the same compartment of your vehicle as your mobile phone and accessories.

In aircraft

Wireless devices can cause interference in aircraft.

- Turn your mobile phone off before boarding any aircraft.

- Do not use it on the ground without permission from the crew.

Children

Keep the phone in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached.

Emergency calls

Emergency calls may not be available with all mobile networks. Therefore, you should never depend solely on the phone for emergency calls. Check with your local service provider.

Battery information and care

- You do not need to completely discharge the battery before recharging. Unlike other battery systems,

there is no memory effect that could compromise the battery's performance.

• Use only LG batteries and chargers. LG chargers are designed to maximise the battery life.
• Do not disassemble or short-circuit the battery pack.
• Keep the metal contacts of the battery pack clean.
• Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times until it needs replacing.
• Recharge the battery if it has not been used for a long time to maximise usability.
• Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom.
• Do not leave the battery in hot or cold places, this

may deteriorate the battery performance.

• There is a risk of explosion if the battery is replaced by an incorrect type.
• Dispose off used batteries according to the manufacturer's instructions. Please recycle when possible. Do not dispose as household waste.
• If you need to replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance.
• Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger.
• Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions.

Installing the SIM card and the handset battery

Installing the SIM Card

When you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available and many others.

Important!

The plug-in SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card. Keep all

SIM cards out of the reach of small children.

Illustrations

Always switch the device off and disconnect the charger before removing the battery.

1 Remove the back cover.
2 Lift battery away.
3 Insert the SIM card.
4 Insert the battery pack.
5 Attach the back cover.
6 Charge the battery.

Black rounded rectangular object with two small protrusions, labeled '1' in the top-left corner (no other text or symbols visible)

Black handheld electronic device with control buttons and a small icon on the front panel (no readable text or symbols)

Close-up of a black mobile phone casing with a hand pointing to a button, showing a circular arrow indicating rotation (no text or symbols present)

Black handheld electronic device with a small display showing internal components (no readable text or symbols)

Black plastic object with two small protrusions and a flat body (no text or symbols visible)

Black handheld electronic device with attached cable and ports (no visible text or symbols)

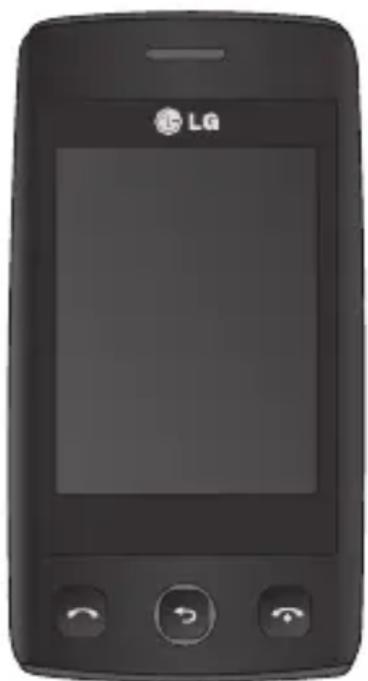

Phone Components

LG

Earpiece

Call key

Dials a phone number and answers incoming calls.

Clear key

Go back to a previous screen.

End key

• Rejects a call.
• Press once to return to the home screen.

Close-up of a black electronic device with labeled buttons and ports (no readable text or symbols)

Volume keys

• When the screen is at the Home screen: Ring tone and touch tone volume.
  • During a call: Earpiece volume.
• Down volume key: Press and hold to activate Silent mode.

Power/Lock key

• Short press to turn on/off the screen.
• Long press for power on/off.

Simple diagram of a rounded rectangular object with two labeled points (no text or symbols)

Handsfree or Stereo earphone connector

Micro SD memory card socket

The LG-T300 will support up to a 4GB memory card.

Using your touch screen

Touch screen tips

• To select an item, touch the centre of the icon.
- Do not press too hard. The touchscreen is sensitive enough to pick up a light, firm touch.
- Use the tip of your finger to touch the option you require. Be careful not to touch any other keys.
- Whenever your LG-T300 is not in use, it will return to the lock screen.

Control the touch screen

The controls on the LG-T300 touch screen change dynamically depending on the task you are carrying out.

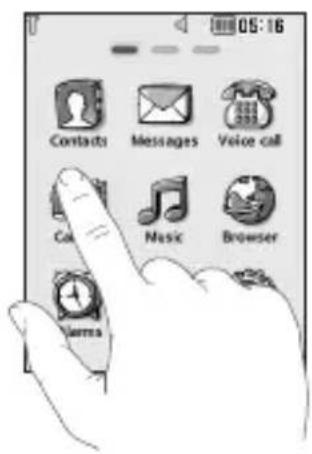

Opening Applications

To open any application, simply touch its icon.

05:16 Contacts Messages Voice call Call Music Browser Warms

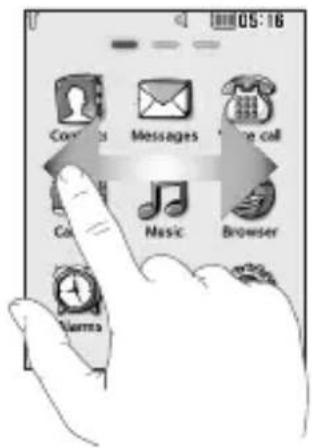

Scrolling

Drag from side to side to scroll. On some screens, such as the call history list, you can also scroll up or down.

05:16 Contacts Messages Phone call Colors Music Browser Alarms

Your home screen

You can drag and click what you need right away in all home screen types.

Active

07:41 HAPPY

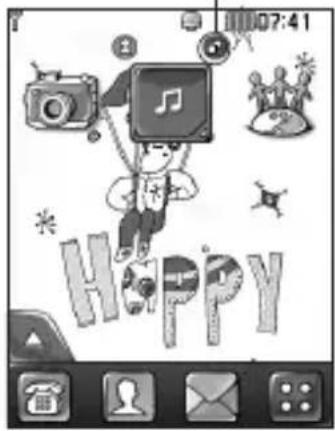

Widget home screen - When you touch on the bottom left of the screen, the mobile widget panel appears. When you register widget by dragging it, the widget is created in the spot.

Active

HAPPY

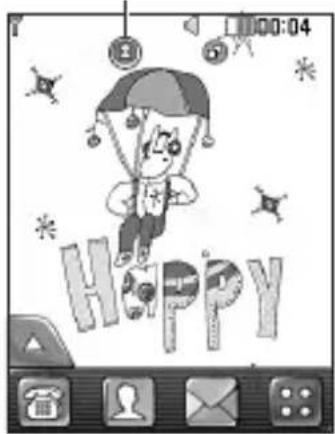

Speed dial home screen - When you touch ▶, the speed dial list appears. You can call, send a message, remove speed dials or edit the contact directly in this home screen.

Your home screen

You can drag from side to side to scroll what you need right away in all menu screen. To swap between the menu screens just wipe quickly over the display from left to right, or right to left.

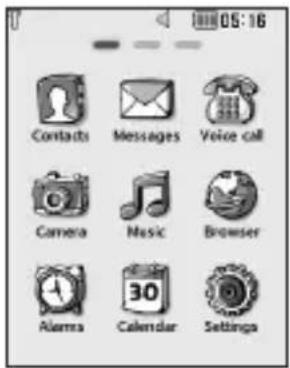

1 Call screen – Send the message or make a call in this menu

Contacts Messages Voice call Camera Music Browser Alarms Calendar Settings

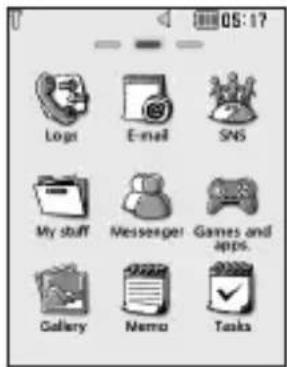

2 Multimedia screen – Send e-mail or enjoy games.

05:17 Logi E-mail SNS My stuff Messenger! Games and apps. Gallery Memo Tasks

3 Application screen – Use applications or set profiles in this menu.

05:17 Google Search FM radio Voice microdriver Bluetooth Tools

Calls

Making a Call

1 Touch to open the keypad.
2 Key in the number using the keypad.
3 Touch to initiate the call.

TIP! To enter + for making an international call, press and hold 0^+ .

Press the power key to lock the touchscreen to prevent calls being made by mistake.

Making a call from your contacts

1 From the home screen touch to open the Contacts.
2 Tap the Name field box on the top of the screen and enter the first few letters of the contact you would like to call using the keypad.

3 From the filtered list, touch the Call icon next to the contact you want to call. The call will use the default number if there is more than one for that contact.

4 Or, you can touch the contact name and select the number to use if there is more than one for that contact to use. You can also touch to initiate the call to the default number.

Changing the common call setting

1 Touch Call settings in the Settings menu.
2 Scroll and touch Common settings.
- Call reject - Slide the switch left for ON. You can touch the Reject list to choose all calls, specific contacts or groups or calls from unregistered numbers (i.e. not in your contacts).

• Send my number - Choose whether to display your number on an outgoing call.
• Auto-redial - Slide the switch left for ON or right for OFF.
• Answer mode
  Press send key: Allows you to only answer an incoming call by pressing the key.
  Press any key: Allows you to answer an incoming call by pressing any key, except the key.
• Minute minder - Slide the switch left to ON to hear a tone every minute during a call.
• BT answer mode - Select Handsfree to be able to answer a call using a Bluetooth headset, or select Handset to press a handset key to answer a call.

- Save new number - Select ON or OFF to save a new number.

Contacts

Searching for a contact

1 Touch Address Book.
2 Touch Search.
3 You see a list of contacts. Typing in the first letter of a contact's name in the Name field will jump the menu to that alphabetical area of the list.

Adding a new contact

1 Touch Address Book and touch Add.
2 Choose whether to save the contact to your Internal memory or SIM.
3 Enter your first and last name.

4 You can enter up to five different numbers per contact.
5 Add an email addresses. You can enter up to two different email addresses per contact.
6 Assign the contact to one or more groups.
7 Touch Save to save the contact.

Changing your contact settings

You can adapt your contact settings so that your Address Book suits your own preferences.

Touch Options key and touch Settings.

- Display name - Choose whether to display the first or last name of a contact first.

• Copy - Copy your contacts from your SIM to your handset, or vice versa. You can do this one contact at a time, or all at once.
• Move - This works in the same way as Copy, but the contact is stored at the new location only. Therefore, once a contact is moved from the SIM to the Internal memory it will be deleted from the SIM memory.
• Send all contacts via Bluetooth - Sends all contacts to other handset via Bluetooth.
• Back up contacts/ Restore contacts - Save or restore the contacts data to the other storage.
• Delete all contacts - Delete all your contacts. Touch Yes if you are sure you want to delete all your contacts.

Messaging

Your LG-T300 combines SMS and MMS into one intuitive and easy-to-use menu.

Sending a message

1 Touch Messages in menu. And touch Write message to begin composing a new message.
2 Touch Insert to add an image, video, sound, template and so on.
3 Touch To at the top of the screen to enter the recipients. Then enter the number or touch to select a contact. You can even add multiple contacts.
4 Touch Send when ready.

WARNING: If an image, video or sound is added to an SMS it will be automatically converted to an MMS and you will be charged accordingly.

Entering Text

You can choose your input method by tapping ☐ and Input method.

Touch T9 turn on T9 mode. This icon is only shown when you choose Keypad as the input method. Touch to change between numbers, symbols and text input.

Use Shift key to change between capital or lowercase input.

Handwriting recognition

In Handwriting mode you simply write on the screen and your LG-T300 will convert your handwriting into your message.

Setting up your email

Touch E-mail in Multimedia screen.

If the email account is not set up, start the email set up wizard and finish it.

You can check and edit settings by selecting 📄You can also check the additional settings that were filled in automatically when you created the account.

Changing your text message settings

Touch Messages and touch Settings. Select Text message.

Text message centre - Enter the details of your message centre.

Delivery report - Slide the switch left to receive confirmation that your messages have been delivered.

Validity period - Choose how long your messages are stored at the message centre.

Message types - Convert your text into Text, Voice, Fax, X.400 or E-mail.

Character encoding - Choose how your characters are encoded. This impacts the size of your messages and therefore data charges.

Send long text as - Choose to send long messages as Multiple SMS or as an MMS.

Changing your multimedia message settings

Touch Messages and, touch Settings and Multimedia message.

Retrieval mode - Choose between Home network or Roaming network. If you then choose Manual you will receive only notifications of MMS and you can then decide whether to download them in full.

Delivery report - Choose to request and/or allow a delivery report.

Read receipt - Choose to request and/or allow a reply.

Priority - Choose the priority level of your MMS.

Validity period - Choose how long your message is stored at the message centre.

Slide duration - Choose how long your slides appear on the screen.

Unsupported attachment - Choose whether the unsupported attachment is restricted or not.

Delivery time - Choose how long to wait before a message is delivered.

MMS centre - Choose one from the list or add a new message centre.

Social network services (SNS)

Your LG-T300 has SNS that lets you enjoy and manage your social network.

NOTE: SNS feature is a data intensive application. An additional costs may be incurred when connecting and using online services. Check your data charges with your network provider.

Facebook (Continued SNS)

Home: Log in and you will see your friend's updated status. Input your comment about new status or check others.

Profile: You can select the Wall > Status updates and write the current status. See your info detail and upload the photo by touching Album > Upload Photo.

Friends: Search your friends in facebook by selecting Search tap.

Message: You can see the Inbox/Sent folder, and write a SN message.

Camera

Taking a quick photo

1 Touch Camera menu.

2 When the camera has focused on your subject, touch the 📄 in the right-center of the screen to take a photo.

TIP: To switch to the camera mode or video mode, slide up/down the camera or video icon on the centre-right of the viewfinder.

After taking a photo

Your captured photo will appear on the screen.

The following options are available.

Touch

Send - Touch to send the photo as a message, email or via Bluetooth.

Set as - Touch to set a screen image (Homescreen wallpaper, Lockscreen wallpaper, Contacts image, Incoming call image, Outgoing call image, Startup image and Shut down image).

Rename - Touch to rename the photo.

Edit - Touch to edit the photo.

Touch to delete the image.

Touch to take another

photo immediately.

Touch to view a gallery of

your saved photos.

Using the advanced settings

From the viewfinder, touch to open all advanced settings options.

After selecting the option, touch the OK button.

Size - Change the size of the photo to save memory

White balance - Choose between Auto, Incandescent,

Sunny, Fluorescent, and Cloudy.

Colour effect - Choose a color tone for your new photo.

Continuous shot - Position the subject in the viewfinder, then press the capture button as if taking a normal photo. The camera will take shots in quick succession.

Self-timer - The self-timer allows you to set a delay after the shutter is pressed. Select

Off, 3 seconds, 5 seconds, or 10 seconds. This is ideal if you want to be included in a photo.

Night mode - Useful to user in dark places.

Image quality - Choose between Super fine, Fine, and Normal. The finer the quality, the sharper the photo. However, the file size will increase as a result, which means you'll be able to store fewer photos in the memory.

Select storage - Choose whether to save your photos to the Handset memory or to the External memory.

Hide icons - Choose the camera setting icons to hide manually or automatically.

Show captured image - Choose On to check the picture you took right away.

Shutter sound - Select one of the three shutter sounds.

Grid screen - Choose between Off, Simple cross, or Trisection.

Reset settings - Restore all camera default settings.

Video camera

Making a quick video

To switch to the camera mode or video mode, slide up/down the camera or video icon on the right centre of the viewfinder.

1 Holding the phone horizontally, point the lens towards the subject of the video.
2 Press the red dot.
3 ●Rec will appear at the bottom of the viewfinder with a timer at the bottom showing the length of the video.
4 To pause the video, touch and resume by selecting.
5 Touch on screen.

After making a video

A still image representing your captured video will appear on the screen. The name of the video runs along the bottom of the screen together with icons down the left and right sides.

Touch to play the video.

The following options are available.

Touch

Send - Touch to send the video as a Message, Email or via Bluetooth.

Rename - Touch to rename the video.

Touch to delete the video you have just made and confirm by touching Yes. The viewfinder will reappear.

Touch to shoot another video immediately. Your current video will be saved.

Touch to view a gallery of saved videos and images.

Using the advanced settings

From the viewfinder, touch to open all advanced settings options. After selecting the option, touch the OK button.

Colour Effect - Choose a color tone to use for your new view.

White balance - The white balance ensures any the white areas in your video are realistic. To enable your camera to adjust the white balance correctly, you may need to determine the light conditions. Choose between Auto, Incandescent, Sunny, Fluorescent, and Cloudy.

Quality - Choose between Super fine, Fine and Normal.

The finer the quality, the sharper a video will be, but the file size will increase. As a result, you will be able to store fewer videos in the phone's memory.

Duration - Set a duration limit for your video. Choose between Normal and MMS to limit the maximum size to send as an MMS message.

Select storage - Choose whether to save your videos to the Handset memory or to the External memory.

Audio recording - Choose Mute to record a video without sound.

Hide icons - Select whether to hide the icons in the camera menu automatically or manually.

Reset settings - Reset all the video camera settings.

Music

To access the music player, touch Music. From here, you can access a number of folders:

Recently played - Plays the songs you have played recently.

Music Store - Browse and find musics though online service.

All tracks - Contains the songs you have on your phone except the pre-loaded default music.

Artists - Browse through your music collection by artist.

Albums - Browse through your music collection by album.

Genres - Browse through your music collection by genre.

Playlists - Contains all the playlists you have created.

Shuffle tracks - Play your tracks in a random order.

Transferring music onto your phone

The easiest way to transfer music onto your phone is via Bluetooth or the data cable.

To transfer music using Bluetooth:

1 Make sure both devices have Bluetooth switched on and are connected to each other.
2 Select the music file on the other device and select send via Bluetooth.
3 When the file is sent, you will have to accept it on your phone by touching Yes.
4 The file should appear in Music > All tracks.

Managing files

You can store multimedia files in your phone's memory so you have easy access to all your pictures, sounds and videos. You can also save your files to a memory card. Using a memory card allows you to free up space in your phone's memory. By touching Media album, you can open a list of the folders that store all your multimedia files.

Games and Applications

You can download new games and applications to your phone to keep you enjoy.

FM Radio

Your LG-T300 has an FM radio feature so you can tune into your favourite stations to listen on the move.

Searching for stations

You can tune your phone to radio stations by searching for them either manually or automatically. They will then be saved to specific channel numbers, so you don't have to keep re-tuning. You must first attach the headset to the phone as this acts as the aerial.

To auto tune:

1 Scroll and touch FM radio, and touch
2 Touch Auto scan. A confirmation message appears. Select Yes, then the stations will be automatically found and allocated to a channel in your phone.

NOTE: You can also manually tune into a station by using ◀ and ▶ displayed in the centre of the screen. If you press and hold ◀ and , the stations will be automatically found.

Calendar

Adding an event to your calendar

1 Touch Calendar and select Calendar.
2 Select the date you would like to add an event to.
3 Touch Add.

Setting your tasks

1 Touch Tasks.
2 Touch Add, then you can set and save your task in this menu.

Using your date finder

Date finder is a handy tool to help you calculate what the date will be once a certain number of days have passed.

The web

Browser gives you a fast, full-colour world of games, music, news, sport, entertainment and loads more, straight to your mobile phone. Wherever you are and whatever you're into.

Accessing the web

1 Touch the Browser.
2 To go straight to the browser home page, select Home. Alternately, select Enter address and type in the URL, followed by Connect.

NOTE: You will incur extra cost by connecting to these services and downloading content. Check data charges with your network provider.

Settings

Personalising your profiles

You can quickly change your profile by touching the Application screen.

You can personalise each profile setting using the settings menu.

1 Touch Profiles.
2 Choose the profile you want to edit.
3 You can then change all the sounds and alert options available in the list, including your Ringtone and Volume, Message tone settings and more.

Changing your phone settings

Use the freedom of adapting the LG-T300 to your own preferences.

From the home screen, select Settings then scroll to Device settings.

Using memory manager

From the home screen select Settings then scroll to Device settings. Select Memory info.

Changing your connectivity settings

Your connectivity settings have already been set up by your network operator, so you can enjoy your new phone immediately. To change any settings, use this menu: Touch Connectivity.

Sending and receiving your files using Bluetooth To send a file:

1 Open the file you want to send, typically this will be a photo, video or music file.

2 Choose Send. Choose Bluetooth.
3 If you have already paired the Bluetooth device, your LG-T300 will not automatically search for other Bluetooth devices. If not, your LG-T300 will search for other Bluetooth enabled devices within range.
4 Choose the device you want to send the file to.
5 Your file will be sent.

To receive a file:

1 To receive files, your Bluetooth must be both ON and Visible. See Changing your Bluetooth settings below for more information.

2 A message will prompt you to accept the file from the sender. Touch Yes to receive the file.

3 You will see where the file has been saved. For image files, you can choose to view the file. Files will usually be saved to the appropriate folder in Media album.

Changing your Bluetooth settings:

Touch Bluetooth in the Application screen. And select

and choose Settings.

Pairing with another Bluetooth device

By pairing your LG-T300 and another device, you can set up a passcode protected connection.

1 Check that your Bluetooth is ON and Visible. You can change your visibility in the Settings menu.

2 Touch Search.

3 Your LG-T300 will search for devices. When the search is completed, Refresh will appear on screen.

4 Choose the device you want to pair with and enter the passcode, then touch OK.

5 Your phone will then connect to the other device, on which you will need to enter the same passcode.

6 Your passcode protected Bluetooth connection is now ready.

Accessories

There are various accessories for your mobile phone. You can select these options according to your personal communication requirements.

Charger Battery

Electric battery connected to a cable (no visible text or symbols)

NOTE

• Always use genuine LG accessories.
- Failure to do this may invalidate your warranty.
• Accessories may vary in different regions.

Technical data

Ambient Temperatures

Max.: +55°C (discharging) +45°C (charging)

Min.: -10°C

Declaration of Conformity LG Electronics Supplors Details Name LG Electronics Inc Address LG Electronics Inc, LG Twth Towers 20, Yeoufo-dong, Yeongdeungpo-gu, Seoul Korea 150-721 Product Details Product Name GSM 850 / GSM 900 / DCS 1800 / PCS 1900 Quad band Terminal Equipment Model Name LG-7300 Trade Name LG CE 0168 Applicable Standards Details RATTIL Directive 1999/5/BC ■N 301 489.01 V1,8,1, ■N 301 489.07 V1,3,1, ■N 301 489.17 V2,1,1 ■N 301 511 V9,0,2 ■N 50360:2001, EN82209-1:2006 ■N 60950-1:2006 ■N 300 328 V1,7,1 Supplementary Information The conformity to above standards is verified by the following Notified Body(BAST) BAST, Forsyth House-Churchfield Road - Wailon-on-ThamesSurrey - KT12 2TD , United Kingdom Notified Body plenqpurin Number :0168 Declaration I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates completely with the above mentioned standards and Djectives Name Issued Date Doo Haeng Lee / Director 31.Aug.2010 LG Electronics Logistics and Services B.V. Vollwassom 16, 1327 AE Almere, The Netherlands Signature of representative

Memo

Memo
