P/No.: 3828EL3003B Thank you for buying a LG Dryer. Please read your manual carefully, as it provides instructions on safe Installation, Use and Maintenance. Record the Model and Serial Numbers, and retain the manual for future reference.PRODUCT FEATURES

Stainless steel drum doesn’t generate any rust by nature so that rust-free drum keeps clothes away from stain all time. ARTISTIC DESIGN Modern front panel look and big crystal-clear glass door make your dryer look stylish.

Multi-Level temperature control takes better care of your clothes

An entire selection of user-friendly functions make operating the dryer easy. USING THE RLM (REMOTE LAUNDRY MONITOR) The RLM monitors status of your washer and/or dryer. You can plug the display unit into any power outlet in your home. The RLM Display Unit can be purchased separately for this dryer.

(DLE5977WM, DLG5988WM, DLE5977SM, DLG5988SM, DLE5977BM, DLG5988BM) What are Sensor Dry and Time Dry? Your dryer provides sensor drying and time drying programs. Sensor Dry : Dryer senses electronically laundry humidity and it automatically determines operation time based on the dryness of the load and the selected program. At times, you can see sudden increase or decrease on operation time. It happens because a sensor will detect laundry humidity with a certain period. Sudden change on operation time is not a malfunction. Time Dry : Time Dry is that you can set operation time manually to complete drying. Or use Time Dry to have drying performance if clothes are still damp after sensor dry cycle is finished. Time Dry is more effective for heavyweight and bulky items such as king-size bed sheets and thick work clothes.3

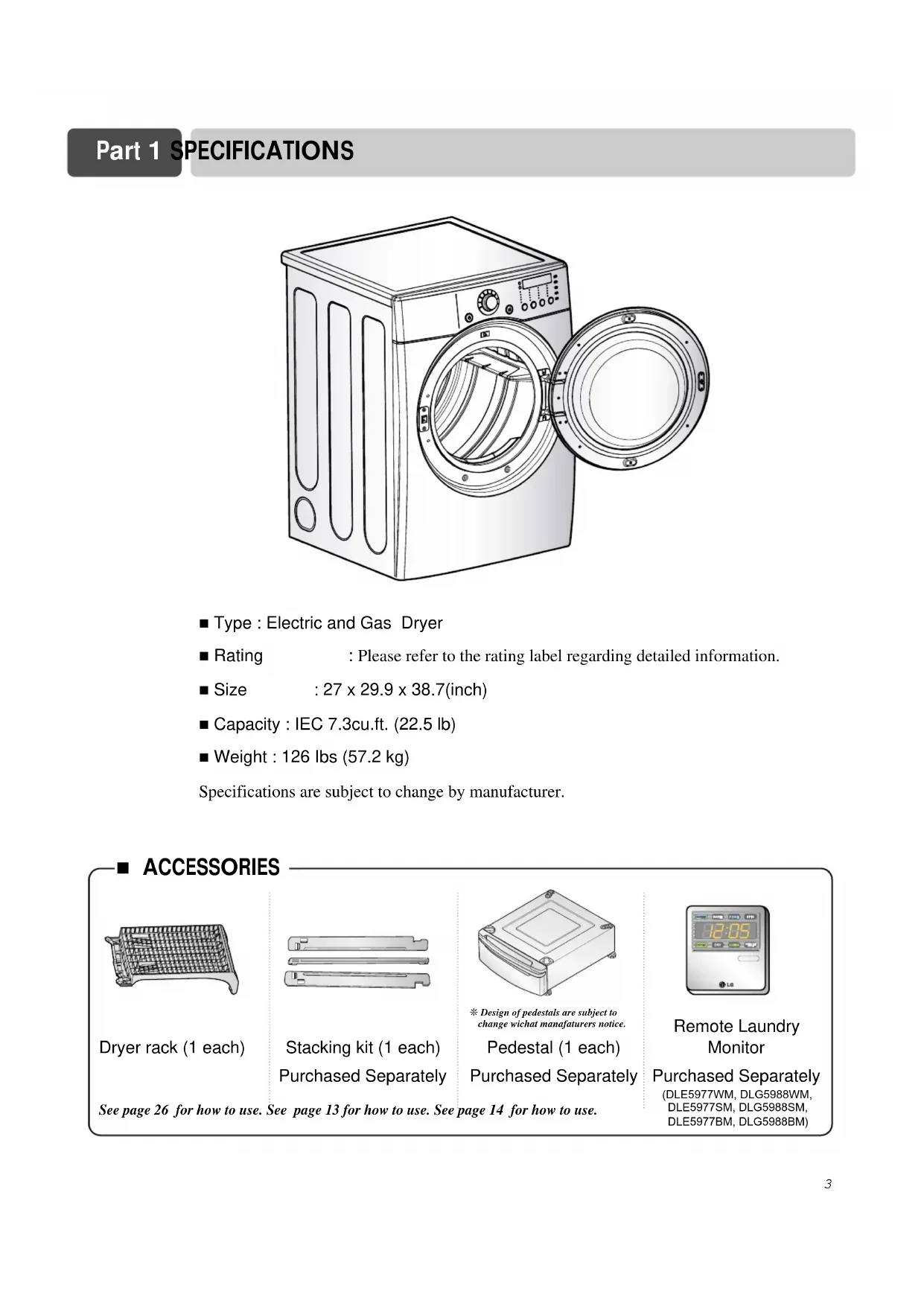

Part 1 SPECIFICATIONS

■ Type : Electric and Gas Dryer ■ Rating : Please refer to the rating label regarding detailed information. ■ Size : 27 x 29.9 x 38.7(inch) ■ Capacity : IEC 7.3cu.ft. (22.5 lb) ■ Weight : 126 Ibs (57.2 kg) Specifications are subject to change by manufacturer. ■ ACCESSORIES Dryer rack (1 each) See page 26 for how to use. See page 13 for how to use. See page 14 for how to use. Stacking kit (1 each) Purchased Separately Pedestal (1 each) Purchased Separately Remote Laundry Monitor Purchased Separately (DLE5977WM, DLG5988WM,DLE5977SM, DLG5988SM,DLE5977BM, DLG5988BM)❊ Design of pedestals are subject tochange wichat manafaturers notice.Electric and Gas Dryer Guide du propri taire P/No.: 3828EL3003B

P/No.: 3828EL3003B Thank you for buying a LG Dryer. Please read your manual carefully, as it provides instructions on safe Installation, Use and Maintenance. Record the Model and Serial Numbers, and retain the manual for future reference. For more information, visit our website at http://us.lge.comPart 2

IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS

SEEKING WARRANTY ASSISTANCE

WARNING! For your safety, the recommendations in this manual must be followed. To reduce the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or death when using your appliance, follow basic precautions, including the following. The Warranty for your Dryer is located at the end of this manual. Warranty Service is available by contacting your nearest LG Service Center. If this product is installed and operated per this manual, LG will repair or replace any parts defective in material or workmanship throughout the Warranty period, beginning the Date of Purchase.

arranty Restriction: If the dryer is subjected to other than private family use, all warranty coverage is effective for only 90 days. You will need the complete Model and Serial Number when requesting Warranty Service. Proof of purchase date is required. Use the space below to record the model number and serial number of your new LG dryer. Model No. Serial No. Date of Purchase ❈ Staple your receipt HERE.

Part 2 IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS

1) Read all instructions before using the appliance.

2) Do not dry articles that have come into contact with

gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.

3) Do not allow children to play on or in the appliance.

Close supervision of children is necessary when using the appliance.

4) Before the appliance is removed from service or

discarded, remove the door to the drying compartment.

5) Do not reach into the appliance if the drum is

6) Do not install or store this appliance where it will be

exposed to the weather.

7) Do not tamper with controls.

8) Do not repair or replace any part of the appliance or

attempt any servicing unless specifically recommended in the user-maintenance instructions.

9) Do not use heat to dry articles containing foam

rubber or similarly textured rubber-like materials.

10) Clean lint screen before or after each load.

11) Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint, dust, and dirt.

12) The interior of the appliance and exhaust duct

should be cleaned periodically by qualified service personnel.

13) Do not place items exposed to cooking oils in your

dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

14) Do not use fabric softners or products to eliminate

static unless recommended by the manufacturer of the fabric softner or product. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. WARNING - Improper connection of the equipment- grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance must be connected to a grounded metal, permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. WARNING! To help reduce any risk of electric shock, fire, or other personal or property injury when using your dryer, please exercise care and follow basic safety precautions, including the following:

IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS

• Do not try to light a match or cigarette, or turn on any gas or electrical appliance.

• Do not touch any electrical switches. Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions carefully.

• If you cannot reach your gas supplier, call the fire department. To reduce the risk of fire or explosion, electric shock, property damage, personal injury or death when using this appliance, please follow all instructions and information, including those in this manual and instructions and information provided by your gas supplier, including the following:

• Do not store or use any gasoline, dry-cleaning solvents any other flammable vapors or liquids in the area surrounding this appliance.

• Do not dry anything that has ever had anything flammable on it, even after washing.

• No washer can completely remove oil. Do not dry any articles that have ever had any kind of oil on them, including cooking oil.

• Articles containing foam, rubber, rubber-like materials, plastic or similar materials should be dried on a clothesline or by using an air cycle.

• Failure to follow these instructions can result in fire, death or serious injury.

• A qualified service person or company must perform installation and service of this appliance. California Safe Drinking Water and Toxic Enforcement Act This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to such substances. Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted dryers will minimize combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

WHAT TO DO IF YOU SMELL

• Keep flammable materials and vapors, suchas gasoline, away from dryer.• Place dryer at least 18 inches above the floorfor a garage installation.• Failure to do so can result in death,explosion or fire.

The following instructions will help guide you through the initial steps of setting up your dryer for use. Please note that every section of this manual provides important information regarding the preparation and use of your dryer, and it is important that you review this entire manual before proceeding with any installation or use. More detailed instructions concerning electrical connections, gas connections, and exhaust requirements are provided at other parts of this manual. Choose a location with a solid floor for your dryer. Place the dryer at least eighteen inches above the floor for a garage installation. After placing the dryer in the desired location, please make sure that it has the required clearances shown below, and sections on Exhaust and Maintenance requirements. If you are installing your dryer in a manufactured or mobile home, please refer to STEP 9 below for additional instructions. Certain minimum clearances are required above, behind, and to the sides of the unit, as shown below. Those required minimum clearances are set forth in the picture below. Please also keep the following instructions in mind when installing in a closet or recessed area:

• Consider allowing additional clearance for installation and servicing.

• Wall, door and floor molding may force additional clearances.

• An additional inch of clearance is recommended to minimize noise transfer .

• Consider space needed for companion appliances.

• For closet installations, the picture below shows the minimum required ventilation openings for the door. A louvered door with comparable ventilation openings is also acceptable.

• Most installations require a minimum 5 1/2 in. (14 cm) clearance behind the dryer for the exhaust vent with elbow. <Closet-Side view><Closet door>ventilation hole ventilation hole <Closet-Front view>38.7”(98.3 cm) 27” (68.6 cm)29.96”(76.1 cm)49.8”(126.4 cm) STEP 1 Positioning the Dryer. Leveling legs should be secured. All four legs are stably placed on the solid and even floor. If dryer is not level, laundry may not tumble properly and sensor will not detect the accurate humidity information. When adjusting leveling, please be cautious not to have serious injuries on your fingers and toes. Note8

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

Once in position, adjust the leveling legs of the dryer until it is level from left to right and from front to back. The leveling legs must remain firmly on the floor and the dryer should not rock. The maximum slope of the dryer from left to right or from front to back should not exceed 2.5 cm (1 inch). If the dryer is not level, and if the slope exceeds 2.5 cm (1 inch), a load may not tumble properly and internal sensors may malfunction. Note: Other sections of this manual also provide important information concerning the placement of and clearances for your dryer. Please review this entire manual before proceeding with any installation. The door on your dryer can be installed to open either to the left or the right. Follow these procedures to reverse the direction in which your door opens: STEP 2:

STEP 2 Procedure for Reversing the Door Door and latch should be aligned at the center when closed. Otherwise, door is improperly closed and opened. Note9

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

In addition to the following warnings, please referto manual section on Exhaust Requirements and Maintenance. IMPORTANT: To reduce the risk of fire, combustion, and gas accumulation, the dryermust be vented to the outdoors. Please follow theinstructions (and all others in this manual) verycarefully.• Do not use thin plastic or foil ducting.• Rigid or semi-rigid metal ducting is recommendedfor use as transition ducting between the dryer andand the wall. In special installations when it isimpossible to make a connection with the aboverecommendations, then a UL-listed flexible metaltransition duct may be used between the dryer andwall connection only. The use of this ducting willaffect dry time.• Position the Dryer such that the exhaust duct run isas short as possible.• Clean old ducts before installing this dryer• The male end of each section of exhaust duct mustpoint away from the dryer• Use as few elbow joints as possible.• Use duct tape on all duct joints• Insulate ductwork that runs through unheatedareas in order to reduce condensation and lintbuild-up on pipe walls; and• PLEASE BE AWARE THAT FAILURE TOEXHAUST THE DRYER CORRECTLY WILLVOID THE DRYER’S WARRANTY. WARNING!

• Use a heavy metal vent.• Do not use a plastic vent.• Do not use a metal foil vent.• Failure to follow these instructions can result in death or fire.• Clean old ducts before installing this dryer

Remove a screw and exhaust duct. 2-1. Detach and remove the knockout thatmatches the desired venting direction(Right side not available on Gas Dryers)①①

③③the order of work. 2-2. Reconnect the duct to the blowerhousing and attach the duct to thebase.(Duct is a SVC part) 3-1. Pre-assemble 4" elbow with 4" duct. Wrap duct tape around joint. 3-2. Insert elbow duct assembly first through theside opening and connect the elbow to theinternal duct. STEP 3 Connecting the Exhaust and Venting System. Vent end will face to the outside home andimproper taping and unstable installation of ventwill cause undesirable drying performance. Note10

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

(Gas dryer only). In addition to the following, please refer to manual section on Gas Requirements and Instructions. 1. Confirm that the type of gas available in your laundryroom is appropriate for the dryer. The dryer is preparedfor Natural Gas with a 3/8" NPT gas connection.2. Remove the shipping cap from the gas connection at theback of the dryer. Make sure that you don’t damage thethreads of the gas connection pipe when you remove theshipping cap.3. Connect the dryer to your laundry room’s gas supplyusing a new flexible stainless steel connector (as notedbelow, only use a new stainless steel flexible connectorif allowed by your local codes).4. Securely tighten all connections between the dryer andyour laundry room’s gas supply. Turn on your laundryroom’s gas supply and check all pipe connections (bothinternal and external) for gas leaks with a non-corrosiveleak detection fluid. Refer to Part 7(page 20)5. For LP (Liquefied Petroleum) gas connection, refer tothis manual’s section entitled Gas Requirements andInstructions.1. New stainless steel flexible connector. Use this type ofconnector only if allowed by local codes. Use Design AGACertified Connector.2. 1/8" NPT Pipe Plug (for checking inlet gas pressure)3. Equipment Shut-Off Valve-Installed within 6’ (1.8 m) of dryer4. Iron Pipe. Shorter than 20’ (6.1 m)Use 3/8" pipe. Longer than 20’ (6.1 m) - Use 1/2" pipe.5. 3/8" N.P.T. Gas ConnectionFollowing are several warnings and instructionsconcerning making the electrical connection for electricdryers. More detailed information concerning theelectrical connection is provided at the manual sectionentitled Electrical Requirements For Electric Dryer andit is important that you thoroughly review that section,and the remainder of this manual, before taking anysteps to install or use this dryer.1. Use only a new U.L. listed No. 10 (copper wire only)three conductor power supply cord kit rated 240Volts (minimum) 30 Amperes and labeled as suitablefor use in a clothes dryer.2. Four-wire cord is required for manufactured (mobile)home installations and use and where local codes donot allow grounding of this appliance throughneutral.

3. Electrical Plug Connections.

4. For additional instruction on connecting the dryer toan electrical power source, please refer to thismanual’s section on Electrical Requirements andElectric Dryer.

• Use a new UL approved 30 amp power supplycord or 10 gauge solid copper wire.• Use a UL approved strain relief.• Disconnect power before making electricalconnections.• Connect neutral wire(white or center wire) tocenter terminal. • Ground wire(green or bare wire) must beconnected to green ground connector.• Securely tighten all electrical connections• See installation instructions for completeinstructions. Failure to do so can result in fire or electricalshock.

STEP 4 Connection of Gas Supply Make sure the burner nozzle is proper for the type of gas you are provided with. For instance, using LPG with LNG nozzle will result in death, fire or explosion. Or using LNG with LPG nozzle will not ignite burner. If needed, nozzle conversion should be done by a qualified service technician and mark or put the label of the current type of nozzle on the dryer. Note Burner input requirements If your house is located at the elevation up to 10,000feet. Adjusting burner input setting is not needed in thiselevation because A.G.A certifies this dryer will nothave any problem with the B.T.U rating at this altitude. If your house is at above 10,000 feet, you are requiredto adjust a four percent(4%) reduction of the burnerB.T.U rating indicated on the model/serial rating plate. Note STEP 5 Electrical Plug Connections11

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

Prior to the first use of this appliance, use all- purpose cleaning products or a solution of detergent and water, with damp clothes to remove from the inside of the dryer drum/drying compartment any dust or dirt that may have accumulated the inside of the dryer. Plug-in your dryer after reviewing the following parts on your dryer’s Electrical Requirements. Effective dryer operation requires appropriate dryer airflow. The adequacy of the airflow can be measured by evaluating the static pressure. Static pressure in the exhaust duct can be measured with a manometer, placed on the exhaust duct approximately 2 ft. (60.9 cm) from the dryer. Static pressure in the exhaust duct should not exceed 0.6 inches (1.5 cm). The dryer should be checked with the dryer running with no load. Confirming Heat Source in Gas Dryers Close the door to the dryer drum/drying compartment and, after completing all steps in this manual for proper installation of this dryer, start the dryer on a heat setting, as described more fully in the operating instructions that accompany the dryer. After the dryer starts, the igniter will glow red and the main burner will ignite.

Warning: If all air is not purged from the gas line,

the gas igniter may go off before the gas and the main burner have ignited. If this happens, the igniter will re-attempt gas ignition after approximately two minutes. Confirming Heat Source in Electric Dryers Close the door to the dryer drum/drying compartment and, after completing all steps in this manual for proper installation of this dryer, start the dryer on a heat setting, as described more fully in the operating instructions that accompany the dryer. The exhaust air or the exhaust pipe should be warm after the dryer has been operating for three minutes.

Measuring Static pressure0.6 inche (1.5 cm)MAXIMUM STATIC PRESSURE INWATER COLUMN STEP 6 Preparation of the Dryer. STEP 8 Dryer Airflow. STEP 7 Confirming Heat Source Operation. ManometerExhaust Duct12

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

The following instructions are applicable to installations of the dryer in a manufactured or mobile home. Any installation in a manufactured or mobile home must comply with the Manufactured Home Construction and Safety Standards Title 24 CFR, Part 32-80 or Standard CAN/CSA0Z240 MH and local codes and ordinances. If you are uncertain whether your proposed installation will comply with these standards, please contact a service and installation professional for assistance. The following instructions apply to any installation of the dryer in a manufactured or mobile home:

1) The gas dryer must be permanently attached to

2) The electrical connection for an electric dryer

must be a 4-wire connection. More detailed information concerning the electrical connection is provided at the manual section entitled Electrical Requirements for Electric Dryer

3) To reduce the risk of combustion and fire, the

dryer must be vented to the outside.

4) Electric dryers may be vented to the outside

using the back, left, right, or bottom panel.

5) Gas dryers may be vented to the outside using the

back, left, or bottom panel. Gas dryer may not be vented to the outside using the right side panel because of the burner housing.

6) The dryer exhaust duct must be affixed securely

to the manufactured or mobile home structure, and the exhaust duct must be made of a material that will resist fire and combustion, and it is recommended that you use a rigid or flexible metal pipe.

7) DO NOT connect the exhaust duct with any other

duct, vent, chimney, or other exhaust duct.

8) Make sure the dryer has adequate access to

outside fresh air to ensure proper operation. The opening for outside fresh air must be at least 25

9) It is important that the clearance of the duct from

any combustible construction be at least 2 inches (5 cm), and, when venting the dryer to the outdoors, the dryer can be installed with a clearances of 1 inch at the sides and back of the dryer.

10) Please be aware that venting materials are not

supplied with the dryer. You should obtain the venting materials necessary for proper installation. WARNING! DO NOT connect exhaust ducts with metal screws or fasteners that extend into the duct.

WARNING! DO NOT vent the exhaust duct under the manufactured or mobile home.

STEP 9 Additional Instructions for Installation of Your Dryer in a Manufactured or Mobile Home.13

Part 4 ACCESSORIES INSTALLATION

To ensure safe and secure installation, pleaseobserve the instructions below.Place washer firmly on a stable, even andsolid floor.Peel protective paper off the tape from thestacking kit side bracket. Fit the stacking kit side bracket firmly to theside of top plate by attaching the double-faced tape to top plate as picture shows.Secure stacking kit side bracket to thewasher with a screw on the back of bracket.Repeat Steps 2, 3, 4 for the other side.Place the dryer on top of the washer by fittinglegs as shown in the picture. Avoid fingerinjuries - be careful not to pinch fingersbetween the washer and dryer. Slide washerslowly backwards to the stopper of kit.Insert the front stacking kit. Push the frontstacking kit back to the stoppers of sidestacking kit. Screw both sides of the front kit. • Do not use stacking kit with a gas dryer inpotentially unstable conditions like a mobilehome.Stacking kit

Stacking Kit Installation Instructions If there are some foreign objects on the surface of top plate, it becomes difficult to apply double-face tapes on. WARNING!

Note Incorrect Installation can cause seriousaccidents. The weight of the dryer and the height ofinstallation makes the stacking proceduretoo risky for one person. This procedureshould be performed by 2 or moreexperienced service personnel.Place the dryer on the pedestal. Make sure the front and back feet are in the correct positions. The dryer feet will fit into the innermost positions as shown.

The pedestal accessory includes:

• Drawer divider (1) • Wrench (1)• Screws (18) † • Retainers (4) ††To ensure safe and secure installation, please thoroughly follow the instructions below. Tools Needed for Installation:
• Phillips-head screwdriver• Wrench (supplied)† Dryer installation only uses 8 screws†† For dryer onlyTo set the dryer to the same height as the washer, fully retract the leveling feet of the dryer by turning them counterclockwise, then turn them clockwise 1-1/2 turns.NOTE: The appliance and pedestal assemblymust be placed on a solid, sturdy, level floorfor proper operation. Then loosen1-1/2 turnsRetract fullyInsert the T-clip of the 4 retainers into the dryer base as shown. Press up on the back of the clip and pull outward to lock into place. T-clipRetainerFor dryerFor washer/comboLocknutMake sure the screws on the pedestal align with the holes in the retainers, then install 4 screws at each corner to securely attach the appliance to the pedestal.NOTE: If the screws are not installed properly, noise and vibration may result.Move the appliance to the desired location. Loosen the locknuts on all 4 leveling feet of the pedestal until you can turn them with the wrench. Turn clockwise to raise or counterclockwise to lower until the pedestal is level and all 4 feet are solidly against the floor. RaiseLowerSecurely tighten all locknuts by hand. NOTE: Noise and vibration may result if locknuts are not tightened. Be sure to connect the appliances to all water, power, or gas lines and draining or venting connections before operation. If there is excessive vibration during the first operation after installation, slightly adjust the leveling feet.

Following are additional instructions regarding electrical connections and requirements for electric dryers. Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local regulations. Please contact a qualified electrician to check your home’s wiring and fuses to ensure that your home has adequate electrical power to operate the dryer. 120V/ 240V, 60 Hertz, 3-Wire Installation

Instructions for Grounding of your Electric Dryer: a) Please note that the wiring diagram is provided Inside the dryer cabinet. b) This dryer must be connected to a grounded metal, permanent wiring system; or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dryer. c) The dryer has its own terminal block that must be connected to a separate branch, 60 Hertz, single phase circuit, AC (alternating current) circuit, fused at 30 Amperes (the circuit must be fused on both sides of the line). ELECTRICAL

ON THE NAMEPLATE. DO NOT CONNECT

DRYER TO 110, 115, OR 120 VOLT

CIRCUIT. d) If branch circuit to dryer is fifteen feet (4.50 m) or less in length, use U.L. (Underwriters Laboratories) listed No. 10 A.W.G. wire (copper wire only), or as required by local codes. If over fifteen feet (4.50 m), use U.L. (Underwriters Laboratories) listed No. 8 A.W.G. wire (copper wire only), or as required by local codes. Allow sufficient slack in wiring so dryer can be moved from its normal location when necessary. e) The power cord (pigtail) connection between wall receptacle and dryer terminal block IS NOT supplied with dryer. Type of pigtail and gauge of wire must conform to local codes and with instructions mentioned on the following pages. f) The method of wiring the dryer is optional and subject to local code requirements. Refer to examples on next page. g) You must select the method by which to wire your dryer according to local code and ordinance requirements. Sample methods are included in the following pages. WARNING! Label all wires prior to disconnection when servicing the dryer, because wiring errors can cause serious injury to you and your dryer. !16

Part 6 ELECTRICAL REQUIREMENTS FOR GAS DRYERS

120 Volt, 60 Hertz, with 3-Prong Grounding Plug Following are additional instructions regarding electrical connections and requirements for gas dryers. Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, and all applicable local regulations. Please contact a qualified electrician to check your home’s wiring and fuses to ensure that your home has adequate electrical power to operate the dryer. Electrical Requirements for Your Dryer:

a) Please note that the wiring diagram is provided inside the dryer control hood. Label all wires prior to disconnection when servicing the dryer, because wiring errors can cause serious injury to you and your dryer. b) Your dryer is designed to be used on a separate branch, polarized, three-wire, effectively grounded, 120 Volt, 60 Hertz, AC (alternating current) circuit protected by a 15 Ampere fuse, equivalent fusetron or circuit breaker. c) Use separately fused circuits for washers and dryers, and DO NOT operate a washer and a dryer on the same circuit. a) The dryer has a three-prong plug to help guard against shock. The plug should be plugged directed into a properly grounded three-prong receptacle that is rated 120 Volts AC (alternating current) 15 Amps. This plug, in order to be properly and fully effective, must be plugged into a properly installed outlet that is grounded in accordance with all local codes and ordinances. b) The dryer must be grounded in order to reduce the risk of electric shock, including a malfunction or breakdown. c) If your laundry room does not meet the specifications required by this manual, or if you are uncertain whether or not your laundry room meets these specifications, please have a qualified service person or company, for example a qualified electrician or your local electric company, review your laundry room’s electrical supply for any problems. WARNING! Do not overload the circuit by operating other appliances on the same circuit when this appliance is operating, by using an extension cord to connect the dryer to the power source, or by using any adapter to allow additional cords to connect to the same outlet.

STANDARD 120 VOLT, 60 HERTZ, 3-WIREEFFECTIVELY GROUNDED CIRCUIT1 L12 Ground3 Neutral Side4 Round Grounding Prong5 Neutral WARNING! DO NOT modify the plug provided with the dryer. If it does not fit the outlet in your laundry room, a proper outlet will need to be installed in your laundry room by a qualified service person or company. !17

Part 7 GAS REQUIREMENTS AND INSTRUCTIONS

Following are important instructions and information concerning the requirements for the gas supply and service for gas dryers. Important Warning: The gas supply and service for a gas dryer must comply with all local codes and ordinances. In the absence of any local codes or ordinances in your area, the gas supply and service for your gas dryer must comply with the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54.

1. Gas supply requirements: Liquefied Petroleum

(L.P.) Gas (2,500 Btu/ft3 (93.1 MJ/m3)) service must be provided at 10 + 1.5 in. water column pressure.

2. Do not attempt to connect Dryer to Liquified

Petroleum (LP Gas) Gas service without a qualified professional.

3. Isolate the dryer from the gas supply piping

system by closing its individual manual shut-off valve, during any pressure testing of the gas supply system at test pressure equal to or less than 2/1 psi (3.45 kPa).

4. Supply Line Requirements. Your laundry room

must have a rigid gas supply line to your dryer. In the United States, an individual manual shutoff valve MUST be installed within at least 6 feet (1.8m) of the dryer, in accordance with the National Fuel Gas Code ANSI Z223.1. A 1/8 in. N.P.T. pipe plug must be installed as shown.

5. If using a rigid pipe, the rigid pipe should be 1/2

inch IPS. If acceptable under local codes and ordinances and when acceptable to your gas supplier, 3/8 inch approved tubing may be used where lengths are less than 20 feet (6.1m). Larger tubing should be used for lengths in excess of 20 feet (6.1m). It is also important that you use pipe joint compound that is insoluble in LP gas.

6. To reduce the danger of gas leaks, explosion, and

fire, please follow and observe the following instructions and WARNINGS:

• Connect the dryer to the type of gas shown on the nameplate;

• Use new flexible stainless steel connectors;

• Use Teflon tape and pipe joint compound insoluble in LP gas on all pipe threads;

• Purge gas supply of air and sediment before connecting the gas supply to the dryer; in order to prevent gas valve contamination, before tightening connection between gas supply and dryer, purge remaining air until odor of gas is identified; and

• DO NOT use an open flame to inspect for gas leaks; instead, use a non-corrosive leak detection fluid. WARNING!

• Use a new AGA or CSA approved gas supply line.

• Install a shut-off valve.

• Securely tighten all gas connections.

• If connected to LP, have a qualified person make sure gas pressure does not exceed 13 in. water column.

• Examples of a qualified person include licensed heating personnel, authorized gas company personnel, and authorized service personnel.

• Failure to do so can result in death, explosion, or fire.

WARNING! DO NOT attempt any disassembly of the dryer, any disassembly requires the attention and tools of an authorized and qualified service person or company.

Following are important instructions and information concerning the exhaust requirements for your dryer. Important Warning: To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building. To reduce the risk of fire, DO NOT exhaust the dryer with plastic or thin foil ducting. Exhaust Requirements and Instructions:

1. Venting materials are not provided with the dryer

and you should obtain the necessary venting materials locally. For example, the outer end of exhaust pipe must have a weather hood with hinged dampers to prevent back-draft when the dryer is not in use.

2. The exhaust duct must be four inches (10.2 cm)

in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer.

3. Rigid metal duct is recommended. Do not install

flexible duct in concealed spaces. Non-combustible flexible metal duct is acceptable. Do not use plastic or thin foil ducting.

4. DO NOT use sheet metal screws on exhaust pipe

joints or other fastening means which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape.

5. To maximize operating results, please observe the

duct length limitations noted in the chart above.

Number of 90° Elbows Weather Hood Type Recommended Maximum length of 4” (10.2 cm) diameter rigid metal duct Maximum length of 4” (10.2 cm) diameter flexible metal duct NOTE : Deduct 6 feet (1.8 m) for each additional elbow. It is not recommended to use more than 4 90° elbows. Use Only for Short Run Installations

(10.2 cm) 2-1/2” (6.35 cm)19

Part 8 EXHAUST REQUIREMENTS AND MAINTENANCE

Exhaust and Dryer Maintenance

1. After one year of use, the interior and complete

exhaust system of the dryer should be examined and cleaned if necessary.

2. Before one year of use, when drying performance

has been suddenly unsatisfied in the past several cases, please examine and clean the exhaust duct for better drying performance.

3. Check the weather hoods frequently to ensure

the dampers are moving freely, that the dampers are not pushed in and that nothing has been set against the dampers.

4. A qualified service person or company should be

used to perform this maintenance.

5. A Flexible Metal Vent Kit, available at extra cost,

can be used to exhaust the dryer when it is placed in hard to reach places. This Kit comes in two pieces, one of which is attached to the dryer and the other is attached to the wall exhaust outlet. Following attachment of the two separate pieces to the dryer and the wall, the dryer may be returned to its final position, after which the two pieces themselves can be connected.

7. Ordinarily, the dryer drum will need no care.

Wipe the exterior of the dryer as required, and always immediately wipe the exterior of the dryer in the event any detergent, bleach, or other washing products is spilled on the dryer, because these products may cause permanent damage to the exterior finish of the dryer.

8. Clean the control panel with a damp cloth as

necessary. Warning: spray pre-wash products may damage the finish of the control panel.

9. Please clean the lint filter either before drying

each load or after drying each load.

10. Always make sure the lint filter is clean before

starting a new load, because a clogged lint filter may increase drying times.

11. Annually remove the lint filter and attach it to

the vacuum duct. See item #2 above.

12. Please note that the wiring diagram is provided

inside the dryer control hood. Label all wires prior to disconnection when servicing the dryer, because wiring errors can cause serious injury to you and your dryer. Cleaning the Lint Screen

1. Clean the lint filter either before drying each load

or after drying each load. Always make sure the lint filter is clean before starting a new load, because a clogged lint filter may increase drying times.

2. To clean, pull the lint screen straight up and roll

any lint off the screen with your fingers. Do not rinse or wash screen to remove lint, because wet lint is hard to remove. Push the lint screen firmly back into place.

3. Always ensure the lint screen is firmly secured

before running the dryer. Running the dryer with a loose lint screen may cause overheating and damage to the dryer and articles being dried.

4. Some articles of clothing may shed more lint than

others (towels for example), causing the Lint Screen to rapidly fill. Remove lint from the lint screen before and after drying these articles, such as new towels.

5. In the event lint falls off of the lint screen and

into the dryer during removal, inspect the exhaust hood and remove any lint.

6. Laundry detergent and fabric softener residue can

build up on the lint screen, causing longer drying times. The screen is likely blocked if lint falls off the screen. In order to prevent this type of build up, and help ensure proper operation of your dryer, clean the lint screen with a nylon brush every six months or, if necessary, more frequently. The lint filter can also be washed as follows: a) After rolling the lint off of the screen with your fingers, wet both sides of the screen with hot or warm water. b) Wet a nylon brush with hot water and liquid detergent and scrub the lint screen with the brush to remove the buildup of detergent and fabric softener. c) Repeat as necessary. d) After the residue has been removed, rinse screen with hot water. e) After drying the lint screen with a clean towel, firmly replace the lint screen in your dryer. WARNING! Disconnect the dryer’s electric power prior to any cleaning or maintenance. !20

Part 9 OPERATING YOUR DRYER

Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual formore detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to person, readthis entire manual, including the Important Safety Instructions, before operating this dryer. WARNING! Fire HazardNo washer can completely remove oil.Do not dry anything that has ever had anytype of oil on it (including cooking oils).Items containing foam, rubber, or plasticmust be dried on a clothesline or by using an Air Cycle. Failure to follow theseinstructions can result in death or fire.

WARNING! Explosion HazardKeep flammable materials and vapors, suchas gasoline, away from dryer.Do not dry anything that has ever hadanything flammable on it (even afterwashing). Failure to follow these instructionscan result in death, explosion, or fire.

• Press MORE TIME or LESS TIME until the desired drying time is set.

• The Display shows the estimated time remaining. In addition to this, if the dryer has some problem, it displays error messages. Time change button is available only with Manual Dry, Time Dry and Rack Dry programs. Note

• By dialing the knob, select the desired cycle based on laundry types and conditions.

Estimated Time Remaining Sensor Dry Cycles allow you to match the cycle to the load you are drying. Each cycle dries certain fabrics at the recommended temperature. A sensor detects the moisture in the load and automatically adjusts the drying time for optimal drying Heavy Duty Use this cycle to get high heat for heavy fabrics such as jeans, corduroys or work clothes Cotton/T owels Use for drying denims, towels, heavy cottons (medium-high heat) Nor mal Use for drying sturdy fabrics such as work casual clothes (medium heat) Per m press Use for permanent press and synthetic items (medium-heat) Delicates Use for drying synthetic fabrics, washable knit fabrics and no-iron finishes (low heat) Ultra Delicate Use to gently dry items such as workout wear, shear and lace items (extremely low heat)

Use Manual Cycles to select a specific amount of drying time and a drying temperature. When a Manual Cycle is selected, the ESTIMATED TIME REMAINING display shows the actual time remaining in your cycle. You can change the actual time in the cycle by pressing MORE TIME or LESS TIME. Speed Dry Use for small loads or loads that need a short drying time.

eshen Up Use this cycle to remove wrinkles from items, such as clothes packed in a suitcase or items wrinkled from being left in the dryer too long. Air Dr

Use the Air Dry Modifier for items that require drying without heat such as rubber, plastic and heat- sensitive fabrics. Sensor Dry Cycles Load Type Temp. High Medium High Medium Low Low Ultra Low Time* (Minutes)

Child Lock can be used to prevent your children from undesirable use on control panel while the dryer is running. When Child Lock is enabled, all the button will be locked and Child Lock glows. To lock Child Lock, Press and hold Rack Dry for 3 seconds, A single beep tone is heard and CL is displayed on the status window. To unlock Child Lock, press and hold Rack Dry for 3 seconds again.

2. Sensor Dry / Time Dry

Each will glow if program is selected.

Custom Programming Set up your favorite combination of settings and save them here for one-touch recall.

3. Select OPTIONS you want.

4. Press and hold the CUSTOM PROGRAM.

To recall your stored CUSTOM PROGRAM Press CUSTOM PROGRAM button, then press START/PAUSE. Rack Dry is designed for use with items which are not available for tumble drying such as sweaters, silk or lingerie. Sneakers also will be great with this option.

• It shows status of drying operation. When Wrinkle Care is selected, this option light will glow. When power is on, Clean Filter flashes until start/pause is selected. WARNING! For better drying performance and safety, clean lint filter every single use.

■ To use the RACK DRY 1.Open the door. Hold the dryer rack with both hands.

2. Put the dryer rack into

3. Make sure Dryer RACK

is evenly spaced right onto the drum inside and door rim.

Low/Ultra Low Air Dry/ Ultra Low Air Dry Air Dry

• Reset time as needed to complete drying. Suggested Items for Rack Drying Temperature Setting Suggested Time* (Minutes) Washable wool items Stuffed toys with cotton or polyester fiber filling Stuffed toys, foam rubber filled. Foam rubber pillows Athletic shoes Don’t use Rack for normal tumble drying. Rack Dry is shipped in place in your dryer so remove rack for normal laundry. Note23

This option helps to prevent the wrinkle on your laundry. When you select the wrinkle free option, the dryer will periodically tumble for up to three hours after the cycle has completed. You can use this option in case that you can not remove laundry after drying is done.

This option reduces bacteria under high temperature during the cycle. This option can only be used with the Heavy Duty, Cotton/Towels and Normal cycles.

When you select the damp dry beep option, a beep will alert you when your load is approximately 80% dry. This notice will allow you to remove lightweight items that are dry or other items that you may wish to iron. Manual Dry Cycles Load Type Temp. High Medium High Air Dry Default Time* (Minutes)

SPEED DRY SMALL LOADS FRESHEN UP Remove Wrinkles AIR DRY Manual Preset Cycle Settings Do not use this cycle with delicate fabrics. Note The BEEPER controls the volume of the beep that is made when you press any of the buttons on the control panel and the termination of any cycle is indicated. Press BEEPER to adjust the sound level or turn off the signal. Use Time Control Option to select temperatures for the Manual Cycles. Press TEMP. CONTROL until the desired temperature setting glows. Temperature modifiers cannot be used with the Sensor Dry Cycles. Type of Load Default Time* (Minutes) Foam rubber-pillows, padded bras, stuffed toys

Plastic-Shower curtains, tableclothes Rubber-backed rugs Olefin, polypropylene, shear nylon

Beeper Use Time Dry Option to change Drying Time on your own. You can select the desired operation time manually by pressing Time Dry button which ranges from 20 to 60 minutes.

• Clean lint screen before or after each cycle.

• Place laundry into dryer and shut door. See Loading.

• Turn the knob to select the drying cycle you want. The preset setting for Sensor Dry Cycles or Manual Cycles will glow. The estimated or actual cycle time (in minutes) will show in the display.

• Determine load size by the amount of space the load requires rather than the weight of the load.

• Avoid overloading the dryer. Following these instruction can help reduce your utility bill, prolong the life of your clothes, and decrease the likelihood of uneven drying and wrinkle.

• Select DRY LEVEL to adjust how dry you want the load. As the cycle runs, the control senses the dryness of the load and adjusts the time automatically for the selected dryness level.

• Select the desired Options.

• Press START/PAUSE Heavy Work Clothes 4 jeans 4 workpants 4 work shirts 2 sweatpants 2 sweatshirts Cotton/Towels 10 bath towels 10 hand towels 14 wash cloths Mixed Load 3 sheets (1 king, 2 twin) 4 pillowcases 3 shirts 3 blouses 9 T-shirts 9 shorts 10 handkerchiefs Following are sample loads for Super Capacity Dryers: DRY LEVEL selections can only be made while using Sensor Dry Cycles. Selecting MORE Dry or LESS Dry automatically adjusts the sensed time needed. Note ❁ Starting your dryer

• Use this button to set dry level

• First, select sensor dry cycle.

• Select dry level to adjust how much you want to dry the load. As the cycle runs, the control senses the dryness of the load and adjusts the time automatically based on the selected dryness level.

Dry Level DRY LEVEL selections can only be made while using Sensor Dry Cycles. Selecting MORE Dry or LESS Dry automatically adjusts the needed time which is already sensed. Note

Clean lint filter Clean the lint filter after each use and check it before use. Not cleaning or emptying the filter will increase drying time and energy consumption, therefore dryer life expectancy could be shortened after all. 1.Open the door and pull the filter straight up

1. Wipe out the door

opening. Otherwise, build-ups of dirty and foreign objects will damage sealing of door.

2. Clean the transparent

glass door to keep inside view clear through the glass. Run the fingers across the filter 2.Clean the filter using one of following ways in cases. Vacuum the lint filter Wash the lint screen in warm, soapy water. Dry thoroughly and replace. ■ Clean the door and its opening Maintenance

4. To use a sensor dry cycle

• Select a Manual Dry Cycle.

• Press MORE TIME or LESS TIME until the desired drying time is displayed. Tap MORE TIME or LESS TIME and the time will change by 1 minute interval.

• Press TEMP. CONTROL until the desired temperature indicator glows.

• (OPTIONAL STEP) If desired, select OPTIONS. For more details, see Options.

• Press START/PAUSE. Be sure the door is closed.

• If you do not press START/PAUSE within 10 minutes of selecting the cycle, the dryer automatically shuts off.

• If you wish to end your drying cycle after pressing START/PAUSE, press START/PAUSE again. To stop your dryer at any time Press START/PAUSE or open the door.

Pausing or restarting To pause the dryer at any time Open the door or press START/PAUSE once. To restart the dryer Close the door. Press START/PAUSE. Drying will continue from where the cycle was interrupted if you close the door and press START within 10 minutes. If the cycle is interrupted for more than 10 minutes, the dryer will shut off. Select new cycle settings before restarting the dryer. Note The MORE TIME or LESS TIME feature can be used with Manual Dry, Time Dry and Rack Dry Cycles. Note WARNING! Improper wire connection or related wiring error will can cause fire or electric shock or death. !26

Part 10 TROUBLESHOOTING GUIDE

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. 1.Problem:My Dryer Won ’t Start

• Is the dryer plugged in?

• Is the fuse blown, or is the circuit breaker tripped? Confirm that the dryer’s plug is securely and completely pushed into the laundry room’s power outlet Check your home’s or laundry room’s fuse box/circuit breaker box and replace the fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally use two fuses or breakers.) Question What to Do 2.Problem:My Dryer Doesn ’t Heat Question What to Do

• Is the fuse blown, or is the circuit breaker tripped?

• Is the gas supply or service blocked or off? If the fuse is blown or the circuit breaker tripped, the dryer might tumble but not heat. Check your home’s or laundry room’s fuse box / circuit breaker box and replace the fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally use two fuses or breakers.) Confirm that the house gas shutoff and the dryer gas shutoff are both fully open. 3.Problem:There are Greasy Spots on My Clothes Question What to Do

• Did you follow the instructions on your fabric softener product?

• Are you drying clean and dirty clothes together?

• Were your clothes entirely clean? Confirm and follow the instructions provided with your fabric softener product. Make sure to use your dryer to dry only clean items, because dirty items can soil clean clothes placed in the same load or later placed in the dryer drum. Stains on dried clothes are actually stains that weren’t cleansed during the washing process. Please review and confirm that you are following your washing instructions and that the clothes are being completely cleaned.27

Part 10 TROUBLESHOOTING GUIDE

5.Problem:There is static in my clothes after drying Question What to Do 4.Problem:There is Lint on my Clothes Question What to Do Please refer to the manual section on cleaning the lint filter, and please confirm that the lint filter is clean. It is important that the lint filter is clean before each new load of laundry. In order to reduce the amount of lint in a load of laundry, sort lint producers (like a fuzzy white cotton towel) separately from clothes that might catch lint (such as a pair of black linen pants). See comments below under There is static in my clothes after drying. Divide your larger load into smaller loads. Sometimes a person might forget to take a piece of paper or a tissue out of the pocket of a pair of pants, and this paper, tissue, or similar material can cause excess lint in a load of laundry. Confirm that the pockets of pants, shirts, and other articles of clothing are empty before washing and drying.

• Is your lint filter full?

• Did you properly sort your load of laundry?

• Do your clothes have excess static electricity?

• Did you overload your dryer?

• Did you place any paper, tissue, or other similar material in the load?

• Did you use fabric softener?

• Did you over dry the load of laundry?

• Are you drying synthetic, permanent press and blends? Try using a fabric softener to reduce static electricity. Over-drying a load of laundry can cause a build up of static electricity. Try using a fabric softener or adjust your settings and use a shorter drying time. These materials can cause static to build up in a load of dried clothes. Try using a fabric softener. 6.Problem:The drying time is not consistent Question

• Are you using consistent heat settings and consistent load sizes? The drying time for a load will vary depending on the heat setting, the type of heat used (electric, natural or LP gas), the size of the load, the type of fabrics, the wetness of the clothes and the condition of the exhaust ducts and lint filer. What to Do28

Part 10 TROUBLESHOOTING GUIDE

7.Problem:It takes too long for my clothes to dry Question What to Do

• Did you properly sort your loads of laundry?

• Are you drying large loads of heavy fabrics?

• Are the dryer controls properly set?

• Is the lint filter clean before each new load of laundry?

• Are the exhaust ducts clear and properly configured?

• Is the fuse blown, or is the circuit breaker tripped?

• Did you overload your dryer?

• Did you under load your dryer? Separate heavy weight items from light weight items when creating loads. Heavy fabrics take longer to dry because they tend to retain more moisture. To help reduce and maintain more consistent drying times for large and heavy fabrics, separate these items into smaller loads of a consistent size. Use the appropriate control settings for the type of load you are drying. Please confirm that the lint filter is clean prior to each new load of laundry. Confirm through review of the appropriate sections of this manual that the exhaust venting ductwork is properly configured. Confirm that the venting is free of obstructions. Confirm that the outside wall dampers are moving freely, that the dampers are not pushed in, and that nothing has been set against the dampers. Check your home’s or laundry room’s fuse box/circuit breaker box and replace the fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally use two fuses or breakers.) Divide your larger load into a number of smaller loads. If you are only drying a handful of items, add a few extra pieces to help ensure proper tumbling action. 8.Problem:My clothes are wrinkled Question What to Do

• Are you over drying your laundry?

• Are you removing your laundry from the dryer soon after the drying cycle is complete? Over drying a load of laundry can lead to wrinkled clothes. Try a shorter drying time, and remove items while they still retain a slight amount of moisture. Remove your laundry from the dryer after the drying cycle ends and either hang or fold the items. 9.Problem:My clothes are shrinking Question What to Do

• Are you following the care instructions for your garment?

(10.2 cm) 2-1/2” (6.35 cm)19
