USER MANUAL DLE7000W LG

DRYER OWNER'S MANUAL Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. DLE7100* DLG7101* DLE7150* DLG7151* DLE7000*

PRODUCT OVERVIEW 9 Parts 9 Accessories

INSTALLATION 10 Installation Overview 10 Product Specifications 11 Installation Location Requirements 11 Clearances 13 Leveling the Dryer 14 Reversing the Door 15 Installing the Side Vent Kit 16 Venting the Dryer 18 Connecting Gas Dryers 20 Connecting Electric Dryers 21 Final Installation Check 22 Installation Test (Duct Check)

TROUBLESHOOTING 34 FAQs: Frequently Asked Questions 34 User Support Videos 35 Before Calling for Service

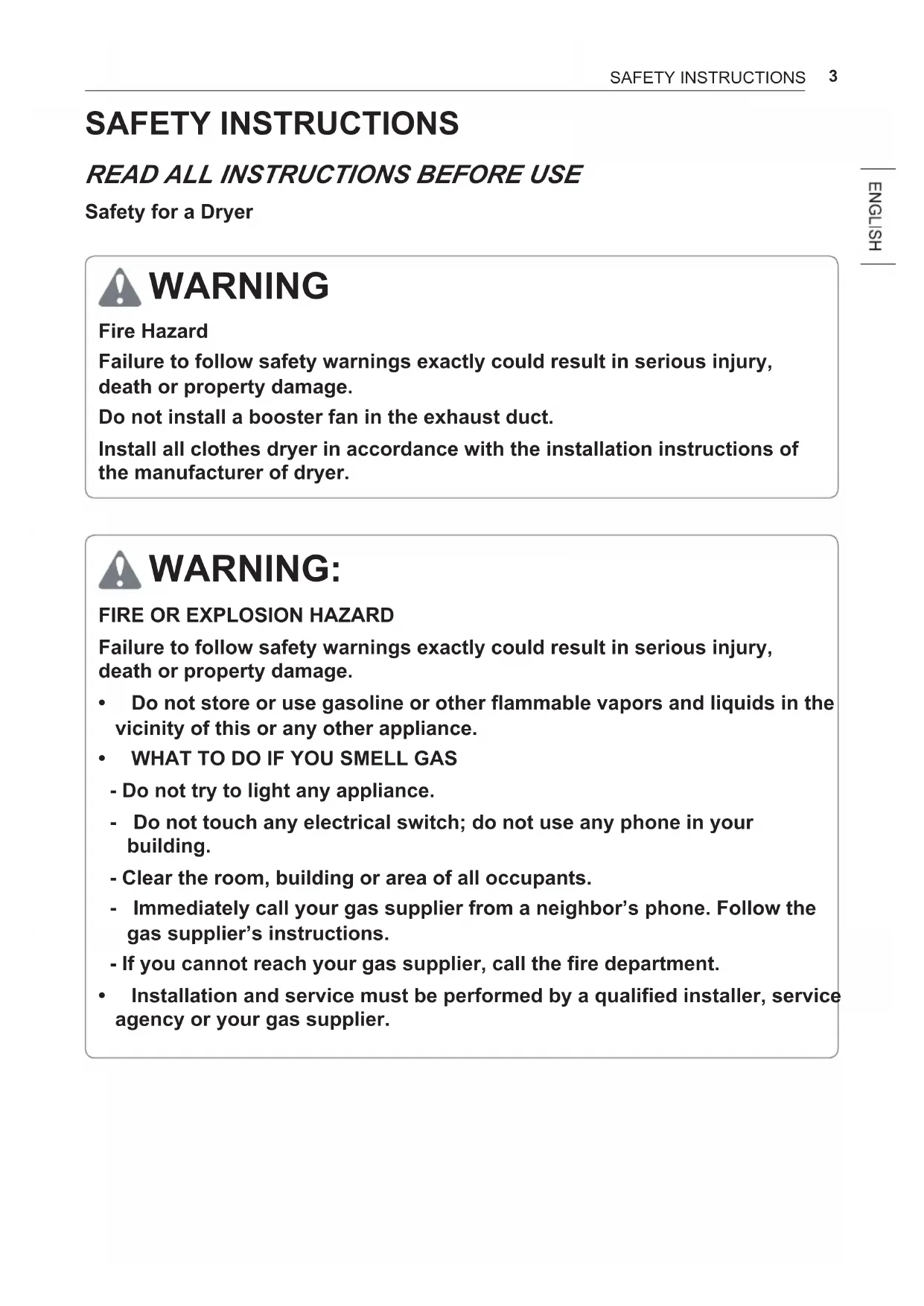

Safety for a Dryer WARNING

Fire Hazard Failure to follow safety warnings exactly could result in serious injury, death or property damage. Do not install a booster fan in the exhaust duct. Install all clothes dryer in accordance with the installation instructions of the manufacturer of dryer.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death or property damage.

• Donotstoreorusegasolineorotherflammablevaporsandliquidsinthe vicinityofthisoranyotherappliance.

• WHATTODOIFYOUSMELLGAS - Do not try to light any appliance. - Do not touch any electrical switch; do not use any phone in your building. - Clear the room, building or area of all occupants. - Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. - If you cannot reach your gas supplier, call the fire department.

• Installationandservicemustbeperformedbyaqualifiedinstaller,service agency or your gas supplier.4 SAFETY INSTRUCTIONS

WARNING - RISK OF FIRE

Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Clothesdryerinstallationmustbeperformedbyaqualifiedinstaller.

• Donotinstallaclothesdryerwithflexibleplasticventingmaterials.If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers.Flexibleventingmaterialsareknowntocollapse,beeasily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.

• Toreducetheriskofsevereinjuryordeath,followallinstallation instructions. Yoursafetyandthesafetyofothersisveryimportant. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word DANGER, WARNING, or CAUTION. These words mean: DANGER

You will be killed or seriously injured if you do not immediately follow instructions. WARNING - You may be killed or seriously injured if you do not follow instructions. CAUTION - You may be slightly injured or cause damage to the product if you do not follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.5 SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: Installation

Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

Do not install or store this appliance where it will be exposed to the weather.

Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

Properly ground the dryer to conform with all governingcodesandordinances. Follow the details in the installation instructions. Electric shock may result if the dryer is not properly grounded.

Before use, the dryer must be properly installed as described in this manual. Electric shock may result if the dryer is not properly grounded.

Install and store the dryer where it will not be exposed to temperatures below freezing or exposed to the weather.

Allrepairsandservicingmustbeperformedby authorizedservicepersonnelunlessspecifically recommended in this Owner’s Manual. Use only authorized factory parts. Failure to follow this warning may result in serious injury, fire, electric shock, or death.

To reduce the risk of electric shock, do not install the dryer in humid spaces. Failure to follow this warning may result in serious injury, fire, electric shock, or death.

Connect to a properly rated, protected, and sized powercircuittoavoidelectricaloverload. Improper power circuits may melt, creating electric shock and/or fire hazard.

Removeallpackingitemsanddisposeofall shipping materials properly. Failure to do so may result in burns, fire, explosion, or death.

Placethedryeratleast18inches(45.7cm)above the floor for a garage installation. Failure to do so may result in burns, fire, explosion, or death.

Keep all packaging from children. Packaging material can be dangerous for children. There is a risk of suffocation.

Do not install near another heat source such as a stove,ovenorheater. Failure to follow this warning may result in product deformation, smoke, or fire.

Do not place candles, smoking materials, or other flammables on top of the product. Dripping wax, smoke, or fire may result.

Removeallprotectivevinylfilmfromtheproduct. Failure to do so may result in product damage, smoke, or fire.

Gas dryers MUST be exhausted to the outside. Failure to follow these instructions may result in fire or death.

The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An accumulation of lint in any area of the home may create a health and fire hazard.

Use only rigid, semi-rigid or flexible metal 4-inch (10.2 cm) diameter duct inside the dryer cabinet or for exhausting to the outside. Use of plastic or other combustible ductwork may cause a fire. Punctured ductwork may cause a fire if it collapses or becomes otherwise restricted in use or during installation.

Ductworkisnotprovidedwiththedryer,andyou should obtain the necessary ductwork locally. The endcapshouldhavehingeddamperstoprevent backdraft when the dryer is not in use. Failure to follow these instructions may result in fire or death.

The exhaust duct must be 4 inches (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean old ducts before installing your new dryer. Failure to follow these instructions may result in fire or death.

Rigid, semi-rigid or flexible metal ducting is recommended for use between the dryer and the wall. All non-rigid metal transition duct must be UL-listed. Use of other materials for transition duct could affect drying time. Failure to follow these instructions may result in fire or death.

Do not use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape. For complete details, follow the Installation Instructions. Failure to follow these instructions may result in fire or death.

Certain internal parts are intentionally not grounded and may present a risk of electronic shock only during servicing. Service personnel - do not contact the following parts while the appliance is energized: CONTROL BOARD6 SAFETY INSTRUCTIONS Operation

Read all instructions before using the appliance.

Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.

Do not reach into the appliance if the drum is moving.

Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

Do not tamper with controls.

Always check the inside of the dryer for foreign objects. Failure to follow these instructions may result in fire or death.

Do not store plastic, paper, or clothing that may burn or melt on top of the dryer during operation. Failure to follow these instructions may result in fire or death.

Be careful when opening and closing the door. Fingers and hands can get caught in the door and cause injury if the door drops forward unexpectedly.

Donotplaceheavyitemsonorleanagainstthe top of the door when it is open.

Do not attempt to pull the hamper door open more than 40 degrees. The dryer could tip forward, causing injury or damage.

Do not place items on the top of the dryer.

Do not put animals, such as pets into the appliance.

Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Do not let children or pets climb inside the dryer drum.

Do not put living animals such as pets inside the product.

Do not put any part of your body, such as your hands or feet, or metal objects under the product.

Do not let your hand get pinched when opening or closing the dryer door.

SAVE THESE INSTRUCTIONS

Steam (steam model):

Do not open the dryer door during steam cycles. Failure to follow these instructions may result in a burn hazard.

Donotdryarticlesthathavebeenpreviously cleaned in, washed in, soaked in, or spotted withgasoline,dry-cleaningsolvents,orother flammableorexplosivesubstancesastheygive offvaporsthatcouldigniteorexplode. Failure to follow these instructions may result in fire or death.

Do not fill the steam feeder with gasoline, drycleaningsolvents,orotherflammableor explosivesubstances. Failure to follow these instructions may result in fire or death.

Do not touch the steam nozzle in the drum during or after the steam cycles. Failure to follow these instructions may result in a burn hazard.

Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

Clean the lint filter before or after each load.

The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.

Before the appliance is removed from service or discarded, remove the door to the drying compartment.

Certain internal parts are intentionally not grounded and may present a risk of electronic shock only during servicing. Service personnel - do not contact the following parts while the appliance is energized: CONTROL BOARD7 SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS WARNING Improperconnectionoftheequipment-groundingconductormayresultinariskofelectricshock. Checkwithaqualifiedelectricianorservicepersonifyouareindoubtthattheapplianceisproperly grounded.

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

Thisappliancemustbeequippedwithacord havinganequipment-groundingconductorand a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance must be connected to a grounded metal, permanent wiring system or anequipment-groundingconductormustbe run with the circuit conductors and connected totheequipment-groundingterminalorlead on the appliance. Electric shock may result if the dryer is not properly grounded.

The dryer should always be plugged into its ownindividualelectricaloutletwhichhasa voltageratingthatmatchestheratingplate. This provides the best performance and also prevents overloading house wiring circuits which can cause a fire hazard from overheated wires.

Neverunplugthedryerbypullingonthepower cord. Always grip the plug firmly and pull straight out from the outlet. The power cord may be damaged, resulting in a risk of fire and electric shock.

Repair or replace immediately all power cordsthathavebecomefrayedorotherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. The power cord may melt, creating electric shock and/or fire hazard.

Wheninstallingormovingthedryer,becareful not to pinch, crush, or damage the power cord. This will prevent injury and damage to the dryer from fire and electric shock.

Do not, under any circumstances, cut or removethegroundprongfromthepowercord. To prevent personal injury or damage to the dryer, the electrical power cord must be plugged into a properly grounded outlet.

For personal safety, this dryer must be properly grounded. Failure to do so may result in electric shock or injury.

Refer to the installation instructions in this manualforspecificelectricalrequirementsfor your model. Failure to follow these instructions may create an electric shock hazard and/or a fire hazard.

This dryer must be plugged into a properly grounded outlet. Electrical shock may result if thedryerisnotproperlygrounded.Havethe walloutletandcircuitcheckedbyaqualified electrician to make sure the outlet is properly grounded. Failure to follow these instructions may create an electric shock hazard and/or a fire hazard.8 PRODUCT FEATURES PRODUCT FEATURES Easy-to-Use Control Panel An entire selection of user-friendly functions make operating the dryer easy. Easy-AccessReversibleDoor The wide-opening door provides easy access for loading and unloading. The door hinge can be reversed to adjust for installation location. Flow Sense

duct blockage sensing system detects and alerts you to restrictions in the installed household ductwork that reduce exhaust airflow through the dryer. If you see the alert: Clean or repair the ducts to remove the restrictions. Keep your ducts free of blockage to help increase efficiency and reduce long drying times caused by blocked ducts. Smart Diagnosis™ Should you experience any technical difficulty with your dryer, it has the capability of transmitting data via your telephone to the Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis. Protocol P154 Sanitization Performance of Residential Clothes dryer CERT

Protocol P154 Sanitization Performance of Residential Clothes dryer

PRODUCT OVERVIEW PRODUCT OVERVIEW Parts Control panel Leveling feet Reversible door Power cord location Water inlet valve (on some models) Exhaust duct outlet Gas connection location (gas models) Terminal block access panel (electric models) Lint lter Accessories Optional Accessories Side vent kit (sold separately) Kit No. 383EEL9001B Drying rack (sold separately) No. 3750EL0001C NOTE

Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are missing.

For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.

The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.10 INSTALLATION INSTALLATION InstallationOverview Please read the following installation instructions first after purchasing this product or transporting it to another location. Check and choose the proper location Connect gas dryers Connect electric dryers Plug in the power cord Installation test Test run Gas dryer Electric dryer Level the dryer Vent the dryer Product Specifications The appearance and specifications listed in this manual may vary due to constant product improvements. Dryer Models DLE7100*, DLG7101*, DLE7150*, DLG7151*, DLE7000* Electricalrequirements Please refer to the rating label regarding detailed information. Gasrequirements NG: 4–10.5-inch WC LP: 8–13-inch WC Dimensions 27” (W) X 29 1/2” (D) X 44 1/4” (H), 50 1/4” (D with door open)

68.6 cm (W) X 75.0 cm (D) X 112.3 cm (H), 127.5 cm (D with door open)

Net weight Gas dryer : 118.6 lb (53.8 Kg) Electric dryer : 117.1 lb (53.1 Kg) Drying capacity - Normal cycle IEC 7.3 cu.ft. (22.5 lb/10.2 kg) NOTE Model numbers can be found on the cabinet inside the door.11 INSTALLATION InstallationLocationRequirements WARNING Read all installation instructions completely before installing and operating the dryer! It is important that you review this entire manual before installing and using the dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust requirements are provided on the following pages. The installation requires:

A location that allows for proper exhaust installation. A gas dryer must be exhausted to the outdoors. See Venting the Dryer.

A grounded electrical outlet located within 2 ft. (61 cm) of either side of the dryer. See Connecting Electric Dryers .

A sturdy floor to support the total dryer weight of 200 lb (90.7 kg). The combined weight of a companion appliance should also be considered.

No other fuel-burning appliance can be installed in the same closet as a dryer. Do not operate the dryer at temperatures below 45 °F (7 °C). At lower temperatures, the dryer might not shut off at the end of an automatic cycle. This can result in longer drying times. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, mobile homes or sleeping quarters. Contact your local building inspector. NOTE

The floor must be level, with a maximum slope of 1 inch (2.5 cm) under the entire dryer. Clothes may not tumble properly, and automatic sensor cycles may not operate correctly if dryer is not level.

For a garage installation, you will need to place the dryer at least 18 inches (46 cm) above the floor. The standard pedestal is 15 inches (38.1 cm). You will need 18 inches (46 cm) from the garage floor to the bottom of the dryer. Clearances Installation Spacing for Recessed Area or Closet Installation The following spacing dimensions are recommended for this dryer. This dryer has been tested for clearances of 1 inch (2.5 cm) on the sides and rear. Recommended clearances should be considered for the following reasons:

Additional clearances should be considered for ease of installation and servicing.

Additional clearances might be required for wall, door and floor moldings.

Additional clearances should be considered on all sides of the dryer to reduce noise transfer. For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.

Companion appliance spacing should also be considered.12 INSTALLATION ClosetVentilationRequirements Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the closet. One upper vent opening with a minimum opening of 48 sq. in. (310 cm

) must be installed no lower than 6 feet above the floor. One lower vent opening with a minimum opening of 24 sq. in. (155 cm

) must be installed no more than one foot above the floor. Install vent grills in the door or cut down the door at the top and bottom to form openings. Louvered doors with equivalent ventilation openings are also acceptable. NOTE There should be at least a little space around the dryer (or any other appliance) to eliminate the transfer of vibration from one appliance to another. If there is enough vibration, it could cause appliances to make noise or come into contact, causing paint damage and further increasing noise. Installation Spacing for Recessed Area or Closet Closet Door Vent Requirements

• Required spacing Installation Spacing for Cabinet For cabinet installation with a door, minimum ventilation openings in the top of the cabinet are required.

(75.0 cm) 27" (68.6 cm)13 INSTALLATION LevelingtheDryer WARNING To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses. Failure to follow this warning may result in serious injury or death.

The appliance is heavy. Two or more people are required when installing the dryer. Failure to follow this warning may result in serious injury or death.

To ensure that the dryer provides optimal drying performance, it must be level. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface. NOTE Adjust the leveling feet only as far as necessary to level the dryer. Extending the leveling feet more than necessary may cause the dryer to vibrate.

Position the dryer in the final location. Check levelness of dryer from side to side. Repeat from front to back. Place level here Place level here Not Level Not LevelLevel

Use an adjustable wrench to turn the leveling feet. Unscrew the legs to raise the dryer or screw in the legs to lower it. Raise or lower with the leveling feet until the dryer is level from side to side and front to back. Make sure that all four leveling feet are in firm contact with the floor. If you are installing the dryer on the optional pedestal, you must use the leveling feet on the pedestal to level the dryer. The dryer leveling feet should be fully retracted.14 INSTALLATION ReversingtheDoor WARNING THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure to follow the instructions below can result in damage to the dryer, property damage or injury to persons.

To avoid damage to the dryer or the door, support the door with a stool or box that fits under the door, or have an assistant support the weight of the door.

Avoid dropping the door to avoid damage to the door or the floor.

Open the door and remove the two plastic hole caps on the catch side by gently prying up with a flat blade screwdriver. Save these for step 6. Hole cap

While supporting the door, remove the 4 screws, two from each hinge. Set the door aside face down on a protected surface to prevent damage to the door or the work surface. Hinge screw

With the door on a protected surface, remove all screws on each side of the door and lift off the inner door frame using a flat blade screwdriver. Remove the latch hook and blank and move them to the opposite side. Latch hook Inner door frame

Remove the 4 screws securing the hinges to the door frame. Remove the two plastic cover caps. Reinstall the hinges and cover caps on the opposite sides from which they were removed. Cover cap Hinge assembly

With the hinges and cover caps in the new locations, remount the inner door frame onto the outer door frame with the screws removed in step 3 above.

Reinstall the door with the screws from steps 1,2.

Test the swing of the door to make sure the hinges and latch are properly aligned and that the door closes and latches correctly. Swing Door15 INSTALLATION Installing the Side Vent Kit WARNING

Do not use plastic or thin foil ducts.

Clean old ducts before installing this dryer.

To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses.

Failure to follow all of the safety warnings in this manual could result in property damage, injury to persons, or death. The dryer is shipped to vent to the rear. It can also be configured to vent to the bottom or side (right-side venting is not available on gas models). An adapter kit, part number 383EEL9001B, may be purchased from an LG retailer. This kit contains the necessary duct components to change the dryer vent location.

Remove the rear exhaust duct retaining screw. Pull out the exhaust duct. Retaining ScrewRear Exhaust Duct Option 1: Side Venting

Press the tabs on the knockout and carefully remove the knockout for the desired vent opening (right-side venting is not available on gas models). Press the adapter duct onto the blower housing and secure to the base of the dryer as shown. Adapter Duct BracketKnockout

Preassemble a 4-inch (10.2 cm) elbow to the next 4-inch (10.2 cm) duct section, and secure all joints with duct tape. Be sure that the male end of the elbow faces AWAY from the dryer. Insert the elbow/duct assembly through the side opening and press it onto the adapter duct. Secure it in place with duct tape. Be sure that the male end of the duct protrudes 1½ inches (3.8 cm) to connect the remaining ductwork. Attach the cover plate to the back of the dryer with the included screw. Cover PlateElbow

Press the adapter duct onto the blower housing and secure it to the base of the dryer as shown. Adapter Duct Bracket

Insert the 4-inch (10.2 cm) elbow through the rear opening and press it onto the adapter duct. Be sure that the male end of the elbow faces down through the hole in the bottom of the dryer. Secure it in place with duct tape. Attach the cover plate to the back of the dryer with the included screw. Cover PlateElbow16 INSTALLATION Venting the Dryer WARNING To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or death when using this appliance, follow basic safety precautions, including the following:

Do not crush or collapse ductwork. Failure to follow these instructions may result in fire or death.

Do not allow ductwork to rest on or contact sharp objects. Failure to follow these instructions may result in fire or death.

If connecting to existing ductwork, make sure it is suitable and clean before installing the dryer. Failure to follow these instructions may result in fire or death.

Venting must conform to local building codes. Failure to follow these instructions may result in fire or death.

Gas dryers MUST exhaust to the outdoors. Failure to follow these instructions may result in fire or death.

Use only 4-inch (10.2 cm) rigid, semi-rigid or flexible metal ductwork inside the dryer cabinet andforventingoutside. Failure to follow these instructions may result in fire or death.

To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilatedarea,suchasanattic,wall,ceiling, crawlspace,chimney,gasvent,orconcealed space of a building. Failure to follow these instructions may result in fire or death.

To reduce the risk of fire, DO NOT exhaust the dryer with plastic or thin foil ducting. Failure to follow these instructions may result in fire or death.

The exhaust duct must be 4 inches (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Failure to follow these instructions may result in fire or death.

Rigid, semi-rigid or flexible metal ducting is recommended for use between the dryer and the wall. All non-rigid metal transition duct must be UL-listed. Use of other materials for transition duct could affect drying time. Failure to follow these instructions may result in fire or death.

DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape. Failure to follow these instructions may result in fire or death.

Do not exceed the recommended duct length limitations noted in the chart. Failure to follow these instructions may result in extended drying times, fire or death.

Ductworkisnotprovidedwiththedryer.You should obtain the necessary ductwork locally. Theventhoodshouldhavehingeddampersto preventbackdraftwhenthedryerisnotinuse. Failure to follow these instructions may result in fire or death.

The total length of flexible metal duct must not exceed 8 ft. (2.4 m).

In Canada, only those foil-type flexible ducts, if any, specifically identified for use with the appliance by the manufacturer should be used. In the United States, only those foil-type flexible ducts, if any, specifically identified for use with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct, Subject 2158A, should be used. Ductwork Wall Cap Type Number of 90° Elbows Maximum length of 4-inch (10.2 cm) diameter rigid metal duct Recommended4"(10.2 cm)4"(10.2 cm) 0 65 ft.(19.8 m) 1 55 ft.(16.8 m) 2 47 ft.(14.3 m) 3 36 ft.(11.0 m) 4 28 ft.(8.5 m)

"(6.35 cm) Use only for short run installations 0 55 ft.(16.8 m) 1 47 ft.(14.3 m) 2 41 ft.(12.5 m) 3 30 ft.(9.1 m) 4 22 ft.(6.7 m) NOTE Deduct 6 ft. (1.8 m) for each additional elbow. Do not use more than four 90° elbows.17 INSTALLATION Routing And Connecting Ductwork NOTE Follow the guidelines below to maximize drying performance and reduce lint buildup and condensation in the ductwork. Ductwork and fittings are NOT included and must be purchased separately.

The exhaust duct run should be as short as possible.

Use as few elbow joints as possible.

The male end of each section of exhaust duct must point away from the dryer.

Use duct tape on all duct joints.

Insulate ductwork that runs through unheated areas in order to reduce condensation and lint buildup on duct surfaces.

Incorrect or inadequate exhaust systems are not covered by the dryer warranty. Dryer failures or service required because of such exhaust systems will not be covered by the dryer warranty. Correct Venting Incorrect Venting18 INSTALLATION Connecting Gas Dryers WARNING To reduce the risk of fire or explosion, electric shock, property damage, injury to persons, or death when using this appliance, follow basic safety precautions. GasSupplyRequirements

As shipped from the factory, this dryer is configured for use with natural gas (NG). It can beconvertedforusewithpropane(LP)gas. Gas pressure must not exceed 8 inches (20.3 cm) of water column for NG, or 13 inches (33 cm) of water column for LP.

Aqualifiedserviceorgascompanytechnician mustconnectthedryertothegasservice. Failure to follow these instructions may result in fire, explosion, or death.

Isolate the dryer from the gas supply system byclosingitsindividualmanualshutoffvalve during any pressure testing of the gas supply at pressures greater than 1/2 psi (3.5 kPa).

Supplylinerequirements:Yourlaundryroom musthavearigidgassupplylinetothedryer. IntheUnitedStates,anindividualmanual shutoffvalveMUSTbeinstalledwithinatleast 6 ft. (1.8 m) of the dryer, in accordance with the National Fuel Gas Code ANSI Z223.1 or Canadian gas installation code CSA B149.1. A 1/8-inch (0.3 cm) NPT pipe plug must be installed. Failure to do so may result in fire, explosion, or death.

If using a rigid pipe, the rigid pipe should be ½ inch IPS. If acceptable under local codes and ordinances and when acceptable to your gas supplier,3/8-inch(1cm)approvedtubingmay be used where lengths are less than 20 ft. (6.1 m). Larger tubing should be used for lengths in excess of 20 ft. (6.1 m). Failure to do so may result in fire, explosion, or death.

Connect the dryer to the type of gas shown on the nameplate. Failure to do so may result in fire, explosion, or death.

Topreventcontaminationofthegasvalve, purge the gas supply of air and sediment before connecting the gas supply to the dryer. Before tightening the connection between the gas supply and the dryer, purge remaining air until the odor of gas is detected. Failure to do so may result in fire, explosion, or death.

DO NOT use an open flame to inspect for gas leaks.Useanoncorrosiveleakdetectionfluid. Failure to do so may result in fire, explosion, or death.

Use only a new AGA- or CSA-certified gas supply line (in compliance with the Standard for Connectors for Gas Appliances, ANSI Z21.24•CSA6.10)withflexiblestainlesssteel connectors.

Securely tighten all gas connections. Failure to do so may result in fire, explosion, or death.

Use Teflon tape or a pipe-joint compound that is insoluble in propane (LP) gas on all pipe threads. Failure to do so may result in fire, explosion, or death.

DO NOT attempt any disassembly of the dryer; disassemblyrequirestheattentionandtoolsof anauthorizedandqualifiedservicetechnician or company. Failure to follow this warning may result in fire, explosion, or death. ElectricalRequirementsforGas Models Only

Donot,underanycircumstances,cutorremove the third (ground) prong from the power cord. Failure to follow this warning may result in fire, explosion, or death.

For personal safety, this dryer must be properly grounded. Failure to follow this warning may result in fire, explosion, or death.

This dryer must be plugged into a 120-VAC, 60-Hz. grounded outlet protected by a 15-ampere fuse or circuit breaker. Failure to follow this warning may result in fire, explosion, or death.

Where a standard 2-prong wall outlet is encountered, it is your personal responsibility andobligationtohaveitreplacedwitha properly grounded 3-prong wall outlet. Failure to follow this warning may result in fire, explosion, or death. Plug dryer into a ConnectionGas Supply Shut Valve Plug AGA/CSA-Cer Stainless Steel Flexible Connector Plug dryer into a 120 VAC, 60 Hz grounded 3-prong outlet. WARNING

ELECTRIC SHOCK HAZARD

Failure to follow safety warnings could result in serious injury or death. This dryer is equipped with a three-prong grounding plug for protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.19 INSTALLATION Connecting the Gas Supply

Installationandservicemustbeperformed byaqualifiedinstaller,serviceagency,orthe gas supplier. Failure to do so may result in fire, explosion, or death.

Use only a new stainless steel flexible connector and a new AGA-certified connector. Failure to do so may result in fire, explosion, or death.

Agasshutoffvalvemustbeinstalledwithin6ft. (1.8 m) of the dryer. Failure to do so may result in fire, explosion, or death.

The dryer is configured for natural gas when shipped from the factory. Make sure that the dryerisequippedwiththecorrectburnernozzle for the type of gas being used (natural gas or propane gas). Failure to do so may result in fire, explosion, or death.

If necessary, the correct nozzle (for the LP nozzle kit, order part number 383EEL3002D) shouldbeinstalledbyaqualifiedtechnician and the change should be noted on the dryer. Failure to do so may result in fire, explosion, or death.

All connections must be in accordance with local codes and regulations. Failure to do so may result in fire, explosion, or death.

Gas dryers MUST exhaust to the outdoors. Failure to do so may result in fire, explosion, or death. NOTE This dryer is configured from the factory for natural gas (NG). If the dryer is to be used with propane (LP) gas, it must be converted by a qualified service technician.

Make sure that the gas supply to the laundry room is turned OFF and the dryer is unplugged. Confirm that the type of gas available in your laundry room is appropriate for the dryer.

Remove the shipping cap from the gas fitting at the back of the dryer. Be careful not to damage the threads of the gas connector when removing the shipping cap.

Connect the dryer to your laundry room’s gas supply using a new flexible stainless steel connector with a 3/8-inch NPT fitting. NOTE DO NOT use old connectors.

Securely tighten all connections between the dryer and your laundry room’s gas supply.

Turn on your laundry room’s gas supply.

Check all pipe connections (both internal and external) for gas leaks with a noncorrosive leak- detection fluid.

Proceed to Venting the Dryer. 3/8" NPT gas Connection AGA/CSA-Certied Stainless Steel Flexible Connector 1/8" NPT Pipe Plug Gas Supply Shutoff Valve High-Altitude Installations The BTU rating of this dryer is AGA-certified for elevations below 10,000 feet. If your gas dryer is being installed at an elevation above 10,000 feet, it must be derated by a qualified technician or gas supplier.20 INSTALLATION Connecting Electric Dryers ElectricalRequirementsforElectric Models Only WARNING To help prevent fire, electric shock, serious injury, or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local regulations. Please contact a qualified electrician to check your home’s wiring and fuses to ensure that your home has adequate electrical power to operate the dryer.

This dryer must be connected to a grounded metal, permanent wiring system, or an equipment-groundingconductormustberun with the circuit conductors and connected totheequipment-groundingterminalorlead on the dryer. Failure to do so may result in fire, explosion, or death.

The dryer has its own terminal block that must be connected to a separate 230 VAC, 60-Hertz, single-phase circuit, fused at 30 amperes (the circuit must be fused on both sides of the line). ELECTRICAL SERVICE FOR THE DRYER SHOULD BE OF THE MAXIMUM RATE VOLTAGE

If the branch circuit to dryer is 15 ft. (4.5 m) or less in length, use UL (Underwriters Laboratories) listed No. 10 AWG wire (copper wireonly),orasrequiredbylocalcodes.If over15ft.(4.5m),useUL-listedNo.8AWG wire(copperwireonly),orasrequiredbylocal codes. Allow sufficient slack in wiring so the dryercanbemovedfromitsnormallocation when necessary. Failure to do so may result in fire, explosion, or death.

The power cord (pigtail) connection between the wall receptacle and the dryer terminal block IS NOT supplied with the dryer. Type of pigtail and gauge of wire must conform to local codes and with instructions on the following pages. Failure to follow these instructions may result in fire, explosion, or death.

Do not modify the plug and internal wire provided with the dryer.

The dryer should be connected to a 4-hole outlet.

If the plug does not fit the outlet, a proper outlet will need to be installed by a qualified electrician.21 INSTALLATION Final Installation Check Once you have completed the installation of the dryer and it is in its final location, confirm proper operation with the following tests and the Installation Test (Duct Check) on the following page. Testing Dryer Heating GAS MODELS Close the dryer door, press the POWER button to turn the dryer on, and start the dryer on a heat setting. When the dryer starts, the igniter should ignite the main burner. ELECTRIC MODELS Close the dryer door, press the POWER button to turn the dryer on, and start the dryer on a heat setting. The exhaust air should be warm after the dryer has been operating for 3 minutes. CheckingAirow Effective dryer operation requires proper airflow. The adequacy of the airflow can be measured by evaluating the static pressure. Static pressure in the exhaust duct can be measured with a manometer, placed on the exhaust duct approximately 2 ft. (60.9 cm) from the dryer. Static pressure in the exhaust duct should not exceed 0.6-inch (1.5 cm). The dryer should be checked while the dryer is running with no load. CheckingLevelness Once the dryer is in its final location, recheck the dryer to be sure it is level. Make sure it is level front to back and side to side, and that all four leveling feet are firmly on the floor. Checking Venting Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in drying performance occurs, check duct for obstructions and blockages.22 INSTALLATION Installation Test (Duct Check) Once you have completed the installation of the dryer, use this test to make sure the condition of the exhaust system is adequate for proper operation of the dryer. This test should be performed to alert you to any serious problems in the exhaust system of your home.

This dryer features Flow Sense™, an innovative sensing system that automatically detects blockages and restrictions in dryer ductwork. Keeping ductwork clean of lint buildup and free of restrictions allows clothes to dry faster and reduces energy use. NOTE The dryer should be cool before starting this test. If the dryer was warmed up during installation, run the AIR DRY cycle for a few minutes to reduce the interior temperature. Toactivatetheinstallationtest:

Removethedryingrackandliterature,and then close the door. Do not load anything in the drum for this test, as in may affect the accuracy of the results.

Press and hold the POWER, Temp., and Wrinkle Care buttons until and a usage count alternate in the display. (The usage count indicates the number of cycles run with no load during the last 5 cycles.)

Press the START/PAUSE button. The dryer will start the test, which will last about 2 minutes. The heat will be turned on and the temperatures in the drum will be measured and displayed. A chime sounds when the test portion of the cycle is complete.

Check the display for results. During the test cycle, monitor the Flow Sense™ display on the control panel. If the Flow Sense™ LED has not turned on, when the cycle ends, the exhaust system is adequate. If the exhaust system is severely restricted, the Flow Sense™ LED will turn on. Other problems may also be shown with error codes. See the chart below for error code details and solutions. LED turned on : RESTRICTED The Flow Sense™ LED indicates that the exhaust system is severely restricted. Have the system checked immediately, as performance will be poor.

End of cycle. At the end of the test cycle, will display. The test cycle will end and the dryer will shut off automatically after a short delay.

Temperature sensor failure.

Turn off the dryer and call for service.

Humidity sensor failure.

Turn off the dryer and call for service.

Electric dryer power cord is not connected correctly, or house power supply is incorrect.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

Check the power supply or the connection of the power cord to the terminal block. Refer to the Connecting Electric Dryers section of this manual for complete instructions.

Reset circuit breaker or replace fuse. Do not increase the fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician. gAS

Gas supply or service turned off. (Gas Model only.)

Confirm that house gas shutoff and the dryer gas shutoff are both fully open.23 INSTALLATION

LED is turned on, check the exhaust system for restrictions and damage. Repair or replace the exhaust system as needed. NOTE When the dryer is rst installed, this test should be performed to alert you to any existing problems with the exhaust duct in your home. However, since the test performed during normal operation provides more accurate information on the condition of the exhaust duct than does the installation test, the number of bars displayed during the two tests may not be the same. Do not interrupt the test cycle, as this could result in inaccurate results. Even if no bars are displayed during the test cycle, some restrictions may still be present in the exhaust system. Refer to the Venting the Dryer section of this manual for complete exhaust system and venting requirements. RestrictedorBlockedAirow Avoid long runs or runs with multiple elbows or bends. Excess or crushed transition duct Too many elbows or exhaust too long Check for blockages and lint buildup. Lint buildup or blockage Make sure the ductwork is not crushed or restricted. Crushed

damaged exhaust24 OPERATION OPERATION WARNING To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, including the IMPORTANT SAFETY INSTRUCTIONS, before operating this dryer. Using the Dryer 1 Clean the Lint Filter If the lint filter has not already been cleaned, lift out the filter and remove the lint from the last load. This will help ensure the fastest and most efficient drying perfor- mance. Make sure to reinstall the filter, pressing down until it clicks firmly into place. The dryer will not operate without the lint filter in place. 2 Load the Dryer Load the dryer with the wet laundry from the washer. If the load is extra large, you may need to divide it into smaller loads for proper performance and fabric care. 3 Turn on The Dryer Press the POWER button to turn ON the dryer. The cycle LEDs will illuminate and a chime will sound. 4 Select a Cycle Turn the cycle selector knob in either direction until the LED for the desired cycle is on. The preset temperature, dry level, and option settings for that cycle will be shown. Default settings for the selected cycle can now be changed if desired. Refer to the Cycle Setting and Options page for details. NOTE Not all options or modifiers are available on all cycles. A different chime will sound and the LED will not come on if the selection is not allowed. 5 Begin the Cycle Press the START/PAUSE button to begin the cycle. The cycle can be paused at any time either by opening the door or by pressing the START/PAUSE button. If the cycle is not restarted within 60 minutes of being paused, the dryer will shut off and the settings will be lost. Lint Filter 6 End of Cycle When the cycle is finished, the chime will sound. Immediately remove your clothing from the dryer to reduce wrinkling. If Wrinkle Care is selected, the dryer will tumble briefly every few minutes to help prevent wrinkles from setting in the clothes.25 OPERATION Check the Lint Filter Before EveryLoad Always make sure the lint filter is clean before starting a new load; a clogged lint filter will increase drying time. To clean, pull the lint filter straight up and roll any lint off the filter with your fingers. Do not rinse or wash the filter to remove lint. Push the lint filter firmly back into place. See Regular Cleaning for more information. Always ensure the lint filter is properly installed before running the dryer. Running the dryer with a loose or missing lint filter will damage the dryer and articles in the dryer. Lint Filter Sorting Loads Fabric Care Labels Most articles of clothing feature fabric care labels that include instructions for proper care. Fabric Care Labels Heat setting High Medium LowNo heat/air Tumble dry Dry NormalPermanent Press/wrinkle resistantGentle/delicateDo not tumble dryDo not dry (used with do not wash) Group Similar Items For best results, sort clothes into loads that can be dried with the same drying cycle. Different fabrics have different care requirements, and some fabrics will dry more quickly than others. For best fabric care results, always dry fabrics with similar care requirements together. Loading the Dryer WARNING To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

Check all pockets to make sure that they are empty. Items such as clips, pens, coins, and keys can damage both your dryer and your clothes. Flammable objects such as lighters or matches could ignite, causing a fire. Failure to do so may result in fire, explosion, or death.

Neverdryclothesthathavebeenexposed to oil, gasoline, or other flammable substances. Washing clothes will not completelyremoveoilresidues. Failure to obey this warning may result in fire, explosion, or death. NOTE Loading Tips

Combine large and small items in the same load.

Damp clothes will expand as they dry. Do not overload the dryer; clothes require room to tumble and dry properly.

Use mesh laundry bags to separate clothes with zippers, hooks, straps, and drawstrings to prevent them from catching on or tangling with other clothes or damaging the lint filter.26 OPERATION Control Panel

POWER Button Press to turn the dryer ON. Press again to turn the dryer OFF. NOTE Pressing the POWER button during a cycle will cancel that cycle and any load settings will be lost.

Cycle Selector Knob Turn this knob to select the desired cycle. Once the desired cycle has been selected, the standard presets are shown in the display. On Manual Dry cycles, these settings can be adjusted using the cycle modifier buttons any time before starting the cycle.

START/PAUSE Button Press this button to start the selected cycle. If the dryer is running, use this button to pause the cycle without losing the current settings. NOTE If you do not press the START/PAUSE button to resume a cycle within 60 minutes, the dryer turns off automatically.

Time and Status Display The display shows the settings, estimated time remaining, options, and status messages for the dryer.

More Time/Less Time Buttons Use these buttons with the Time Dry and other Manual Dry cycles to adjust the drying time. Press the More Time button to increase the selected manual cycle time by 1 minute; press the Less Time button to decrease the cycle time by 1 minute.

Cycle Modifier Buttons Use these buttons to select the desired cycle settings for the selected cycle. The current settings are shown in the display. Press the button for that modifier to select other settings.

Cycle Option Buttons The option buttons allow you to select additional cycle options. Certain buttons also allow you to activate special functions by pressing and holding the button for 3 seconds.27 OPERATION

Clean Filter Reminder The display will show Clean Filter when the dryer is turned on as a reminder to check the filter. It turns off when the START/PAUSE button is pressed.

Cycle Completion Indicator with Check Filter Reminder This portion of the display shows which stage of the drying cycle is currently underway (Dry, Cool).

Estimated Time Remaining This display shows the estimated time remaining for SENSOR DRY cycles or the actual time remaining for Time Dry or MANUAL DRY cycles. NOTE The cycle time on SENSOR DRY cycles may fluctuate as the dryer recalculates drying time for optimal results.

Duct Blockage Sensing System Indicator The Flow Sense™ duct blockage sensing system detects and alerts you to blockages in the ductwork that reduce exhaust flow from the dryer. Maintaining a clean exhaust system improves operating efficiency and helps minimize service calls, saving you money.

Control Lock Indicator When Control Lock is set, the Control Lock indicator appears and all buttons are disabled except the POWER button. This prevents children from changing settings while the dryer is operating.

Damp Dry Signal Indicator The dryer will signal when the load is approximately 80% dry. This allows you to remove faster- drying lightweight items or items that you would like to iron or hang while still slightly damp.28 OPERATION Cycle Guide Cycle Fabric Type DryLevel Temp. More Time/ Less Time Wrinkle Care Damp Dry Signal Energy Saver Bedding Comforters, pillows, shirts Normal Dry Medium Adjustable Heavy Duty Jeans, heavyweight items Normal Dry High Adjustable Normal Work clothes, corduroys, etc. Normal Dry Medium Adjustable Perm. Press Permanent press, synthetic items Normal Dry Low Adjustable Delicates Lingerie, sheets, blouses Normal Dry Low Adjustable Speed Dry For small loads with short drying times Auto High Adjustable Air Dry For items that require heat- free drying such as plastics or rubber Off No Heat Freshen Up For removing light wrinkles from clothing Off Medium Adjustable = default setting = allowable option29 OPERATION Sensor Dry Cycles Sensor dry cycles utilize LG’s unique dual sensor system to detect and compare the moisture level in clothes and in the air and adjust the drying time as needed to ensure superior results. The dryer automatically sets the dryness level and temperature at the recommended setting for each cycle. The estimated time remaining will be shown in the display. NOTE To protect your garments not every dryness level, temperature, or option is available with every cycle. See the Cycle Guide for details. Manual Dry Cycles Use manual dry cycles to select a specific amount of drying time and a drying temperature. When a manual dry cycle is selected, the Estimated Time Remainng display shows the actual time remaining in your cycle. You can change the actual time in the cycle by pressing More Time or Less Time.30 OPERATION Cycle Settings and Options CycleModierButtons SENSOR DRY cycles have preset settings that are selected automatically. MANUAL DRY cycles have default settings, but you may also customize the settings using the cycle modifier buttons. Press the button for that option to view and select other settings. DryLevel Selects the level of dryness for the cycle. Press the DryLevel button repeatedly to scroll through available settings.

This option is only available with SENSOR DRY cycles.

The dryer will automatically adjust the cycle time. Selecting Very Dry will increase the cycle time, while Damp Dry will decrease the cycle time.

Use a Damp Dry setting for items that you wish to iron. Temp. Adjusts the temperature setting. This allows precise care of your fabrics and garments. Press the Temp. button repeatedly to scroll through available settings. Time Dry Allows you to manually select the drying time, from 20 to 60 minutes, in 20-minute increments. Use this for small loads or to remove wrinkles. More Time/Less Time Use the More Time/Less Time buttons to add or reduce the drying time of a MANUAL DRY cycle in 1-minute increments. Cycle Option Buttons The dryer features several additional cycle options to customize cycles to meet individual needs. Certain option buttons also feature a special function that can be activated by pressing and holding that option button for 3 seconds. (See Special Functions on the following page for details.) Adding Cycle Options to a Cycle:

Turn on the dryer and turn the cycle selector knob to select the desired cycle.

Use the cycle modifier buttons to adjust the settings for that cycle.

Press the cycle option button(s) for the option you would like to add. A confirmation message is shown in the display.

Press the START/PAUSE button to start the cycle. The dryer starts automatically. Wrinkle Care Selecting this option will tumble the load periodically for up to 3 hours after the selected cycle, or until the door is opened. This is helpful in preventing wrinkles when you are unable to remove items from the dryer immediately. EnergySaver(onsomemodels) This option helps to reduce energy consumption in the Normal cycle, depending on the load size. When the Energy Saver option is selected, the cycle begins with an air dry section and the drying time is increased. NOTE The Energy Saver option is turned on by default in the Normal cycle. Turn off the Energy Saver option for a faster Normal cycle which begins with heated drying.31 OPERATION Special Functions Some cycle option buttons also activate secondary functions. These special functions are marked with an asterisk (*). Press and hold the option button marked with the special function to activate it.

• Control Lock Use this option to prevent unwanted use of the dryer or to keep cycle settings from being changed while the dryer is operating. Press and hold the button marked *Control Lock for 3 seconds to activate or deactivate the Control Lock function. The Control Lock icon will be shown in the display, and all controls will be disabled except the POWER button. NOTE Once set, Control Lock remains active until it is manually deactivated. Control Lock must be turned off to run another cycle. To deactivate Control Lock, press and hold the *Control Lock button for 3 seconds.

• Damp Dry Signal With this option, the dryer will signal when the load is approximately 80% dry. This allows you to remove faster- drying lightweight items or items that you would like to iron or hang while still slightly damp.

• Default On/Off This option allows the Energy Saver settings to be changed. To run a Normal cycle without the Energy Saver option, press and hold the Energy Saver button for three seconds. ON or OFF appears in the display.

• SIGNAL Press and hold the Dry Level button for 3 seconds to adjust the volume of the signal. Press and hold the button repeatedly to adjust the volume of the melody. When no signal is heard, the signal is off. The volume settings are ON – OFF. The signal volume can be adjusted at any time as long as the dryer is turned ON.32 SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application Installing the LG ThinQ Application Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application. LG ThinQ Application Features

Smart Diagnosis™ This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use. Smart Diagnosis™ Feature This feature is only available on the models with or logo. Use this feature to help you diagnose and solve problems with your appliance. NOTE

The feature may be subject to change without prior notice and may have a different form depending on where you are located. Using Audible Diagnosis to Diagnose Issues Follow the instructions below to use the audible diagnosis method.

Launch the LG ThinQ application and select the Smart Diagnosis™ feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

Press the Power button to turn on the appliance.

Hold the mouthpiece of your phone in front of the or logo. Max. 10 mm

Press and hold the Temp. button for 3 seconds or longer while continuing to hold your phone to the logo.

Keep the phone in place untill the tone transmission has nished. The display will count down the time. Once the cont down is over and the tones have stopped, the diagnosis will be displayed in the application. NOTE

For best results, do not move the phone while the tones are being transmitted.33 MAINTENANCE MAINTENANCE Regular Cleaning WARNING To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

Unplugthedryerbeforecleaningtoavoidthe risk of electric shock. Failure to follow this warning may cause serious injury, fire, electric shock, or death.

Neveruseharshchemicals,abrasivecleaners,orsolventstocleanthewasher. They will damage the finish. Cleaning the Exterior Proper care of your dryer can extend its life. The outside of the machine can be cleaned with warm water and a mild, nonabrasive household detergent. Immediately wipe off any spills with a soft, damp cloth. NOTE

Do not use methylated spirits, solvents, or similar products.

Never use steel wool or abrasive cleansers; they can damage the surface. Cleaning the Interior Wipe around the door opening and seal with a soft, damp cloth to prevent lint and dust buildup that could damage the door seal.Clean the window with a soft cloth dampened with warm water and a mild, nonabrasive household detergent, then wipe dry.The stainless steel drum can be cleaned with a conventional stainless steel cleaner, used according to the manufacturer’s specifications. Never use steel wool or abrasive cleansers; they may scratch or damage the surface. Cleaning Around and Under the Dryer Vacuum lint and dust from around the dryer and underneath it regularly. Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages. Maintaining Ductwork Vent ductwork should be checked for lint buildup once per month and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages. Contact a qualified technician or service provider. Cleaning the Lint Filter Always clean the lint from the filter after every cycle.Lint FilterTo clean, open the dryer door and pull the lint filter straight up. Then: For everyday cleaning, roll any lint off the filter with your fingers, or Vacuum the lint filter. If the lint filter has become very dirty or clogged with fabric softener, wash the lint filter in warm, soapy water and allow it to dry thoroughly before reinstalling. NOTE NEVER operate the dryer without the lint filter in place. NEVER operate the dryer with a wet lint filter.34 TROUBLESHOOTING TROUBLESHOOTING FAQs:FrequentlyAskedQuestions Q: When I press a button, why does my dryer beep and then nothing happens? A: The Control Lock feature is turned on. To turn off Control Lock, turn the dryer on, then press and hold the button that has *Control Lock on or under it for 3 seconds. Q: Why does my dryer take so long to dry clothes? A: Proper airflow is critical to the efficient operation of clothes dryers. A lint filter which is full of lint or clogged with fabric softener sheet residue can reduce the airflow to the point that the time required to dry clothing will be greatly increased. Another factor affecting dry time is your home exhaust system. An exhaust system which is dirty and clogged with lint, or is excessively long, needs to be professionally cleaned or repaired. Q: Whydoesmydryerstartbyitselfeveryfewminutes? A: This is how the Wrinkle Care feature works. The dryer runs briefly every few minutes for up to 3 hours after the cycle finishes. This feature is designed to help prevent wrinkles from setting in when the dryer is not unloaded immediately after the cycle is finished. User Support Videos For further assistance, there are videos and tutorials available through the LG.com website.

On the lg.com/us home page, click on the Support menu tab to bring up the menu selections. Select Video Tutorials

Select Appliances and Dryers in the search menu on the new page. Scan this QR code to quickly access the video search page on the LG website.35 TROUBLESHOOTING BeforeCallingforService This dryer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the dryer does not function properly or does not function at all, check the following before you call for service. Operation Problem Possible Cause Solutions The Flow Sense

indicator remains activeafterclearing the restriction in the venting. After clearing the restriction, the Flow Sense

indicator remains active for more than five cycles after the restriction has been cleared, call for service. Dryer will not turn on Power cord is not properly plugged in. Make sure that the plug is securely plugged into a grounded outlet matching the dryer’s rating plate. House fuse is blown, circuit breaker has tripped, or power outage has occurred. Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician. Dryer does not heat House fuse is blown, circuit breaker has tripped, or power outage has occurred. Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician. NOTE Due to the design of electric dryers, it is possible for a circuit problem to allow an electric dryer to run without heat. Gassupplyorserviceisturned off (gas models only). Confirm that the house gas shutoff and the dryer gas shutoff valves are both fully open. Even if gas is not supplied to the dryer, it will run and display error code. Verify that other gas appliances in the home are working normally. EnergySaveroptionselected (on some models) If using the Cotton/Normal cycle, deselect the energy saver option. The Energy Saver option is selected by default. This option reduces energy use by adding an air dry section to the beginning of the cycle. It is normal to feel no heat at the beginning of the cycle while in Energy Saver mode. Display show error code nP Electric dryer power cord is not connected correctly, or house power supply is incorrect. Check the power supply or the connection of the power cord to the terminal block. Display show error code gAS Gassupplyorserviceturnedoff (gas models only). Confirm that house gas shutoff and the dryer gas shutoff are both fully open.36 TROUBLESHOOTING Problem Possible Cause Solutions Clothes take too long to dry Exhaust ducts are blocked, dirty, or duct run is too long. Confirm that the exhaust duct is properly configured and free of debris, lint, and obstructions. Make sure that outside wall dampers can open properly and are not blocked, jammed, or damaged. Load is not properly sorted. Separate heavy items from lightweight items. Larger and heavier items take longer to dry. Light items in a load with heavy items can fool the sensor because the light items dry faster. Clothes take too long to dry Largeloadofheavyfabrics. Heavy fabrics take longer to dry because they tend to retain more moisture. To help reduce and maintain more consistent drying times for large and heavy fabrics, separate these items into smaller loads of a consistent size. Dryer controls are not set properly. Use the appropriate control settings for the type of load you are drying. Some loads may require an adjustment of the dry level setting for proper drying. Lint filter needs to be cleaned. Remove the lint from the filter before every load. With the lint removed, hold the filter up to a light to see if it is dirty or clogged. With some loads that produce high amounts of lint, such as new bath towels, it may be necessary to pause the cycle and clean the filter during the cycle. House fuse is blown, circuit breaker has tripped, or power outage has occurred. Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician. NOTE Due to the design of electric dryers, it is possible for a circuit problem to allow an electric dryer to run without heat. Dryerisoverloaded. Divide extra large loads into smaller loads for better drying performance and efficiency. Dryer is underloaded. If you are drying a very small load, add a few extra items to ensure proper tumbling action. If the load is very small and you are using SENSOR DRY cycles, the electronic control cannot properly sense the dryness of the load and may shut off too soon. Use TIME DRY or add some extra wet clothes to the load.37 TROUBLESHOOTING Problem Possible Cause Solutions Clothes take too long to dry EnergySaveroptionselected (on some models) If using the Cotton/Normal cycle, deselect the Energy Saver option. This option reduces energy use by adding an air dry section to the beginning of the cycle. Drying time is not consistent Heat settings, load size, or dampness of clothing is not consistent. The drying time for a load will vary depending on the type of heat used (electric, natural gas, or LP gas), the size of the load, the type of fabrics, the wetness of the clothes, and the condition of the exhaust duct and lint filter. Even an unbalanced load in the washer can cause poor spinning, resulting in wetter clothes which will take longer to dry.38 TROUBLESHOOTING Performance Problem Possible Cause Solutions Greasy or dirty spots on clothes Fabric softener used incorrectly. Confirm and follow the instructions provided with your fabric softener. Clean and dirty clothes are being dried together. Use your dryer to dry only clean items. Soil from dirty clothes can transfer to the clean clothes in the same or later loads. Clothes were not properly cleaned or rinsed before being placed in the dryer. Stains on dried clothes could be stains that were not removed during the washing process. Make sure that clothes are being completely cleaned or rinsed according to the instructions for your washer and detergent. Some difficult soils may require pre-treating prior to washing. Clothes are wrinkled Clothesdriedtoolong(over dried). Over drying a load of laundry can lead to wrinkled clothes. Try a shorter drying time or LESS DRY setting and remove items while they still retain a slight amount of moisture. Clothes left in dryer too long after cycle ends. Use the WRINKLE CARE option. This feature will tumble the clothes briefly every few minutes for up to 3 hours to help prevent wrinkling. Clothes are shrinking Garment care instructions are not being followed. To avoid shrinking your clothes, always consult and follow fabric care instructions. Some fabrics will naturally shrink when washed. Other fabrics can be washed but will shrink when dried in a dryer. Use a low or no heat setting. Lint on clothes Lint filter not cleaned properly. Remove the lint from the filter before every load. With the lint removed, hold the filter up to a light to see if it is dirty or clogged. If it looks dirty, follow the cleaning instructions. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle. Laundry not sorted properly. Some fabrics are lint producers (i.e., a fuzzy white cotton towel) and should be dried separately from clothes that are lint trappers (i.e., a pair of black linen pants).39 TROUBLESHOOTING Problem Possible Cause Solutions Lint on clothes Excess static in clothes. Use a fabric softener to reduce static electricity. Be sure to follow the manufacturer’s instructions. Overdrying a load of laundry can cause a buildup of static electricity. Adjust settings and use a shorter drying time, or use SENSOR DRY cycles. Dryerisoverloaded. Divide extra large loads into smaller loads for drying. Tissue, paper, etc., left in pockets. Check pockets thoroughly before washing and drying clothes. Excess static in clothes after drying Fabric softener is not used or used incorrectly. Use a fabric softener or the STATIC SHIELD option, if equipped, to reduce static electricity. Be sure to follow the manufacturer’s instructions. Clothes dried too long (overdried). Overdrying a load of laundry can cause a buildup of static electricity. Adjust settings and use a shorter drying time, or use AUTO DRY cycles. Select a LESS DRY setting on SENSOR DRY cycles, if necessary. Drying synthetics, permanent press, or synthetic blends. These fabrics are naturally more prone to static buildup. Try using fabric softener, or use LESS DRY and/or shorter TIME DRY time settings. Clotheshavedamp spots after a SENSOR DRY cycle. Verylargeloadorverysmallload. Single large item such as a blanket or comforter. If items are too tightly packed or too sparse the sensor may have trouble reading the dryness level of the load. Use a Time Dry cycle for very small loads. Large, bulky items such as blankets or comforters can sometimes wrap themselves into a tight ball of fabric. The outside layers will dry and register on the sensors, while the inner core remains damp. When drying a single bulky item, it may help to pause the cycle once or twice and rearrange the item to unwrap and expose any damp areas. To dry a few remaining damp items from a very large load or a few damp spots on a large item after a sensor cycle has completed, empty the lint trap, then set a Time Dry cycle to finish drying the item(s).40 TROUBLESHOOTING Error Codes Problem Possible Cause Solutions Error code: tE1 through tE7 Temperature sensor failure. Turn off the dryer and call for service. Display shows error code: PS (electric dryers only) Power cord is connected incorrectly. Check the connection of the power cord to the terminal block. *Flow Sense

indicator shows four bars during the drying cycle or the display shows "d80" after drying

• This warning light is not a dryer failure andisnotcoveredby the dryer warranty. Contact a duct cleaning servicetosetupan appointmenttohave your exhaust system cleaned and inspected. Exhaust system is too long or has too many turns/restrictions. Install a shorter or straighter duct run. See the Installation Instructions for details. Partial blockage of the ductwork due to lint buildup or other foreign object. Ductwork should be checked/cleaned immediately. Dryer can be used in this condition, but drying times will be longer and energy consumption will increase. The appliance has detected a restriction in the external dryer venting. If exhaust restrictions are sensed by the Flow Sense

system, the indicator will remain on for 2 hours after the end of the cycle. Opening the door or pressing the POWER button will turn off the display. The Flow Sense

indicator remains activeafterclearing the restriction in the venting. After clearing the restriction, the Flow Sense

indicator remains active for more than five cycles after the restriction has been cleared, call for service. indicator light is on during the drying cycle Lint filter not cleaned properly. Remove the lint from the filter before every load. With the lint removed, hold the filter up to a light to see if it is dirty or clogged. If it looks dirty, follow the cleaning instructions. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle. The display shows d90, d95 The duct work is about 90%-95% blocked.(“d90” or “d95” error code is displayed for 2 hours only) House exhaust system blocked. Do not use the dryer until the exhaust system has been cleaned and/or repaired. Using the dryer with a severely restricted exhaust is dangerous and could result in a fire or other property damage. Check the outside dryer vent while the dryer is operating to make sure there is strong airflow. If the exhaust system is extremely long, have it repaired or rerouted. Keep the area around the dryer clean and free of clutter. Check vent hood for damage or lint clogging. Make sure the area around the vent hood is clear.41 WARRANTY WARRANTY ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. WARRANTY : Should your LG Dryer (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada. WARRANTY PERIOD: (Note: If the original date of purchase can not be veried, the warranty will begin sixty(60) days from the date of manufacture). Period One (1) year from the date of original retail purchase Three (3) years from the date of original retail purchase Scope of Warranty Parts and Labor (internal/functional parts only) Dryer Drum (Parts only)

Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

Replacement products and parts may be new or remanufactured.

LG Authorized Service Center warranties their repair work for thirty (30) days. LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty’s terms. THIS LIMITED WARRANTY DOES NOT COVER: 1 Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring , or correction of unauthorized repairs/installation. 2 Failure of the product to perform during power failures and interruptions or inadequate electrical service. 3 Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air. 4 Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner’s manual. 5 Damage to the Product caused by accidents, pests and vermin, lightning, wind, re, oods, or acts of God. 6 Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specied by LG Canada. 7 Damage or product failure caused by unauthorized modication or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation. 8 Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada. 9 Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the nish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.42 WARRANTY 10 Damage or missing items to any display, open box, discounted, or refurbished Product. 11 Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation. 12 Increases in utility costs and additional utility expenses. 13 Replacement of light bulbs, lters, or any consumable parts. 14 Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in ofces or recreational facilities) or contrary to the instructions outlined in the Product owner’s manual. 15 Costs associated with removal of the Product from your home for repairs. 16 The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner’s and installation manuals. 17 Shelves, door bins, drawers, handles, and accessories to the Product. Also excluded are parts besides those that were originally included with the Product. Filter is clogged.

Not heating, long dry time

Clean the lint filter. Duct is clogged.

Not heating, long dry time

Clean the hood and duct. Excessiveduct length and/or multiple elbows

Not heating, long dry time

Keep exhaust ducts as short as possible, using as few elbows and bends as possible. Improperly connected power cord or electrical outlet issue.

Reconnect power cord, replace house fuse or reset breaker. If outlet is issue, electrician may be required. Gasvalveisnot turned on. (Gas Dryer)

Instructions for door reversal can be found in the owner’s manual. Allcostsassociatedwiththeaboveexcludedcircumstancesshallbebornebytheconsumer.43 WARRANTY For complete warranty details and customer assistance,pleasecallorvisitourwebsite: Write your warranty information below: Call 1-888-542-2623 and select the appropriate option from the menu, or visit our website at http://www.lg.com Product Registration Information: Model: Serial Number: Date of Purchase: PROCEDURE FOR RESOLVING DISPUTES: EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION. Denitions. For the purposes of this section, references to “LG” mean LG Electronics Canada, Inc., its parents, subsidiaries and afliates, and each of their ofcers, directors, employees, agents, beneciaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty. Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must rst notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the “Notice of Dispute”). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute. AgreementtoBindingArbitrationandClassActionWaiver. Upon failure to resolve the dispute during the 30 day period after LG’s receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entity’s product or claim. More specically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and condential, and conducted on a simplied and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision. GoverningLaw. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/ territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG. Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration ling fees unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all ling, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator nds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration.44 WARRANTY Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds $25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration. SeverabilityandWaiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the rst consumer purchaser’s purchase of the product by either (i) sending an e-mail to optout@lge.com, with the subject line: “Arbitration Opt Out;” or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/ support/repair-service/schedule-repair and clicking on “Find My Model & Serial Number”). In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG. You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benets of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above. ConictofTerms. In the event of a conict or inconsistency between the terms of this Limited Warranty and the End User License Agreement (“EULA”) in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.MemoSÉCHEUSE

Protocol P154 Sanitization Performance of Residential Clothes dryer

(75,0 cm) 18 po minimum (45,7cm)
