USER MANUAL GCP217WTQ LG

Entry Important safety instruction Identification of parts Where to install Door removal Door replacement

Height adjustment eed water pipe installation when the freezer door does not align with the height of the refrigerator door Starting Adjusting the temperatures and functions Refreshment center (Applicable to some models only) Shelf (Applicable to some models only) Wine holder (Applicable to some models only) Egg box (Applicable to some models only) Humidity control in the vegetable compartment Convert into a vegetable or meat compartment (Applicable to some models only) Miracle Zone(Applicable to some models only)

Temerature Change at Miracle Zone (Applicable to some models only)

Miracle Zone Temperature Transition Corner(Applicable to some models only)

Deodorizer(Applicable to some models only) Location of foods Storing foods How to dismantle parts General information Cleaning Trouble shooting Table of contents Introduction Installation Operation Suggestion on food storage Care and maintenance

28Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here. Date of purchase : Dealer purchased from : Dealer address : Dealer phone no. : Model no. : Serial no. : Before it is used, this refrigerator must be properly installed and located in accordance with the installation instructions in this document. Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet. When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way. After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment , particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces. Unplug the power cord from the power outlet for cleaning or other requirements. Never touch it with wet hands because you can get an electric shock or be hurt. Never damage, process, severely bend, pull out, or twist the power cord because damage the power cord may cause a fire or electric shock. You have doubts on whether the appliance is properly grounded. Never place glass products in the freezer because they may be broken due to expansion when their contents are frozen. Never allow your hands within the ice storage bin of the automatic ice maker. You could be hurt by the operation of the automatic ice maker. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. Never allow anyone to climb, sit, stand or hang on the refreshment center door. These actions may damage the refrigerator and even tip it over, causing severe personal injury. If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage. The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Do not modify or extend the Power Cord length.

It will cause electric shock or fire. Introduction Important safety instruction Don’t use an extension cord Accessibility of Supply Plug Supply Cord Replacement Warning

Introduction1. Place your appliance where it is easy to use.

2. Avoid placing the unit near heat sources,

direct sunlight or moisture.

3. To ensure proper air circulation around the

fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

4. To avoid vibrations, the appliance must

5. Don't install the appliance below 5°C. It may cause affect the performance.

Select a good location Where to Install Disposal of the old appliance This appliance contains fluid (refrigerant, lubricant)and is made of parts and materials which are reusable and/or recyclable. All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency. Installation6 noitallatsnIDoor replacement Feed water pipe installation Pass the refrigerator laterally through the access door as shown in the right figure.

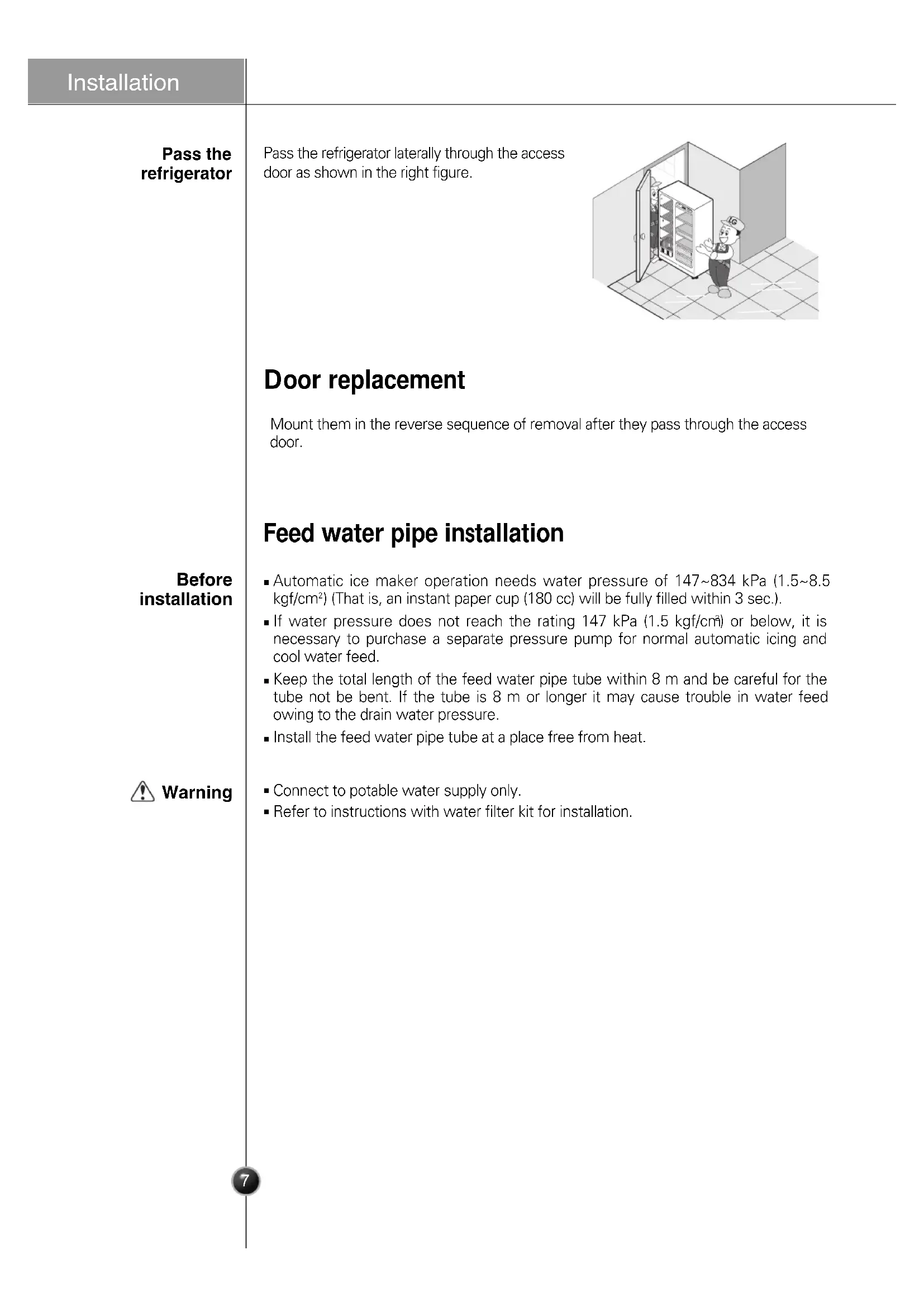

Automatic ice maker operation needs water pressure of 147~834 kPa (1.5~8.5 kgf/cm

) (That is, an instant paper cup (180 cc) will be fully filled within 3 sec.).

If water pressure does not reach the rating 147 kPa (1.5 kgf/cm

) or below, it is necessary to purchase a separate pressure pump for normal automatic icing and cool water feed.

Keep the total length of the feed water pipe tube within 8 m and be careful for the tube not be bent. If the tube is 8 m or longer it may cause trouble in water feed owing to the drain water pressure.

Install the feed water pipe tube at a place free from heat.

Connect to potable water supply only.

Refer to instructions with water filter kit for installation. Mount them in the reverse sequence of removal after they pass through the access door. Pass the refrigerator Before installation Warning

Installation Height adjustment The refrigerator doors will close smoothly by heightening the front side by adjustingthe height adjusting screw. If the doors do not close correctly, performance may beaffected. After leveling the door height Next 1. Wipe off all dust accumulated during shipping and clean your appliance thoroughly.2. Install accessories such as the ice cube box, cover evaporating tray, etc., in theirproper places. They are packed together to prevent possible damage during shipping.3. Connect the power supply cord (or plug) to the outlet. Don't double up with otherappliances on the same outlet. If the height of freezer compart ment door is different from the height of Refrig erator compart ment door When the freezer door does not align with the height of the refrigerator door Even if the height can not be aligned by using the height adjustment screw, insert the transparent sheet supplied with the product.Insert more transparent sheets enough to align the height. (4 sheets are supplied in total.)Separate the door with the lower height, use the (+) type screwdriver to unscrew the screw at the bottom hinge as shown at Figure the bottom hinge and the bottom bracket, and then fix it with the screw as shown at Figure ②

Bottom bracket Transparent sheetBottom hinge If the freezer compartment door is lower than the refrig- erator compartment door If the freezer compartment door is higher than the refrig- erator compartment door Level the door by inserting flat ( type) driver into the groove of the rightheight adjusting screw and rotate it clockwise (

Level the door by inserting flat ( type) driver into the groove of the left height adjusting screw and rotate it clockwise (

).9 Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting.

Adjusting the temperatures and functions

Your model may not include every option. NOTE Operation10 Operation Display Power Saving Mode This function places the display into power saving mode until the next time the door is opened. Press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for 5 seconds until the Ding sounds. All LED/LCDs will then turn ON, then OFF. When the power saving mode is activated, the display will remain off until the next time the door is opened. Then, it will come on whenever a door is opened or a button is pressed and remain on for 20 seconds after the last door opening or button selection. To deactivate the power saving mode, press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for 5 seconds until the Ding sounds. ❇ Whenever pressing button, setting is repeated in the order of (Weak)

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator.

Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2~3 days. Optional Type-1 Type-2FRZ.TEMP.REF.TEMP.Optional Type-1 Type-2 You can adjust temperature of and freezer room and refrigerator room. How to adjust the temperature in the freezer compartment How to adjust the temperature in the refrigerator compartment Middle(-19

The icemaker can automatically make 8 pieces of ice cubes at anyone time, approximately 80 pieces per day. However these quantities may vary according to certain conditions. E.g. the duration and amount of times the refrigerator door is opened.

The Ice making proceeds ceases automatically when the ice storage bin is full.

If you choose not to use the automatic ice making function, repositioned the icemaker selection switch to the off position or the on position for reselection. Note: The manual selection function is only applicable to some models only. Automatic ice maker

It is normal that a noise is produced when ice made is dropped into the ice storage bin. NOTE11 Operation ”no e“ht ta sniamer cihparg kram worra ehT status when selecting Special Refrigeration “ on”.12 Operation13 Throw away the ice (about 20 pieces) and water (about 7 glasses) first made after refrigerator installation. The first ice and water may include particles or odor from the feed water pipe or feed water box. This is necessary in case that the refrigerator has not been used for a long time. Keep children away from the dispenser. Children may push switch incorrectly bad or damage lamps. Be careful that food is not block the ice passage. If foods are placed at the entrance of ice passage, ice may not be dispensed. The ice passage may also be covered with ice powder if splinter ice is used only. This time, remove the ice powder accumulated. Never store beverage cans or other foods in ice storage bin for the purpose of rapid cooling. Such actions may damage the automatic ice maker. Never use thin crystal glass or crockery to collect ice. Such glasses or containers may be broken. Put ice first into a glass before filling water or other beverages. Water may be splashed if ice is added to existing liquid in a glass. Never touch a hand or other tools on ice outlet. Touch may cause a part breakage or hand injury. Never remove the ice maker cover. Sometimes level the surface so that the ice storage bin is fully filled with ice. Ice is piled up just near the ice maker. So, such status may be considered, by the ice maker, that the ice storage bin is fully filled and ice making operation may stop. If discolored ice is dispensed, immediately contact service center, stopping use. Never use too narrow or deep glass. Ice may be jammed in ice passage and, thus, the refrigerator may be failed. Keep the glass at a proper distance from ice outlet. A glass too close to the outlet may hinder ice from coming out. Cautions Operation14 Refreshment center (Applicable to some models only) Open the refreshment center door.

You can access the refreshment center without opening refrigerator door and thus saving electricity.

Inner lamp is lit in refrigerator compartment when the refreshment center door opens. Thus it is easy to identify the contents.

Never use the refreshment center door as a chopping board and take care not to damage it with sharp tools.

Never rest your arms or severely press on it.

The refreshment center can not function normally without the cover.

Not only can the refreshment center door may be damaged, but also children may be hurt. How to use Never place heavy items on the refreshment center door or allow children to hang it on. Never take out the inner refreshment center cover Use the refreshment center door as a stand Operation15 Egg box (Applicable to some models only)

Never use the egg box as an ice storage bin. It can be broken.

Never store the egg box in the freezer compartment or fresh compartment. NOTE Shelf (Applicable to some models only) Wine holder (Applicable to some models only) You can store taller items such as a gallon container or bottles by simply pushing in front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf. Folding Shelf In case of inserting the wine holder : Pull the wine holder downward as in

after inserting it into the side anchoring part of the shelf as in

by catching it upward as in

In case of separating the wine holder : Pull the wine holder inward as in

after holding it upward as in

by catching it. Bottles can be stored laterally with this wine corner. This can be attached to any shelf. Wine holder adjustment (Type 1) (Type 2)

[Type-1] [Type-2] You can move the egg box to wherever you want. Bottles can be stored laterally with this wine rack. Operation16 Humidity control in the vegetable compartment The humidity can be controlled by adjusting the humidity control switch to the left/right when storing vegetables or fruits. HIGHLOWHIGHLOW

High humidity Low humidity Convert into a vegetable or meat compartment (Applicable to some models only) The meat compartment maintains the temperature at a lower point than the refrigerator compartment so that meat or fish can be stored fresh longer.

The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment

Vegetables or fruits are frozen if the conversion switch is set to meats compartment. So, be sure to check it before storing foods. NOTE Deodorizer (Applicable to some models only) This system efficiently absorbs strong odors by using the optical catalyst. This system does hot have any affect on stored food.

Since it is installed already installed onto the cool air intake duct from the from the refrigerator compartment, you need no separate installation.

Please use closed containers to store food with pungent odors. Otherwise, this oder can be absorbed by other food in the compartment. How to use the deodorizing system Operation17 Miracle Zone Temperature Transition Corner (Applicable to some models only) Miracle Zone (Applicable to some models only) By pressing the button, store vegetables, fruits or other types of food such as meat to be defrosted, raw fish, etc. Temperature Change at Miracle Zone (Applicable to some models only) You can select optimum temperature range depending on types of foods stored. - 3-step of temperature selection including -3°C, -1°C and 4°C is available. Vegetables/fruits and cold storage foods requiring humidity maintenance and meats/fishes can be more freshly stored depending on type of foods stored.

First, remove the vegetable bin.

After lifting the Miracle Zone case slightly , reach inside and pull it outward .

When using the Miracle Zone as storage room of meats, storing vegetables or fruits may be frozen

When using the Miracle Zone as storage room of meats, keeping meats or fishes may be spoiled and thus meats or fishes must be kept at the F-room.

If opening a door of the R-room, lamp turns on in the selected status and lamp turns off if closing it.

(Cold storage while maintaining humidity)

(Meat) is sequentially repeated whenever pressing the "Selection" button. When removing Miracle Zone Method to Use

Fit the Miracle Zone case on to the ledge and gently slide it in .

When forced, the connecting parts can be damaged. When installing Miracle Zone Operation18 Location of foods (Refer to identification of parts) Store wine. Store small foods such as bread, snacks, etc.. Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc..

Store small packed frozen food.

Temperature is likely to increase as door opens. So, do not store long-term food such ice cream, etc.. Wine holder Snack drawer Freezer compartment shelf Freezer compartment door rack Freezer compartment drawer Milk product corner Egg box Refreshment center Refrigerator compartment shelf Refrigerator compartment door rack Vegetable drawer Vegetable drawer /meat drawer conversion corner

Store meat, fish, chicken, etc.. after wrapping them with thin foil.

Store milk products such as butter, cheese, etc.. Place this egg box in the proper location. Store foods of frequent use such as beverage, etc.. Store side dishes or other foods at a proper distance. Store small packed food or beverages such as milk, juice, beer, etc.. Store vegetables or fruits. Store vegetable, fruits, meat to thaw, raw fish, etc.. setting the conversion switch as necessary. Be sure to check the conversion switch setting before storing foods. Suggestion on food storage19 Storing foods

Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.

Do not store food which goes bad easily at low temperatures, such as bananas, and melons.

Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher energy consumption.

When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.

Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.

Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

Never keep too much food in door rack because they may push against by inner racks so that the door cannot be fully closed.

Do not store bottles in the freezer compartment - they may break when frozen.

Do not refreeze food that has been thawed. This causes loss of taste and nutrient.

When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.

Do not touch the cold foods or containers- especially made of metallic -, with wet hands and place glass products in the freezer compartment. - That’s why you may have chilblains and they may be broken when their inner matters are frozen, causing personal injury.

Avoid placing moist food in top refrigerator shelves, it could freeze from direct contact with chilled air.

Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling.

When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in an upright position, which keeps them fresh longer. Freezer compartment Refrigerator compartment

If you keep the refrigerator in a hot and humid place, frequent openning of the door or storing a lot of vegetables in it may cause dew to form which has no effect on its performance. Remove the dew with dust cloth free from care. NOTE Suggestion on food storageAfter dispenser is used The water collector has no self-draining function. It should be cleaned regularly. Remove the cover by pulling the front side of water collector cover and dry it with a cloth. Pull the cover fully to the front

and pull up the rear end of the cover

slightly to pull it out.

Clean the floor and cover with a dry cloth.

Care and maintenance How to dismantle parts

General information During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation. Vacation time Power failure If you move Anti condensation pipe Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the height adjusting screws, turn them all the way into the base. The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don’t be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerator to prevent “sweating” on the outer cabinet wall. Cleaning Regular cleaning is recommended. Wash all compartments a baking soda solution or a mild detergent and warm water. Rinse and dry. Please verify that the power cord is not damaged, power plug is not overheated, or power plug is well inserted into the power consent. Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock. Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface. Do not touch frozen surfaces with wet or damp hands, because damp object will stick or adhere to extremely cold surfaces. It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle. Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean damp cloth and then dry. Exterior Interior After cleaning Warning Care and maintenance23 Trouble shooting Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Possible cause Refrigerator control is off. Refrigerator is in defrost cycle. Plug at wall outlet is disconnected. Power outage. Check house lights. Refrigerator is larger than the previous one you owned. Room or outside weather is hot. Refrigerator has recently been disconnected for a period of time. Large amounts of warm or hot food may have been stored recently. Doors are opened too frequently or too long. Refrigerator or freezer door may be slightly open. Refrigerator control is set too cold. Refrigerator or freezer gasket is dirty, worn, cracked, or poorly fitted. Thermostat is keeping the refrigerator at a constant temperature. Solution Set refrigerator control. See setting the controls. This is normal for a fully automatic defrosting refrigerator. The defrost cycle occurs periodically. Make sure plug is tightly pushed into outlet. Call local electric company. This is normal. Larger, more efficient units run longer in these conditions. It is normal for the refrigerator to work longer under these conditions. It takes some hours for the refrigerator to cool down completely. Warm food will cause the refrigerator to run longer until the desired temperature is reached. Warm air entering the refrigerator causes it to run longer. Open the door less often. Make sure the refrigerator is level. Keep food and containers from blocking door. See problem section. OPENING/CLOSING of doors. Set the refrigerator control to a warmer setting until the refrigerator temperature is satisfactory. Clean or change gasket. Leaks in the door seal will cause refrigerator to run longer in order to maintain desired temperatures. This is normal. Refrigerator goes on and off to keep the temperature constant. Runing of refrigerator Refrigerator compressor does not run. Refrigerator runs too much or too long Occurrence Care and maintenance0 0 Suggestion on food storage

Refrigerator compressor does not run. Occurrence Temperatures are too cold Temperature in the freezer is too cold but the refrigerator temperature is satisfactory. Temperature in the refrigerator is too warm but the freezer temperature is satisfactory. Temperatures in the refrigerator or freezer are too warm. Temperatures are too warm Meat stored in fresh meat drawer freezes. Food stored in drawers freezes. Possible cause Thermostat is keeping the refrigerator at a constant temperature. Freezer control is set too cold Doors are opened too frequently or too long. Door is slightly open. Large amounts of warm or hot food may have been stored recently. Refrigerator has recently been disconnected for a period of time. Refrigerator control is set too warm. Refrigerator control is set too warm. Refrigerator control has some effect on freezer temperature. Freezer control is set too warm. Refrigerator control is set too cold. Refrigerator control is set too cold. Meat should be stored at a temperature just below the freezing point of water (32 F, 0 C) for maximum fresh storage time. Solution This is normal. The refrigerator goes on and off to keep the temperature constant. Set the refrigerator control to a colder setting. A refrigerator requires some hours to cool down completely. Wait until the refrigerator or freezer has a chance to reach its selected temperature. Warm air enters the refrigerator/ freezer whenever the door is opened. Open the door less often. Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory. Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory. It is normal for ice crystals to form due to the moisture content of meat. Set the refrigerator control to a warmer setting See above solution. Set the freezer control to a warmer setting until the freezer temperature is satisfactory. Close the door completely. Temperature in the refrigerator is too cold and the freezer temperature is satisfactory. Care and maintenance25 Sound and noise Occurrence Louder sound levels when refrigerator is on. Louder sound levels when compressor comes on. Moisture collects on the inside walls of the refrigerator. Water/Moisture /Ice outside refrigerator Moisture forms on the outside of the refrigerator or between doors. Vibrating or rattling noise. Water/Moisture /Ice inside refrigerator Possible cause Today’s refrigerators have increased storage capacity and maintain more even temperatures. Refrigerator is touching wall or cabinets. The weather is hot and humid which increases the rate of frost buildup and internal sweating. Door is slightly open. Door is opened too often or too long. Weather is humid. Door is slightly open,causing cold air from the inside the refrigerator to meet warm air from the outside. Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. Refrigerator operates at higher pressures during the start of the ON cycle. Items placed on the top of the refrigerator are vibrating. Dishes are vibrating on the shelves in the refrigerator. Solution This time, close the door completely. This is normal in humid weather. When humidity is lower, the moisture should disappear. See problem section opening/closing of doors. Move refrigerator so that it does not touch the wall or refrigerator. This is normal. It is normal for dishes to vibrate slightly. Move dishes slightly. Make sure refrigerator is level and firmly set on floor. Be sure floor is level and solid and can adequately support refrigerator. Remove items. It is normal for sound levels to be higher. This is normal. The sound will level off as the refrigerator continues to run. Open the door less often. Care and maintenance26 Odors in refrigerator Occurrence Door(s) will not close. Door(s) will not close. Drawers are difficult to move. Dispenser Dispenser will not dispense ice Opening/Closing of doors/Drawers Possible cause Food is touching shelf on top of the drawer Track that drawer slides on is dirty. Ice storage bin is empty. Freezer temperature is set too warm. Household water line valve is not open. Refrigerator or freezer door is not closed. Refrigerator is not level. It rocks on the floor when it is moved slightly. Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. Refrigerator is touching wall or cabinets. Interior needs to be cleaned. Food with strong odor is in the refrigerator. Some containers and wrapping materials produce odors. Food package is keeping door open. Door was closed too hard, causing other door to open slightly. Solution Be sure both doors are closed. Open household water line valve and allow sufficient time for ice to be made. When ice is made, dispenser should operate. Turn the freezer control to a higher setting so that ice cubes will be made. When the first supply of ice is made, the dispenser should operate. Clean drawer and track. Be sure floor is level and can adequately support refrigerator. Contact carpenter to correct sagging or sloping floor. Move refrigerator.

Keep less food in drawer. Adjust the height adjusting screw. Use a different container or brand of wrapping materials

Move packages that keep door from closing. Close both doors gently. Cover food completely. Clean interior with sponge,warm water and baking soda. When the first supply of ice is dropped into the bin, the dispenser should operate. Care and maintenance27 Dispenser will not dispense ice. Ice dispenser is jammed. Occurrence Water has an odd taste and/or odor. Dispenser will not dispense water. Possible cause Water has been in the tank for too long. Unit not properly connected to cold water line. This sound is normally made when automatically made ice is dropped into ice storage bin. Volume may vary according to refrigerator’s location. This sound is normally made when ice maker is supplied with water after dropping the automatically made ice. Please thoroughly read ‘Automatic ice maker and dispenser’ in this manual. Ice cubes are frozen together. Ice has melted and frozen around auger due to infrequent use, temperature fluctuations and/or power outrages. Ice cubes are jammed between the ice maker arm and back of the bin. Ice cubes that have been purchased or made in some other way have been used in the dispenser. Household water line valve is not open. See problem “Ice maker is not making any ice.” Refrigerator or freezer door is not closed. Solution Be sure both doors are closed. Draw and discard 7 glasses of water to freshen the supply. Draw and discard an additional 7 glasses to completely rinse out tank. Connect unit to cold water line which supplies water to kitchen faucet. Open household water line valve. Use the dispenser often so that cubes do not freeze together. Only the ice cubes made by the ice maker should be used with the dispenser. Remove the ice cubes that are jamming the dispenser. Remove ice storage bin, and thaw and the contents. Clean bin, wipe dry and replace in proper position. When new ice is made, dispenser should operate. Sound of ice dropping Sound of water supply Other Care and maintenance2830 Table des matières Enregistrement Instructions importantes pour la sécurité Identification des pièces Où installer l'appareil Comment enlever la porte Comment replacer de la porte Installation du tube d'alimentation en eau Réglage de la hauteur Mise en marche Réglage des températures et fonctions Compartiment fraîcheur (sur certains modèles uniquement) Etagèresr (sur certains modèles uniquement) Porte-bouteillesr (sur certains modèles uniquement) Casier à œufs (sur certains modèles uniquement) Contrôle de l'humidité dans le bac à légumes Conversion en compartiment légumes ou viande (sur certains modèles uniquement) Désodoriseur (Sur certains modèles uniquement) Compartiment de transition thermique Zone Miracle (Sur certains modèles uniquement) Changement de la température dans la Zone Miracle (Sur certains modèles uniquement) Zone Miracle (Sur certains modèles uniquement) Emplacement des aliments Conservation des aliments Démontage des différentes pièces Informations générales Nettoyage Recherche des pannes Introduction Installation Fonctionnement Conseils pour la conservation des aliments Nettoyage et entretien
