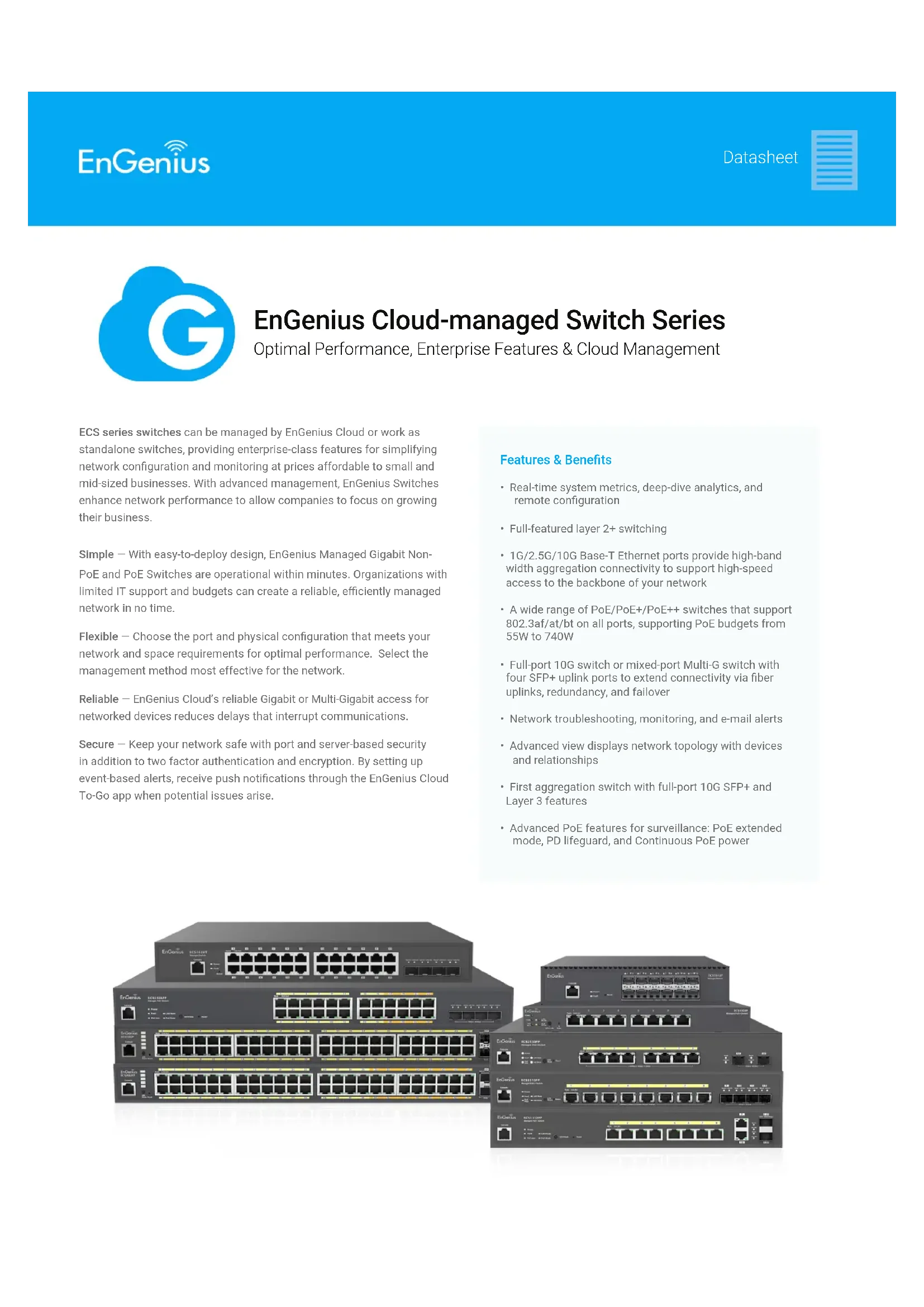

EnGenius Cloud-managed Switch Series

Optimal Performance, Enterprise Features & Cloud Management

ECS series switches can be managed by EnGenius Cloud or work as standalone switches, providing enterprise-class features for simplifying network configuration and monitoring at prices affordable to small and mid-sized businesses. With advanced management, EnGenius Switches enhance network performance to allow companies to focus on growing their business.

Simple — With easy-to-deploy design, EnGenius Managed Gigabit Non-PoE and PoE Switches are operational within minutes. Organizations with limited IT support and budgets can create a reliable, efficiently managed network in no time.

Flexible — Choose the port and physical configuration that meets your network and space requirements for optimal performance. Select the management method most effective for the network.

Reliable — EnGenius Cloud's reliable Gigabit or Multi-Gigabit access for networked devices reduces delays that interrupt communications.

Secure — Keep your network safe with port and server-based security in addition to two factor authentication and encryption. By setting up event-based alerts, receive push notifications through the EnGenius Cloud To-Go app when potential issues arise.

Features & Benefits

• Real-time system metrics, deep-dive analytics, and remote configuration
• Full-featured layer 2+ switching
- 1G/2.5G/10G Base-T Ethernet ports provide high-band width aggregation connectivity to support high-speed access to the backbone of your network
- A wide range of PoE/PoE+/PoE++ switches that support 802.3af/at/bt on all ports, supporting PoE budgets from 55W to 740W
- Full-port 10G switch or mixed-port Multi-G switch with four SFP+ uplink ports to extend connectivity via fiber uplinks, redundancy, and failover
• Network troubleshooting, monitoring, and e-mail alerts
- Advanced view displays network topology with devices and relationships
- First aggregation switch with full-port 10G SFP+ and Layer 3 features
- Advanced PoE features for surveillance: PoE extended mode, PD lifeguard, and Continuous PoE power

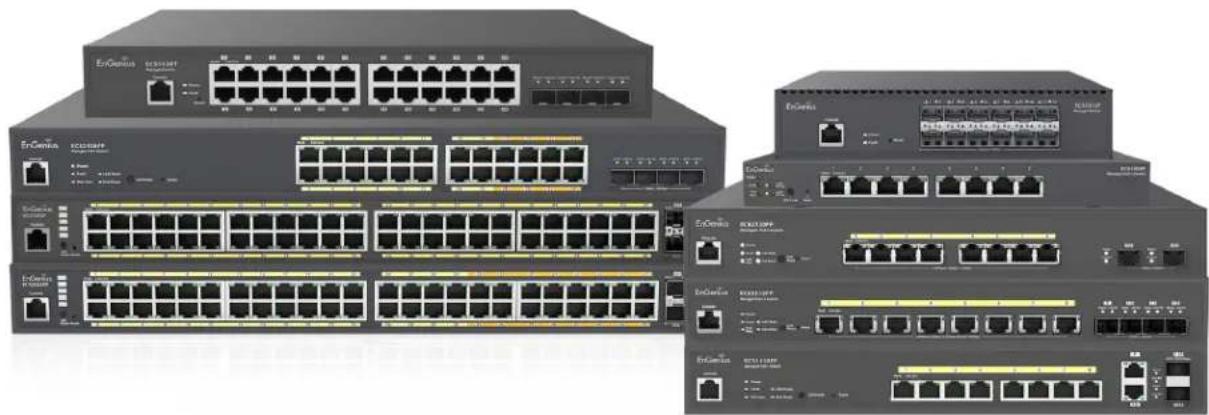

Exterior view of multiple network switches and Ethernet ports (no visible text or labels)

Benefits to Help Grow Your Business

Increased Flexibility for Network Design

Select either 8,10,24, or 48 Gigaport ports and Power-over-Ethernet layer 2 switches with 1 Gbps SFP or 10 Gbps SFP+ ports. Cloud Managed switch model options also include desktop and rack mountable, fanless, and SmartFan designs.

High Performance Up of 10G Ethernet Capacity

The EnGenius Cloud-enabled switch series comes with multi-gigabit models that support 1G/2.5G/10G Base-T Ethernet ports that can transmit and receive data traffic without any loss. Capable of powering the performance of 802.11ax access points to support bandwidth larger than one gigabit per second, EnGenius switches provides faster overall network performance.

Maximum Power Supply Capabilities to Future-proof Devices with 802.3bt

By providing a wide range of PoE/PoE+/PoE++ models that support 802.3af/803.at/802.3bt on all ports, companies can regulate power budgets according to device requirements and remotely power cycle individual ports. The 802.3bt standard of EnGenius switches delivers up to 60W of power to optimize the power management and longevity of your network devices, such as Wi-Fi 6 access points, outdoor surveillance cameras with heaters, and emerging power-hungry IoT devices.

High-Speed Gigabit with Fiber

The switch's 1 Gbps SFP or 10 Gbps SFP+ slots options connect wired network segments throughout buildings extending beyond the limitations of Ethernet cabling. By reducing delays, businesses experience more consistent and uninterrupted communications.

Increased Access Control and Security

Protect the network with 802.1X port-based client authentication with dynamic VLAN and security through a RADIUS server. Administrators can use Access Control Lists (ACLs) to see who has access to network segments while screening traffic from unauthorized MAC or IP addresses. By establishing a guest VLAN to grant and limit Internet resources for visitors, guests can use the network while also keeping the network secure.

Improved VLAN/Voice and Quality of Service

Segment the network by departments or traffic types for increased performance and security with 802.1Q VLAN statically or dynamically. While 802.1p Class of Service prioritizes compliant VoIP and video traffic ensuring bandwidth intensive, time-sensitive data is forwarded immediately for clear, smooth voice and video delivery.

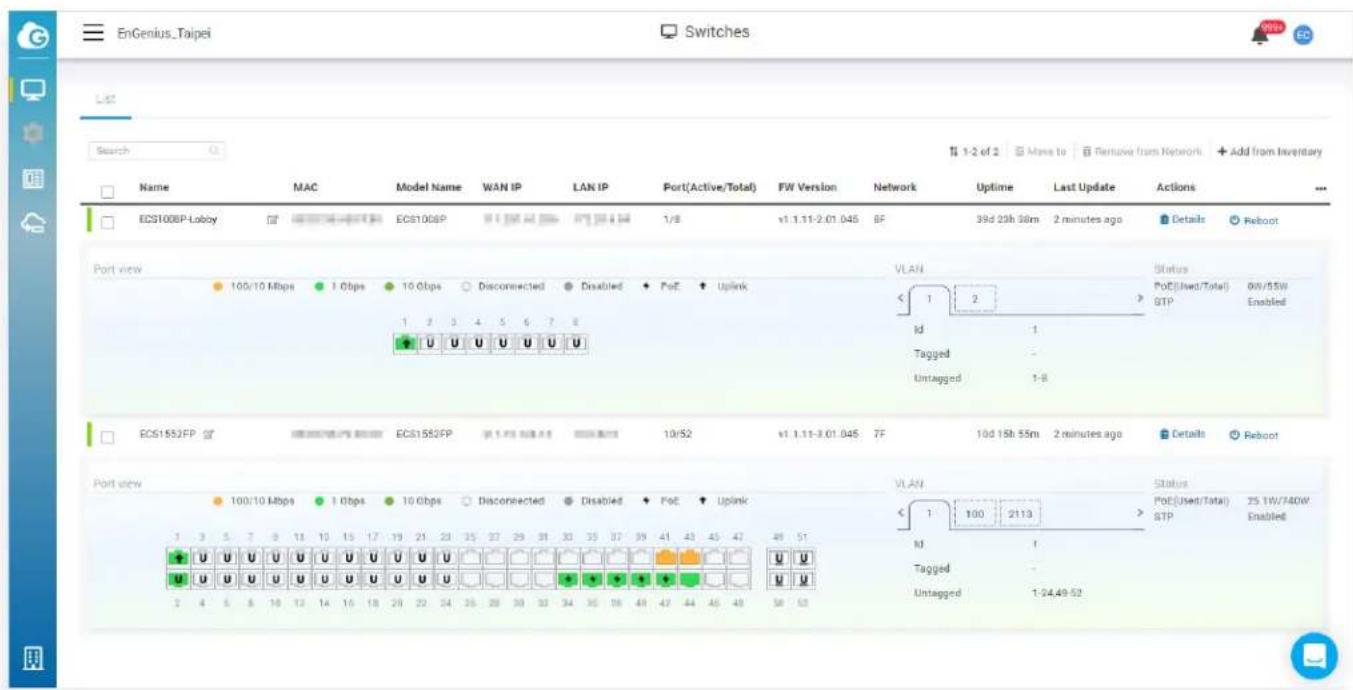

EnGenius_Taipei Switches List Search Name MAC Model Name WAN IP LAN IP Port(Active/Total) FW Version Network Uptime Last Update Actions ECS100BP-Lobby ECS100SP 1/8 v1.1.11-2.01.045 BF 39d 20h 36m 2 minutes ago Details Reboot Port view 100/10 Mbps 10bps 100bps Disconnected Disabled PoE Uplink VLAN < 1 2 Status Id 1 PoE(Used/Total) 0kV/55W Tagged - Untagged 1-8 GTP Enabled ECS1552FP ECS1552FP 10x52 v1.1.11-3.01.045 7F 10d 15h 55m 2 minutes ago Details Reboot Port view 100/10 Mbps 10bps 100bps Disconnected Disabled PoE Uplink VLAN < 1 100 2113 Status Id 1 PoE(Used/Total) 25.1W/740W Tagged - Untagged 1-24,49-52 GTP Enabled 58 58

Provides In-Depth Network Visibility

The Network Topology View automatically maps the network deployment and displays device relationships across the infrastructure. No more manual tracking required – simply use Network Topology view to troubleshoot switches or access points directly from the cloud management interface. Grab high-level information by hovering over the device icon or click on details to take you right to the cloud device page.

Advanced Cloud Authentication

With EnGenius Cloud, your network devices are protected with two-factor authentication and non-sequential serial numbers and MAC address verification to ensure only authorized cloud devices are on the network. Once devices are authenticated, a secure tunnel is established between the device and the cloud management system with a unique certificate to encrypt transmissions.

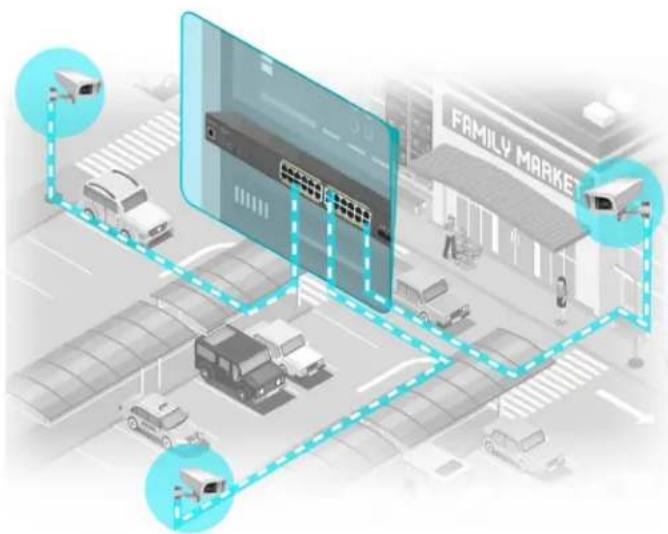

Advanced PoE Features Designing for Surveillance

The PoE switches feature surveillance friendly functions to relieve the pain points of deployment and management for IP cameras. These advanced features are all based on the Power-over-Ethernet technology. The PoE extended mode allows you to deploy the camera over Ethernet cable at a more extended range up to 250 meters. PD lifeguard real-time-ly monitors the status of the camera and auto-reboot the camera when it is down. The continuous PoE power supplies the IP camera in operation without interruption of the switch rebooting during switch firmware upgrading.

FAMILY MARKET

Cloud Improves Setup, Registry, and Device Management

For quick and simple setup manage your switches using EnGenius Cloud. Scan and assign switches into an organization and network for device registration and configuration using the EnGenius Cloud To-Go app. Simply refine configurations under the list view for switches in the switch's detail page after initial setup and registration.

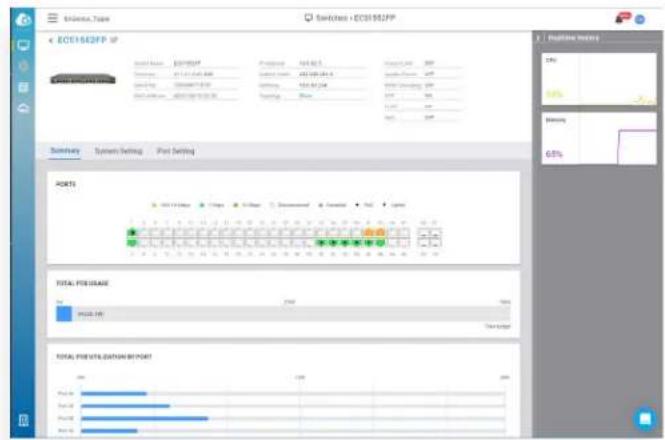

EnGenius Cloud's dashboard provides a quick health check status of all your switches in an organization and network and quick access into detailed switch configurations and system information.

Conveniently & easily monitor and troubleshoot all of your network switches in one location using switch list and detail view to compare resources, check overall configurations and real-time meters, and configure detailed system and port settings.

Set maintenance schedules across times zones to improve up-time, enable remote system log to track system modifications or configuration changes, establish event-based email alerts and receive push notifications via the EnGenius Cloud To-Go app.

ECS1632FP IP Summary Systems Setting Port Setting PORTS TOTAL PRICE/USAGE PRICE:$5.00 TOTAL PRICE/USAGE BY PORT 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 10 5% 6% 8% 9% 10% 11% 12% 13% 14% 15% 16% 17% 18% 19% 20% 21% 22% 23% 24% 25% 26% 27% 28% 29% 30% 31% 32% 33% 34% 35% 36% 37% 38% 39% 40% 41% 42% 43% 44% 45% 46% 47% 48% 49% 50% 51% 52% 53% 54% 55% 56% 57% 58% 59% 60% 61% 62% 63% 64% 65% 66% 67% 68% 69% 70% 71% 72% 73% 74% 75% 76% 77% 78% 79% 80% 81% 82% 83% 84% 85% 86% 87% 88% 89% 90% 91% 92% 93% 94% 95% 96% 97% 98% 99% 100%

Simplified Switch Management, Visibility, and Troubleshooting

By using multiple methods to manage switches, EnGenius decreases administration time through remote management, visibility, and troubleshooting. Select the most effective management approach based on network architecture, administrative permissions, technical aptitude, or even budget.

Local Management – manage and configure each EnGenius switch in a standalone setup from its intuitive user interface that provides full access into all the Layer 2 switching features.

Cloud Management – remotely or locally manage EnGenius switches with EnGenius Cloud, a true license-free cloud management solution that provides quick deployment from anywhere, deep-dive analytics to review system performance, and custom device alerts through a simple to use smart phone app.

Device Detail NT. Remote Solution 34 Mac OS 107 Model 6251132P Hardware v1.1.19 2.01.000 Serial No. GNT134D27840 MAC Address: AA/BB/CC 11.02.03 Modal: 11 Active 50 Status Status: Main Status: Total Pull Status 50%

ST. Brindle Garden 11.23-35.64 EUR/CC ST. Brindle Garden 11.23-35.64 EUR/CC ST. Brindle Garden 11.23-35.64 EUR/CC ST. Brindle Garden 11.23-35.64 EUR/CC ST. Brindle Garden 11.23-35.64 EUR/CC ST. Brindle Garden 11.23-35.04 EUR/CC ST. Brindle Garden 11.23-35.04 EUR/CC ST. Brindle Garden 11.23-35.04 EUR/CC ST. Brindle Garden 11.23-35.04 EUR/CC ST. Brindle Garden 11.23-35.04 EUR/CC ST. Brindle Garden 11.25-35.04 EUR/CC ST. Brindle Garden 11.25-35.04 EUR/CC ST. Brindle Garden 11.25-35.04 EUR/CC ST. Brindle Garden 11.25-35.04 EUR/CC ST. Brindle Garden 11.25-35.04 EUR/CC ST. Brindle Garden

Schedule Settings Scheduling Part 6-7 Quick Template Change Available at 20:30 - 17:00-mg/day Available at 20:30 - 17:00-mg/day Custom schedule Sunday Arrangement Full Round 24:00 - 17:00 5:00 - 17:00 Monday Arrangement Full Round 24:00 - 17:00 5:00 - 17:00 Tuesday Arrangement Full Round 24:00 - 17:00 5:00 - 17:00

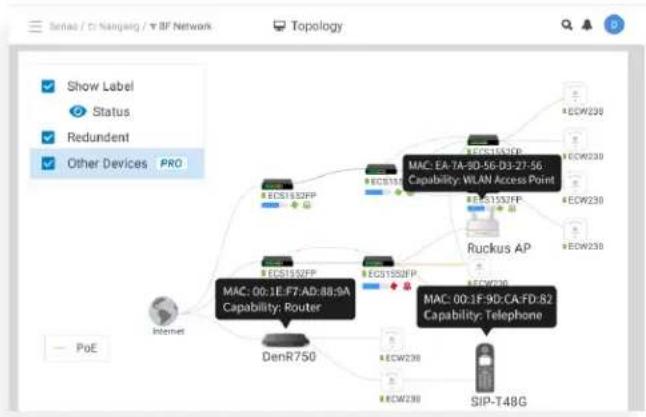

Advanced Topology to monitor the whole network including 3rd-Party Devices

Besides Engenius Switch and AP to be discovered in the Topology, in professional mode, the Topology can discover 3rd party devices to have a holistic view of the Networking Topology. The topology view displays the actual connection of the devices in your network. You can see Access Points and Switches' real-time status and check the detailed information of PoE status, IP and MAC address, and throughput. In professional mode, you can also view the device name, capability, vendor, and IP address of third-party devices to have overall control of network status.

EnGenius Cloud Switches

Gigabit Switch
Model Name L2Plus 8 PoE L2Plus 8 Full PoE L2Plus 24 L2Plus 24 PoE
Model Number ECS1008P ECS1112FP ECS1528T ECS1528 ECS1528P
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ethernet Ports	8	10	24	24	24
Multi-Gigabit Ethernet Ports	-	-	-	-	-
SFP Ports	-	2	-	-	-
SFP+ Ports	-	-	4	4	4
RJ45 Console Port -		●	●	●	●
Form Factor	9.45" (desktop)	13" 1U	13" 1U	19" 1U	19" 1U
Power-over-Ethernet	802.3af	802.3af/at	-	-	802.3af/at
Total PoE Budget	55W	130W	-	-	240W
PoE Capable Ports	Ports 1-8	Ports 1-8	-	-	Ports 1-24
Switching Capacity	16Gbps	24Gbps	128Gbps	128Gbps	128Gbps
Packet Forwarding Rate (Mpps)	11.904Mpps 17.856Mpps	95.23Mpps	95.23Mpps 95.23Mpps
MAC Address Table	8K	8K	16K	16K	16K
Packet Buffer Memory	512KB	512KB	1.5MB	1.5MB	1.5MB
Full-load Power Consumption	62.05 Watts	152.8 Watts	24.41 Watts	24.41 Watts	297.6 Watts
PoE Extended Mode	●	●	-	-	●
PD Lifeguard	●	●	-	-	●
Continuous PoE Power	●	●	-	-	●
Dimensions	240mm x 105mm x 27mm	330mm x 230mm x 44mm	330mm x 230mm x 44mm	440mm x 260mm x 44mm	440mm x 260mm x 44mm

EnGenius Cloud Switches

Gigabit Switch
Model Name L2Plus 24 Full PoE L2Plus 48	L2Plus 48 PoE L2Plus 48	Full PoE
Model Number ECS1528FP ECS1552 ECS1552FP
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ethernet Ports	24 48 48 48
Multi-Gigabit Ethernet Ports	--	-	-
SFP Ports	-	-	-	-
SFP+ Ports	4	4	4	4
RJ45 Console Port	●	●	●	●
Form Factor	19" 1U	19" 1U	19" 1U	19" 1U
Power-over-Ethernet	802.3af/at		802.3af/at	802.3af/at
Total PoE Budget	410W	-	410W	740W
PoE Capable Ports	Ports 1-24	-	Ports 1-48	Ports 1-48
Switching Capacity	128Gbps	176Gbps	176Gbps	176Gbps
Packet Forwarding Rate (Mpps)	95.23Mpps	130.95Mpps	130.95Mpps	130.95Mpps
MAC Address Table	16K	32K	32K	32K
Packet Buffer Memory	1.5MB	2MB	2MB	2MB
Full-load Power Consumption	500.46 Watts	43.92 Watts	476.3 Watts	885 Watts
PoE Extended Mode	●	-	●	●
PD Lifeguard	●	-	●	●
Continuous PoE Power	●	-	●	●
Dimensions	440mm x 260mm x 44mm	440mm x 260mm x 44mm	440mm x 310mm x 44mm	440mm x 310mm x 44mm

EnGenius Cloud Switches

Multi-Gigabit Switch
Model Name MGPlus 8 Full PoE		CloudSwitch MGPlus 8	CloudSwitch MGPlus 8 Full PoE	MGPlus 24 Full PoE
Model Number ECS2510FP ECS2512 ECS2512FP ECS2528FP
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ethernet Ports---16
Multi-Gigabit Ethernet Ports	8 x 2.5G 8x2.5G 8x2.5G 8 x 2.5G
SFP Ports----
SFP+ Ports	24	44
RJ45 Console Port	●	●	●	●
Form Factor	13" 1U	13" 1U	13" 1U	19" 1U
Power-over-Ethernet	802.3af/at	-	802.3af/at/bt	802.3af/at
Total PoE Budget	240W	-	240W	410W
PoE Capable Ports	Ports 1-8	-	Ports 1-8	Ports 1-24
Switching Capacity	80Gbps	120Gbps	120Gbps	152Gbps
Packet Forwarding Rate (Mpps)	59.52 Mpps	89.29 Mpps	89.29 Mpps 113.10 Mpps
MAC Address Table	16K	16K	16K	16K
Packet Buffer Memory	512KB	512KB	512KB	1.5MB
Full-load Power Consumption	270.47 Watts	23.52 Watts	299 Watts	499.85 Watts
PoE Extended Mode	---			●
PD Lifeguard	---			●
Continuous PoE Power---				●
Dimensions	330mm x 230mm x 44mm	330mm x 230mm x 44mm	330mm x 230mm x 44mm	440mm x 260mm x 44mm

EnGenius Cloud Switches

Multi-Gigabit Switch
Model Name MGPlus 48 Full PoE Aggregate 8XG			Aggregate 8XG Full PoE	Aggregate 12
Model Number ECS2552FP ECS5512 ECS5512FP ECS5512F
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ethernet Ports 32 ---
Multi-Gigabit Ethernet Ports	16 x 2.5G 8 x 10G 8 x 10G -
SFP Ports ----
SFP+ Ports	4	4	4	12
RJ45 Console Port	●	●	●	●
Form Factor	19" 1U	13" 1U	13" 1U	Half Rack
Power-over-Ethernet	802.3af/at	-	802.3af/at/bt	-
Total PoE Budget	740W	-	420W	-
PoE Capable Ports	Ports 1-48	-	Ports 1-8	-
Switching Capacity	224Gbps	240Gbps	240Gbps	240Gbps
Packet Forwarding Rate (Mpps)	166.67 Mpps 178.57 Mpps	178.57 Mpps	178.57 Mpps
MAC Address Table	32K	32K	32K	32K
Packet Buffer Memory	2MB	2MB	2MB	2MB
Full-load Power Consumption	913 Watts	29.22 Watts 506.7 Watts	43.4 Watts
PoE Extended Mode	●	---
PD Lifeguard	●	---
Continuous PoE Power	●	---
Dimensions	440mm x 310mm x 44mm	330mm x 230mm x 44mm	330mm x 230mm x 44mm	210mm x 230mm x 44mm

Technical Specifications

Port Standards

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP

802.3 10Base-T Ethernet

802.3u 100Base-TX Ethernet

802.3ab 1000Base-T Ethernet

802.3x Full-Duplex Flow Control

ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

802.3u 100Base-TX Ethernet

802.3ab 1000Base-T Ethernet

802.3bz 2.5G/5GBase-T Ethernet

802.3x Full-Duplex Flow Control

Network Ports

ECS1008P

8 x 10/100/1000 Mbps Ports

ECS1112FP

10 x 10/100/1000 Mbps Ports + 2x SFP Ports

ECS1528/ECS1528T/ECS1528P/ECS1528FP

24 x 10/100/1000 Mbps Ports + 4x SFP+ Ports

ECS1552/ECS1552P/ECS1552FP

48 x 10/100/1000 Mbps Ports + 4x SFP+ Ports

ECS2510FP

8x100/1000/2500 Mbps Ports + 2x SFP Ports

ECS2512/ECS2512FP

8 x 100/1000/2500 Mbps Ports + 4x SFP+ Ports

ECS2528FP

16x10/100/1000 Mbps Ports + 4x SFP+ Ports

8x100/1000/2500 Mbps Ports

ECS2552FP

32x10/100/1000 Mbps Ports + 4x SFP+ Ports

16x100/1000/2500 Mbps Ports

ECS5512/ECS5512FP

8 x 100/1000/2500/5000/10000 Mbps Ports + 4x SFP+Ports

ECS5512F

12x SFP+ Ports

Switching Capacity

ECS1008P

16 Gbps

ECS1112FP

24 Gbps

ECS1528/ECS1528T/ECS1528P/ECS1528FP

128 Gbps

ECS1552/ECS1552P/ECS1552FP

176 Gbps

ECS2510FP

80 Gbps

ECS2512/ECS2512FP

120 Gbps

ECS2528FP

152 Gbps

ECS2552FP

224 Gbps

ECS5512/ECS5512FP/ECS5512F

240 Gbps

SDRAM

ECS1008P/ECS1112FP

256MB

ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

512MB

Flash Memory

ECS1008P/ECS1112FP

32MB

ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

128MB

PoE Capable Ports

ECS1008P

1-8 (802.3af only)

ECS1112P/ECS2510FP

1-8 (802.3af/at)

ECS2512FP/ECS5512FP

1-8 (802.3af/at/bt)

ECS1528/ECS1528T/ECS1528P/ECS1528FP

1-24 (802.3af/at)

ECS1552P/ECS1552FP/ECS2552FP

1-48 (802.3af/at)

Total PoE Budget

ECS1008P

55W

ECS1112FP

130W

ECS1528P/ECS2510FP/ECS2512FP

240W

ECS1528FP/ECS1552P/ECS2528FP

410W

ECS5512FP

420W

ECS1552FP/ECS2552FP

740W

Power Source

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

100\~240VAC,50/60Hz

Physical Interface

LED Indicators

ECS1008P/ECS1112FP/ECS1528P/ECS1528FP/ECS1552P/ECS1552FP/ECS2510FP/ECS-2512FP/ECS2528FP/ECS2552FP/ECS5512FP

Power LED

Fault LED

PoE Max LED

LAN Mode LED

PoE Mode LED

ECS1528/ECS1528T/ECS1552/ECS2512/ECS5512/ECS5512F

Power LED

Fault LED

Ports

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

Link/Activity/Speed (per Ethernet port)

Link/Activity/Speed (per SFP slot)

Software Features(L3 Feature)

Multiple IP Interface

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

20 IPv6 address

ARP Table

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

Max. 192 ARP entries

Static ARP

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

Static 192 ARP entries

IPv4 Static Route

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

Max. 63 entries

IPv6 Static Route

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

Max. 21 entries

Technical Specifications

Software Features(L2 Feature)

Network Management

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

EnGenius Cloud

Local Web GUI

MAC Address Table

ECS1008P/ECS1112FP

8K

ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS2510FP/ECS2512/ECS2528FP

16K

ECS1552/ECS1552P/ECS1552FP/ECS2512FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

32K

Jumbo Frame

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

10k

Multicast Group

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

Max 256 groups

MLD Snooping

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

MLD Snooping v1

QoS-Number of Priority Queues Supported

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

Queue 8

Trust Mode

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

Cos/802.1p

DSCP

CoS/802.1p-DSCP

Scheduling Mechanism

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

Strict / WRR/ Strict + WRR

Bandwidth Control

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

Port-based bandwidth control (Ingress/Egress)

Port Security

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

Max. 256 Entries

Access Control List (ACL)

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

MAC Based ACL

IPv4/IPv6 Based ACL

ACL Binding

Time base ACL

Web Graphical User Interface(GUI)

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

HTTP IPv4 / IPv6

HTTPS IPv4 / IPv6

SSL Certificate

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

Certificate/Key Import

SNMP

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

SNMP v1/v2c/v3 Support

RMON

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

RMON 1,2,3,9

System Time

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

Time Setting/Daylight saving

Common L2 Features

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

802.1d Spanning tree

Loopback Detection

Multicast Filtering

IGMP Multicast Forwarding

IGMP Snooping

MLD Multicast Forwarding

802.1Q VLAN tagging

802.3x flow control

802.3ad Link Aggregation

IPv4 DHCP Relay

IPv4 DHCP Snooping

IPv4 DHCP Snooping Source MAC Address Check-up

ARP Inspection

ARP Packet Validation (additional validation checks)

Voice VLAN

Port-based VLAN

Protocol-Based VLAN

CoS Mapping

1. 1X Radius Authentication Protocol

IPv4 Settings

IPv6 Settings

IEEE 802. 3az Energy Efficient Ethernet (EEE)

Command Line Interface (CLI)

SSH Server

Telnet Server

TFTP Client

Configuration Upgrade/ Backup

Simple Network Time Protocol (SNTP)

SYSLOG

802.1d Spanning tree

Technical Specifications

Environmental & Physical

Temperature Range

ECS1008P

Operating: 32°F to 104°F (0°C to 40°C)

ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

Operating: 5% - 95%

Package Contents

ECS1008P

1x ECS Managed Gigabit Switch

1x Quick Installation Guide

1x Power Adapter

1x Power Cord

1x Wall Mount Kit

1x Ground Screw Set

ECS1112FP/ECS1528/ECS1528T/ECS1528P/ECS1528FP/ECS1552/ECS1552P/ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ECS5512F

1x Cloud Managed Gigabit Switch

1x Quick Installation Guide

1x Power Cord

1x RJ45 Console Cable

1x Rack Mount Kit

Device Dimensions & Weights

ECS1008P

Weight: 0.6 kg

Width: 105 mm

Length: 240 mm

Height: 27 mm

ECS1112FP/ECS1528T

Weight: 1.9 kg

Width: 330 mm

Length: 230 mm

Height: 44 mm

ECSECS1528

Weight: 1.9 kg

Width: 200 mm

Length: 440 mm

Height: 44 mm

ECS1528P/ECS1528FP/ECS1552/ECS2528FP

Weight: 4.7 kg

Width: 260 mm

Length: 440 mm

Height: 44 mm

ECS1552P/ECS1552FP/ECS2552FP

Weight: 5.9 kg

Width: 310 mm

Length: 440 mm

Height: 44 mm

ECS2510FP/ECS2512/ECS2512FP/ECS5512/ECS5512FP

Weight: 3.1 kg

Width: 230 mm

Length: 330 mm

Height: 44 mm

ECS5512F

Weight: 1.39 kg

Width: 210 mm

Length: 230 mm

Height: 44 mm

Warranty

ECS1008P/ECS1112FP/ECS1528/ECS1528T/ ECS1528P/ECS1528FP/ECS1552/ECS1552P/ ECS1552FP/ECS2510FP/ECS2512/ECS2512FP/ ECS2528FP/ECS2552FP/ECS5512/ECS5512FP/ ECS5512F

2 year

Product Views

Desktop
CloudSwitch L2Plus 8 PoE (ECS1008P)

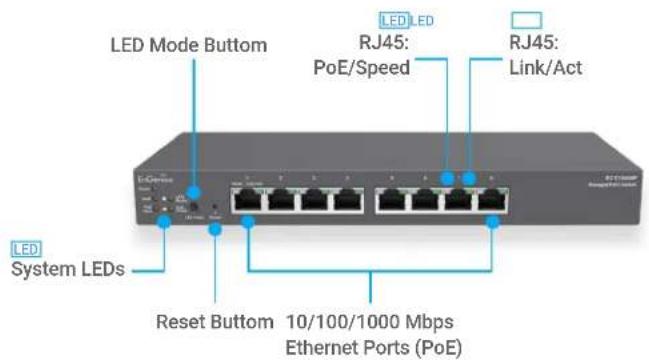

LED Mode Bottom LED System LEDs Reset Bottom 10/100/1000 Mbps Ethernet Ports (PoE) LED LED RJ45: PoE/Speed RJ45: Link/Act

Rackmount
CloudSwitch L2Plus 8 Full PoE (ECS1112FP)

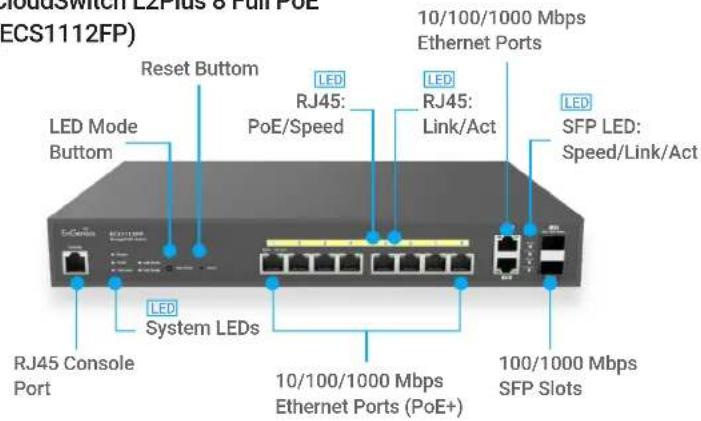

MacSwitch E2P-16 8.1 all POE (ECS1112FP) LED Mode Bottom Reset Bottom LED RJ45: PoE/Speed LED RJ45: Link/Act 10/100/1000 Mbps Ethernet Ports LED SFP LED: Speed/Link/Act LED System LEDs RJ45 Console Port 10/100/1000 Mbps Ethernet Ports (PoE+) 100/1000 Mbps SFP Slots

Rackmount

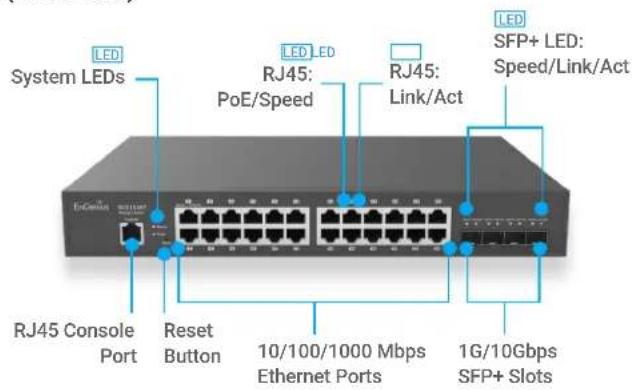

ECS1528

Reset Bottom LED LED RJ45: PoE/Speed RJ45: Link/Act LED SFP+ LED: Speed/Link/Act LED System LEDs RJ45 Console Port 10/100/1000 Mbps Ethernet Ports 1G/10Gbps SFP+ Slots

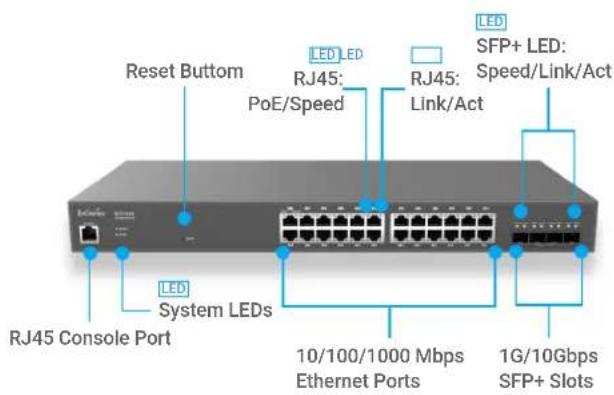

CloudSwitch L2Plus 24 (ECS1528T)

System LEDs LED LED LED RJ45: PoE/Speed RJ45: Link/Act SFP+ LED: Speed/Link/Act RJ45 Console Port Reset Button 10/100/1000 Mbps Ethernet Ports 1G/10Gbps SFP+ Slots

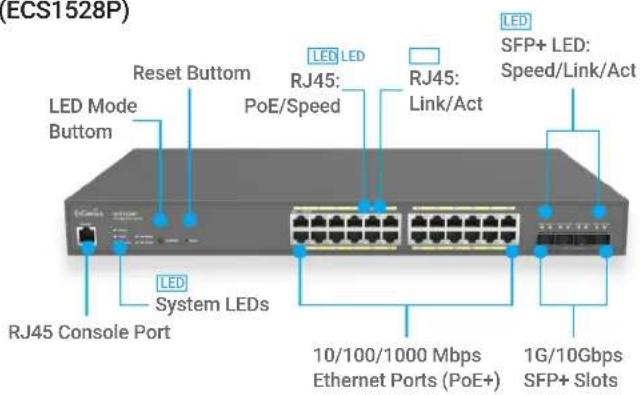

CloudSwitch L2Plus 24 PoE (ECS1528P)

(ECS1528P) LED Mode Bottom Reset Bottom LED System LEDs RJ45 Console Port LED LED RJ45: PoE/Speed LED LED RJ45: Link/Act 10/100/1000 Mbps Ethernet Ports (PoE+) 1G/10Gbps SFP+ Slots LED SFP+ LED: Speed/Link/Act

CloudSwitch L2Plus 24 Full PoE (ECS1528FP)

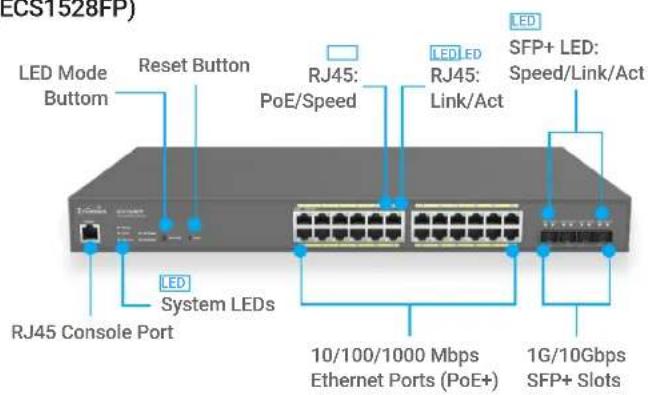

ECS1528FP) LED Mode Button Reset Button RJ45: PoE/Speed LED LED LED SFP+ LED: Speed/Link/Act RJ45 Console Port LED System LEDs 10/100/1000 Mbps Ethernet Ports (PoE+) 1G/10Gbps SFP+ Slots

Product Views

Rackmount

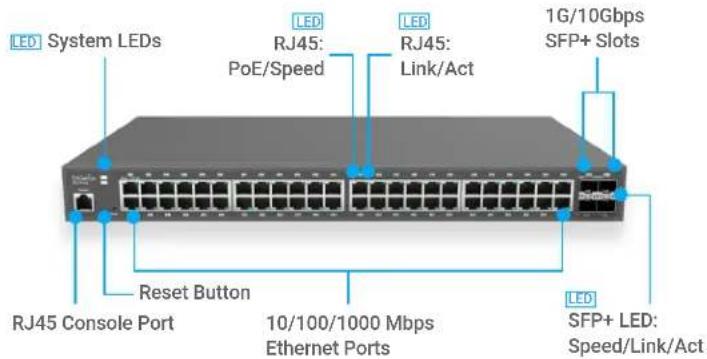

CloudSwitch L2Plus 48 (ECS1552)

LED System LEDs RJ45: PoE/Speed Reset Button RJ45 Console Port 10/100/1000 Mbps Ethernet Ports LED RJ45: Link/Act 1G/10Gbps SFP+ Slots LED SFP+ LED: Speed/Link/Act

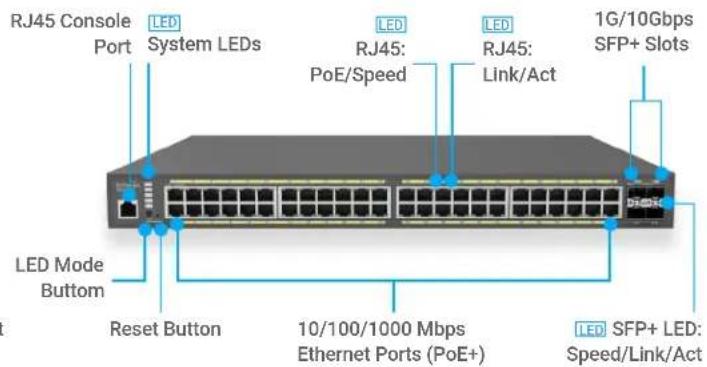

CloudSwitch L2Plus 48 PoE (ECS1552P)

RJ45 Console Port LED System LEDs LED RJ45: PoE/Speed LED RJ45: Link/Act 1G/10Gbps SFP+ Slots LED Mode Button Reset Button 10/100/1000 Mbps Ethernet Ports (PoE+) LED SFP+ LED: Speed/Link/Act

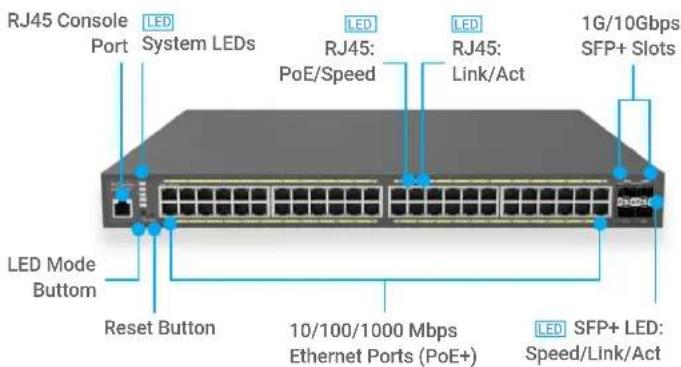

CloudSwitch L2Plus 48 Full PoE (ECS1552FP)

RJ45 Console Port LED System LEDs LED RJ45: PoE/Speed LED RJ45: Link/Act 1G/10Gbps SFP+ Slots LED Mode Bottom Reset Button 10/100/1000 Mbps Ethernet Ports (PoE+) LED SFP+ LED: Speed/Link/Act

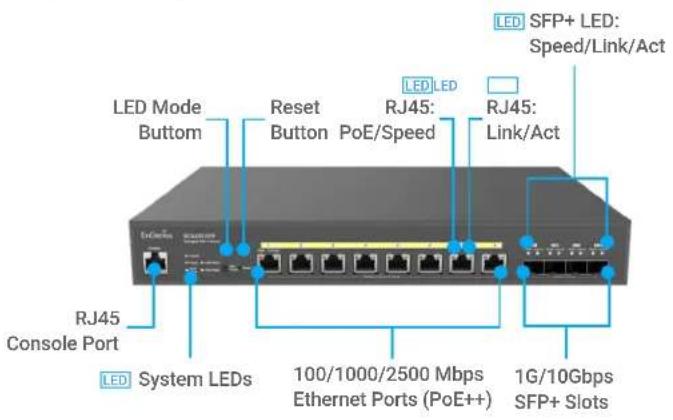

CloudSwitch MGPlus 8 Full PoE (ECS2510FP)

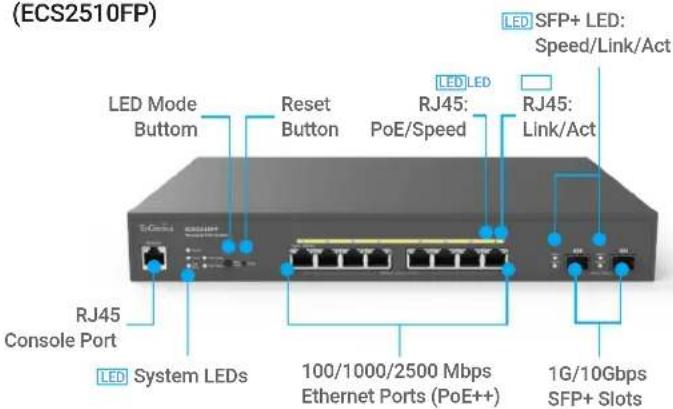

(ECS2510FP) LED Mode Button Reset Button LED LED RJ45: PoE/Speed LED SFP+ LED: Speed/Link/Act RJ45: Link/Act RJ45 Console Port LED System LEDs 100/1000/2500 Mbps Ethernet Ports (PoE++) 1G/10Gbps SFP+ Slots

CloudSwitch MGPlus 8 (ECS2512)

LED System LEDs RJ45: PoE/Speed LED RJ45: Link/Act LED SFP+ LED: Speed/Link/Act RJ45 Console Port 100/1000/2500 Mbps Ethernet Ports 1G/10Gbps SFP+ Slots

CloudSwitch MGPlus 24 Full PoE (ECS2528FP)

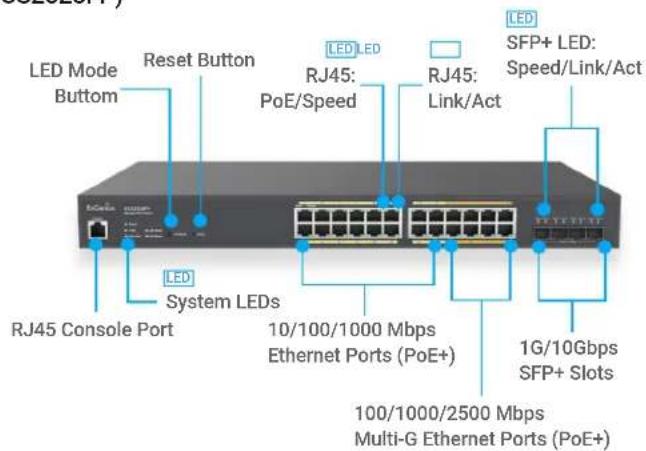

LED Mode Button Reset Button LED LED LED RJ45: PoE/Speed RJ45: Link/Act LED SFP+ LED: Speed/Link/Act LED System LEDs RJ45 Console Port 10/100/1000 Mbps Ethernet Ports (PoE+) 1G/10Gbps SFP+ Slots 100/1000/2500 Mbps Multi-G Ethernet Ports (PoE+)

Product Views

Rackmount

CloudSwitch MGPlus 8 Full PoE (ECS2512FP)

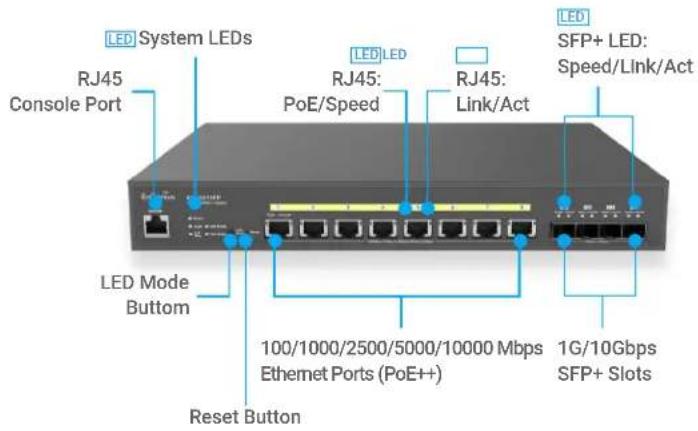

LED Mode Button Reset Button RJ45: PoE/Speed LED LED LED SFP+ LED: Speed/Link/Act RJ45: Link/Act RJ45 Console Port LED System LEDs 100/1000/2500 Mbps Ethernet Ports (PoE++) 1G/10Gbps SFP+ Slots

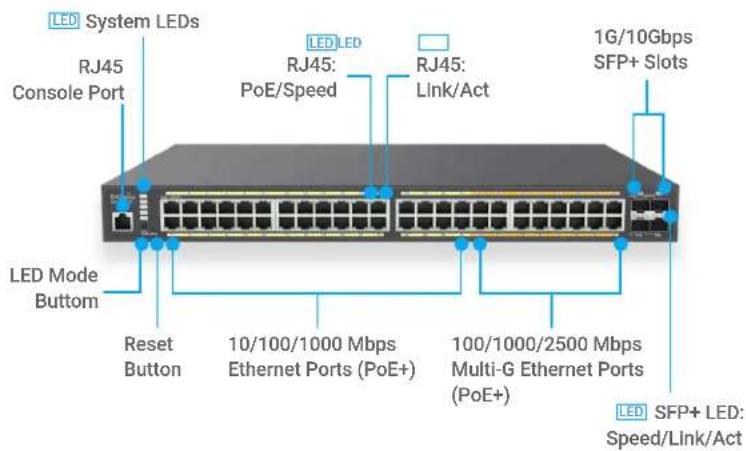

CloudSwitch MGPlus 48 Full PoE (ECS2552FP)

LED System LEDs RJ45 Console Port LED Mode Button Reset Button 10/100/1000 Mbps Ethernet Ports (PoE+) LED LED RJ45: PoE/Speed LED LED RJ45: Link/Act 100/1000/2500 Mbps Multi-G Ethernet Ports (PoE+) 1G/10Gbps SFP+ Slots LED SFP+ LED: Speed/Link/Act

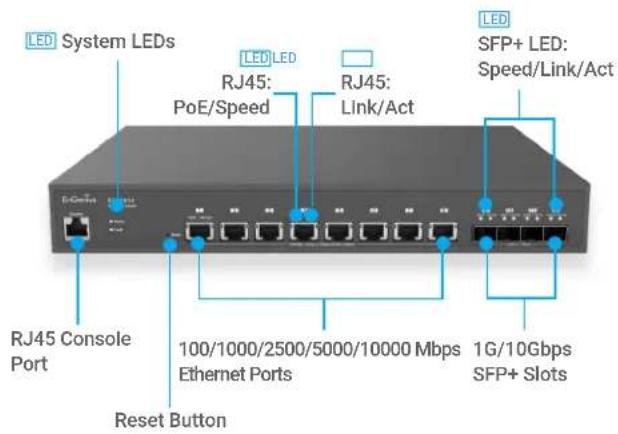

CloudSwitch Aggregate 8XG (ECS5512)

LED System LEDs RJ45: PoE/Speed RJ45: Link/Act LED SFP+ LED: Speed/Link/Act 100/1000/2500/5000/10000 Mbps Ethernet Ports Reset Button 1G/10Gbps SFP+ Slots

Product Views

Rackmount

CloudSwitch Aggregate 8XG Full PoE (ECS5512FP)

LED System LEDs RJ45 Console Port LED Mode Bottom Reset Button LED LED RJ45: PoE/Speed 100/1000/2500/5000/10000 Mbps Ethernet Ports (PoE++) RJ45: Link/Act LED SFP+ LED: Speed/Link/Act 1G/10Gbps SFP+ Slots

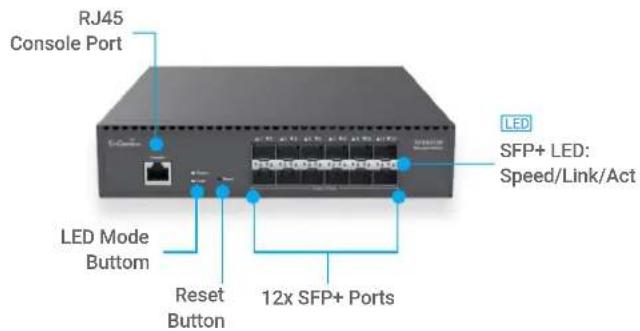

CloudSwitch Aggregate 12 (ECS5512F)

RJ45 Console Port LED Mode Button Reset Button 12x SFP+ Ports LED SFP+ LED: Speed/Link/Act

EnGenius Technologies | Costa Mesa, California, USA

Email: [e-mail]

Website: www.engeniustech.com

Local contact: ([phone]

EnGenius Networks Singapore Pte Ltd. | Singapore

Email: [e-mail]

Website: www.engeniustech.com.sg

Local contact ([phone]

EnGenius Technologies Canada | Ontario, Canada

Email: [e-mail]

Website: www.engeniustech.com

Local contact: ([phone]

EnGenius Networks Dubai | Dubai, UAE

Email: [e-mail]

Website: www.engenius-me.com

Local contact: ([phone]

EnGenius Networks Europe B.V. | Eindhoven, Netherlands

Email: [e-mail]

Website: www.engeniusnetworks.eu

Local contact: ([phone]

Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective

owners. For United States of America: Copyright ©2022 EnGenius Technologies, Inc.

Version 24 20221004
