HB110920 - Hand blender Emerio - Free user manual and instructions

Product type	Immersion blender
Brand	Emerio
Model	HB110920
Power supply	220-240 V ~ 50/60 Hz
Power	250 W
Main functions	Blend, chop, whisk
Included accessories	Blending shaft, chopper, metal whisk, accessory holder
Maximum chopper capacity	300 g meat, 200 g nuts, 150 g cheese, etc.
Maximum whisk capacity	4 egg whites or 400 ml cream
Maximum food temperature	40 °C (mixing in pot after cooling)
Continuous operation time	1 minute maximum, then 5 minutes rest
Speeds	2 speeds (I and II)
Care and cleaning	Manual cleaning, do not immerse motor unit, do not use dishwasher
Safety	Automatic shutdown in case of overheating? (not specified), sharp blades, do not touch
Warranty	2 years
Country of origin	China (likely)

Frequently Asked Questions - HB110920 Emerio

How to use the immersion blender?

Insert the power handle into the blender shaft and lock by turning. Plug in the appliance, place the blade into the food and press a speed button. Use speed I for slow mixing to avoid splashing.

Can I blend hot foods directly in a pot?

Yes, but first remove the pot from the heat and let it cool slightly. The food temperature must not exceed 40 °C to avoid overheating the blender.

How to use the chopper?

Cut the food into 1-2 cm cubes. Place the chopper blade in the bowl, add the food, then close and lock the lid. Attach the power handle and use speed II. Do not chop hard foods such as coffee beans or ice cubes.

How to use the whisk?

Attach the whisk collar to the power handle. Place the food in a bowl, plug in the appliance, and start at speed I while turning the whisk clockwise. Do not exceed 400 ml of cream or 4 egg whites.

What is the maximum continuous use time?

The appliance can operate continuously for a maximum of 1 minute. Then let it cool for 5 minutes before using again.

How to clean the immersion blender?

Always unplug the appliance before cleaning. Wash the accessories by hand with soapy water. Never immerse the motor unit in water and do not put anything in the dishwasher. For carrot stains, rub with a cloth soaked in vegetable oil.

What foods should not be chopped or blended?

Do not chop hard foods like coffee beans, ice cubes, spices or chocolate with the chopper. Do not blend fat or hot oil with the immersion blender.

Is the appliance safe for children?

This appliance should not be used by children. The blades are sharp and pose a risk of injury. Keep the appliance and its cord out of reach of children.

What to do in case of blender blockage?

Immediately unplug the appliance before removing the blocking object. Do not touch the blades until you have ensured they have completely stopped.

What is the warranty of the appliance?

Emerio offers a 2-year warranty from the date of purchase. Keep your receipt. The warranty does not cover damage caused by improper use or repair by an unauthorized third party.

USER MANUAL HB110920 Emerio

White kitchen utensil with whisk and blender, no visible text or symbols

Stick Blender Set (EN)

Stabmixer-set (DE)

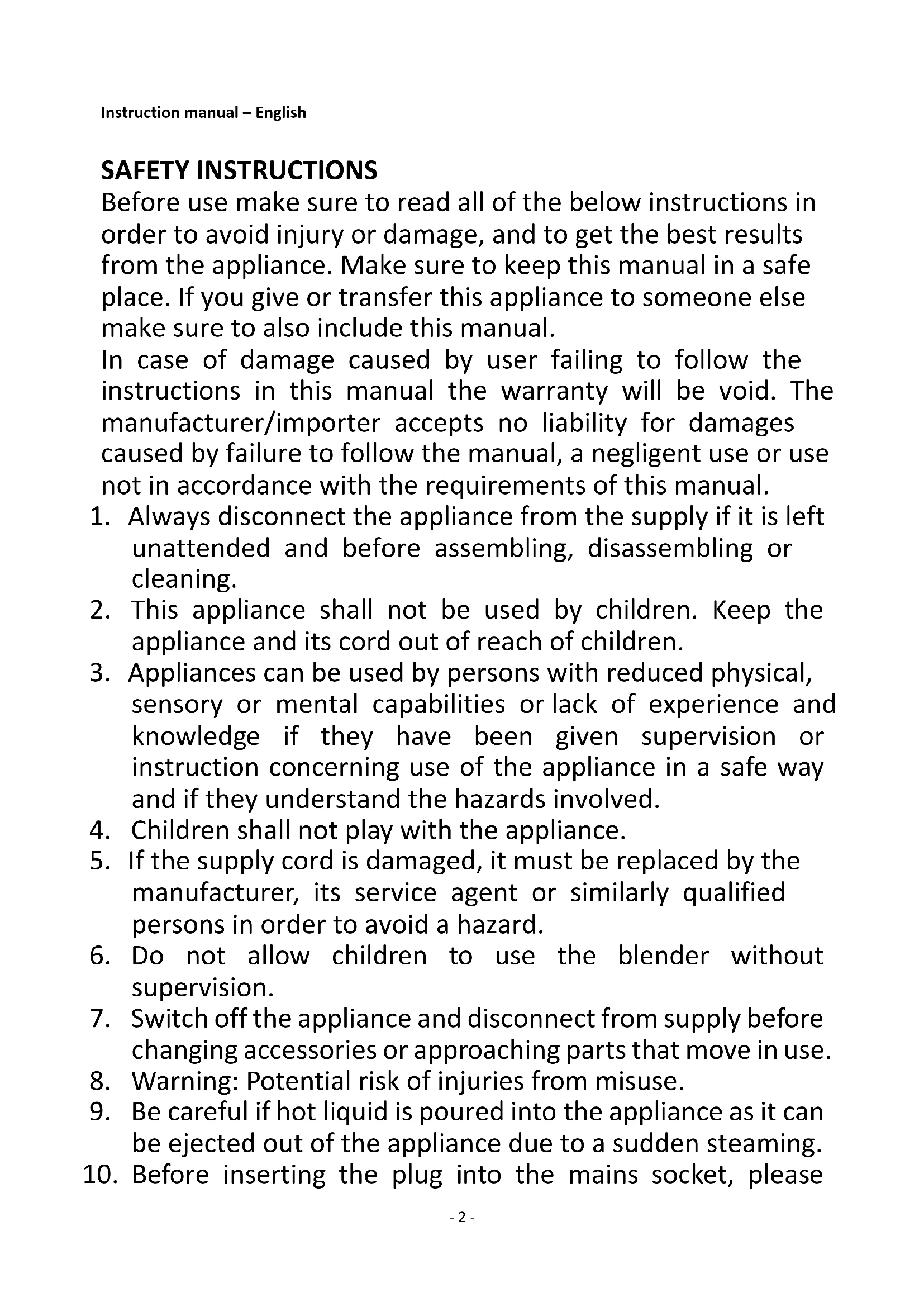

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
2. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
3. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
4. Children shall not play with the appliance.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Do not allow children to use the blender without supervision.
7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
8. Warning: Potential risk of injuries from misuse.
9. Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.
10. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

1. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

2. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

3. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

4. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

5. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

6. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

7. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

8. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

9. Never leave the appliance unattended during use.

10. This appliance is not designed for commercial use.

11. Do not use the appliance for other than intended use.

12. Do not wind the cord around the appliance and do not bend it.

13. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

14. If you want to blend directly in the saucepan, you should take the saucepan away from the stove first and let it cool down slightly. Do not blend any food at a temperature that higher than 40^ C, otherwise your hand blender could get overheated.

15. Take special care when preparing food for babies, the

elderly and infirm. Always ensure that the hand blender shaft is thoroughly sterilized. Use a sterilizing solution in accordance with the sterilizing solution manufacturers' instructions.

1. Never touch the blades while the machine's plugged in.
2. Keep fingers, hair, clothing, and utensils away from moving parts.
3. Never blend hot oil or fat.
4. Never use an unauthorized attachment.
5. Regarding the instructions for cleaning the surfaces which come in contact with food, speed settings and operating times, please refer to the below paragraph of the manual.

CHOPPER ATTACHMENT

1. Don't touch the sharp blades.
2. Remove the chopper blades before emptying the bowl.
3. Never remove the cover until the blade has completely stopped.

IMPORTANT

1. This device is designed to handle average amounts of food. It can be used without interruption for a maximum of 1 minute. After that, it should be allowed to cool for 5 minutes otherwise it will overheat.
2. Disconnect the appliance from power supply before changing accessories or approaching parts that move in use.
3. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
4. Only use your hand blender for its intended domestic use.

BEFORE USING FOR THE FIRST TIME

1. Remove all packaging and throw away the blades covers.

2. Wash the parts: see "CLEANING".

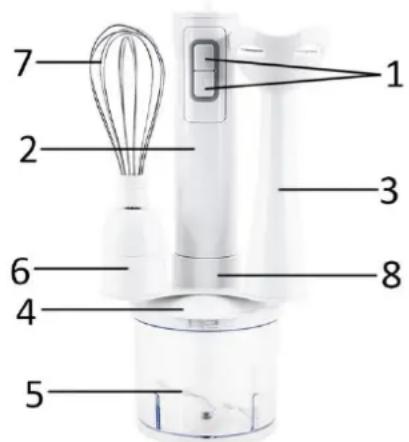

KNOW YOUR HAND BLENDER

1. Speed buttons
2. Power handle
3. Blender shaft(removable)
4. Chopper cover
5. Chopper blade
6. Whisk collar
7. Wire whisk
8. Holder for accessories

FOR SAUCEPAN BLENDING

Take the pan off the heat and let it cool slightly. Otherwise your hand blender could overheat.

1. Fit the power handle inside the blender shaft, turn and lock.
2. Plug in. To avoid splashing, place the blade in the food before switching on.
3. Hold the container steady. Then press either speed button (use speed "I" for slower blending to reduce splashing).
4. Don't let liquid get above the join between the power handle and blender shaft.
5. If your blender gets blocked, unplug before cleaning.
6. After use, unplug and dismantle.

TO USE THE CHOPPER

You can chop meat, cheese, vegetables, herbs, bread, biscuits and nuts.

Don't chop hard foods such as coffee beans, ice cubes, spices or chocolate, otherwise you will damage the blade.

1. Remove any bones and cut food into 1-2cm cubes.
2. Fit the chopper blade over the pin in the bowl.
3. Add your food.
4. Fit the chopper cover, turn and lock.

5. Fit the power handle, turn and lock.

6. Plug in. Hold the bowl steady. Then press speed "II".

7. After use, unplug and dismantle.

PROCESSING GUIDE

Food	Maximum Amount	Approx. time( in seconds)
Meat	300g (10.5 oz)	10-30
Herbs	20g(0.75oz)	20
Nuts	200g(7oz)	30
Cheese	150g(5oz)	30
Bread	1 slice	20
Hardboiled eggs	2	5
Onions	100g(3.5oz)	10
Carrot	150g(5oz)	20

TO USE THE WHISK

You can whip light ingredients such as egg whites, cream, instant desserts, and eggs and sugar for whisked sponges.

Don't whisk heavier mixtures such as margarine and sugar, you'll damage the whisk.

Don't whisk more than 4 egg whites or 400ml (0.75pt) cream.

Don't let liquid get above the whisk wires.

1. Fit the power handle inside the whisk collar, turn and lock.
2. Place your food in a bowl.
3. Plug in. To avoid splashing, start on speed "I", move the whisk clockwise.
4. After use, unplug and dismantle.

CLEANING

1. Always switch off and unplug before cleaning.
2. Don't touch the sharp blades.
3. Take special care when preparing food for babies, the elderly and infirm. Always ensure that the hand blender shaft is thoroughly sterilized. Use a sterilizing solution in accordance with the sterilizing solution in manufacturers' instructions.
4. Some foods, eg. Carrot may discolour the plastic. Rubbing with a cloth dipped in vegetable oil helps remove discolouring.
5. Do not wash any parts in a dishwasher.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 250W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual,

will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.
