USER MANUAL AF116073 Emerio

Black and silver air fryer with control buttons and a handle (no visible text or symbols)

Abstract black logo design with three curved shapes and a registered trademark symbol (no text or numbers present)

Smart Fryer

(EN)

(DE)

(FR)

(SE)

(NL)

(PL)

(RU)

EACCE

Content – Inhalt – Teneur – Innehåll – Inhoud – Treść – Содержание

Instruction manual – English ...... - 2 -

When using electrical appliances, basic safety precautions should always be followed:

Read all instructions.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. In case of damage, caused through not paying attention to this instruction manual, the warranty expires at once. The manufacturer/importer does not accept any liability for damage caused as a result of ignorance of the user manual, careless usage or the usage against the instructions in this manual.

7. This product can only be used according to its rated information printed on the rating label.

8. This product is for indoor use only! It is not suitable for outdoor use.

9. Please prevent the product to be exposed to excessive dirt and humidity.

10. Any other way of operating the product, except the described one, will lead to dangers such as short circuit,

fire or else. It is not allowed to modify this product in any way and the housing has not to be opened, otherwise the product will not be any longer in compliance with its safety class.

1. Never connect or disconnect the plug with wet hands.
2. Never unplug the plug by pulling the power supply cord. Always pull the plug itself.
3. During installation/cleaning, please pay attention that the power supply cord will not be squeezed or damaged.
4. Always disconnect the appliance from the mains and allow the product to cool down to room temperature: before storing away the appliance; before cleaning or maintenance; after use; if you are not going to use it for a long period of time.
5. Clean the product itself with a slightly damp cloth.
6. Never replace a damaged power supply cord by yourself. In such case, or in case of malfunction, contact an authorized electrician/service centre for examination, repair or adjustment because special tools are required.
7. Make sure that the power supply cord does not come into contact with any parts, which generate excessive heat.
8. If you assume that the operating of the product without danger is not any longer possible please make sure that the product will be disconnected and not used any longer. The safe operation of this product is not any longer possible, if: the product or the power supply cord is damaged in any way; the product does not work any longer; after a longer storage under unfavourable conditions; after heavy damage through transportation.
9. Never immerse the plug or the appliance in water or other liquid.
10. Never place the appliance directly into corners and under flammable materials such as curtains, cupboards etc.

11. Never leave the appliance unattended during use.

12. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

13. This appliance is not designed for commercial use.

24.

Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

2. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.

3. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

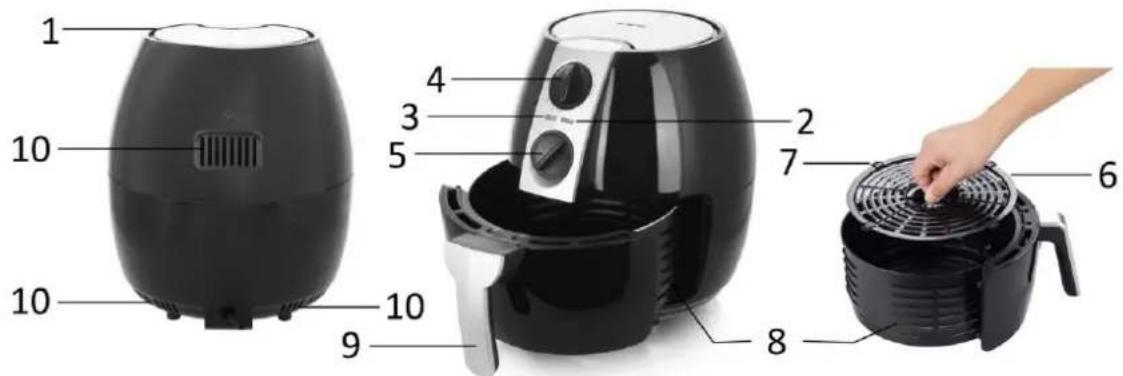

PARTS DESCRIPTION

1 10 10 10 9 4 3 5 2 7 6 8

1. Air inlet
2. Heating light
3. Power light
4. Timer knob
5. Temperature control knob
6. Frying grill
7. Silicone case
8. Basket
9. Basket handle
10. Air outlet

BEFORE USE

First read all instructions before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the basket and frying grill. (See "CLEANING AND MAINTENANCE") Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil.

Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

NOTE: Always use the frying grill with the silicone cases covered. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.
3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.
4. Place the ingredients into the basket. (Do not exceed the MAX level indicated inside the basket.) Slide the basket into the appliance. Make sure they are placed correctly and closed completely. Otherwise the appliance will not work. Caution: Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.
5. Connect the power plug to a suitable outlet.
6. Set the temperature control knob to the required temperature setting, which is suitable for what you are frying. Consult the temperature table.

7. Turn the timer knob to choose the appropriate frying time and the appliance is switched on.

8. The power light illuminates when the appliance is switched on. The heating light comes on and goes out from time to time during the hot air frying process. This indicates that the heating element is switched on and off to maintain the set temperature.

9. When the cooking is finished, you will hear the timer bell rings. You can also switch off the appliance manually by turning the timer knob to "0".

10. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance and set the timer to a few extra minutes.

11. Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance, steam may escape from the basket.

12. Empty the basket, putting the food into a bowl or onto a plate. To remove large or fragile ingredients, lift the ingredients out of the basket by a pair of tongs.

To remove ingredients (e.g. beef, chicken, meat, any ingredients with original oil and will have excess oil from ingredients collected on the bottom of the basket), please use tongs to pick ingredients one by one. To remove ingredients (e.g. chips, vegetable or ingredients with no excess oil from the ingredients), please pull out the basket, and pour ingredients to tableware.

1. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

FRYING TIPS

1. The optimal amount for crispy fries is 600 - 800 grams.
2. Add 2 minutes to preparation time if the appliance is cold. Preheat the appliance without any ingredients inside. Turn the timer knob to more than 2 minutes and wait until the heating light goes out. Then fill the basket with ingredients and turn the timer knob to the required time.
3. Shake or turn smaller ingredients halfway. By this way food will be fried evenly. Pull the basket out of the appliance by the handle and shake it. Then slide the basket back into the appliance.
4. You can also use the fryer to reheat ingredients.
5. Ingredients with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.
6. Place a baking tin or an oven dish (after removing the frying grill) in the appliance if you want to bake a cake or quiche or other fragile ingredients.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Keep all ingredients in the basket to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space around and above the appliance.
5. Filling the basket with oil may cause a fire hazard!
6. Do not touch the inside of the appliance when it is in operation.
7. Be careful of the hot steam and air when you remove the basket from the appliance.
8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.
10. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes.

FRYING TABLE

This table shows the food product quantities and required temperature and frying times. If the instructions on the product pack deviate from the values shown in this table, the instructions on the pack should be followed.

Food	Min-max Amount (g)	Time (min)	Temperature (°C)	Shake	Notes
Thin frozen fries	450-750	9-16	200	shake
Thick frozen fries	450-750	11-20	200	shake
Home-made fries (8×8 mm)	450-1000	10-16	200	shake	Add 1/2 tbsp of oil
Home-made potato wedges	450-1000	18-22	180	shake	Add 1/2 tbsp of oil
Home-made potato cubes	450-900	12-18	180	shake	Add 1/2 tbsp of oil
Rosti	350	15-18	180	shake
Potato gratin	750	15-18	200	shake
Steak	150-750	8-12	180	-
Pork chops	150-750	10-14	180	-
Hamburger	150-750	7-14	180	-
Sausage roll	150-750	13-15	200	-
Drumsticks	150-750	18-22	180	-
Chicken breast	150-750	10-15	180	-
Spring rolls	150-600	8-10	200	shake	Use oven-ready
Frozen chicken nuggets	150-750	6-10	200	shake	Use oven-ready
Frozen fish fingers	150-600	6-10	200	-	Use oven-ready
Frozen bread crumbed cheese snacks	150-600	8-10	180	-	Use oven-ready
Stuffed vegetables	150-600	10	160	-
Cake	450	20-25	160		Use baking tin
Quiche	600	20-22	180		Use baking tin/oven dish
Muffins	450	15-18	200		Use baking tin
Sweet snacks	600	20	160		Use baking tin/oven dish

CLEANING AND MAINTENANCE

1. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the basket to let the appliance cool down more quickly. Clean the basket and frying grill in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
5. Clean the heating element inside of the housing (You can see it after pulling out the basket) with a cleaning brush to remove any food residue.

Note: The basket and frying grill are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solution
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Turn the timer knob to the required preparation time to switch on the appliance.
The ingredients are not fried completely.	The amount of the food in the basket is over.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The temperature is too low.	Turn the temperature control knob to the required temperature.
The ingredients are fried unevenly.	Different types of food may need to be shaken halfway.	Shake food halfway.
Basket cannot be slid into the housing properly.	Too much food in the basket.	Put less amount of food in the basket.
White smoke comes out from the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients, oil will leak into the basket. The oil produces white smoke and the basket may heat up. This does not affect the cooking result or hurt the appliance.
	The basket still contains grease residue from previous use.	Clean the basket properly after each use.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 1500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]
