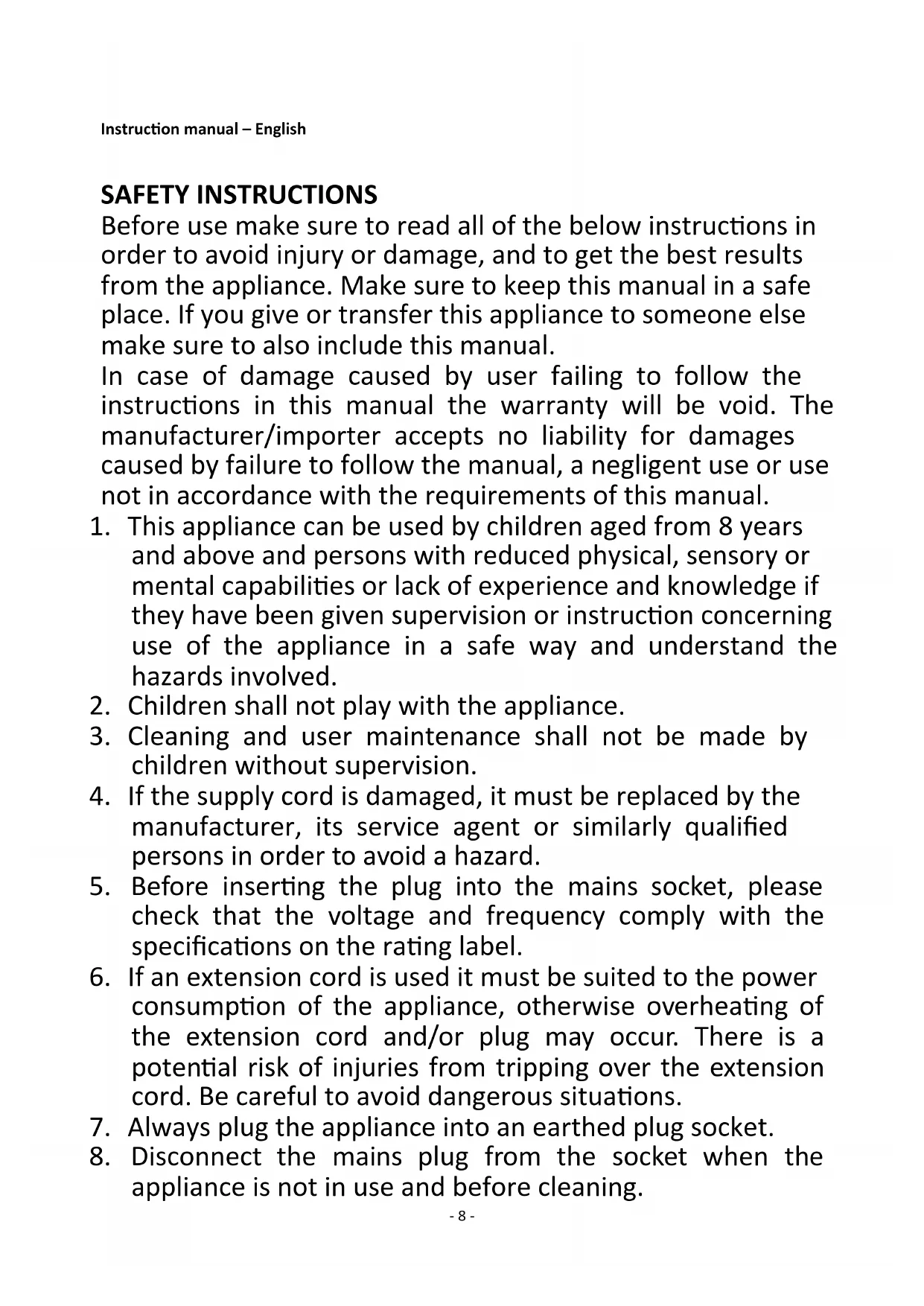

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
7. Always plug the appliance into an earthed plug socket.

8. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

9. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

10. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
11. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
12. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
13. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
14. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
15. Never leave the appliance unattended during use.
16. This appliance is not designed for commercial use.
17. Do not use the appliance for other than intended use.
18. Do not wind the cord around the appliance and do not bend it.
19. Keep the appliance away from damp, and protect from splashes.
20. Use the appliance on a flat, dry and heat resistance surface.
21. Do not store or operate the appliance in the open air.
22. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
23. Never put fingers or any other objects through the fan guards when the fan is running.
24. Never operate the product without the fan guards in place, as serious personal injury may result.
25. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
26. Do not point the air flow at people for a long time.

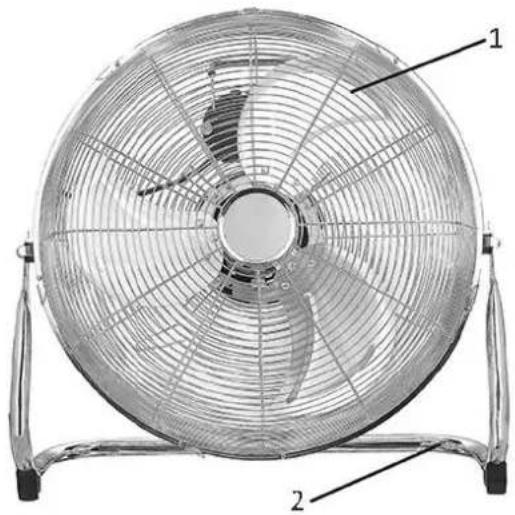

PARTS DESCRIPTION

Front view of a standard office air conditioner fan with labeled parts (1 and 2), no text or symbols on the fan itself.

3 4 5 6

1. Main body (Fan guard + Fan blade)
2. Tube stand
3. Handle
4. Speed buttons
5. Control box
6. Support for cable storage

OPERATING INSTRUCTIONS:

1. Plug the power cord into a suitable socket.

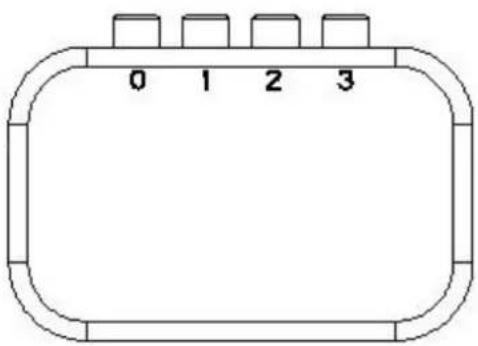

2. The fan is switched on by using the speed buttons on the control box: 0 = OFF, 1 = Low Speed, 2 = Medium speed, 3 = High speed. (fig.1)
3. Tilting Angles: turn off the fan, then push or pull the guards to adjust the angle of airflow.

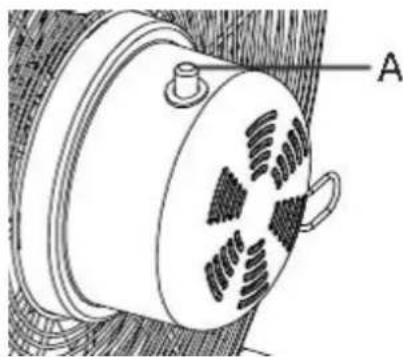

4. Oscillation function: press the swing button (A) on the back of the appliance to make the fan blade oscillating horizontally in an angle of approx. 20 degrees. Press the button again to stop the fan blade oscillating. (fig.2)

0 1 2 3

fig.1

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

fig.2

CLEANING AND MAINTENANCE

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

4. Pack the appliance in its original box and place it in a dry, well-ventilated place when it is not to be used for a long period of time.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 100W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Electroactiva

Calle Huelva, 6

28343 - Valdemoro - Madrid - España

0034 918 762 026

ERP information (EN)

Supplier: Electroactiva

Calle Huelva, 6

28343 - Valdemoro - Madrid - España

Declare that the product detailed below:

Information requirements

The mentioned information to identify the FN-123149.1[Retro chrome floor fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	120,48	m^3/min
Fan power input	P	63,40	W
Service value	SV	1,90	(m^3/min)/W
Standby power consumption	P_SB	—	W
Fan sound power level	L_WA	63,24	dB(A)
Maximum air velocity	c	3,84	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr.1992)
Contact details for obtaining more information	ElectroactivaCalle Huelva, 628343 - Valdemoro – Madrid – España

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

"Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging."
