USER MANUAL FN108774 Emerio

Modern office fan with a metallic stand and radial blades, no visible text or symbols

Stand fan (EN)

Stand Ventilator (DE)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.

7. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

8. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug

immediately and then have the unit checked by an expert before using it again.

1. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.
2. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
3. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
4. Keep the appliance away from damp, and protect from splashes.
5. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
6. Keep the appliance and its cord out of reach of children less than 8 years.
7. Use the appliance on a flat, dry and heat resistant surface.
8. Never leave the device unattended during use.
9. Do not store or operate the appliance in the open air.
10. Keep the appliance in a dry place, inaccessible to children (in its packaging).
11. Never put fingers or any other objects through the fan guards when the fan is running.
12. Never operate the product without the fan guards in place, as serious personal injury may result.
13. The appliance must be assembled completely before use.
14. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
15. Do not point the air flow to the people for a long time.
16. After assembly, do not remove the guards during use or cleaning.

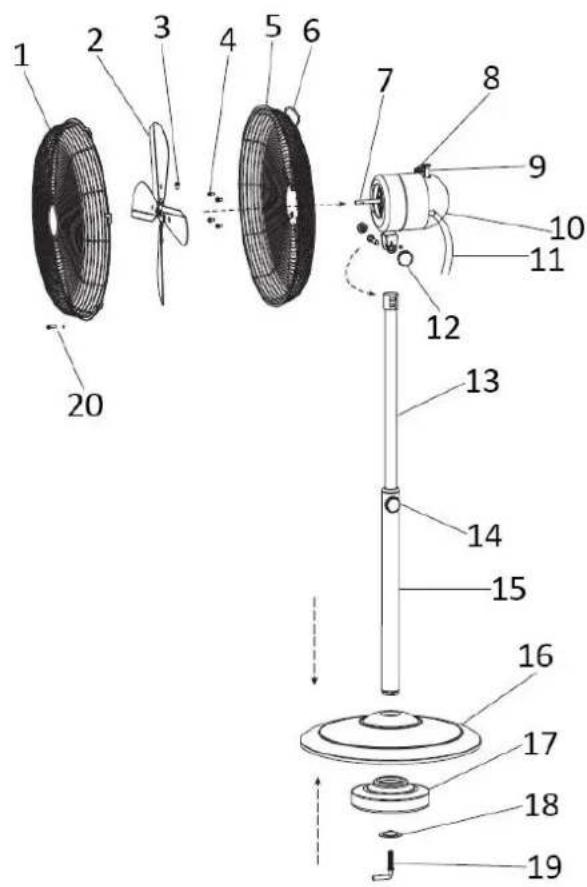

PARTS DESCRIPTION

1. Front guard
2. Blade
3. Blade fastening screw
4. Fixation screws for rear guard
5. Rear guard
6. Handle
7. Motor shaft
8. Speed control switch
9. Oscillation knob
10. Motor unit
11. Power cord
12. Connecting screw and nut
13. Height adjustment pipe
14. Height adjustment knob
15. Standing shaft
16. Standing base
17. Weight support
18. Fastener
19. Base locking screw
20. Grill locking screw and nut

Technical diagram of a fan assembly with numbered parts for identification

ASSEMBLY INSTRUCTIONS

** Please assemble correctly by the following order when using.

1. The stand assembly

• Take off the fastener (18) and base locking screw (19) from the standing shaft (15).
- Put the standing shaft into the center of standing base (16).
- Place the weight support (17) to the bottom of the base. Tighten the weight support to the base with fastener and base locking screw.

1. Fan head assembly

2. Pull the height adjustment pipe (13) out to your desired height and tighten the height adjustment knob (14).

3. Place the Motor unit (10) on the top of height adjustment pipe. Use the connecting screw and nut (12) to tighten the connection, fixing the fan head onto the pipe.

Mechanical assembly diagram showing a valve mechanism with gears and adjustment parts (no text or labels)

1. Rear guard assembly

- Fit the rear guard (5) onto motor with the handle on the top. Tighten the rear guard with 4 fixation screws (4).

1. Fan blade assembly

• Install fan blade (2) onto motor shaft (7) and use the blade fastening screw (3) to fix the blade.

5. Front guard assembly

• Put the hook of the front guard (1) onto the top of rear guard.
• Attach front guard to rear guard; close clips. Use the grill locking screw and nut (20) to secure the two grilles together.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull up the oscillation knob.
3. Tilting Angles: you can adjust the fan to the preferred elevation. Fix the elevation by tightening the connecting screws.
4. The fan is switched on by turning the speed control switch on the motor unit, i.e. 0 = OFF, I = low speed, II = medium speed, III = high speed.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 50W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at www.spareparts.emerio.eu

Declare that the product detailed below:

Information requirements

Information to identify the FN-108774 to which the information relates to [Stand fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	66,83	m^3/min
Fan power input	P	47,0	W
Service value	S_V	1,42	(m^3/min)/W
Standby power consumption	P_SB	—	W
Fan sound power level	L_WA	65,75	dB(A)
Maximum air velocity	C	3,60	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr. 1992)
Contact details for obtaining more information	Emerio B.V.Oudeweg 1152031 CC HaarlemThe Netherlands

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
