USER MANUAL TFN122988 Emerio

Black industrial air conditioner tower with visible heat dissipation and ventilation slots (no text or symbols)

Turmventilator (DE)

Tower Fan (EN)

Instruction manual – English ...... - 8 -

Close-up of a mechanical device with labeled parts A and 1, showing internal components (no text or symbols beyond labels)

B 2

Diagram of a mechanical device with two curved components and a central shaft (no text or symbols)

Close-up of a white circular mechanical component with a black central hole and labeled point C, no text or symbols present.

White circular mechanical component with labeled part D, no visible text or symbols on the body itself

BEDIENUNG

Before use make sure to read all the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else, make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

10. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

11. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

12. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

13. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

14. Never leave the appliance unattended during use.

15. This appliance is not designed for commercial use.

16. Do not use the appliance for other than intended use.

17. Do not wind the cord around the appliance and do not bend it.

18. Keep the appliance away from damp and protect from splashes.

19. Use the appliance on a flat, dry and heat resistance surface.

20. Do not store or operate the appliance in the open air.

21. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).

22. Never put fingers or any other objects through the fan guards when the fan is running.

23. Never operate the product without the fan guards in place, as serious personal injury may result.

24. The appliance must be assembled completely before use.

25. Watch out for long hair! It can be caught in the fan owing to the air turbulence.

26. Do not point the air flow at people for a long time.

27. The rotor guard shall not be disassembled/ opened to clean the rotor blades.

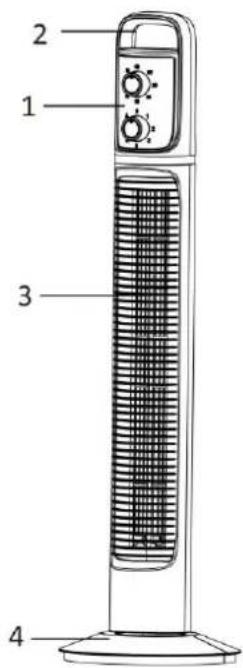

PARTS DESCRIPTION

1. Control panel
2. Handle
3. Air outlet
4. Base

Control panel

A. Timer knob
ON = timer function off
OFF = Stop working
20\~120 = Working time within 120 minutes
B. Switch knob (Speed + Oscillation)
0: Off
1: Fan with low speed
2: Fan with medium speed
3: Fan with high speed
1: Fan with low speed + Oscillation
2: Fan with medium speed + Oscillation
3: Fan with high speed + Oscillation

2 1 3 4

A 120 ON OFF 100 20 80 60 40

ASSEMBLY

1. Turn the fan body upside down and rotate the fixer (A) to take it off. (Fig .1)
2. Across the power cord, connect the two parts of the base together and fix the two parts of the base with the buckles (B). (Fig. 2)
3. Attach the base onto the bottom of the body. Adjust the base to have the two rasied black dots (C) inserted into the holes in the base. (Fig. 3)
4. Rotate the fixer (A) back to fasten the base firmly and fix the cord on the base groove (D). Now you can turn the appliance upside down and your appliance is ready for use. (Fig. 4)

Close-up of a mechanical component with labeled parts A and 1, showing internal structure without any readable text or symbols.

Two white plastic components with arrows pointing to a central component labeled 'B', no text or symbols present.

Simple line drawing of a mechanical device with two curved components and a central hub (no text or symbols)

Close-up of a white plastic object with a black circular base and labeled point C, no text or symbols present.

White circular mechanical component with a central hole and labeled point D (no text or symbols beyond label)

OPERATION

1. Always operate the product on a flat, level, steady, and stable surface to avoid it overturning.

2. Plug the power cord into a standard electrical outlet.

3. Rotate the switch knob to choose your desired speed setting / oscillation function. Rotate the timer knob to choose your desired working time. Note: in order to operate the appliance in a continuous manner instead of using the timer function, turn the timer knob to the position "ON".

4. Unplug the product from the electrical outlet when it is not in use or is left unattended. Do not leave this product unattended while it is in use.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 40W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Electroactiva

Calle Huelva, 6

28343 - Valdemoro - Madrid - España

0034 918 762 026

ERP information (EN)

Supplier: Electroactiva

Calle Huelva, 6

28343 - Valdemoro - Madrid - España

0034 918 762 026

Declare that the product detailed below:

Information requirements

Information to identify the TFN-122988.2 to which the information relates to [Tower Fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	18,03	m^3/min
Fan power input	P	33,9	W
Service value	SV	0,53	(m^3/min)/W
Standby power consumption	P_SB	void	W
Fan sound power level	L_WA	57,69	dB(A)
Maximum air velocity	c	1,35	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr. 1992)
Contact details for obtaining more information	Electroactiva Calle Huelva, 6 28343 - Valdemoro – Madrid – España 0034 918 762 026

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
