USER MANUAL SMW18 Skytec
Regulatory Requirement:
EN 55013
EN 55020
EN 61000-3-2/-3-3

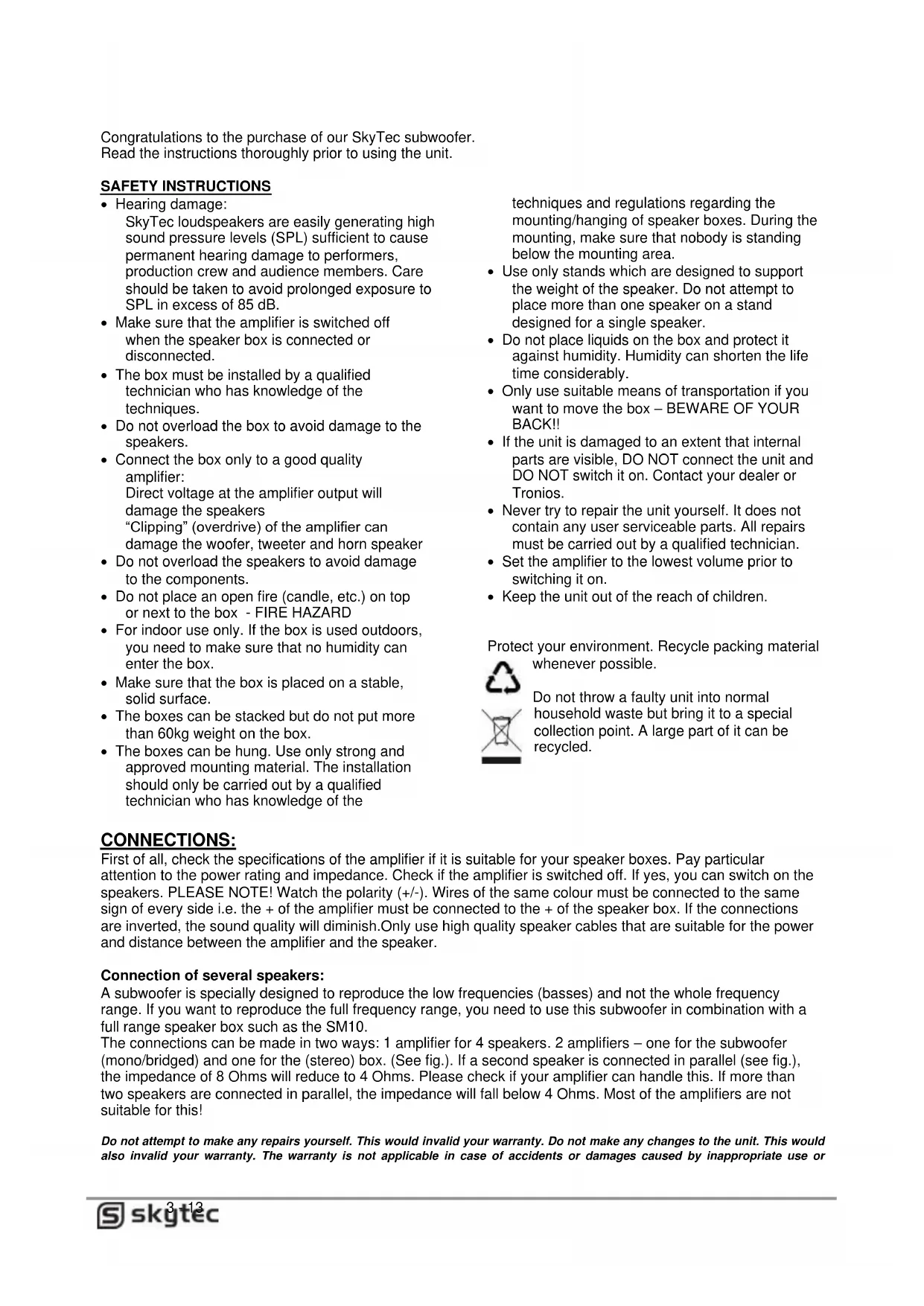

Congratulations to the purchase of our SkyTec subwoofer. Read the instructions thoroughly prior to using the unit.
SAFETY INSTRUCTIONS
- Hearing damage:
SkyTec loudspeakers are easily generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Care should be taken to avoid prolonged exposure to SPL in excess of 85 dB.
- Make sure that the amplifier is switched off when the speaker box is connected or disconnected.
- The box must be installed by a qualified technician who has knowledge of the techniques.
- Do not overload the box to avoid damage to the speakers.
- Connect the box only to a good quality amplifier:
Direct voltage at the amplifier output will damage the speakers
"Clipping" (overdrive) of the amplifier can damage the woofer, tweeter and horn speaker
- Do not overload the speakers to avoid damage to the components.
- Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD
- For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.
Make sure that the box is placed on a stable, solid surface. - The boxes can be stacked but do not put more than 60kg weight on the box.
- The boxes can be hung. Use only strong and approved mounting material. The installation should only be carried out by a qualified technician who has knowledge of the
techniques and regulations regarding the mounting/hanging of speaker boxes. During the mounting, make sure that nobody is standing below the mounting area.
- Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.
- Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.
- Only use suitable means of transportation if you want to move the box - BEWARE OF YOUR BACK!!
- If the unit is damaged to an extent that internal parts are visible, DO NOT connect the unit and DO NOT switch it on. Contact your dealer or Tronios.
- Never try to repair the unit yourself. It does not contain any user serviceable parts. All repairs must be carried out by a qualified technician.
- Set the amplifier to the lowest volume prior to switching it on.
- Keep the unit out of the reach of children.
Protect your environment. Recycle packing material whenever possible.
Do not throw a faulty unit into normal household waste but bring it to a special collection point. A large part of it can be recycled.
CONNECTIONS:
First of all, check the specifications of the amplifier if it is suitable for your speaker boxes. Pay particular attention to the power rating and impedance. Check if the amplifier is switched off. If yes, you can switch on the speakers. PLEASE NOTE! Watch the polarity (+/-) . Wires of the same colour must be connected to the same sign of every side i.e. the + of the amplifier must be connected to the + of the speaker box. If the connections are inverted, the sound quality will diminish. Only use high quality speaker cables that are suitable for the power and distance between the amplifier and the speaker.
Connection of several speakers:
A subwoofer is specially designed to reproduce the low frequencies (basses) and not the whole frequency range. If you want to reproduce the full frequency range, you need to use this subwoofer in combination with a full range speaker box such as the SM10.
The connections can be made in two ways: 1 amplifier for 4 speakers. 2 amplifiers - one for the subwoofer (mono/bridged) and one for the (stereo) box. (See fig.). If a second speaker is connected in parallel (see fig.), the impedance of 8 Ohms will reduce to 4 Ohms. Please check if your amplifier can handle this. If more than two speakers are connected in parallel, the impedance will fall below 4 Ohms. Most of the amplifiers are not suitable for this!
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or
disrespect of the warnings contained in this manual. Trionios cannot be held responsible for personal injuries caused by a
CE Declaration of Conformity
Importer: TRONIOS BV
Bedrijivenpark Twente 415
7602 KM - ALMELO
Tel: 0031546589299
Fax: 0031546589298
The Netherlands
Product number: 170.750 & 170.754
Product Description:
SkyTec, SMW15 & SMW18 PA-Subwoofer (600W & 1000W)
Regulatory Requirement: EN 55013
EN 55020
EN 61000-3-2/-3-3
The product met the requirements stated in the above mentioned Declaration(s).
ALMELO,
27-07-2010
Signature
Specifications and design are subject to change without prior notice..
www.tronios.com
Copyright © 2011 by TRONIOS the Netherlands
