USER MANUAL Dash Duo Klarstein

Washing Machine with Shoe Cleaner

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 16

Product Overview 17

Use and Operation 18

Dehydration Function 21

Shoe Cleaning 22

Cleaning and Care 23

Troubleshooting 24

Hints on Disposal 25

TECHNICAL DATA

Item number 10034415
Power supply 220-240 V ~ 50/60 Hz

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SAFETY INSTRUCTIONS

• Do not place the appliance in a bathroom or any other place where it may become wet.
• Use a grounded power outlet for operation.
• Connect the appliance directly to the wall outlet. Do not use multiple plugs.
• Keep the appliance away from heat or open fire that may deform the cabinet.
• Only connect the appliance to an outlet with the appropriate voltage.
• The electrical components of the unit must not come into contact with water during maintenance.
• Do not place any heavy or hot objects on top of the unit, as this may damage the cabinet.
• The unit may only be operated by qualified personnel.
• If the mains plug is dirty, clean it before plugging it into a socket.
• Do not use water warmer than 55^ C , as this could deform the plastic parts.
• Never touch the drum or clothing before the drum has stopped completely.
• If the power plug is damaged, do not use the machine.
• Never put garments into the machine that have recently been cleaned with a solvent such as benzine.
• If the drum does not stop 15 seconds after opening the cover, contact the seller.
• Never pull the power cord, always pull the plug directly.
• When not in use or before cleaning/maintenance, unplug the appliance from the wall outlet. Never touch the plug with wet hands.

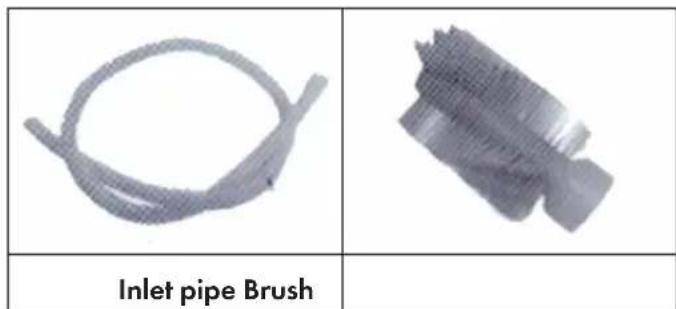

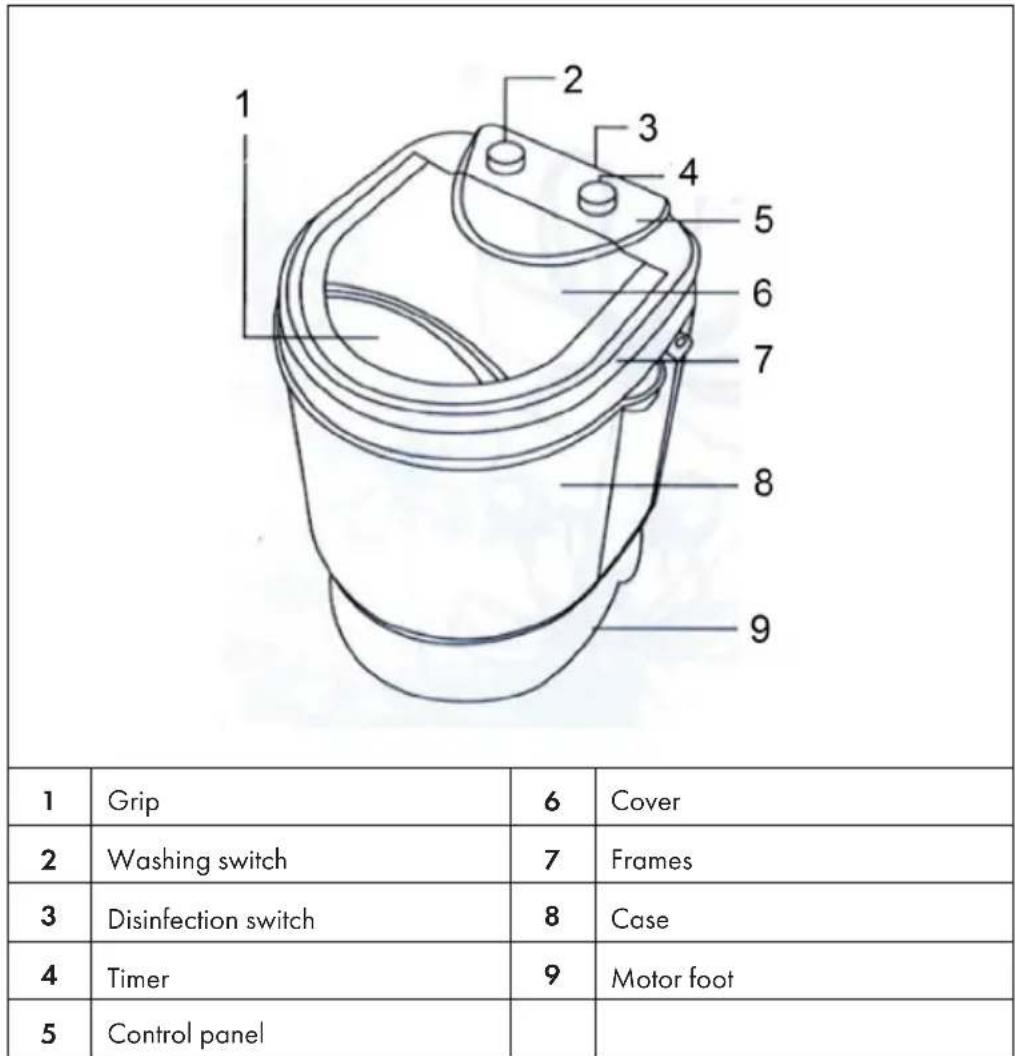

PRODUCT OVERVIEW

Note: The appearance of the washing machine may differ slightly from this illustration. Some models have only 1 switch for disinfection and washing.

USE AND OPERATION

Commissioning

1. The socket must be earthed.
2. Lay out the drain hose so that the water can drain off well.
3. Plug the mains plug into the socket.
4. Connect the water supply: insert the hose into the opening provided until you hear a click

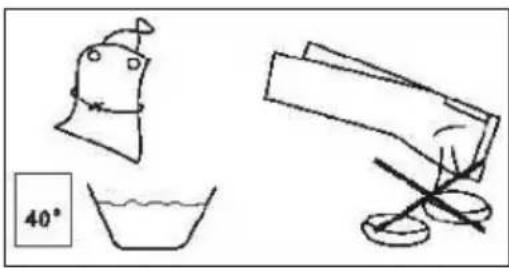

Overview washing process

123
Washing half-way	drain Cleaning

Caution: If the water level is too high, the water will spill out of the drum.

To avoid deformation of the clothing, you should fold it up and close zippers (e.g. for trousers). Prepare the clothes as shown in the picture. All pockets must be emptied. Remove coins, nails, etc. Fur trimming or other decorations must be pulled to the left. Strong colours should be washed individually.

Dissolve washing powder directly

1. Add the washing powder when the water level is low.
2. Select a program.
3. Start the machine and allow the water to mix for 1 minute.
4. After the washing powder has completely dissolved, you can add more water.
5. Select the correct washing time.

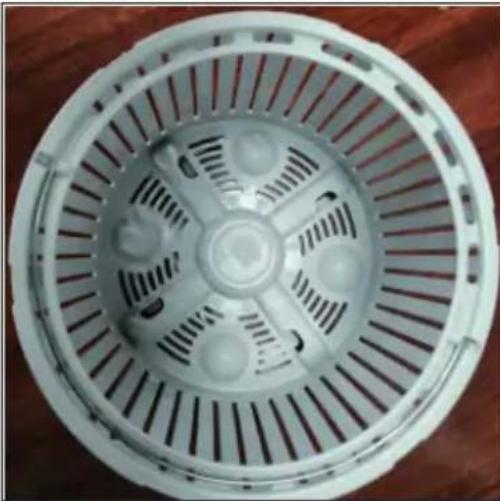

How to use the laundry basket

1. Have the following accessories ready:

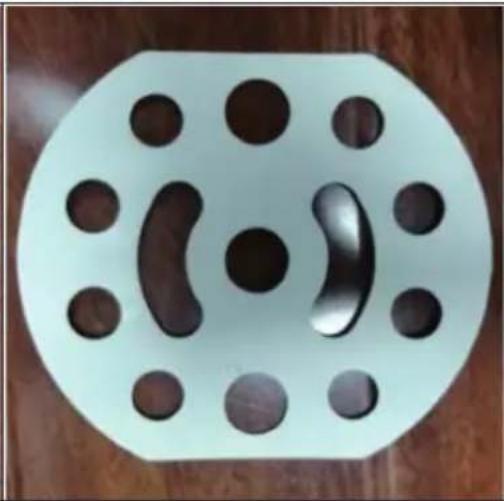

Basket Pressure cover

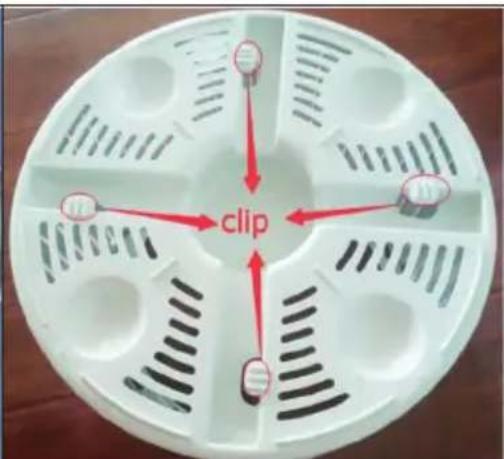

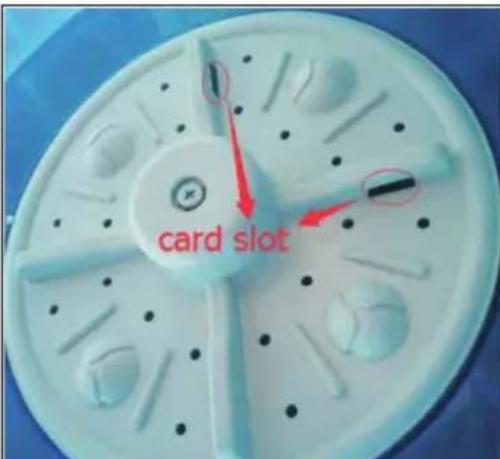

1. Check the position of the clip and the card slot

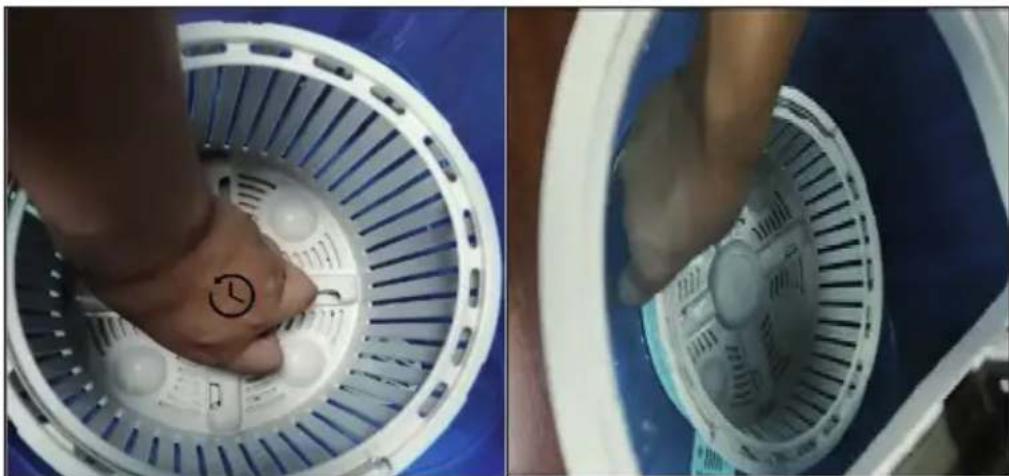

1. Put the basket into the washing machine and match the clip and the card slot, rotate it in place.

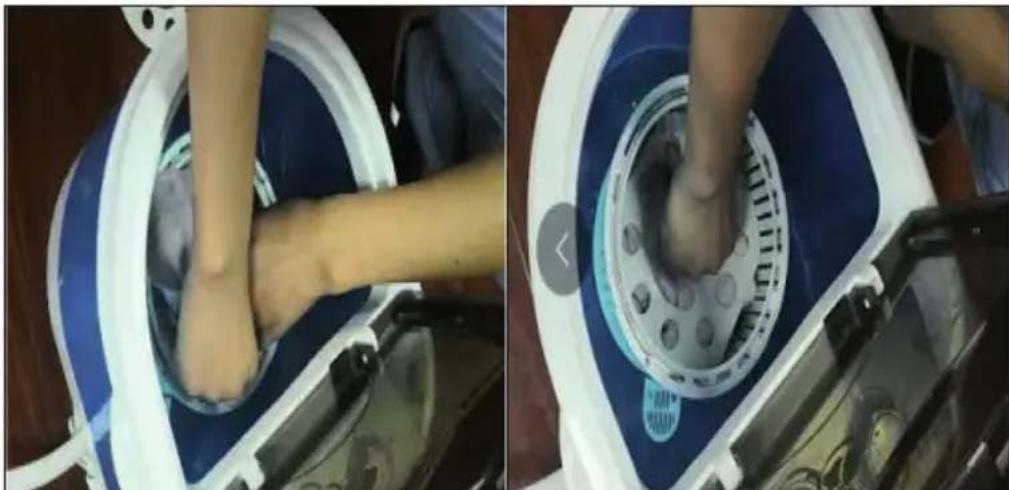

1. Put clothes should be evenly flat, and covered with a pressure cover.

DEHYDRATION FUNCTION

1. After the washing is completed, put down the drain, clean the water inside the barrel.
2. Place the dewatering basket on the pulsator and turn the dewatering basket counterclockwise to snap into the groove of the pulsator.
3. Put the laundry in the dewatering basket and press it into the cover (to prevent clothes from running out when it is dehydrated), cover the top cover, place the program selector switch in the "dewatering" position, rotate the timer knob. Select the dehydration time according to the type of clothing and begin to dehydrate. If the time setting is too long, or halfway to stop, you can rotate the timer spin counterclockwise to the "off" position, the dehydration basket will soon stop spinning.

Note: clothes should be evenly flat, and covered with a pressure cover, to avoid the uneven placement of the machine caused by shaking.

1. To be dehydrated to the time (dehydration end), open the cover, remove the cover, and take out the clothes to dry.
2. Turn the dewatering basket clockwise and pull it out of the dewatering basket.

Note: When washing, please remove the basket, washing method see the manual. The product of the dewatering basket can only be dehydrated to the clothes without dripping, but can not dry the clothes.

SHOE CLEANING

1	2
Insert the shoe cleaning attachment into the bottom of the washing machine.	Attach the brush to the shoe cleaning attachment.
3	4
Slide the washer onto the screw and insert both parts into the circular hole in the middle of the brush.	Tighten the screw clockwise using a Phillips screwdriver. You can now clean your shoes in the washing machine.

CLEANING AND CARE

• Disconnect the device from the power supply. Observe the safety instructions.
• After you have drained the water from the washing drum, set the controller of the pumps back to standard.
• Remove the lint filter and disassemble it by pressing on the floor from the inside. Clean the fluff filter in warm water.
• After cleaning, reassemble the fluff filter and reinsert it. As soon as it sits properly, you will hear a click.
• Disconnect the appliance from the water supply and attach the drain hose to the appliance.
• Rub off the housing. Use only mild detergents.
• Close the cover and place the washing machine in a well-ventilated place.

Important cleaning instructions

• The electrical components of the device must not come into contact with water during maintenance.
• If the mains cable is damaged, it must be replaced immediately by a specialist workshop.

TROUBLESHOOTING

Problem Possible cause Solution approach
The washing machine isn't running.	Power outage. Check to see if there was a blackout.
	Poor contact in the socket or blown fuse. Check the power outlet and fuse.
	The timer knob has not been turned. Turn the timer knob on the top of the washing machine to select the desired washing time.
The washing machine is not running.	The triangular strap has loosened during transport. Open the rear cover, loosen the motor foot fixing screw, and move the motor back until the triangle strap is firmly seated.
The washing machine suddenly stops.	The triangle band has loosened during transport. Attach the triangular strap
	Voltage too low. Connect the device only to sockets which correspond to the voltage of the device.
	The seal is leaking. Contact a qualified service company for repair.
The water drains off badly or not at all.	The drain is not deep enough. Lay out the drain hose so that the water can drain well.
	The drain hose is kinked. Remove the kink.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
