WSolar100p - Solar panel WESTINGHOUSE - Free user manual and instructions

Product Type	Portable solar panel
Brand	Westinghouse
Model	WSolar100p
Peak Power	100 W
Cell Efficiency	23%
Supply Voltage (Vmp)	17.6 V
Supply Current (Imp)	5.68 A
Open Circuit Voltage (Voc)	21.12 V
Short Circuit Current (Isc)	5.96 A
USB Outputs	1x USB-A (5V/2.4A), 1x USB-A QC3.0 (5V/3A, 9V/2A, 12V/1.5A), 1x USB-C PD45W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A)
DC Output	17.6 V / 100 W via XT-60 connector
Folded Dimensions	63.5 x 53.3 x 5.1 cm (25 x 21 x 2 in)
Unfolded Dimensions	108 x 53.3 x 4.4 cm (42.5 x 21 x 1.75 in)
Operating Temperature	-10°C to 65°C (14°F to 149°F)
Parallel Connection	Possible with WSolar100p or WSolar60p via DC 5.5 mm input
Warranty	2 years (24 months) limited
Package Contents	Solar panel, power cord with connectors, user manual
Maintenance	Clean with a damp cloth, do not immerse in water
Safety	Do not use with incompatible components, do not immerse, do not puncture, do not bend

Frequently Asked Questions - WSolar100p WESTINGHOUSE

What is the maximum power of the WSolar100p solar panel?

The Westinghouse WSolar100p solar panel has a peak power of 100 watts under optimal sunlight conditions.

What types of outputs are available on the panel?

The panel has two USB-A ports (one QC3.0 compatible), one USB-C PD45W port, and one DC output of 17.6V via XT-60 connector.

Can I connect multiple Westinghouse panels together?

Yes, you can parallel the WSolar100p with another WSolar100p or WSolar60p by plugging the DC 5.5mm output of one panel into the parallel input of the enclosure.

Is the solar panel waterproof?

No, the panel is not waterproof. Do not immerse it in water and avoid any contact with liquids. Clean it with a damp cloth only.

What is the voltage of the DC output?

The DC output delivers 17.6V with a maximum current of 5.68A, i.e., a power of 100W.

Can I charge a car battery directly with this panel?

No, it is forbidden to charge a car battery directly. Use the panel with a portable power station or compatible devices.

How should I orient the panel for best performance?

Unfold the panel on a flat surface and tilt it using the rear legs so that it is facing the sun. A sunny day allows optimal performance.

What accessories are included with the panel?

The package contains the solar panel, a power cord with XT-60 connectors, and a user manual.

What is the warranty period?

The limited warranty is 24 months from the date of purchase, covering manufacturing defects and materials.

Can I use the panel in cloudy weather?

Yes, but the output power will be reduced compared to a sunny day. Optimal performance is achieved in full sun.

USER MANUAL WSolar100p WESTINGHOUSE

Thank you for choosing Westinghouse!

PLEASE READ BEFORE RETURNING THIS

PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your Westinghouse purchase, call us at 855-944-3571 to speak with an service representative.

TABLE OF CONTENTS

ABOUT THE SOLAR PANEL 2

GENERAL SAFETY RULES 3

PACKAGE CONTENTS 4

SPECIFICATIONS 4

USERINSTRUCTIONS 5

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Inc.

ABOUT THE SOLAR PANEL

Thank you for purchasing the WSolar100p Portable Solar Panel. Use this solar panel to charge your Westinghouse portable power stations at home or on the go. Before using this solar panel, please read the user manual carefully. Keep it for reference.

ATTENTION: This manual is to help you use the product correctly. Pictures and figures used in this manual are for reference only.

DANGER

Read this manual before using this product. Failure to follow the instructions and safety precautions in this manual can result in damage to the product or personal property, or serious injury or death. DO NOT use the product with incompatible components or alter the product in any way.

GENERAL SAFETY RULES

CAUTION

• SOLAR PANELS ARE NOT WATERPROOF
• DO NOT parallel with any other solar panels outside of the specified models in this manual
  DO NOT charge automotive battery directly
• DO NOT let the solar panels or cord come in contact with corrosive materials
  DO NOT attempt to disassemble the cord or solar panel in any way
  DO NOT step on or pierce the solar panel with any sharp objects
  DO NOT put the solar panel near any open flames
  DO NOT clean the solar panel with water
• Properly clean the panel by gently scrubbing with a wet cloth
  DO NOT immerse the solar panel or cord in water
  DO NOT bend the solar panel
• DO NOT let the devices you are charging to be in direct sunlight or they will overheat and potentially damage them

Westinghouse Outdoor Power Equipment - 3

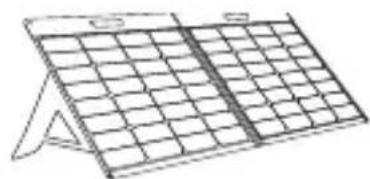

PACKAGE CONTENTS

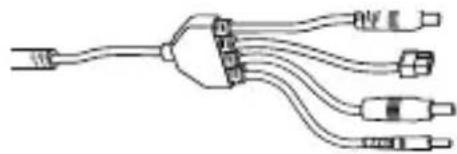

Power Cord

100 Watt Solar Panel

User Manual

SPECIFICATIONS

Model WSolar100p
Peak Power 100W
Cell Efficiency 23%
Power Voltage 17.6V
Power Current 5.68A
Open Circuit Voltage 21.12V
Short Circuit Current 5.96A
USB Output 1 5V/2.4A
USB Output 2 (QC3.0) 5V/3A, 9V/2A, 12V/1.5A
USB Type-C Output (PD45W) 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
DC Output 17.6V/100W
Dimensions Folded: 25in x 21in	x 2in Unfolded: 42.5in x 21in x 1.75in
Operating Temp -10-65	°C | 14-149°F

USERINSTRUCTIONS

Please note: power generated by the solar panel is dependent on weather. A sunny day will allow for optimal performance. A cloudy day may lessen the power output.

1. Unfold the solar panel on a flat surface
2. Unzip the pocket on the back of the solar panel and plug in the cord provided. Be sure to connect the XT-60 plug on the power cord included to the power box on the back of the solar panel.

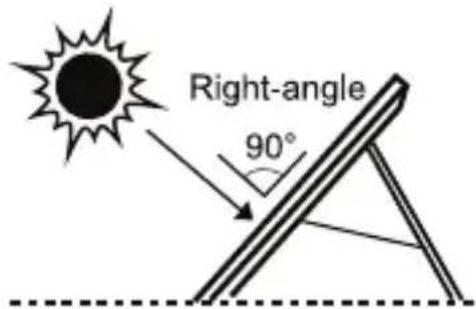

1. Using the legs attached to the back of the solar panel, angle the panel so it is at a 90^ angle to the sun. See illustration below:

Westinghouse Outdoor Power Equipment - 5

POWER STATION COMPATIBILITY You can use the power cord provided to charge Westinghouse Power Stations.

Please see compatibility for each plug below:

Parallel

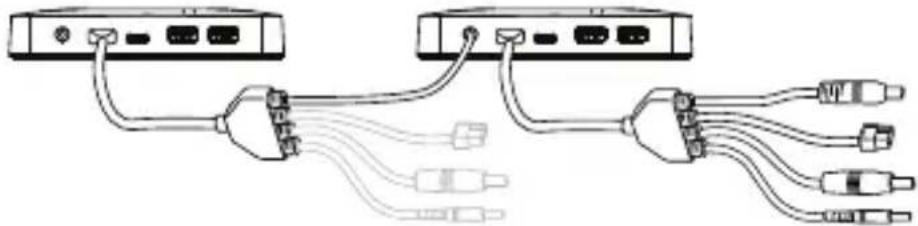

You can parallel this panel with another Westinghouse WSolar100p or WSolar60p. Simply connect the 5.5mm (DC5525) output plug from another Westinghouse panel into the Parallel DC Input 5.5mm port on the solar panel power box.

Westinghouse Outdoor Power Equipment - 6

WARRANTY

The product is covered by a limited warranty from Westinghouse Outdoor Power Equipment for the original purchaser that covers the product from defects in workmanship and materials for 24 months from the date of purchase (damages from normal wear and tear, alteration, misuse, neglect, accident, service by anyone other than authorized service center, or act of God are not included.) Please contact Westinghouse Outdoor Power Equipment service at [phone].

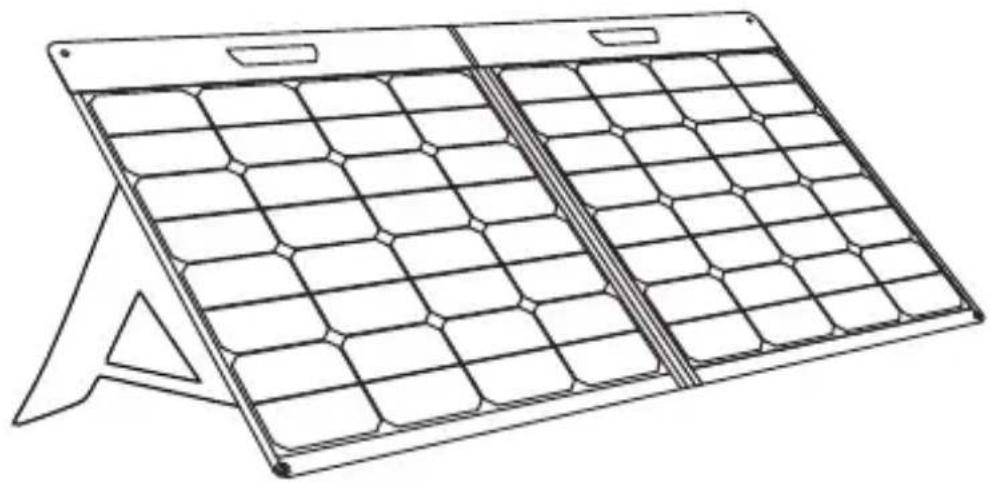

MANUAL DE USUARIO

WSolar100p

Westinghouse Outdoor Power Equipment - 9

iATENCLON!

Westinghouse Outdoor Power Equipment - 12

COMPATIBILIDAD CENTRAL ELECTRICA

El enchufe de 8 mm (DC7909) funciona con
Westinghouse iGen200s, iGen300s e iGen600s

El enchufe de 5,5 mm (DC5521) funciona con
Westinghouse iGen160s

PARALELO

$$ 1 0 0 W \quad 1 0 \theta W = 2 0 0 W $$

Solar panel 1 Solar panel 2

Westinghouse Outdoor Power Equipment - 16

Westinghouse Outdoor Power Equipment - 17

CONTENU DU COLIS

Westinghouse Outdoor Power Equipment - 19

COMPATIBILITÉ DES CENTRALES ÉLECTRIQUES

Westinghouse Outdoor Power Equipment - 20

GARANTIE

WestinghouseOutdoorPower.com

Service Hotline: [phone]

777 Manor Park Drive Columbus, OH 43228

W, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation. Used under license by Westinghouse Outdoor Power Equipment.

All Rights Reserved.
