USER MANUAL CMXPTSG1010NB Craftsman

IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.

POUR TOUTE QUESTION OU TOUT COMMENTAIRE, NOUS CONTACTER.

SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.

1-888-331-4569

WWW.CRAFTSMAN.COM

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

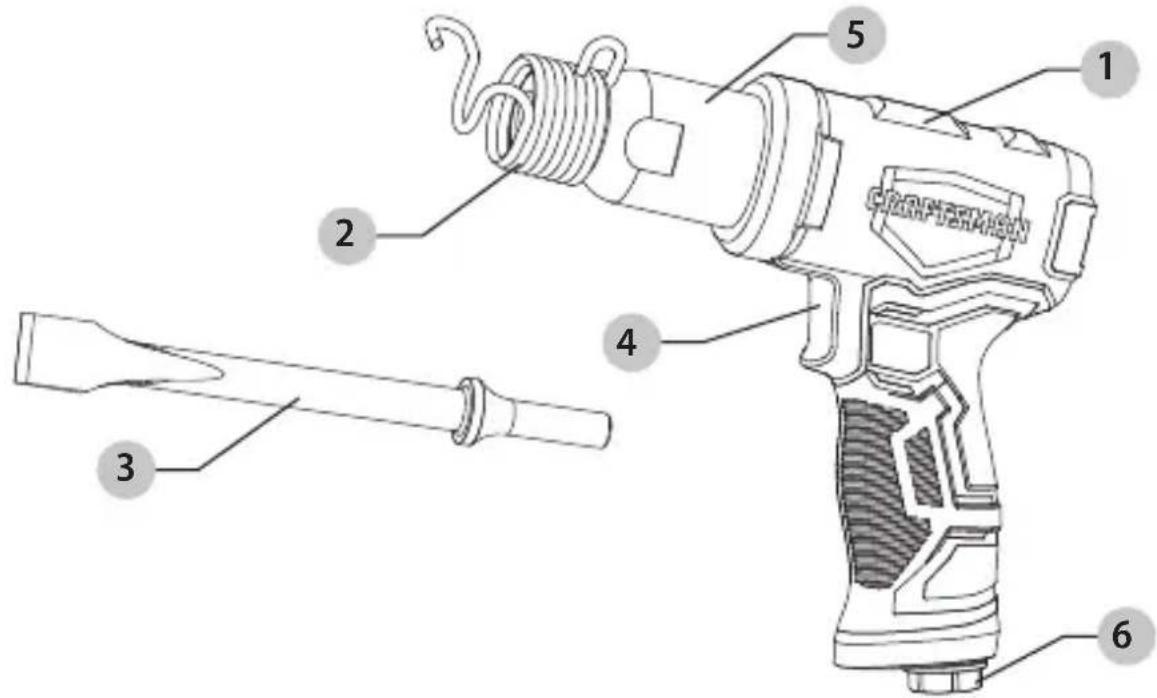

Fig. A

Technical diagram of a CRPTEHMAN electric shaver with numbered parts labeled 1 through 6

Components

1 Air Hammer
2 Spring Retainer
3 Chisel
4 Trigger
5 Cylinder
6 Air Inlet

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: Never modify the product or any part of it. Damage or personal injury could result

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

ENGLISH

Air Hammer CMXPTSG1010NB

Compressor requirements

TM 4.4 SCFM @ 90 PSI

Tool Requirements Exigences relatives aux outils Requisitos de herramientos

IMPORTANT: To operate correctly, this tool requires airflow that is at least 4.4 cubic feet per minute (SCFM) at 90 pounds per square inch (PSI). Check the specifications of your air compressor to be sure that it can support both the minimum SCFM and PSI required. The air hose length could affect how much air pressure the tool is actually receiving. You may need to adjust the air pressure higher on the air regulator to achieve the working pressure of 90 PSI.

Specifications

Model CMXPTSG1010NB
Chisel Shank Diameter	0.401" (10.2 mm)
Stroke Length 1-5/8"
Blow Per Minute 2,800 b.p.m
Average Air Consumption 4.4 scfm
Air Inlet 1/4" npt
Air Hose	3/8" (9.53 mm)
Working Pressure 90 psi

WARNING: Improper operation or maintenance of this tool could result in serious injury and property damage. Read and understand all warnings and operation instructions before using this tool. When using any tool, basic safety precautions should always be followed to reduce the risk of personal injury. Anticipate and be alert for sudden changes in motion during startup and operation of any power tool. Do not operate tool if trigger does not turn the tool on or off. Do not use this tool at heights exceeding 6 feet (2m). Use each tool for its intended function only. Do not use this product in unsafe work conditions. It is always recommended to keep a fire extinguisher and first aid kit near work areas.

WARNING: User must also read the compressor manual and follow all compressor safety instructions

WARNING: Failure to observe and follow safety instructions could result in injury or death.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

WARNING RISK OF EYE OR HEAD INJURY

What can happen How to prevent it

This air powered tool is capable of propelling materials such as fasteners, metal chips, and other debris at high speed which could result in serious injury.	Always wear ANSI approved Z87.1 safety glasses.
	Never leave operating tool unattended.
	Disconnect tool from air supply when tool is not in use or when changing accessories to prevent accidental operation.
Compressed air can be hazardous, propelling objects or particles that can cause injury into soft tissues such as eyes and ears.	For additional protection, use an approved face shield in addition to safety glasses.
Tool attachments can become loose or break and fly apart, becoming projectiles or propelling other objects at the operator or bystanders in the work area.	Make sure spring is on completely and tight prior to use.

WARNING RISK OF LOSS OF HEARING

What can happen How to prevent it

Exposure to noise produced by air tools can lead to permanent hearing loss.

Always wear ANSI S3.19 hearing protection.

WARNING RISK OF FIRE OR EXPLOSION

What can happen How to prevent it

This tool is capable of generating sparks, which can result in ignition of flammable materials.	Never operate tools near flammable substances such as gasoline, naphtha, cleaning solvents, etc.
	Work in a clean, well-ventilated area free of combustible materials.
	Never use oxygen, carbon dioxide or other bottled gases as a power source for air tools.
ENGLISHWARNING RISK OF ENTANGLEMENTWhat can happen How to prevent it
Loose hair, clothing, jewelry or other loose objects can become entangled in the moving elements of this tool and can cause serious injury.	Do not wear loose clothing, jewelry, or anything that may get caught or tangled when using tool.
	Remove any jewelry which may be caught by the tool.
	Always keep hands and body parts away from moving parts.
	Always wear properly fitted clothing and other properly fitted safety equipment when using this tool.
WARNING RISK OF CUTS OR BURNS OR HAND ENTRAPMENTWhat can happen How to prevent it
This tool is capable of causing serious injury if operated improperly, or in a manner for which the tool is not intended.	Keep the working part of the tool away from hands and body.
	Understand the tool's limitations.
	Read and understand instruction manual.
Accessories can become extremely hot through friction where they contact the workpiece.	Make sure hands are kept away from accessories during tool use.
WARNING RISK OF ELECTRIC SHOCKWhat can happen How to prevent it
This tool is not provided with an insulated gripping surface. Contact with a "live" wire will also make exposed metal parts of the tool "live" and can result in electrical shock, electrocution or death.	Never use air tools where they may come in contact with energized electrical wiring.
Air tool accessories that come into contact with hidden electrical wiring could cause electrocution or death.	Thoroughly investigate workpieces and work areas for possible hidden wiring before performing work.

WARNING RISK OF PERSONAL INJURY

What can happen How to prevent it

A tool left unattended or with the air hose attached can be activated by unauthorized persons leading to their injury or injury to others.	Remove air hose when the tool is not in use and store tool in a secure location away from reach of children and untrained users.
Air tools can propel fasteners or other materials throughout the work area.	Use only accessories recommended by the manufacturer.
	Keep work area clean and free of clutter.
	Do not allow children to operate tool, and keep children away from the work area.
	Keep work area well lit.
	Keep bystanders a safe distance away from work area.Anyone entering the work area must wear personal protective equipment.
	Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
Air tools can become activated by accident during maintenance or tool changes.	Disconnect the tool from the air supply during accessory changes, tool changes, maintenance or repair.
	Never carry the tool by the air hose.
	To avoid unintentional operation, never carry the tool with the trigger depressed or engaged.
	Only an authorized service representative should service the tool.
Air tools can cause the workpiece to move upon contact, leading to injury.	Always make sure the workpiece is secure. Use clamps or other devices to prevent movement.
Loss of control of the tool can lead to operator injury or injury to others in the work area.	Before changing accessories, making repairs, or when tool is not in use, shut off the air supply and release/drain air pressure from hose.
	Disconnect tool from air supply and store in a safe location.
	Never use the tool while using medications, drugs or alcohol.
	Keep proper footing at all times when handling tools.Slipping, tripping falling or over reaching are major causes of serious injury and/or death.
ENGLISH
Loss of control of the tool can lead to operator injury or injury to others in the work area.	Keep tool handles dry, clean and free from oil/grease.
	Stay alert. Use common sense. Do not operate tools when you are tired.
There is a risk of bursting if the tool is damaged. Follow lubrication instructions for best and safest operation.
Poor quality, improper or damaged attachments can detach or fly apart during operation, sending projectiles through the work area and causing serious injury.	Always use tool attachments rated for the power tool.
	Never use tools, which have been dropped, impacted, or are damaged.
	Do not apply excessive force to the tool; let the tool perform the work.
	Never use a tool that is leaking air, has missing or damaged parts, or requires repairs.
	Always follow assembly, operation, maintenance instructions.
Improperly maintained tools and accessories can cause serious injury.	Do not use damaged, frayed or deteriorated air hoses and/or fittings.
	Maintain the tool and accessories with care.
	Keep tools clean and properly oiled for best and safest performance.
	Do not lubricate tools with flammable or volatile liquids such as kerosene, diesel or jet fuel.
Using an accessory not intended for a specific tool increases the risk of injury to the operator and everyone else in the work area.	Always use accessories and attachments designed for the tool and the work at hand.
	Do not improvise or modify tools or accessories.
Repetitive motions, awkward positions and exposure to vibration can be harmful to hands and arms.	Discontinue use of tool if discomfort, tingling feeling or pain occurs.
	Consult a physician before resuming use if any of these symptoms occur.

Do not remove any labels – replace any damaged label.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

PREPARATION

Before beginning the assembly of the product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 1 – 3 minutes

Tools Required for Assembly (not included):

• 9/16 in. (14 mm) or adjustable wrench

ASSEMBLY

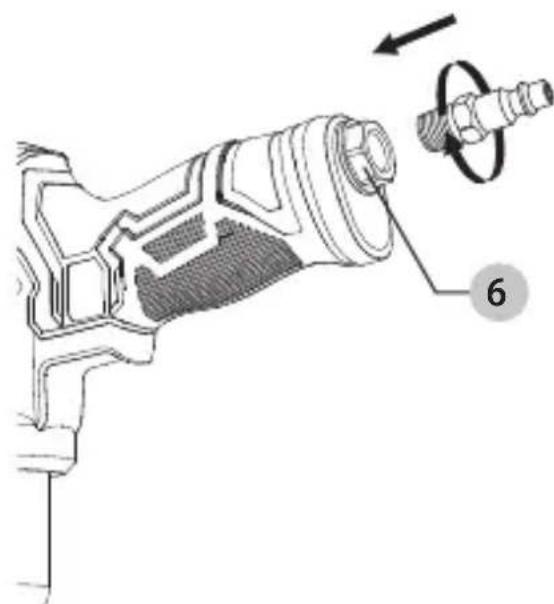

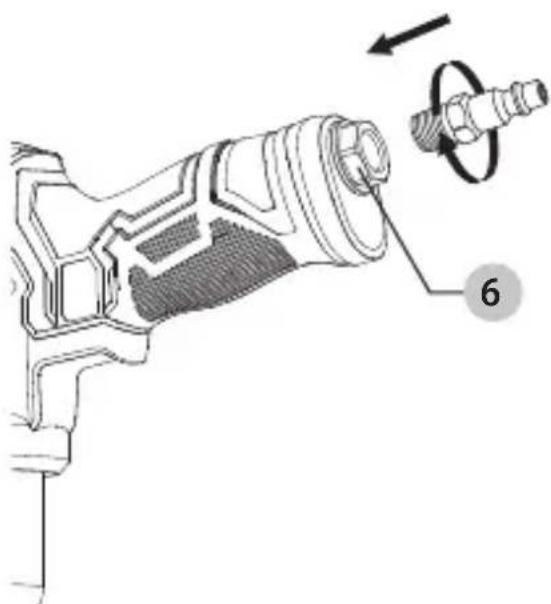

1. Remove plastic air inlet protective cap from air inlet 6.

2. Tighten male plug (not included), turning clockwise with a wrench (not included) for air tight connection. DO NOT OVERTIGHTEN.

NOTICE: Use threaded sealant tape (not included) on the threading of the male plug.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Technical diagram of a drill bit with labeled component 6 and directional arrow indicating motion or assembly.

ENGLISH

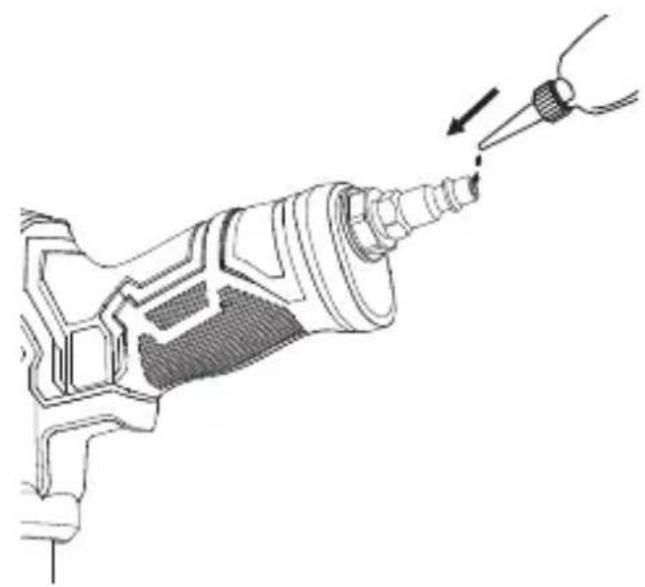

1. Place 2 – 3 drops of air tool oil (not included) into the opening of the male air plug before each use.

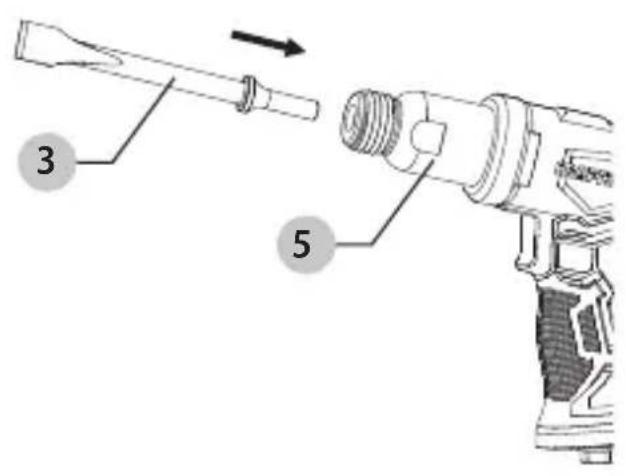

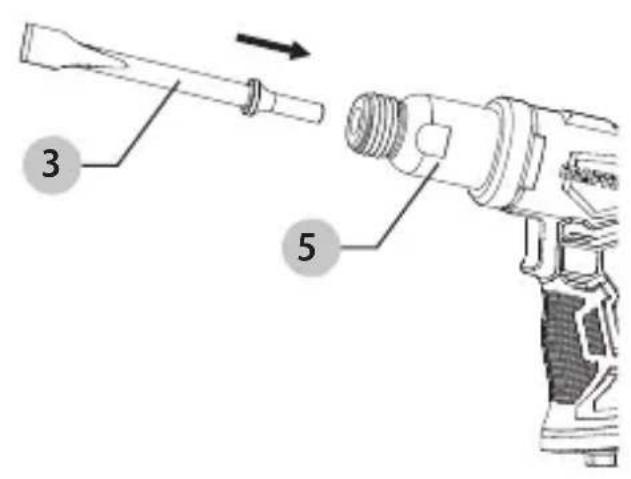

2. Insert chisel 3 into the opening of cylinder 5.

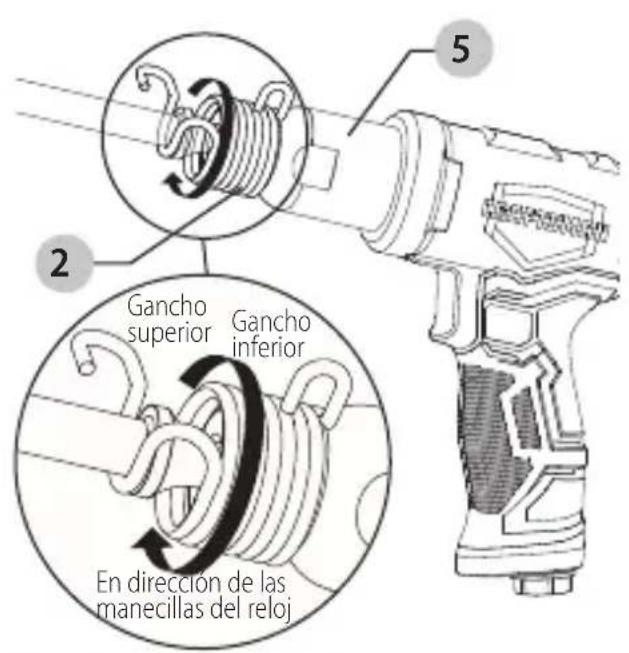

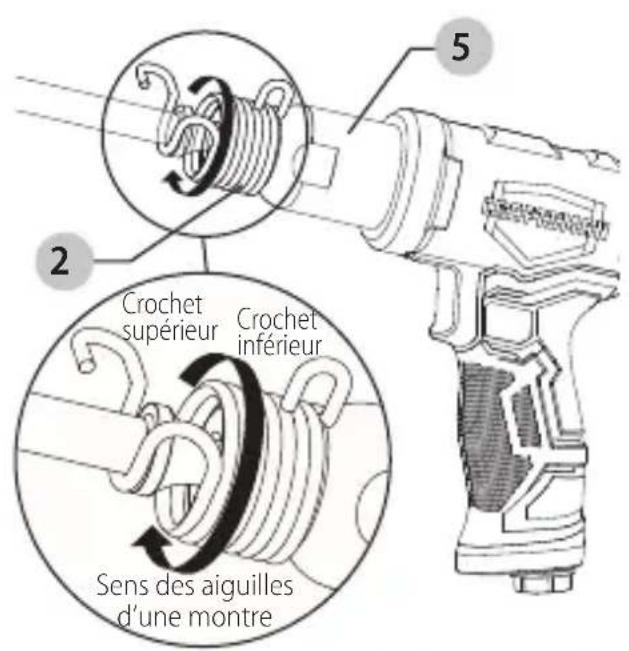

3. Screw the spring retainer 2 onto the cylinder 5 by turning it clockwise until firmly secured.

NOTICE: Use the top hook on the spring retainer to help screw the spring onto the cylinder.

Technical line drawing of a mechanical tool with a pointed tip and arrow indicating process (no text or symbols)

Technical diagram of a handheld device with labeled parts and directional arrow indicating assembly or operation

5 2 Top hook Bottom hook Clockwise

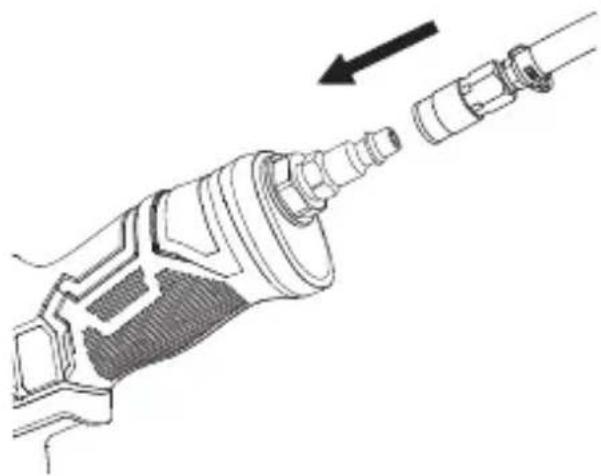

1. Connect the air hose to the male plug. Set the working pressure at 90 PSI for best tool performance.

NOTICE: Working pressure is the amount of air pressure the tool sees when operating.

DISASSEMBLY

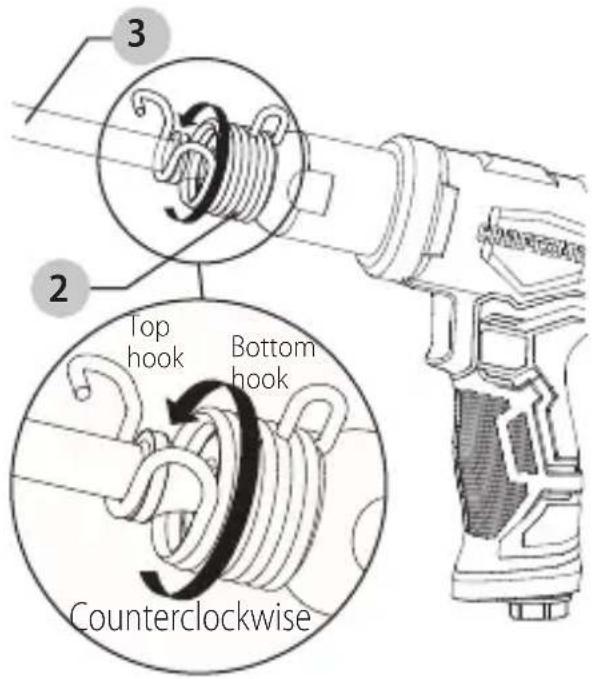

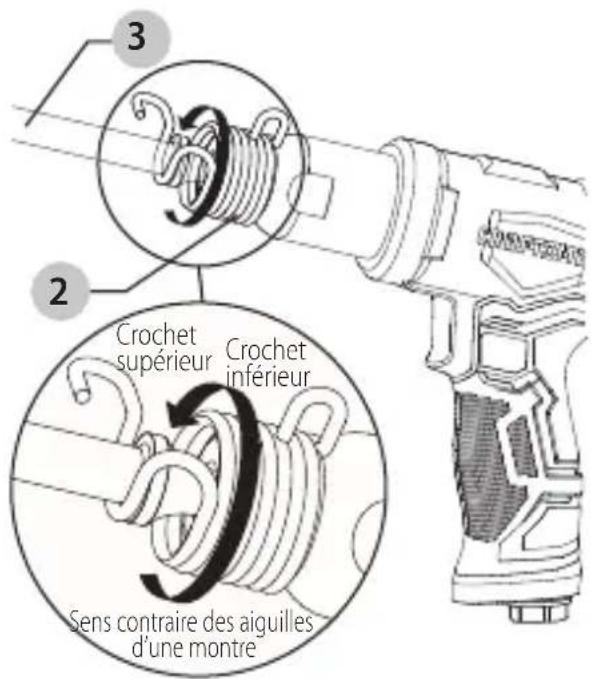

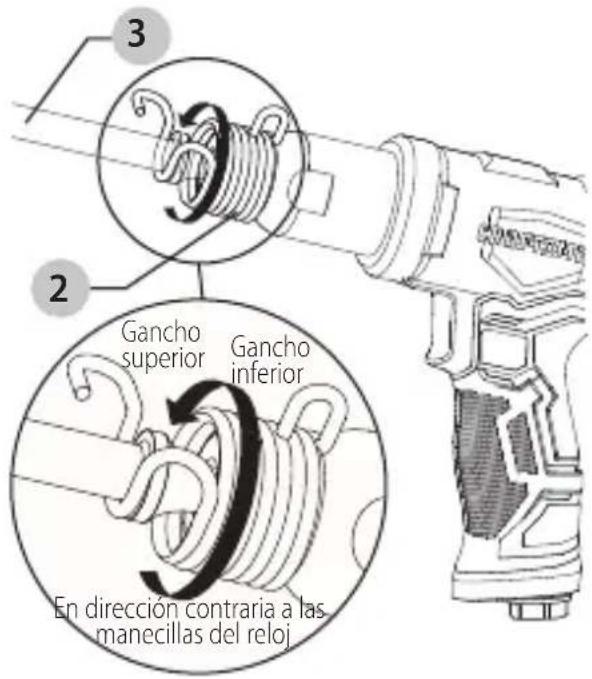

1. To remove the chisel 3, hold onto the bottom hook on the retaining spring 2 and turn the spring counterclockwise or you can insert a screwdriver into the hook to help turn the spring.

2. Refer to assembly instructions to install a different chisel 3.

OPERATING

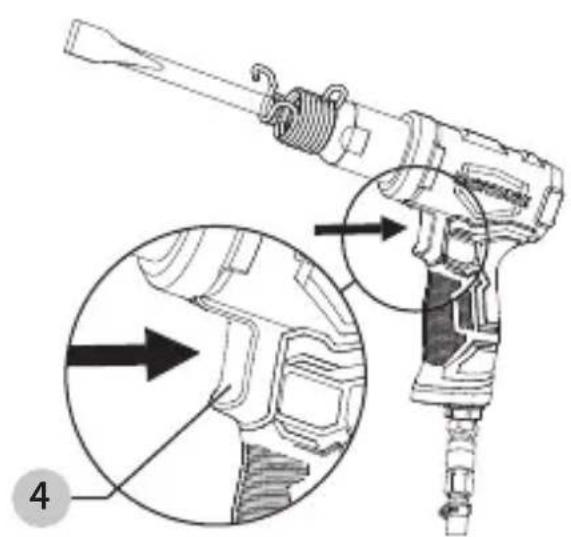

1. Press the trigger 4 to start the tool.

NOTICE: Always be cautious of your hands and finger placement while tool is running. Always disconnect air supply when not in use to prevent accidental firing of the tool.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

3 2 Top hook Bottom hook Counterclockwise

Technical illustration of a mechanical device with cross-sectional view and magnified detail (no text or symbols)

ENGLISH

MAINTENANCE

WARNING: ALWAYS DISCONNECT TOOL FROM THE AIR SUPPLY BEFORE PERFORMING ANY MAINTENANCE ON THE TOOL.

WARNING: Always make sure the tool is properly lubricated during operation. Proper lubrication is shown in this instruction manual.

An in-line oiler (not included) is recommended to help increase tool life and keep the tool properly lubricated. The in-line oiler should be regularly checked and filled with air tool oil as needed. Proper adjustment of the in-line oiler can be performed by placing a sheet of paper next to the tool's exhaust ports while holding the throttle completely open for 30 seconds. When a light stain of oil collects on the paper, the oiler is properly adjusted. Excessive amounts of oil should be avoided.

Recommended lubricants: air-tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting agents and an EP (Extreme Pressure) additive. Consult your local retailer for further assistance in selecting air tool oil best suited for proper lubrication.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Repairs

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please visit CRAFTSMAN.COM or call 1-888-331-4569.

Storage

Before you store the tool, make sure you do the following:

1. Review the Maintenance section on the preceding pages and perform scheduled maintenance as necessary.
2. Tool must be well cleaned and lightly lubricated before storing.
3. Store the tool in a dry, safe place out of the reach of children.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.craftsman.com/registration

ENGLISH
TROUBLESHOOTINGWARNING: If the tool runs slowly or will not operate, check these possible problems and take the required corrective action:PROBLEM CAUSE CORRECTION
Tool runs slowly or will not operate.	Grit or gum in tool. Flush the tool with air-tool oil or gum solvent.
Tool runs slowly or will not operate.	No oil in tool. Lubricate the tool.
Tool runs slowly or will not operate.	Low air pressure. Adjust the regulator on the tool to the maximum setting.Adjust the compressor regulator to tool maximum of 90 PSI.NOTE: Air hoses may cause up to 15 PSI loss in pressure, so you may need to set a higher compressor output to maintain the required pressure at the tool.
Tool runs slowly or will not operate.	Air hose leaks. Tighten and seal hose fittings if leaks are found. Use sealing tape.
Tool runs slowly or will not operate.	Low air pressure. Be sure the hose is the proper size. Long hoses or tools using large volumes of air may require an internal diameter of 1/2 in. I.D. or larger, depending on total hose length.Do not use multiple hoses connected together with quick-connect fittings. This causes additional loss of pressure and reduces the tool power. Use single hoses of the proper length.
Tool runs slowly or will not operate.	Moisture blowing out of tool exhaust. Water in compressor tank; drain tank (See air compressor manual).Oil the tool and run until no water is evident. Oil the tool again and run 1 – 2 seconds.

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call

1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

CRAFTSMAN®

is a registered trademark of Stanley Black & Decker, Inc., used under license. est une marque déposée de Stanley Black & Decker, Inc., utilisée sous licence. es una marca registrada de Stanley Black & Decker, Inc., utilizada bajo licencia.

© 2019 CRAFTSMAN

Product Manufactured by: SHINING GOLDEN YIDA Produit fabriqué par: SHINING GOLDEN YIDA Producto fabricado por: SHINING GOLDEN YIDA LICENSEE NAME: SHINING GOLDEN YIDA LICENSEE ADDRESS: PO BOX 6564 AKRON, OH 44312

Technical diagram of a CRPFTERMIS tool with numbered parts for identification and assembly reference.

Composants

TM 4.4 SCFM @ 90 PSI

Tool Requirements
Exigences relatives aux outils Requisitos de herramientos

RISQUE DE COUPURES, DE BRÛLURES OU DE COINCEMENT D

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Technical diagram of a mechanical component with labeled parts and directional arrow

FRANÇAIS

Technical line drawing of a mechanical tool with a pointed tip and arrow indicating process (no text or symbols)

Technical diagram of a mechanical device with labeled parts 3 and 5, showing a tool and directional arrow.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical diagram of a mechanical device with labeled parts and magnified detail view

ENTRETIEN

AVERTISSEMENT : COUPEZ TOUJOURS L'ALIMENTATION EN AIR AVANT D'EFFECTUER TOUT ENTRETIEN DE L'OUTIL.

PROBLÈME CAUSE MESURE CORRECTIVE

Technical diagram of a handheld welding torch with numbered parts for identification

Componentes

TM 4.4 SCFM @ 90 PSI

Tool Requirements

Exigences relatives aux outils

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

ESPAÑOL

Technical line drawing of a mechanical tool or probe with a pointed tip and directional arrow (no text or symbols)

Technical diagram of a mechanical device with labeled parts 3 and 5, showing a tool and directional arrow.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical device with cross-sectional view and magnified detail (no text or symbols)

ESPAÑOL

MANTENIMIENTO
