USER MANUAL QP 6500 Orbegozo

Purple hairless machine with mesh grille and white handle (no visible text or symbols)

QP 6500

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Exploded view diagram of a hair dryer with numbered parts for identification

ESPAÑOL	1.Tapa protectora 2.Pieza metállica 3.Cuchilla interior 4.Ventilador 5.Depósito 6.Interruptor 7.Piloto indicador 8.Conexión para carga 9.Cepillo de limpieza
ENGLISH	1.Protective cover 2.Metal part 3.Inner blade 4.Fan 5.Tank 6.Switch 7.Indicator light 8.Charging connection 9.Cleaning brush
FRANÇAIS	1.Couvercle de protection 2.Partie métallique 3.Lame intérieure 4.Ventilateur 5.Réservoir 6.Interrupteur 7.Voyant lumineux 8.Connexion de charge 9.Brosse de nettoyage
PORTUGUÊS	1.Tampa protetora 2.Parte metálica 3.Lâmina interna 4.Ventilador 5.Tanque 6.Interruptor 7.Luz indicadora 8.Conexão de carregamento 9.Escova de limpeza
CATALÀ	1.Tapa protectora 2.Peça metàl·lica 3.Fulla interior 4.Ventilador 5.Dipòsit 6.Interruptor 7.Pilot indicador 8.Connexió per a càrrega 9.Raspall de neteja

ESPAÑOL

Illustration of a hand pressing down on a shirt with arrows indicating downward pressure (no text or symbols)

MODO DE EMPLEO

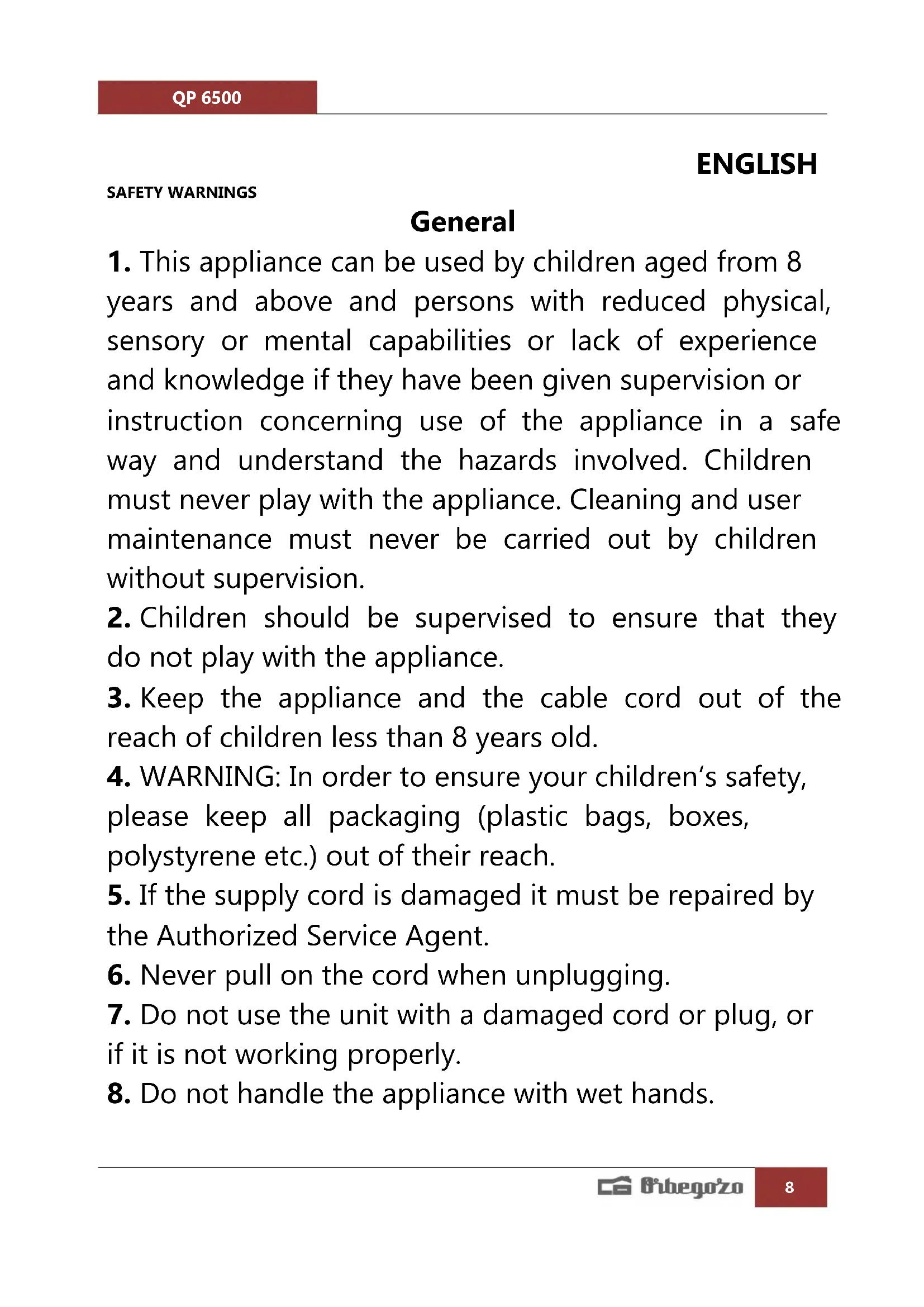

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
14. WARNING: In case of misuse, there is a risk of possible injury.

Specific:

• Do not use it without the grid or without the lint tank.
• Do not lubricate.
• Do not immerse in water.
• Keep out of the reach of children.
• Do not use the fabric shaver for any other purpose than that for which was designed.
• Do not use it for every thin material such as silk, lamb's wool or irregular surface.
• Do not press hard against the clothes / fabrics
• Do not clean this item with water or other chemical solutions

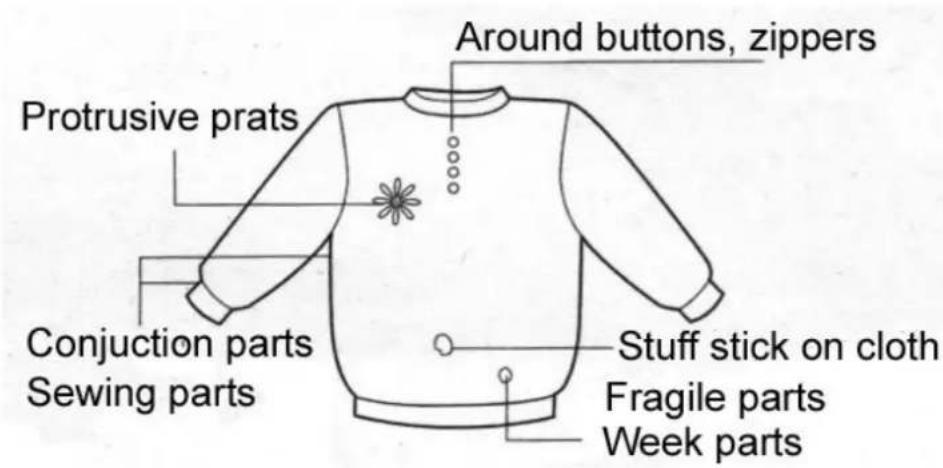

Protrusive prats Conjunction parts Sewing parts Around buttons, zippers Stuff stick on cloth Fragile parts Week parts

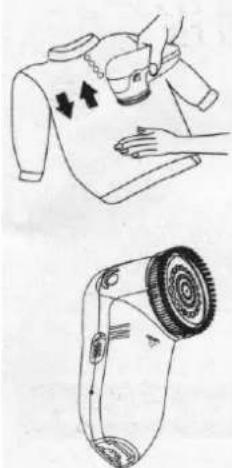

Recharging the batteries

1. This appliance can be charged among the right voltage printed on the rating label.
2. Turn off switch, connect with power cord, and insert the plug into power supply receptacle. When the charging indicate lamp turns red, charge is processing.
3. Unplug the appliance after recharging is completed.
4. Standard recharging time is 8-12 hours.
5. Try to avoid charging for last more than two times normal charge time. When the room temperature is above 40 degree Celsius or below 0 degree Celsius, charging the battery will be inefficient and shorten the battery life.
6. When the power of trimmer is used up, insert the plug into 230VAC power supply, turn on the switch (better after 30 seconds charing), When the indicate lamp turns green, it can trim cloth fluff directly.

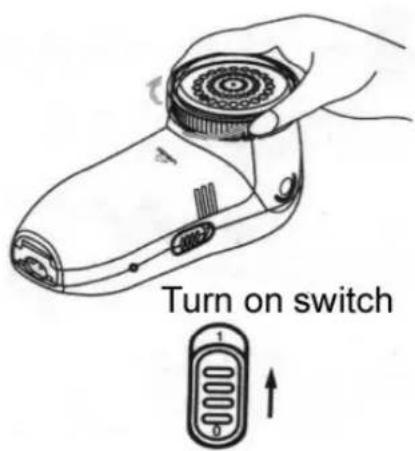

Turn on switch

Illustration of a hand using a sewing machine to clean a garment with a circular tire (no text or symbols)

DIRECTIONS FOR USE

1. Drive the foil tightly (Do not turn on trimmer when the foil is loosen).
2. Trun on the switch.
3. Move the trimmer on flat cloth gently.
4. Dust brush attached, sweep dust inside cloth, with fluff trimming simultaneous.

Lay your clothes on a flat level surface, preferably an ironing board or pad.Push the "ON" switch and begin to shave lint or fuzz off your clothes. The clear fluff box will collect lint and fibbers removed from clothes and can be easily removed to discard the lint and fibbers.

Tips for better use

How to remove lint faster

Move the device following the pattern of the fabric

Scroll from left to right

With protruding parts

Avoid protruding parts

Scroll the pattern vertically and horizontally

Fine fabric

Fold the garment and remove lint on an ironing board

CLEANING

Before cleaning, turn the On/Off switch to the 'stop' position and remove the batteries. To empty the transparent fluff box, remove and clean using the brush provided. Clean the grille using the brush provided.

To clean the inside of the grille and the cutters zone, proceed as follows: Pull the grille support and press down to secure.

When storage box is filled about 80%, clean storage box and inside cutter should be performed.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation,

that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

FRANÇAIS

MESURES DE SÉCURITÉ

* NOTE: The period after which the equipment enters the specified mode automatically is 0 minutes.

MODÈLE	QP 6500
ALIMENTATION	5W
CONNEXION	-
DIMENSIONS	65 / 152 / 72 mm
POIDS	0.28 Kg
MODE ARRÊT	<0,5W
