USER MANUAL G8MSAAS1RRS GE

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.

Whether you grew up with GE Appliances, or this is your first, we're happy to have you in the family.

We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too.

Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

GE APPLIANCES

GE is a trademark of the General Electric Company. Manufactured under trademark license.

Table of Contents

SAFETY INFORMATION 4
GETTING STARTED 6
CONTROLS 7
PARTS INCLUDED 7
USING YOUR STAND MIXER 8
TIPS 10
CARE AND CLEANING 11
TROUBLESHOOTING 11
LIMITED WARRANTY 12
CONSUMER SUPPORT 13

Product Registration

Write the model and serial numbers here:

Model #

Serial #

Find these numbers on the label on the back of the unit.

WARNING

Read the instructions carefully before using the appliance for

the first time. Save these instructions for reference. The appliance is designed for domestic use and may only be operated in accordance with these instructions for use. Always handle with care and warn other users of potential danger.

IMPORTANT SAFEGUARDS

Always follow these safety precautions when using this appliance.

• Read all instructions before using
• DO NOT immerse the appliance in water or any other liquids. This will damage the appliance and be a risk of an electric shock.
• Use only a 120V , 60Hz standard electrical supply that is properly grounded in accordance with the National Electric Code and local codes and ordinances.
• Make sure the appliance is set up on a flat and steady surface.
• Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
• Avoid contacting moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from attachments (beaters, whisks, dough hook, etc) during operation to reduce the risk of injury to persons, or damage to the mixer.
• Do not use outdoors. Household use only.
  Use this product only for its intended purpose as described in this user manual.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children to touch the appliance or the power cord during the operation.
  DO NOT let the appliance run unattended.
• Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• To reduce the risk of fire or electric shock, do not attempt to disassemble, repair, modify, or replace any part of your product.
• If the power cord is damaged, it must be replaced by the manufacturer. DO NOT replace the power cord on your own.
• Do not operate any appliance with a damaged cord, plug, after the appliance malfunctions, is dropped, or damaged in any manner. Contact GE Appliances at the website listed in the Contact Us section for information on examination, repair, or adjustment.

SAVE THESE INSTRUCTIONS

WARNING

Read the instructions carefully before using the appliance for

WKHUUVWUWLPHU6DYHUWKHVUQLVWUXFWLRQVIRUUHIUHQFH7KHUD$SOLDQF domestic use and may only be operated in accordance with these instructions for use. Always handle with care and warn other users of potential danger.

IMPORTANT SAFEGUARDS

Always follow these safety precautions when using this appliance.

20127XVHDQH[WHQVLRQISRZHUFRUG

• Do not let cord hang over edge of table or counter.
• Do not let cord contact hot surface, including the stove.

7KHXVHRI DFFHVVRULHVQRW LQFOXGHGLQWKHER[LVQRWUHFRPPHQGHG dangerous and should be avoided.

• Remove beater, whisk, and dough hook from appliance before washing.
  60RZOSRXUOKRWOLXTLGVLQWKHUIPL[LQJIERZOWRIDYRLGVSODVKLOJDQGE
  127WRXFKDFGLFIRRGURVRDNDDFFHVVRULHVLQIDFLGLFOLTXLG
• Do not exceed the maximum capacity as indicated on the accessories (bowl).

)ROORZWKHITXDQWLWLVSSURFHVVVLQJWLPHDQGIVSHHGZKHQXVLQJWKHIV tools, as indicated in the user manual.

7KRURXJKO\FOHDQWKHSDUWVWKDWFRPHLQWRFRQWDFWZLWKIRRGEHIR

DSSOLDQFHIRUWKH;UVWWLPH5HIHUWRWKHLQVWUXFWLRQVDQGWDEOH in the user manual.

• Let hot ingredients cool down before processing them. Do not add ingredients

60^ or hotter than ambient temperature. Always let the appliance cool down to room temperature after each batch that you process.

WARNING

K OF FIRE OR ELECTRIC SHOCK

YTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE ANY COVER OR OUTER HOUSING COMPONENTS OF THE APPLIANCE.

YDo not attempt to repair or replace any part of your stand mixer unless it is specifically recommended in this manual. All other servicing should be performed by authorized service personnel.

PROPER DISPOSAL OF YOUR APPLIANCE

LVSRVHRIUHF\FOH\RXU\DSSOLDQFH\LQ\DFFRUGDQFH\ZLWK)HGHUDO\DQG//RF Regulations. Contact your local authorities for the environmentally safe disposal or recycling of your appliance.

Before First Use

Read all safety instructions before the first use.

Be sure to clean your stand mixer as listed in the Care and Cleaning section of this manual.

Auto Stop

The stand mixer will automatically turn off after 10 minutes of continuous operation. This prevents potential safety problems and prolongs the life cycle of the appliance.

This mixer will automatically shut off if you unlock the tilt head and lift while in operation. If this happens the dial must be reset to "0" before the mixer will turn on again.

Mixing Bowl Notes

Turn the control knob to the 0 position (Off position) before starting.

This stand mixer has a capacity of approximately 414 US cups flour or 2 12 lbs. of dough.

Follow the recommended quantities, processing time, and speed as indicated in this owner's manual. DO NOT exceed suggested processing speed, doing so could harm the appliance.

Batter

When making cake batter with the beater attachment, be careful to not over beat the batter. This can add extra air into the batter and cause the cake to mound in the center and crack while baking.

Whisking

Always make sure your bowl and accessories are clean and dry when you are whisking egg whites or whipping cream.

The weather can affect your egg whites. Humidity can make it difficult to create the stiff white peaks due to moisture in the air.

A great way to create whipping cream is to chill the whisk and bowl in your refrigerator for 20-30 minutes before whisking.

Dough

It is sometimes helpful to start blending your dough with the beater accessory until a loose dough is formed. Then switching the beater for the dough hook. This is not a required step but can be helpful with wet doughs.

Make sure to stay at the recommended dough speed to prevent over kneading.

Frequent scraping of the bowl will prevent the dough from sticking to the bottom of the bowl or climbing the dough hook, especially when you have a very wet dough.

Use the control knob to select your desired speed.

NOTE: Make sure the control knob is Off, in the "0" position when not in use, before unplugging, and before locking the tilt head.

See page 8 for mixing chart.

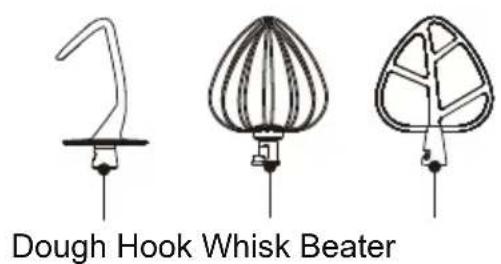

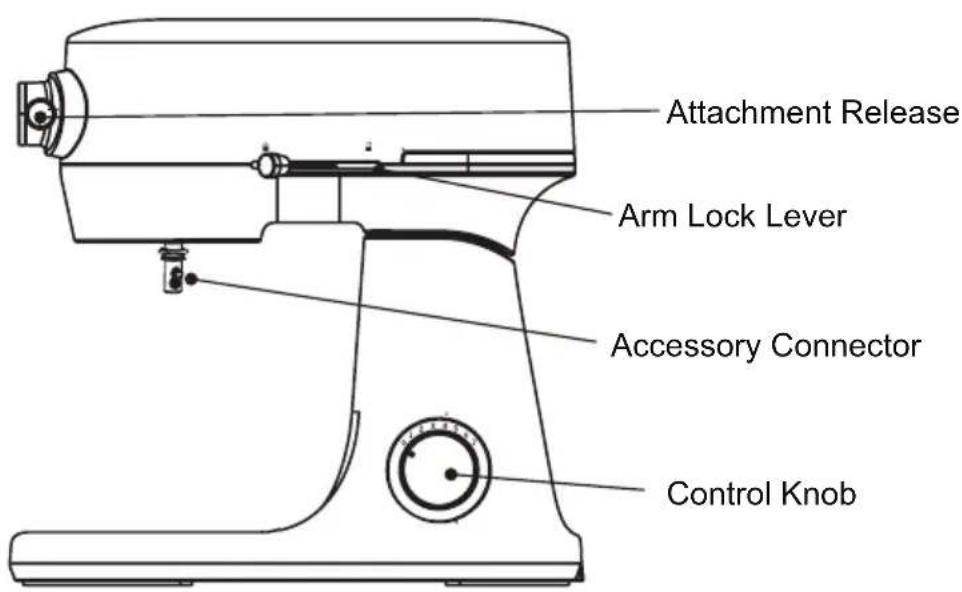

Parts Included

Mixing Chart

Accessory Speed Purpose
Beater	1 Slow stir ingredients.
	2-4 Stir wet batters, combine mixtures, blend frosting, or mash potatoes.
	5-6 Cream butter or blend heavier batters with nuts or chips.
Dough Hook	2 Mix and knead doughs.
Whisk	5-7 It is recommended to slowly increase to higher speeds and then maintain at high speeds for whipping cream or egg whites, until desired result.

Tips

7R DYRLG VSODWWHU DOZDV LQFUHDVH VSHHG JUDGXDOO

• Whisk: before whisking egg whites or cream, make sure that the bowl and the whisk are dry and free from grease.
• Kneading: use the dough hook to knead yeast dough for bread and pizzas.

$GMXVWWKH DPRXQW RI OLTXLG WR IRUP WKH GRXJK DFFRUGLQJ WR temperature condition.

• If you want to re-knead the dough with your stand mixer, press the dough down to the bottom of the bowl to avoid the dough wrapping on the tool. Make sure that you re-knead the dough within the recommended speed.

Using your Stand Mixer

Appearance may vary slightly

Make sure the mixer is unplugged and turned off.

2 Release the lock lever by sliding it to the right.

Tilt the mixer head up until it locks into place.

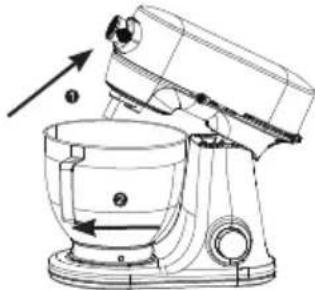

Place the bowl in the bowl base and turn it clockwise until it locks into place.

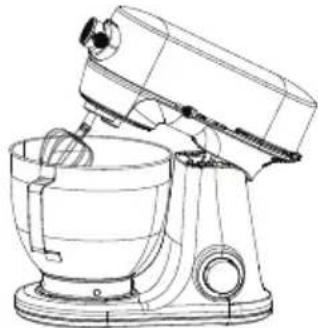

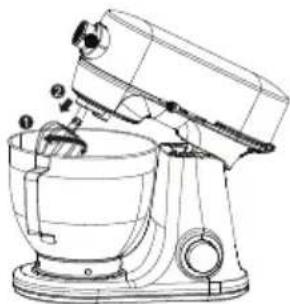

5 Insert your desired attachment onto the output shaft. Press up until the attachment cannot go up any further. Then turn the attachment counter-clockwise so the attachment hooks over the pin on the shaft. See the mixing chart on page 8 for a guide on attachment use.

Release the lock lever by sliding to the right and pushing the head of the mixer down into the bowl until it clicks into place.

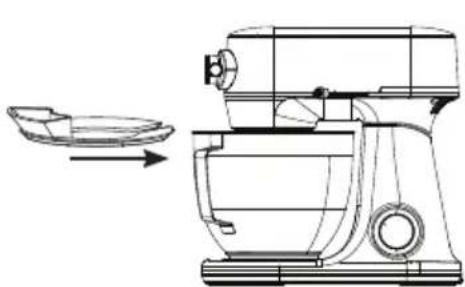

Slide the bowl lid onto the Plug the mixer into an bowl. (Bowl lid is optional) outlet.

9 Select desired speed by rotating the control knob.

Using your Stand Mixer

Appearance may vary slightly

When finished, rotate the control knob back 11 Unplug the mixer from the outlet to the "0" position.

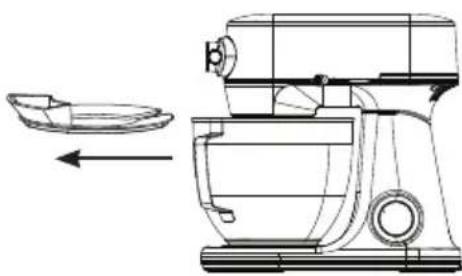

Slide the bowl lid from the bowl.

Tilt the mixer head up until it clicks into place.

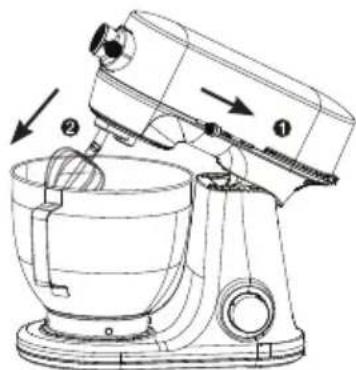

Remove the attachment by turning the attachment clockwise and pull to remove from the mixer.

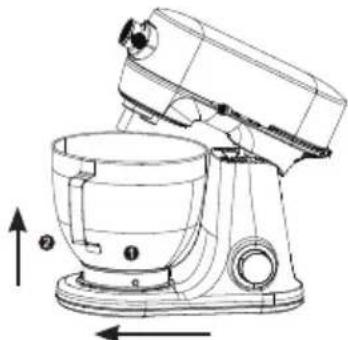

Remove the bowl by turning counterclockwise and lifting up.

Release the lock lever by sliding to the right and pushing the head of the mixer down.

Care and Cleaning

WARNING

Unplug the appliance before cleaning.

Refer to the table below before cleaning the parts with water, a damp cloth, or using any parts in the dishwasher.

1. Clean the main unit with a damp cloth.
2. Clean the other parts in hot water either in the sink or dishwasher after referring to the table.
3. Store the appliance in a dry place after cleaning.

Part Sink Dishwasher Damp Cloth
Stand Mixer Body			✓
Bowl / Bowl Lid	✓	✓	✓
Whisk	✓	✓	✓
Beater	✓		✓
Dough Hook	✓		✓

Troubleshooting

Problem	Cause Solution
Appliance does not work/does not turn on.	No power is connected to the appliance.	Check that the cable and plug are connected to power. ■ Check GSI plug.
Appliance is making weird noises	There is more than the recommended amount of ingredients in the mixing bowl.	Immediately turn off the appliance, unplug from the outlet, and remove some of the food.
	There is a malfunction with the appliance.	Immediately turn off and unplug the unit. Visit geappliances.com for support
Appliance is smoking/producing weird smells	There is a malfunction with the appliance	Immediately turn off and unplug the unit. Visit geappliances.com for support

GE Appliances Limited Warranty

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit geappliances.com/contact for product care/maintenance self-help.

To initiate a warranty claim, please visit geappliances.com/contact, or call 1-800-GECARES. Please have your model number and serial number available. Return and packing instruction information will be provided at that time.

For the Period of: GE Appliances Covers

One Year

From the date of the original purchase

If the stand mixer fails due to a defect in materials or workmanship, during the limited one-year warranty, GE Appliances will either repair your product, replace your product with a new or remanufactured product, or refund the purchase price of the product at GE Appliances sole discretion.

What GE Appliances Will Not Cover:

Service trips to your home.
- Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
- Replacement of house fuses or resetting of circuit breakers.

• Damage caused after delivery.

• Damage to the product caused by accident, fire, floods or acts of God.

• Incidental or consequential damage caused by possible defects with this appliance.
  Labor and other charges to install and/or remove the product

EXCLUSION OF IMPLIED WARRANTYES

Your sole and exclusive remedies are product exchange or refund as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

For US Customers: This limited warranty is extended to the original purchaser for products purchased for home use within the USA. In Alaska and Hawaii, the limited warranty does not include the costs of shipping units.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company

Louisville, KY 40225

For Customers in Canada: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warrant service will be provided in areas where it is available and deemed reasonable by Mabe to provide. For extended warranty information, visit geappliances.ca/ purchase-extended-warranty

Warrantor Canada: MC Commercial, Burlington, Ontario, L7R 5B6

Consumer Support

Service and Registration

SHINWHUHUXRXUQHZDSSOLDQTHRQUOIQLQHDWBRXJDFRQYHQLHQHTF7PHQHSURGXWTUHHNW for enhanced communication and prompt service under the terms of your warranty, should the need arise.

Register your appliance at GEAppliances.com/register.

In Canada, service.geappliances.ca/Serviceien CA

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our website with all the details including your phone number, or write to:

In the US: General Manager, Customer Relations | CE Appliances, Appliance Park | Louisville, KY 40225
CPB sales representative

GPApplicantss.com/contact

QIQUIDQDGDLUHFWRUIH&RQVXPHLJSHODWLRQVGNRRPPFHTDOLQHLIXWHIHIDDPWRPLTMoncton,N.B.EIC 9M3GEAPlanco.ca/en/contact-us
