USER MANUAL CMEHTS824 Craftsman

IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.

POUR TOUTE QUESTION OU TOUT COMMENTAIRE, NOUS CONTACTER.

SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.

1-888-331-4569 WWW.CRAFTSMAN.COM

English (original instructions) 1

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

ANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(⚠️ without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Fig. A

1297 3 6 8 10 4 5

1 Blade
2 Guard
3 Bail handle
4 Lock off button
5 Trigger switch
6 Switch handle
7 Cord retainer
8 Power Saw
9 Rotate button
10 Sheath

WARNING: Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

24" (610mm) Twist Handle Hedge Trimmer CMEHTS824

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under

the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition

that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hedge Trimmer Safety Warnings

• Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury.
• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast after turn off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the switch handle with the cutter blade stopped. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade
• Keep extension cord away from cutting area. During operation the extension cord may be hidden in shrubs and can be accidentally cut by the blade.
• Check the hedge for foreign objects, e.g. wire fences.

ANGER: Keep hands away from blade. Contact with blade will result in serious personal injury.

WARNING: Wear eye protection.

WARNING: Do not expose to rain.

WARNING: Only use with bail handle and blade guard properly assembled to hedge trimmer. The use of the hedge trimmer without the proper guard or handle provided may result in serious personal injury.

WARNING: Remove plug from the outlet immediately if the extension cord becomes damaged or cut.

Additional Safety Information

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

WARNING: ALWAYS use safety glasses.

Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust contains

chemicals known to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber.

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper

personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

ENGLISH

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2)		100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12	16 16 14 12
12 16 14 12 Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

--- or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

IPM ____ impacts per minute

RPM......revolutionsper minute

sfpm .... surface feet per minute

SPM ...... strokes per minute

OPM....oscillationsper minute

A.....amperes

W.....watts

\~ or AC.....alternating current

≈ or AC/DC....alternatingor direct current

ClassII

Construction

(double insulated)

n_0 ...... no load speed

n......rated speed

earthing terminal

⚠......safety alert symbol

▲......visible radiation

...... avoid staring at light

E....wearrespiratory protection

⑦......weareye protection

O....wearhearing protection

readall documentation

IPXX....IPsymbol

Motor

Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. These tools are factory tested; if this tool does not operate, check power supply.

Intended Use

This hedge trimmer is designed for residential use.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Assembly Tools Required

• Crosshead Screwdriver

Attaching Guard and Bail Handle to Trimmer (Fig. B, C)

WARNING: Only use with bail handle and guard properly assembled to hedge trimmer. The use of the hedge trimmer without the proper guard or handle provided may result in serious personal injury.

The trimmer is shipped with the guard and bail handle attached to the trimmer with a plastic zip tie.

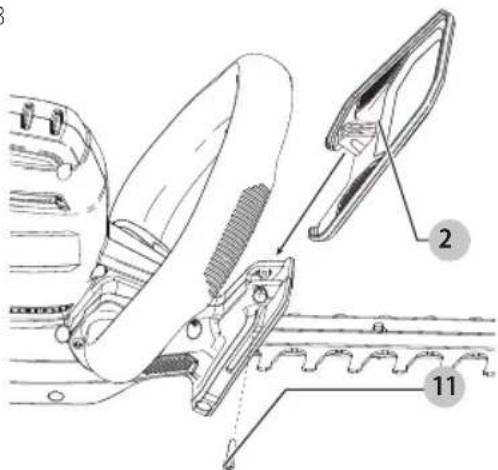

Attaching Guard to Trimmer (Fig. B)

1. Remove guard retaining screw 11 with the crosshead screwdriver (not supplied).
2. Slide the guard 2 fully onto the front of the trimmer housing.
3. Insert the guard retaining screw 11 into the opening on the side of the housing and tighten securely.

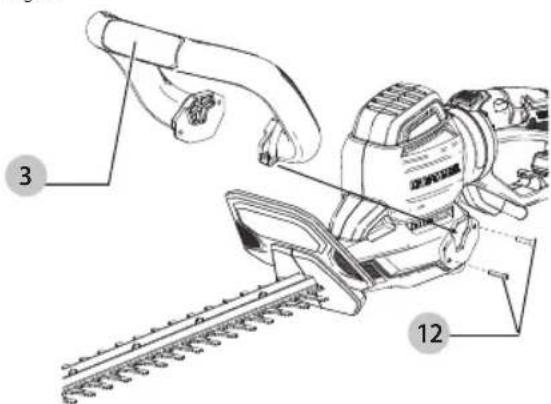

Attaching the Bail Handle (Fig. C)

1. Cut the plastic zip tie.
2. Remove the four screws 12 that are partially run into the trimmer housing (Figure C).
3. Slide the bail handle 3 onto the front of the trimmer housing behind the guard.
4. Insert the four screws into the openings on the side of the bail handle and tighten securely as shown in Fig. C.

English

Fig. B

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a tool and component details.

Fig. C

Technical diagram of a power shaver with labeled parts 3 and 12, showing mechanical components and rail tracks.

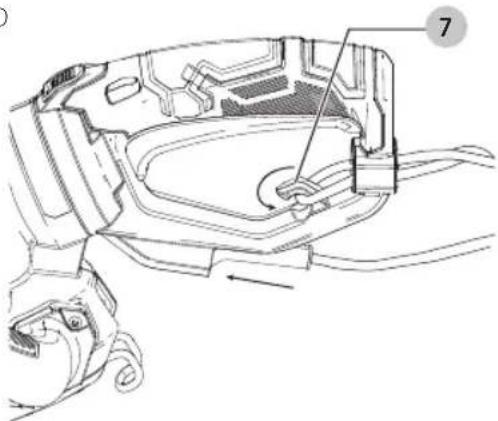

Attaching Extension Cord to Trimmer

(Fig. A, D)

An extension cord retainer is built into the switch handle that helps prevent the tool from coming unplugged.

1. Overlap the pigtail cord with the extension cord and tie the two cords in a knot as shown in Figure D.
2. Double the extension cord several inches from the end. Feed the loop onto the cord retainer 7 as shown in Fig. D.
3. Gently tug on the cord to insure that it is firmly retained in the trimmer's handle.

Fig. D

Technical diagram of a car interior showing labeled components and directional arrows

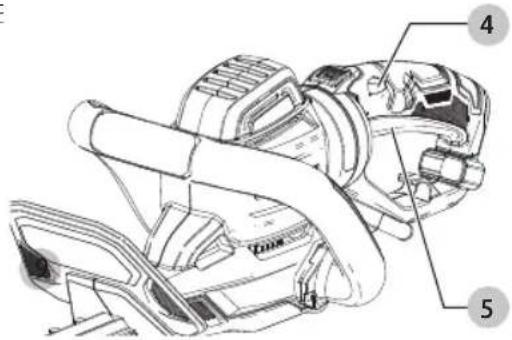

To Turn the Tool ON (Fig. E)

WARNING: Never attempt to lock a

switch in the ON position.

Do not use blade to cut stems greater than 3/4" (19 mm). Use the trimmer only for cutting normal shrubbery around houses and buildings. NOTE: Power Saw can cut stems and branches up to 1.5" (38.1 mm).

To turn the tool "ON", push the lock off button 4 and squeeze the trigger switch 5. Once the unit is running, you may release the lock off button.

To turn the tool "OFF", release the trigger.

Fig. E

Technical diagram of a mechanical device with numbered parts labeled 4 and 5

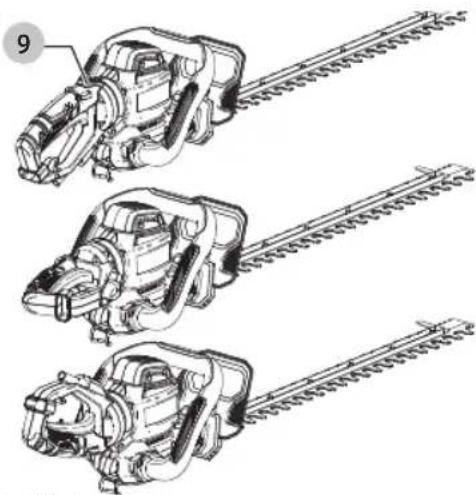

Rotating the Rear Handle (Fig. F)

The rear handle has the capability of rotating 180°. There are optional stops at 0°, 45° and 90° which are ideal for side cuts and rounded or irregular shaped shrubs.

To rotate the rear handle, press in on the rotate button 9 and turn in the desired direction as shown in Figure F.

Figure F depicts the rear handle in 90° left, 0° and 90° right positions.

Fig. F

9

OPERATION

To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

English

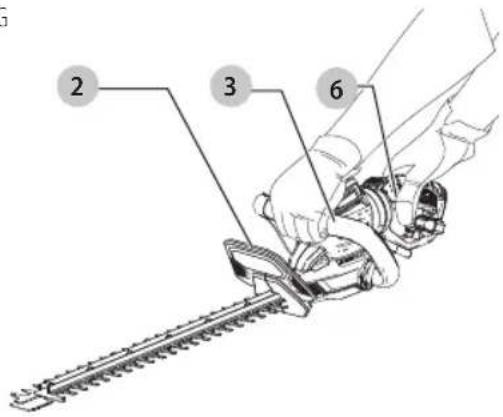

Proper Hand Position (Fig. G)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the switch handle 6 and one hand on the bail handle 3. Never hold the unit by the blade guard 2.

Fig. G

2 3 6

Trimming Instructions (Fig. H–L)

ANGER: Keep hands away from blade and Power Saw.

WARNING: To guard against injury, observe the following:

• Read instruction manual before using. Save instruction manual.
• Check the hedge for foreign objects such as wires or fences before each use.
• Keep hands on handles. Don't overreach.
• Do not use under wet conditions.

AUTION: Blade may coast after turn off.

Extension Cord (Fig. H)

Always keep extension cord behind trimmer and away from the trimming operation. Never drape it over a hedge being trimmed. If you cut or damage the cord, unplug it at the electrical outlet immediately, before inspecting or repairing cord.

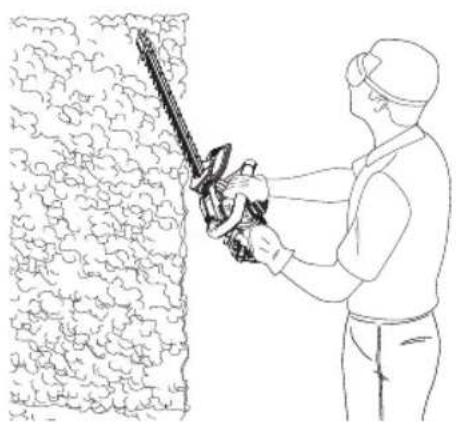

Working Position (Fig. H)

Maintain proper footing and balance and do not overreach. Wear safety goggles, non-skid footwear and rubber gloves when trimming. Hold the tool firmly in both hands and turn the tool ON. Always hold the trimmer, as shown in Fig. H, with one hand on the switch handle and one hand on the bail handle. Never hold the tool by the blade guard.

Fig. H

Line drawing of a person using a power shaver to cut a textured wall (no text or symbols)

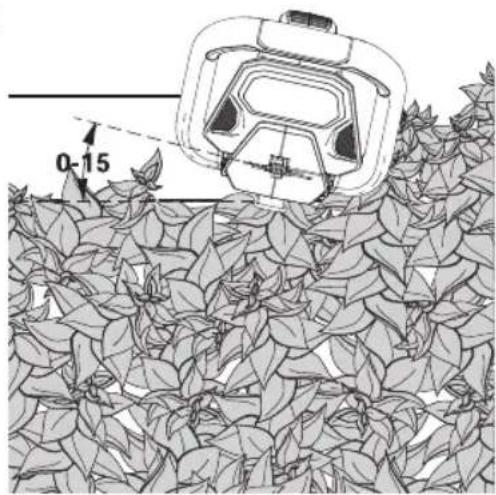

Trimming New Growth (Fig. I)

Using a wide, sweeping motion and feeding the blade teeth through the twigs, is most effective. A slight downward tilt of the blade in the direction of motion gives the best cutting.

Fig.1

Technical line drawing of a mechanical component with angular dimension label (0-15), no readable text or symbols present.

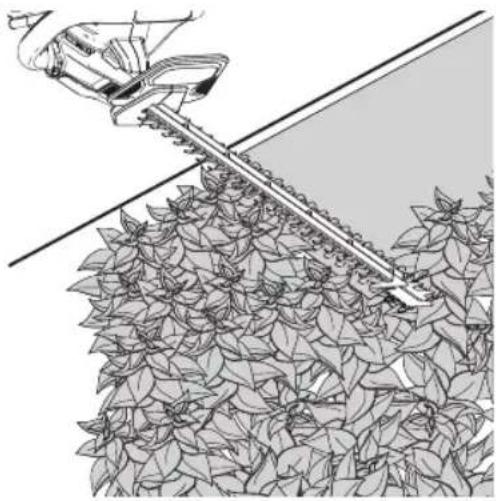

Level Hedges (Fig. J)

To obtain exceptionally level hedges a piece of string can be stretched along the length of the hedge as a guide.

Fig. J

Illustration of a hand using a long-handled tool to cut a leafy plant, no text or symbols present

English

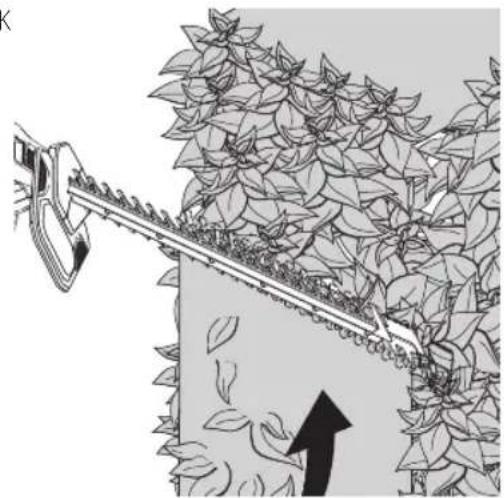

Side Trimming Hedges (Fig. K)

Orient the trimmer as shown and begin at the bottom and sweep up.

Fig. K

Illustration of a hedgehog climbing over a trellis with leaves, showing a black upward arrow (no text or symbols)

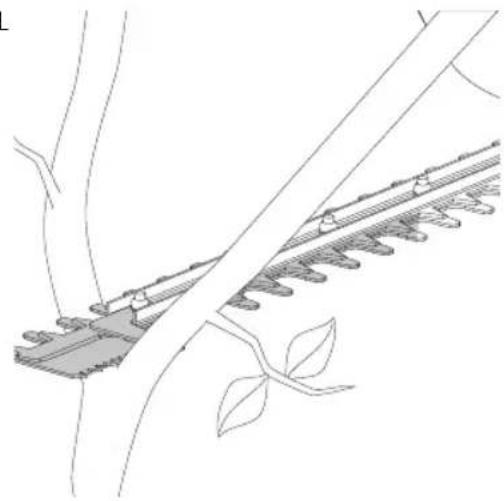

Power Saw (Fig. L)

For branches too large for the blade 1 to cut, use the Power Saw 8. Position the Power Saw as close to the bottom of the branch as possible. Place the Power Saw shoe against the branch. Turn the hedge trimmer on as described above, allowing the tool to work at its own pace until the branch is fully cut.

Fig. L

Technical line drawing of a mechanical assembly with a lever and base, no text or symbols present

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

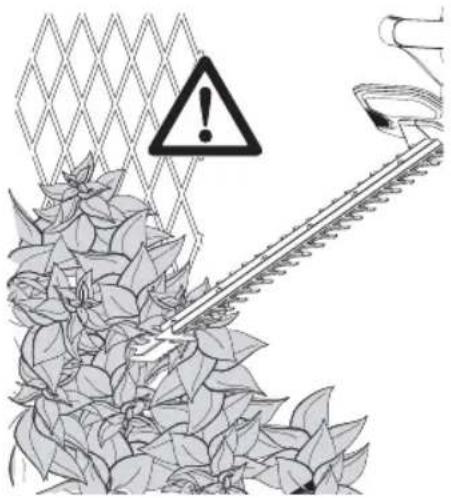

Blade Maintenance (Fig. M)

The cutting blades are made from high quality, hardened steel and with normal usage, they will not require resharpening. However, if you accidentally hit a wire fence (Fig. M), stones, glass, or other hard objects, you may put a nick in the blade. There is no need to remove this nick

as long as it does not interfere with the movement of the blade. If it does interfere, disconnect the power source and use a fine toothed file or sharpening stone to remove the nick. If you drop the trimmer, carefully inspect it for damage. If the blade is bent, housing cracked, handles broken or if you see any other condition that may affect the trimmer's operation contact your local authorized service center for repairs before putting it back into use.

Fig. M

Safety warning sign with triangular warning symbol and shield, depicting a hedgehog clearing vegetation

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Blade Lubrication (Fig. N)

1. After use, disconnect the power source.
2. Carefully apply a resin solvent to the exposed blades.
3. Connect the power source and turn the trimmer vertical with the blades toward the ground and run the trimmer for a few seconds to fully disperse the lubrication.
4. Keeping your hands away from the blade, slide the sheath 10 over the blade until it snaps into place as shown in Figure N.

Fig. N

10

English

Storage

Fertilizers and other garden chemicals contain agents which greatly accelerate the corrosion of metals. Do not store the unit on or adjacent to fertilizers or chemicals.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.

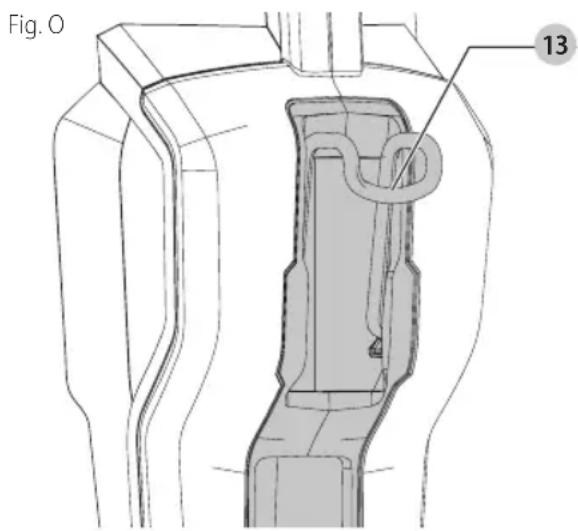

Versatrack™ (Fig. O)

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source and before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: To reduce the risk of serious personal injury, do not use a damaged Versatrack™ integral hang hook or Versatrack™ Trackwall. A damaged Versatrack™ integral hang hook or Versatrack™ Trackwall will not support the weight of the tool.

WARNING: To reduce the risk of serious personal injury, DO NOT suspend tool overhead or suspend objects from the integral hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the integral hang hook.

WARNING: The Versatrack™ integral hang hook is intended to mount the tool onto a Versatrack™ Trackwall rail. Do not use the integral hang hook to mount the tool to any other surface.

WARNING: The Versatrack™ integral hang hook is not a belt hook.

WARNING: When hanging objects on a Versatrack™ Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.

WARNING: Before using the tool make sure that the Versatrack™ integral hang hook is returned to its original position.

iIMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwall system.

1. Turn tool off, disconnect it from power source and remove accessories.

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on the Versatrack™ Trackwall.

1. Flip or pull open the integral hang hook 13. It clicks when locked into position.
2. Mount the integral hang hook to the Versatrack™ Trackwall.

nOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

Fig. O 13

Repairs

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including power cord repairs, and brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRAnTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.

ENGLISH

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential

damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

TROUBLESHOOTING GUIDE

BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS

For assistance with your product, visit our website at www.craftsman.com for a list of service centers, or call CRAFTSMAN at 1-888-331-4569.

PROBLEM CAUSE CORRECTION

Slow running, noisy or hot blades. Dry, corroded blades. Lubricate blades.
	Blades or blade support bent. Straighten blade or blade support.
	Bent or damaged teeth. Straighten teeth.
	Loose blade bolts. Tighten blade bolts.
Unit will not start. Lock off not fully operated Check that lock off is fully pulled back prior to moving main trigger.

minute △ radiation visible

minute O protection auditive

OPM....oscillations por minuto ....lire toute la documentation

FRAnÇAis

Moteur

Technical diagram of a mechanical device with numbered parts labeled 4 and 5

Technical line drawings of three mechanical hedges with labeled parts (no text or symbols present)

FONCTIONNEMENT

Technical diagram showing a hand operating a hatched tool with labeled parts 2, 3, and 6.

Directives de taillage (Fig. H–L)

Line drawing of a person using a power shoveling tool to clean or store the wall (no text or symbols)

Illustration of a hand using a long-hand tool to cut a leafy plant, no text or symbols present

Illustration of a trellis with a tool extending over a leafy area, showing no text or symbols.

Line drawing of a tree branch with climbing supports and leaves, no text or symbols present

MAINTENANCE

PROBLÈME CAUSE POSSIBLE SOLUTION POSSIBLE

Technical diagram of a car interior with labeled component 7 and directional arrow indicating movement or flow.

Para Encender la Herramienta (Fig. E)

Technical diagram of a mechanical device with numbered parts labeled 4 and 5

Giro del Mango Trasero (Fig. F)

Line drawing of a person using a tool to cut a textured wall (no text or symbols)

Illustration of a mechanical device with a 0-15 scale indicator, surrounded by leafy plants (no text or symbols)

Illustration of a hand using a tool to cut a leafy plant, showing the blade and surrounding foliage (no text or symbols)

Corte Lateral (Fig. K)

Illustration of a hedgehog climbing a slope with leaves, showing vegetation and a black arrow indicating upward motion (no text or symbols)

Sierra Eléctrica (Fig. L)

Line drawing of a tree branch with climbing and falling leaves (no text or symbols)

MANTENIMIENTO

Warning symbol with warning triangle and instruction to ignore a fence, featuring a cartoon hedgehog.

Limpieza

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

ESPAÑOL

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Pure geometric lines forming a symmetrical shape without any text, numbers, or symbols

Pure geometric lines without any text, numbers, or symbols

Pure geometric lines forming a symmetrical shape without any text, numbers, or symbols

Pure geometric lines without any text, numbers, or symbols

Pure geometric lines forming a symmetrical shape without any text, numbers, or symbols
