W10225948 - Kitchen accessory MAYTAG - Free user manual and instructions

Product Type	Splashback panel with shelf
Brand	Maytag
Model	W10225948
Color	Stainless steel
Material	Stainless steel
Width	122 cm (48 in)
Height	56.8 cm (22 3/8 in)
Depth (with shelf)	26.7 cm (10 1/2 in)
Depth (without shelf)	3.5 cm (1 3/8 in)
Installation	Wall-mounted, studs required
Tools required	Drill, 1/8" drill bit, Phillips screwdriver, level, stud finder
Included parts	Panel, shelf, 2 shelf brackets, 3 wall brackets, screws
Recommended number of wall brackets	3 (for 48 in model)
Shelf orientation	2 possible positions
Care	Mild stainless steel cleaner or liquid detergent; avoid abrasives
Intended use	Behind a range or cooktop
Customer service (United States)	1-800-422-1230
Customer service (Canada)	1-800-807-6777

Frequently Asked Questions - W10225948 MAYTAG

How to install the splashback panel?

Follow the instructions in the manual: mark a guideline 1 3/8 in (3.5 cm) below the range height, install wall brackets on studs, hang the panel, and secure with provided screws.

What tools are needed for installation?

You will need a drill, a 1/8 in drill bit, a Phillips screwdriver, a level, and a magnetic nail/stud finder to locate studs.

Can the shelf be mounted in different positions?

Yes, the shelf can be installed in two orientations: horizontal or vertical. See the 'Shelf Installation' section for details.

How to clean the splashback panel?

Use a mild stainless steel cleaner and polish (e.g., KitchenAid® Stainless Steel Cleaner) or a mild liquid detergent. Rinse with clean water and dry with a soft cloth. Avoid abrasive pads.

What cleaning products to avoid?

Do not use soap-filled scouring pads, abrasive cleaners, cooktop polishing cream, steel wool, or abrasive paper towels. They can damage the surface.

Is this panel compatible with all ranges?

The panel is designed to be installed behind a commercial-style range or cooktop. Verify your appliance dimensions and follow the mounting instructions.

Where to find replacement parts?

For replacement parts, contact customer service at 1-800-422-1230 (United States) or 1-800-807-6777 (Canada) or visit the website www.KitchenAid.ca.

How to change the shelf orientation?

Grasp the shelf by the sides, pull it forward while lifting to remove. Then reinstall it in the desired orientation by aligning the pins in the slots of the brackets.

What is the recommended mounting height?

Measure the height of your range and draw a line at that height. The lower edge of the panel should be placed 1 3/8 in (3.5 cm) below this line.

What if the wall doesn't have studs in the right places?

The panel must be attached to studs for a secure installation. If no studs are available, it is recommended to consult a professional to add reinforcements.

USER MANUAL W10225948 MAYTAG

BACKSPLASH WITH SHELF

Use & Care / Installation Instructions

For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230 or visit our website at www.kitchenaid.com

In Canada, for assistance, installation and service, call: 1-800-807-6777 or visit our website at www.Kitchenaid.ca

PANNEAU ANTI-ÉCLABOUSSURE AVEC ÉTAGÈRE

Au Canada, pour assistance, installation ou service, composer le : 1-800-807-6777 or visit our website at www.Kitchenaid.ca

Table of Contents/Table des matieres

INSTALLATION REQUIREMENTS....2

INSTALLATION INSTRUCTIONS....3

BACKSPLASH USE & CARE....5

EXIGENCES D'INSTALLATION....7

INSTRUCTIONS D'INSTALLATION....8

UTILISATION ET ENTRETIEN DU PANNEAU ANTI-ÉCLABOUSSURE......10

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Required

• Drill
• 1/8" Drill Bit

• Tape Measure

• Level

• Stud Finder
  • Phillips Head Screwdriver

Parts Supplied

• Backsplash
• Shelf

• Shelf brackets

• Wall brackets

• Screws, 8-18 x 12 "
• Screws, 10-2 x 2"

Location Requirements

The backsplash can be installed on the backwall behind a commercial style range or cooktop. Appliance must be level side to side and front to back. Proper installation is your responsibility.

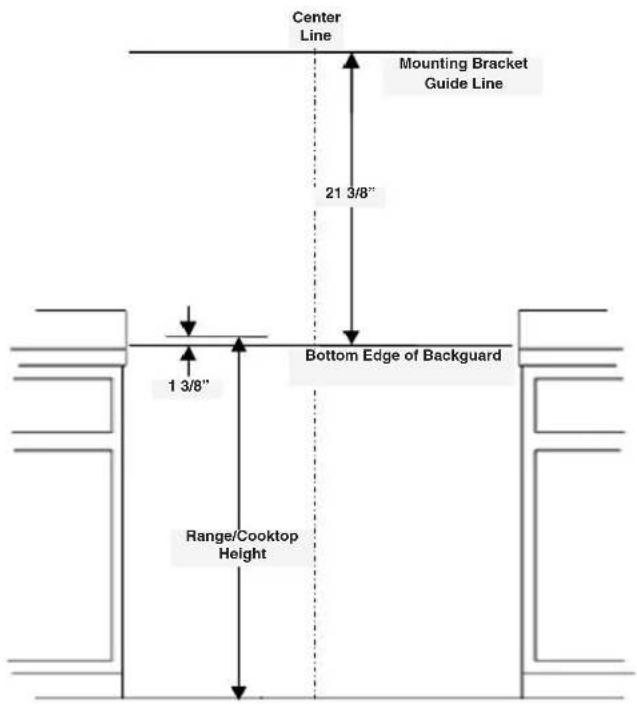

Center Line Mounting Bracket Guide Line 21 3/8" Bottom Edge of Backguard 1 3/8" Range/Cooktop Height

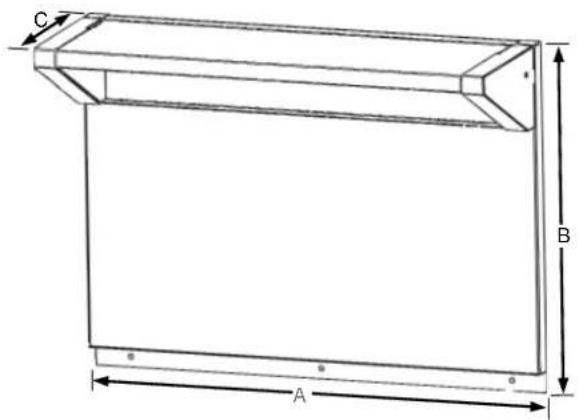

Backsplash Dimensions

C A B

A. Backsplash width

W10225950: 30"
W10225949: 36"
W10225948: 48"

B. Backsplash height, 22 3/8"

C. Backsplash depth

■ 10 1/2" with shelf
■ 1 3/8" without shelf

INSTALLATION INSTRUCTIONS

Mark Guide Lines

1. Mark a small line on the backwall at the height of the range or cooktop.
2. Measure 1 3/8" down from this line and scribe a level line the full length of the installation space. This line represents the lower edge of the backsplash.
3. Position the bottom edge of the flange along the bottom edge of backsplash line. Align the center of the backsplash with the center of the appliance. Mark each mounting hole (3 locations) with a pencil. Set panel aside.
4. Measure up 21 3/8" from the bottom edge of backsplash line and draw a level line the full length of the installation space. This line represents where the mounting brackets will attach to the wall.

Install Mounting Brackets

1. Using a stud finder, locate the edges of the wall studs within the installation space.
2. Mark the center of each stud and draw a line down the center of the stud.
3. Line up the top of the wall mounting bracket along the top edge line from "Mark Guide Lines" section.
4. Center a bracket along the centerline of each wall stud.
5. Mount each bracket to wall using two 10-12 x 2" screws per bracket (included with kit). A minimum of two mounting brackets should be installed for the 30" and 36" models. The 48" model requires three mounting brackets.

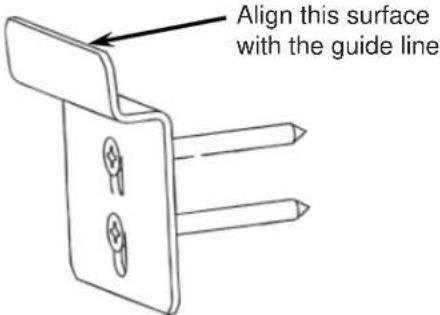

Align this surface with the guide line

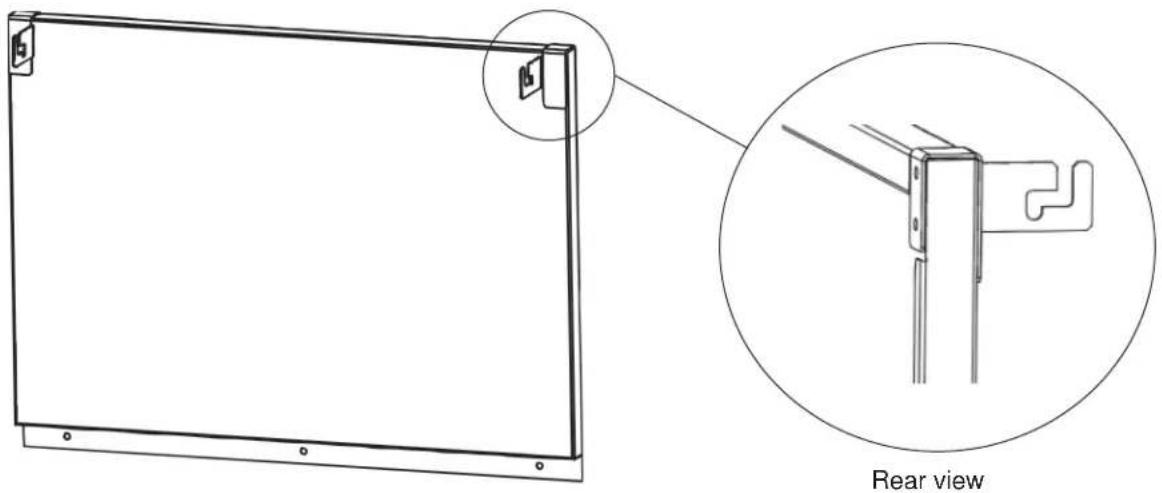

Attach Shelf Brackets

1. Place the shelf brackets on the top of the Backsplash as shown in the picture.
2. Attach the bracket to the Backsplash using two 8-18 x 1/2" screws.

Technical line drawing of a rectangular panel with mounting holes and an inset close-up showing a side view of a bracket (no text or symbols)

Install Backsplash

1. Hook the flange on the back of the Backsplash over the mounting brackets attached to the wall.
2. Center the Backsplash and align the three holes at the bottom of the Backsplash with the marks on the wall made in the "Mark Guide Lines" section.
3. Attach bracket to wall using the three 10-12 x 2" screws through the holes at the bottom of the flange.

Install Shelf

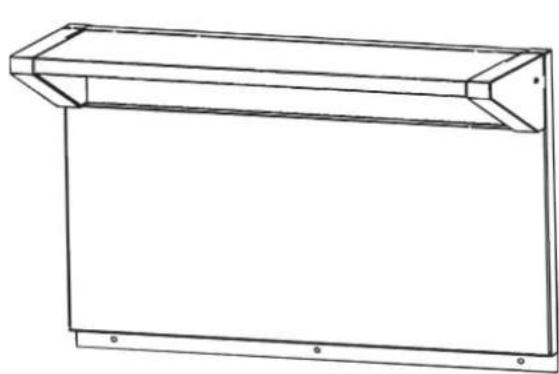

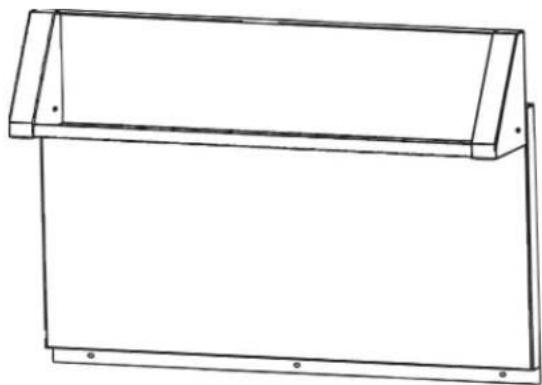

The shelf included with the backsplash can be installed in two different positions.

Technical line drawing of a rectangular frame with a sloped top and mounting base (no text or symbols)

Line drawing of a rectangular metal frame with mounting holes (no text or symbols)

1. Locate the hinge pin in each end of the shelf. View into the slot on either end of the shelf and the hinge pin is visible.

SHELF ENDCAP SLOT HINGE PIN SHELF (REAR VIEW)

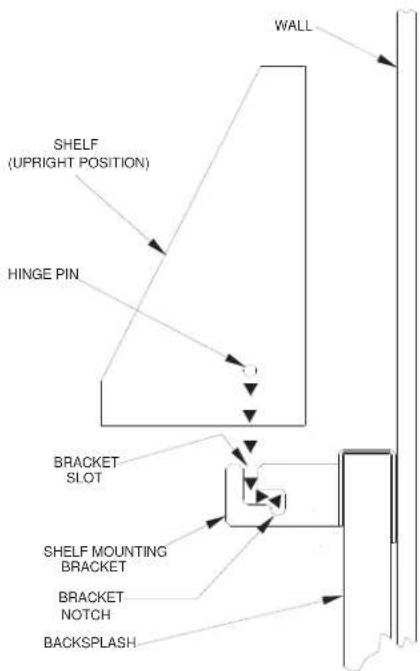

SHELF (UPRIGHT POSITION) HINGE PIN BRACKET SLOT SHELF MOUNTING BRACKET BRACKET NOTCH BACKSPLASH WALL

1. Grasp the shelf on each end with the shelf in the desired orientation.
2. Align the slots of the shelf with the shelf brackets and insert the hinge pins into the shelf bracket slot.
3. Slide shelf back until both hinge pins on each end are positioned into notch of the bracket.

BACKSPLASH USE & CARE

Change Shelf Orientation

1. Grasp the shelf on each end and pull shelf forward while lifting up. Shelf will be removed from the backsplash.
2. Determine desired shelf orientation.
3. See "Install Shelf" section for re-installation detail.

General Cleaning

Do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel-wool pads, gritty washcloths or abrasive paper towels. Damage may occur, even with one-time or limited use. Rub in direction of grain to avoid damaging.

Cleaning Method:

• KitchenAid® Stainless Steel Cleaner and Polish: Follow the instructions found on the label of the cleaner.
• Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth.
