CSBT60 - Hi-fi system Power Dynamics - Free user manual and instructions

Product type	Active ceiling in-wall speaker with hi-fi system
Brand	Power Dynamics
Model	CSBT60
Dimensions	Ø 204 x 80 mm
Drilling diameter	170 mm
Weight	1.6 kg
Power supply	Mains 220-240 V ~ 50 Hz and built-in rechargeable lead-acid battery
Max power	60 W
RMS power	15 W
Impedance	8 Ω
Woofer	5.25" (133 mm)
Tweeter	1" silk dome (25 mm)
SPL @ 1 W/1 m	86 dB
Frequency response	100 Hz - 20 kHz
Connectivity	Bluetooth (name "BT-SPEAKER")
Compatibility	Any Bluetooth device (smartphone, tablet, etc.)
Usage	Indoor only, temperature 5 °C to 35 °C
Maintenance	Clean with a dry cloth, no chemicals
Safety	Do not open the housing; do not expose to moisture; disconnect during storms
Repairability	Only an authorized technician can repair; use original parts
Warranty	Void if modified or used improperly
Package contents	Active speaker, passive speaker, metal grille, screws, manual

Frequently Asked Questions - CSBT60 Power Dynamics

How to connect my smartphone via Bluetooth?

Enable Bluetooth on your device, search for "BT-SPEAKER" and connect. No password needed. To change device, disconnect the previous one and repeat the process.

Can I use this speaker outdoors?

No, the device is designed for indoor use only. Do not expose to moisture or rain.

What is the speaker's power?

Maximum power 60 W, RMS power 15 W.

How to install the speaker in the ceiling?

Drill a 204 mm diameter hole, connect the active speaker to a 12 VDC socket, connect the passive speaker with the provided cable, insert and screw the tabs.

What to do if the speaker does not turn on?

Check the mains power and battery. Ensure the cord is not damaged. If the problem persists, contact a technician.

How to maintain the speaker?

Clean with a dry cloth. Do not use chemicals. Avoid dust and moisture.

The speaker has a battery. How to charge it?

The device recharges automatically when connected to mains. If not used for a long time, recharge every three months.

Can I use the speaker with a TV?

Yes, if your TV has Bluetooth. Keep a distance of at least 60 cm to avoid magnetic interference.

What to do in case of malfunction?

Do not attempt to repair it yourself. Contact a qualified technician. Use only original parts.

What is the Bluetooth range?

Typical range is about 10 meters, but may vary depending on obstacles. If you move away, the connection drops.

USER MANUAL CSBT60 Power Dynamics

Power Dynamics Professional Audio

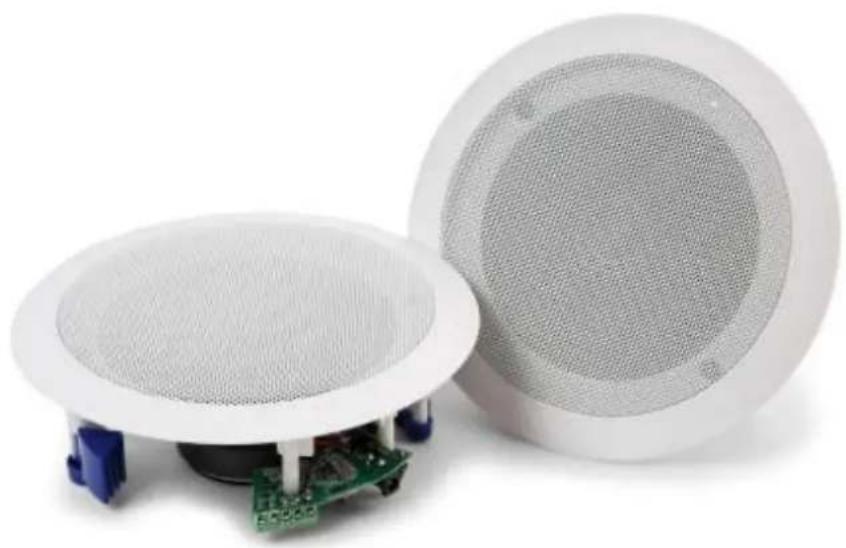

CSBT60 Amplified Ceiling Speaker Set with BT

Ref. nr.: 952.550

Two white circular speaker covers with mesh surfaces and a circuit board emerging from the base (no text or symbols visible)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

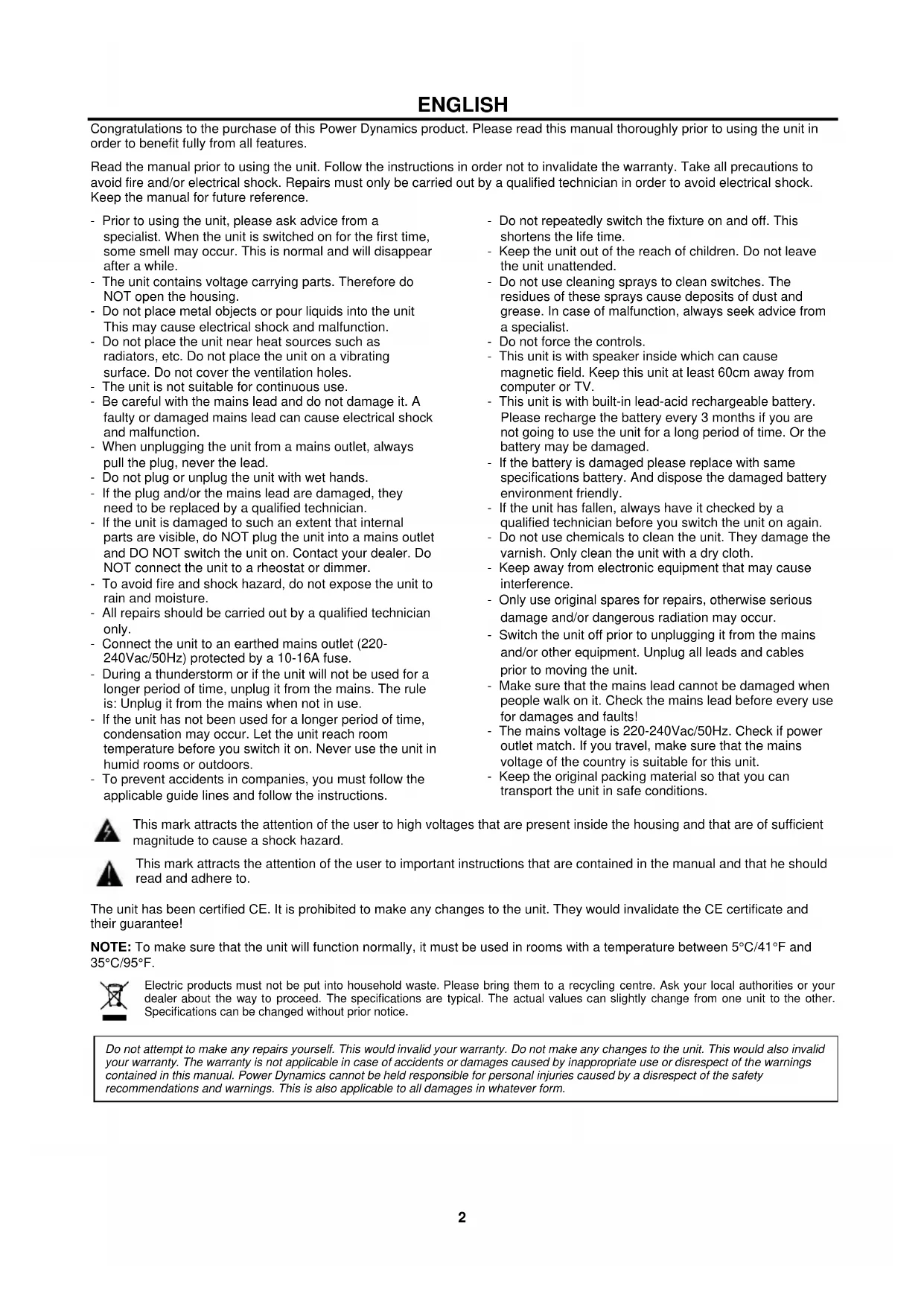

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• This unit is with built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

1. Drill a hole in the ceiling, big enough to fit the speaker (∅ 204mm)

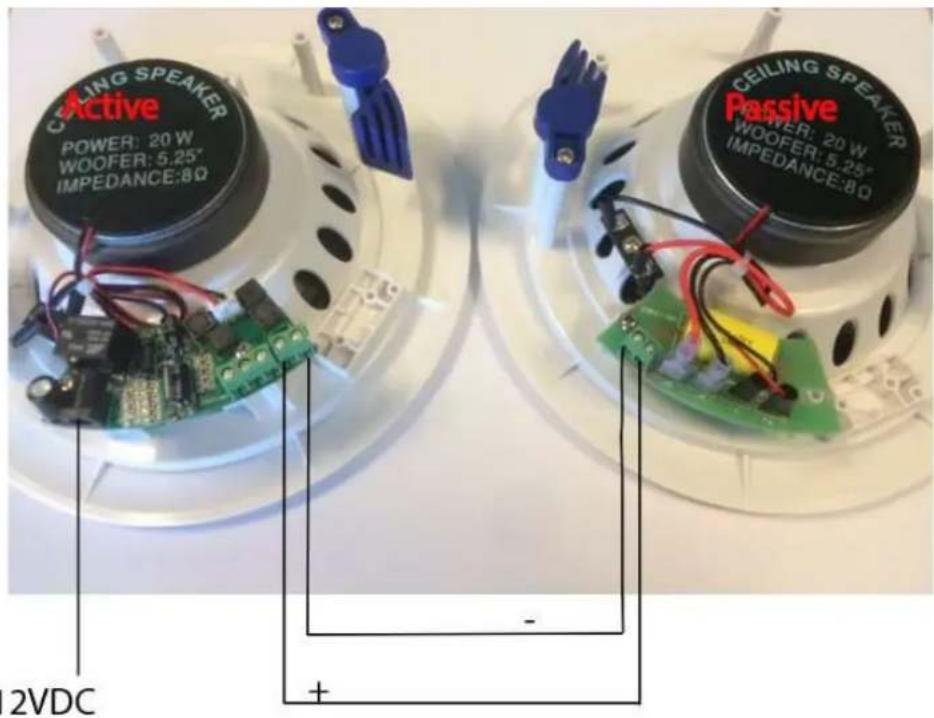

2. Connect the Active speaker with the 12VDC plug (See picture)
3. Connect Active and Passive speaker with speaker cable (+ / -) (See picture)

1. Insert the speaker in the hole.

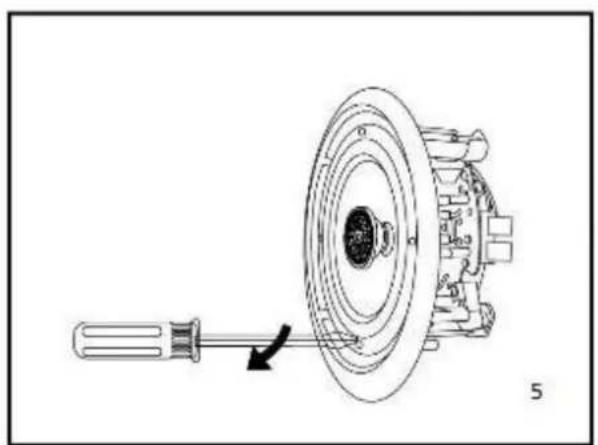

2. Screw down each of the two screws (the locking tabs will swivel into the rear surface)

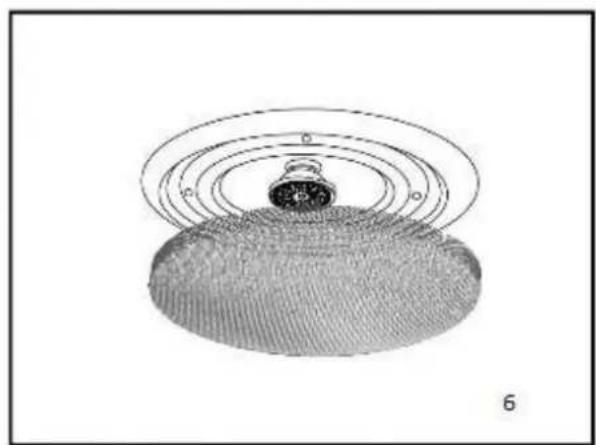

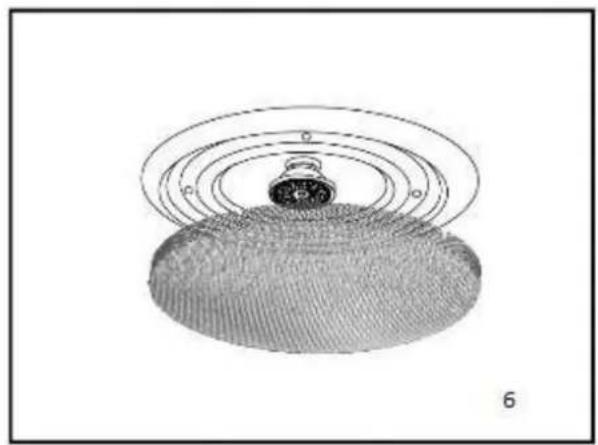

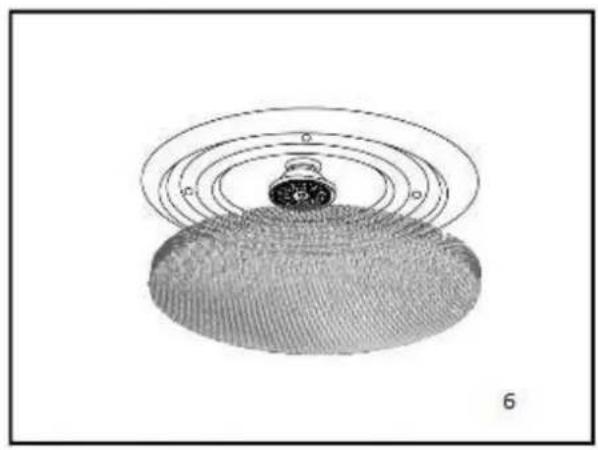

3. Place the metal grill

Mechanical assembly diagram showing a screwdriver inserted into a circular component with concentric rings (no text or symbols)

Diagram of a planetary body with concentric rings and a central mass, labeled '6' (no text or symbols on the diagram itself)

Connecting your BT-device to the speaker, follow below steps:

1. Turn on BT on your device
2. Search for "BT-SPEAKER"
3. Connect with "BT-SPEAKER"

Your device is now connected, no password needed.

DISCONNECTING OR RECONNECTING

If you want to change from BT-device, follow below steps:

1. Disconnect the current BT-device ("OFF")
2. Connect new BT-device by following above steps

If you move out of range or turn off the BT function on your BT-device, the BT of the speaker will disconnect. To reconnect turn on the BT on the desired device, it will reconnect.

SPECIFICATIONS

Power max.	60W
Power rms	15W
Impedance	8
Woofer	5.25"
Tweeter	1" Silk dome
SPL @ 1W/1m	86dB
Mounting diameter	170mm
Range	100Hz-20kHz
Dimensions	204ø x 80mm
Weight	1.6kg

Technical line drawing of a mechanical assembly with a screwdriver and concentric rings (no text or symbols)

Diagram of a spherical object with concentric rings and a central dark object, labeled '6' at bottom (no text or symbols on the object itself)

Mechanical assembly diagram showing a screwdriver inserted into a circular component with a central hub (no text or symbols)

Diagram of a spherical object with concentric rings and a central dark object, labeled '6' at bottom (no text or symbols on the object itself)

12VDC

Technical line drawing of a mechanical assembly with a screwdriver and concentric rings (no text or symbols)

Diagram of a spherical object with concentric rings and a central dark component, labeled '6' at bottom (no text or symbols on the object itself)

12VDC

Technical line drawing of a mechanical assembly with a screwdriver and concentric rings (no text or symbols)

Diagram of a spherical object with concentric rings and a central dark core, labeled '6' at bottom (no text or symbols on the object itself)

Blue glossy circular logo with stylized white 't' shape (no text or symbols)

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer: TRONIOS BV

Trade Name: POWER DYNAMICS

Regulatory Requirement: EN ....

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.

Almelo,

01-01-2016

Name : M. Velders

Signature :

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2016 by TRONIOS the Netherlands
