Stuntz - Electric scooter Klarfit - Free user manual and instructions

Product type	Electric scooter
Brand	Klarfit
Model	Stuntz
Maximum user weight	100 kg
Dimensions (L x W x H)	110 x 40 x 100 cm (estimated)
Net weight	10 kg (estimated)
Frame material	Steel
Wheel material	Polyurethane
Brake type	Foot brake
Recommended use	Sport and fitness, adult use
Assembly required	Yes, handlebar mounting
Maintenance	Regularly check screws and bearings, replace defective parts, store in a dry place
Safety	Wear a helmet and protective gear, avoid slippery surfaces and night riding, do not perform stunts
Spare parts	Use only original parts
Repairability	Possible replacement of ball bearings and wheels
Recycling	Complies with WEEE directive, do not dispose of with household waste

Frequently Asked Questions - Stuntz Klarfit

What is the maximum user weight?

The maximum allowed user weight is 100 kg (approx. 220 lbs).

Can I use the scooter at night?

It is recommended to use the scooter only during the day and not at night to avoid accidents.

Do I need to wear protective gear?

Yes, for your safety, wear a helmet, elbow pads, knee pads, and gloves.

How to assemble the handlebar?

Remove the two hex head screws from the handlebar with the provided hex key, slide the handlebar onto the steering tube until it touches the nut, then tighten the two screws. Be careful not to overtighten the steering tube nut so that the wheel turns freely.

How to maintain the scooter?

Regularly check screws and components, as they can become loose. Replace defective parts only with original parts. Store the scooter in a dry and dust-free place.

What to do if a part is defective?

Replace defective components exclusively with original spare parts. Do not modify the scooter yourself.

Can I perform stunts with this scooter?

No, this scooter is not designed for stunts or jumping over obstacles. Its use is limited to sport and fitness.

Where to store the scooter?

Store the scooter in a dry and dust-free place, away from humidity and extreme temperatures.

How to recycle the scooter at the end of its life?

Do not dispose of the scooter with household waste. Follow local guidelines for recycling electrical and electronic equipment in accordance with the WEEE directive.

Where to find the declaration of conformity?

The full declaration of conformity is available online at: https://use.berlin/10034940.

USER MANUAL Stuntz Klarfit

INHALTSVERZEICHNIS

Line drawing of a hexagonal bolt (no text or symbols)

Simple line drawing of a bent pipe or tool (no text or symbols)

20 x 5 mm Inbusschrauben (x2) 5 mm Inbusschlüssel

ZUSAMMENBAU

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Product Overview 11

Parts 12

Zusammenbau 12

Maintenance 13

Hints on Disposal 14

Declaration of Conformity 14

SAFETY INSTRUCTIONS

Note: The maximum weight of the user is 100 kg (\~220 Lbs)

• This product is not a toy; it is sport and fun article.
• To brake: use your pushing foot to press on the brake.
• As the majority of serious accidents take place during the initial month, take the time to learn the basics of the sport.
• For the safety, we advise you to use this appliance with protective equipment: helmet, elbow pads, knee pads and gloves.
• This scooter can only be used by one person at a time.
• Respect the current Highway Code.
• Avoid places with heavy traffic or that are too busy.
• Avoid slippery or wet surfaces.
• Avoid steep slopes, and ensure that the brake is in good working order.
  • Always wear shoes (for example: training shoes).
  • Take care to always keep two hands on the handlebars.
• Do not change the purpose of this product. This scooter is not made for acrobatic use. Do not jump over obstacles.
• In all situations, take care both of yourself and others.
• You are advised not to use the scooter at night.

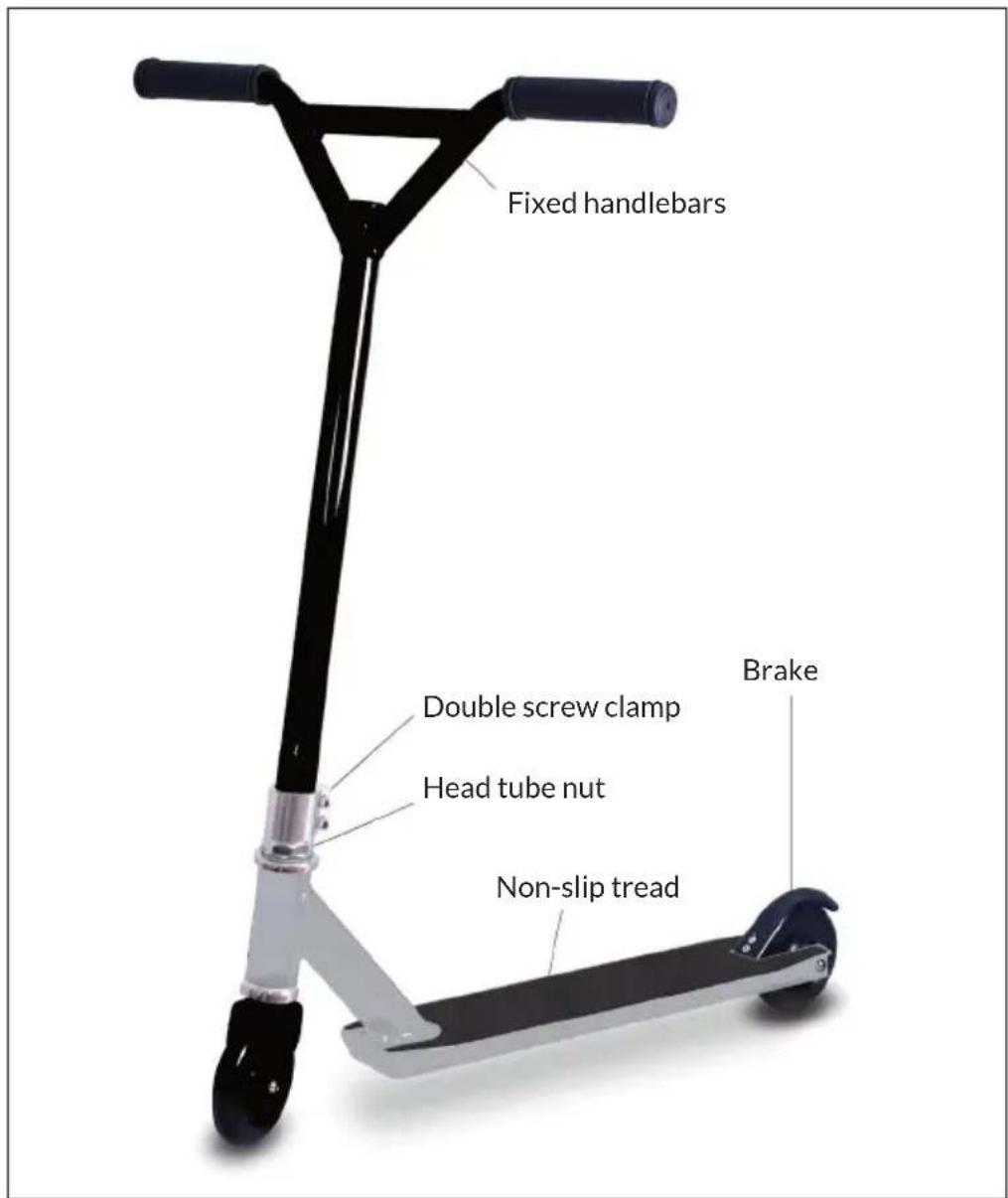

PRODUCT OVERVIEW

PARTS

20 x 5 mm Allen screws (x2) 5 mm	Allen key

ZUSAMMENBAU

1	2
Tighten the head tube nut so that it is tight but the wheel can still move freely.	Remove the two Allen screws on the handlebars using the Allen wrench.
3	4
Slide the handlebars onto the head tube until they touch the head tube nut.	Tighten the two Allen screws on the handlebars with the Allen key.

MAINTENANCE

• Check the numerous components of the device which are fixed by screws, as these can become loose during use.
• Replace defective components with original spare parts only.
• Remove any sharp fragments resulting from the use of the unit.
• Store the scooter in a dry and dust-free place.
• Do not modify or alter the scooter.
• Check the condition of the ball bearings and wheels regularly and replace them if necessary.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/10034940

Estimado cliente:

ÍNDICE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

CE

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

INDICE

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)
