GXWH08C - Water filter GE - Free user manual and instructions

Product Type	Water Filter
Brand	GE
Model	GXWH08C
Use	Domestic, cold water only
Water Pressure	20 - 125 psi (20-125 psi)
Water Temperature	40°F - 100°F (4°C - 38°C)
Flow Rate	4 gal/min (approx. 15 L/min)
Filtration Capacity	Sediments, Class III per NSF 42
Included Cartridge	Sediment Filter (FXUSC)
Cartridge Longevity	3 months or 16,000 gallons
Cartridge Replacement	Every 3 months
Housing Material	Plastic (white or transparent depending on version)
Connection	3/4 in compression fittings
Grounding	Copper ground wire included (required on metal piping)
Warranty	1 year limited
Included Accessories	Fittings, Teflon tape, housing wrench, mounting straps, ground wire
Maintenance	Clean housing with soapy water, inspect O-ring
Safety	Do not use on hot water, protect from freezing, max pressure 125 psi

Frequently Asked Questions - GXWH08C GE

How to install the GE GXWH08C filter?

Turn off the water supply, then measure and cut the pipe to the D distance indicated. Slide the compression nuts and rings onto the pipes. Connect the filter aligning the IN arrow with the water supply. Tighten the fittings with 1 1/8 in and 1 1/4 in wrenches. Install the bonding conductor if necessary. Slowly turn on the water and check for leaks.

How often should the cartridge be changed?

It is recommended to replace the cartridge every 3 months or when the flow rate drops noticeably. The maximum longevity is 16,000 gallons (approx. 60,000 liters).

What is the maximum water pressure supported?

The maximum pressure is 125 psi (approx. 8.6 bar). If pressure exceeds 100 psi, install a pressure reducer upstream.

Can I use this filter on hot water?

No, the filter is designed only for cold water. The temperature must be between 40°F and 100°F (4°C - 38°C). Hot water will damage the system.

What to do if there is a leak after installation?

Turn off the water supply. Check the tightness of the fittings and the correct seating of the O-ring. If necessary, disassemble, lubricate the O-ring and reassemble. Slowly turn on the water and test again.

How to re-establish the bonding on a metal pipe?

Use the provided #8 copper conductor. Attach the bronze clamps on the pipes on each side of the filter. Strip the ends of the wire 3/4 in, clean with sandpaper, then tighten the clamp screws.

Which cartridges are compatible with the GXWH08C model?

Compatible cartridges include: FXUSC (wound polyester), FXWPC (pleated), FXWSC (10 micron wound), and FXWTC (carbon/paper 5 micron). The supplied cartridge is FXUSC.

Is the filter delivered with a cartridge?

Yes, the GXWH08C model is delivered with a FXUSC sediment cartridge ready to use.

Does this filter purify water microbiologically?

No, this filter does not purify water. It reduces particulate (sediments) according to NSF 42 Class III. Do not use this product on microbiologically unsafe water without prior disinfection.

How to replace the cartridge?

Turn off the water supply or set the bypass valve to 'bypass' position. Press the red button to depressurize. Unscrew the filter housing, remove the old cartridge. Clean the housing with soapy water. Lubricate the O-ring, insert the new cartridge, hand-tighten the housing. Restore water and purge air with the red button. Flush for 5 minutes before use.

USER MANUAL GXWH08C GE

Household Water Filtration System — GXWH01C and GXWH08C

SAFETY PRECAUTIONS

■ Check with your state and local public works department for plumbing and sanitation codes. You must follow these guidelines as you install the Household Water Filtration System. Using a qualified installer is recommended.
■ Be sure the water supply conforms with the Specifications Guidelines. If the water supply conditions are unknown, contact your municipal water company.

A WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

■ It is highly recommended that a water shut-off valve be placed directly upstream of your household filter.

PROPER INSTALLATION

This Household Water Filtration System must be properly installed and located in accordance with the Installation Instructions before it is used.

■Check with your local public works department for plumbing codes. You must follow their guides as you install the Household Water Filtration System.
■Use the Household Water Filtration System on a potable, safe-to-drink, home COLD water supply only. The filter cartridge will not purify water or make unsafe water safe to drink. DO NOT use on HOT water (100°F max).
■Protect the Household Water Filtration System and piping from freezing. Water freezing in the system will damage it.
■Your Household Water Filtration System will withstand up to 125 psi water pressure. If your house water supply pressure is higher than 100 psi during the day (it may reach higher levels at night), install a pressure-reducing valve before the system is installed.

REQUIRED TOOLS AND ACCESSORIES

FOR INSTALLATION

■ 2 wrenches: 1 ^1/8 " and 1 ^1/4 "
■ Pipe cutter or hacksaw
■ File
■ Emery paper
■ Screwdriver
■ For GXWH01C model, additional installation parts may be required:

• (2) 34 " compression adapters with brass ferrule and nut for installation on copper plumbing – Installation Kit available:

– Retail Part (WHKIT)
- GE Parts (WS35X10023)

- UL-approved grounding clamps and 8-gauge copper grounding wire—Installation Kit available:

– Retail Part (WHKIT)
- GE Parts (WS35X10023)

- Teflon ^ Tape

- Sump Wrench

• Retail Part (UCWRNCH)
• GE Parts (WX5X140)

■ Do not install on HOT WATER. The temperature of the water supply to the Household Filtration System must be between the minimum of 40^ F and the maximum of 100^ F. See the Specification Guidelines.
■ Do not install the Household Water Filtration System using copper solder fittings. The heat from the soldering process will damage the unit.

A WARNING: Discard all unused parts and packaging material after installation. Small parts remaining after installation could be a choke hazard.

■ Do not install filter in an outside location or anywhere it will be exposed to sunlight.

Optional accessories are available (Visa, MasterCard or Discover cards accepted) by visiting our Website at www.GEAppliances.com or from Parts and Accessories 800.626.2002 (U.S.) or 800.663.6060 (Canada).

■ If unit is to be installed on plastic, PVC, or galvanized plumbing, separate hardware must be purchased.

CONTENTS INCLUDED WITH PRODUCT

■ Filter housing and head
■ Product literature
■ Sediment filter (for GXWH08C)
■ (2) 34 brass compression adapters with nut and ferrule (for GXWH08C)
■ Teflon® tape (for GXWH08C)
■ Sump wrench (for GXWH08C)
■ Grounding clamps and wire (for GXWH08C)

GXWH01C

System is Tested and Certified by NSF International against ANSI/NSF Standard 42 for nominal Particulate Reduction Class III.

GXWH08C

System is Tested and Certified by NSF International against ANSI/NSF Standard 42 for nominal Particulate Reduction Class III.

251B6021P001 10-01 JR 49-50043-3

www.GEAppliances.com

GENERAL ELECTRIC COMPANY, Appliance Park, Louisville, KY 40225

ABOUT THE FILTER CARTRIDGE

Specification Guidelines

Minimum-Maximum Supply Water Pressure: 20-125 pounds per square inch (psi)

Minimum-Maximum Supply Water Temperature: 40^ / 100^

Rated Service Flow: 4 gpm

Filter Cartridge Life

Several variables determine how long the cartridge will last in your Household Water Filtration System. These include:

■ levels of sediment or other undesirable substances in your water.
■ the amount of water you use.
■ the filter location (filtering all or part of your household water).

GE MODEL FUNCTION LIFE CONSTRUCTION
FXUSC*	Sediment 15 Micron	3 month/16,000	gallons	Fe
FXWPC Sediment 3 month/16,000 gallons Pleated
FXWSC Sediment 3 month/16,000 gallons String Wound 10 Micron
FXWTC* Sediment 3 month/15,000 gallons Carbon Paper 5 Micron Chlorine
*NSF Certification for particulate reduction applies only to the FXUSC and FXWTC when used in GXWH01C or GXWH08C Filtration Systems.

Polyspu

Filter Cartridge Replacement

You should change your filter when the water flow is noticeably reduced or at least every three months.

7 Turn off water to filter. For model GXWH01C, water must be shut off from an upstream valve. For model GXWH08C, rotate bypass valve to the bypass position.

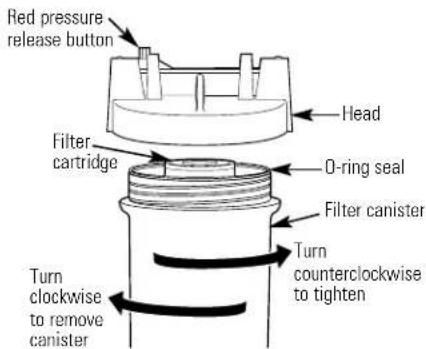

2 Press the red pressure release button to release pressure.
3 Unscrew the filter canister and discard used filter. Wash the filter canister with mild soap and water. Do not use harsh cleaners or hot water.
4 Inspect the filter canister O-ring. Make sure it is lightly lubricated and completely seated in the groove. It is recommended that you replace the O-ring if it is damaged.
5 Place a new filter cartridge into the canister making sure it is centered and completely seated on the bottom seal.
6 Reinstall the filter canister to the unit. Hand tightening is all that is required to seal the unit.

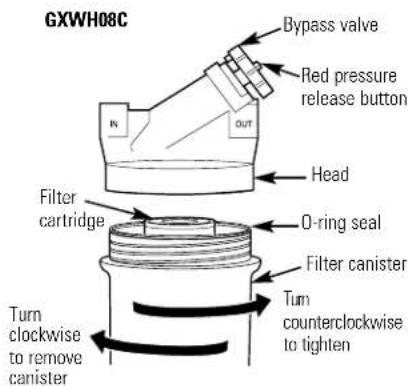

7 Slowly turn on water to the filter by using the bypass valve (model GXWH08C) or the upstream shut-off valve.
8 Press the red pressure release button to remove trapped air.
9 Open any downstream faucet and allow filter system to flush for 5 minutes.

GXWH01C

STEP-BY-STEP INSTALLATION INSTRUCTIONS

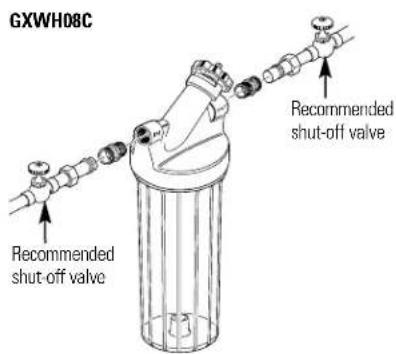

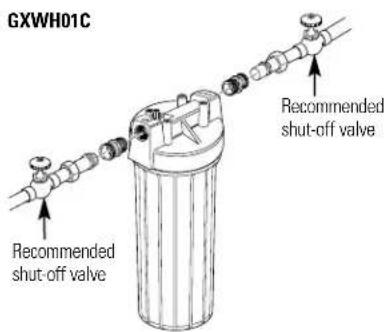

Installation Overview

NOTE: Be sure to allow a minimum space of 112 " under the filter for removing the sump, to change the cartridge.

STEP-BY-STEP INSTALLATION INSTRUCTIONS (cont.)

Select Location

Select a location for the filter that is:

■ protected from freezing.
■ not exposed to direct sunlight.

Install Fittings

Instructions are for installing fittings supplied with the filter (on some models) or the WHKIT onto 3/4" copper plumbing. If the unit is to be installed on any other type of tubing (plastic, PVC, galvanized), different hardware must be purchased. See instructions with additional hardware purchased, or consult a qualified plumber.

Apply about 6" of Teflon® tape, in a clockwise direction, to the pipe threads (course) of each adapter. DO NOT use joint compound on any parts.

It is recommended that a shut-off valve be placed on both sides of the filter.

Assemble an adapter to the inlet and outlet of the head. Start each fitting by hand to make sure they don't cross thread. Use a 1 18 wrench firmly. DO NOT OVERTIGHTEN. About one to two thread(s) should remain visible.

Cut Water Line

Turn off water supply and open a nearby faucet to drain water out of pipes.
2 Remove the nut and brass ferrule from both compression fittings and set aside. Using a tape measure or ruler, measure the distance "D" as shown.
■NOTE: 1 t is recommended that the shut-off valve be placed before and after the filter as shown in the Installation Overview illustration.

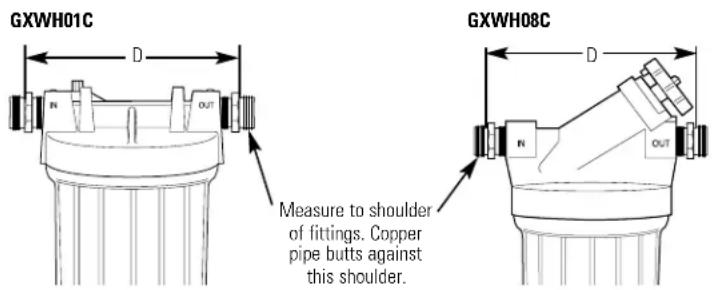

■Select the location for the filter. Mark the distance "D" on the pipe.

3 Using a pipe cutter or hacksaw, cut pipe. Sand (file) cut ends of pipe to assure that they are square and smooth.

Attach Fittings to Water Line

Slip a compression nut onto each pipe.
2 Next, slip the brass ferrule onto each pipe.

Installing the Unit

1 Align filter assembly with pipe ends making certain that the incoming water supply is going into the filter opening marked "IN". It may be necessary to spread the pipe ends apart to install filter assembly.

Installing the Ground Wire

IMPORTANT: A copper or galvanized house cold water pipe is often used to ground electrical outlets in the home. Grounding protects you from electrical shock. The water filter housing may have broken this ground path. To restore connection, install a 12" long, 8-gauge copper wire across the filter, tightly clamped using UL-approved 1/2"-1" bronze grounding clamps at both ends as shown. Zinc clamps should not be used on copper plumbing. For GXWH01C, wire and clamps may be purchased separately from your local hardware store, or are available by visiting our Website at www.GEAppliances.com, or from Parts and Accessories by calling 800.626.2002 (U.S.) or 800.663.6060 (Canada) – order part number WHKIT.

2 Using a 1 18 " wrench to hold the adapter in place, use a 1 14 " wrench to tighten the nut. Repeat process for other fittings.
3 If necessary, support the water pipe on either side of the filter unit.

1 Clean copper pipe and ends of wire with emery paper. Bare wire is recommended. If insulated wire is used, it should be stripped 3/4" at each end before cleaning with emery paper.
2 Attach bronze clamps to copper pipe. Tighten screws.
3 Attach wire to clamps as shown. Tighten screws.

NOTE: If your house plumbing is plastic, it would not be used as a grounding path, and this step should be skipped.

Final Check

Install filter, if not all ready done. (See Filter Cartridge Replacement section.)
2 Slowly turn on water supply.
3 Check entire system for leaks.

4 If leaking, shut off water pressure and tighten or reseal fittings.
5 Open any downstream faucet and allow filter system to flush for 5 minutes.

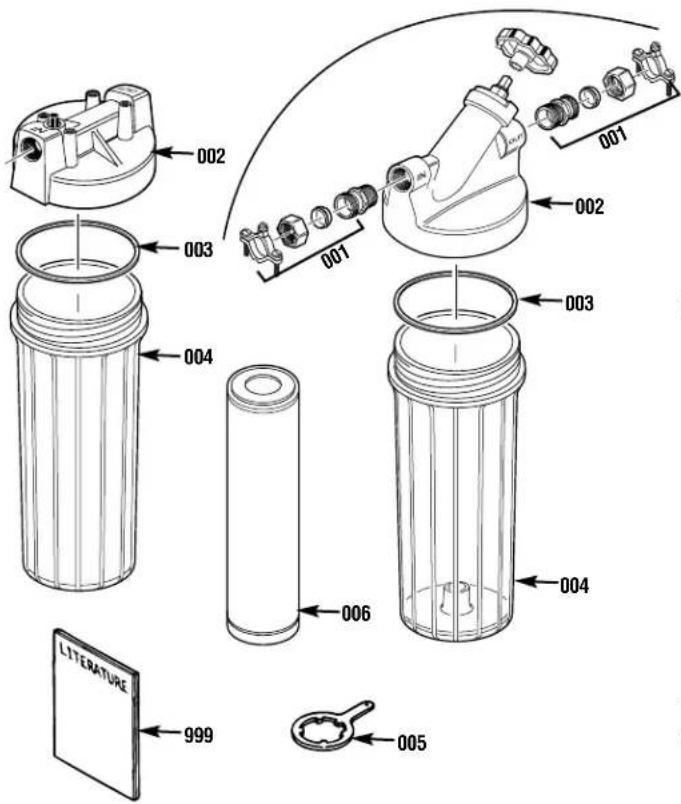

PARTS LIST

G	G
X	X
W	W
H	H
0	0
1	8

Ref. No. Part No. Part Description C C

001 WS35X10023 Installation Kit — 1 or WHKIT 002 WS19X10012 Head Assembly with Vent 1 — WS19X10013 Head Assembly with Valve Assy. — 1

003 WS03X10038 O-Ring 1 1

004 WS30X10003 Sump-White 1 — WS30X10004 Sump-Clear — 1

005 WX5X140 Sump Wrench — 1

006 FXUSC Filter Element–Poly Spun — 1 FXWPC Filter Element–Pleated — — FXWSC Filter Element–String — — FXWTC Filter Element–Carbon Paper — — 999 49-50043 PM Installation Instructions 1 1

To obtain replacement parts, call toll-free 800.626.2002 (U.S.), 800.663.6060 (Canada–English), 800.361.3869 (Canada–French).

LIMITED ONE-YEAR WARRANTY

• What does this warranty cover?

– Any defect in materials or workmanship in the manufactured product.

• What does this warranty not cover?

- Filter Cartridges

- Service trips to your home to teach you how to use the product

- Improper installation

– Failure of the product if it is abused, misused, altered or used for other than the intended purpose

- Defects that result from improper installation or damage not caused by GE

– Liability on the part of GE under this or any other warranty for any indirect or consequential damage

– Products that are used for commercial or industrial applications

- Use of this product where water is microbiologically unsafe or of unknown quality, without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

– Damage to the product caused by accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this appliance, its installation or repair.

• For how long after the original purchase?
• One Year.
  • How do I make a warranty claim?

- Return to the retailer from which it was purchased along with a copy of the "Proof of Purchase." This warranty excludes the cost of shipping or service calls to your home.

• How does state law relate to this warranty?

- This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. THIS WARRANTY IS INTENDED TO BE IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Contact us at www.GEAppliances.com, or call 800.GE.CARES (U.S.), or toll-free 866.777.7627 (Canada).
