| Product Type | Air Compressor |
| Brand | Güde |
| Model | Kompressor Airpower 190/08/6 |
| Supply Voltage | 230 V ~ 50 Hz |
| Motor Power | 1.1 kW (S3/25%) |
| Suction Capacity | 190 l/min |
| Effective Delivery | 145 l/min |
| Max Working Pressure | 8 bar |
| Tank Volume | 6 L |
| Weight | 9.7 kg |
| Protection Rating | IP20 |
| Sound Level | 97 dB(A) |
| Pump Technology | Oil-free |
| Automatic Stop/Start | Yes (via pressure switch) |
| Thermal Protection | Yes |
| Safety Valve | Yes |
| Intended Use | Domestic and DIY |
| Dimensions (L x W x H) | Approx. 50 x 25 x 40 cm |
| Warranty | 2 years |
| Maintenance | Drain condensate, clean intake filter |
| Spare Parts | Available at www.guide.com |
| Repairability | By authorized after-sales service |
Frequently Asked Questions - Kompressor Airpower 190086 Güde
User questions about Kompressor Airpower 190086 Güde
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Compressor in PDF format for free! Find your manual Kompressor Airpower 190086 - Güde and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Kompressor Airpower 190086 by Güde.

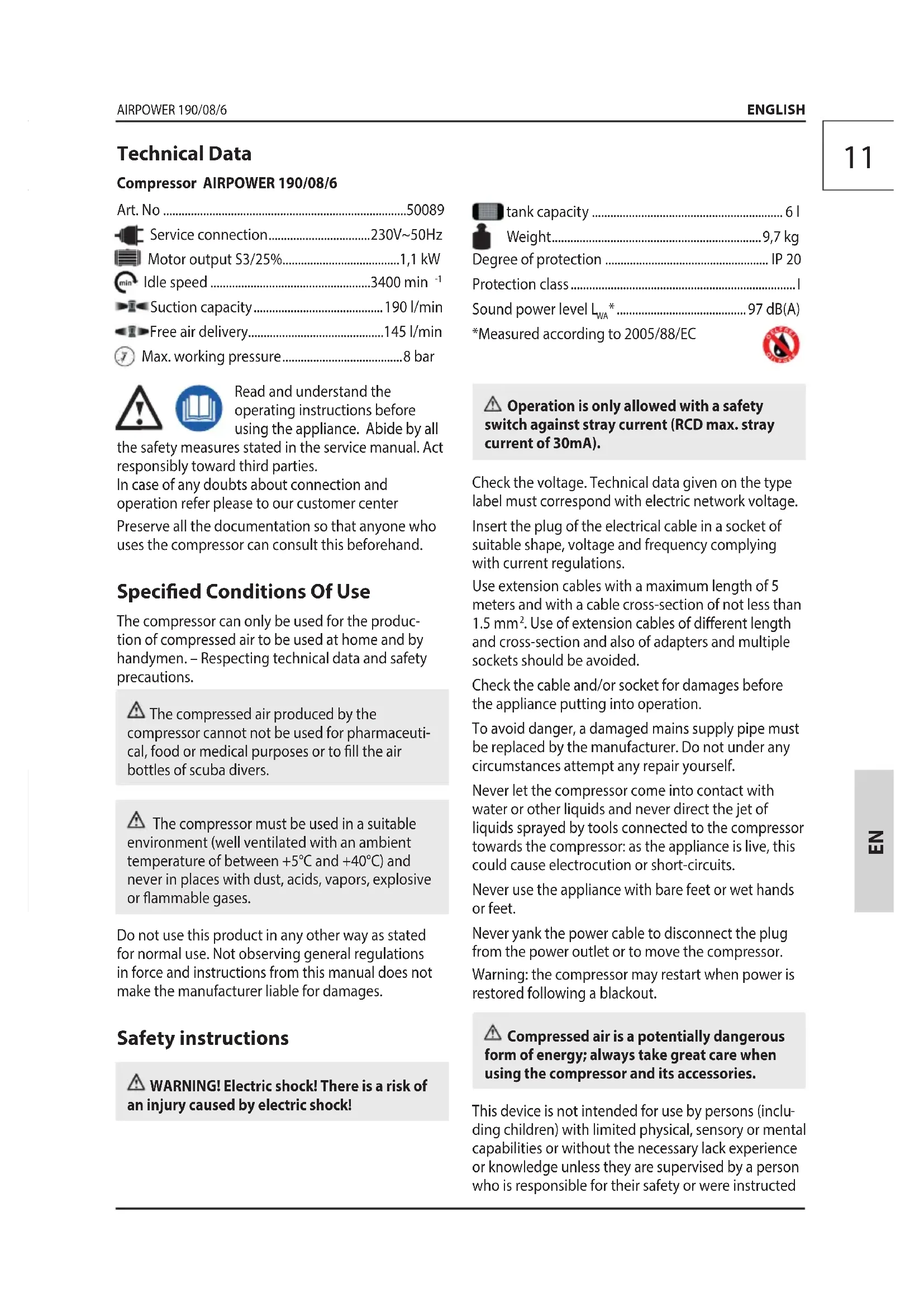

USER MANUAL Kompressor Airpower 190086 Güde
ENGLISH Please read the instructions carefully before starting the machine.
Compressor AIRPOWER 190/08/6
Art.No 50089
Service connection. 230V~50Hz
Motor output S3/25%. 1,1 kW
Idle speed 3400 min
Suction capacity. 190 l/min
Free air delivery. 145 l/min
Max. working pressure.. 8 bar
Read and understand the operating instructions before using the appliance. Abide by all
the safety measures stated in the service manual. Act responsibly toward third parties.
In case of any doubts about connection and operation refer please to our customer center
Preserve all the documentation so that anyone who uses the compressor can consult this beforehand.
Specified Conditions Of Use
The compressor can only be used for the production of compressed air to be used at home and by handymen. - Respecting technical data and safety precautions.
The compressed air produced by the compressor cannot not be used for pharmaceutical, food or medical purposes or to fill the air bottles of scuba divers.
The compressor must be used in a suitable environment (well ventilated with an ambient temperature of between +5^ and +40^ ) and never in places with dust, acids, vapors, explosive or flammable gases.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Safety instructions
WARNING! Electric shock! There is a risk of an injury caused by electric shock!
tank capacity 61
Weight 9,7 kg Degree of protection IP 20
Protection class
Sound power level L_WA * . 97 dB(A)
*Measured according to 2005/88/EC
Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA ).
Check the voltage. Technical data given on the type label must correspond with electric network voltage.
Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.
Use extension cables with a maximum length of 5 meters and with a cable cross-section of not less than 1.5mm^2 . Use of extension cables of different length and cross-section and also of adapters and multiple sockets should be avoided.
Check the cable and/or socket for damages before the appliance putting into operation.
To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.
Never let the compressor come into contact with water or other liquids and never direct the jet of liquids sprayed by tools connected to the compressor towards the compressor: as the appliance is live, this could cause electrocution or short-circuits.
Never use the appliance with bare feet or wet hands or feet.
Never yank the power cable to disconnect the plug from the power outlet or to move the compressor.
Warning: the compressor may restart when power is restored following a blackout.
Compressed air is a potentially dangerous form of energy; always take great care when using the compressor and its accessories.
This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed
by that person in how to use the device.
Children should be supervised to ensure that they do not play with the device. Always keep children and unauthorised persons out of reach of the appliance.
Never use the compressor without being supervised.
Never direct the jet of air towards persons, animals or your body.
Never keep the air flow in body holes as that could lead to fatal injuries!
Keep the work area free.
When operating, the compressor must be placed on a stable surface.
The compressor must be used in a vertical position only.
Caution! The compressor may only be used with appropriate wheels and rubber bumps.
Safety goggles should be worn when using the compressor in order to protect the eyes against any foreign bodies lifted by the jet of air.
If possible, when using air-powered accessories, wear safety clothing.
Always maintain a safety distance of at least 4 meters between the compressor and the work area.
Caution! The pneumatic hose may lash you when the quick-acting coupling is opened! The pneumatic hose should be held by hand.
Always use the handle to move the compressor.
When using compressed air, you must know and comply with the safety precautions to be adopted for each type of application (inflation, airpowered tools, painting, washing with water-based detergents only, clinching, etc.).
When using compressed air, you must know and comply with the safety precautions to be adopted for each type of application (inflation, airpowered tools, painting, washing with water-based detergents only, clinching, etc.).
Caution! Never switch the compressor on or off using the plug. Pressure switch to be pressed at all times.
Do not leave the compressor on over night as it could become a source of danger.
At the end of your working day, switch the appliance off, release the air jet and unplug the compressor.
Warning: if the water that condenses is not drained, it may corrode the receiver, reducing its capacity and impairing safety.
As it is a contaminating product, condensate must be DISPOSED of in accordance with laws on protection of the environment and current legislation.
Never leave the appliance exposed to adverse wea
ther conditions (rain, sun, fog, snow).
If this compressor is used outdoors, always remember to stow it after use in a covered or closed place.
Never use the compressor outdoors in rain or bad weather.
Do not place flammable or nylon/fabric objects close to and/or on the compressor.
Do not cover the air inlets on the compressor.
The compressor must not be fitted in a vehicle for industrial purposes without an inspection by an expert!
If the compressor is used for industrial purposes, it must be checked by an expert before putting into operation for the first time. Such check must be ordered by the operator (under BetrSichV Section 17 No.25 - operation safety regulation)
Caution! When fitted in automatic equipment, it is necessary to install appropriate alarm or warning devices in case of power outage or malfunction or compressor (e.g. feed line, etc.) failure.
To guarantee perfect and reliable operation of the rotary and percussive pneumatic tools such as impact wrenches, staplers or nailers, etc., the compressed air must be supplied filtered - with oil via the lubricator or maintenance unit
A filtered water separator should be used for var- nishing in any case.
To select a suitable pneumatic tool, the tool air consumption and the compressor effective amount delivered must necessarily be considered.
(Pneumatic tools and accessory equipment can be found at www.guede.com)
Requirements for operating staff
The operating staff must carefully read the Operating Instructions before using the appliance.
Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.
Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.
If you seek help, state the following pieces of information:
- Accident site
- Accident type
- Number of injured persons
- Injury type(s)
Maintenance
Before carrying out any work on the machine, disconnect the plug from the socket.
Run the accessory connected dry until there is no more air in the receiver.
Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug.
Safety valve Functional check
The machine must not be used under any circumstances if the machine or the safety devices are damaged.
Use only original accessories and original spare parts.
Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.
Oil-free
No need to add oil for operation
Only a regularly maintained and treated
appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guide.com.
Guarantee
The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.
The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.
Service
Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guide.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:
Serial No.:
Art.No:
Year of production:
Symbols
Read the Operating Instructions!
Before carrying out any work on the machine, disconnect the plug from the socket.
Wear eye protective goggles! Wear ear protectors!
Protect against humidity Never expose tool to rain.
Cable pulling / transport prohibited
Warning/caution!
Dangerous voltage
Caution - hot surface! Warning, hot surfaces!
Danger - automatic control (closed loop)
Warning against thrown-off items
Keep distance of persons! Observe to keep out of dangerous zone
Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.
Protect against humidity
This side up
Failure removal
| Defect Causes Measure | ||
| Compressor not starting after being switched on | Pressure in the air jet exceeds the closing pressure | Release the pressure in the air jet so that the pressure switch gets automatically switched on |
| Defective supply Have the current supply checked by an authorised person | ||
| Defective pressure switch Have the pressure switch replaced by an authorised person (Güde service centre) | ||
| Worn carbons Replace the carbons | ||
| After reaching the closed pressu-re, the compressor runs or buzzes for a short time and then switches off automatically | Electric cable is too long or its cross section is too small | Check the length and cross section of the electric cable |
| Compressor running constantly Suction filter is very dirty Clean or replace the suction filter | ||
| Pneumatic tools have high air consumption | Check the pneumatic tool air consumption; seek an authorised compressed air dealer | |
| Leaking on the compressor Localise the leaking, contact the Güde service centre | ||
| Compressed-air pipeline leaking Contact the Güde service centre | ||
| Drain valve is open or missing Close or insert the drain valve | ||
| Compressor gets started too often Too much condensate in the air jet Drain the condensate | ||
| Compressor is overloaded | ||
| Safety valve blowing off Pressure in the air jet exceeds the set cut-off pressure | Have the pressure switch adjusted/replaced by an authorised person (Güde service centre) | |
| Safety valve is defective Replace the safety valve or contact the Güde service centre | ||
| Compressor getting warm too much | Air supply is not sufficient | Make sure sufficient air supply and outlet (minimum distance from wall is 40 cm) is provided |
| Cooling fins on the cylinder (cylin-der head) are dirty | Clean the cooling fins on the cylin-der (cylinder head) | |
| Too long time of appliance operation | Switch the compressor off | |
| Compressor being overheated and keeps switching off | Compressor is overloaded | Contact the Güde service centre |
| Compressor is defective Contact the Güde service centre | ||
| Compressor under undervoltage Contact the Güde service centre | ||
| Outdoor temperature of 35°C | ||
\section*{Caracteristiques Techniques}
Compressor AIRPOWER 190/08/6
Articlel-Nr. 50089
HnBOHa3BykoMaOuHOCT LwA 97 dB(A)
*U3mepeHo cnopei 2005/88/EC
He pa6oTe c ypea Ha 6oc KpaK nn C MOkpn Pbue n KpaKa.
He npaTe 3axpaHbuaKa6e, 3a da OTdienTe
IeNcenaOT KOHTaTaNJIN3aJa npomeHnte NONOKeHneTo Ha KOMnpecopa.
BHHMaHHe: KOMnpecOpbT MoKe Da ce 3aDeiCTBa CneI npEkbCbaHe Ha eJeKtpnueckTo 3axpaHbAhe (black out) n CneI NOdaBaHe OTHO B HA HAnpeXeHneTO.
CrbcteHnT Bb3duy e oopMa Ha eheprna, KOrTo e noteuHaNo onaCha. ETo 3aUo e Heo6xOaMo KOMpeCopbTu HcRObTe npHaadJeKHOCTu Da ce u3non3BaT c N3KnouHTeHNO rOJaMa npedna3NBOCT.
To3n ypeI He e npedBnIeH da ce n3noJI3Ba OT Iuca (BkIouHTenHO deua) C orpaHnueHn fN3nueckn, opraHOnePTnUHN uDxOBHN CnOCo6HoCTN NINOT Iuca, KONTO HMaT ONIT /nnn No3HaHn, OCBeh AKO Te He CE HAMPaT NOd Ha3Opa Ha Iuie, OTROBapAzo 3a TxAHATA Be3OpacHOCT NIN Ca INHCTpyKTIpaHn OT Hero,KaK Da N3
Deata Tpa6ba da ce HamnpaT noi Ha3Op, 3a da e cnrypno, ye He irpaart cypea. BnHar npbXte deua H HeypbHOMOeHN Iua n3BbN o6cera Ha ypea.
HnKora He n3no3BaIe KOMnpecopa 6eHa3Op.
He hacoBaIte ctpyraT O TB3dyx/TeuHoc Cpeuy Xopa, KINBOTHN INN Cpeuy CO6CTBeHOTO CN TAn.
Hnkora He npbXte cTpyra Bb3dyx B TeJeCHN OTBOpu, TOBa 6n MORIO da DOBEe Do CmbpTHN 3NoONyKn!
Pa6oTHaTnloaJaKa Tp8Ba Da 6bJe npa3Ha.
PbpeHa pa6ota KOMnpecopbT Tp8Ba da e pa3noJIOKeH Bpxy CTa6nHa OCHOBA.
I3nol3BaIte KOMnpecopa eINHCTBeHO BbB BePTUKaJIHO NOLOXeHne.
BhImaHHe! KomPecOpbT MoKeJa ca ce n3non3Ba cAmocbc sbotBeTHnTe KOeNa ngmEnu 6yepn.
IpenopbunTeHo e n3no3BaHeTo Ha npedn3Hn OuHaNo BpeMe Ha pa6oTa, 3a da ce npedotBpaTu nonadaHTo BOUHTe Ha yxKn TeNa, NOBdHAtN OT Bb3duHnata CTpy.
Pn ynoTpe6aTa Ha donbHnTeHN nHeMaTuHn npHaIeXHoCTn, aKO e B3MOxHO, n3No13BaNTe 3aunTHo pa60THO o6JeKIO.
OcnrypeTe pa3ctoHnHe Ha 6e3oNaCHOCT OT NOHe 4 MeTpMa MExNy KOMnPecopa N OCTaHaIata pa6oTHa 30Ha.
BHHMaHHe!Pn OTbapHe Ha CKOpocTHNcBeHNHTeM OMe Da BN Wn6He NHeBMaTnHnMapKyu! -DpbXTe NHeBMaTnHn MapKyu.
N3noJ3BaIte BnHaHn n eDnHCTBeHO npBkKaTa Ha KOMnpecopa npn npMeCtBaHeTo My.
YnOtnpe6ataHa CbrbcteH Bb3dyx 3a pa3nnuHN HyKm (HaNyBaHe, 3axpaHbaHe Ha NHeBMaTnH
HCTpymEnT,6oJDCBaHe,MneHe C Mneu npenapatn eHCTBeHo Ha BoHa OCHOba,3a6NaBaHe Ha cKobn np.) n3NCKBa N03HaBaHETo n Cna3BaHeTo Ha npedBnDeHnTe 3a BCEKn OTdelen HcnyaHOPMn.
To3n Komnpecop e ctpoeh 3a OTHOWeHne Ha HepabHomepHocT ha pa60THnpeXm, yKa3aHo Bbpxy Ta6eNaTa 3a TexHnueckn daHHn (Ha np.
S3-25 03aHaBa 2,5 MmHyTn pa6Ota n7,5 MmHyTn NOKo), c zen da ce n36eHne ppe3aRpaBe Ha eNeKtpoDburatEn. B TaKB B Cnya, ce BKnIOyBa TepMo3aunItata, c KOrTo e ChA6DeH dBuratEnrT n npn PpeKaIeHO BnCoka TempepaTypa, eNEKtpuYeCKOT O 3axpaHbAHe ce PpeKbcBA aBTOMaTuYeCKn. Ppr Bb3CTaHOBraBe Ha HopMaJIHtE TempepaTyPhN YcIOBn, DBrTaTeJrT Bn3a ABTomaTuYeCKn B DeiCTBne.
BnMaHne! HnKora He BkIouBaHTe, pecn He n3KIOUbaTe KOMPecopa c NOMOa Ha uenCena. BnHaHn HATNCHe peTe Ho Ha HAnraHe.
He octabnTe KOMnpecopa BkIoueH npe3 HoUta, 6 MoBbI Da ce npeBpHc B N3TOuHnK Ha onaCHOCT.
B KpaHa pa6oTHnA DeH BuHaRn N3KIOUcTe C BKNIOuBaTeNr/N3KIOUbBaTeNr, N3TOUeTe pe3epBoapa N N3KIOUcTe KOMnPecOpa OT MpeXkata.
BHHMaHHe: KOHdEHNpaIaTa BOda, aKO He 6bJe OTCTpaHeHa, MoKe Da npuHn KOpO3npaHe Ha pe3epBoapa, HamaJIbaIKn, nO To3n Haun HcOBn KaanTET n 6e3OnacHOCTa My.
OTCTPAHRAHAETO Ha KOHDeH3aTa Tp6Ba Da ce N3BbPbBa No Hauchn, KoTo He 3aMbpcBa OKHaTa CpeDa n E B CbOTBeTCTBne C DeIcTBaunTe 3aKOH.
He octabnTe ypeHa npko n3IOxKeHne Ha atMOCeepHnTe BnHnra (DbXk, CbHue, MbIa, Chr).
AkoTo3nKOMnpecOpceH3noJ3BaHaBbH,CneIyNOrpe6aTaMyHe3a6paBraTeBnHarDaRoIOCTABReTBCyXOn3aTBOpEHO NOMEueHne.
Ja He ce n3no3Ba HnKora KOMnpecopa HaBbH npN DbxqI nn He6laoropnTn MeTeOpOlrnueckn YcIOBn.
e nocTae Do u/nuu Bbpxy KOMnpecopa necho3anaIIMn,HaIOHOBn IIN PAnTheHn npedmetn.
He nokpnbai Te Bb3dyuHnTe OTBOpN Bbpxy KOMnpecopa.
KomnpecopbT He MoXe Da Ce MOHTnpa B aBTOMo6nn 3a npomuIeHn cen 6e3 npneMaHe n3BbPseHo OT cneuaJInc!
AkoKOMnpecopbTceI3noJI3Ba 3a npomuJleHn ceJI, npeINpBBOHaayanHOTo nycKaHe B ekPNOataa Tp6Ba da ce npOBepn OT cneuaNtCT.
TasnipOBepKa Tp6Ba Da 6bDe HapeHea OT onepaTopa. (cBracho BetrSichV S\(17 N25 (pernaent 3a 6e3oNaChocCTHa pa6ota)
BHMaHHe!PnMOHTaK B aBTOMaTnUHInTe yCTPOINCTBa Tp8Ba Da ce HcHCTaIINpat NODXODA anapMeHN pecn. CbOpBXeHHa 6e3OpaCHOCT B cnuyan Ha npeKbcBAHe Ha eJekTpO3axpaHbAHeto NNn NorpeuHa fYHKsnaNN eBEHT. NOBpeHa Na KOMnPecopa.(HaNP. 3axpaHbauN nnHnn n dp.)
3a da 6bde rapaHTnpaHa nepfeKTHa n HadeJdHa pa6ota Ha BbptAunTe n 6neuTte pHeBMATnHn INCTpyMeHTn KaKBnTO HaNP. Ca ydpHn RaeyHn KIOUOBE, Te6oNn Nn INCTpyMeHTn 3a 3aKOBaBaHe n Dp., CbCTeHN B3dyx npHyDnTEHo Tpr6Ba Da ce NoDABa npe3 rpcBopKaTa nn 3BeHOTo 3a NOIpbXka Ha fNITPnPapHeTo pecn. C MacNo. 3a 6o8dncBaHe BvB BCnKn cnyan Tpr6Ba Da ce I3no3Ba cenapaTop Ha fNITPnPpHaTAt BOda.
3a n36opa Ha noDxOJaI pHeBMaTnueH INHCTpymeHT Tpa6Ba 6e3ycIOBHO da ce BHMaba 3a KOHCyMnpAHOT INHCTpymeHTa Bb3dYx I eEKeTINBHO DOCTaBnHOTOT KOMPecopa KOJIuYeCTBO.
(Пнебматчни Иструменти и пунадлесноцу наимерпту Ha www.guede.com)
I3nCKBaHna 3a 06cnyXbaHe
IpeynynoTpe6aHa ypea 06cnykbaunr Tp8Ba BHIMATEENHO da npoute YnTBaHETo 3a 06cnykbaHe.
KbaHnФkaJn:OcbHnnoDpO6Ho nooyehne OT cNeuaJIncT 3a nI3NoI3BaHeTo Ha ypeJa He e Heo6xoIma HnKaKbCneuaJIHa KbaHnΦkaJn.
Munumna Bb3pact: Cypeda mora da pa6otr caMo Inuca, KOnto ca HABbpwnn 16 roynu. N3knouehn npabn n3no3BaHTo Ha HeNbHOneTHn CaMO, aKO TOBa CTaba NO BpeMe Ha npofoecnoHaHOTO obyehne c ceI NOCTnraHe Ha yMeHne Pnd30pa Ha obyaBauOTo Inuce.
06yuHHe: N3non3BaHeTo Ha ypea n3nCKBa camo cbOTBeTHO noyabaHe OT CneuaJIInCT, peCn. yIbTBaHe 3a 06cnykBaHe. CneuaJIHo 06yuHHe He e Heo6xoJIMo.
ПоведенеВслуайнабetedа
OkaKeTe npu 3IonoJyKa cBoTBeTHaTa nbpBa nOMoU IOBnKaIte KOJIKOTo ce MoXe NO 6bP30 KBAInHnpuHa MeDnHnCKa NOMoU. IpeDna3e TocpaJaNr OT dpyrN 3IonoJyKn I rO yCnOKoYte. 3apAn eBEHTyaJHa 3IonoJyKa Ha pa6OTHO To Tp6Ba BnHaN Da NMa NOD pKa anTeyKa 3a NpRba NOMoU cNopeD DIN 13164.MaTePnAla, KOIT O3eMeTe OT aTeyKaTa Tp6Ba Da 6bDe DoNtBnHeh BeHara.
Ako nckate NOMOUI, NOOCUeTe 3n daHHN:
- MЯCTO Ha 3IonoJyKaTa
- Bùn hα 3lnonónykaTa
3.БрoinHa paheHnTe
4. Bùn HapaHàBaHe
PoaepbXka
Ipeu n3BbPwBaHe Ha KaKBaTo N da 6nlo pa6ota no nomnata BnHaru Hau-Hanpei n3BaTee uencenaHa 3axpaHbaunKa6en OT uencenHATA KyTna.
I3noJI3BaIteHa npa3eH XoD CBbp3aHaTa IOnbJIHNTEJIHa pINHaIeJXHOCT,IOKaTO He OCTaHe CbCTeHBb3dUx B pe3epBOapa.
IpeiBcraKa ynoTpe6a Ha nomnata Hapabete Bn3yaJIeH KOHTPOJ n ce y6eTe,Ye NOMnata Oco6eHO TbK 3axpaHbauu Ka6en n UcenCeJa He ca NOBpeHn
TOnHa Ha npOn3BOdCTBO
| Опасноct OT abTomатуно ручке в:xов |
| Прedeуразжdenе за отXBьрлени Прededmetи |
| ДистанцяPreedхopa! Овър Hedge Вимани заTOBAВ орastsa облacrда Hece 3adbyprka Нюк! |
| Дeф ekтун i/nii liukvdupani Еnéktpruceckn i/nii enéktpoHHu уpeDi Травада сеPreedadTВсBOTBEHnTe Пунковое за сббираHe. |
| ПазetePreedВлага |
| Опakobkata Трава за сбде наочени harope |
CNMBONI
| Пюочeteу упъданeto за общьвае! | |
| Прешии звьршвае на кakвах по за SFILNO разота по nomната ВИнаги най-hаразед изва对接е сенься на захранвашия Кабел OT сеньсанда Ктуг. | |
| НосetePre dedпазни очILA! Да сес поPre dedпазно с体现在 СТВО за слуха! | |
| ПазetePre ded Влaria He ИзларайтЕ машината на захд. | |
| Збразению по за сьрпа / пемechтва с носень за Кабел | |
| ПюочиPre dedждени/ ВИHMANUE! | |
| ВИHMANUE: онлайнспчеки ТOK | |
| ВИHMANUE - рoveши повьхост! Опасноct от за rapаяни! |
OTctpaHЯBaHe Ha Heu3npaBHOCTTa
Translation of the EC-Declaration of Conformity
We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.
In case of any change to the appliance not discussed with us the Declaration expires.
50089 AIRPOWER 190/08/6
Notified Body Name: No: Adress:
e:
SS:
Type Ex.Cert.-No.:
□97/68/EC_
Emission No.:
2000/14/EC_2005/88/EC
- Compressor AIRPOWER 190/08/6
- Specified Conditions Of Use
- Safety instructions
- Requirements for operating staff
- Emergency procedure
- Maintenance
- Oil-free
- Guarantee
- Service
- Symbols
- \section*{Caracteristiques Techniques}
- I3nCKBaHna 3a 06cnyXbaHe
- ПоведенеВслуайнабetedа
- PoaepbXka
- CNMBONI
- Translation of the EC-Declaration of Conformity
- AIRPOWER 190/08/6
Brand : Güde
Model : Kompressor Airpower 190086
Category : Compressor
