Profile Prodigy DPSR405EAAA - Dryer GE - Free user manual and instructions

USER MANUAL Profile Prodigy DPSR405EAAA GE

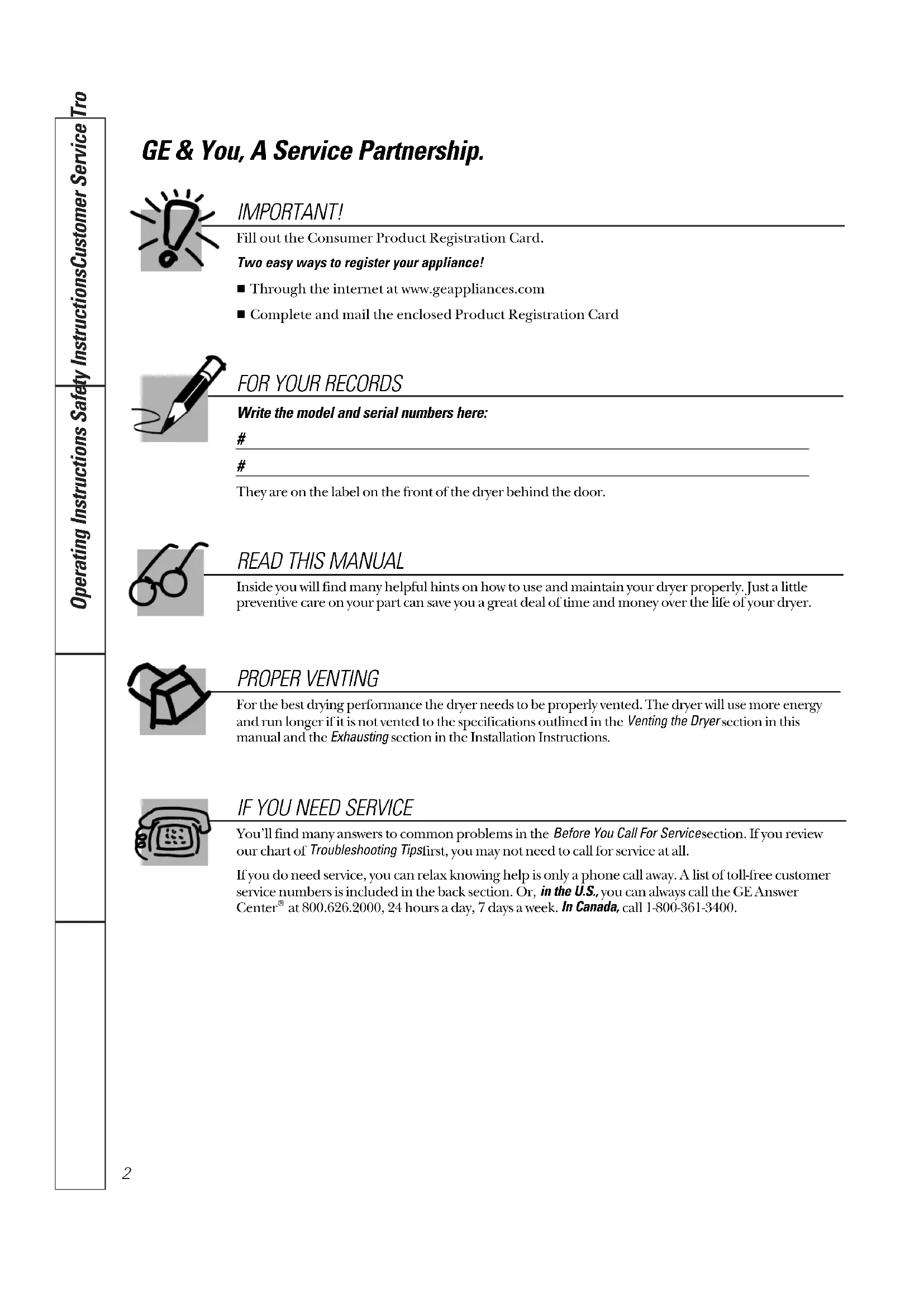

Write the model and serial numbers here:

They are on the label on the front of the dryer behind the door.Inside you will find many helpful hints on how to use and maintain your dryer properly. Just a littlepreventive care on your part can save you a great deal of time and money over the life of your dryer.

PROPER VENTING For the best drying performance the dryer needs to be properly vented. The dryer will use more energyand run longer if it is not vented to the specifications outlined in the Venting the Dryersection in thismanual and the Exhaustingsection in the Installation Instructions.

You’ll find many answers to common problems in the Before You Call For Service section. If you reviewour chart of Troubleshooting Tips first, you may not need to call for service at all.If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customerservice numbers is included in the back section. Or, in the U.S., you can always call the GE AnswerCenter® at 800.626.2000, 24 hours a day, 7 days a week. In Canada, call 1-800-361-3400. IMPORTANT! Fill out the Consumer Product Registration Card.Two easy ways to register your appliance!■ Through the internet at www.geappliances.com■ Complete and mail the enclosed Product Registration Card■ Properly ground dryer to conform with allgoverning codes and ordinances. Follow details inInstallation Instructions.■ Install or store where it will not be exposed totemperatures below freezing or exposed to theweather.■ Connect to a properly rated, protected and sizedpower supply circuit to avoid electrical overload.■ Remove all sharp packing items and dispose of allshipping materials properly.Exhaust/Ducting:Gas dryers MUST be exhausted to the outside.Exhausting electric dryers to the outside isstrongly recommended to prevent large amountsof moisture and lint from being blown into theroom.Use only rigid metal or flexible metal 4″diameter ductwork inside the dryer cabinet orfor exhausting to the outside.USE OF PLASTICOR OTHER COMBUSTIBLE DUCTWORK CANCAUSE A FIRE. PUNCTURED DUCTWORK CANCAUSE A FIRE IF IT COLLAPSES OR BECOMESOTHERWISE RESTRICTED IN USE OR DURINGINSTALLATION.For complete details, follow the InstallationInstructions.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. California Safe Drinking Water and Toxic Enforcement ActThis act requires the governor of California to publish a list of substances known to the state to cause cancer,birth defects or other reproductive harm and requires businesses to warn customers of potential exposureto such substances.Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can beminimized further by properly venting the dryer to the outdoors. PROPER INSTALLATION This dryer must be properly installed and located in accordance with the Installation Instructionsbefore it is used. If you did not receive an Installation Instructions sheet, you can receive one bycalling us toll-free at the GE Answer Center , 800.626.2000. Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or death. WHAT TO DO IF YOU SMELL GAS: Do not try to light a match, or cigarette, or turn on any gas or electrical appliance. Do not touch any electrical switch; do not use any phone in your building. Clear the room, building or area of all occupants. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions carefully. If you cannot reach your gas supplier, call the fire department.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.4 IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING!

■ Keep the area underneath and around yourappliances free of combustible materials (lint,paper, rags, etc.), gasoline, chemicals, and otherflammable vapors and liquids.■ Keep the floor around your appliances clean anddry to reduce the possibility of slipping.■ Close supervision is necessary if this appliance isused by or near children. Do not allow children toplay on, with, or inside this or any other appliance.■ Keep all laundry aids (such as detergents,bleaches, etc.) out of the reach of children,preferably in a locked cabinet. Observe allwarnings on container labels to avoid injury.■ Never climb on or stand on the dryer top.

WHEN USING YOUR DRYER

■ Never reach into the dryer while the drum ismoving. Before loading, unloading or addingclothes, wait until the drum has completelystopped.■ Clean the lint filter before each load to preventlint accumulation inside the dryer or in the room. DO NOT OPERATE THE DRYER WITHOUT THE LINT FILTER IN PLACE. ■ Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such aswax, oil, paint, gasoline, degreasers, dry-cleaningsolvents, kerosene, etc.) which may ignite orexplode. Do not add these substances to the wash water. Do not use or place these substancesaround your washer or dryer during operation.■ Do not place items exposed to cooking oils inyour dryer. Items contaminated with cooking oilsmay contribute to a chemical reaction that couldcause a clothes load to catch fire ■ Any article on which you have used a cleaningsolvent or that contains flammable materials(such as cleaning cloths, mops, towels used inbeauty salons, restaurants, or barber shops, etc.)must not be placed in or near the dryer untilsolvents or flammable materials have beenremoved. There are many highly flammableitems used in homes such as acetone, denaturedalcohol, gasoline, kerosene, some householdcleaners, some spot removers, turpentines, waxes, wax removers and products containingpetroleum distillates.■ The laundry process can reduce the flameretardancy of fabrics. To avoid such a result,carefully follow the garment manufacturer’s care instructions.■ Do not dry articles containing rubber, plastic,foam, or similar materials such as padded bras,tennis shoes, galoshes, bath mats, rugs, bibs, babypants, plastic bags, pillows, etc., that may melt orburn. Some rubber materials, when heated, canunder certain circumstances produce fire byspontaneous combustion.■ Do not store plastic, paper or clothing that mayburn or melt on top of the dryer during operation.■ Garments labeled Dry Away from Heat

Not Tumble Dry (such as life jackets containingKapok) must not be put in your dryer.■ Do not dry fiberglass articles in your dryer. Skin irritation could result from the remainingparticles that may be picked up by clothingduring subsequent dryer uses.■ To minimize the possibility of electric shock,unplug this appliance from the power supply or disconnect the dryer at the householddistribution panel by removing the fuse orswitching off the circuit breaker beforeattempting any maintenance or cleaning (except the removal and cleaning of the lintfilter). NOTE: Turning the Cycle Selector knob to an OFF position does NOT disconnect theappliance from the power supply. Operating Instructions Safety InstructionsCustomer Service Troubleshooting TipsWHEN NOT USING YOUR DRYER ■ Grasp the plug firmly when disconnecting this appliance to avoid damage to the cord while pulling. Place the cord away from traffic areas so it will not be stepped on, tripped over or subjected to damage.

Do not attempt to repair or replace any part of this appliance or attempt any servicing unless specifically recommended in this Owner’s Manual or in published user-repair instructions that you understand and have the skills to carry out. ■ Before discarding a dryer, or removing it from service, remove the dryer door to prevent children from hiding inside. ■ Do not tamper with controls. ■ Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug. ■ The interior of the machine and the exhaust duct connection inside the dryer should be cleaned at least once a year by a qualified technician. See the Loading and Using the Dryer section. ■ If yours is a gas dryer, it is equipped with an automatic electric ignition and does not have a pilot light. DO NOT ATTEMPT TO LIGHT WITH A MATCH. Burns may result from having your hand in the vicinity of the burner when the automatic ignition turns on. ■ You may wish to soften your laundered fabrics or reduce the static electricity in them by using a dryer-applied fabric softener or an anti-static conditioner. We recommend you use either a fabric softener in the wash cycle, according to the manufacturer’s instructions for those products, or try a dryer-added product for which the manufacturer gives written assurance on the package that their product can be safely used in your dryer. Service or performance problems caused by use of these products are the responsibility of the manufacturers of those products and are not covered under the warranty to this appliance. Read and follow this Safety Information carefully.

SAVE THESE INSTRUCTIONS

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions6 About the dryer control panel. You can locate your model number on the label on the front of the dryer behind the door. Throughout this manual, features and appearance may vary from your model. Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips

Optional Feature, on some models Optional Feature, on some models7 Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions IMPORTANT: Clean the lint filter each time you use the dryer. Fabric Care COTTONS For regular to heavy cottons.REG. HEATEASY CARE For synthetics, blends, delicates and items labeledpermanent press.MED. HEATFLUFF For fluffingitems without heat. Use the TIMED DRYcycle.NO HEATDELICATES For delicates, synthetics and items labeledtumble dry low.LOW HEATULTRACARE For lingerie and special-care fabrics.GENTLE HEAT Drying Cycles — Automatic cycles automatically determine fabric dryness. Select MORE DRYfor heavierfabrics, LESS DRYfor lighter fabrics. Timed cycles run for the selected time.AUTOMATIC For cottons and most linens. For most loads select OPTIMUM DRY COTTONSEASY CARE For wrinkle-free, permanent press and delicate items, and knits.AUTOMATICULTRACARE For special-care fabrics such as rayons, woolens, and silks.TIMED DRY Set the Cycle Selector at the desired drying time.DAMP DRY For leaving items partially dry.QUICK DRY For one or two items.DRYEL For use with DRYEL “dry clean only” fabric care system. Use the MED-HEAT fabric care setting.See product package for instructions. DEWRINKLE For removing wrinkles from items that are clean and dry or that are very lightly damp. QUICK FLUFF For freshening or fluffing up already dry clothing, fabric, linens, and pillows. Use with

Provides 10 minutes of no-heat tumbling. Start — Close the dryer door. Select START.Opening the door during operation will stop the dryer. To restart the dryer, close the door and select STARTto complete the cycle. Control Settings NOTE: Drying times will vary according to the type of heat used (Electric, Natural or LP gas), size of load, types of fabrics, wetness of clothes, and condition of exhaust ducts.

3Automatic Cycle Signal

Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips About your dryer features. End of Cycle Signal This signal will sound just before the end of the cycle to remind you to remove theclothes. On some models, the signal soundlevel can be adjusted.If you selected the WRINKLE CARE option the signal will sound at the end of thedrying time and will sound several timesduring the WRINKLE CAREcycle. This willremind you that it is time to remove theclothes.NOTE: Remove garments promptly at the sound of the signal. Place clothes on hangers so wrinkles won’t set in. Use the END OF CYCLE SIGNAL especiallywhen drying fabrics like polyester knitsand permanent press. These fabrics should be removed so wrinkles won’t set in. Drum Lamp Before replacing the light bulb, be sure to unplug the dryer power cord or disconnect the dryer at the household distribution panel by removing the fuse or switching off thecircuit breaker. Reach above dryer openingfrom inside the drum. Remove the bulb andreplace with the same size bulb. Wrinkle Care Use this option to minimize the wrinkles in clothes. It provides approximately 15minutes of no-heat tumbling after theclothes are dry.This option can only be used with theCOTTONS EASY CARE DELICATES, andULTRACAREcycles. If you are using the CYCLESIGNALand you select the WRINKLE CAREoption, a signal will sound at the end of thedrying time and several times during theWRINKLE CAREcycle. This will remind youthat it is time to remove the clothes. WRINKLE CAREis not ON, the dryer will stoponce the timer reaches the WRINKLE CAREmark on the cycle dial. Dryness Sensor Cycle–on some models This feature is only activated in the COTTONS EASY CARE DELICATES, andULTRACAREcycles. The Dryness Sensorprovides greater drying accuracy than standard machines,resulting in shorter dry times and betterclothes care. As the clothes tumble, theytouch a moisture sensor. The sensor willstop the heating cycle as soon as the clotheshave reached the selected dryness.On some models, there is a Dryness Sensor Cycleindicator light. This light isilluminated during automatic cycles.When the Dryness Sensorfeature stops theheating cycle, the light will go out and thecool down period will begin.Note:The clothes will be hot if they areremoved immediately after the indicator light goes out. Dryness Sensor Cycle Color Logic Select the correct FABRIC CAREsetting. Matchthe particular color below the words with thesame color on the Cycle Dial.Example: Drying a load of clothing labeledpermanent press.Choose the FABRIC CAREsetting-—for thisload it would be the EASY CARE MED. HEAT (which is a particular color). Turn the Cycle Dial to the area that hasthe same color as the FABRIC CAREsettingyou have chosen—for this load it would be the EASY CARE AUTOMATIC.

(appearance may vary) Automatic Cycle Signal–on some models At the end of each cycle there isapproximately 15 minutes of no-heattumbling after the laundry is dry. A reminder signal will sound periodicallyduring this time to remind you to remove thelaundry.About reversing the door.

Reversing the Door Tools needed: Standard #2 Tape-tipped Needle-nosed Phillips screwdriver putty knife pliersOpen the door and remove the filler plugs opposite the hinges. With the doorcompletely open, remove the bottom screw from each hinge on the dryer face. Insertthese screws about half way into the TOP holes, for each hinge, on the opposite side(where you removed the filler plugs). Apply firm pressure to get the screw started inuntapped holes.Loosen top screw from each hinge on the dryer face half way. With one hand holdingthe top of the door and the other hand holding the bottom, remove the door from thedryer by lifting it

and OUT. Rotate the door 180°. Insert it on the opposite side of the opening by moving the door

and DOWN until the top hinge and the bottom hinge are resting on the top screwsinserted in step 1.Remove the remaining screws from the side of the opening from which the door wasremoved. With these screws secure each hinge at the bottom. Tighten the two topscrews of each hinge. Reinsert the plastic plugs on the side from which the door wasremoved.

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions Drying Rack–on some models A handy drying rack may be used for dryingarticles such as stuffed toys, pillows orwashable sweaters. Hook the rack over the lint filter so the rackextends into the dryer drum.NOTE:■ The drying rack must be used with the TIMED CYCLE.■ Do not use this drying rack when there areother clothes in the dryer.10 Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips Loading and using the dryer. Always follow the fabric manufacturer’s care label when laundering. Sorting and Loading Hints As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer.Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with themanufacturer’s instructions.Do not overload. This wastes energy and causes wrinkling. Do not dry the following items: fiberglass items, woolens, rubber-coated items, plastics, items with plastic trim and foam-filled items.The Exterior: Wipe or dust any spills or washingcompounds with a damp cloth. Dryer control panel and finishes may be damaged by somelaundry pretreatment soil and stain removerproducts. Apply these products away from thedryer. The fabric may then be washed and driednormally. Damage to your dryer caused by theseproducts is not covered by your warranty.The Lint Filter: Clean the lint filter before each use. Moisten your fingers and reach into the filteropening. Run your fingers across the filter. Have aqualified technician vacuum the lint from the dryeronce a year.The Exhaust Duct: Inspect and clean the exhaustducting at least once a year to prevent clogging. Apartially clogged exhaust can lengthen the dryingtime. Follow these steps: Turn off electrical supply by disconnecting theplug from the wall socket.Disconnect the duct from the dryer.Vacuum the duct with the hose attachment andreconnect the duct.The Exhaust Hood: Check with a mirror that the insideflaps of the hood move freely when operating. Makesure that there is not wildlife (birds, insects, etc.)nesting inside the duct or hood.

Care and Cleaning of the Dryer Fabric Care Labels Machine wash cycle Normal Permanent Press/ wrinkle resistant Gentle/ delicate Hand wash Do not wash Do not wring Water temperature Hot (50°C/120°F) Warm (40°C/105°F) Cold/cool (30°C/85°F) Tumble dry Dry Normal Permanent Press/ wrinkle resistant Gentle/ delicate Do not tumble dry Do not dry (used with do not wash) Heat setting High Medium Low No heat/air Special instructions Line dry/ hang to dry Drip dry Dry flat In the shade Bleach symbols Any bleach (when needed) Only non-chlorine bleach (when needed) Do not bleach Below are fabric care label “symbols” that affect the clothing you will be laundering. WASH LABELS DRY LABELS BLEACH LABELS11 Venting the dryer. For the best drying performance the dryer needs to be properly vented. The dryer will use more energy and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in the Installation Instructions. ■ Use only rigid metal or flexible metal 4″ diameter ductwork inside the dryer cabinet or for exhausting to the outside. ■ Do not use plastic or other combustible ductwork. ■ Use the shortest length possible. ■ Do not crush or collapse. ■ Avoid resting the duct on sharp objects.

Venting must conform to local building codes. Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions Correct Venting Incorrect VentingOperating Instructions Safety InstructionsCustomer Service Troubleshooting Tips Before you call for service… Problem Possible Causes What To Do Dryer doesn’t start Dryer is unplugged • Make sure the dryer plug is pushed completely into the outlet. Fuse is blown/circuit breaker is • Check the house fuse/circuit breaker box and tripped replace fuse or reset breaker. NOTE: Most electric dryers use two fuses/breakers. Dryer doesn’t heat Fuse is blown/circuit breaker is • Check the house fuse/circuit breaker box and tripped, the dryer may tumble replace fuse or reset breaker.but not heat Gas service is off • Make sure gas shutoff at dryer and main shutoff are fully open. Dryer shakes or makes Some shaking/noise is normal. • Move dryer to an even floor space, or adjust noise Dryer may be sitting unevenly leveling legs as necessary until even. Greasy spots on clothes Improper use of fabric softener • Follow directions on fabric softener package. Drying dirty items with clean ones • Use your dryer to dry only clean items. Dirty items can stain clean items and the dryer. Clothes were not completely clean • Sometimes stains which cannot be seen when the clothes are wet appear after drying. Use proper washing procedures before drying. Lint on clothes Lint filter is full • Clean lint screen before each load. Improper sorting • Sort lint producers (like chenille) from lint collectors (like corduroy). Static electricity can attract lint • See suggestions in this section under STATIC. Overloading • Separate large loads into smaller ones. Paper, tissue, etc., left in pockets • Empty all pockets before laundering clothes. Static occurs No fabric softener was used • Try a fabric softener.

• Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer’s instructions. Overdrying • Try a fabric softener.
• Adjust controls for less drying. Synthetics, permanent press and • Try a fabric softener. blends can cause static Inconsistent drying times Type of heat • Automatic drying times will vary according to the type of heat used (electric, natural or LP gas), size of load, types of fabrics, wetness of clothes and condition of exhaust ducts. Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Operating InstructionsSafety Instructions Customer ServiceTroubleshooting Tips Problem Possible Causes What To Do Clothes take too long Improper sorting • Separate heavy items from lightweight items (generally, to dry a well-sorted washer load is a well-sorted dryer load). Large loads of heavy fabrics (like • Large, heavy fabrics contain more moisture and take beach towels) longer to dry. Separate large, heavy fabrics into smaller loads to speed drying time. Controls improperly set • Match control settings to the load you are drying. Lint filter is full • Clean lint filter before every load. Improper or obstructed ducting • Check installation instructions for proper ducting/venting.

• Make sure ducting is clean, free of kinks and unobstructed.

• Check to see if outside wall damper operates easily.

• Check the Installation Instructions to make sure the dryer venting is correct. Blown fuses or tripped circuit • Replace fuses or reset circuit breakers. Since most breaker dryers use 2 fuses/breakers, make sure both are operating. Overloading/combining loads • Do not put more than one washer load in the dryer at a time. Underloading • If you are drying only one or two items, add a few items to ensure proper tumbling. Clothes are wrinkled Overdrying • Select a shorter drying time.

• Remove items while they still hold a slight amount of moisture. Letting items sit in dryer after •Remove items when cycle ends and fold or hang cycle ends immediately. Clothes shrink Some fabrics will naturally shrink • To avoid shrinkage, follow garment care labels exactly. when washed. Others can be safely washed, but will shrink

• Some items may be pressed back into shape after drying. in the dryer

• If you are concerned about shrinkage in a particular item, do not machine wash or tumble dry it.14 Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips NotesGeneral Electric Company Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150 GE Service Protection Plus

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus —comprehensive protection on all your appliances—No Matter What Brand!Benefits Include:• Backed by GE• All brands covered• Unlimited service calls• All parts and labor costs included• No out-of-pocket expenses• No hidden deductibles• One 800 number to callYou will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple. Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemakercoverage and food spoilage protection is offered. You can rest easy, knowing that all your valuablehousehold products are protected against expensive repairs.Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224for more information.*All brands covered, up to 20 years old, in the continental U.S. We’ll Cover Any Appliance. Anywhere. Anytime.* Please place in envelope and mail to:

Cut here 15Consumer Product Ownership Registration ImportantMail Today!First Name Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■ StreetAddress City StateDate PlacedIn UseMonth Day Year Zip Code Apt. # Last Name PhoneNumber

Consumer Product Ownership Registration Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer! Follow these three steps to protect your new appliance investment: Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at www.geappliances.com.

Cut hereComplete and mailyour ConsumerProduct OwnershipRegistration today.Have the peace ofmind of knowing wecan contact you in the unlikely event of safety modification.After mailing theregistration below, store this document in a safe place. Itcontains informationyou will need should you require service. Our service number is800 GE CARES (800-432-2737).Read your Owner’sManual carefully.It will help youoperate your newappliance properly. If you have questions,or need moreinformation, call the GE Answer Center

Model Number Serial Number E-mail AddressOccasionally, we may allow selected companies to send you information. ■■ Check here if you do not want this information.

GE Dryer Warranty (For customers in the United States) All warranty service provided by our FactoryService Centers, or an authorized Customer Care technician. For service, call 800-GE-CARES.This warranty is valid only in the United States.Warranty may vary in Canada. See your approvedProfile dealer for details. For The Period Of: GE Will Replace: One Year Any partof the dryer which fails due to a defect in materials or workmanship. During this full From the date of the one-year warranty, GE will also provide, free of charge, all labor and in-home service to replace the original purchasedefective part.Five Years Any extra large or super capacity dryer drum which fails due to a defect in materials orFrom the date of theworkmanship. During this additional four-year limited warranty, you will be responsible for any original purchaselabor or in-home service costs.■ Service trips to your home to teach you how to use theproduct.■ Improper installation.■ Failure of the product if it is abused, misused, or used forother than the intended purpose or used commercially.■ Replacement of house fuses or resetting of circuitbreakers.■ Damage to the product caused by accident, fire, floods oracts of God.■ Incidental or consequential damage to personal propertycaused by possible defects with this appliance. What GE Will Not Cover: This warranty is extended to the original purchaser and any succeeding owner for products purchased for homeuse within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty givesyou specific legal rights, and you may also have other rights which vary from state to state. To know what yourlegal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 Operating InstructionsSafety Instructions Customer ServiceTroubleshooting TipsFonctionnement Mesures de sécuritéService à la clientèle Conseils de dépannage Un partenariat de service. Mesures de sécurité . .19–21 Directives de fonctionnement Tableaux de commande . .22, 23

In the U.S.: 800.626.2000 Service Telephone Numbers. The GE Answer Center® is open 24 hours a day, 7 days a week. In Canada, contact: Manager, Consumer Relations, Camco Inc., 1 Factory Lane, Suite 310,Moncton, N.B., E1C 9M3. In-Home Repair Service In the U.S.: 800-432-2737 Expert GE repair service is only a phone call away. In Canada, call 1-800-361-3400. Special Needs Service In the U.S.: 800.626.2000 GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons with limited mobility. In the U.S., call 800-TDD-GEAC (800-833-4322). In Canada, contact: Manager, Consumer Relations, Camco Inc., 1 Factory Lane, Suite 310,Moncton, N.B., E1C 9M3. Service Contracts In the U.S.: 800-626-2224 Purchase a GE service contract while your warranty is still in effect and you’ll receive a substantial discount. GE Consumer Service will still be there after your warranty expires. In Canada, call 1-800-461-3636. Parts and Accessories In the U.S.: 800-626-2002 Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Instructions contained in this manual cover procedures to be performed by any user. Other servicinggenerally should be referred to qualified service personnel. Caution must be exercised, sinceimproper servicing may cause unsafe operation. In Canada, call 1-800-361-3400. Service Satisfaction If you are not satisfied with the service you receive from GE: First, contact the people who serviced your appliance. Next, if you are still not pleased, in the U.S., write all the details—including your phone number—to:Manager, Consumer Relations, GE Appliances, Appliance Park, Louisville, KY 40225; or, in Canada, to Director, Consumer Relations, Camco Inc., 1 Factory Lane, Suite 310, Moncton, N.B.,E1C 9M3.Printed in Canada Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips
