USER MANUAL DSXH43EFWW GE

Printed in Mexico2 Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. California Safe Drinking Water and Toxic Enforcement ActThis act requires the governor of California to publish a list of substances known to the state to cause cancer,birth defects or other reproductive harm and requires businesses to warn customers of potential exposureto such substances.Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can beminimized further by properly venting the dryer to the outdoors. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or death. WHAT TO DO IF YOU SMELL GAS: Do not try to light a match, or cigarette, or turn on any gas or electrical appliance. Do not touch any electrical switch; do not use any phone in your building. Clear the room, building or area of all occupants. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions carefully. If you cannot reach your gas supplier, call the fire department.

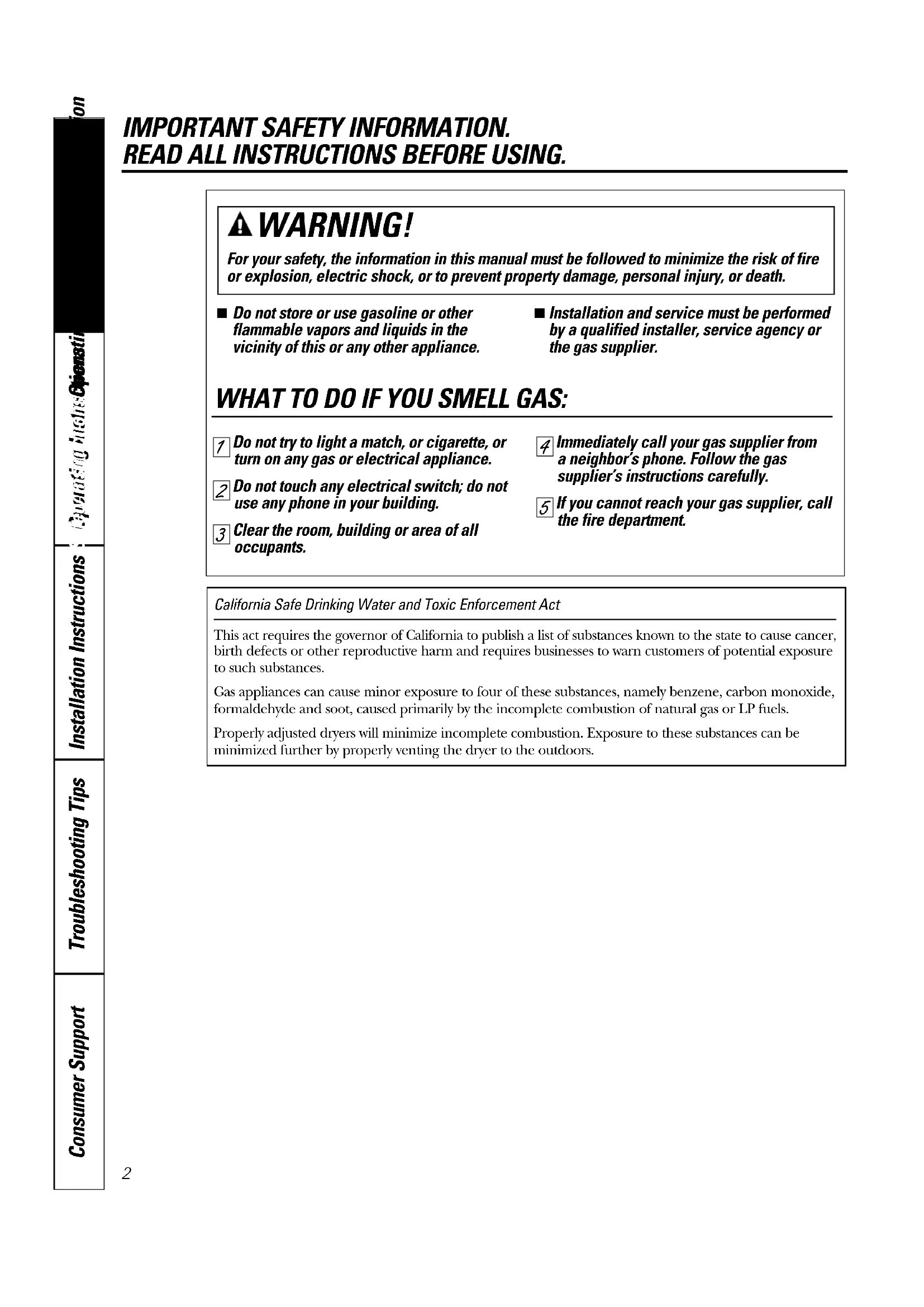

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.■ Properly ground dryer to conform with allgoverning codes and ordinances. Followdetails in Installation Instructions.■ Install or store where it will not be exposed totemperatures below freezing or exposed to theweather.■ Connect to a properly rated, protected andsized power supply circuit to avoid electricaloverload.■ Remove all sharp packing items and dispose ofall shipping materials properly. Exhaust/Ducting: This dryerMUST be exhausted to the outside.Use only rigid metal 4″ diameter ductworkinside the dryer cabinet. Use only rigid metalor flexible metal 4″ diameter ductwork forexhausting to the outside.USE OF PLASTIC OROTHER COMBUSTIBLE DUCTWORK CAN CAUSEA FIRE. PUNCTURED DUCTWORK CAN CAUSE AFIRE IF IT COLLAPSES OR BECOMES OTHERWISERESTRICTED IN USE OR DURING INSTALLATION.For complete details, follow the InstallationInstructions.

PROPER INSTALLATION This dryer must be properly installed and located in accordance with the Installation Instructions before it is used.

■ Keep the area underneath and around yourappliances free of combustible materials, such as lint, paper, rags and chemicals.■ Keep the floor around your appliances clean anddry to reduce the possibility of slipping.■ Keep area around the exhaust opening andsurrounding areas free from the accumulation of lint, dust and dirt.■ Do not obstruct the flow of ventilating air. Do notstack or place laundry or throw rugs against thefront or back of the dryer.■ Close supervision is necessary if this appliance isused by or near children. Do not allow children to play on, with or inside this or any otherappliance.■ Keep all laundry aids (such as detergents,bleaches, etc.) out of the reach of children,preferably in a locked cabinet. Observe allwarnings on container labels to avoid injury.■ Never climb on or stand on the dryer top.

WHEN USING YOUR DRYER

■ Never reach into the dryer while the drum ismoving. Before loading, unloading or addingclothes, wait until the drum has completelystopped.

Clean the lint filter before each load to prevent lintaccumulation inside the dryer or in the room. DO NOT OPERATE THE DRYER WITHOUT THE LINT FILTER IN PLACE, UNLESS THE DRYING RACK IS IN USE. Always replace the lint screen when finishedusing the drying rack.■ Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such aswax, oil, paint, gasoline, degreasers, dry-cleaningsolvents, kerosene, etc.). These substances giveoff vapors that may ignite or explode. Do not addthese substances to the wash water. Do not use orplace these substances around your washer ordryer during operation.■ Any article on which you have used a cleaningsolvent or that contains flammable materials(such as cleaning cloths, mops, towels used inbeauty salons, restaurants or barber shops, etc.)must not be placed in or near the dryer untilsolvents or flammable materials have beenremoved. There are many highly flammableitems used in homes such as acetone, denaturedalcohol, gasoline, kerosene, some householdcleaners, some spot removers, turpentines, waxes, wax removers and products containingpetroleum distillates.■ The laundry process can reduce the flameretardancy of fabrics. To avoid such a result,carefully follow the garment manufacturer’s care instructions.■ Do not dry articles containing rubber, plastic or similar materials such as padded bras, tennisshoes, galoshes, bath mats, rugs, bibs, baby pants,plastic bags and pillows that may melt or burn.Some rubber materials, when heated, can undercertain circumstances produce fire byspontaneous combustion.■ Do not store plastic, paper or clothing that mayburn or melt on top of the dryer duringoperation.■ Garments labeled Dry Away from Heat

Not Tumble Dry (such as life jackets containingkapok) must not be put in your dryer.■ Do not dry fiberglass articles in your dryer. Skin irritation could result from the remainingparticles that may be picked up by clothingduring subsequent dryer uses.■ To minimize the possibility of electric shock,unplug this appliance from the power supply or disconnect the dryer at the householddistribution panel by removing the fuse orswitching off the circuit breaker beforeattempting any maintenance or cleaning (except the removal and cleaning of the lintfilter). NOTE: Turning the Cycle Selector knob to an OFF position does NOT disconnect theappliance from the power supply.■ Do not spray any type of aerosol into, on or neardryer at any time.■ Do not place items exposed to cooking oils inyour dryer. Items contaminated with cooking oilsmay contribute to a chemical reaction that couldcause a clothes load to catch fire. Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions Troubleshooting Tips Installation Instructions Safety InstructionsOperating InstructionsWHEN NOT USING YOUR DRYER ■ Grasp the plug firmly when disconnecting this appliance to avoid damage to the cord while pulling. Place the cord away from traffic areas so it will not be stepped on, tripped over or subjected to damage. ■ Do not attempt to repair or replace any part of this appliance or attempt any servicing unless specifically recommended in this Owner’s Manual or in published user-repair instructions that you understand and have the skills to carry out. ■ Before discarding a dryer, or removing it from service, remove the dryer door to prevent children from hiding inside. ■ Do not tamper with controls. ■ Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled or has missing or broken parts, including a damaged cord or plug. ■ The interior of the machine and the exhaust duct connection inside the dryer should be cleaned at least once a year by a qualified technician. See the Loading and Using the Dryer section. Do not use any type of spray cleaner when cleaning dryer interior. Hazardous fumes or electrical shock could occur. ■ If yours is a gas dryer, it is equipped with an automatic electric ignition and does not have a pilot light. DO NOT ATTEMPT TO LIGHT WITH A MATCH. Burns may result from having your hand in the vicinity of the burner when the automatic ignition turns on. ■ You may wish to soften your laundered fabrics or reduce the static electricity in them by using a dryer-applied fabric softener or an antistatic conditioner. We recommend you use either a fabric softener in the wash cycle, according to the manufacturer’s instructions for those products, or try a dryer-added product for which the manufacturer gives written assurance on the package that their product can be safely used in your dryer. Service or performance problems caused by use of these products are the responsibility of the manufacturers of those products and are not covered under the warranty to this appliance. READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Consumer Support Troubleshooting Tips Operating InstructionsSafety Instructions Installation Instructions WARNING!6 About the dryer control panel. Control Settings Fabric Care COTTONS For regular to heavy cottons.REG. HEATPERM. PRESS For synthetics, blends and items labeledpermanent press tumble dry medium heat.MED HEATKNITS/ For knits, delicates, synthetics and items labeledtumble dry low heat.DELICATESLOW HEATAIR FLUFF For fluffingitems without heat. Use the TIMED DRYcycle.NO HEAT Drying Cycles The COTTONS EASY CARE and DELICATEScycles automatically sense fabric dryness. Select MORE DRYfor heavier fabrics, LESS DRYfor lighter fabrics. The TIMED DRYcycle will run for a selected time. COTTONS For cottons and most linens. For most loads, select the Optimum Drysetting (on some models). EASY CARE For wrinkle free, permanent press and delicate items, and knits. For most loads, select the PERM PRESSOptimum Drysetting (on some models).DELICATES For delicates and special care fabrics. For most loads, select the Optimum Drysetting (on some models).TIMED DRY Set the Cycle Selector at the desired drying time. Start Close the dryer door. Select START. Opening the door during operation will stop the dryer. To restartthe dryer, close the door and select STARTto complete the cycle. Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions Features and appearance may vary. Models DPXH46 and DCXH46 Models DSXH43, DH43 and PSXH43About your dryer features. Cycle Signal Option (on some models) When the signal is on it will sound justbefore the end of the cycle to remindyou to remove the clothes. The signalcan be set at OFF (no sound), LOUD

anywhere in between.If the dried load cannot be removedpromptly during the EASY CARE cycle,the Cycle Selector will advance to the

setting. Unheatedtumbling continues during EXTENDED COOL DOWN and WRINKLE CARE (on some models) for 40 minutes to helpreduce wrinkling. When the CYCLE SIGNAL is on, it will sound briefly every five minutes as a reminder to remove the load. NOTE:

If items are removed before the end of the cycle, turn the CYCLE SELECTOR knob to OFF.

Remove garments promptly at the sound of the signal. Place clothes on hangers so wrinkles won’t set in.

Use the Cycle Signal especially when drying fabrics like polyester knits and permanent press. These fabrics should be removed so wrinkles won’t set in.

CYCLE SIGNALOFF LOUD

Replacing the Dryer Light Bulb (on some models)

To reduce therisk of electric shock, disconnect thisappliance from the power supplybefore attempting any usermaintenance. Turning the controlsto the OFF position does notdisconnect this appliance from thepower supply.The dryer light is located above the dryerdoor opening.Before replacing the light bulb, be sure tounplug the dryer power cord or disconnectthe dryer at the household distributionpanel by removing the fuse or switching off the circuit breaker. To replace the dryer light: Using a small flat blade screwdriver,pry the bottom of the light cover out and off the light housing. Unscrew the bulb when cool andreplace it with an appliance bulb ofthe same or lower wattage.Snap the light cover back on the light housing.

Drying Rack (on some models) A handy drying rack may be used for dryingarticles such as stuffed toys, pillows orwashable sweaters. Remove the lint screen.Place the front bar under the lip of thelint screen opening.When items are dry, remove the rackand replace the lint screen. DO NOT

RACK IS IN PLACE. NOTE: ■ The drying rack must be used with the TIMED DRY cycle.■ Do not use this drying rack when thereare other clothes in the dryer.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Pry with flat blade screwdriver Light housing Light cover Wrinkle Care Option (on some models) Use this option to minimize the wrinkles in clothes. It provides approximately 15minutes of no-heat tumbling after theclothes are dry.This option can only be used with the EASY CARE and DELICATES cycles. WRINKLE CARE

EXTENDED COOL AIR TUMBLE

ON OFF 7As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer.Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer’s instructions.Do not overload. This wastes energy and causes wrinkling. Do not dry the following items: fiberglass items, woolens, rubber-coated items, plastics, items with plastic trim and foam-filled items.

Loading and using the dryer. Always follow the fabric manufacturer’s care label when laundering. Sorting and Loading Hints The Exterior: Wipe or dust any spills or washingcompounds with a damp cloth. Dryer control paneland finishes may be damaged by some laundrypretreatment soil and stain remover products.Apply these products away from the dryer. Thefabric may then be washed and dried normally.Damage to your dryer caused by these products isnot covered by your warranty.The Lint Screen: Clean the lint screen before eachuse. Lint buildup in the screen restricts air flow,which causes longer drying times. The screen islocated at the bottom of the door opening. Removeby pulling straight up. Remove the lint and replacethe screen.A waxy buildup may form on the lint screen fromusing dryer-added fabric softener sheets. To removethis buildup, wash the lint screen in warm, soapywater. Dry thoroughly and replace. Do not operatethe dryer without the lint screen in place.The Exhaust Duct: Inspect and clean the exhaustducting at least once a year to prevent clogging. Apartially clogged exhaust can lengthen the dryingtime. Follow these steps: Turn off electrical supply by disconnecting theplug from the wall socket.Disconnect the duct from the dryer.Vacuum the duct with the hose attachment andreconnect the duct.The Exhaust Hood: Check from the outside that theflaps of the hood move freely when operating. Makesure that there is no wildlife (birds, insects, etc.)nesting inside the duct or hood.

Care and Cleaning of the Dryer Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions9 Installation Spacemaker Dryer Instructions

This act requires the governor of California to publisha list of substances known to the state to cause cancer,birth defects or other reproductive harm and requiresbusinesses to warn customers of potential exposure tosuch substances. Gas appliances can cause minorexposure to four of these substances, namely benzene,carbon monoxide, formaldehyde and soot, causedprimarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted dryers will minimizeincomplete combustion. Exposure to these substancescan be minimized further by properly venting thedryer to the outdoors.

Read these instructions completely and carefully.

IMPORTANT – Save these instructions for local inspector’s use.

IMPORTANT – Observe all governing codes and ordinances. Note to Installer – Be sure to leave theseinstructions with the Consumer. Note to Consumer – Keep these instructionsfor future reference.

• Skill level – Installation of this appliance requires basic mechanical and electrical skills.• Completion time – 1–3 hours• Proper installation is the responsibility of theinstaller. • Product failure due to improper installation is notcovered under the Warranty.• Remove and discard existing plastic or metal foilduct and replace with UL-listed duct. WARNING
• To reduce the risk of severe injury or death, follow allinstallation instructions.• Clothes dryer installation must be performed by aqualified installer.• Install the clothes dryer according to these instructionsand in accordance with local codes.• This dryer must be exhausted to the outdoors.• Use only 4" rigid metal ducting for exhausting theclothes dryer to the outdoors.• DO NOT install a clothes dryer with flexible plasticducting materials. If flexible metal (semi-rigid or foil-type) duct is installed, it must be UL-listed and installedin accordance with the instructions found in"Connecting the Dryer to House Vent" on page 12 ofthis manual. Flexible ducting materials are known tocollapse, be easily crushed, and trap lint. Theseconditions will obstruct dryer airflow and increase therisk of fire.• Do not install or store this appliance in any locationwhere it could be exposed to water and/or weather.• Save these instructions. (Installers: Be sure to leavethese instructions with the customer.)• The National Fuel Gas code restricts installations of gas appliances in garages. They must be 18″ (45.7 cm)off the ground and protected from vehicles by abarrier. See Location of Your Dryer section.
• The electrical service to the dryer must conform with local codes and ordinances and the latest edition of theNational Electrical Code, ANSI/NFPA 70 or in Canada,CSA C22.1 Canadian Electrical Code Part 1.
• The gas service to the dryer must conform with local codes and ordinances or the latest edition of theNational Fuel Gas Code ANSI Z223.1 or in Canada,CAN/CGA B149.12. The gas dryer is designed underANSI Z 21.5.1 or ANSI/UL2158–CAN/CSA C22.2(latest editions) for home use only. This dryer is notrecommended for commercial applications such asrestaurants or beauty salons. FOR YOUR SAFETY: If you have any questions, in the U.S., call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com. In Canada, call 1.800.561.3344 or visit our Website at: www.GEAppliances.ca

IN THE COMMONWEALTH OF

• This product must be installed by a licensedplumber or gas fitter.• When using ball-type gas shut-off valves, theyshall be the T-handle type.• A flexible gas connector, when used, must notexceed 3 feet.1. Prepare the area and exhaust for installation of the new dryer.

2. Check to be sure that the existing external

exhaust is clean and that it meets attached installation specifications.

3. Place the four corner posts from the shipping

carton on the floor, parallel to each other, 2–3″ apart. Carefully lay the dryer on its left side on top of the corner posts. Remove the foam shipping pad. CAUTION: To prevent damage, do not use the control panel as a means to pick up or move the dryer.

4. Return the dryer to an upright position.

5. Move the dryer to the desired location.

6. Connect the external exhaust.

7. Adjust the leveling legs to match the washer

height. The dryer must be level and rest firmly on all four leveling legs.

8. Connect the power supply.

9. Check the operation of the power supply and

Instructions in a location where they will be noticed by the owner. Installation Instructions

Phillips head screwdriver

Flat or straight blade screwdriver (may be needed for cord strain relief)

Rigid or UL-listed flexible metal 4″ (10.2 cm) duct

1/4″ nut driver (remove terminal block access cover and install cord) (ELECTRIC DRYER)

Pipe thread sealer (GAS DRYER)

UL-listed strain relief (may be supplied with cord)

UL-listed 30A, 240V, 3-wire, #10 AWG minimum conductor power cord (U.S. existing structure)

UL-listed 30A, 240V, 4-wire, #10 AWG minimum conductor power cord is required (U.S. new construction)

Flexible stainless steel or plastic-coated brass connnecting tube (if allowed by building code) (GAS DRYER)

Open-end wrenches for flexible tube and connector (GAS DRYER)

Foam shipping padBack ofDryer PackingELECTRICAL CONNECTION INFORMATION FOR ELECTRIC DRYERS Installation Instructions WARNING – To reduce the risk of fire, electric shock or personal injury:

• DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.

• THIS APPLIANCE MUST BE PROPERLY GROUNDED. This dryer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70 or in Canada CSA C22.1 Canadian Electrical Code Part 1. Electrical Requirements

• This dryer must be connected to a 208V or 240V individual branch circuit, protected by 30-amp circuit breakers or time-delay fuses.

• Power supply: 3-wire 240-volt, single-phase, 60-Hz, Alternating Current. (Canada–240 volt, single-phase, 60-Hz Alternating Current.)

• Use copper conductors only.

• If the electric supply does not meet the above specifications, call a licensed electrician. NOTE: A wiring diagram is located under the top panel. ELECTRICAL CONNECTION

INFORMATION FOR GAS DRYERS

WARNING – To reduce the risk of fire, electric shock or personal injury:

• DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

THE POWER CORD. This dryer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70 or in Canada, CSA C22.1 Canadian Electrical Code Part 1. Electrical Requirements

• This dryer must be supplied with 120V, 60-Hz, and connected to a properly grounded branch circuit, protected by a 15- or 20-amp circuit breaker or time-delay fuse.

• If the electric supply provided does not meet the above specifications, it is recommended that a licensed electrician install an approved outlet. External Ground (if required) An external ground wire (not provided), which meets local codes, may be added by attaching it to the green ground screw on the rear of the dryer in the upper left corner above the cord, and to grounded metal cold water pipe or other established ground. NOTE: A wiring diagram is located under the top panel. Attach ground wire(obtain locally)Ensure proper ground exists before use

Read these instructions completely and carefully.Installation Instructions

Never terminate the exhaust into a common ductwith a kitchen exhaust system. A combination ofgrease and lint creates a potential fire hazard. Do not use duct longer that specified in the exhaustlength table. Longer ducts can accumulate lint,creating a potential fire hazard. Never install a screen in or over the exhaust duct.This will cause lint to accumulate, creating a potentialfire hazard. Do not assemble ductwork with any fasteners thatextend into the duct. These fasteners can accumulatelint, creating a potential fire hazard. Do not obstruct incoming or exhausted air. Provide an access for inspection and cleaning of theexhaust system, especially at turns and joints. Exhaustsystem shall be inspected and cleaned at least once a year.

EXHAUST SYSTEM CHECKLIST

HOOD OR WALL CAP• Terminate in a manner to prevent back drafts or entryof birds or other wildlife.• Termination should present minimal resistance to the exhaust airflow and should require little or nomaintenance to prevent clogging.• Never install a screen in or over the exhaust duct.• Wall caps must be installed at least 12″ above groundlevel or any other obstruction with the opening pointed down.SEPARATION OF TURNS• For best performance, separate all turns by at least 4 ft. of straight duct, including distance between lastturn and dampened wall cap. SEALING OF JOINTS• All joints should be tight to avoid leaks. The male endof each section of duct must point away from the dryer.• Do not assemble the ductwork with fasteners thatextend into the duct. They will serve as a collectionpoint for lint.• Duct joints should be made air- and moisture-tight by wrapping the overlapped joints with duct tape or aluminum tape.• Horizontal runs should slope down towards theoutdoors 1/4″ per foot.INSULATION• Ductwork that runs through an unheated area or isnear air conditioning should be insulated to reducecondensation and lint buildup. WARNING To reduce the risk of fire or personal injury: This clothes dryer must be exhausted to the outdoors. Use only 4" rigid metal ducting for the home exhaustduct. Use only 4" rigid metal or UL-listed flexible metal (semi-rigid or foil-type) duct to connect the dryer to the homeexhaust duct. It must be installed in accordance with theinstructions found in "Connecting The Dryer To HouseVent" on this page. Do not terminate exhaust in a chimney, a wall, a ceiling,gas vent, crawl space, attic, under an enclosed floor, or in any other concealed space of a building. Correct Incorrect

HOUSE VENT RIGID METAL TRANSITION DUCT• For best drying performance, a rigid metal transitionduct is recommended.• Rigid metal transition ducts reduce the risk of crushing and kinking.UL-LISTED FLEXIBLE METAL (SEMI-RIGID) TRANSITION DUCT• If rigid metal duct cannot be used, then UL-listedflexible metal (semi-rigid) ducting can be used (Kit WX08X10077).• Never install flexible metal duct in walls, ceilings, floors or other enclosed spaces.• Total length of flexible metal duct should not exceed 8 feet (2.4 m).• For many applications, installing elbows at both the dryer and the wall is highly recommended (see illustrations at left). Elbows allow the dryer to sit close to the wall without kinking and/or crushing the transition duct, maximizing drying performance.• Avoid resting the duct on sharp objects.UL-LISTED FLEXIBLE METAL (FOIL-TYPE) TRANSITION DUCT• In special installations, it may be necessary to connectthe dryer to the house vent using a flexible metal (foil-type) duct. A UL-listed flexible metal (foil-type)duct may be used ONLY in installations where rigidmetal or flexible metal (semi-rigid) ducting cannot be used AND where a 4" diameter can be maintainedthroughout the entire length of the transition duct.• In Canada and the United States, only the flexiblemetal (foil-type) ducts that comply with the “Outlinefor Clothes Dryer Transition Duct Subject 2158A” shall be used.Installation Instructions

EXHAUST DUCTING LENGTH

The exhaust system should be inspected and cleaned a minimum of every year with normal usage. The more the dryer is used, the more often you should check the exhaust system and vent hood for proper operation.

• DO NOT assemble the duct work with fasteners that extend into the duct. They will serve as collection points for lint.

• Insulation – Ductwork which runs through an unheated area or is near an air conditioning duct should be insulated to reduce condensation and lint buildup. MAXIMUM LENGTH of 4“ (10.2 cm) Dia. RIGID METAL DUCT

0 60’ (18.28 m) 48’ (14.63 m) 1 52’ (15.84 m) 40’ (12.19 m) 2 44’ (13.41 m) 32’ (9.75 m) 3 32’ (9.75 m) 24’ (7.31 m) 4 28’ (8.53 m) 16’ (4.87 m) 4” (10.2 cm) Louvered (10.2 cm)Numberof 90°turns2.5” (6.35 cm)

EXHAUST DIRECTION All dryers are shipped set up for rear exhausting. On electric dryers, exhausting can be on the cabinet right or left side, or through the dryer bottom. Gas dryers can exhaust on the cabinet right side or the dryer bottom. To change exhaust direction you will need Exhaust Kit Pub. No. 14-A018 and a rigid metal 4″ 90-degree elbow. The kit is available through your GE retailer. Follow the instructions supplied with the kit. Same as other sideEXHAUST DUCT LOCATINGDIMENSIONS3 3/4″ (9.5 cm)3 3/4″ (9.5 cm)13 5/16″(34 cm)4 3/8″(11 cm)5 7/8″(15 cm)

GAS SUPPLY REQUIREMENTS

Replace brass connecting pipe that is not plastic-coated. Stainless steel or plastic-coated brass MUST be used.

WARNING: Never reuse old flexible

connectors. The use of old flexible connectors can cause gas leaks and personal injury. Always use NEW flexible connectors when installing a gas appliance.

1. Installation MUST conform with local codes, or in the

absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 (latest edition) or in Canada, the current CAN/CGA B149.

2. The gas supply line should be of 1/2″ (1.27 cm) rigid

to connect your dryer to the gas supply line. The tubing MUST be constructed of stainless steel or plastic-coated brass.

4. The gas supply line MUST have an individual shutoff

test gauge connection, MUST be installed immediately upstream of the gas supply connection to the dryer.

6. The dryer MUST be disconnected from the gas supply

piping system during any pressure testing of the gas supply piping system at test pressures in excess of 1/2 psig (3.45 kPa).

7. The dryer MUST be isolated from the gas supply piping

system during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.45 kPa).

• Never install flexible metal duct in walls, ceilings, floors or other enclosed spaces.

• Total length of flexible metal duct should not exceed 8 feet (2.4 m).

• Avoid resting the duct on sharp objects.

• For best drying performance:

1. Slide one end of the duct over the clothes

2. Secure the duct with a clamp.

3. With the dryer in its permanent position,

extend the duct to its full length. Allow 2

duct to overlap the exhaust pipe. Cut off and remove excess duct. Keep the duct as straight as possible for maximum airflow.

4. Secure the duct to the exhaust pipe with

Do Not Install the Dryer: 1. Do not install the dryer in an area exposed to drippingwater or outside weather conditions.2. Do not install the dryer in an area where it will come in contact with curtains, drapes or anything that willobstruct the flow of combustion and ventilation air.3. Do not install the dryer on carpet. Floor MUST be solid with a maximum slope of 1″ (2.54 cm). Undercounter Installation: If an undercounter* installation is desired, the dryerMUST have a top sheet kit installed, Pub. No. 14–A008.Kit is available through your GE retailer. *Custom-sized countertop is required. Installation in Recess or Closet: 1. This dryer MUST be exhausted outdoors.2. No other fuel burning appliance shall be installed in thesame closet as the GAS DRYER.3. Your dryer needs the space around it for properventilation. DO NOT INSTALL YOUR DRYER IN ACLOSET WITH A SOLID DOOR.4. Closet doors must be louvered or otherwise ventilatedand must contain a minimum of 60 sq. in. of open areaequally distributed. If the closet contains both a washerand a dryer, doors must contain a minimum of 120 sq.in. of open area equally distributed. Air openings arerequired to be unobstructed when a door is installed. A louvered door with equivalent air openings for the fulllength of the door is acceptable.60 sq. in.(387.1 sq. cm)60 sq. in.(387.1 sq. cm) Closet door 3 in.(7.6 cm)3 in.(7.6 cm)0″(0 cm)0″(0 cm)3″(7.6 cm) Allow the following clearances for ease of installation: FRONT SIDES REAR TOPAlcove, stack,3” (7.6 cm) 0 (0 cm) 3” (7.6 cm) 0 (0 cm)undercounteror closetTHIS DRYER MUST BE EXHAUSTED OUTDOORS.5. The following illustrations show minimum clearancedimensions for proper operation in a recess or closetinstallation.3″(7.6 cm) STACKED INSTALLATION If a stacked washer/dryer installation is desired, you MUST use Stacking Kit WE25X10020. This kit is available through your GE retailer.Installation Instructions

1. Dryer MUST be exhausted outside (outdoors, not

beneath the mobile home) using metal ducting that willnot support combustion. Metal ducting must be 4″(10.16 cm) in diameter with no obstructions. Rigid metalduct is preferred.2. If the dryer is exhausted through the floor, the exhaustsystem MUST NOT terminate beneath the mobilehome. Termination MUST be securely fastened to themobile home structure.3. When installing a gas dryer into a mobile home, aprovision must be made for outside make-up air. Thisprovision is to be not less than twice the area of the dryerexhaust outlet.

4. Gas dryers MUST be fastened to the floor using Mobile

Home Installation Kit Pub. No. 14–D346–33.5. See the Exhaust System Checklist section for otherimportant venting information.6. Installation MUST conform to current ManufacturedHome Construction & Safety Standard (which is aFederal Regulation Title 24 CFR—Part 32–80) or, when such standard is not applicable, with AmericanNational Standard for Mobile Homes, ANSI/NFPA No.501B. In Canada, the CSA Z240 is applicable. The dryer is designed under ANSI Z 21.5.1. Correct Incorrect

WARNING: The following are specific

requirements for proper and safe electrical installation ofyour dryer. Failure to follow these instructions can createelectrical shock and/or a fire hazard.This appliance MUST be properly grounded. Electrical shock can result if the dryer is not properlygrounded. Follow the instructions in this manual for propergrounding.DO NOT use an extension cord with this dryer. Someextension cords are not designed to withstand the amountsof electrical current this dryer utilizes and can melt,creating electrical shock and/or fire hazard. Locate thedryer within reach of the wall outlet, taking into accountthe length of power cord to be purchased and allowingsome slack in the cord. Refer to Electrical Requirements

this manual for the proper power cord to be purchased.A UL-listed strain relief must be installed onto power cord.If the strain relief is not attached, the cord can be pulledout of the dryer and can be cut by any movement of thecord, resulting in electrical shock.NOTE: Dryers operating on 208-volt power supply will have longer drying times than those operating on 240-volt power supply.A wiring diagram is located under the top panel.

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk ofelectric shock. Check with a licensed electrician if you are indoubt as to whether the appliance is properly grounded.The dryer MUST be grounded. In the event of amalfunction or breakdown, grounding will reduce the riskof electrical shock by creating a path of least resistance forelectrical current.Grounding must be in accordance with local codes andordinances, or in the absence of local codes, in accordancewith the National Electrical Code ANSI/NFPA No. 70.For a grounded, cord-connected electric dryer:If your dryer is equipped with a power supply cord havingan equipment-grounding conductor and a grounding plug, the plug MUST be plugged into an appropriate,copper-wired receptacle (in the U.S.), or in Canada, anappropriate outlet that is properly installed and groundedin accordance with all local codes and ordinances. If in doubt, call a licensed electrician. For a permanently connected electric dryer:

• The dryer MUST be connected to a grounded metal, permanent wiring system; or an equipment-groundingconductor must be run with the circuit conductors andconnected to the equipment-grounding terminal or leadon the appliance.For a grounded, cord-connected gas dryer:• This dryer is equipped with a three-prong (grounding)plug for your protection against shock hazard and shouldbe plugged directly into a properly grounded three-prongreceptacle. Do not cut or remove the grounding prongfrom this plug. Do not modify the plug on this appliance.If it will not fit the outlet, have a proper outlet installed bya qualified electrician.NOT for use in Canada.DO NOT use for Mobile Home Installations.NOT for use on new construction.1. Remove the screws securing the terminal block accesscover and the strain relief mounting bracket located onthe back of the dryer upper corner.2. Install a UL-listed strain relief into the power cord entryhole of the mounting bracket. Finger-tighten the nutonly at this time.3. Thread a UL-listed 30A, 240V, 3 #10 AWG minimumcopper conductor power cord through the strain relief. 4. Attach the power cord neutral (center wire) conductorto the silver-colored center terminal on the terminalblock. Tighten the screw securely.5. Attach the remaining two power cord outer conductorsto the outer brass-colored terminals on the terminalblock. Tighten both screws securely.

WARNING: Do not make a sharp bend or

crimp wiring/conductor at connections.6. Reattach the strain relief mounting bracket to the back of the dryer with screws provided. Tighten screwssecurely.7. Tighten the screws securing the cord restraint firmlyagainst the power cord.8. Tighten the strain relief nut securely so that the strainrelief does not turn.9. Reinstall the terminal block access cover.

ELECTRIC DRYERS Installation Instructions

Green ground screwSilver terminal Nut Tighten nut tothese threadsPower cordStrain reliefmounting bracketGreen neutralground wire Use copper conductors only. Effective January 1, 1996: The National Electrical Coderequires that new construction (non existing) utilize a 4-wire connection to an electric dryer.In Canada a 4-wire power supply cord is installed on the dryer.1. Remove the screws securing the terminal block accesscover and the strain relief mounting bracket located onthe back of the dryer upper corner.2. Install a UL-listed strain relief in the entry hole of the mounting bracket. Finger-tighten the nut only at this time.3. Remove the green neutral ground wire from the greenground screw located above the terminal block.4. Thread a UL-listed 30A, 240V, 4 #10 AWG minimumcopper conductor power cord through the strain relief. 5. Attach the green power cord ground wire to thecabinet with the green ground screw.6. Attach the white (neutral) power cord conductor fromthe power cord and the green ground wire from thedryer harness to the silver-colored center terminal onthe terminal block. Tighten the screw securely.7. Attach the red and black power cord conductors to theouter brass-colored terminals on the terminal block.

WARNING: Do not make a sharp bend

or crimp wiring/conductor at the connections.8. Tighten the screws securing the cord restraint firmlyagainst the power cord.9. Tighten the strain relief nut securely so the strain reliefdoes not turn.10. Reinstall the terminal block access cover.

ELECTRIC DRYERS Typical 4 conductorreceptacleBlack 240VWhite neutralRed 240VGreen groundTypical 4 conductor cordGreen groundscrewGreen neutralground wire Red WhiteBlackTerminal blockSilver terminalGreen power cord ground wire Nut Tighten nut tothese threadsPower cordStrain relief mounting bracket1. Remove the shipping cap from gas pipe at the rear of the dryer.Conversion to LP Gas: DO NOT connect the dryer to LP gas service without converting the gas valve. An LPconversion kit (Pub. No. 14–A038) MUST be installed by a qualified gas technician.a. Connect a 1/2″ (1.27 cm) I.D. semi-rigid or approved pipe from gas supply line to the 3/8″ (0.96 cm) pipe located on the back of the dryer. Use a 1/2″ to 3/8″ (1.27 cm to 0.96 cm) reducer for a connection. Apply an approved threadsealer that is resistant to the corrosive action ofliquefied gases on all pipe connections.b. Open the shutoff valve in the gas supply line.c. Test all connections by brushing on a soapy watersolution.

OPEN FLAME. 2. Connect the exhaust duct to outside exhaust system.Use duct tape to seal all joints.3. With the dryer in its final position, adjust one or more of the legs until the dryer is resting solidly on all fourlegs. Place a level on top of the dryer. THE DRYERMUST BE LEVEL AND RESTING SOLIDLY ON ALL FOUR LEGS.4. Plug the power cord into a grounded outlet. NOTE: Check to ensure the power is off at circuitbreaker/fuse box before plugging the power cord into the outlet.5. Turn on the power at the circuit breaker/fuse box.

CAUTION: Before operating the dryer, make sure the dryer area is clear and free fromcombustible materials, gasoline, and other flammablevapors. Also see that nothing (such as boxes,clothing, etc.) obstructs the flow of combustion andventilation air.6. Run the dryer through a cycle check for properoperation.NOTE: On gas dryers, before the burner will light, it isnecessary for the gas line to be bled of air. If the burnerdoes not light within 45 seconds the first time the dryer isturned on, the safety switch will shut the burner off. If thishappens, turn the timer to OFF and wait 5 minutes beforemaking another attempt to light.7. If your dryer does not operate, please review the Troubleshooting Tips section in this manual before calling for service.8. Place these instructions in a location near the dryer forfuture reference.WARNING:

• To reduce the risk of electric shock, disconnect thisappliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply.• Refer to the washer and dryer installation instructionsprior to stacking appliances. Reading all of theinformation contained in these instructions will simplifythe installation and ensure a correct and safe operation.A fire hazard and/or personal injury could result fromimproper installation. Stacking Instructions

• Phillips head screwdriver• Channel-lock adjustable pliers

MOUNTING THE DRYER TO

THE WASHER The numbers in the illustration correspond to steps. 1. Remove the washer top panel by first removing the 4screws in the 2 brackets located on the top rear of thewasher.Slide the top forward, lift the front of the top up andremove the top panel.Remove the 2 brackets from the rear of the top panel.2. Using the 4 screws that were removed in step 1, install the brackets in the rear support as shown.3. Remove the 4 screws and the 2 long front bracketslocated on the top front of the washer.4. Install the 2 new front mounting brackets provided andthe 4 screws that were removed in step 3. Note that thetab of the front mounting bracket is facing forward asshown in the illustration.The numbers in the illustration correspond to steps.

5. Using the blade end of a putty knife covered with

masking tape, carefully remove the hole plugs located in the bottom of the dryer front panel.

6. Remove the 4 legs from the dryer base.

7. Place the dryer on top of the washer. Slide the dryer

back into the rear brackets (7A) then drop the front down over the front brackets (7B). Stacking Instructions–Reversing Door Swing

1. Open the dryer door. Remove the 4 hinge hole plugs or

screws from the left side of door opening. Place nearby for future installation. NOTE: You may need a plastic knife to help pull out the plugs. Be careful not to scratch the paint.

2. Remove the four screws that secure the door hinges to

the dryer front panel. NOTE: Remove 1 screw from each of the 2 hinges first. Hold the door firmly before removing the last 2 screws.

3. Rotate the door 180° and reinstall the door hinges to the

dryer front panel with the 4 screws.

4. Install the 4 hinge hole plugs or screws that were

removed in step 1 into the open screw holes on the right side of the door opening. Remove 4 screws—one from each hinge first

8. Insert the 2 long screws provided in the kit through

the holes in the dryer front panel and install into the front mounting brackets.

9. Install the hole plugs removed in step 5.

10. Refer to the washer and dryer installation instructions

for proper installation and function.

11. Save the top panel and brackets in the case of future

side-by-side use.21 Consumer Support Troubleshooting TipsOperating Instructions Safety Instructions Installation Instructions Before you call for service… Problem Possible Causes What To Do Dryer doesn’t start Dryer is unplugged • Make sure the dryer plug is pushed completely into the outlet. Fuse is blown/circuit breaker is • Check the building’s fuse/circuit breaker box and tripped replace fuse or reset breaker. NOTE: Electric dryers use two fuses/breakers. Thermal limiter tripped • Check the vent for any obstructions. Call authorized service person for replacement, if necessary. Dryer doesn’t heat Fuse is blown/circuit breaker is • Check the building’s fuse/circuit breaker box and tripped, the dryer may tumble replace fuse or reset breaker. Your dryer may tumblebut not heat if only one fuse is blown or one breaker tripped. Gas service is off • Make sure gas shutoff at dryer and main shutoff are fully open. LP gas supply tank is empty • Refill or replace tank. Dryer should heat when utility or there has been a utility service is restored.interruption of natural gas (gas models) Dryer shakes or makes Some shaking/noise is normal. • Move dryer to an even floor space, or adjust noise Dryer may be sitting unevenly leveling legs as necessary until even. Greasy spots on clothes Improper use of fabric softener • Follow directions on fabric softener package. Drying dirty items with clean ones • Use your dryer to dry only clean items. Dirty items can stain clean items and the dryer. Clothes were not completely clean • Sometimes stains which cannot be seen when the clothes are wet appear after drying. Use proper washing procedures before drying. Lint on clothes Lint filter is full • Clean lint screen before each load. Improper sorting • Sort lint producers (like chenille) from lint collectors (like corduroy). Static electricity can attract lint • See suggestions in this section under Static occurs. Overloading • Separate large loads into smaller ones. Paper, tissue, etc., left in pockets • Empty all pockets before laundering clothes. Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.Problem Possible Causes What To Do Static occurs Overdrying • Try a fabric softener.• Adjust controls for less drying. No fabric softener was used • Try a fabric softener. Synthetics, permanent press and • Try a fabric softener. blends can cause static Inconsistent drying times Type of heat • Automatic drying times will vary according to the type of heat used (electric, natural or LP gas), size of load, types of fabrics, wetness of clothes and condition of exhaust ducts. Clothes take too long Improper sorting • Separate heavy items from lightweight items (generally, to dry a well-sorted washer load is a well-sorted dryer load). Large loads of heavy fabrics (like • Large, heavy fabrics contain more moisture and take beach towels) longer to dry. Separate large, heavy fabrics into smaller loads to speed drying time. Controls improperly set • Match control settings to the load you are drying. Lint filter is full • Clean lint filter before every load. Improper or obstructed ducting • Check Installation Instructions for proper ducting/venting.• Make sure ducting is clean, free of kinks and unobstructed.• Check to see if outside wall damper operates easily.• Check the Installation Instructions to make sure the dryerventing is correct. Blown fuses or tripped circuit • Replace fuses or reset circuit breakers. Since most breaker dryers use two fuses/breakers, make sure both are operating. Overloading/combining loads • Do not put more than one washer load in the dryer at a time. Underloading • If you are drying only one or two items, add a few items to ensure proper tumbling. Clothes are wrinkled Overdrying • Select a shorter drying time.

• Remove items while they still hold a slight amount of moisture. Select a LESS DRY setting. Letting items sit in dryer after • Remove items when cycle ends and fold or hang cycle ends immediately. Overloading • Separate large loads into smaller ones. Clothes shrink Some fabrics will naturally shrink • To avoid shrinkage, follow garment care labels exactly. when washed. Others can be safely washed, but will shrink• Some items may be pressed back into shape after drying.in the dryer• If you are concerned about shrinkage in a particular item,do not machine wash or tumble dry it. Before you call for service…

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Troubleshooting Tips23 Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Notes.24 Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsConsumer Support GE Dryer Warranty. (For customers in the United States) ■ Service trips to your home to teach you how to use the product.■ Improper installation, delivery or maintenance.■ Failure of the product if it is abused, misused, or used forother than the intended purpose or used commercially.■ Replacement of the light bulb.■ Replacement of house fuses or resetting of circuitbreakers.■ Damage to the product caused by accident, fire, floods or acts of God.■ Incidental or consequential damage caused by possibledefects with this appliance.■ Damage caused after delivery.■ Product not accessible to provide required service. What GE Will Not Cover: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, visit us on-line at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service. Staple your receipt here. Proof of the original purchasedate is needed to obtain serviceunder the warranty. For The Period Of: GE Will Replace: One Year Any part of the dryer which fails due to a defect in materials or workmanship. During this From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and related service original purchasecosts to replace the defective part. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.25 Consumer Support Troubleshooting TipsOperating Instructions Safety Instructions Installation Instructions GE Dryer Warranty. (For customers in Canada) All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. For service, call1.800.561.3344. Please have serial number and model numberavailable when calling for service.■ Service trips to your home to teach you how to use the product.■ Improper installation, delivery or maintenance.■ Failure of the product if it is abused, misused, or used forother than the intended purpose or used commercially.■ Product not accessible to provide required service.■ Replacement of house fuses or resetting of circuitbreakers.■ Damage to the product caused by accident, fire, floods or acts of God.■ Incidental or consequential damage caused by possibledefects with this appliance.■ Damage to finish not reported within 48 hours followingthe delivery of the appliance. What Mabe Will Not Cover: For The Period Of: Mabe Will Replace: One Year Any part of the dryer which fails due to a defect in materials or workmanship. During this From the date of the limited one-year warranty, Mabe will also provide, free of charge, all labor and related service original purchasecosts to replace the defective part. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Staple your receipt here. Proof of the original purchasedate is needed to obtain serviceunder the warranty. This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are in your province, consult your local or provincial consumer affairs office. Warrantor: Mabe Canada Inc., Burlington, Ontario26 Consumer Support. GE Appliances Website In the U.S.A. GEAppliances.com Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even schedule service on-line. In Canada: www.GEAppliances.ca Schedule Service In the U.S.A. GEAppliances.com Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.561.3344 Real Life Design Studio In the U.S.A. GEAppliances.com GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Extended Warranties In the U.S.A. GEAppliances.com Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133 Parts and Accessories In the U.S.A. GEAppliances.com Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.
