USER MANUAL LMG910EMW LG

About this user guide

Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use.

• Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices.

- Descriptions are based on the device default settings.

- Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Centre. For user-installed apps, please contact the relevant service provider.

- Modifying the device's operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty.

- Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice.

- Software, audio, wallpaper, images, and other media supplied with your device are licenced for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media.

- Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details.

- This user guide is written in major languages for each country. Depending on the language used, content may partly differ.

Instructional notices

WARNING: Situations that could cause injury to the user and third parties.

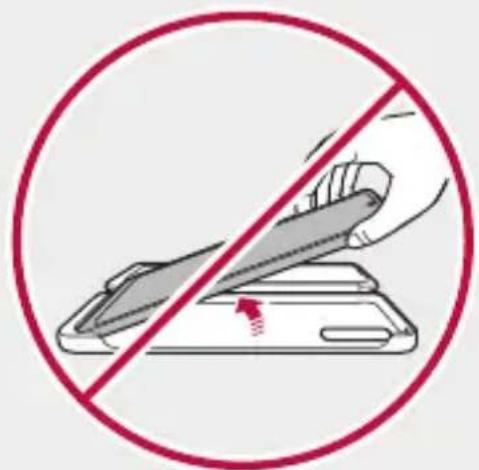

CAUTION: Situations that may cause minor injury or damage to the device.

NOTE: Notices or additional information.

Table of contents

6 Guidelines for safe and efficient use

01

Custom-designed Features

16 Camera features
17 Audio recording features
18 Google Assistant
20 Fingerprint recognition

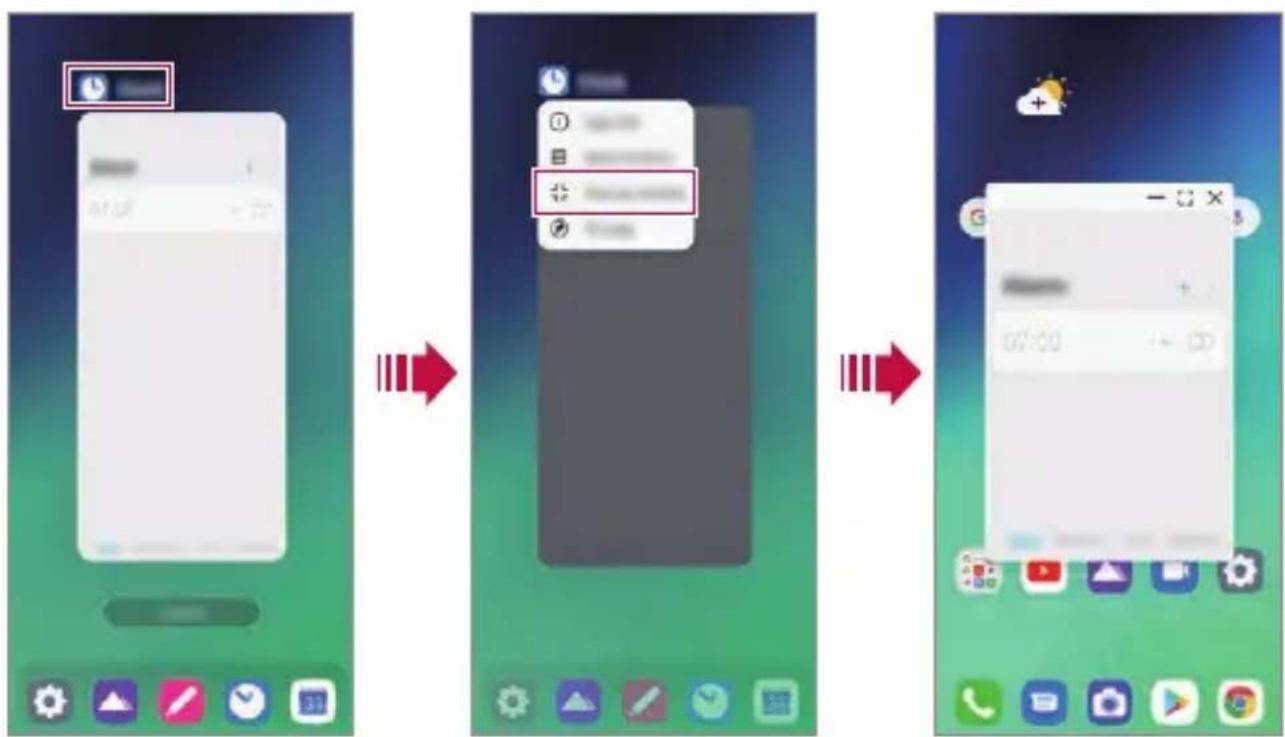

24 Multi-tasking feature
28 AOD(always-on display)
29 Notes on Water Resistant Properties

02

Basic Functions

33 Product components and accessories

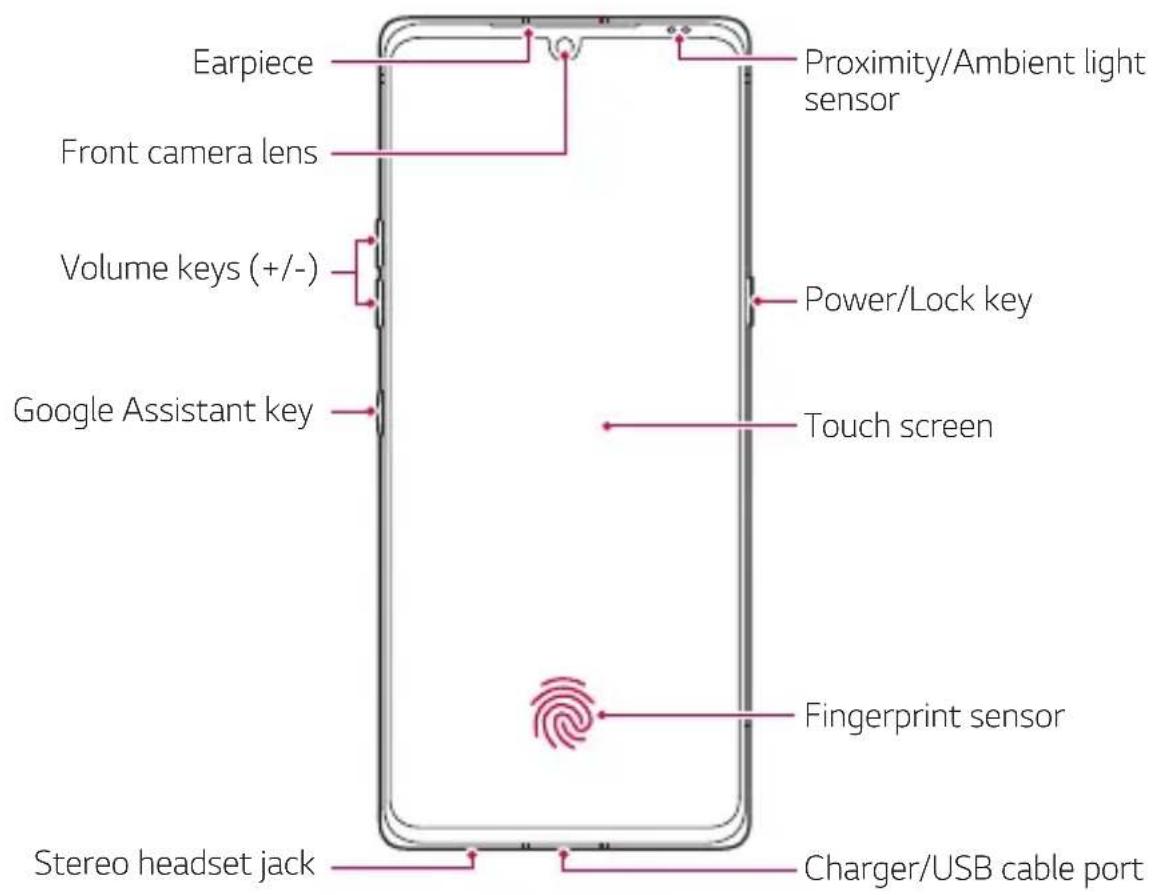

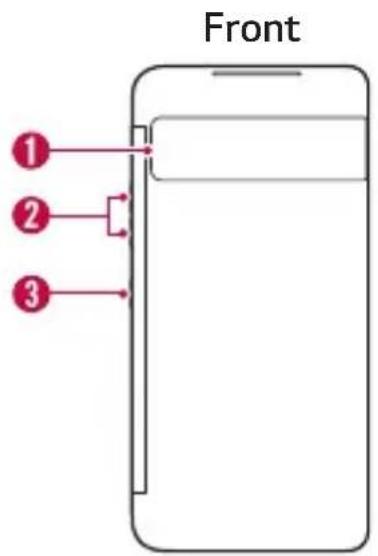

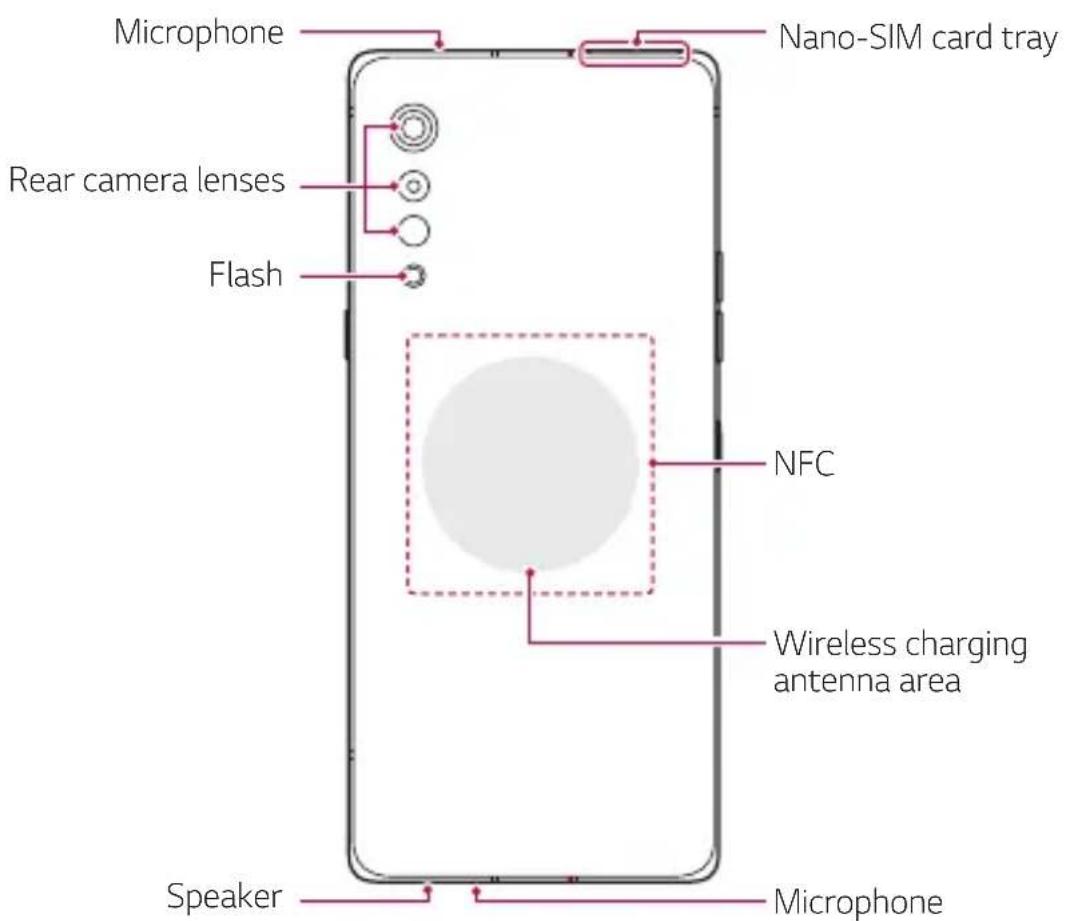

34 Parts overview
37 Turning the power on or off

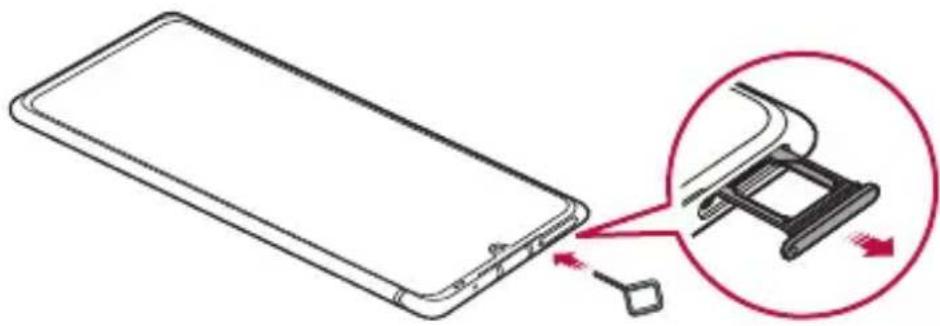

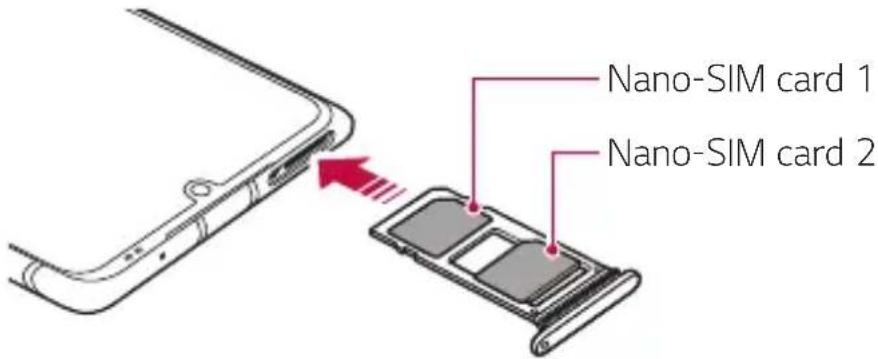

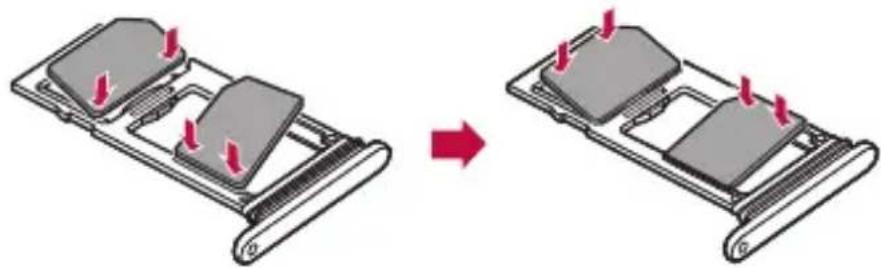

38 Installing the SIM card

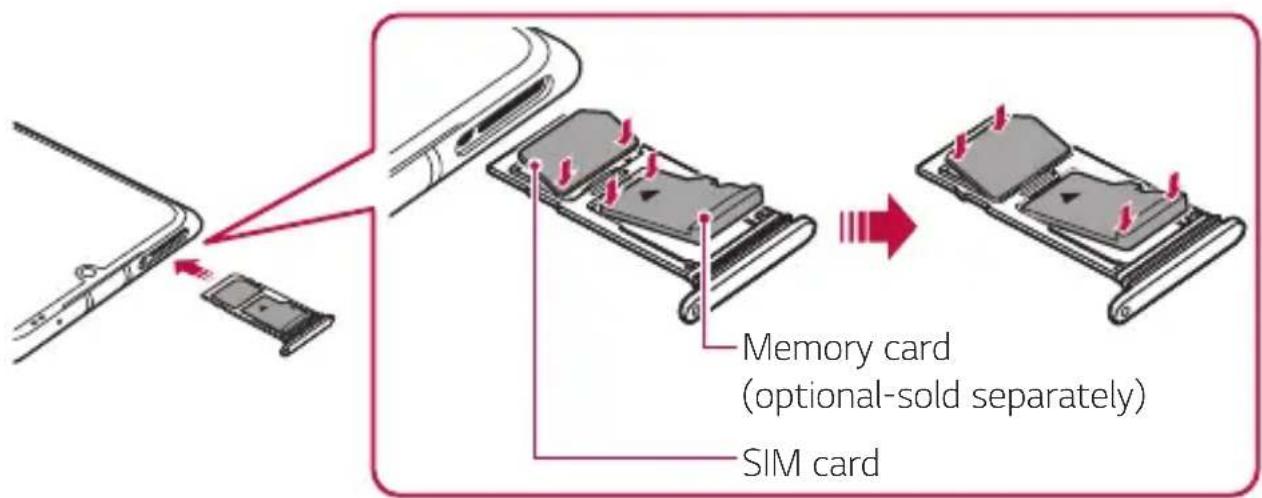

41 Inserting the memory card
42 Removing the memory card
42 Battery
46 Touch screen

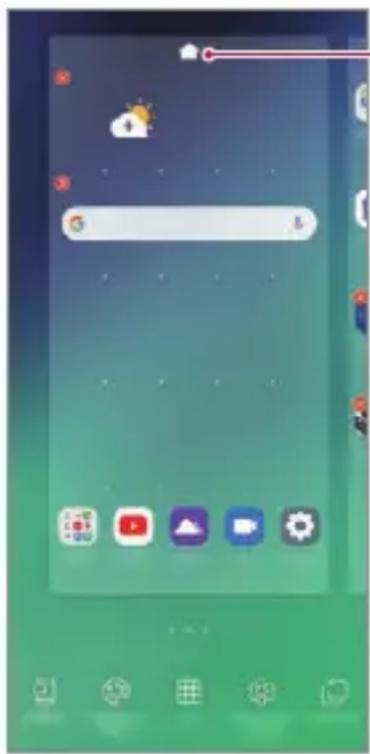

49 Home screen
58 Screen lock
61 Memory card encryption

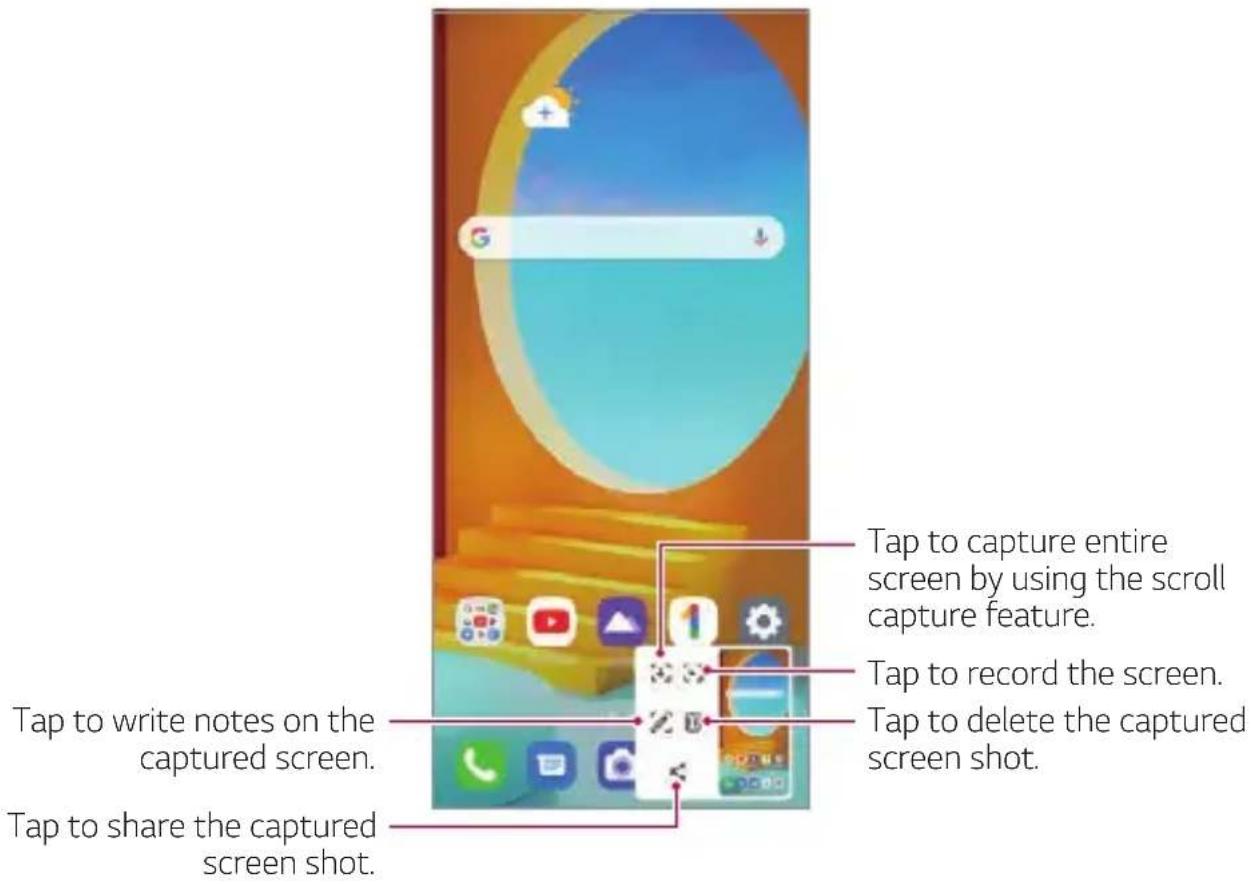

62 Taking screenshots

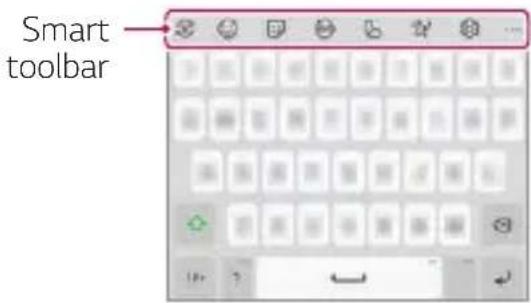

63 Entering text
67 Content sharing
69 Do not disturb

03

Useful Apps

71 Installing and uninstalling apps

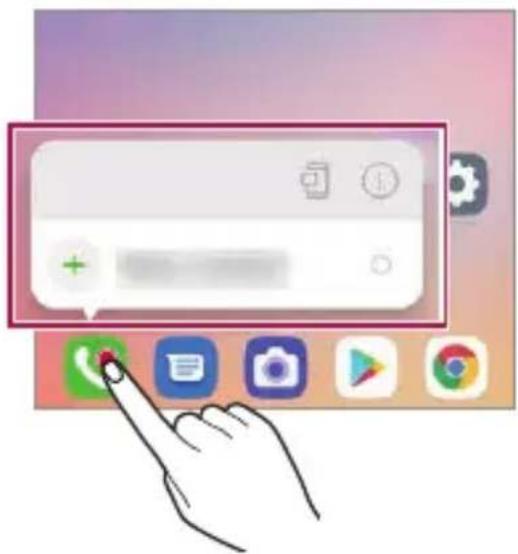

73 App Shortcuts
74 Phone
78 Messaging
79 Camera

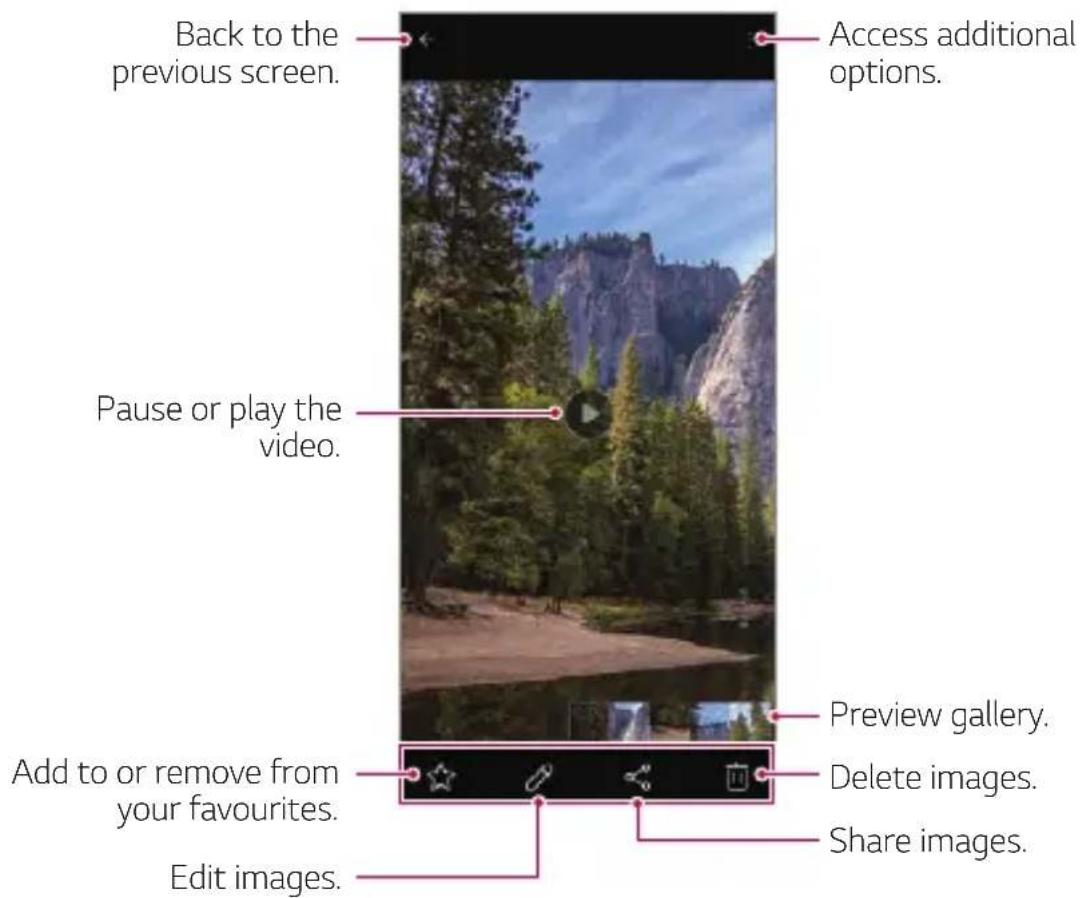

96 Gallery
101 Contacts
103 QuickMemo+
106 Clock
108 Music
109 Calculator
109 ThinQ
110 LG Health
111 HD Audio Recorder
112 Game Launcher
112 Smart Doctor
113 LG Mobile Switch
113 App trash
114 SmartWorld
115 RemoteCall Service
115 Cell Broadcast
116 Google apps

04

Settings

120 Settings
120 Network & internet
127 Connected devices
131 Sound
132 Notifications
133 Display
134 Wallpaper & theme
135 Lock screen & security
137 Privacy
138 Location
138 Extensions
143 Apps
143 Battery
144 Storage
144 Accounts
144 Digital Wellbeing & parental controls
145 Google
145 System
149 Accessibility

05

Appendix

152 LG Language Settings
152 LG Bridge
153 Phone software update
155 Anti-Theft Guide
156 Open Source Software Notice Information
156 Regulatory information (Regulation ID number, E-labeling, etc.)
157 Trademarks
158 Laser safety statement
158 DECLARATION OF CONFORMITY
159 Contact office for compliance of this product
159 Wi-Fi (WLAN)
160 More information
164 FAQ

06

LG Dual Screen (LM-G905N)

169 Getting to Know LG Dual Screen
169 Guidelines for safe and efficient use
173 Product components and accessories

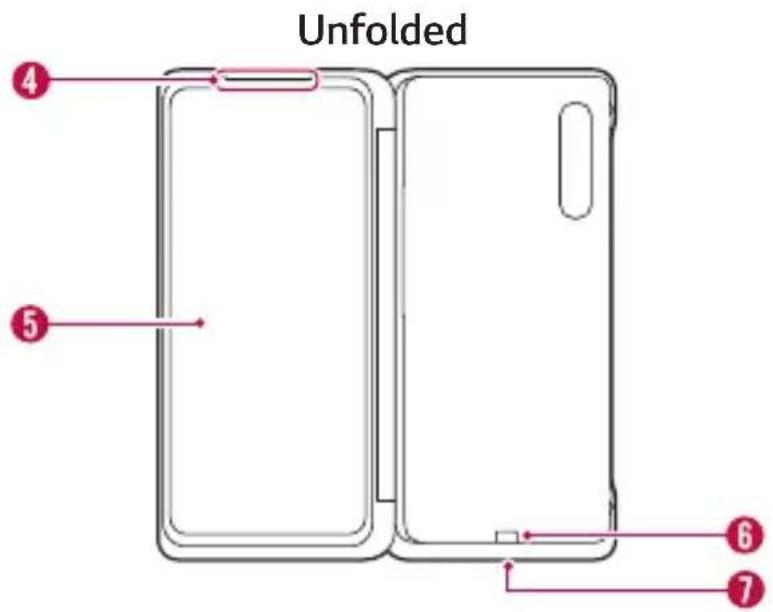

174 Parts overview

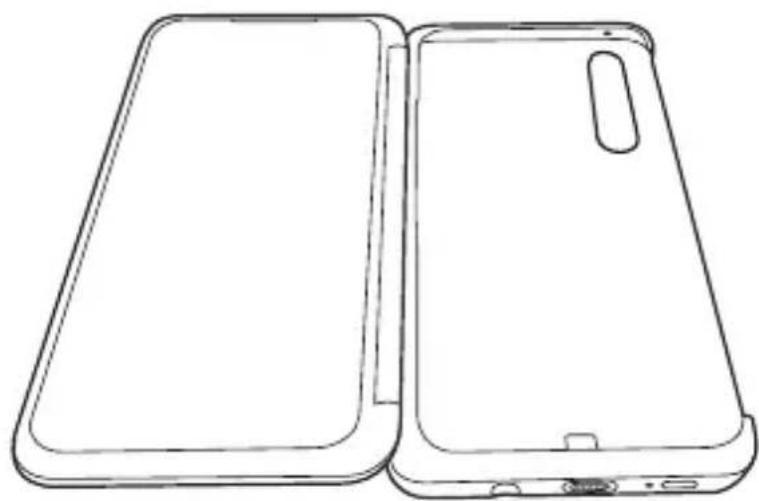

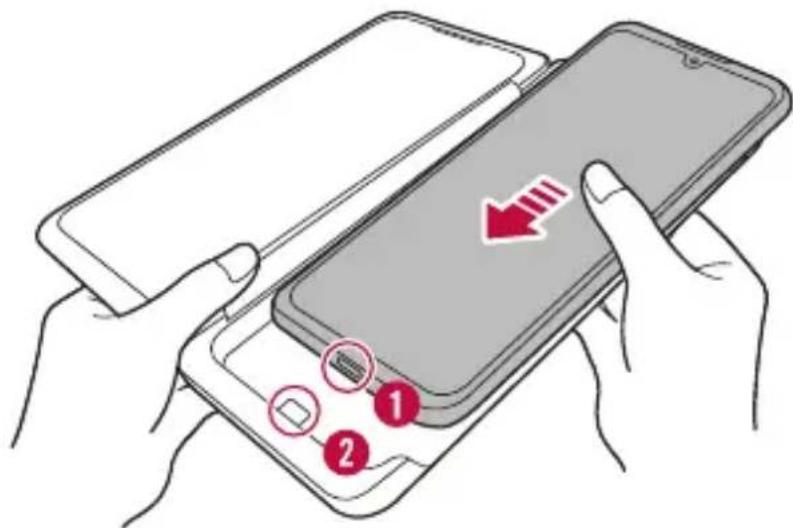

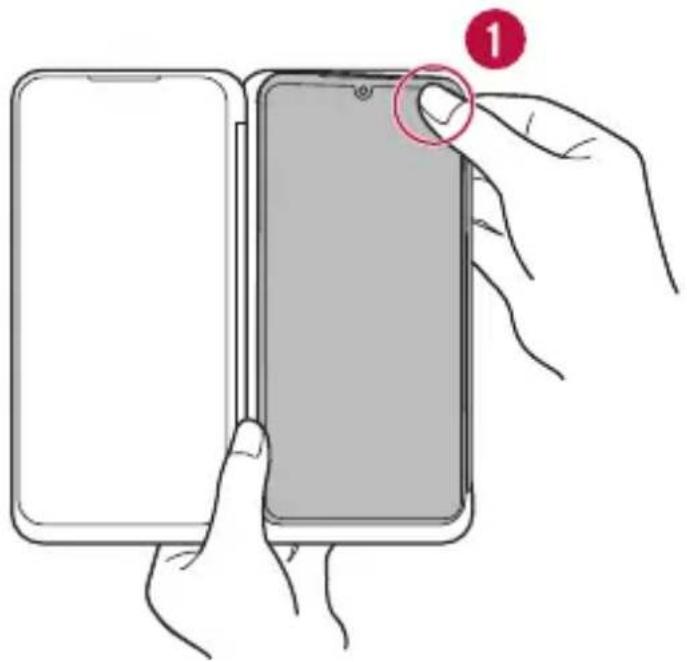

175 Plugging the phone into the Dual Screen

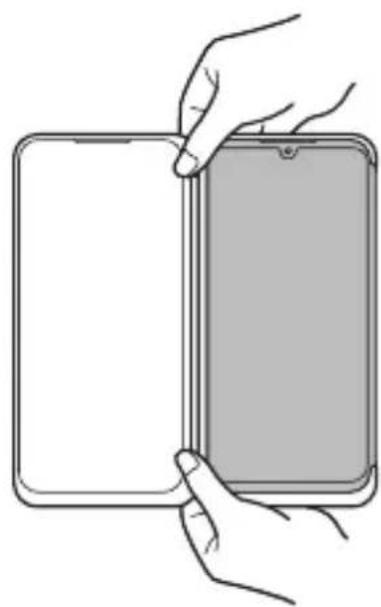

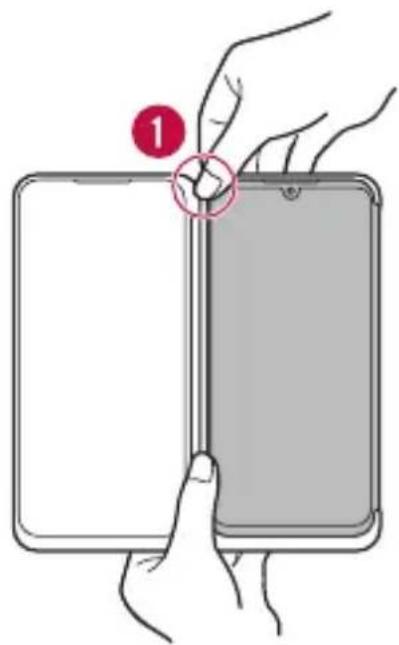

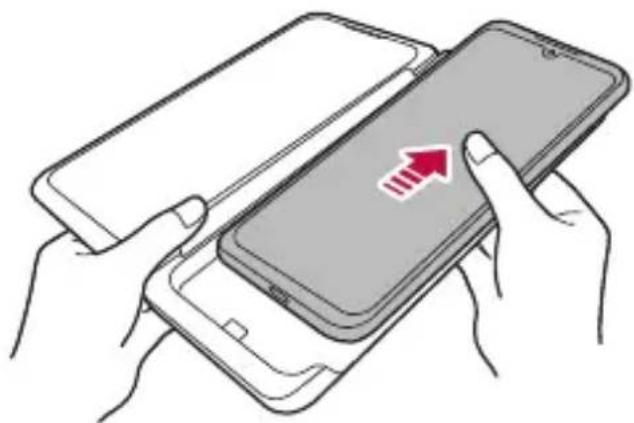

177 Removing the phone from the Dual Screen

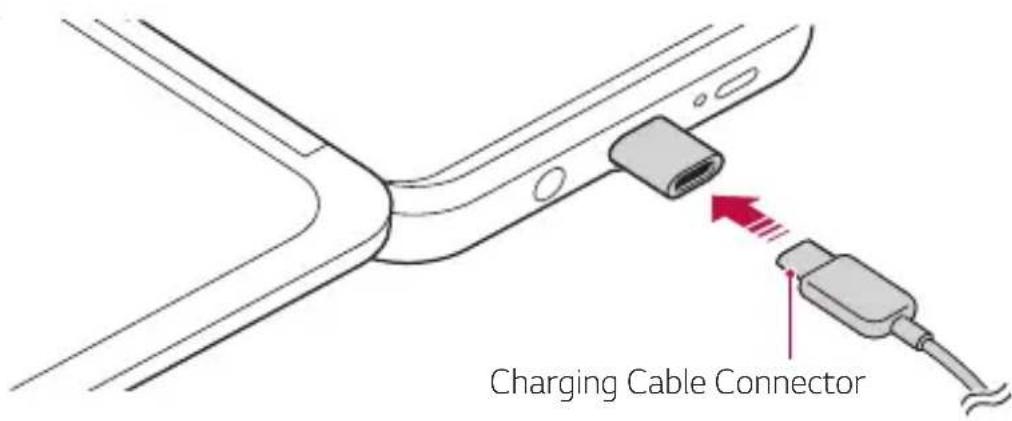

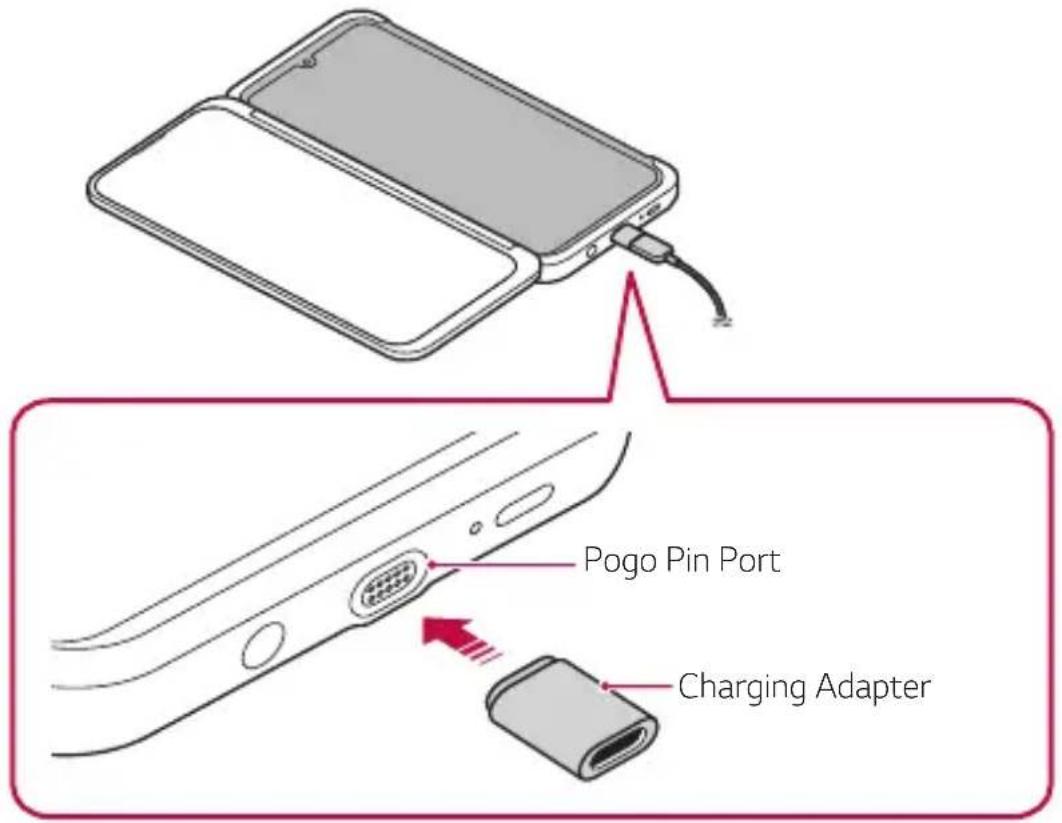

180 Using the Charging Adapter

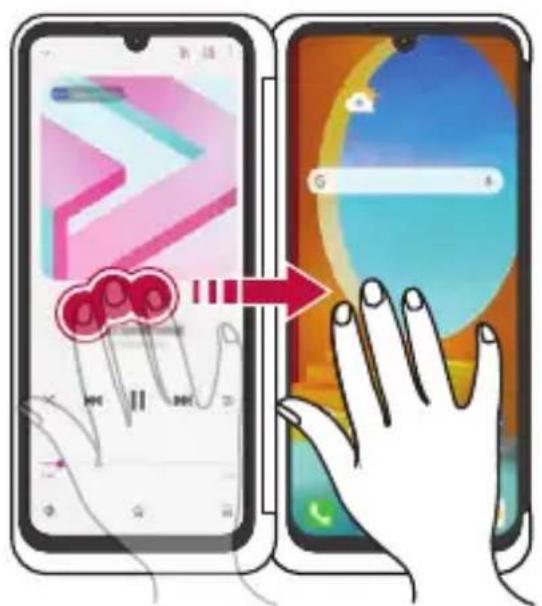

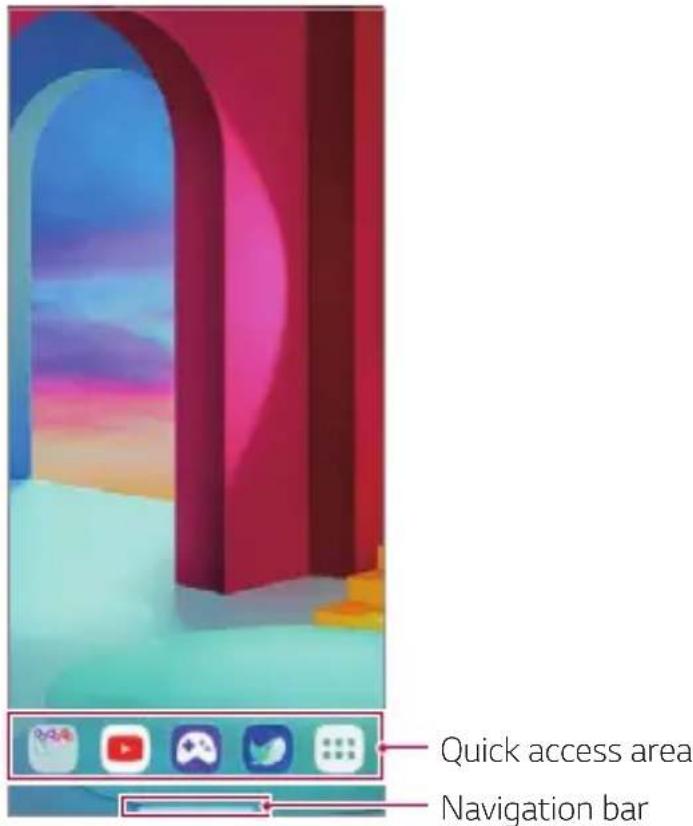

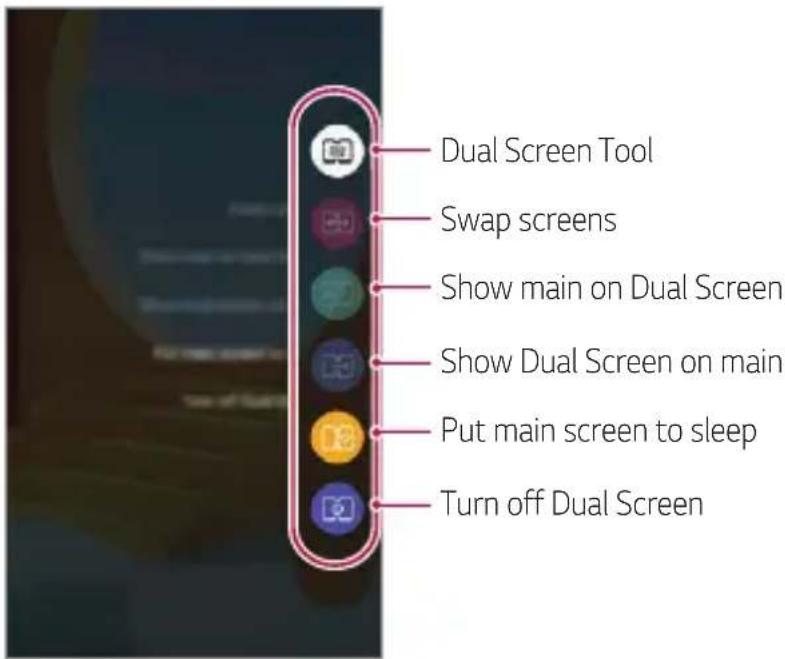

182 Using the Dual Screen
203 Trademarks
203 DECLARATION OF CONFORMITY
203 Contact office for compliance of this product
204 More information

Guidelines for safe and efficient use

Please read these simple guidelines. Not following these guidelines may be dangerous or illegal.

Should a fault occur, a software tool is built into your device that will gather a fault log. This tool gathers only data specific to the fault, such as signal strength, cell ID position in sudden call drop and applications loaded. The log is used only to help determine the cause of the fault. These logs are encrypted and can only be accessed by an authorised LG Repair centre should you need to return your device for repair.

Exposure to radio frequency energy

Radio wave exposure and Specific Absorption Rate (SAR) information.

This device has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health.

- The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the device transmitting at its highest certified power level in all used frequency bands.

- While there may be differences between the SAR levels of various LG device models, they are all designed to meet the relevant guidelines for exposure to radio waves.

- The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2 W/kg averaged over 10 g of tissue.

- The highest SAR value for this model tested for use at the ear is 0.605 W/kg (10 g) and when worn on the body is 1.594 W/kg (10 g).

- This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 5 mm away from the body. When a carry case, belt clip or holder is used for body-worn operation, it should not contain metal and should position the product at least 5 mm away from your body. In order to transmit data files or messages, this device requires a quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure the above separation distance instructions are followed until the transmission is completed.

Information about the RF exposure from FCC

In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both international and U.S. standards. The design of this device complies with FCC guidelines and these international standards.

Part 15.19 statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Part 15.21 Statement

Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Body-worn Operation

This device was tested for typical bodyworn operations with the back of the device kept 0.39 inches (1cm) between the user's body and the back of the device. To comply with FCC RF exposure requirements, a minimum separation distance of 0.39 inches (1cm) must be maintained between the user's body and the back of the device.

Any beltclips, holsters, and similar accessories containing metallic components may not be used. Body-worn accessories that cannot maintain 0.39 inches (1cm) separation distance between the user's body and the back of the device, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided.

Part 15.105 Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Product care and maintenance

- Use only in-box accessories which are authorised by LG. LG does not guarantee any damage or failure which is caused by third party accessories.

- Some contents and illustrations may differ from your device without prior notice.

- Do not disassemble this unit. Take it to a qualified service technician when repair work is required.

- Repairs under warranty, at LG's discretion, may include replacement parts or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.

- Keep away from electrical appliances such as TVs, radios and personal computers.

- The unit should be kept away from heat sources such as radiators or cookers.

- Do not drop.

- Do not subject this unit to mechanical vibration or shock.

- Switch off the device in any area where you are required to by special regulations. For example, do not use your device in hospitals as it may affect sensitive medical equipment.

- Do not handle the device with wet hands while it is being charged. It may cause an electric shock and can seriously damage your device.

- Do not charge a handset near flammable material as the handset can become hot and create a fire hazard.

- Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).

- Do not charge the device when it is on soft furnishings.

- The device should be charged in a well ventilated area.

- Do not subject this unit to excessive smoke or dust.

- Do not keep the device next to credit cards or transport tickets; it can affect the information on the magnetic strips.

- Do not tap the screen with a sharp object as it may damage the device.

- Do not expose the device to liquid or moisture.

- Use accessories like earphones cautiously. Do not touch the antenna unnecessarily.

- Do not use, touch or attempt to remove or fix broken, chipped or cracked glass. Damage to the glass display due to abuse or misuse is not covered under the warranty.

- Your device is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your device during or immediately after operation.

• If your device gets wet, immediately unplug it to dry off completely. Do not attempt to accelerate the drying process with an external heating source, such as an oven, microwave or hair dryer.
• The liquid in your wet device, changes the colour of the product label inside your device. Damage to your device as a result of exposure to liquid is not covered under your warranty.
• A mobile device requires proper air circulation in order to dissipate heat. Direct skin contact and inadequate circulation of air flow to the device may cause the device to overheat. The device must be at least 1.0cm from between the user's body.
• Prevent dust of any other foreign substances from getting into the Charger/USB cable port. It may cause heat or fire.
• Avoid exposing the device to low air pressure at high altitude.
• Do not expose the device to extremely low air pressure. Otherwise, it can cause explosion of the battery or leakage of flammable liquid or gas.

Efficient device operation

Electronics devices

All devices may receive interference, which could affect performance.

• Do not use your device near medical equipment without requesting permission. Please consult your doctor to determine if operation of your device may interfere with the operation of your medical device.
• Pacemaker manufacturers recommend that you leave at least 15 cm of space between other devices and a pacemaker to avoid potential interference with the pacemaker.
  • This device may produce a bright or flashing light.
• Some hearing aids might be disturbed by devices.
• Minor interference may affect TVs, radios, PCs etc.
• Use your device in temperatures between 0 °C and 35 °C, if possible. Exposing your device to extremely low or high temperatures may result in damage, malfunction, or even explosion.

Road safety

Check the laws and regulations on the use of devices in the area when you drive.

• Do not use a hand-held device while driving.
• Give full attention to driving.
• Pull off the road and park before making or answering a call if driving conditions so require.
• RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.
• When your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.
• If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is of particular importance when near roads.

Avoid damage to your hearing

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level.

- When using headphones, turn the volume down if you cannot hear the people speaking near you, or if the person sitting next to you can hear what you are listening to.

- Excessive sound pressure from earphones and headphones can cause hearing loss.

Glass Parts

Some parts of your device are made of glass. This glass could break if your device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch or attempt to remove it. Stop using your device until the glass is replaced by an authorised service provider.

Blasting area

Do not use the device where blasting is in progress. Observe restrictions and follow any regulations or rules.

Potentially explosive atmospheres

• Do not use your device at a refueling point.
• Do not use near fuel or chemicals.
• Do not transport or store flammable gas, liquid or explosives in the same compartment of your vehicle as your device or accessories.

In aircraft

Wireless devices can cause interference in aircraft.

• Turn your device off before boarding any aircraft.
• Do not use it on the ground without permission from the crew.

Children

Keep the device in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached.

Emergency calls

Emergency calls may not be available on all mobile networks. Therefore you should never depend solely on your device for emergency calls. Check with your local service provider.

Battery information and care

• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance.
• Use only LG batteries and chargers. LG chargers are designed to maximise the battery life.
• Do not disassemble or short-circuit the battery.
• Keep the metal contacts of the battery clean.
• Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times before it needs replacing.
• Recharge the battery if it has not been used for a long time to maximise usability.
• Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom.
• Do not leave the battery in hot or cold places, as this may deteriorate battery performance.
• Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
  • Always unplug the charger from the wall socket after the device is fully charged to save unnecessary power consumption of the charger.
• Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions.
• Make sure that no sharp-edged items such as animal's teeth or claws, come into contact with the battery. This could cause a fire.
  • Power Consumption (Networked Standby Mode) : 0.4 W

Securing personal information

• Make sure to protect your personal information to prevent data leakage or misuse of sensitive information.
• Always back up important data while using the device. LG is not responsible for any data loss.

• Make sure to back up all data and reset the device when disposing of the device to prevent any misuse of sensitive information.

• Read the permission screen carefully while downloading applications.

• Be cautious using the applications that have access to multiple functions or to your personal information.
• Check your personal accounts regularly. If you find any sign of misuse of your personal information, ask your service provider to delete or change your account information.
• If your device is lost or stolen, change the password of your account to secure your personal information.
• Do not use applications from unknown sources.

Notice for Battery replacement

• Li-Ion Battery is a hazardous component which can cause injury.
• Battery replacement by a non-qualified professional can cause damage to your device.
• Do not replace the battery by yourself. The battery can be damaged, which can cause overheat and injury. The battery must be replaced by a qualified professional. The battery should be recycled or disposed separately from household waste.
• In case this product contains a battery incorporated within the product which cannot be readily removed by end-users, LG recommends that only qualified professionals remove the battery, either for replacement or for recycling at the end of this product's working life. To prevent damage to the product, and for their own safety, users should not attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice.
• Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/ contacts, and careful extraction of the battery cell using specialised tools. If you need the instructions for qualified professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling

01

Custom-designed Features

Camera features

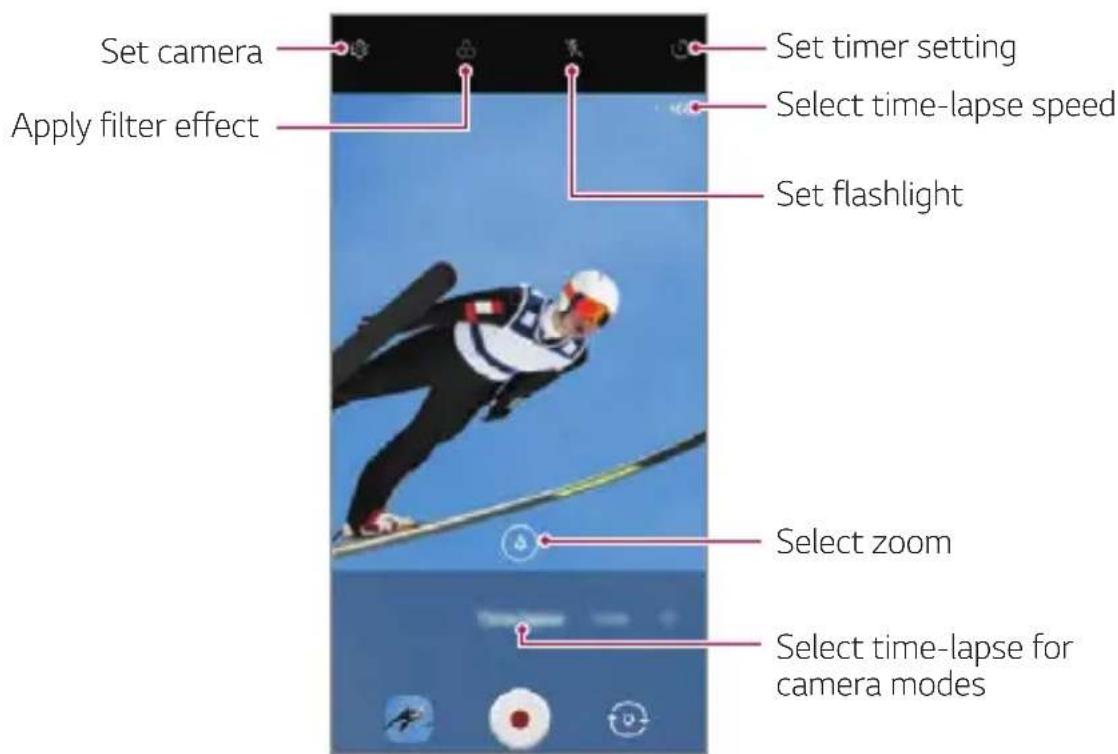

Timelapse Control

You can record Time-lapse videos optimised for the situation.

Videos can be recorded with optimal speed and steady motion by analyzing a variety of shooting environments. The time-lapse speed can be automatically adjusted according to the shooting target and environment. It is also possible to select the time-lapse speed manually.

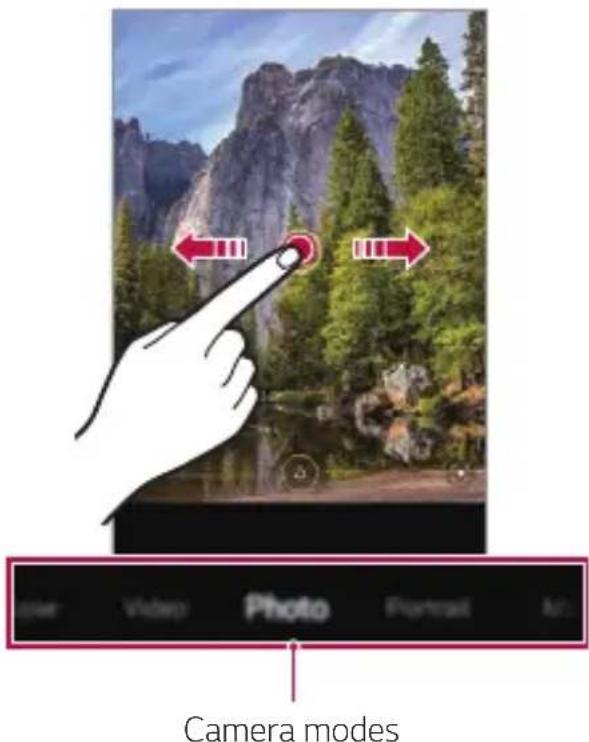

1 Tap and select Time-lapse by swiping camera modes.

Set camera Apply filter effect Set timer setting Select time-lapse speed Set flashlight Select zoom Select time-lapse for camera modes

2 Tap to record a video.

- You can change a zoom and time-lapse speed during time-lapse recording.

• To pause the recording, tap. To continue the recording, tap

- While recording a video, you may spread or pinch two fingers to zoom in or out.

- While recording a video, you may tap the desired area to adjust the brightness.

3 Tap to stop recording.

• The recorded video will be saved in Gallery.

• Audio is not recorded during Time-lapse recording.

Audio recording features

Recording ASMR sounds

This feature allows you to record the audio clearly and precisely by amplifying the sound from the microphones.

1 Tap Essentials> HD Audio Recorder and tap ≡>ASMR.
2 Tap to record the audio.

- To pause the recording, tap ^11 . To continue the recording, tap ^12

3 Tap to end the audio recording.

LG 3D Sound Engine

LG 3D Sound Engine feature allows you to hear stereoscopic and optimised sound. When playing music or video, you can enjoy stereoscopic and immersive sound as if you were listening in the field.

1 Drag the notifications panel downwards.
2 Tap to turn on or off the LG 3D Sound Engine feature.

Or tap Settings > Sound > Sound quality and effects > LG 3D

Sound Engine and tap Ⓐ to activate it.

- If you connect an external audio device such as an earphone or speaker to the product, a pop-up appears to turn on the LG 3D Sound Engine feature.

Google Assistant

Google Assistant overview

Your device has the built-in Google Assistant feature. Find answers and get things done while on-the-go.

• To use this feature, first connect to the network.

Launching Google Assistant

1 Press the Google Assistant key on the left side of the device. or
Swipe diagonally from a bottom edge corner of the screen.

2 Tap GET STARTED.

3 Follow the on-screen instructions.

- The device saves your voice data for recognition.

4 Set whether to use the voice match unlock function.

- If you use the voice match unlock function, you can unlock the device even when the device screen is turned off or the device is charging by saying "OK Google" or "Hey Google".

• This feature may be more vulnerable to security than the other screen locks, such as Pattern, PIN, and Password.
  When a similar voice or your recorded voice is used, the screen may be unlocked.
• To use this feature, on the home screen, tap Settings >Lock screen & security >Secure lock settings >Smart Lock, and then use the screen lock method you set to unlock the device.
• You need to unlock the device by using the specified method if you fail to unlock the device with voice recognition. See Setting a screen lock for details.

5 Tap Finish.

Accessing by Voice

1 When the home screen is turned off or locked, say "OK Google" or "Hey Google".
2 When the Google Assistant screen appears, say a command or ask a question.

Accessing from Home Screen

1 Press the Google Assistant key on the left side of the device. or Swipe diagonally from a bottom edge corner of the screen.

2 Say a command or question when you see • on the bottom of the screen.

• In an environment where Wi-Fi or mobile data connection is poor, the Google Assistant function may be restricted and the speech recognition accuracy rate may be lowered.
• If the speech is ambiguous, the microphone is covered, a media player is playing, or the surrounding is loud, the speech recognition accuracy rate may be lowered. When you are using the product via voice commands, say with accurate pronunciation in a quite environment for better speech recognition accuracy.

Fingerprint recognition

Fingerprint recognition overview

You must register your fingerprint on your device first before using the fingerprint recognition function.

You can use the fingerprint recognition function in the following cases:

• To unlock the screen.
• To view the locked content in the Gallery.
- Confirm a purchase by signing into an app or identifying yourself with your fingerprint.

• You can use fingerprint data for user authentication. There is a possibility that the fingerprint sensor might recognise a different but very similar fingerprint as the same registered fingerprint. To strengthen security, it is recommended that you use the pattern, PIN, or password method for unlocking the screen.
• If the device cannot detect your fingerprint or you forgot the value specified for registration, visit the nearest LG Customer Service Centre with your device and ID card.

Precautions for fingerprint recognition

Fingerprint recognition accuracy may decrease due to a number of reasons. To maximise the recognition accuracy, check the following before using the device.

- At the bottom centre of the product's screen, there is a built-in sensor that recognises fingerprints. Be careful not to scratch or damage the fingerprint sensor with metal objects such as coins or keys.

- If there are foreign substances (sweat, lotion, water, dirt, grease, etc.) on the fingerprint sensor or on the finger to be put on the sensor, fingerprint recognition may not work properly. Wipe the sensor and the finger clean and remove all moisture before putting the finger on the sensor.

- If the finger's surface is rough due to it being scarred or pruney from water, the sensor may not be able to recognise the fingerprint. In such a case, register another fingerprint.

- If you bend your finger or use the fingertip only, your fingerprint may not be recognised. Make sure that your finger covers the entire surface of the fingerprint sensor.

- Scan only one finger for each registration. Scanning more than one finger may affect fingerprint registration and recognition.

- The device may generate static electricity if the surrounding air is dry. If the surrounding air is dry, avoid scanning fingerprints, or touch a metallic object such as a coin or a key before scanning fingerprints to remove static electricity.

Registering fingerprints

You can register and save your fingerprint on the device to use fingerprint identification.

1 On the home screen, tap Settings > Lock screen & security > Fingerprints.

• A lock screen must be set in order to be able to use this feature.
• If the screen lock is not active, configure the lock screen by following the on-screen instructions. See Setting a screen lock for details.

2 Check the location of the fingerprint sensor at the bottom centre of the screen, and lightly put the finger on the sensor.

• Make sure that the finger fully covers the fingerprint sensor.

Hand holding a transparent container with a red circular mark on the lid (no text or symbols)

3 Follow the on-screen instructions.

• Until the fingerprint registration is completed, move the same finger around on the sensor little by little.
• Put the finger on the sensor. When you feel a vibration, remove the finger from the sensor.

4 When the fingerprint registration is done, tap OK.

- Tap Add more to register another fingerprint. Since the fingerprint recognition success rate depends on the condition of the registered fingerprint, it is recommended that you register several different fingerprints.

Managing fingerprints

You can edit or delete registered fingerprints.

1 On the home screen, tap Settings > Lock screen & security > Fingerprints.
2 Unlock according to the specified lock method.
3 From the fingerprint list, tap a fingerprint to rename it. To delete it, tap ☑.

Displaying the fingerprint icon when screen if off

You can set how to display the fingerprint sensor location on the screen when the screen is off.

1 On the home screen, tap Settings > Lock screen & security > Fingerprints.
2 Unlock the screen via the set method.
3 Check if is enabled for the Tap to show icon when screen is off option. If you don't want to use the function, disable the function by dragging ☐.

Setting the effect when touching the fingerprint icon

You can change the screen effect that appears when you touch the fingerprint icon.

1 Tap Settings > Lock screen & security > Fingerprints.
2 Unlock according to the specified lock method.
3 Tap Icon effect and select the desired effect.

Unlocking the screen with a fingerprint

You can unlock the screen or view the locked content by using your fingerprint. Activate the desired function:

1 On the home screen, tap Settings > Lock screen & security > Fingerprints.
2 Unlock according to the specified lock method.
3 On the fingerprint settings screen, activate the desired function:

• Screen lock: Unlock screen with a fingerprint.

- Content lock: Unlock content with a fingerprint. To do this, make sure that the content lock is set.

Multi-tasking feature

Recent Uses Screen

Swipe the Home button — upward and hold to view the recent use history.

Pop-up window

You can open multiple apps on the screen and easily switch between them at any time.

1 Swipe up on from the bottom of the screen.
2 Tap the app icon on the top left of the app screen and select Pop-up window.
- If you tap the app icon, the App info, Multi window, Pop-up window and Pin app options appear.

3 The app appears in the form of a pop-up window on the screen.

Three-step smartphone UI transition flow showing status, navigation, and weather change with icons for app controls

- This feature may not be available in some apps or screens.

Using the pop-up window

• Minimises the pop-up window. The pop-up window is minimised into the app icon floating on the screen, which can be moved anywhere you want.
  • [ ] : Expands the app to full screen.
• ✗: Closes the app.
  • To move the pop-up window: Drag the top of the pop-up window.
• To adjust the size of the pop-up window: Drag the left, right or bottom edge of the pop-up window.

• You can open up to 5 apps using the pop-up windows.
• To select an app from the opened apps, tap one of the pop-up windows. The selected pop-up window comes to the front.
• Pop-up windows cannot be moved to the status bar or navigation bar area.

Using the app folder for pop-up windows

If you tap on the pop-up window, the pop-up window is minimised into the app icon.

You can move the app icon anywhere you want by dragging it.

If two or more pop-up windows are minimised, the app folder is created to contain the app icons.

• The recently-used app icon is used as the app folder icon. If you tab the icon, all the icons for the minimised pop-up windows appear in the app folder.
• If you touch and hold the app folder for pop-up windows and drag the app folder into Remove, the app folder will be removed.
• To remove one of the apps from the app folder, open the app folder and drag the app icon out of the app folder.

Multi window

When using gesture navigation

1 Swipe up on from the bottom of the screen.

• Recently-used apps appear.
- If you tap the app icon, the App info, Multi window, Pop-up window and Pin app options appear.

2 Tap the app icon on the top left of the app to be displayed in the multiwindow and select Multi window.

- The selected app appears at the top half of the screen.

3 Tap the other app to be displayed in the multi window.

- The selected app appears at the bottom half of the screen.

When using Buttons only navigation

1 Tap on the navigation bar.

• Recently-used apps appear.
- If you tap the app icon, the App info, Multi window, Pop-up window and Pin app options appear.

2 Tap the app icon on the top left of the app to be displayed in the multiwindow and select ☐.

- The selected app appears at the top half of the screen.

3 Tap the other app to be displayed in the multi window.

• To adjust the size of the split screen, drag the bar on the centre of the screen.
• To deactivate the multi window feature, drag the centre bar up or down to the end of the screen.
• The multi window feature is not supported in some LG apps or apps downloaded from the Play Store.

AOD(always-on display)

You can view the date, time or signature when the main screen is turned off.

Swipe the bottom of the Always-on display screen to activate features including Camera, Capture+, Wi-Fi, sound settings, Bluetooth ^® , Flash, Music and more.

1 On the home screen, tap Settings > Display > AOD(always-on display).
2 Select the image you want to display and tap SAVE.

• Tap the desired image among Digital clock, Analog clock, Dual clock, Signature or Image.
• Tap Show display and select Tap to show for 10 seconds or Always show.
• Tap Quick tools & music player to swipe over the status icons for Quick tools and the music player.
• To enhance brightness for the Always-on display feature, tap Brighter display.
  • To view the help for Always-on display, tap Help.

• The battery may drain faster when you use Always-on display. Turn this feature off to save battery power.
• To deactivate Always-on display feature, on the home screen, tap Settings > Display > AOD(always-on display), and then tap 📄.

Notes on Water Resistant Properties

This product is water and dust resistant in compliance with the Ingress Protection rating IP68.

Your product has undergone testing in a controlled environment and is proven to be water and dust resistant in certain circumstances (meets the requirements of classification IP68 as described by the international standard IEC 60529 - Degrees of Protection provided by Enclosures [IP Code]; test conditions: 15-35 °C, 86-106kPa, 1.5 meter, for 30 minutes). Do not expose the device in conditions that are different from the test conditions. Results may vary in actual use.

WARNING

Despite a rating of IP68, your device is not impervious to conditions not tested in LG's controlled environment. Please note that any damages that occur due to such causes changes the colour of the LDI (Liquid Damage Indicator). If the colour of LDI located inside the product changes, the product is to be considered ineligible for any free-of-charge repair services provided under the product's limited warranty.

Avoid exposing the product to environments with excessive dust or moisture. Do not use the product in the following environments.

Do not immerse the product in any liquid chemicals (soap, etc.) other than water.

Do not immerse the product in salt water, including seawater.

Do not immerse the product in a hot spring.

Do not swim with this product.

Do not place the product directly on sand (such as at a beach) or mud.

Do not immerse your product in water deeper than approximately 1.5 meters.

Do not immerse your product in water for longer than 30 minutes.

- If your product becomes wet be sure to wipe the microphone, speaker, and stereo jack with a dry cloth before use.

- Should your product or your hands become wet, dry them before handling the product.

- Do not use the product in places where it may be sprayed with high pressure water (e.g. near a faucet or shower head) or submerge it in water for extended periods of time, as the product is not designed to withstand high water pressure.

- This product is not resistant to shock. Do not drop the product or subject it to shock. Doing so might damage or deform the main unit, causing water leakage.

- The product's water and dust resistant features may be damaged by dropping or receiving an impact.

• If the product gets wet, use a clean, soft cloth to dry it thoroughly.

- The touch screen and other features may not work properly if the device is used while wet.

- Your product is water resistant only when the SIM/Memory card tray is properly inserted into the product.

- Do not open or close the SIM/Memory card tray while the product is wet or immersed in water. Exposing the open tray to water or moisture may damage the product.

- The SIM/Memory card tray contains rubber [packing] to help prevent dust, water, or moisture from entering the product. Do not damage the rubber [packing] as this may allow dust, water, or moisture to enter your product and cause damage.

• Failure to follow the provided instructions may invalidate your device's limited warranty.
• If the device is wet, the LDI located inside the device changes in colour. In this case, the device is ineligible for any free-of-charge repair services provided under the device's limited warranty.
• Despite a rating of IP68, your device is not completely impervious to water in any situation.

02

Basic Functions

Product components and accessories

The following items are included with your device.

- Device

- Charger

- USB cable

- Quick Start Guide

- Ejection pin

• The items described above may be optional.
• The items supplied with the device and any available accessories may vary depending on the area and service provider.
• Always use genuine LG Electronics accessories. Using accessories made by other manufacturers may affect your device's call performance or cause malfunctions. This may not be covered by LG's repair service.
• Some of the device parts are made of tempered glass. If you drop your device on a hard surface or subject it to severe impact, the tempered glass may be damaged. If this happens, stop using your device immediately and contact an LG Customer Service Centre.

• If any of these basic items are missing, contact the dealer from which you purchased your device.
  • To purchase additional items, contact an LG Customer Service Centre.
• Some items in the product box are subject to change without notice.
• The appearance and specifications of your device are subject to change without prior notice for product improvement.
  • Device specifications may vary depending on the area or service provider.
• Remove the protective film from the Fingerprint sensor before using the fingerprint recognition feature.

Parts overview

Earpiece Front camera lens Volume keys (+/-) Google Assistant key Proximity/Ambient light sensor Power/Lock key Touch screen Fingerprint sensor Stereo headset jack Charger/USB cable port

Microphone Rear camera lenses Flash Nano-SIM card tray NFC Wireless charging antenna area Speaker Microphone

Basic Functions 34

Do NOT attempt to remove the back cover by yourself.

• Doing so may severely damage the battery and device, which could cause overheating, fire, and injury. This device's back cover and battery are not to be removed or replaced by a non-qualified professional.
• Your phone is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your phone during or immediately after operation.

• Volume keys

• Adjust the volume for ringtones, calls or notifications.
• While using the Camera, gently press a Volume key to take a photo. To take continuous photos, press and hold the Volume key.
• Press the Volume Down key twice to launch the Camera app when the screen is locked or turned off. Press the Volume Up key twice to launch Capture+.

• Power/Lock key

• Briefly press the key when you want to turn the screen on or off.
• Press and hold the key when you want to select a power control option.

- Google Assistant key

- You can short-press it once to run Google Assistant. You can press and hold it to run Google Assistant and then release the finger from the key to run the voice command function.

- See the Google Assistant for details.

- Fingerprint sensor

- You can use the fingerprint sensor at the bottom centre of the screen to use the fingerprint recognition function. See Fingerprint recognition overview for details.

• Some functions may be restricted depending on the region and product specifications of different telecommunications providers.
• There are NFC chip and wireless charging antennas built into the rear part of the product. Be careful not to damage or cover the NFC chip or wireless charging antennas.
• Do not put heavy objects on the device or sit on it. Failure to do so may damage the touch screen.
• Screen-protective film or accessories may interfere with the proximity sensor.
• If your device is wet or is being used in a humid place, the touch screen or keys may not function properly.

There are two microphones built into this product. Be careful not to cover the microphones. While you are talking on the phone, do not cover the microphone with your hand or fingers.

Do not use a phone case that is not a genuine product or cover the microphone with accessories, tape, etc.

Hold the product correctly as shown in the image when you are using it.

Microphone

Microphone

Do not cover the microphone.

Do not cover the microphone.

Turning the power on or off

Turning the power on

When the power is turned off, press and hold the Power/Lock key.

- When the device is turned on for the first time, initial configuration takes place. The first booting time for the smart phone may be longer than usual.

Turning the power off

Press and hold the Power/Lock key, then select Power off.

Restarting the device

When the device is not working properly or does not respond, restart it by following the instructions below.

1 Press and hold the Power/Lock key and the Volume Down key at the same time until the power is turned off.
2 When the device is restarted, release the key.

- This function is not available when the device is connected to LG Dual Screen (LM-G905N).

Power control options

Press and hold the Power/Lock key, then select an option.

• Power off: Turn the device off.
• Power off and restart: Restart the device.

Installing the SIM card

Insert the SIM (Subscriber Identity Module) card provided by your service provider to start using your device.

- Be careful with the ejection pin since it has a sharp edge.

- In order for the water-resistant and dust-resistant features to work effectively, the card tray must be inserted correctly.

1 Insert the pin into the hole of the card tray and press the pin, and then pull the card tray out of the product.

Diagram showing a smartphone being inserted into a clip, with a magnified inset highlighting the clip structure.

2 Align the Nano-SIM cards on the card tray and press the card in the direction of the arrow as shown in the figure.

Diagram showing a device being processed from a base to a top panel, with red arrows indicating motion direction (no text or symbols present)

- The SIM card tray 2 also serves as the memory card tray. However, you cannot put both the SIM card and the memory card (optional) at the same time.

3 Insert the card tray into the phone as shown in the figure.

Nano-SIM card 1 Nano-SIM card 2

• This device supports only Nano SIM cards.

NanoMicroStandard

• For problem-free performance, it is recommended that you use the device with the correct type of SIM card. Always use a factory-made SIM card supplied by the operator.
• Do not lose your SIM card. LG is not responsible for damage and other issues caused by loss or transfer of a SIM card.
• Be careful not to damage the SIM card when you insert or remove it.
• When you insert the SIM card or memory card, place it on the card tray correctly.
• When you insert the card tray back into the device, insert it horizontally in the direction of arrow as shown in the figure. Make sure that the card placed on the card tray does not move out of its position.
• Insert the SIM card with the gold-coloured contacts facing downwards.
• Be sure to insert the SIM card into the device by following the instructions in the user manual.
• If you insert or remove the card tray from the device, be careful not to let water or other liquids enter into the card tray. If a wet card tray or card is inserted into the device, your device may get damaged.
  • Memory card is an optional item.
• Frequent writing and erasing of data may shorten the memory card lifespan.
• Some memory cards may not be fully compatible with the device. If you use an incompatible card, it may damage the device or the memory card, or corrupt the data stored in it.

Inserting the memory card

Insert the memory card into your device.

The device can support up to a 2 TB microSD card. Depending on the memory card manufacturer and type, some memory card may not be compatible with your device.

1 Insert the ejection pin into the hole on the card tray.
2 Pull out the card tray.
3 Put the memory card on the card tray with the gold-coloured contacts facing downwards.

Memory card (optional-sold separately) SIM card

4 Insert the card tray back into the slot.

• Some memory cards may not be fully compatible with the device. If you use an incompatible card, it may damage the device or the memory card, or corrupt the data stored in it.

- Frequent writing and erasing of data may shorten the memory card lifespan.

Removing the memory card

Unmount the memory card before removing it for safety.

1 On the home screen, tap Settings > Storage > △.
2 Insert the ejection pin into the hole in the card tray and then pull out the card tray from the device.
3 Remove the memory card from the card tray.
4 Insert the card tray back into the slot.

- Do not remove the memory card while the device is transferring or accessing information. This may cause data to be lost or corrupted, or may damage the memory card or the device. LG is not responsible for losses that result from the abuse or improper use of memory cards, including the loss of data.

Battery

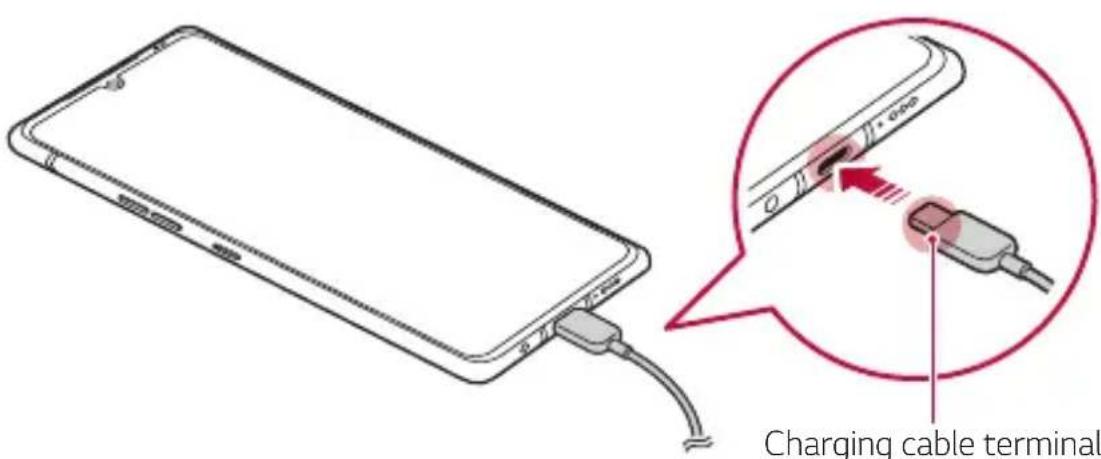

Charging the battery

Before using the device, fully charge the battery. Charge the device with the USB Type-C cable.

Charging cable terminal

• If there is moisture on the charging port, exposed terminals, charging cable, charging adapter, etc., do not use or charge the product. The product may malfunction or get broken or damaged, and there is risk of injury caused by electric shock, fire, overheating, explosion, etc. If you find moisture on such areas, stop using or charging the product immediately and completely remove the moisture.
• Do not separate the battery cover.

This product uses a non-removable battery. Do not remove or replace the battery cover or the battery. If you remove or replace the battery cover or the battery, the product may be damaged, overheated or explode.

• Only use the USB cable and charging adapter provided with the product as basic components.
• Your device has an internal rechargeable battery. For your safety, do not remove the embedded battery.
• Using the device when it is charging may cause electric shock. To use the device, stop charging it.

• Remove the charger from the power socket after the device is fully charged. This prevents unnecessary power consumption.
• A charging adapter that supports fast charging is included with the product. The fast charging feature may not work if a fast charging adapter other than the genuine adapter provided with the product is used.
• Another way to charge the battery is by connecting a USB cable between the device and a desktop or laptop computer. This may take longer than plugging the adapter to a wall outlet.
• Do not charge the battery by using a USB hub that is unable to maintain the rated voltage. Charging may fail or unintentionally stop.
• When you are visiting the Service Centre with a battery issue, bring the product and the charger with you. Since the battery is a consumable, the battery life may be shortened as times goes by.

Precautions when using the device

• Make sure to use the USB cable provided; do not use third party USB cables or chargers with your device. The LG limited warranty does not cover the use of third party accessories.
• Failure to follow the instructions in this guide and improper use may damage the device.

Wireless charging

This device supports wireless charging feature. Charge the device with a Qi certified wireless charger (optional, sold separately).

Charging the battery with a wireless charger

1 Place your device on the centre of the wireless charger aligned with the wireless charging antenna on the back of the device.

- To check the wireless charging antenna area, see Parts overview.

2 When the battery is fully charged, remove the device from the charger.

- When you charge the battery with a wireless charger, do not put a magnetic, metallic or conductive materials between the device and the charger. This may disturb charging of the device and the charger may become heated. In this case, the device, charger or SIM/Memory cards may be damaged.

• If the battery temperature exceeds a certain level while charging the device, charging may be stopped.
• If magnetic, metallic or conductive materials are attached on the back of the device or a protective case is inserted, the device may not charge properly.
• If you charge the battery with a wireless charger in areas where the network signal strength is weak, the network performance of your device may be further degraded.
• Charge the device with a Qi certified wireless charger (optional, sold separately). Because the LG limited warranty does not cover the use of third party accessories, contact the third party manufacturer.
• This product supports wireless charging. Use a Qi certified wireless charger (sold separately) to charge the product. Some coiled wireless chargers may not support wireless charging. Wireless chargers that support EPP (Extended Power Profile) allow high-speed wireless charging.
• LG Electronics is not responsible for any issues concerning accessories of other brands. For such issues, contact the manufacturer of the accessory product.

Using the battery efficiently

Battery lifespan may decrease if you keep many apps and functions running simultaneously and continuously.

Cancel background operations to increase battery life.

To minimise battery consumption, follow these tips:

• Turn off the Bluetooth or Wi-Fi network function when not using them.
• Set the screen timeout to as short a time as possible.
• Minimise the screen brightness.
• Set a screen lock when the device is not used.
• Check the battery level while using any downloaded apps.

Touch screen

You can familiarise yourself with how to control your device by using touch screen gestures.

Tapping

Lightly tap with your fingertip to select or run an app or option.

Hand pressing a red circular button on a gray background (no text or symbols)

Touching and holding

Touch and hold for several seconds to display a menu with available options.

Hand pressing a red circular button on a gray background (no text or symbols)

Double-tapping

Tap twice quickly to zoom in or out on a web page or map.

Hand pointing at a red circular button on a gray background (no text or symbols)

Dragging

Touch and hold an item, such as an app or widget, then move your finger to another location in a controlled motion. You can use this gesture to move an item.

Hand pointing at a button with bidirectional arrows (no text or symbols)

Swiping

Touch the screen with your finger and move it quickly without pausing. You can use this gesture to scroll through a list, a web page, photos, screens, and more.

Diagram showing finger pressing a button with red arrow indicating right-hand movement

Pinching and spreading

Pinch two fingers to zoom out such as on a photo or map. To zoom in, spread your fingers apart.

Illustration of a hand with two red arrows indicating movement or force direction (no text or symbols)

Hand pointing upward with red arrows indicating movement (no text or symbols)

- Do not expose the touch screen to excessive physical shock. You might damage the touch sensor.

• A touch screen failure may occur if you use the device near a magnetic, metallic or conductive material.
• If you use the device under bright lights, such as direct sunlight, the screen may not be visible, depending on your position. Use the device in a shady location or a location with an ambient light that is not too bright and bright enough to read books.
• Do not press the screen with excessive force.
  • Gently tap with your fingertip on the option you want.
• Touch control may not work properly if you tap while wearing a glove or by using the tip of your fingernail.
• Touch control may not work properly if the screen is moist or wet.
• The touch screen may not function properly if a screen-protective film or accessory purchased from a third party store is attached to the device.
• Displaying a static image for extended periods of time may result in after-images or screen burn-in. Turn off the screen or avoid displaying the same image for a long time when you do not use the device.

Home screen

Home screen overview

The Home screen is the starting point for accessing various functions and apps on your device. Swipe up from the bottom edge of any screen to directly go to the Home screen.

You can manage all apps and widgets on the Home screen. Swipe the screen left or right to view all installed apps at a glance.

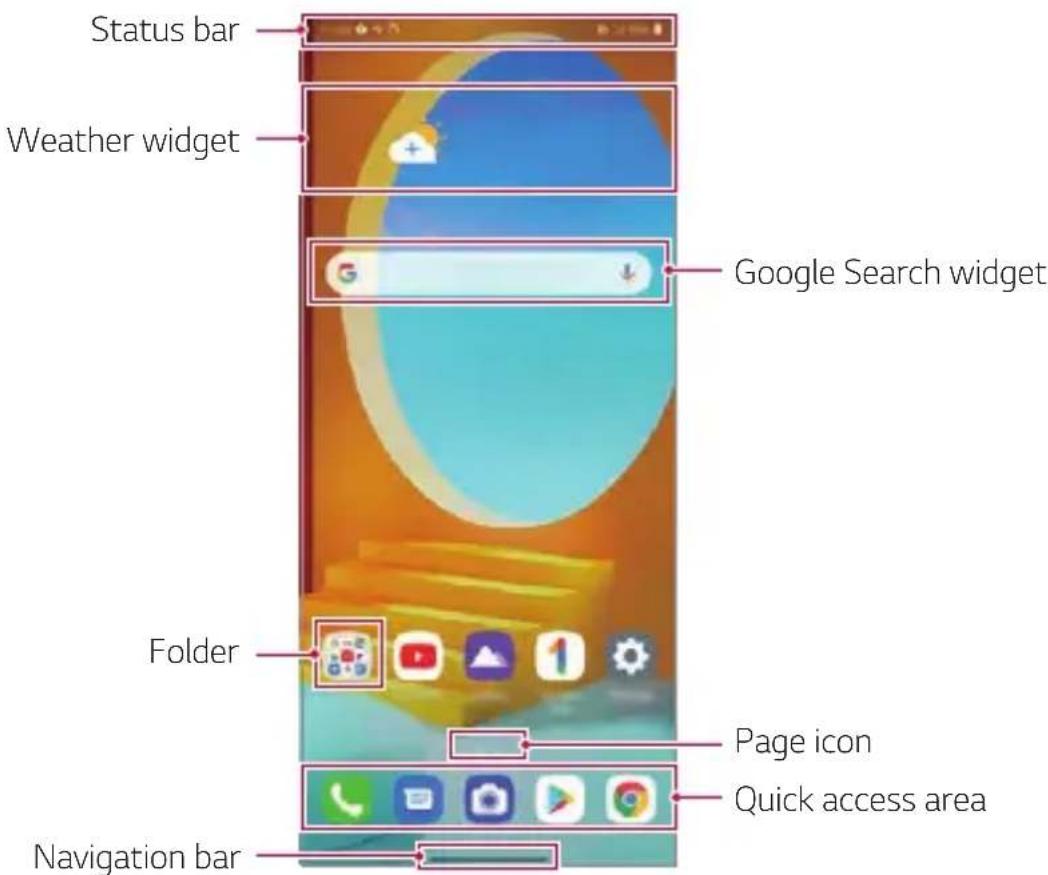

Home screen layout

You can view all apps and organise widgets and folders on the Home screen.

Status bar Weather widget Google Search widget Folder Page icon Quick access area Navigation bar

- The Home screen may differ depending on the manufacturer policy, user settings, software version or service provider.

• Status bar: View status icons, the time and the battery level.
• Weather widget: View the information of weather and time for a specific area.
• Google Search widget: Type or speak to pull open Google Search.
• Folder: You can create folders to classify the app based on desired criteria.
• Page icon: Display the total number of Home screen canvases. You can tap the desired page icon to go to the page you selected. The icon reflecting the current canvas will be highlighted.
• Quick access area: Fix main apps at the bottom of the screen so that they can be accessed from any Home screen canvas.
• Navigation bar: You can go to the previous screen or home screen while using the app, and check the list of apps you used recently.

Using Navigation bar

Here is the gestures guide to control the Navigation bar.

• To go to Home screen, swipe up from the bottom edge of the screen.
• To go back to the previous screen, swipe in from the left or right edge of the screen.
• To go to Overview screen, swipe up and hold from the bottom edge of the screen.
• To quickly switch between apps, swipe right at the bottom edge of the screen to go to previously used apps.

- Gestures is the default for the Navigation bar. To change it to Buttons only ◀/○/□ on the home screen, tap Settings >Display >Navigation bar, then select Buttons only.

Status icons

When there is a notification for an unread message, calendar event or alarm, the status bar displays the corresponding notification icon. Check your device's status by viewing notification icons displayed on the status bar.

	No signal
	Data is being transmitted over the network
	Alarm is set
	Vibrate mode is on
	Bluetooth is on
	Connected to a computer via USB
	Battery level
	Airplane mode is on
	Missed calls
	Wi-Fi is connected
	Mute mode is on
	GPS is on
	Hotspot is on
	No SIM card
	The NFC mode is on

• Some of these icons may appear differently or may not appear at all, depending on the device's status. Refer to the icons according to the actual environment and area in which you are using the device and your service provider.
• Displayed icons may vary, depending on the area or service provider.

Notifications panel

You can open the notifications panel by dragging the status bar downward on the main screen.

• You can drag down the notice window or tap the arrow icon to open the list of quick setting icons.
• You can tap 🔔 to add, delete or arrange icons in the notice window.
• If you touch and hold the icon, the settings screen for the corresponding function appears.

04:03 Mon, 18 May App application are ready Connect to Wi-Fi or Wi-Fi CONNECT TO Wi-Fi Recommended access! Use on Wi-Fi container Use Wi-Fi to access Wi-Fi via network connection No. 2/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/4/6 →

- You can use the notifications panel even on the lock screen. Drag the notifications panel while the screen is locked to quickly access the desired features.

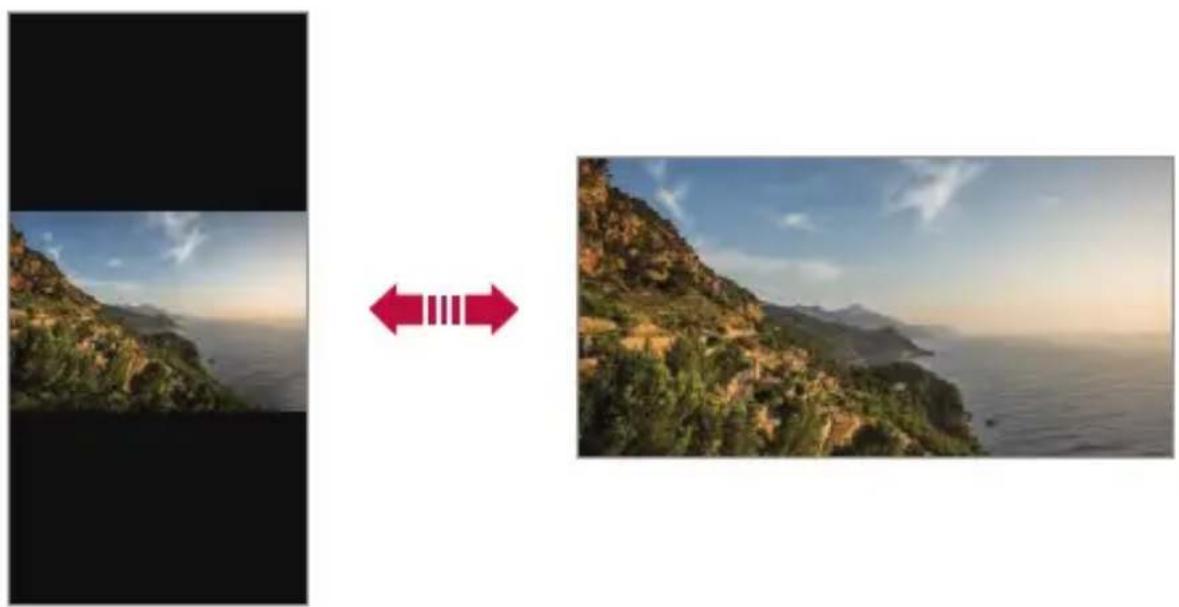

Switching the screen orientation

You can set the screen orientation to automatically switch according to the device's physical orientation.

On the notification panel, tap Rotation from the quick access icon list.

You can also tap Settings > Display and activate Auto-rotate screen on the home screen.

Split image showing a coastal cliff with green vegetation on the left and a coastal cliff with red double-headed arrows on the right, both against a sunset sky (no text or symbols)

Editing the Home screen

On the Home screen, touch and hold on an empty space, then select the desired action from below.

• To rearrange the Home screen canvases, touch and hold on a canvas, then drag it to another location.
• To add a widget to the Home screen, touch and hold on a blank area of the Home screen, then select Widgets.
  • To change wallpapers, themes, icons, and AOD, touch and hold on a blank area of the Home screen, then select Wallpaper & theme.

You can also tap Settings>Display>Home screen>Wallpaper on the home screen, then select wallpapers, themes, icons, and AOD, to apply to the device.

• To change the grid, touch and hold on a blank area of the Home screen, then select Grid. Tap the desired grid, then tap Apply.
• To configure the Home screen settings, touch and hold on a blank area of the Home screen, then select Home screen settings. See Home screen settings for details.
• To view or reinstall the uninstalled apps, touch and hold on a blank area of the Home screen, then select App trash. See App trash for details.
• To change the default screen, touch and hold on a blank area of the Home screen, move to desired screen, tap 🔒, then tap the screen once more.

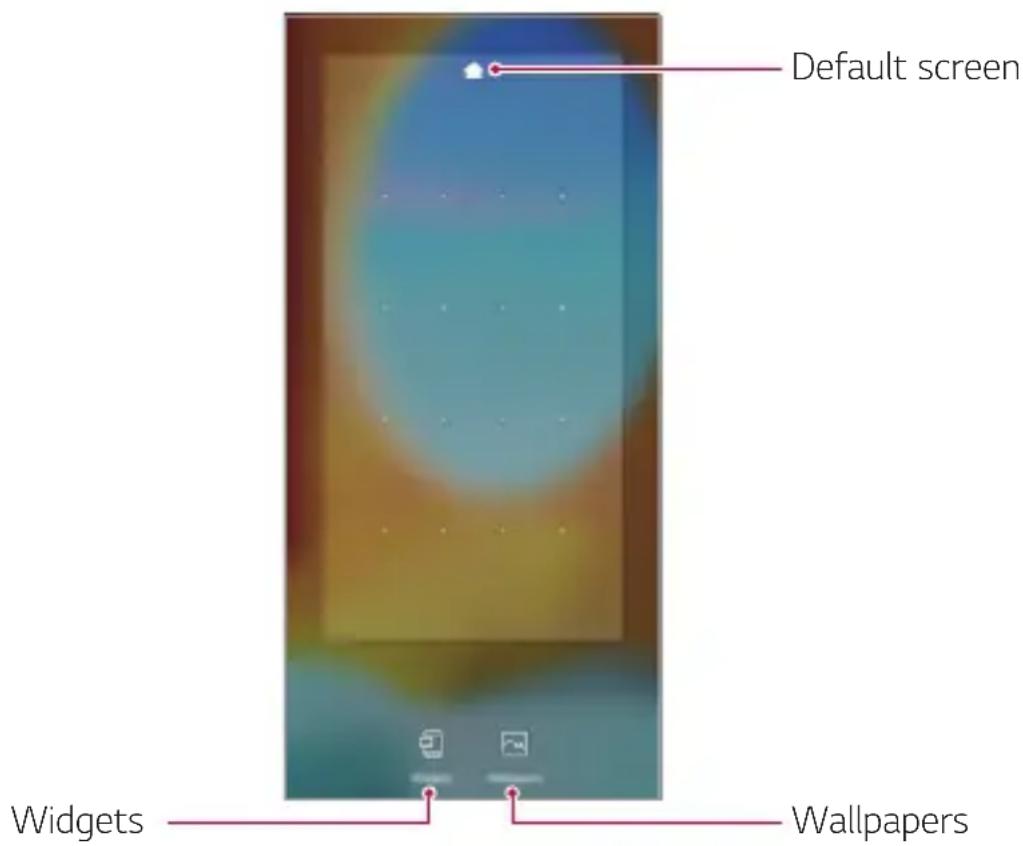

Screenshot of a mobile app interface with a search bar, navigation tabs, and app icons on the right.

Default screen

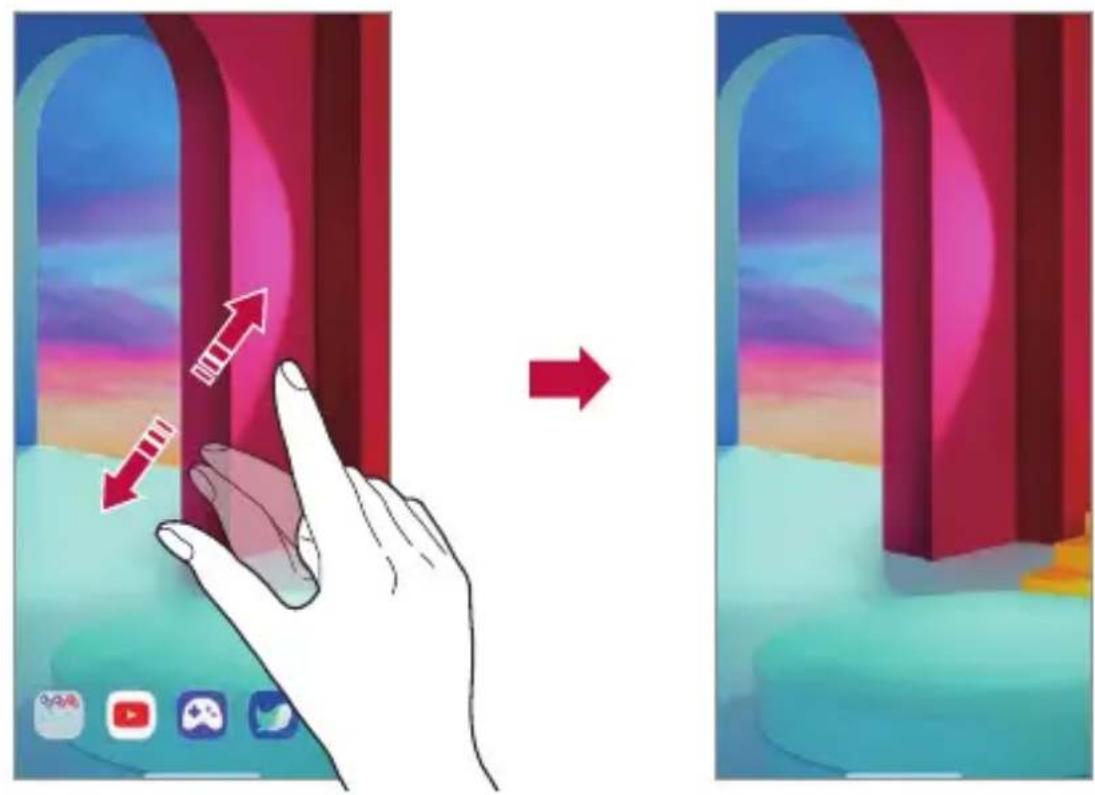

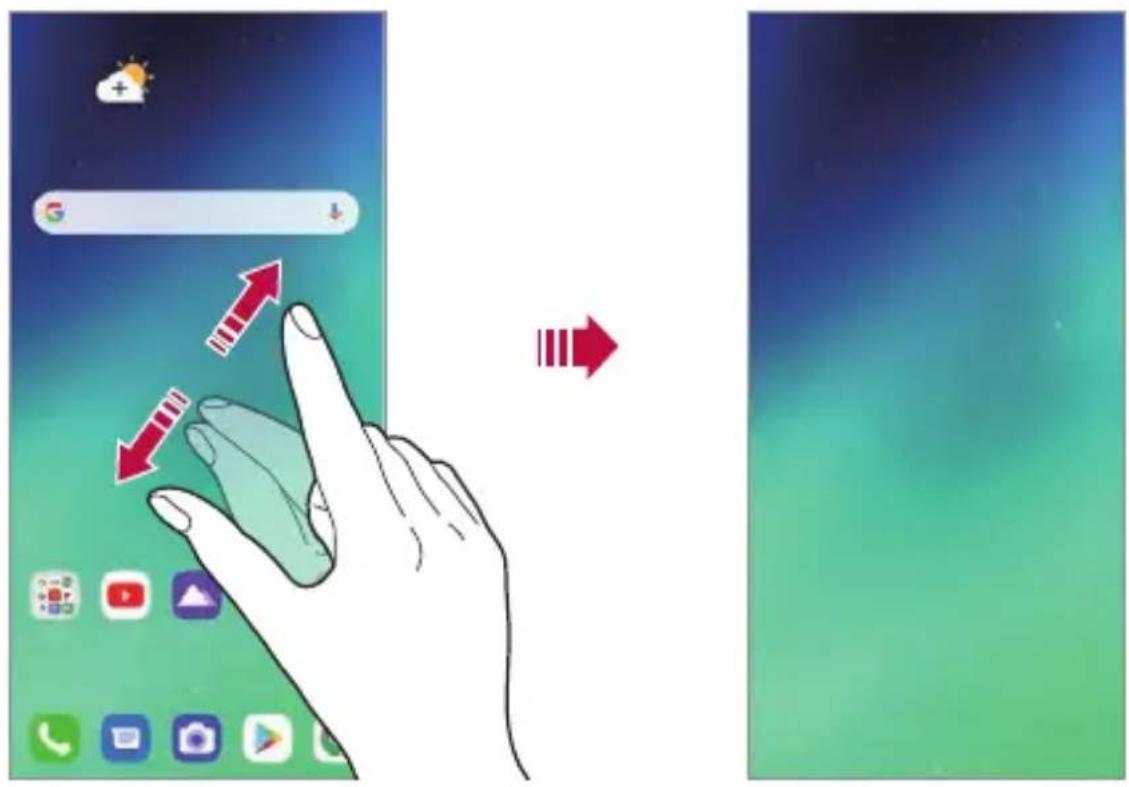

Viewing the background theme

You can view only the background image by hiding the apps and widgets on the Home screen.

Spread two fingers apart on the Home screen.

- To return to the original screen, which displays apps and widgets, pinch your fingers on the Home screen or drag up — from the bottom edge of the screen.

Diagram illustrating hand gesture application on a smartphone, showing app icons and directional arrows with red arrows indicating movement.

Moving apps on the Home screen

On the Home screen, touch and hold an app, then drag it to another location.

- To keep frequently used apps at the bottom of the Home screen, touch and hold an app, then drag it to the quick access area at the bottom.

• To remove an icon from the quick access area, drag the icon to the Home screen.

Using folders from the Home screen

Creating folders

On the Home screen, touch and hold an app, then drag it over another app.

- A new folder is created and the apps are added to the folder.

Editing folders

On the Home screen, tap a folder and do one of the following actions.

• To edit the folder name tap the folder name.
• To edit the colour, tap the right upper circle.
- To add apps, touch and hold an app, then drag it over the folder and release it.
- To remove an app from the folder, touch and hold the app and drag it to outside the folder. If the removed app is the only one app that existed in the folder, the folder is removed automatically.
- You can also add or remove apps after tapping (+)

- You cannot change the folder colour while using downloaded theme.

Home screen settings

You can customise the Home screen settings.

1 On the home screen, tap Settings > Display > Home screen.
2 Customise the following settings:

• Select Home: Select a Home screen mode.
• Wallpaper: Change the Home screen background wallpaper.
• Screen swipe effect: Select an effect to apply when the Home screen canvas switches.
• Icon shape: Choose if you want icons to have square or rounded corners.
• Google feed: Show to the left of the main Home screen.
• Sort apps by: Set how apps are sorted on the Home screen.
• Hide apps: Select which apps you want to hide from the Home screen.
• Loop Home screen: Enable to allow continuous Home screen scrolling (loop back to first screen after the last screen).
• Swipe down on the Home screen: Enable to search apps or contents, or view notifications by swiping down on the home screen.
• Swipe up on the Home screen: Enable to search apps or contents, or view notifications by swiping up on the home screen.
• Home screen lock: Enable to prevent apps and widgets from being rearranged or removed.

Screen lock

Screen lock overview

Your device's screen turns off and locks itself if you press the Power/Lock key. This also happens after the device is left idle for a specified period of time.

If you press the Power/Lock key when a screen lock is not set, the Home screen appears immediately.

To ensure security and prevent unwanted access to your device, set a screen lock.

- A screen lock prevents unnecessary touch input on the device screen and reduces battery consumption. We recommend that you activate the screen lock while not using the device.

Setting a screen lock

There are several options available for configuring the screen lock settings.

1 On the home screen, tap Settings > Lock screen & security > Select screen lock and then select the method you prefer.
2 Customise the following settings:

• None: Deactivate the screen lock function.
- Swipe: Swipe on the screen to unlock the screen.
- Pattern: Draw a pattern to unlock the screen.
• PIN: Enter a numeric password to unlock the screen.
- Password: Enter an alphanumeric password to unlock the screen.
- Fingerprints: Unlock the screen by using your fingerprint.

Customise Lock screen

You can customise lock screen.

1 On the home screen, tap Settings > Lock screen & security > Customise Lock screen.

2 Select a function you want to set.

• Wallpaper: Allow you to set the background for your Lock screen.
• Clock: Allow you to set where to position the clock on the Lock screen.
• Shortcuts: Allow you to choose apps to run on your Lock screen. This setting appears only when a screen lock is set.
• Weather animation: Enable this option to display weather animations for the current location on the Lock screen.
• Contact info for lost phone: Allow you to set text to be displayed on the Lock screen to identify the phone's owner.

Secure lock settings

You can set secure lock settings.

1 On the home screen, tap Settings > Lock screen & security > Secure lock settings.
2 Select a function you want to set.

- Make pattern visible (shown only when Pattern is set as a screen lock): Turn on to make pattern visible.

- Lock timer: Allow you to set the amount of time before the screen automatically locks after the backlight turns off (time-out due to inactivity).

- Power key instantly locks: Enable this option to instantly lock the screen when the Power/Lock key is pressed. This setting overrides the Security Lock timer setting.

- Show lockdown option (shown only when a screen lock is set): Enable this option to display the Lockdown icon when you press and hold the Power/Lock button. Tap the Lockdown icon to turn off Smart Lock, biometric unlocking, and notifications on the lock screen.

- Smart Lock: Allow you to set trusted devices, places, voice, and/or on-body detection that will allow your phone to remain unlocked.

• Available menu options may vary depending on the lock screen method selected.

KnockON

You can turn the screen on or off by double-tapping the screen.

• This option is available only on the Home screen provided by LG. It may not function properly on a custom launcher or on the Home screen installed by the user.
• When tapping the screen, use your fingertip. Do not use a fingernail.
• To use the KnockON feature, make sure that the proximity/light sensor is not blocked by a sticker or any other foreign substance.

Turning the screen on

Double-tap the middle of the screen.

- Tapping the top or bottom of the screen may decrease the recognition rate.

Turning the screen off

Double-tap on an empty space on the Home screen and Lock screen.

You can also double-tap an empty space on the status bar.

Disable KnockON

If you don't want to use the KnockON function, set as follows:

On the home screen, tap Settings > Extensions > KnockON and drag it to disable the function.

Memory card encryption

You can encrypt and protect data saved on the memory card. The encrypted data in the memory card cannot be accessed from another device.

1 On the home screen, tap Settings > Lock screen & security > Encryption & credentials > Encrypt SD card.
2 Read the on-screen overview of memory card encryption and then tap Continue to continue.
3 Select an option and tap Encrypt now.

• New data encryption: Encrypt only data that is saved on the memory card after encryption.
  • Full encryption: Encrypt all the data currently saved on the memory card.
• Exclude media files: Encrypt all files, except for media files such as music, photos and videos.

• Once memory card encryption starts, some functions are not available.
• If the device is turned off while encryption is underway, the encryption process will fail, and some data may be damaged. Therefore, be sure to check if the battery level is sufficient before starting encryption.
• Encrypted files are accessible only from the device where the files were encrypted.
• The encrypted memory card cannot be used on another LG device. To use the encrypted memory card on another mobile device, format the card.
• You can activate memory card encryption even when no memory card is installed into the device. Any memory card that is installed after encryption will automatically be encrypted.

Taking screenshots

You can take screenshots of the current screen you are viewing.

Via a shortcut

Press and hold the Power/Lock key and the Volume Down key at the same time for at least two seconds.

- Screenshots can be viewed from the Screenshots folder in the Gallery.

Via Screenshot

On the screen where you want to take a screenshot, drag the status bar downwards, then tap 🙏.

• See Writing notes on a screenshot for details.

Entering text

Using the Smart toolbar

You can use various keyboard input methods in one place. You can select the desired input method from the top of the keyboard.

1 Select the desired keyboard input method from the Smart toolbar.
2 Tap and select the input method you want to show on the Smart toolbar, or reorganise them.

Smart toolbar

• You can add up to 6 tools to Smart toolbar.
- Some supporting input methods may differ depending on the device you have.
- You can turn on or off the Smart toolbar feature from the keyboard settings.
• You can also use the keyboard input methods by tapping

• Add emojis.
  • : Add stickers.
• GIF : You can use Tenor's GIF keyboard. Tap Accept to use this feature.
  • 📋: Add my emojis.
  • 20: Open Draw chat.
  • : Access keyboard settings.

• Tap to enter text with your voice.

- To maximise the voice command recognition, speak clearly.

- To enter text with your voice, make sure that your device is connected to a network.

- To select the language for voice recognition, tap >Languages on the voice recognition screen.

- This function may not be supported, or the supported languages may differ depending on the service area.

• : Open the clip tray.
• : Enter text by handwriting. It is required to download the input language data for handwriting. Tap Download to download the input language data for handwriting.
• ☐: Activate floating keyboard when you use the Multi-window feature. You can also move the keyboard to the desired location.
- Tap in Smart toolbar.

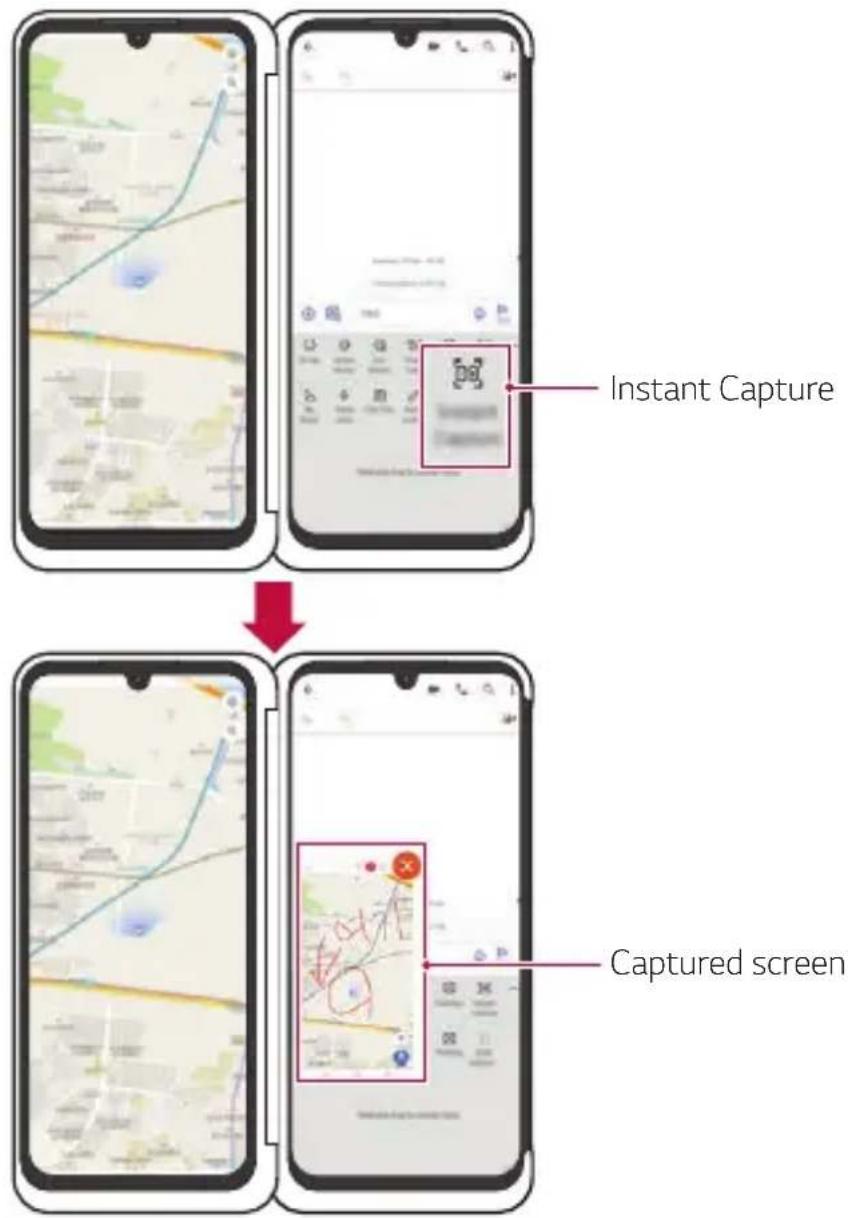

- If the device is connected to LG Dual Screen, you can capture the screen of LG Dual Screen and attach it during keyboard input. For more details, refer to Using Instant Capture on Dual Screen.

- Tap in Smart toolbar.

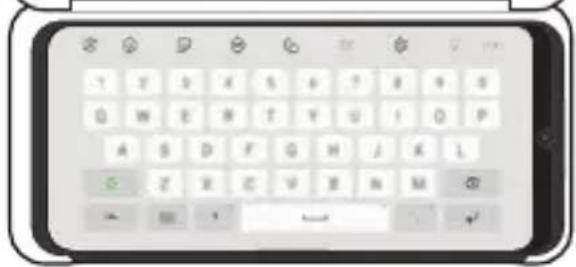

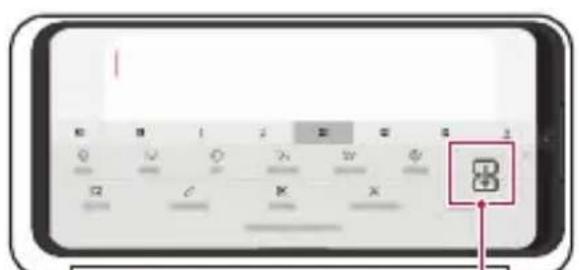

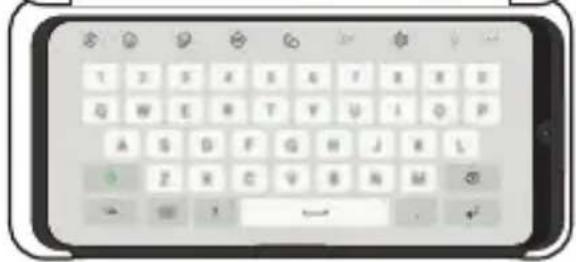

- If the device is connected to LG Dual Screen, You can expand the keyboard vertically and use the upper screen as an app screen and the bottom screen as a keyboard screen. For more details, refer to Using Dual Keyboard on Dual Screen.

Using the Smart keyboard

You can use the Smart keyboard to enter and edit text.

With the Smart keyboard, you can view text as you type without bothering to alternate between the screen and a conventional keyboard. This allows you to easily find and correct errors when typing.

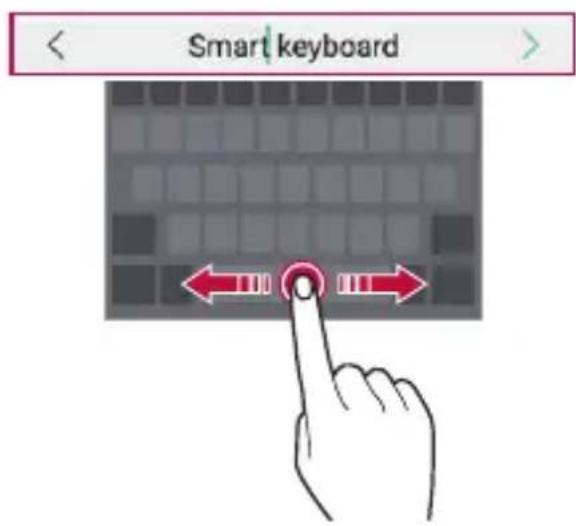

Moving the cursor

With the Smart keyboard, you can move the cursor to the exact position you want. When typing text, touch and hold on the space bar and then drag left or right.

Smart keyboard

• This option is available only on the QWERTY keyboard.

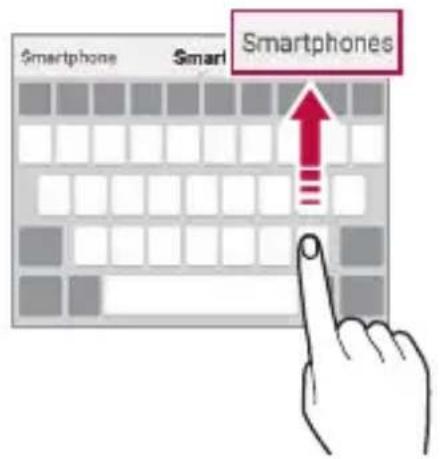

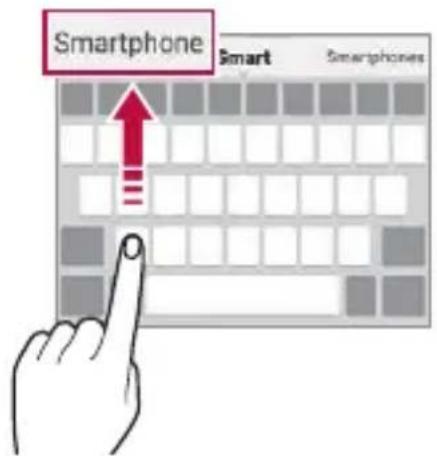

Suggesting words

Smart keyboard automatically analyses your usage patterns to suggest frequently used words as you type. The longer you use your device, the more precise the suggestions are.

Enter text, then tap a suggested word or gently drag the left or right side of the keyboard upwards.

- The selected word is automatically entered. You do not need to manually type every letter of the word.

Smartphone Smart Smart Smartphones

Smartphone Smart Smartphones

Copy and Paste

You can cut or copy text from an app, and then paste the text into the same app. Or, you can run other apps and paste the text into them.

1 Touch and hold around the text you want to copy or cut.

2 Drag ♦ to specify the area to copy or cut.

3 Select either Cut or Copy.

- Cut or copied text is automatically added to the clip tray.

4 Touch and hold the text input window, then select Paste.

- If there is no item that has been copied or cut, the Paste option will not appear.

Content sharing

Playing content from another device

You can play photos, videos or songs saved on your device from a TV.

1 Connect the TV and your device to the same Wi-Fi network.
2 While viewing the items from the Gallery or Music app, tap 📄 or : > Play on other device.
Or on the home screen, tap Settings > Connected devices > Screen sharing and then tap Ⓐ to activate it.
3 Select the TV you want to connect to.

- For use with Chromecast, Google Play services should be up to date.

Viewing content from nearby devices

You can view content from various devices, such as a computer, NAS or mobile device, by using the Gallery or Music apps.

Connecting the devices

Connect both your device and another device that support DLNA function to the same wireless network.

- Make sure that File sharing (DLNA) is activated on both the device and the connected device.

Searching for nearby devices

You can view a list of DLNA devices on the same network by selecting the

: >Nearby devices menu in each app.

Use content from nearby devices as if you were using it on your device.

Sending or receiving files

You can share files between your device and another LG device, or a tablet.

Sending files

From the Gallery or other apps, tap : >Share or < then select a device on the file sharing list.

Receiving files

Drag the status bar downward and then tap File sharing.

If your device does not support the file sharing feature, on the home screen, tap Settings > Connected devices > File sharing > SmartShare Beam ☐.

- You can share files with certain devices that support DLNA.

Do not disturb

You can limit or mute notifications to avoid disturbances for a specific period of time.

On the home screen, tap Settings > Sound > Do not disturb.

• Mode and select the mode you want:

- Priority only: Receive sound or vibrate notifications for the selected apps. Even when Priority only is turned on, alarms still sound.

- Total silence: Disable both the sound and vibration.

- Select priorities: Receive alarms and the notifications for the selected apps.

- Calls from: Set up a range of notifications when receiving a call.

- Repeated calls: Second call from the same caller within 15 min is not silenced.

- Messages from: Set up a range of notifications when receiving a message.

- Use Do not disturb: Turn on the Do not disturb feature.

- Sleeping: Set the schedule for which you want to turn on the Do not disturb feature.

• Help: View the help for Do not disturb.

03

Useful Apps

Installing and uninstalling apps

Installing apps

Access an app store to search and download apps.

- You can use SmartWorld, Play Store or the app store provided by your service provider.

• Some app stores may require you to create an account and sign in.
  • Some apps may charge fees.
• If you use mobile data, you may be charged for data usage, depending on your pricing plan.
• SmartWorld may not be supported depending on the area or service provider.

Uninstalling apps

Uninstall apps that you no longer use from your device.

Uninstalling with the touch and hold gesture

Press and hold any empty area on the screen, and then press of the app you want to delete.

Uninstalling by using the settings menu

On the home screen, tap Settings >Apps >App info, select an app, then tap Uninstall.

• Some apps cannot be uninstalled by users.

Uninstalling apps from the app store

To uninstall an app, access the app store from which you download the app and uninstall it.

Installing and uninstalling apps during the setup

When you turn on the device for the first time, you can download recommended apps.

You can skip to the next step without installation.

App trash

You can view the uninstalled apps. You can also reinstall apps which were uninstalled within 24 hours from now.

1 On the home screen, tap Management > App trash.

You can also touch and hold an empty area of the Home screen, then tap App trash.

2 Activate the desired function:

• Restore: Reinstall the selected app.
• ☑: Remove the uninstalled apps permanently from the device.

• Uninstalled apps are automatically removed from the device 24 hours after they were uninstalled. If you want to reinstall the uninstalled apps, you must download them again from the app store.
• This feature is activated on the default Home screen only. If you uninstall apps while using the EasyHome screen or other launcher, they are immediately and permanently removed from the device.

App Shortcuts

On the Home screen, touch and hold an app icon such as Call, Message, Camera, Gallery and Settings to display a quick access menu. Use apps more easily through App Shortcuts.

• Tap to set the widgets for the app.
• Tap ⓘ to check the app information.

Hand interacting with a mobile app interface, showing a cursor clicking the button and displaying a text input field.

• This feature is available only on some apps.

Phone

Voice call

Make a phone call by using one of the available methods, such as manually entering a phone number and making a call from the contact list or the list of recent calls.

Making a call from the keypad

1 On the home screen, tap Dial.
2 Make a call by using a method of your choice:

• Enter a phone number and tap 📞.
• Touch and hold a speed dial number.
• Search for a contact by tapping the initial letter of a contact name in the contact list, and then tap 📞.

• To enter "+" when making an international call, touch and hold number 0.
• See Adding contacts for details on how to add phone numbers to the speed dial list.

Making Calls from Contacts

1 On the home screen, tap Contacts.
2 After selecting the number you want to call from the list of contacts, tap 🔔.

Answering a call

To answer a call, drag on the incoming call screen.

• When the stereo headset is connected, you can make calls by using the call/end button on the headset.
• To end a call without turning off the screen, on the home screen, tap Settings > Network & internet > Call > Answer and end calls and then activate End call with the Power key.

- On the home screen, tap Settings > Network & internet > Call > Answer and end calls > End call with the Power key, you can end a call by pressing the Lock/Power key while the call-in-process screen is turned on.

Rejecting a call

To reject an incoming call, drag across the incoming call screen.

• To send a rejection message, drag the rejection message option across the screen.
• To add or edit a rejection message, On the home screen, tap Settings > Network & internet >Call >Call blocking & Decline with message.
• When a call is coming in, press the Volume Up, Volume Down or Power/Lock key to mute ringtone or vibration, or to hold the call.

Checking an incoming call while using an app

When a call comes in while using an app, a pop-up notification can be displayed at the top of the screen. You can receive the call, reject the call, or send message from the pop-up screen.

- On the home screen, tap Settings > Network & internet > Call > Additional settings > Incoming voice call pop-up and then select the desired way you would like to display the incoming call while using an app.

Viewing missed calls

If there is a missed call, the status bar at the top of the screen displays ✗ To view missed call details, drag the status bar downwards. You can also tap 📞>Call logs on the home screen.

Functions accessible during a call

During a call, you can access a variety of functions by tapping the on-screen buttons:

• Contacts: View the contact list during a call.
• Hold: Place the current call on hold.
  • Dialpad: Display or hide the dial pad.
• Speaker: Turn on the speakerphone function.
• Mute: Mute your voice so that your voice cannot be heard by the other party.
• Bluetooth: Switch the call to a Bluetooth device that is paired and connected.
  • :End a call.
  • : Access additional call options.

• Available settings items may vary depending on the area or service provider.

Making a three-way calling

You can make a call to another contact during a call.

1 During a call, tap : Add call.
2 Enter a phone number and tap .

- The two calls are displayed on the screen at the same time, and the first call is put on hold.

3 To start a conference call, tap Merge calls.

- You may be charged a fee for each call. Consult with your service provider for more information.

Viewing call records

To view recent call records, on the home screen, tap >Call logs. Then, you can use the following functions:

• To view detailed call records, select a contact. To make a call to the selected contact, tap 📞.
• To delete call records, tap : >Delete.

• The displayed call duration may differ from the call charge. Consult with your service provider for more information.
• The deleted call history can not be restored.
• Pinch two fingers or spread your fingers apart to adjust the font size of call logs or contacts.

Configuring call options

You can configure various call options.

1 On the home screen, tap 📞 > Dial or Call logs.
2 Tap : > Call settings and then configure the options to suit your preferences.

Messaging

Sending a message

You can create and send messages to your contacts using the Messaging app.

- Sending messages abroad may incur additional charges. Consult with your service provider for more information.

1 On the home screen, tap
2 Tap
3 Specify a recipient and create a message.
• To use multimedia options, tap
• To access optional menu items, tap :.
4 Tap to send the message.

Reading a message

You can view exchanged messages organised by contact.

1 On the home screen, tap

2 Select a contact from the message list.

- While on the message list or chat window, you can adjust the font size by placing two fingers on the screen and either widening or narrowing the fingers.

Configuring messaging settings

You can change messaging settings to suit your preferences.

1 On the home screen, tap
2 Tap : Settings from the message list.

- You can designate settings for the notice window, blocking calls, disaster alert, multimedia messages, etc.

Camera

Starting the camera

You can take a photo or record a video to cherish all of your memorable moments.

On the home screen, tap 📷.

• Before taking a photo or recording a video, wipe the camera lens with a soft cloth.
• Be careful not to stain the camera lens with your fingers or other foreign substance.
• Images included in this user guide may be different from the actual device.
• Photos and videos can be viewed or edited from the Gallery. See Gallery overview for details.
• Refrain from using the product for a purpose that may violate someone else's privacy or rights.

Taking a photo

You can take photos with the camera in the product.

1 Tap and focus on the subject.

• You can touch the subject to focus on.
- You may spread or pinch two fingers to zoom in or out.

2 Tap to take a photo.

• You can also press the Volume Down or Volume Up key to take a photo.
• You can take a photo while recording a video by pressing 📷 on the screen.
• The options displayed on the shooting screen may differ depending on the selected camera (front or rear) and camera mode.
• The camera will turn off automatically if you do not use it for a while after running the Camera app.

Set timer setting Set flash setting Apply filter effect Set camera Select zoom Current camera mode Switch to front-facing/ rear-facing camera Take photo Preview Auto scene optimizer

- You can run the camera app by short-pressing the power key twice. On the home screen, tap Settings > Extensions > Shortcuts and then tap Open Camera to activate it.

- When the screen is turned off or locked, start the camera by pressing the Volume Down key twice.

- On the home screen, tap Settings > Extensions > Shortcuts and then tap Open Camera to activate it.

Customising the camera options

You can customise a variety of camera options to suit your preferences.

Tap 🎨 on the screen.

• Available options vary depending on the selected camera (front or rear camera) and the selected camera mode.

Auto scene optimizer	By recognizing the scene that is being recorded, applies the optimal resolution setting automatically.
AI Composition	By recognizing the human figure when taking a portrait, recommends the optimal composition.
Tips	Notifies the user when the subject's eyes were closed or the picture is blurry for optimal photography.
HDR	Obtain photos in vivid colours and get compensated effects even when they are taken against the light. These functions are provided by the high dynamic range (HDR) technology equipped in the camera.
Live photo Record	the action before and after you take a photo.
Cheese shutter	Allows you to take a photo by saying 'Cheese', 'Smile', 'Whiskey', 'Kimchi', or 'LG'.
Tag locations Save the image with GPS location data.
Grid	Display guide grids so that you can take photos or record videos based on the horizontal and vertical reference lines.
Add signature Display a personalised signature on the photos.
Storage	Select if you want to store the pictures and videos in the Internal storage or SD card. (Available when a memory card is inserted.)
Help Provide Help for each camera menu.

Additional options on the front camera

Selfie shot	Take a selfie by selecting its option between Gesture shot and Auto shot.
Save as flipped Saves as flipped images when taking a selfie.

• You can apply the make-up effect when taking a selfie using the front camera.
• Gesture shot is taken by recognizing the shape of a hand and Auto shot is taken by recognizing a face.

Mode Selection

You can conveniently select from the modes displayed on the screen which are selected to suit the shooting environment.

Tap 📷 and swipe the camera modes left or right, or swipe the screen left or right to select a camera mode.

Layer Video Photo Portrait M Camera modes

Using camera modes

Recording a video

1 Tap 📄 and select Video by swiping camera modes.

2 Tap to record a video.

Set camera Apply filter effect Turn On/Off steady cam Set timer setting Set flash setting Select zoom Preview Switch to front-facing/ rear-facing camera Recording a video

• To take a photo while recording a video, tap
- To pause the video recording, tap 📄. To resume the video recording, tap 🔴.
- While recording a video, you may spread or pinch two fingers to zoom in or out.
- While recording a video, you may tap the desired area to adjust the brightness.

3 Tap to end the video recording.

Taking a photo

Tap 📄 and select Photo by swiping camera modes.

See Taking a photo for more details.

Taking portraits

You can take photos that make the subject more distinct and stand out by blurring the background.

1 Tap 📋 and select Portrait by swiping camera modes.

- Drag the slide bar to the left or right to adjust the blur strength.

2 Tap to take a photo.

Set camera Apply filter effect Set timer setting Set flash setting

• When you see the message "Portrait is available", start taking a photo.
• The Portrait feature may not work if the camera cannot recognise the subject.
• While taking a photo, keep the distance to your subject to 1.3 \~ 5 feet.
• This feature is not available if the surroundings are too dark.

Manual Camera

You can create photos featuring professional touch by using a variety of advanced features.

1 Tap and select Manual Camera by swiping camera modes.

2 Customise the following camera settings.

• Select a zoom from Ⓓ / ⓤ
• If you set Auto for options, the options are automatically adjusted according to the shooting target and environment.
• If the Focus peaking option is set, the focus area is highlighted in color. This feature is available only in Manual Focus (MF) mode.

Set camera Apply filter effect Set timer setting Set flash setting Displays the various Graphy options Reset the settings Adjust white balance Adjust focus Adjust brightness Adjust shutter speed Adjust ISO speed

3 Tap to take the photo.

• If you tap ⬤ and select a Graphy effect, a list of recommended photos with various settings will appear.
• Selecting the Graphy effects allows you to shoot using the white balance, shutter speed, and ISO setting values applied to the recommended photo.
• This feature is available only in Manual camera mode.
• You can see a variety of recommended photos if you download the Graphy app from the Google Play Store.
• You may be charged for data usage, depending on your pricing plan.
• Tap 🎨, then tap from the Graphy photos menu to deactivate this feature.

Customising the camera options

You can customise a variety of camera options to suit your preferences.

Tap 📍 in Manual Camera.

Graphy photos	Adjust the white balance, ISO and shutter speed for the recommended photo.SeeManual Camerafor details.
Save as RAW	The image is stored as a RAW file format so that you can modify it.The DNG and JPEG files are created while taking a photo, then saved as a non compressed high resolution image.
Cheese shutter	Allows you to take a photo by saying ‘Cheese’, ‘Smile’, ‘Whiskey’, ‘Kimchi’, or ‘LG’
Tag locations Save the image with GPS location data.
Guide	Display guide grids so that you can take photos based on the horizontal and vertical reference lines.
Add signature Display a personalised signature on the photos.
Storage	Select if you want to store the pictures and videos in the Internal storage or SD card. (Available when a memory card is inserted.)
Help Provide Help for each camera menu.

Using additional camera modes

Tap 📷 and select More by swiping camera modes.

Night View

You can take vivid and clear night photos. Night view will run automatically when you take a photo in a low light conditions.

You can also take clear night scenes by using the Night view feature manually.

1 Tap 📄 and select More by swiping camera modes.

2 Tap

- Select a zoom from Ⓓ / ⓤ

3 Tap to take a photo.

• To adjust the brightness of the photo, slide ⏰ left or right.

Set camera Apply filter effect Set timer setting Set flash setting Adjust brightness

- Hold steady and firm so that the camera does not shake while taking a photo.

Panorama

You can create a panoramic photo by moving the camera in one direction to photograph and stitch continuous shots of a wide view.

1 Tap and select More by swiping camera modes.

2 Tap

- Select a zoom from Ⓓ / ⓤ

3 Tap and then slowly move the camera in one direction.

4 Tap ☐ to stop capturing the panoramic.

Set camera

- When moving the camera in one direction, make sure that the screen you shoot is not out of the guide line.

Slo-mo

Create a fun video by changing the speed of movement. This function is useful when you want to playback a video at a slower speed compared to the actual speed of the original clip.

1 Tap 📄 and select More by swiping camera modes.
2 Tap
3 Select section or the entire video and select the desired slow motion effect.
4 Tap to shoot video.

• If you shoot slow motion for the entire video, slow motion effect will be applied to the whole video.
• If you shoot slow motion for sections, slow motion effect will be applied to the sections where ⏻ was pressed.

- Press at the moment where you want the slow motion effect to be applied.

: With a short-press, slow motion effect will be applied for 0.5 second.

: With a long-press, slow motion effect will be applied until you release your finger.

- You can press up to five times.

- To pause the video recording, tap 📄. To resume the video recording, tap 🔒.

5 If you want to finish shooting, press

YouTube Live

You can record a video and directly upload to YouTube.

To use this feature, you must meet the eligibility requirements. Contact YouTube for the requirements.

1 On the home screen, tap

2 Select More by swiping camera modes, then tap ( () ).

- YouTube Live is available only when your device is connected to the Internet. If you use mobile data, you may be charged for data usage, depending on your pricing plan.

Useful camera features

Taking a photo with the AI feature

When taking a photo, the AI feature recognises a subject and applies the optimum effect to the photo.

- Tap to deactivate the AI feature.

Auto-Exposure/Auto-Focus lock

You can fix the current exposure level and focus position by touching and holding the screen in the Auto mode. To turn off the feature, tap a blank area on the screen.

Auto-Exposure/ Auto-Focus lock

• This feature is available only in specific modes.

Switching between cameras

You can switch between the front and rear cameras to suit your environment.

- To switch between the front and rear cameras, swipe the screen up or down on the shooting screen in the Camera app.

Illustration showing hand pointing at water surface with red arrows indicating upward and downward motion, symbolizing vertical movement or vibration.

• Use the front camera to take selfies. See Selfie shot for details.

Zoom in or out

You may spread or pinch two fingers to zoom in or out when you take photos or videos.

- Zoom in/out function is not available in the selfie mode (front camera).

• This function is not supported in a number of modes.

Using the Burst Shot

You can take consecutive photos and view them as moving pictures in the Gallery.

1 Tap and select Photo.

2 Tap and hold.

- Multiple, consecutive photos are taken while you are holding down

Gesture shot

You can take selfies by using gestures.

Show your palm to the front camera and then clench your fist.

You can also clench your fist and then open it towards the front camera.

• In three seconds, a photo is taken.

Line drawing of a hand holding a smartphone displaying a fingerprint symbol (no text or labels)

Line drawing of a human hand with a red curved arrow indicating rotation or movement (no text or symbols)

• To use this feature, switch to the front camera mode, then tap ⚙️> Selfie shot > Gesture shot.
• Make sure that your palm and fist are within the reference line so that the camera can detect them.
• This feature may not be available while using some of the camera features.

Auto shot

You can use the face detection feature to take selfies easily and conveniently. You can set the device so that, when you look at the screen, the front camera detects your face and takes a selfie automatically.

- The white coloured guide frame appears when the front camera detects your face. If the subject within the guide frame stops moving, the guide frame colour turns yellow, then the camera takes a photo.

- Tap ⚙️> Selfie shot > Auto shot to enable the Auto shot feature.

Interval shot

You can take selfies at an interval.

While using the front camera, you can show your palm to the camera, then clench your fist twice quickly.

- Four photos are taken at regular intervals after a timer delay of three seconds.

Save as flipped

Before taking a photo with the front camera, tap 🎨>Save as flipped. The image is flipped horizontally.

- When using the front camera, you can change how selfies are taken in the camera options. See Customising the camera options for details.

Selfie shot

You can use the front camera to view your face on the screen and take selfies.

1 Tap 📄 and select Photo by swiping camera modes.

2 Tap to switch to the front camera.

3 Tap to take photos.

- Tap 📋 to apply various beauty effects.

Gallery

Gallery overview

You can view and manage photos and videos saved on your device.

Viewing photos

You can view the photos saved to the product.

1 Tap and select a desired folder.

2 Tap a desired photo.

• The Gallery folder contains Photos, Albums, Memories, and Play.

Back to the previous screen. Start Google Lens. Access additional options. Preview gallery Delete images. Share images. Edit images. Add to or remove from your favourites.

- Details menu appears when the screen is lightly touched. Touching the screen once again makes the menu disappear.

Playing a video

You can view the videos saved to the product.

Back to the previous screen. Access additional options. Pause or play the video. Preview gallery. Delete images. Share images. Edit images. Add to or remove from your favourites.

• To adjust the sound volume, drag the right side of the video screen up or down.
• To adjust the screen brightness, drag the left side of the screen up or down.
• Dragging the screen to the left on the video play screen allows you to rewind (REW) and dragging to the right allows you to fast forward (FF).

Deleting files

You can delete files by using one of the following options:

• Touch and hold a file from the file list, then tap Delete.
• Deleted files are automatically moved to : >Trash and they can be restored to the Gallery within 7 days.
• Tap ☒ to completely delete the files. In this case, the files cannot be restored.

Sharing files

You can share files by using one of the following options:

- While viewing photo or video, tap ✻ to share the file by using the method you want.

• If you take photos or videos after you tap 📄 > ⚙️> Tag locations , the location-specific memories album is automatically created after a certain time under the Memories tab of Gallery.
• You can search the photos or videos by place, tag, camera mode, etc. by tapping 🔒 in the gallery.
• Some file formats may not be supported, depending on the installed software.
• Some files may not be opened due to encoding.
• Files that exceed the size limit may cause an error.
• You need to activate the GPS feature to create Memory albums.

Making a collage

You can make a collage from the associated content.

1 Tap ▲ and select : > Make collage.

2 Select the desired images to add to the collage and then tap Make collage.

- Select the desired layout from the bottom of the screen.

3 Tap Make.

• A maximum of 9 images can be used to create a collage.

Creating a movie

You can create a new movie by putting images and videos together.

1 Tap ▲ and select : > Create movie.
2 Select images or videos for your movie and tap Create movie.
3 Edit the selected images and videos and then tap Save.

Effecting files Resetting files Previewing a file Deleting files Adding files

• A maximum of 50 videos can be used to create a movie.

Making a GIF

You can easily make a GIF file using recorded video.

Tap and select Making a GIF.

Creating video

1 At the desired starting point while watching a video, tap GIF
2 Select the length of the GIF you want to create.

- GIF is generated for the time selected from the specified starting point.

- For videos that are less than 5 seconds, GIF images are automatically generated for the remaining time.

Creating GIF Photographs

1 In the photograph list in the Gallery, tap : > Create GIF.
2 Select a picture to turn into a GIF photograph, and then tap Create GIF.

- You can add/delete a photograph, adjust the speed or screen ratio, and set the photograph order.

• Creating GIF photographs is a function provided for the user to produce creative images. Violating rights such as intellectual property right or defaming the reputation of another person by using the creating GIF photographs function may lead to a civil or criminal liability in accordance with the related laws. Be cautious not to copy or transmit another person's work without authorization. LG Electronics is not liable in any way for such acts by users.
• You can select up to 100 photographs to produce when you create a GIF.

Contacts

Contacts overview

You can save and manage contacts.

On the home screen, tap Essentials >Contacts.

Adding contacts

Adding new contacts

1 On the contact list screen, tap +

- A pop-up appears for selecting the saving location for contact. Select the location you want.

2 Enter contact details and tap Save.

Importing contacts

You can import contacts from another storage device.

1 On the contact list screen, tap : > Manage contacts > Import.
2 Select the source and target locations of the contact you want to import, and then tap OK.
3 Select the contacts and tap Import.

Adding contacts to the speed dial list

1 On the contact list screen, tap : > Speed dial.
2 Tap Add contact from a speed dial number.
3 Select a contact.

- While adding a new contact, tap to add a speed dial number.

Searching for contacts

You can search for contacts by using one of the following options:

• Tap the search bar at the top of the Contacts screen and enter the desired contact or phone number you want to search for.
• Scroll the contact list up or down.
• From the index of the contact list screen, tap the initial letter of a contact.

- Pressing the search bar at the top of the Contacts screen and entering a contact or phone number brings up the integrated search results from the call history and contacts list saved onto the product.

Contacts list

Editing contacts

1 On the contact list screen, select a contact.
2 On the contact detail screen, tap and edit details.
3 Tap Save to save changes.

Deleting contacts

You can delete contacts by using one of the following options:

• On the contact list screen, touch and hold a contact you want to delete, then tap 📊.
• Tap : >Delete on the contact list screen.

- Deleted contacts may not be restored.

Adding favourites

You can register frequently used contacts as favourites.

1 On the contact list screen, select a contact.
2 On the contact detail screen, tap ☆

Creating groups

1 On the contacts group list, tap +
2 Enter a new group name.
3 Tap Add members, select contacts, then tap Add.
4 Tap Save to save the new group.

QuickMemo+

QuickMemo+ overview

You can make creative notes by using a variety of options on this advanced notepad feature, such as image management and screenshots, which are not supported by the conventional notepad.

This device supports the Active Pen AES2.0 (Active Electrostatic).

Creating a note

1 On the home screen, tap Essentials > QuickMemo+.
2 Tap to create a note.

• √: Save a note.
• ←: Undo the previous edit.
• :Redo the recently deleted edits.
• T : Enter a note by using the keypad.
• ★ : Save your favorite pen types.
• : Write notes by hand.

• Erase handwritten notes.
  • T : Change into the calligraphy font as you write by hand.
  • : Access additional options.

3 Tap to save the note.

Writing notes on a screenshot

1 While viewing the screen you want to capture, drag the status bar downwards and then tap 🙏.

- The screen is captured and displayed as a thumbnail on the right bottom of the screen.

2 To write notes on the screen, tap
3 Write notes using the tools.

• ☐ : Zoom in or out, or adjust the area to capture.
• : Write notes by hand.
• : Erase handwritten notes.
• ← : Undo the previous edit.
• → : Redo the recently deleted edits.
• B: Crop the screen as you desire.

4 Tap and save the notes.

• Saved notes can be viewed in Gallery.

Additional features after capturing a screenshot

Tap to share the captured screen shot. Tap to write notes on the captured screen. Tap to delete the captured screen shot. Tap to record the screen. Tap to capture entire screen by using the scroll capture feature.

• You can capture the entire screen by using the scroll capture feature.
• While using an app such as Messaging and Chrome, drag the notifications panel downwards and then tap 🙏. Then, tap [to] capture the entire screen you are currently viewing as a single file.
• This feature is available only on some apps that support the scroll capture feature.
• Pinch two fingers or spread your fingers apart to change the memo layout.

Clock

Alarm

You can set an alarm to trigger it at a specified time.

1 On the home screen, tap Essentials > Clock > Alarm.
2 Tap to add a new alarm.
3 Configure the alarm settings and tap Save.

• If you select a previously set alarm, you can edit the alarm.
• To delete an alarm, tap :>Delete at the top of the screen. You can also touch and hold the alarm.

World clock

You can view the current time in cities around the world.

1 On the home screen, tap Essentials > Clock > World clock.
2 Tap and add a city.

Timer

You can set the timer to trigger an alarm after a specified period of time.

1 On the home screen, tap Essentials > Clock > Timer.

2 Set the time and tap Start.

- To suspend the timer, tap Pause. To resume the timer, tap Resume.

3 Tap Stop to stop the timer alarm.

Stopwatch

You can use the stopwatch to record a lap time.

1 On the home screen, tap Essentials > Clock > Stopwatch.

2 Tap Start to initiate the stopwatch.

• To record a lap time, tap Lap.

3 Tap Pause to suspend the stopwatch.

• To resume the stopwatch, tap Resume.

- To clear all the records and restart the stopwatch, tap Reset.

Music

You can play and manage songs or music albums.

1 On the home screen, tap Essentials > Music.
2 Select a category.
3 Select a music file.

Turn on/off Flash Light. Set sound effects. Access additional options. Back to the previous screen. Pause or play. Tap to play from the beginning of the current file / Double-tap to play the previous file / Touch and hold to rewind. Tap to play the next file / Touch and hold to fast forward. Play in random order. Select a repeat mode. Go to Now playing list. Adjust the sound volume. Add to or delete from your favourites.

• Some file formats may not be supported, depending on the installed software.
• Files that exceed the size limit may cause an error.
• Music files may be protected by international copyright owners or copyright laws. You may have to obtain legal permission before copying a music file. To download or copy a music file, first check the copyright law for the relevant country.
• This model supports Hi-Fi audio playback. Hi-Fi audio files display the Hi-Fi icon.
• If you set the flashlight, flashlight blinks to fit the music being played.

Calculator

You can use two types of calculators: the simple calculator and the scientific calculator.

1 On the home screen, tap Essentials > Calculator.
2 Use the keypad to make a calculation.

• If you want to calculate from the beginning, tap and hold

ThinQ

You can easily connect the product with IoT appliances to monitor and conveniently use the appliances.

On the home screen, tap Essentials >ThinQ.

• Washing machine, dryer, styler, dishwasher, oven, and robot cleaner can only be registered when the product is in the standby mode.
• Look for the ThinQ mark on the product to see if it can be connected to ThinQ app.
• Tap≡ to check various function of the ThinQ app.

LG Health

You can manage your health and maintain good exercise habits by keeping track of the exercises you do.

Getting started with LG Health

You can configure LG Health when launching the app for the first time or after resetting it.

1 On the home screen, tap Essentials > LG Health.
2 Follow the on-screen instructions to complete configuration.

Using LG Health

You can view main information on LG Health and manage the amount of physical exercise and health information.

1 On the home screen, tap Essentials > LG Health.
2 The following options are available.

• ≡ : View your exercise log on the day you want to check.
- 📄: Begin tracking an exercise. The route and amount of your physical exercise are recorded for each exercise type.
- : Set your daily exercise goals including calories and steps, or set various LG Health settings.

• Health-related information provided by LG Health is designed for user convenience and cannot be used for purposes of disease prevention, treatment, diagnosis or other medical issues.
• LG Health may vary or may not be available, depending on the country and service provider. LG Health functions that are available and apps that can be added to LG Health may vary, depending on the country. This is due to differing laws and regulations.

HD Audio Recorder

The HD Audio Recorder allows you to configure the audio settings manually so that you can record audio based on your environment.

Recording modes

You can record a high definition audio file by selecting and configuring the desired audio mode to suit the recording environment.

On the home screen, tap Essentials >HD Audio Recorder >≡

Normal

You can record audio without extra settings.

ASMR

You can record ASMR sound.

Concert

You can record audio in a concert or other music event.

Custom

You can manually configure the desired settings to record audio.

Studio Mode

With Studio mode, you can play an audio file or music and record your voice at the same time, create a chord by recording your voice multiple times, and record your comments over the presenter's or speaker's original audio file.

1 On the home screen, tap Essentials > HD Audio Recorder > ≡ Custom.
2 Tap _+
3 Select an audio file to use as background music.
4 Tap to record voice.
5 Tap □o save the recorded file.

• Background music can only be played through earphones. Make sure to plug in earphones before using this feature.
• To change additional settings, tap : >Settings, then customise the file type, bit depth, sampling rate and other settings.
• When you select the Concert or Custom mode with earphones connected, Q_* appears. Tap and then select the microphone to use.
• You can monitor the sound quality with the connected earpiece while recording audio. While recording audio in Studio mode, sound monitoring is not supported. You can hear only the background music.

Game Launcher

You can set whether to use the game launcher where you can view the list of games installed on the product and select game settings such as muting media volume, limiting alerts, etc.

1 On the home screen, tap Game Launcher.
2 Select the desired option.

Smart Doctor

You can use Smart Doctor to diagnose the device's condition and optimise it.

On the home screen, tap Management >Smart Doctor.

LG Mobile Switch

Easily transfer data from a used device to a new device via LG Mobile Switch.

1 On the home screen, tap Management > LG Mobile Switch.

You can also tap Settings>System>Backup>LG Mobile Switch.

- If the app is not installed on the product, download and install the LG Mobile Switch app from the Google Play Store.

2 Follow the on-screen instructions to select a desired method for transfer.

• Data in a Google Account will not be backed up. When you synchronise your Google Account, Google apps, Google contacts, Google Calendar, Google memo app data and apps downloaded from the Play Store are stored on the Drive app automatically.
• Fully charge the battery before transferring data to avoid unintentional powering off during the process.

App trash

You can see the list of apps deleted on the home screen. The app that was deleted within the last 24 hours can be recovered.

On the home screen, tap Management >App trash.

For more details, refer to App trash.

SmartWorld

You can download a variety of games, audio content, apps and fonts provided by LG Electronics. Customise your device to suit your preferences by using Home themes and fonts.

• If you use mobile data, you may be charged for data usage depending on your pricing plan.
• This feature may not be supported depending on the area or service provider.

1 On the home screen, tap Services > SmartWorld.
2 Tap : LG Account, then sign in.
3 Select and download the desired content items.

Downloading SmartWorld app

If the SmartWorld app is not installed, follow these steps to download it.

1 On the home screen, tap Settings > System > Update centre > App Updates.
2 From the list, select SmartWorld and tap Download.

RemoteCall Service

Your device can be remotely diagnosed for resolving issues. First, make a phone call to an LG Customer Service Centre as follows:

• To use this function, first you must agree to usage of the function.
- If you use mobile data, you may be charged for data usage depending on your pricing plan.

1 On the home screen, tap Services > RemoteCall Service.
2 Connect a call to an LG Customer Service Centre.
3 After the call connects, follow the service associate's instructions to enter a six-digit access number.
- Your device is remotely connected and the remote support service starts.

Cell Broadcast

You can view real-time text broadcasts on emergency situations, such as typhoons, floods and earthquakes.

On the home screen, tap Services >Cell Broadcast.

Google apps

You can use Google apps by setting a Google Account. The Google Account registration window appears automatically when you use a Google app for the first time. If you do not have a Google Account, create one from your device. For details on how to use an app, see the Help in the app.

- Some apps may not work depending on the area or service provider.

Calendar

The Calendar app allows you to track your schedule of events (that you created), organised by Day, 3-day, Week or Month.

Chrome

A fast, simple, and secure web browser, built for the modern web.

Docs

Docs is a collaborative, word-processing tool that powers productivity. Use Docs to create, edit and work together in real-time.

Drive

Drive is a file storage and sharing app that makes it easy to find, share and collaborate on work projects from anywhere, instantly.

Duo

Make simple, high quality video calls to your friends and family on Android phones and iPhones.

Gmail

Gmail is an easy to use mail app that keeps your messages safe, makes your inbox smarter, and helps you stay organised.

Google

The Google app keeps you in the know about the things you care about. Find quick answers, explore your interests, and get a feed of stories and updates on topics that matter to you.

Maps

Going somewhere? Go with Maps, the app you can rely on for real-time GPS navigation, traffic, transit, and details about millions of places, such as reviews and popular times.

Photos

Home for all your photos and videos, automatically organised so you can share and save what matters.

Play Movies & TV

Use your Google Account to rent or purchase movies. Purchase content and play it anywhere.

YT Music

A new music streaming service from YouTube.

Sheets

Sheets is a collaborative spreadsheet processing tool that powers productivity. Use Sheets to import, organise and analyse information together in real-time.

Slides

Google Slides is a collaborative presentation creation tool that powers productivity. Use Slides to organise information, present results, and make decisions together in real-time.

YouTube

Watch your favourite channels, listen to music you love, and upload videos to share with people around the world.

Assistant

Your device has the Google Assistant built-in. Find answers and get things done while on-the-go. To get started, just tap the Google Assistant key on the side of the phone or touch and hold the home button of the phone.

- The Google Assistant is not available in certain languages and countries.

Files

You can view and manage files saved on your device.

04

Settings

Settings

You can customise the device settings in accordance with your preferences.

On the home screen, tap Settings.

- If you enter a keyword on the search window at the top of the screen, you can conveniently run the items that need to be set.

Network & internet

Dual SIM card

You can configure Dual SIM settings.

1 On the settings screen, tap Network & internet > Dual SIM Card.
2 Customise the following functions:

• SIM card 1: Change the name and icon of the SIM card 1.
• SIM card 2: Change the name and icon of the SIM card 2.
- SIM card colour theme: Change the colour themes for the SIM cards.
- Cost save mode: Activate or deactivate the cost save mode. In the cost save mode, if you make a call to a contact to which a specific SIM is assigned, this SIM is used for the call even if the other SIM is active, for example, it is using mobile data.
- Mobile data: Select a SIM card you want to use for mobile data service. You can also turn off this function.
- Data roaming: Select this option to enable the device to use mobile data when you are roaming outside your home network area.
- Mobile data during calls: Access mobile data using the nondefault data SIM card temporarily during an HD voice call with the same card.

Wi-Fi

You can connect to nearby devices over a Wi-Fi network.

Connecting to a Wi-Fi network

1 On the settings screen, tap Network & internet >Wi-Fi.
2 Tap to activate it.

• Available Wi-Fi networks appear automatically.

3 Select a network.

• You may need to enter the network's Wi-Fi password.
• The device skips this process for previously accessed Wi-Fi networks. If you do not want to automatically connect to a certain Wi-Fi network, tap the network and then tap Forget.

Wi-Fi network settings

On the settings screen, tap Network & internet >Wi-Fi.

- Switch to mobile data: If the mobile data connection function is activated but the device cannot connect to the Internet via Wi-Fi connection, the device automatically connects to the Internet via the mobile data connection.

• This feature depends on the service provider.

- Customise Wi-Fi network settings.

Wi-Fi Direct

You can connect your device to other devices that support Wi-Fi Direct to share data directly with them. You do not need an access point. You can connect with more than two devices by using Wi-Fi Direct.

1 On the settings screen, tap Network & internet >Wi-Fi >: > Advanced Wi-Fi >Wi-Fi Direct.

- Nearby devices that support Wi-Fi Direct automatically appear.

2 Select a device.

- Connection occurs when the device accepts the connection request.

- The battery may drain faster when using Wi-Fi Direct.

Mobile data

You can turn mobile data on and off. You can also manage mobile data usage.

Turning on mobile data

1 On the settings screen, tap Network & internet > Mobile data.
2 Tap to activate it.

Customising mobile data settings

1 On the settings screen, tap Network & internet > Mobile data.
2 Customise the following settings:

• Mobile data: Set to use data connections on mobile networks.
• Limit mobile data usage: Set a limit for mobile data usage to block mobile data if the limit is reached.
  • :Customise mobile data settings.
• Data usage volume is measured based on the product, and the volume calculated by your mobile provider may be different.

Call

You can customise call settings, such as voice call and international call options.

- Some features may not be supported depending on the area or service provider.

1 On the settings screen, tap Network & internet >Call.
2 Customise the settings.

Tethering

USB tethering

You can connect the device to another device via USB and share mobile data.

1 Connect your device and other devices via USB cable.
2 On the settings screen, tap Network & internet > Tethering > USB tethering and then tap 📋 to activate it.

• This option uses mobile data and may incur data usage fees, depending on your pricing plan. Consult with your service provider for more information.
• When connecting to a computer, download the USB driver from www.lg.com and install it on the computer.
• You cannot send or receive files between your device and a computer while USB tethering is turned on. Turn off USB tethering to send or receive files.
• Operating systems that support tethering are Window XP or higher, or Linux.

Wi-Fi hotspot

You can set the device as a wireless router so that other devices can connect to the Internet by using your device's mobile data.

1 On the settings screen, tap Network & internet > Tethering > Wi-Fi hotspot and then tap 📋 to activate it.
2 Tap Set up Wi-Fi hotspot, and enter the Wi-Fi name (SSID) and password.
3 Turn on Wi-Fi on the other device, and select the name of the device network on the Wi-Fi list.
4 Enter the network password.

• This option uses mobile data and may incur data usage fees, depending on your pricing plan. Consult with your service provider for more information.
• More information is available at this web site: http://www.android.com/tether#wifi

Wi-Fi hotspot turn off timer

When the Wi-Fi hotspot has not been used for a specific period of time, it is automatically disconnected. You can set the time for automatic disconnection.

Bluetooth tethering

A Bluetooth-connected device can connect to the Internet by using your device's mobile data.

1 On the settings screen, tap Network & internet > Tethering > Bluetooth tethering and then tap ☐ to activate it.
2 Turn on Bluetooth on both devices and pair them.

- This option uses mobile data and may incur data usage fees, depending on your pricing plan. Consult with your service provider for more information.

- More information is available at this web site: http://www.android.com/tether#Bluetooth_tethering

Help

You can view help on using tethering and hotspots.

On the settings screen, tap Network & internet >Tethering >Help.

Airplane mode

You can turn off the call and mobile data functions. When this mode is on, functions that do not involve data, such as games and music playback, remain available.

1 On the settings screen, tap Network & internet > Airplane mode.
2 Tap Turn on in the confirmation screen.

Mobile networks

You can customise the mobile networks settings.

1 On the settings screen, tap Network & internet > Mobile networks.
2 Customise the following settings:

• Network mode: Select a network type.
- Access Point Names: View or change the access point for using mobile data services. To change the access point, select a choice from the access point list.
• Network operators: Search for network operators and connect automatically to a network.

VPN

You can connect to a safe virtual network, such as an intranet. You can also manage connected virtual private networks.

Adding VPN

1 On the settings screen, tap Network & internet >VPN.
2 Tap+

- This feature is available only when the screen lock is activated. If the screen lock is deactivated, a notification screen appears. Tap Change from the notification screen to activate the screen lock. See Setting a screen lock for details.

3 Enter VPN details and tap Save.

Configuring VPN settings

1 Tap a VPN from the VPNS list.
2 Enter the VPN user account details and tap Connect.

- To save the account details, select the Save account information checkbox.

Private DNS

You can configure the Private DNS (Domain Name System) options.

1 On the settings screen, tap Network & internet > Private DNS.
2 Select the desired option and tap Save.

Connected devices

Bluetooth

You can connect your device to nearby devices that support Bluetooth to exchange data with them. Connect your device to a Bluetooth headset and a keyboard. This makes it easier to control the device.

Pairing with another device

1 On the settings screen, tap Connected devices >Bluetooth.
2 Tap to activate it.

• Available devices appear automatically.
• To refresh the device list, tap ⏻.

- Only devices set as visible are displayed on the list.

3 Select a device from the list.
4 Follow the on-screen instructions to perform authentication.

- This step is skipped for previously accessed devices.

Sending data via Bluetooth

1 Select a file.

- You can send multimedia files or contacts.

2 Tap Bluetooth.
3 Select a target device for the file.
- The file is sent as soon as the target device accepts it.

- File sharing processes may differ, depending on the file.

Screen sharing

You can play the screen and sound of the device on a different device, such as a TV, that supports the Miracast function.

1 On the settings screen, tap Connected devices > Screen sharing.
2 Tap to activate it.
3 Select a device from the list of nearby devices.

• If the desired device does not appear, tap Search to refresh the list.
• After connecting to the device, the device displays the screen of your device.

- Screen sharing turns off automatically if there is no sharing-compatible device in the vicinity.

NFC

You can use the device as a transportation card or credit card. You can also share data with the other device.

1 On the settings screen, tap Connected devices >NFC.
2 Tap to activate it.

- Touch your device with other device that supports NFC to allow sharing data.

- NFC antenna may be located differently depending on the device type. See Parts overview for details about the NFC antenna area.

Sharing panel

You can share contents from Gallery, Music and File Manager with nearby devices. Also you can share the content with specific people in apps that work with Google Direct Share.

1 On the settings screen, tap Connected devices > Sharing panel.
2 Tap to deactivate each option.

- Nearby devices: You can display the nearby devices to which you can share contents on the Gallery, Music, and File Manager apps.

- Direct share: From an app which supports Google Direct Share, you can display an icon which allows you to share contents to specific people.

File sharing

You can send and receive files between your device and other LG devices or tablets.

1 On the settings screen, tap Connected devices >File sharing.
2 Customise the following settings:

• VELVET: Change the device name.
- Save to: Set the destination folder to save files sent from other devices in.
- File sharing: Permit receipt of files sent from other devices.
- SmartShare Beam: Share files with other devices via SmartShare Beam.
• Help: You can view help on sharing files.

Media server

You can share media content on your device with nearby devices that support DLNA.

1 On the settings screen, tap Connected devices > Media server.
2 Customise the following settings:

- Content sharing: Share content on your device with nearby devices.

• VELVET: Set your device's name.

- Depending on the user's product, the menu names may appear differently.

• Content to share: Select the type of media content to share with other devices.
• Allowed devices: View a list of devices permitted to access content on your device.
• Not-allowed devices: View a list of devices not permitted to access content on your device.

Printing

You can connect your device to a Bluetooth printer and print photos or documents saved on the device.

On the settings screen, tap Connected devices >Printing.

• Tap Default Print Service to search for printers you can connect to. Or, tap :>Add printer to manually add a printer.
• Tap Add service to download the printer app you want.

• This is available only when the mobile network or the Bluetooth function is turned on.
• To down the printer app in + Add service, first log on to your Google account.

Sound

You can customise sound, vibrate and notification settings.

On the settings screen, tap Sound and customise the following settings:

• Sound profile: Change the sound mode to Sound, Vibrate only, or Silent.
  • Volume: Adjust the sound volume for various items.
• Ringtone: Select a ringtone for incoming calls. Add or delete ringtones.
• Notification sound: Select a notification ringtone. Set music saved on the device as a notification ringtone.
• Ring with vibration: Set the device to vibrate and play a ringtone simultaneously.
• Ringtone ID: Create a ringtone for an incoming call from a particular contact.
• Flash alert for incoming call: Set the flash to blink according to LG ringtone.
• Do not disturb: Set the time, range and app type to receive notification messages. Receive notification messages only on particular days of the week.

• Sound quality and effects: Use the function to set the sound quality and effects while playing a song or video.

• Volume: Adjust the sound volume for various items.

• Normalize volume: Use the function to normalise the volumes of different sound sources.

- Equalizer: Use the function to adjust the equaliser settings.

- LG 3D Sound Engine: Use the function to play music or video in three-dimensional, immersive and vivid sound when earphones, speaker or other external audio devices are connected. See LG 3D Sound Engine for details.

• Live Caption: Set the device to detect the voice in the media and automatically generate subtitles.
- Vibration strength: Adjust the vibration intensity.
- Vibration type: You can select the type of vibration when receiving calls.
- Vibrate on tap: Set the device to vibrate when you tap certain items on the screen.
- Dialing keypad sound: Select the keypad sound effect.
• LG Keyboard sound: Select LG keyboard sound effect.
- Touch sound: Select a sound effect for tapping an item.
- Screen lock sound: Select a sound effect when the screen is locked or unlocked.

Notifications

You can check a list of installed apps, and configure the settings for notifications.

1 On the settings screen, tap Notifications.
2 Customise the settings as desired.

Display

You can customise detailed settings for each screen type.

On the settings screen, tap Display and customise the following settings:

• Home screen: Customise settings for the Home screen. See Home screen settings for details.
• Navigation bar: Set the style of the navigation bar with Gestures or Buttons only. you can also change the button combination when you set Buttons only as a style of the navigation bar. For details, see Using Navigation bar.
• Status bar: Set the color of the status bar on the top of the screen, or set the notification icon display and battery percentage display.
• AOD(always-on display): Always display information, such as the date, time and notifications, even when the screen is turned off. For details, see AOD(always-on display).
• Comfort view: Set the device to reduce amount of blue light on screen to reduce eye strain.

- This function is not available when the device is connected to LG Dual Screen (LM-G905N).

- Night mode: You can apply a dimmed screen theme to avoid glare on the screen at night time.

- Screen colour: Adjust the colour, colour temperature for the desired screen.

- Tap to reset the settings.

• Video Enhancer: When playing back a video in full screen mode, you can change the settings for brighter and more dynamic colour display.
• Font: Change the font size, bold text or type.
- Accent colour: Change the point color for settings, menus, notification windows, etc.

- Display size: Set the items on the screen to a size easy for you to see. Some items may change position.

• Full screen apps: Adjust the screen size of apps.

- Brightness: Use the slide bar to change the device's screen brightness. To automatically adjust screen brightness according to ambient light intensity, tap the Auto switch.

- Auto: Set the device so that the screen brightness is automatically adjusted in accordance with the ambient light intensity.

- Screen timeout: Automatically turn off the screen when the device is left idle for a specified period of time.

- Auto-rotate screen: Automatically rotate the screen according to the device's orientation.

- Screen saver: Display a screen saver when the device is connected to the holder or charger. Select a screen saver type to display.

- One-handed screen: Make the screen size smaller to conveniently use the device with one hand. Drag the Home touch button at the bottom of the screen to the left or right.

Wallpaper & theme

You can select wallpaper, screen theme, icon style or AOD (Always-on Display) for your device.

1 On the settings screen, tap Wallpaper & theme.
2 Tap Wallpaper, Theme, Icon, or AOD to customise the settings.

Lock screen & security

You can customise lock screen and security settings.

1 On the settings screen, tap Lock screen & security.
2 Customise the settings.

• Google Play Protect: Scan your device daily for potentially harmful apps.
• Find My Device: Remotely track the device location. You can also protect your data securely if you lost your device.
• Security update: Check for software update and configure automatic installation settings.
• Select screen lock: Select the desired screen lock method. See Setting a screen lock for details.
• Customise Lock screen: Change the information displayed on the locked screen.
• Secure lock settings: Change the secure lock settings.
• Fingerprints: Use your fingerprint to unlock the screen or content. See Fingerprint recognition overview for details.
• Content lock: Allow you to set a lock type (password or pattern) for your Gallery files.

- Encryption & credentials: Configure the settings for SD card encryption and credentials.

- Encrypt SD card: Encrypt the memory card to prevent use on another device. See Memory card encryption for details.

- Credential protection: View the type of the storage where the security certificate will be saved.

- Trusted credentials: View your system's root CA certificates and user-installed CA certificates.

- User credentials: View and change secure certificate information stored on your device.

- Install from storage: Install a secure certificate from a storage.

- Clear credentials: Delete user-installed secure certificates and related credentials.

- Phone administrators: Allow privileges to restrict the control or use of the device to particular apps.

- Trust agents: View and use trust agents installed on the device.

- Screen pin: Fix the app screen so that only the currently active app can be used.

- Usage access: View details on usage of apps on the device.

Privacy

You can find and adjust all your privacy settings.

1 On the settings screen, tap Privacy.
2 Customise the settings.

• Permission manager: Allows you to check and change the permissions granted to the apps.
• Lock screen: Allows you to set notifications to show on the lock screen.
• Make passwords visible: Enable this option to briefly show each character of the password as you type it so you can see what you've entered.
  • Device Personalisation Services: Allows you to get a suggestion based on users, apps, and interactive content.
• Auto-fill service from Google: Enable this option to enter your information saved in your account such as password, address, or credit card number with a single tap. You can also disable this option, use the Google Autocomplete feature, or add a new service account.
• Google Location History: Allows you to enable or disable Location History. When enabled, Google periodically stores and uses your phone's most recent location data in connection with your Google Account.

From the Location History screen, tap : to view and/or manage your location data.

• Activity controls: Select activities and information which you want Google to save.
• Ads: Allows you to check the advertising ID and set the personalised ads.
• Usage and diagnostics: Enable this option to help improve the Android experience by automatically sending diagnostic, device, and app usage data to Google.

Location

You can check how your location information is shared and configure the permission to access your location information.

On the settings screen, tap Location and set the desired function.

Extensions

Smart Doctor

You can use Smart Doctor to diagnose the device's condition and optimise it.

On the settings screen, tap Extensions >Smart Doctor.

Context Awareness

You can automatically change your device settings according to the usage pattern and location.

1 On the settings screen, tap Extensions > Context Awareness.
2 Activate items you want to automatically change settings for.

- AUTOMATED: You can set the device to change the sound profile, Bluetooth and Wi-Fi options automatically in different environments, such as At home, Away from home, At work, and Off work. You can also set an app to open when earphones are plugged in or a Bluetooth device is connected.

- To use this feature, home or work location must be preset in My places. On the settings screen, tap Location >My places to set the locations.

Personalized service

You can get intelligent results when using the integrated search.

1 On the settings screen, tap Extensions > Personalized service.
2 Tap to activate it.

Gaming

You can configure settings for game tools, graphics and battery saving feature.

1 On the settings screen, tap Extensions > Gaming.
2 Customise the following settings:

• Game Launcher: Tap ☐ to use the game launcher.
- Game tools: You can run the function while playing games by touching the game tools icon among the home touch buttons.
• Game graphics: Adjust the game graphics.

• When you change the resolutions on some games, the screen display feature may not work properly.
• This function may not be available in certain game apps.

- Break time: Reduce the screen brightness and performance whenever you leave the game running for more than 5 minutes.

Screen recording

You can configure the settings for screen recording.

1 On the settings screen, tap Extensions > Screen recording.
2 Customise the following settings:

- Include yourself in video by: Select one from the following options.

• Image: Includes your profile image in video when recording. After selecting this, tap 📄 and select a profile image. Then, adjust the size of the image using the slide bar.
• Front camera: Includes yourself recorded using the front camera while recording the screen.

- Never: Nothing is included.

• Audio source: Choose the audio source between Mic and Contents.
• Video resolution: Select the resolution for screen recording.

To record the screen

1 Drag the status bar downward to open the Quick access icons list.
2 (If necessary, swipe left over the Quick access icons area.) Tap
3 Read the disclaimer and tap Start. It will start recording in 3 seconds.
4 To stop recording, tap-located at the bottom right of the screen. The recorded video will be saved in Gallery.

- If you violate another person's rights such as portrait right or intellectual property right or defame another person's reputation by using the functions provided for the screen recording service, you may be held liable to civil, criminal or administrative charges in accordance with the relevant laws. LG Electronics is not legally responsible in any way for the acts of users.

Dual App

You can install duplicate messenger apps on the product and use two accounts at the same time.

1 On the settings screen, tap Extensions > Dual App.
2 After reading the disclaimer, tap Confirm.
3 In the list of available apps, tap Install to install a copy of a desired app and follow the on-screen instructions.

- On the screen, the list of available dual apps is shown. During installation, app icons are generated on the home screen.

Pen

You can configure options for using an Active pen (optional-sold separately). Please note that this device supports the Active Pen AES2.0 (Active Electrostatic).

1 On the settings screen, tap Extensions > Pen.
2 Customise the following settings:

- Pen key shortcuts: Configure the shortcuts on each button on your Active pen.

- Pen Pop shortcut: Select which apps (up to five) to display as a shortcut when the pen is removed from the device.

- Memo preview: Turn on to display recent memos in Pen pop.

- Drawing sound: Turn on to apply sound effects in drawing mode.

- Show pointer: Turn on to see a pen pointer over where the pen hovers.

- Ignore navigation bar gestures: Block navigation bar gestures from being input, which is useful when drawing or writing on the edge of the screen with an Active pen.

Shortcuts

You can use buttons such as the Lock/Power, Volume, and Google Assistant to run certain apps or functions right away.

1 On the settings screen, tap Extensions > Shortcuts.
2 Customise the following settings.

• Open Camera: Press Power key twice to open Camera.
• Open Screen-off memo: Press Volume Up key twice to open Screen-off memo when the screen is locked or off.
• Open Camera: Press Volume Down key twice to open Camera when the screen is locked or off.
• Open Google Assistant: Press the Google Assistant key on the side of the phone.
• Talk to Google Assistant: Press and hold the Google Assistant key to quickly talk to your Assistant.

- Google Assistant does not support certain languages.

KnockON

Double-tap the screen to turn the screen on or off.

See KnockON for details.

Increase touch sensitivity

You can set the touch screen more sensitive to your touch. Recommended to turn this feature on when using a screen protector.

On the settings screen, tap Extensions >Increase touch sensitivity.

Apps

You can check a list of installed apps, and configure the settings for notifications, app permissions, and more.

1 On the settings screen, tap Apps.
2 Customise the settings.

Battery

You can view the current battery information or turn on power-saving mode.

1 On the settings screen, tap Battery.
2 Customise the following settings:

• Battery usage: View the battery usage details.
• Optimized charging: Automatically adjust charging speed according to how you charge to reduce heat and extend lifespan of battery.
• Adaptive battery: Allow you to save the battery by stopping apps running in the background.
• Background restrictions: Enable this option to restrict background apps to save the battery while using the device. Restricted apps for power saving may not work properly or may not send you notifications.
• Battery saver: Reduce battery consumption by cutting down some device settings, such as the display brightness, speed and vibration intensity.
• Power saving exclusions: Select apps to use without any functional limitation while in power saving or battery optimisation mode.

Storage

You can view and manage internal storage on the device or storage space of the memory card.

1 On the settings screen, tap Storage.

2 Customise the following settings:

- Internal storage: View the total storage space and free space in the device's internal storage. View a list of apps in use and the storage capacity for each app.

- SD card: View the total storage space and free space in the memory card. This option appears only when a memory card is inserted. To unmount the memory card, tap △.

Accounts

You can add users to share your device and register a cloud account.

1 On the settings screen, tap Accounts.

2 Customise the settings.

Digital Wellbeing & parental controls

You can view the product use time and set the timer for each app.

Also, you can manage the mobile phone use time by using the Sleep Preparation Mode and Focus Mode.

Select Digital Wellbeing & parental controls on the settings screen and set the desired function.

Google

You can use Google settings to manage your Google apps and account settings.

On the settings screen, tap Google.

System

Update centre

You can check and install the latest version of the app or software provided by LG.

1 On the settings screen, tap System > Update centre.
2 Customise the following settings:

- App Updates: Check if an app update is available. If available, you can install the update.

- Software Update: Check if a software update is available. If available, you can install the update.

Language & keyboard

You can customise language and keyboard settings for your device.

1 On the settings screen, tap System > Language & keyboard.
2 Customise the following settings:

• Language: Select a language to apply for the device.

- Manage keyboards: You can change the product's basic keyboard setting, set the use environments for LG Keyboard or other installed keyboards, and set the speech recognition function for Google Voice input. Also, you can set whether to display the keyboard button in the touch button area on the home screen so that you can quickly switch to another keyboard.

• Physical keyboard: Select to use the physical keyboard, or check keyboard shortcut keys.
• Autofill service: Enable this option to enter your information saved in your account such as password, address, or credit card number with a single tap. You can also disable this option, use Google Autocomplete, or add a new service account.
• Text-to-speech output: Configure the settings for text-to-speech output.
• Pointer speed: Adjust the pointer speed of a mouse or trackpad.
• Reverse mouse buttons: Reverse the right mouse button to perform primary direct-manipulation actions.

Date & time

You can customise date and time settings for your device.

1 On the settings screen, tap System > Date & time.
2 Customise the settings.

Memory

You can view the average amount of memory usage over a certain period of time and the memory occupied by an app.

1 On the settings screen, tap System > Memory.
2 Tap ▼ to set a time slot to retrieve data.

Backup

You can back up data saved on your device to another device or account.

1 On the settings screen, tap System > Backup.
2 Customise the following settings:

• LG Mobile Switch: Allow you to transfer data from an old LG device to your new LG device. See LG Mobile Switch for details.
• Backup & restore: Back up your device data or restore data to your device from a backup.

- Resetting your device may delete backup files saved in storage. Make sure to copy and store the important backup files to your PC.

- Google backup: Change Google drive backup settings. You can also check the backup account currently used, or add a new backup account.

Restart & reset

You can reset the device including network and app settings.

1 On the settings screen, tap System > Restart & reset.
2 Customise the following settings:

- Auto-restart: Automatically restart and optimise the phone at a set time. Tap 📋 to activate this feature. The device automatically restarts at a set time and optimise itself. Select a date and time for restart.

• You can set the device to restart itself once a week. The device automatically restarts in an hour from the preset time.
• Once the device restarts, notifications and badges are erased. Save important data before the preset time.
• The Auto-restart feature is not activated in the following situations: When the screen is turned on, when the device is in use, when the battery level is 30% or less, or when the USIM card is locked.

• Depending on the telecommunication provider, the auto-restart function may or may not be available.

• Network settings reset: Reset Wi-Fi, Bluetooth and other network settings.

• Reset app preferences: Reset the settings for an app. The data saved in the app will not be deleted.
• Factory data reset: Reset all settings for the device and delete data.

• Restarting and resetting your device deletes all data on it. Enter your device name, Google Account and other initial information again.
  • After data initialization, the data cannot be restored.

About phone

You can view information about your device, such as the name, status, software details and legal information.

On the settings screen, tap System >About phone and view information.

Regulatory & safety

You can view regulatory marks and related information on your device.

On the settings screen, tap System >Regulatory & safety.

Accessibility

You can manage accessibility plug-ins installed on your device.

1 On the settings screen, tap Accessibility.
2 Customise the following settings:

• Vision >TalkBack: Set the device to notify screen status or actions via voice.
• Vision > Voice notifications: Set the device to read the caller information via voice.
• Vision > Font: Change the font size, bold text or type.
• Vision > Display size: Set the items on the screen to a size easy for you to see. Some items may change position.
• Vision > Touch zoom: Zoom in or out by tapping the screen three times.
• Vision > Window zoom: Zoom in or out within a window and invert the colour.
• Vision > Large mouse pointer: Magnify the mouse pointer.
• Vision > High contrast screen: Turn the background colour into black for a high contrast screen.
• Vision > Screen colour inversion: Increase the display colour contrast for people with low vision.
• Vision > Screen colour adjustment: Adjust the display colour.
• Vision > Monochrome: Switch the screen to grayscale mode.
• Vision > End call with the Power key: End a call by pressing the Power/Lock key.
• Hearing > Live Caption: Set the device to detect the voice from the media and automatically generate subtitles.
• Hearing > Caption preferences: Turn on the subtitle service when playing videos for the hearing impaired.

• Hearing > Flash alerts: Set the device to notify you with a blinking light for incoming calls, messages and alarms.

• Hearing > Mute all sounds: Mute all sounds and lower volume on the receiver.
  • Hearing >Audio channel: Select the audio type.

• Hearing > Sound balance: Adjust the audio output balance. Use the slide bar to change the balance.
• Motor & cognition > Touch assistant: Turn on the touch board to make buttons and gestures easier to use.
• Motor & cognition > Touch input: Enter text by touching and holding the screen or modify it by simply touching the screen.
• Motor & cognition > Physical keyboard: Customise the keyboard settings.
• Motor & cognition > Auto mouse click: Automatically click the mouse pointer in case of no movement.
• Motor & cognition > Touch and hold for calls: Answer or decline calls by touching and holding the call button instead of dragging it.
• Motor & cognition >Screen timeout: Turn off the screen automatically when the device is left idle for a specified period of time.
• Motor & cognition > Touch control areas: Limit the touch area so that only a particular portion of the screen can be controlled by touch input.
• Accessibility features shortcut: Quickly access a frequently used function by tapping ○ three times.
• Auto-rotate screen: Automatically change the screen orientation according to the physical position of the device.
• Select to Speak: Allow you to tap items to hear spoken feedback.
• Switch Access: Create key combinations to control your device.

05

Appendix

LG Language Settings

Select a language to use on your device.

- On the home screen, tap Settings > System > Language & keyboard > Language > Add language, and select a language.

- Touch and hold and drag it to the top of the language list to set it as a default language.

LG Bridge

LG Bridge overview

You can back up contacts, photos and more to the computer or update the device software.

• See LG Bridge help for details.
- The supported features may vary depending on the device.
- LG USB driver is a necessary program to connect your LG smartphone with the computer and is installed when you install LG Bridge.

LG Bridge functions

• Back up data from the device to a computer or restore data from a computer to the device via USB cable connection.
• Update the device software from a computer via USB cable connection.

Installing LG Bridge on a computer

1 Go to www.lg.com from your computer.
2 Select your region.
3 Click Support > Software & Firmware.
4 Enter the name of your device.

OR

Select by the Product Category.

5 Go to PC Sync > LG Bridge to download the setup file.

- Go to Details to view the minimum requirements for installing LG Bridge.

Phone software update

LG Mobile phone software update from the Internet

For more information about using this function, please visit http://www.lg.com/common/index.jsp, select your country and language.

This feature allows you to conveniently update the firmware on your phone to a newer version from the Internet without needing to visit a service centre. This feature will only be available if and when LG makes a newer firmware version available for your device.

Because the mobile phone firmware update requires the user's full attention for the duration of the update process, please make sure you check all instructions and notes that appear at each step before proceeding. Please note that removing the USB cable during the upgrade may seriously damage your mobile phone.

- LG reserves the right to make firmware updates available only for selected models at its own discretion and does not guarantee the availability of the newer version of the firmware for all handset models.

LG Mobile Phone software update via Over-the-Air (OTA)

This feature allows you to conveniently update your phone's software to a newer version via OTA, without connecting a USB cable. This feature will only be available if and when LG makes a newer firmware version available for your device.

To perform the phone software update,

Settings > System > Update centre > Software Update > Check now for update.

• Your personal data from internal phone storage—including information about your Google Account and any other accounts, your system/application data and settings, any downloaded applications and your DRM licence—might be lost in the process of updating your phone's software. Therefore, LG recommends that you backup your personal data before updating your phone's software. LG does not take responsibility for any loss of personal data.
• This feature depends on the area or service provider.

Anti-Theft Guide

Set up your device to prevent other people from using it if it's been reset to factory settings without your permission. For example, if your device is lost, stolen, or wiped, only someone with your Google Account or screen lock information can use the device.

All you need to make sure your device is protected is:

• Set a screen lock: If your device is lost or stolen but you have a screen lock set, the device can't be erased using the Settings menu unless your screen is unlocked.
• Add your Google Account on your device: If your device is wiped but you have your Google Account on it, the device can't finish the setup process until your Google Account information is entered again.

After your device is protected, you'll need to either unlock your screen or enter your Google Account password if you need to do a factory reset. This ensures that you or someone you trust is doing the reset.

- Do not forget your Google Account and password you had added to your device prior to performing a factory reset. If you can't provide the account information during the setup process, you won't be able to use the device at all after performing the factory reset.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Regulatory information (Regulation ID number, E-labeling, etc.)

For regulatory details, go to Settings >System >Regulatory & safety.

Trademarks

• Copyright ©2020 LG Electronics Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities.
- Google, Google Maps, Gmail, YouTube, Google Duo, Google Play, Android, Chrome, Google Photos, Google Play Protect, Google Calendar, Google Docs, Google Drive, Google Sheets and other related marks and logos are trademarks of Google LLC.
- Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
- Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
- All other trademarks and copyrights are the property of their respective owners.

HEVC Advance™ Covered by Patents at patentlist.hevcadvance.com

Laser safety statement

Caution!

This product employs a Laser system. To ensure proper use of this product, please read this owner's manual carefully and retain for future reference. Should the unit require maintenance, contact an authorised service centre.

Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure or make direct contact with the laser.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

DECLARATION OF CONFORMITY

Hereby, LG Electronics declares that this LM-G910EMW product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the Declaration of Conformity can be found at http://www.lg.com/global/declaration

Contact office for compliance of this product

LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Wi-Fi (WLAN)

The use of the 5150 – 5350 MHz band is restricted to indoor use only.

AT

BE

BG

CH

CY

CZ

DE

DK

EE

EL

ES

F

FR

HR

HU

IE

IS

IT

LI

LT

LU

LV

MT

NL

NO

PL

PT

RO

SE

SI

SK

UK

AL

ME

RS

MK

TR

BA

XK

More information

Tempered glass parts

Tempered glass parts of this device are not permanent and they may wear out over time.

- If you drop your device on a hard surface or subject it to severe impact, the tempered glass may be damaged.

If this happens, stop using your device immediately and contact an LG Customer Service Centre.

- You can purchase protective cases to protect your device from damage on the market.

Note that these protective cases are not covered under the warranty service provided by LG Electronics and safety is not guaranteed.

Aspect ratio

This device uses 20.5:9 aspect ratio.

- Some downloaded apps may not support 20.5:9 aspect ratio.

In this case, select the most optimal screen ratio for the app or consult the app provider for more information.

Guide to data transfers

- For the data that can be exchange between LG devices or between the LG device and a third party device, see the following table.

Type Item	details	LG device → LG device	Third party Android device → LG device	iOS device → LG device
Personal data	Contacts, messages, dial logs, calendar, voice recordings	○ ○	○
	Memos	○	×	○
	Alarms	○	×	×
Media data	Photos, videos, songs, documents	○ ○	○
Screen settings	Home screen settings (folders and widgets)	○	×	×
	Lock screen settings (screen lock settings excluded)	○	×	×
Apps	Downloaded apps	○	○	-
	Personal data of the downloaded app	○	×
Others	Public certificate	○	○	×
	Settings (Wi-Fi, Bluetooth, Calls, sound & notification, accessibility, battery)	○	×	×

- Some data may not be transmitted depending on the software version, app version, operating system, manufacturer or service provider's policy.

Supported Frequency Bands Transmitter Output power
GSM 900 33.7 dBm
GSM 1800 30.7 dBm
WCDMA VIII 25.2 dBm
WCDMA I 24.7 dBm
LTE B28 25.5 dBm
LTE B20 25.5 dBm
LTE B8 25.5 dBm
LTE B3 25.2 dBm
LTE B1 24.7 dBm
LTE B7 25.2 dBm
LTE B40 24.2 dBm
LTE B38 25.2 dBm
BT 2.4GHz 11.5 dBm
WLAN 2.4GHz 19.0 dBm
WLAN 5GHz 19.0 dBm
NFC -23 dBuA/m

Travel Adapter Information can be found at http://www.lg.com/global/support/cedoc/cedoc

Disposal of your old appliance

1. This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2. Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3. You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling

Disposal of waste batteries/accumulators

1. This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4. For more detailed information about disposal of your old batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the product.

FAQ

This chapter lists some problems you might encounter when using your device. Some problems require you to call your service provider, but most are easy to fix yourself.

SIM card error

Make sure the SIM card is correctly inserted.

No network connection or dropped network

Signal is weak. Move to a window or an open area.

You are outside the carrier network area. Move and check the network.

Calls are not available

New network not authorised.

Make sure you have not set call barring for the incoming number.

Make sure you have not set call barring for the number you are dialling.

Device cannot be turned on

When the battery is completely discharged, your device will not turn on.

Fully charge the battery before turning on the device.

Charging error

Make sure device is charging at a normal temperature.

Check the charger and its connection to the device.

Use only in-box accessories which are authorised by LG.

The battery depletes faster than when first purchased

When you expose the device or the battery to very cold or hot temperatures, the battery life may be reduced.

Battery consumption will increase when you use certain features or apps, such as GPS, games or the Internet.

The battery is consumable and the battery life will get shorter over time.

Error messages appear when launching the camera

Charge the battery.

Free some memory by transferring files to a computer or deleting files from your device.

Restart the device.

If you are still having trouble with the camera app after trying these tips, contact a LG Electronics Service Centre.

The photo quality is poor

The quality of your photos may vary, depending on the surroundings and the photography techniques you use.

If you take photos and videos, standard angle quality is better than wide-angle.

If you take photos in dark areas, at night or indoors, image noise may occur or images may be out of focus.

If you have any problems, reset the options.

The touch screen responds slowly or incorrectly

If you attach a screen protector or optional accessories to the touch screen, the touch screen may not function properly.

If you are wearing gloves, if your hands are not clean while touching the touch screen or if you tap the screen with sharp objects or your fingertips, the touch screen may malfunction.

The touch screen may malfunction in humid conditions or when exposed to water.

Restart your device to clear any temporary software bugs.

If the touch screen is scratched or damaged, visit a LG Electronics Service Centre.

Hangs or freezes

Restart the device

- If your device freezes or hangs, you may need to close apps or turn the device off and then on again.

Perform a boot-up

• A soft reset may be used to reset the device if the screen freezes, or the buttons, touch screen or device are no longer responding.
• To perform a soft reset of your device, simply press and hold the Volume Down and Power keys until the device restarts.

- This function is not available when the device is connected to LG Dual Screen (LM-G905N).

Reset the device

• If the methods above do not solve your problem, perform a factory data reset.

• On the settings screen, tap System > Restart & reset > Factory data reset.

• This method resets all settings for the device and deletes data.
  Before performing the factory data reset, remember to make back-up copies of all important data stored in the device.

• If you registered a Google Account to the device, you must sign in to the same Google Account after resetting the device.

Bluetooth device is not located

Make sure the Bluetooth wireless feature is activated on your device.

Make sure the Bluetooth wireless feature is activated on the device you wish to connect to.

Make sure your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).

If the tips above do not solve your problem, contact a LG Electronics Service Centre.

A connection is not established when you connect the device to a computer

Make sure the USB cable you are using is compatible with your device.

Make sure you have the proper driver installed and updated on your computer.

Downloaded application causes a lot of errors

Application has problems.

Remove and reinstall the application.

06

LG Dual Screen (LM-G905N)

Getting to Know LG Dual Screen

You can connect an LG Dual Screen to this product for use.

• You can connect the LG dual screen (hereinafter "Dual Screen") to a dedicated LG VELVET (hereinafter "phone"), to use the product.
• Depending on the performance of the a dedicated phone, some features of Dual Screen may be limited. Also, the product may not support other mobile devices.
• This product is not water resistance. Do not expose the device to liquid or moisture.
• If the device is wet, the LDI located inside the device changes in colour. In this case, the device is ineligible for any free-of-charge repair services provided under the device's limited warranty.

Guidelines for safe and efficient use

Please read these simple guidelines. Not following these guidelines may be dangerous or illegal.

Product care and maintenance

• Use only in-box accessories which are authorised by LG. LG does not guarantee any damage or failure which is caused by third party accessories.
• Some contents and illustrations may differ from your device without prior notice.
• Do not disassemble this unit. Take it to a qualified service technician when repair work is required.

- Repairs under warranty, at LG's discretion, may include replacement parts or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.

- Keep away from electrical appliances such as TVs, radios and personal computers.

- The unit should be kept away from heat sources such as radiators or cookers.

- Do not drop.

- Do not subject this unit to mechanical vibration or shock.

- Switch off the device in any area where you are required to by special regulations. For example, do not use your device in hospitals as it may affect sensitive medical equipment.

- Do not handle the device with wet hands while it is being charged. It may cause an electric shock and can seriously damage your device.

- Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).

- Do not subject this unit to excessive smoke or dust.

- Do not keep the device next to credit cards or transport tickets; it can affect the information on the magnetic strips.

- Do not tap the screen with a sharp object as it may damage the device.

- Do not expose the device to liquid or moisture.

- Do not use, touch or attempt to remove or fix broken, chipped or cracked glass. Damage to the glass display due to abuse or misuse is not covered under the warranty.

- Your device is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your device during or immediately after operation.

- If your device gets wet, immediately unplug it to dry off completely. Do not attempt to accelerate the drying process with an external heating source, such as an oven, microwave or hair dryer.

- The liquid in your wet device changes the colour of the product label inside your device. Damage to your device as a result of exposure to liquid is not covered under your warranty.

• A product requires proper air circulation in order to dissipate heat. Direct skin contact and inadequate circulation of air flow to the device may cause the device to overheat. The device must be at least 1.0cm from between the user's body.
• Please ensure that the product does not get in contact with liquid. Do not use or recharge the product if it is wet. Once the product becomes wet, the liquid damage indicator changes Colour. Please note that this will limit you from receiving any free-of-charge repair services provided under warranty.

Efficient device operation

Electronics devices

All devices may receive interference, which could affect performance.

• Do not use your device near medical equipment without requesting permission. Please consult your doctor to determine if operation of your device may interfere with the operation of your medical device.
• Pacemaker manufacturers recommend that you leave at least 15 cm of space between other devices and a pacemaker to avoid potential interference with the pacemaker.
• Some hearing aids might be disturbed by devices.
  • Minor interference may affect TVs, radios, PCs etc.
• Use your device in temperatures between 0 °C and 35 °C, if possible. Exposing your device to extremely low or high temperatures may result in damage, malfunction, or even explosion.

Road safety

Check the laws and regulations on the use of devices in the area when you drive.

• Do not use a hand-held device while driving.
• Give full attention to driving.
• Pull off the road and park before making or answering a call if driving conditions so require.

• RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.

• When your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.

• If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is of particular importance when near roads.

Glass Parts

Some parts of your device are made of glass. This glass could break if your device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch or attempt to remove it. Stop using your device until the glass is replaced by an authorised service provider.

Blasting area

Do not use the device where blasting is in progress. Observe restrictions and follow any regulations or rules.

Potentially explosive atmospheres

• Do not use your device at a refueling point.
• Do not use near fuel or chemicals.
• Do not transport or store flammable gas, liquid or explosives in the same compartment of your vehicle as your device or accessories.

Children

Keep the device in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached.

Product components and accessories

The following items are included with your product.

- Product

- Quick Start Guide

- Charging Adapter

• Make sure to use the authentic accessories provided by LG Electronics. Using products that are not authentic may cause deterioration of phone call quality, device malfunction, etc. In such a case, you may not be able to receive service provided by LG Electronics.
• Some of Dual Screen parts are made of tempered glass. If you drop your product on a hard surface or subject it to severe impact, the tempered glass may be damaged. If this happens, stop using your product immediately and contact an LG Customer Service Centre.

• The appearance and specifications of your product are subject to change without notice.
• The exterior and specifications of Dual Screen may be changed without prior notification to improve its performance.

Parts overview

Front ① ② ③

Unfolded ④ ⑤ ⑥ ⑦

1 Cover Display
② Volume keys
③ Google Assistant key
4 Hole for earpiece

5 Product screen
6 Communication/Power terminal
7 Pogo Pin Port

- This manual is designed for users who connect a phone to this Dual Screen. For more information on how to use this Dual Screen and the phone, please visit www.lg.com and refer to the detailed user manual.

Plugging the phone into the Dual Screen

1 Completely unfold the Dual Screen so that it is parallel to a flat surface.

Line drawing of two smartphones with front and back views, showing internal casing and display (no text or symbols)

2 Slide the bottom of your phone into the bottom of the Dual Screen as shown in the figure. At this time, make sure that the ① part of the phone fits the ② part of the Dual Screen correctly.

Diagram showing two hands holding a smartphone with labeled parts, indicating a device change or repair process.

3 Press the part of the phone with your finger to engage the edge of the phone with that of the Dual Screen.

Illustration of a hand holding a smartphone with a close button, showing the screen and side view (no text or symbols)

4 Press the part of the phone to fully engage the Dual Screen with the phone.

Diagram showing a hand holding a tablet device with a numbered step labeled '2' pointing to the screen area.

• Make sure that your phone is fully inserted into the Dual Screen before use.

Removing the phone from the Dual Screen

1 Unfold the Dual Screen completely and hold it firmly with both hands as shown in the figure.

Illustration of hands holding a tablet device (no text or symbols visible)

2 Press the part of the Dual Screen with your finger while simultaneously pushing the back of the phone with your other fingers to pull the edge of the phone out of the Dual Screen.

Diagram showing a hand holding a tablet device with a numbered step indicator (1) pointing to the screen.

3 Pull the part of the phone out of the Dual Screen following the same directions from the previous step.

Illustration of hands holding a smartphone with a magnified view showing the screen (no text or symbols)

4 Hold the Dual Screen with both hands and slide the phone in the direction of the arrow to remove it. Be careful not to twist the phone left or right or push it up at an excessive angle.

Illustration of hands holding a smartphone with a red upward arrow on screen (no text or symbols)

CAUTION:

- Do not lift the phone from the Dual Screen at an acute angle as shown below.

Prohibition sign showing a hand using a tool to cut a device, enclosed in a circle (no text or symbols)

• If you pull the phone from the Dual Screen at an excessive angle or with excessive force when removing the phone, you may damage the Communication/Power terminal on the bottom of the Dual Screen or the USB data communication and charger port on the phone. Be sure to push up the phone in the direction of the arrow as shown in the figure when removing it.
• Be careful not to drop the Dual Screen or the phone while inserting or removing the phone.
• When you insert or pull out your phone from the Dual Screen, be cautious not to use excessive force. Doing so may damage the Dual Screen.
• Some of the Dual Screen parts are made of tempered glass. Dropping the Dual Screen on a hard surface or subjecting it to a strong impact may cause the tempered glass to crack or wear, damaging the Dual Screen or causing injury. If this happens, stop using the Dual Screen immediately and visit your nearest LG Customer Service Centre for repair.

• In the following situations, the Dual Screen folder may not close fully or the Dual Screen may not operate normally due to poor communication or faulty connection of the power terminal.

• If you attach a protective film, protective glass, or other accessories on the Dual Screen or the screen of your phone

• If you attach a protective film or thick stickers on the Dual Screen connection area or the rear side of your phone
• If you insert sheets of paper or cards between the Dual Screen and your phone

- If you use the wireless charging or NFC function while your phone is inserted into the Dual Screen, charging may not work properly.

Using the Charging Adapter

You can use the charging adapter to charge your phone or move data while your phone is inserted into the Dual Screen.

1 With the phone mounted on the Dual Screen, connect the charging adapter to the charging port at the bottom of the Dual Screen as shown in the figure below.

Pogo Pin Port Charging Adapter

- Pogo Pin will not function if it is connected in a reverse direction.

- The USB connection via Pogo Pin does not support OTG, audio or USB 3.0. For these, directly connect the cable to the port on the phone after removing the Dual Screen.

2 Connect a USB Type-C cable.

• You can charge the phone or move data.

Charging Cable Connector

• When the charging adapter is not in use, disconnect power of the charger and keep it separately from the charger cable connector. If the magnet part of the charging adapter gets in contact with nearby metals or conductive substances, it may be broken, burned, or damaged from electric shock.
• Make sure that you always use the charging adapter provided with the Dual Screen. If you lose the charging adapter or want to purchase a new one, call the LG Electronics Customer Service Centre for details.
• The charging adapter and the charging port at the bottom of the Dual Screen are connected magnetically. Do not shake or pull out the charging adapter while using it.

Using the Dual Screen

Picking up and hanging up the call with the Google Assistant key

With Dual Screen and the phone connected, you can answer the call by pressing the Google Assistant key once. To end the call, press the Google Assistant key twice to hang up.

• You can pick up or hang up the call with the Google Assistant key only when the cover of the Dual Screen is fully closed.
  • Make sure that the product and the phone are connected through at least one sync.

When making a phone call

When making a phone call, you can fold the Dual Screen outward to 360° or fold it inward to 0°.

- If you are using the Dual Screen by folding it 360°, make sure that the front and back of the Dual Screen are in full contact. In this case, the screen of the Dual Screen automatically turns off to save the power.

360^ 0^

Line drawing of a pair of scissors with a handle and base, no text or symbols present

Line drawing of a smartphone rear panel with ports and buttons (no text or symbols)

Using the Dual Screen

Unfold the Dual Screen to put the two screens side by side.

screen Phone screenProduct

Adjusting the Screen Colour

When using the product screen and the phone screen at the same time, a colour difference may occur between the two screens.

- Try adjusting the colour temperature. On the home screen, tap Settings > Display > Screen colour, then adjust Colour Temperature.

- Colours may look different depending on the viewing angle, so adjust the colours in a fully unfolded state.

Using Dual Screen Home

Getting to Know Dual Screen Home

The Dual Screen home can operate independently of the product's screen.

• It provides quick launch icons and a home touch bar.

- You can change the background and set up widgets.

- On the home screen, you can also run different apps from the apps drawer and generate or delete folders.

Getting to know Dual Screen Home layout

You can use various functions by running the icons provided on the home screen.

Quick access area Navigation bar

- The background of the Dual Screen may differ from the figure depending on the manufacturer's policies, user settings, software versions, services provided by telecommunication providers, etc.

• Quick access area: Fix main apps at the bottom of the screen so that they can be accessed from any Home screen canvas.
• Navigation bar: You can do some gestures to go to the Home screen, previous screen, Overview screen, or quickly switch between apps.

Using the Dual Screen Panel

You can open the Dual Screen panel by dragging down the top of the screen.

- You can adjust the screen brightness on the Dual Screen panel.

- If you activate synchronization by selecting Sync, the screen brightness of the dual screen comes in sync with that of the connected product.

• You can tap Screenshot to capture the product screen.
• You can turn off the product screen by tapping Dual Screen.

- The dual screen and the connected phone are disconnected.

- You can tap 📋 to enter the settings menu of the dual screen.

Adjust screen brightness Screenshot Dual Screen settings Dual Screen

Making Changes to Dual Screen Home

Touch and hold an empty area on the dual screen home and run a desired function.

• To add a widget to the Home screen, touch and hold on a blank area of the Home screen, then select Widgets.
• To change wallpapers, touch and hold on a blank area of the Home screen, then select Wallpapers.
• To change the default screen, touch and hold on a blank area of the Home screen, move to desired screen, tap 🔒, then tap the screen once more.

Default screen Widgets Wallpapers

Viewing the Dual Screen background

You can view only the background image by hiding the apps and widgets on the Home screen.

Spread two fingers apart on the Home screen.

- To return to the original screen, which displays apps and widgets, pinch your fingers on the Home screen or tap —.

Illustration showing a hand interacting with a screen before and after transformation, with icons for app, YouTube, gaming, and cloud platforms.

Setting Dual Screen environment

You can set the dual screen environment on the phone connected to the dual screen.

1 On the home screen, tap Settings > Display > Dual Screen.

- You must connect your phone to the dual screen to see the menu item for dual screen environment setting.

2 Select and set the desired functions.

• Cover Display: You can set whether to use cover display on the front of the dual screen.
• Display timeout / Daily timeout: You can set whether to use both screens at the same time.
• Dual Screen Tool: If you connect your phone to the dual screen, the dual screen tools appear on the screen. The brightness level is synchronized with that of the Dual Screen.
• Use Dual Screen: You can turn on and off the dual screen, switch screens between the phone and the dual screen.

- Reverse fold: You can set the behavior for the opposite screen when the dual screen is folded back.

- Brightness: You can adjust the screen brightness by moving the control bar to the left or right.

- Keep the same as main screen: You can synchronize the brightness level with that of the connected phone.

• Wide view: You can set an app to be expanded on both screens.
• Wallpaper: You can select the wallpaper for the Home screen.
• App drawer icon: You can show or hide the App drawer on your product.
• Multi App Shortcut: You can set two apps to run on the main screen and dual screen at the same time.
• My Pick App: You can select apps to run automatically every time you turn on the dual screen.

- The list of apps that appear on the screen may differ depending on the installed apps.

Dual Screen Tool

If you connect your phone to the dual screen and turn on the dual screen, the Dual Screen Tools menu icon ➤ appears on the side of the phone screen.

Tap ➕ to open the Dual Screen Tools menu and access the options shown below.

/ [IMAGE]	You can tap it lightly to show or hide the Dual Screen Tools menu.
	You can switch the screens between the dual screen and the phone.
	You can send the screen from the phone to the dual screen.
	You can bring the screen from the dual screen to the phone.
	If you use the dual screen only, you can lower the brightness level of the phone screen (main screen) to save battery. If you do not want to use this function, swipe the main screen.
	You can turn off the dual screen.

Dual Screen Tool Swap screens Show main on Dual Screen Show Dual Screen on main Put main screen to sleep Turn off Dual Screen

• If you turn off your phone, the dual screen also turns off. However, if you turn off the dual screen, the phone stays on.
• This feature is not available on the lock screen and is activated when you unlock the screen.

Using Multi-Page Mode

You can extend the use of an app to the main screen and the dual screen for convenience.

• This function is also available in partner apps in addition to the Camera and Gallery apps.
• The UI may differ depending on the app used.

Using Multi-Page Mode in Camera

You can shoot a photo or video on the phone or dual screen and view the result on the other screen.

1 On the home screen, tap on the phone or dual screen and shoot a photo or video.

2 After shooting a photo or video, select the Preview icon.

- You can view the photo or video you have taken on the other screen where the camera is not running.

Preview icon

• Once you tap the Preview icon to view a photo or video, the preview screen stays on and automatically displays the last photo or video taken as you shoot more photos and videos.
• This function does not remain active if you close the Camera app and open again.

Using Multi-Page Mode in Gallery

Tap in a folder in Gallery on the dual screen or phone to view enlarged photo or video on the opposite screen.

1 On the home screen, tap on the phone or dual screen.
2 Select an album folder and then tap 📄

• The photo or video will be displayed in an enlarged view on the opposite screen.
• Tap >> to quit this function.

Extension icon Restore icon

Diagram showing smartphone screen transition from image editing to image editing with Chinese UI buttons and location labels

Using Dual Screen app

Each time you turn on the dual screen, the preset dual screen apps run automatically.

1 On the home screen, tap Settings > Display > Dual Screen > My Pick App.
2 Select the apps that will run automatically each time you turn on the dual screen.

• Some apps cannot be run as dual screen apps.
- The list of apps that appear on the screen may vary depending on the installed apps.

Making a Video Call Using the Dual Screen

You can display your image on the Dual Screen and the image of your counterpart on the phone.

- Start a video call on your phone.

- The image of your counterpart is displayed on the phone screen and your image is displayed at the lower right corner of the phone screen.

- Tap 📊 at the top of the phone screen to display your image on the Dual Screen.

- Tap→ again to revert to the previous display mode.

• The title at the top and the button at the bottom appear at the same time and disappear 4 seconds later.
• While you are making or answering a video call on the phone, you can use other apps or functions on the Dual Screen.

Moving between App Screens on Dual Screen

You can swipe the screen with three fingers to move an app screen between the dual screen and the phone.

- Swipe the app screen left or right with three fingers to move freely between the main screen and the dual screen.

Illustration showing hand interacting with a smartphone screen displaying app interface and UI elements, with Chinese text labels.

Swipe the app screen with three fingers

Two smartphone screens displaying app icons and a music player interface (no readable text or symbols)

Move the app screen to the main screen

Illustration showing hand interacting with smartphone screen and smartphone displaying a graphic of a hand gesture, with Chinese text labels.

Swipe the app screen with three fingers

Two smartphone screens displaying app interface elements: one with a music player and playback controls, the other with a social media control interface.

Move the app screen to the dual screen

- To use this feature, three fingers must touch the screen at the same time.

Using Dual Keyboard on Dual Screen

While using the keyboard in landscape mode, you can expand the keyboard to use the top screen as an app screen and the bottom screen as a keyboard screen.

1 Switch the dual screen to landscape mode on the keyboard input screen.

2 Tap in the keyboard input window of the dual screen.

• You can type on the keyboard on the bottom screen while viewing the text entered on the top screen.
• Tap in the expanded state to return the bottom keyboard to its original position.

Screenshot of a smartphone keyboard interface showing numeric keypad and a highlighted button labeled '8'

Smartphone screen displaying a colorful abstract interface with UI icons and a vertical slider (no readable text or symbols)

Dual Keyboard

Screenshot of a mobile phone screen displaying status bar and navigation icons

Screenshot of a smartphone keyboard with standard icons for function keys and numeric keypad

- To move the app screen up or down, touch the screen with three fingers at the same time to move it up or down. See Moving between App Screens on Dual Screen for details.

Using Mirror Mode on Dual Screen

When taking photos using the camera, you can preview the photos on the dual screen.

1 On the home screen, tap

2 Tap on the top of the camera screen.

• Mirror Mode appears on the dual screen.

Dual Mirror mode

- You can also take pictures or videos directly from the dual screen.

Use the dual screen to adjust the angle for various situations as listed below.

• High angle shot: Use when capturing an image of a crowd at a concert or festival or when capturing an image of a large space.
• Low angle shot: Use when capturing an image of your child at the child's eye level or when capturing an image of high buildings, etc.

Silhouette of a person reaching for a camera above a group of human silhouettes (no text or symbols)

Line drawing of a person assisting a baby with a dumbbell (no text or symbols)

High angle shooting Low angle shooting

Using Instant Capture on Dual Screen

When the phone is connected to the dual screen, the Instant Capture function is enabled on the LG Keyboard.

You can use the keyboard on the main screen, capture the screen on the dual screen, and insert it directly into the keyboard input window.

Tap 📄 on the LG Keyboard input screen.

- The screen on the dual screen is captured and automatically attached to the keyboard input window.

Instant Capture Captured screen

- You cannot extend the keyboard to both screens with this feature enabled.

LG Game Pad

You can use virtual controllers on the product screen to play games on the phone. When playing the game, separate the main screen and the dual screen so that the controller does not block the game screen.

1 On the home screen, tap Game Launcher and select LG Game Pad

Game Launcher LG Game Pad

• LG Game Pad appears on the product screen.

Two identical game controllers with red circular buttons on the left, positioned at a console (no text or symbols visible)

2 Tap and then swipe it left and right to select your preferred style of LG Game Pad.

Interior view of a game controller interface with two controllers and a steering wheel (no visible text or symbols)

You can play the game by holding the Dual Screen as shown below.

Illustration of hands holding a handheld game controller with a soccer field displayed on screen (no text or symbols visible)

• LG Game Pad is only available for games that support hardware game pads.
• Depending on the game, some apps or buttons may not support LG Game Pad.

Create Custom Game Pad

In addition to the LG Game Pad, you can customise your own game pad. You can create your own game pad that syncs with the buttons to play the game.

1 Run the game on the Dual Screen.

- Turn the device horizontally so that the Dual Screen is at the top and the phone screen is at the bottom.

Illustration showing hands holding a smartphone displaying a soccer game on screen, with the main screen showing a soccer field and player interface.

2 On the home screen, tap Game Launcher and select LG Game Pad, and then swipe it to the right end of the screen.

• Create Custom Game Pad appears on the screen.

- Tap + on the Create Custom Game Pad screen.

Screenshot of a video editing interface with Chinese text, showing a progress bar and control buttons

3 Tap + on the top right of the Custom Game Pad screen to display the available buttons and select a button to use on the my Custom Game Pad.

- The selected button appears on the Custom Game Pad screen.

Close-up of a black electronic device control panel with circular buttons and a plus button (no readable text or symbols)

4 While watching the game screen on the Dual Screen, place the selected button onto the desired location of your phone screen.

• Select + on the game of the Dual Screen and sync it with the newly created button.
• Adjust the position and size of the newly created button on your phone screen.

- By operating the newly created button on your phone screen, you can get the same effect as operating the button on the dual screen.

Illustration of a mobile game controller with action buttons and a progress bar, showing screen capture and control interface.

5 Tap to save Custom Game Pad.

- When saving Custom Game Pad, the game title is used as the title of Custom Game Pad.

• Custom Game Pad you created will be the dedicated game pad for the game.
  • Some buttons may not work when the game is updated.
• Custom Game Pad can be created only on the phone screen. the Dual Screen does not support it.

Trademarks

• Copyright ©2020 LG Electronics Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities.
- Google, Google Maps, Gmail, YouTube, Google Duo, Google Play, Android, Chrome, Google Photos, Google Play Protect, Google Calendar, Google Docs, Google Drive, Google Sheets and other related marks and logos are trademarks of Google LLC.
- All other trademarks and copyrights are the property of their respective owners.

DECLARATION OF CONFORMITY

Hereby, LG Electronics declares that this LM-G905N product is in compliance with the essential requirements and other relevant provisions of Directive 2014/35/EU and 2014/30/EU.

A copy of the Declaration of Conformity can be found at http://www.lg.com/global/declaration

Contact office for compliance of this product

LG Electronics European Shared Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands

More information

Precautions on product handling

• This product cannot be used alone.
- Do not use or charge the Dual Screen when there is moisture in the communication and power terminal of the Dual Screen.
- This may cause fire, electric shock, injury, or device malfunction.
- If there is moisture, stop using the device immediately and remove the moisture completely.

- The liquid in your wet device, changes the colour of the Dual Screen label inside your device. Damage to your device as a result of exposure to liquid is not covered under your warranty.

Tempered glass parts

Tempered glass parts of this device are not permanent and they may wear out over time.

• If you drop your device on a hard surface or subject it to severe impact, the tempered glass may be damaged.
  If this happens, stop using your device immediately and contact an LG Customer Service Centre.

- You can purchase protective cases to protect your device from damage on the market.

Note that these protective cases are not covered under the warranty service provided by LG Electronics and safety is not guaranteed.

Using the battery

• This Dual Screen does not use its own battery.
• If the Dual Screen is mounted with a phone, it uses the phone's battery.

Disposal of your old appliance

1. This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.

2. Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.

3. You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling

Line drawing of a hand holding a transparent container with a small red mark on the lid (no text or symbols)

- Touche Google Assistant

Diagram showing a smartphone being inserted into a plastic clip, with a magnified inset highlighting the component (no text or symbols present)

Diagram showing a device being processed from a base panel, with no visible text or symbols.

Hand pointing at a red circular button on a gray background (no text or symbols)

Hand pointing at a red circular button on a gray background (no text or symbols)

Faire glisser

Hand pointing at a button with bidirectional arrows (no text or symbols)

Glisser

Diagram showing finger pressing a button with red arrow and circle, indicating press or navigation instruction

Rapprocher/écarter

Hand with red directional arrows indicating movement or force (no text or symbols)

Hand pointing upward with red arrows indicating movement (no text or symbols)

04:03 May, 18 May App updates are ready Connect to Web to continue DIRECT TO ME A ScreenFirst saved Save all Wi-Fi seconds Close as Wi-Fi seconds Open the next page with any previous or next time. My USB found Use the next information. SELECTING NET PRICE START

Split image showing a coastal cliff with green vegetation on the left and a coastal cliff with red double-headed arrows pointing to the right (no text or symbols)

Screenshot of a mobile app interface with a search bar, navigation icons, and status bar

Écran par défaut

Diagram illustrating hand gesture application on a smartphone, showing app icons and directional arrows with red arrows indicating movement.

Hand interacting with a mobile app interface, showing a cursor clicking the button and displaying app icons like chat, messaging, photo, play, and browser.

Scenic mountain landscape with a circular overlay highlighting a camera icon, no readable text or symbols present.

Illustration showing hand pointing at water surface with red arrows indicating upward and downward motion, symbolizing movement or vibration.

Line drawing of a hand holding a smartphone displaying a fingerprint symbol (no text or labels)

Line drawing of a human hand with a red curved arrow indicating rotation or movement (no text or symbols)

HEVC Advance™ Covered by Patents at patentlist.hevcadvance.com

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

DÉCLARATION DE CONFORMITÉ

LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Wi-Fi (WLAN)

Avant ① ② ③

Line drawing of two smartphones, one open and one closed, with no text or symbols present.

Diagram showing two hands holding a smartphone with labeled components and a red downward arrow indicating a process or change.

Illustration of hands holding a smartphone with a red circular button labeled '1' (no text or symbols on the device itself)

Diagram showing a hand holding a tablet device with a numbered step labeled '2' pointing to the screen area.

Illustration of two hands holding a tablet device (no text or symbols visible)

Diagram showing a hand holding a tablet device with a numbered step indicator (1) pointing to the screen.

Illustration of a hand holding a smartphone with a finger pointing to the screen (no text or symbols present)

Illustration of hands holding two smartphones, one open and one closed, with a red arrow pointing to the screen (no text or symbols present)

AVERTISSEMENT :

Prohibition sign showing a hand holding a device with a red arrow indicating disassembly or anti-protection.

Illustration showing a hand interacting with a screen before and after transformation, with icons for app, YouTube, game, and social media in the corner.

Diagram showing smartphone screen transition from image editing to video playback, with Chinese UI labels and UI icons on screens.

Utiliser l'application Dual Screen

Screenshot of a smartphone keyboard interface showing standard icons and a highlighted button

Smartphone screen displaying a colorful abstract design with UI elements (no readable text or symbols)

Clavier Double

Screenshot of a mobile device screen displaying a blank text input field with control buttons and navigation icons.

Screenshot of a smartphone keyboard with standard icons and function keys visible on the screen

Silhouette of a person reaching for a bird, with other silhouettes in the background (no text or symbols)

Illustration of a person assisting a baby with dumbbells (no text or symbols)

Two black game controller panels with red circular buttons on the left, no visible text or symbols on the controllers themselves.

Interior view of a car dashboard with two circular indicators and a steering wheel (no visible text or symbols)

Illustration of hands operating a mobile game controller with a soccer field displayed on screen (no text or symbols visible)

Illustration showing hands holding a smartphone displaying a soccer game on screen, with the main screen showing player stats and game icons.

Video Settings +

Close-up of a black control panel with circular buttons and a plus button, no visible text or symbols

Illustration of a mobile game controller with action buttons and a progress bar, showing screen capture and control interface.

DÉCLARATION DE CONFORMITÉ

Google Assistant starten

Hand holding a transparent container with a red circular mark on the lid (no text or symbols)

Three-step smartphone home screen transition flow showing status, navigation, and weather icons with Chinese labels

Diagram showing a smartphone with a close-up view of its internal structure, highlighting the component's direction and size.

Diagram showing a device being processed with red arrows indicating motion (no text or symbols present)

Hand pointing at a red circular button on a gray background (no text or symbols)

Berühren und Halten

Hand pressing a red circular button on a finger (no text or symbols visible)

Ziehen

Hand pointing at a button with bidirectional arrows (no text or symbols)

Wischen

Diagram showing finger pressing a button with red arrow and control symbols, likely illustrating a digital interface or navigation instruction.

Illustration of a hand with two red arrows pointing downward, no text or symbols present

Hand pointing upward with red arrows indicating movement (no text or symbols)

04:03 Mon, 18 May App optizers are ready Connect to Wi-Fi by (current) CONNECT TO Wi-Fi Recommendation saved Close as Wi-Fi adapter Hi-SIM Forward Hi-SIM Forward Connect to Wi-Fi Connect to Wi-Fi

Two-panel image showing a coastal cliffside landscape with red double-headed arrows indicating direction (no text or symbols)

Diagram illustrating hand gesture application on a smartphone screen, showing app icons and directional arrows with red arrows indicating movement.

Hand interacting with a mobile app interface showing a text input field and five app icons on the right.

Illustration showing hand pointing at water surface with red arrows indicating upward and downward motion, symbolizing vertical movement or vibration.

Line drawing of a hand holding a smartphone displaying a fingerprint symbol (no text or labels)

Line drawing of a human hand with a red curved arrow indicating rotation or movement (no text or symbols)

HEVC Advance™ Covered by Patents at patentlist.hevcadvance.com

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Wi-Fi (WLAN)

Line drawing of two smartphones viewed from front and back angles (no text or symbols)

Diagram showing two hands holding a smartphone with labeled parts and a red arrow indicating a process or transformation.

Diagram showing a hand holding a smartphone with a finger pointing to the screen, labeled with number 1

Diagram showing a hand holding a tablet device with a numbered step labeled '2' pointing to the screen area.

Illustration of two hands holding a rectangular device with a lid, showing front and side views (no text or symbols)

Diagram showing a hand holding a tablet device with a numbered step indicator (1) pointing to the screen area.

Illustration of hands holding a smartphone with a finger pointing to the screen (no text or symbols present)

Illustration of hands holding a smartphone with an upward arrow icon (no text or symbols)

VORSICHT:

Prohibition sign showing a hand using a device to cut a device, crossed out by a diagonal line

Illustration showing a hand interacting with a screen before and after transformation, with icons for app, YouTube, gaming, and cloud platforms.

Diagram showing smartphone screen transition from image editing to outdoor views, with Chinese UI labels and directional arrow.

Screenshot of a smartphone keyboard interface showing numeric keypad and a highlighted digit '8' with an arrow pointing to it.

Smartphone screen displaying a colorful interface with app icons and a vertical slider, likely for interactive or basic content.

Dual Tastatur

Scanned screenshot of a mobile device interface with Chinese UI elements and status bar

Screenshot of a mobile keyboard interface with standard numeric keypad and function buttons

Silhouette of a person reaching for a camera above a group of human silhouettes (no text or symbols)

Illustration of a person assisting a baby with a tool, no text or symbols present

Two black game controllers with red circular buttons on the left, no visible text or symbols on the controllers themselves.

Digital dashboard interface displaying two car headsets with red circular indicators, alongside a steering wheel and control panel.

Illustration of hands holding a handheld game controller with a soccer field displayed on screen (no text or symbols visible)

Illustration of hands holding a smartphone displaying a soccer game on screen, with no visible text or symbols on the device itself.

Scanned interface screenshot showing a progress bar with Chinese text and a plus sign in the center.

User interface panel with zoom and plus button options, showing a circular adjustment knob

Illustration of a mobile game controller with action buttons and a progress bar, showing screen capture and control interface.

Hand holding a transparent container with a red circular mark on the lid (no text or symbols)

Three-step smartphone home screen transition diagram showing UI control, status bar, and weather icons

Diagram showing a smartphone with a close-up of its internal structure, no text or symbols present

Diagram showing a device being processed from a base panel, with red arrows indicating motion direction (no text or symbols present)

Scheda Nano-SIM 1 Scheda Nano-SIM 2

Hand pointing at a circular button on a plain background (no text or symbols)

Tenere premuto

Hand pointing at a red circular button on a gray background (no text or symbols)

Trascinamento

Hand pointing at a button with bidirectional arrows (no text or symbols)

Trascinare

Diagram showing finger pressing a button with red arrow indicating right-hand movement

Illustration of a hand holding a finger with red arrows indicating movement or force direction (no text or symbols)

Hand pointing upward with red arrows indicating movement (no text or symbols)

04:03 Mon, 18 May App installers are ready Connect to Wi-Fi by app CONNECT TO Wi-Fi Recommended consent Click as Wi-Fi automobile Ask COM App Get your app OK OK

Two-panel image showing a coastal cliffside with misty sky and sea, connected by a red double-headed arrow (no text or symbols)

Smartphone home screen screenshot showing app icons and status bar with 'Google' entered in the main window

Schermata predefinita

Diagram illustrating hand gesture application on a smartphone, showing app icons and directional arrows with red arrows indicating movement.

Hand interacting with a mobile app interface, showing a progress bar and five app icons on the right.

Photo editing interface showing a hand pointing at a circular button on a mountain landscape with red directional arrows labeled 'Video', 'Photo', and 'Portrait'.

Illustration showing hand pointing at water surface with red arrows indicating upward and downward motion, symbolizing movement or pressure direction.

Line drawing of a hand holding a smartphone displaying a fingerprint symbol (no text or labels)

Line drawing of a human hand with two red curved arrows indicating rotation or movement (no text or symbols)

Questo dispositivo supporta Active Pen AES2.0 (Active Electrostatic).

HEVC Advance™ Covered by Patents at patentlist.hevcadvance.com

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Wi-Fi (WLAN)

Line drawing of two smartphones viewed from front and back angles (no text or symbols)

Diagram showing two hands holding a smartphone with labeled parts, indicating a disassembly or repair process.

Illustration of hands holding a smartphone with a finger pointing to the screen (no text or symbols)

Illustration of a hand holding a tablet device (no text or symbols visible)

Diagram showing a hand holding a tablet device with a numbered callout indicating step 1

Illustration of hands holding a smartphone with a magnified view showing the screen (no text or symbols)

Illustration of hands holding two smartphones, one open and one closed, with a red arrow pointing to the screen (no text or symbols present)

ATTENZIONE:

Prohibition sign showing a hand using a device to cut a device, crossed out by a red circle

Line drawing of a mechanical clamp or tool with a red curved arrow indicating rotation (no text or symbols)

Line drawing of a smartphone rear panel with ports and indicator lights (no text or symbols)

Uso del Dual Screen

Illustration showing a hand interacting with a screen before and after transformation, with icons for app, YouTube, gaming, and others nearby.

Diagram showing smartphone screen transition from image editing to image editing with Chinese UI labels and UI icons

Screenshot of a smartphone keyboard interface showing numeric keypad and a highlighted button labeled '8'

Smartphone screen displaying a colorful interface with app icons and a slider, likely for mobile app or interactive settings.

Doppia tastiera

Screenshot of a mobile device interface with status bar and navigation buttons

Screenshot of a smartphone keyboard with standard icons and function keys visible

Dual Mirror Mode

Silhouette of a person reaching toward a camera, with other silhouettes in the background (no text or symbols)

Line drawing of a person assisting a baby with a dumbbell (no text or symbols)

Two black game controllers with red circular buttons on the left, displayed in a control interface (no text or symbols visible)

Interior view of a game controller interface showing two main motors and a steering wheel (no visible text or symbols)

Illustration of two hands holding a handheld game controller with a soccer field displayed on screen (no text or symbols visible)

Illustration showing hands holding a smartphone displaying a soccer game on screen, with the main screen showing player stats and game icons.

Screenshot of a video player interface with Chinese text, showing playback controls and a progress bar.

Close-up of a black computer control panel with circular buttons and a plus button, no visible text or symbols.

Illustration of a mobile game controller with progress bar and control panel, showing action buttons and status indicators.

Hand holding a transparent container with a red-tipped tip, no text or symbols visible

Diagram showing a smartphone being inserted into a clip, with a magnified inset highlighting the clip structure.

Diagram showing a device being processed with red arrows indicating motion (no text or symbols present)

Hand pointing at a red circular button on a gray background (no text or symbols)

Slepen

Hand icon demonstrating finger movement with bidirectional arrows around a circular button

Vegen

Diagram showing finger pressing a button with red arrow indicating direction, likely illustrating a touch or press function.

Hand gesture showing two finger movements with red arrows indicating direction (no text or symbols)

Hand pointing upward with red arrows indicating movement (no text or symbols)

04:03 Mon, 15 May App update any ready Connect to OK? No continue CONNECT TO M-A Decommodation saved Use all Wi-Fi也可以 Use all Wi-Fi when No SIM forecast Get your home at the end OK! Yes! → OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes! OK! Yes!

Split image showing a coastal cliff with misty atmosphere and a coastal hillside with distant ocean and sea, connected by a red double-headed arrow (no text or symbols)

Homescreen bewerken

Screenshot of a mobile app interface with weather icons, navigation bar, and status bar

Standaardscherm

Diagram illustrating hand gesture application on a smartphone, showing app icons and directional arrows with red arrows indicating movement.

Hand interacting with a mobile app interface, showing a dropdown menu and control buttons

Camera modi

Stel Camera in

Illustration showing hand pointing at water surface with red arrows indicating upward and downward motion, symbolizing movement or vibration.

Illustration showing a hand holding a smartphone displaying a fingerprint, and a hand demonstrating the fingerprint with red curved arrows indicating rotation.

Screenshot of a mobile app interface with navigation controls and app icons, showing a search bar and status bar.

Lockscreen & beveiliging

HEVC Advance™ Covered by Patents at patentlist.hevcadvance.com

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

VERKLARING VAN OVEREENSTEMMING

LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Wi-Fi (WLAN)
