Pure A9 PA91405GY - Air purifier ELECTROLUX - Free user manual and instructions
Find the device manual for free Pure A9 PA91405GY ELECTROLUX in PDF.
| Product type | Air purifier |
| Brand | Electrolux |
| Model | Pure A9 PA91405GY |
| Dimensions (W x D x H) | 30 x 30 x 60 cm |
| Weight | 8 kg |
| Power supply | 220-240 V, 50/60 Hz |
| Power consumption | 50 W |
| Maximum coverage area | 60 m² |
| Filtration technology | Multi-layer filter (pre-filter, HEPA, activated carbon) |
| Speed levels | Variable via touch slider |
| Operating modes | SMART, Manual |
| Connectivity | WiFi 2.4 GHz, Wellbeing app |
| Ionizer | Yes (activation via app) |
| Child lock | Yes |
| Air quality indicator | Yes (PM2.5, colors: green, yellow, orange, red, purple, brown) |
| Noise level | 25-55 dB |
| Maintenance | Clean with dry cloth or vacuum; vacuum the sensor monthly; filter not washable |
| Repairability | Original Electrolux spare parts, repair by authorized agent |
Frequently Asked Questions - Pure A9 PA91405GY ELECTROLUX
User questions about Pure A9 PA91405GY ELECTROLUX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air purifier in PDF format for free! Find your manual Pure A9 PA91405GY - ELECTROLUX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Pure A9 PA91405GY by ELECTROLUX.
USER MANUAL Pure A9 PA91405GY ELECTROLUX
User Manual 10
Návod k použití 14
Brugervejledning 18
Käyttöohje 22
Appliance:
A. Control panel
B. Air outlet
C. Air quality light
D. Air quality sensor
E. Fabric handle
F. Multi-layer filter
G. Air intake door
H. Air intake
I. Product handles
Control panel:
J. Loading LED
K. Manual mode indicator
L. WiFi indicator
M. Child lock indicator
N. Filter change indicator
O. Ionizer indicator
P. Schedule indicator
Q. Fan speed slider
R. SMART mode indicator
S. Mode button
T. On/Off button
Features might be added or updated with new App releases.
CZ POPIS VAŠÍ ČISTIČKY VZDUCHU PURE A9-40/PURE A9-60
Spotřebič:


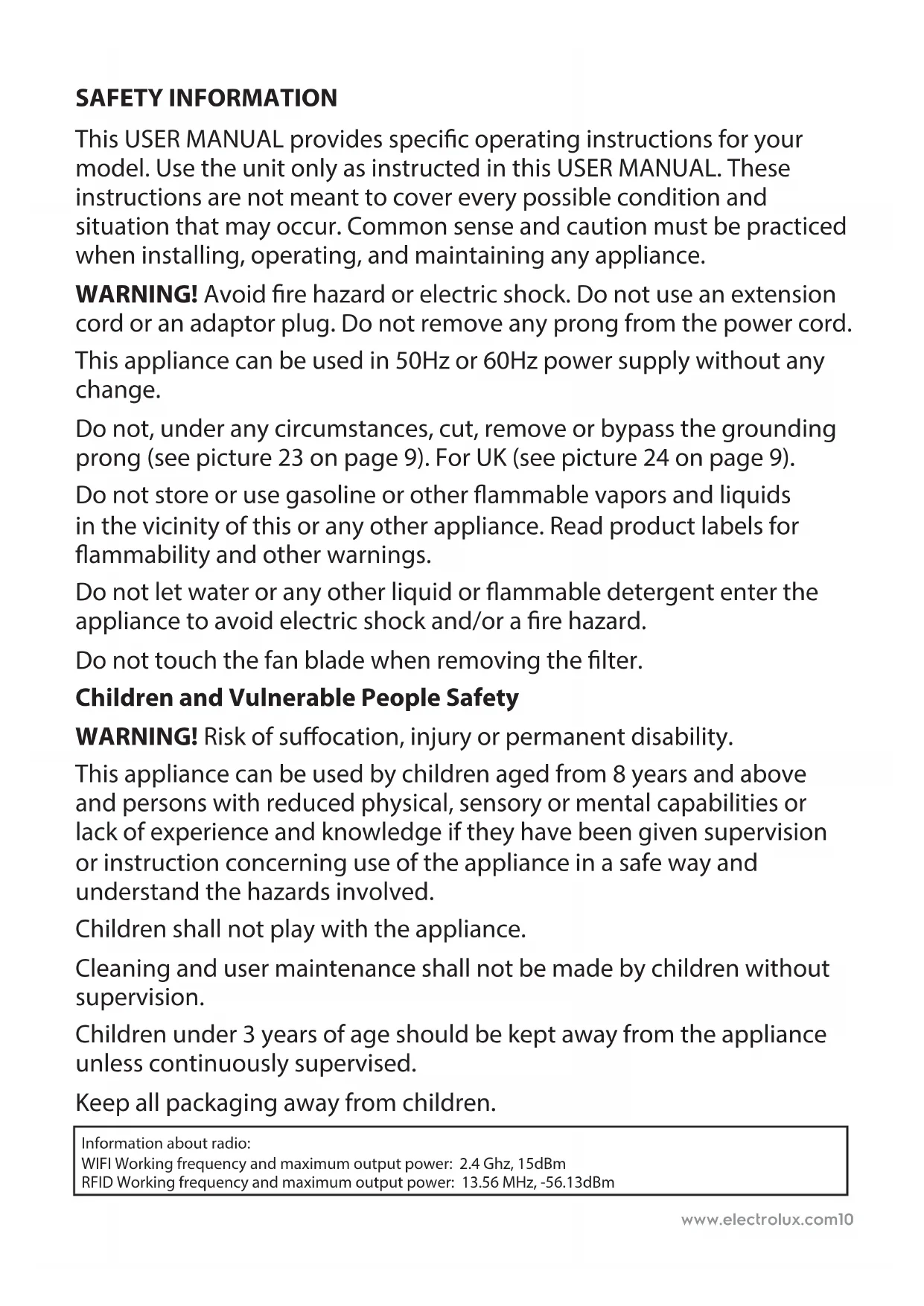

This USER MANUAL provides specific operating instructions for your model. Use the unit only as instructed in this USER MANUAL. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.
WARNING! Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.
This appliance can be used in 50Hz or 60Hz power supply without any change.
Do not, under any circumstances, cut, remove or bypass the grounding prong (see picture 23 on page 9). For UK (see picture 24 on page 9).
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.
Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.
Do not touch the fan blade when removing the filter.
Children and Vulnerable People Safety
WARNING! Risk of suffocation, injury or permanent disability.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children under 3 years of age should be kept away from the appliance unless continuously supervised.
Keep all packaging away from children.
Information about radio:
WIFI Working frequency and maximum output power: 2.4 Ghz, 15dBm
RFID Working frequency and maximum output power: 13.56 MHz, -56.13dBm
Electrical Information
WARNING! Avoid fire hazard or electric shock.

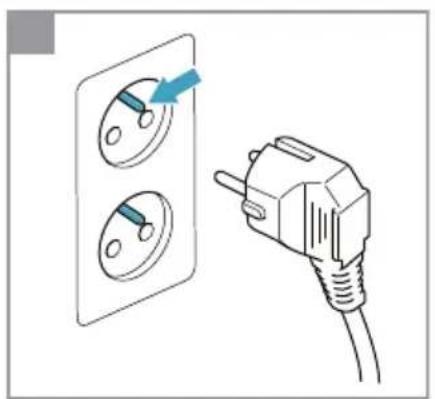

If you are not sure the outlet is adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code and applicable local codes and ordinances.
Do not use an extension cord or an adapter plug.
Never unplug the unit by pulling on the power cord.
Always grip the plug firmly and pull straight out from the receptacle.
Do not pinch, bend, or knot the power cord.
Do not cut or damage the power cord. If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer. This unit contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Be sure to unplug the unit before cleaning to prevent shock or fire hazards.
Safety Precautions
CAUTION! Avoid Serious Injury or Death.
Do not insert or place fingers or objects into the air discharge area or front grille of the unit.
Do not start or stop the unit by unplugging the power cord or turning off the power at the electrical box.
In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized Electrolux servicer.
Do not operate the unit with wet hands.
Do not pull on the power cord.
CAUTION! Avoid Injury or damage to the unit or other property.
Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups.
Do not climb on or place objects on the unit.
Do not hang objects off the unit.
Do not place containers with liquids on the unit.
Turn off the unit at the power source when it will not be used for an extended period of time.
Operate the unit with air filter in place.
Do not block or cover the intake grille, discharge area and outlet ports.
Ensure that any electrical/electronic equipment is 30 cm away from the unit.
DISPOSAL
This symbol on the product or on its packaging indicates that the product may not be treated as household waste.
To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.
ENGLISH
Thank you for choosing the Electrolux air purifier PURE A9-40/PURE A9-60.
Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.
BEFORE STARTING
- Read this manual carefully.
- Check that all parts described are included.
- Pay special attention to the safety precautions!
Picture pages 8-9
BEFORE FIRST USE
Place the product according to the instructions below for optimal operation and results:
1 Operate the air cleaner in an enclosed area. Close all doors, windows, and other openings connecting to the outside of the room.

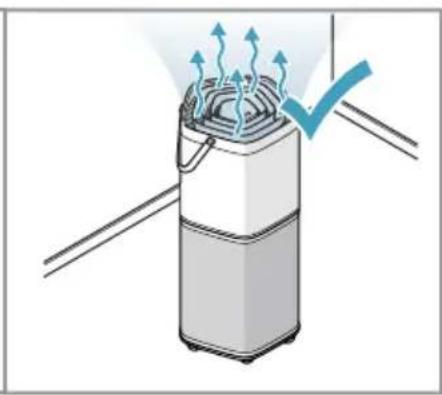

2 Place the air cleaner in a location that does not restrict the airflow through the top of the appliance.

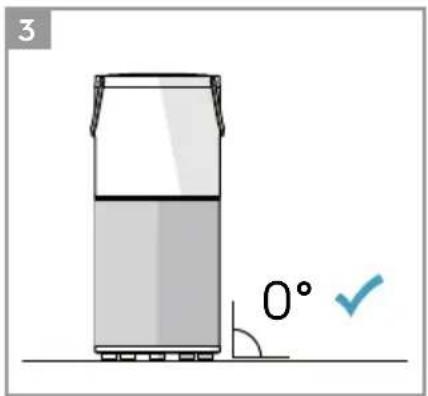

3 The appliance must be placed on a leveled floor that can support it.

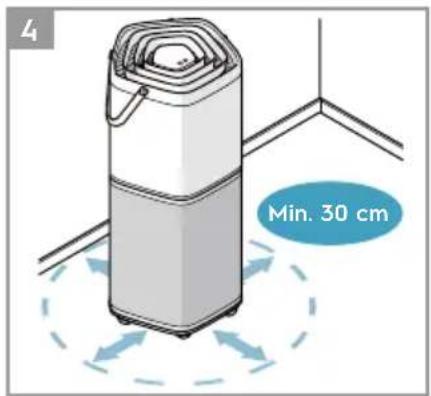

4 There should be a minimum of 30 cm of clearance around the appliance.
Remove the plastic protective bag from the multi-layer filter:

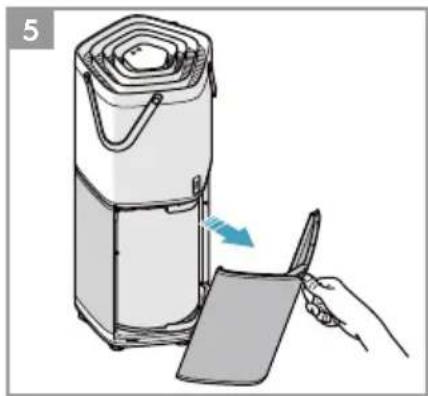

5 Pull the Fabric handle outward to remove the air intake door.

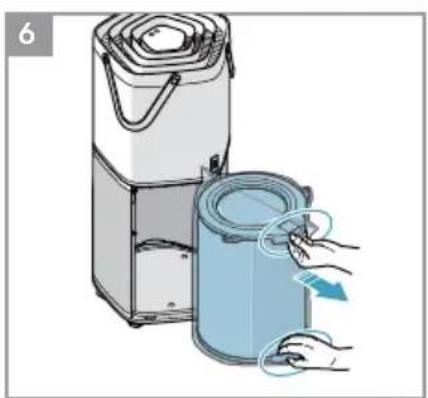

6 Take out the multi-layer filter pulling it out by the handle.

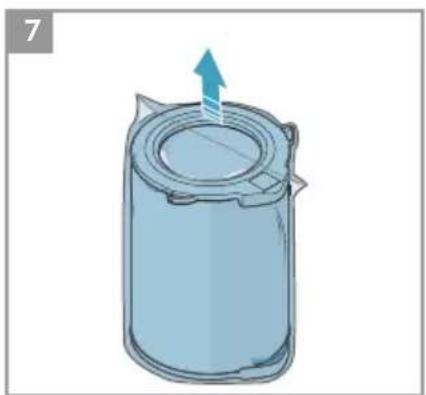

7 Remove the plastic protective bag from the multi-layer filter.

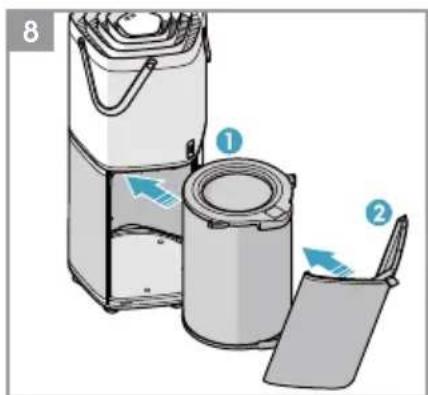

8 Reinstall the multi-layer filter into the appliance.
OPERATION INSTRUCTIONS
TO TURN ON THE APPLIANCE

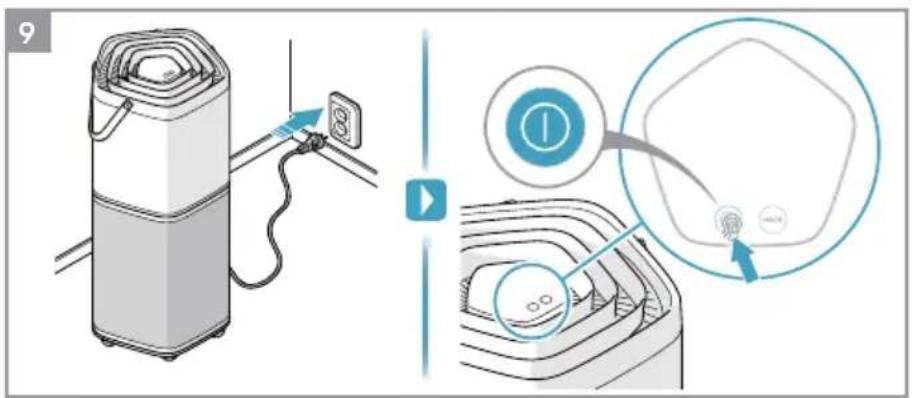

9 Plug in the appliance and tap (touch and release) the "①" button to turn it on.
NOTE: It will take about 10 seconds for the sensor to analyze the air quality, during this time the Loading LED and the Air quality light will pulsate slowly in white. Each time the appliance is turned on the SMART mode is activated automatically and the fan runs in low speed until the air quality
analysis is complete.
SMART MODE
10 In this mode, the appliance will choose the fan speed automatically, based on the air quality level. This is the default mode each time the appliance is turned on.
NOTE: In "SMART" mode the fan speed cannot be changed manually.
About the Air quality light

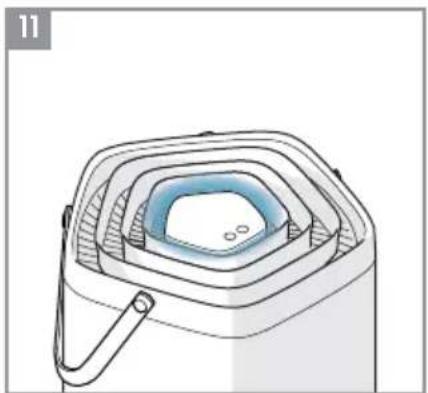

11 The appliance has an air quality sensor that analyzes the air quality.
The air quality light will show the real-time air quality through different colors of light. As shown below:
| LIGHT'S COLOR | PM 2.5 ( g/m^3 ) AIR QUALITY |
| Green | 0-12 Very Good |
| Yellow | 13-35 Good |
| Orange | 36-55 Poor |
| Red | 56-150 Very Poor |
| Purple | 151-250 Bad |
| Maroon | >250 Very Bad |
NOTE: It will take about 10 seconds for the sensor to analyze the air quality each time the appliance is turned on. During this time, the air quality light will pulsate slowly in white.
Very high humidity conditions in the room might produce condensation in the sensors. This could affect the accuracy of the sensor readings.
MANUAL MODE

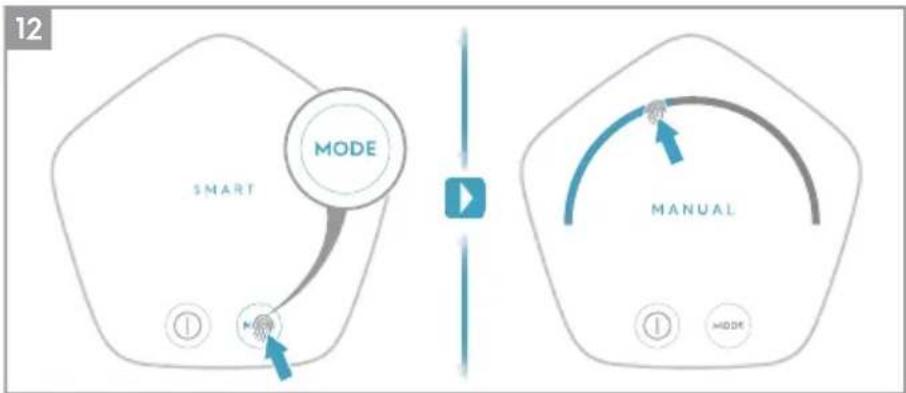

12 Tap the "MODE" button to switch the appliance to "MANUAL" mode. In this mode, the fan speed can be changed manually by touching the Fan speed slider.
NOTE: The fan speed will change gradually after a new fan speed is selected.
WIFI FUNCTION

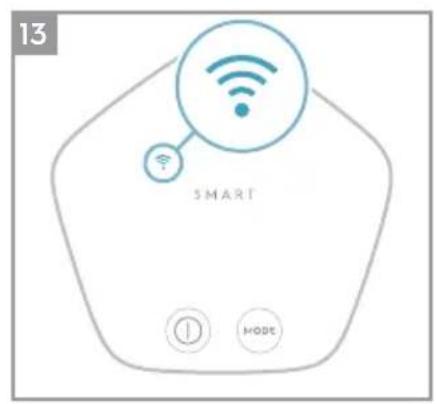

13 This appliance is equipped with a WiFi module, which enables remote control and access to the full functionality of the system via our smartphone app. Download our Wellbeing App and follow the instructions for how to connect it with your appliance. When the connection is stablished, the WiFi indicator will light up.
CHILD LOCK FUNCTION

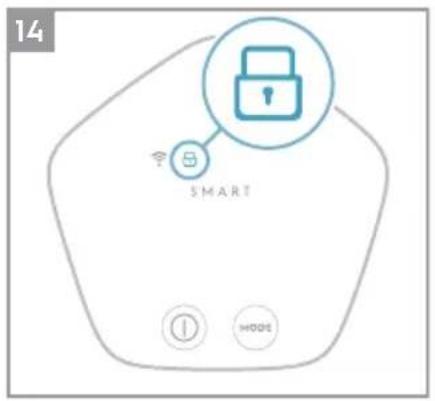

14 The Child lock can be activated and deactivated by long pressing the On/Off and the Mode button simultaneously for 4 seconds. When the Child lock is activated, the control panel of the appliance cannot be interacted with and the Child lock indicator light up.
FILTER CHANGE INDICATOR

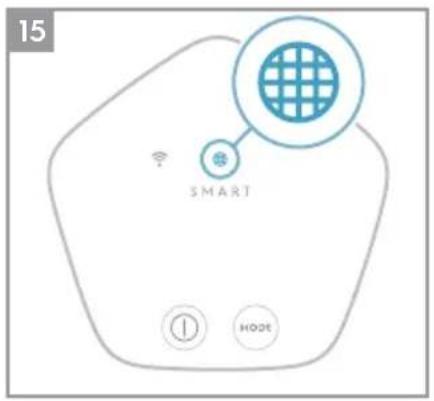

15 The filter change indicator will light up to remind you to change the filter. Refer to the instructions in the Wellbeing App or the Electrolux website on where to purchase replacement filters. Ensure the plastic protective bag is removed from the replacement filter before use. After the filter is replaced, the filter change indicator will turn off automatically.
NOTE: The multi-layer filter cannot be washed, it can only be replaced.
IONIZER FUNCTION
16 The ionizer function can only be activated and deactivated by using the Wellbeing App (smartphone application). When this function is activated, the ionizer indicator lights up and the appliance generates ions to improve the unit's performance and with it the room's air quality.
CARE AND CLEANING
Unplug the appliance before cleaning to prevent shock or fire hazards.

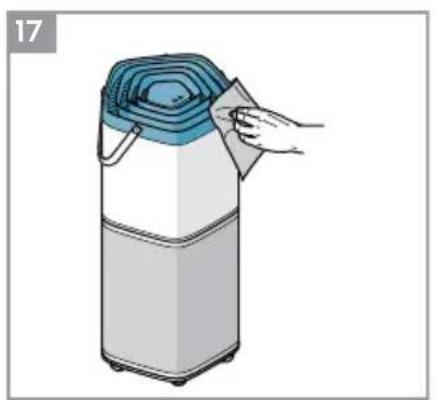

17 The plastic parts of the appliance may be cleaned with an oil-free dry cloth or by using a vacuum cleaner with a soft brush.

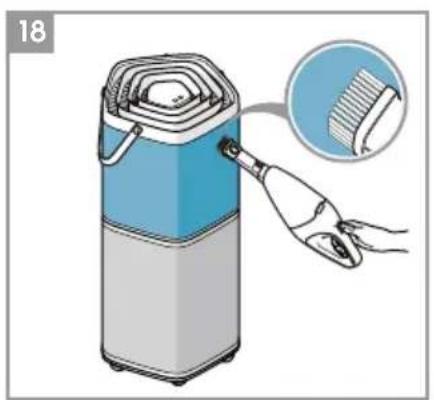

18 The fabric on the appliance cannot be removed. Clean the fabric by using an oil-free dry cloth or a vacuum cleaner with a soft brush.

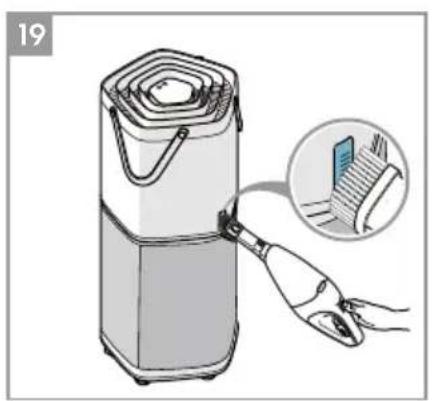

19 Dust accumulated in the Air quality sensor can result in incorrect sensor readings and affect performance. Use a vacuum cleaner with a soft brush to remove any dust that might accumulate in this area. Vacuum at least monthly.

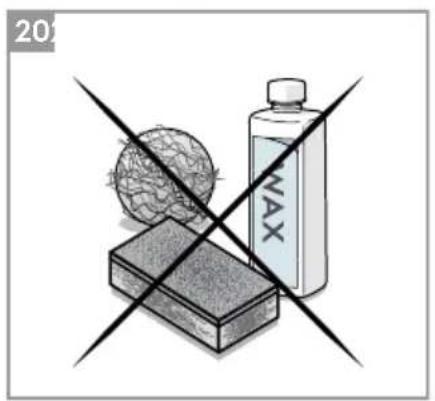

20 Never use abrasive, harsh cleaners or wax when cleaning the unit.

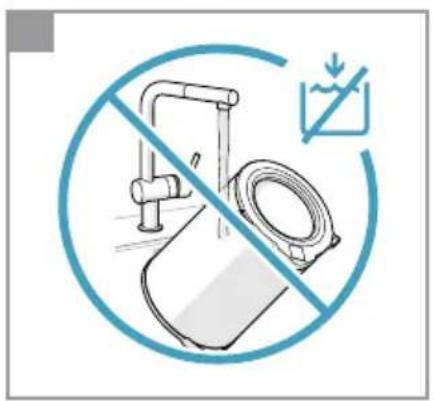

21 NOTE: The multi-layer filter can not be washed, it can only be replaced.
CAUTION! Do not touch the fan blade when removing the multi-layer filter.
Storage

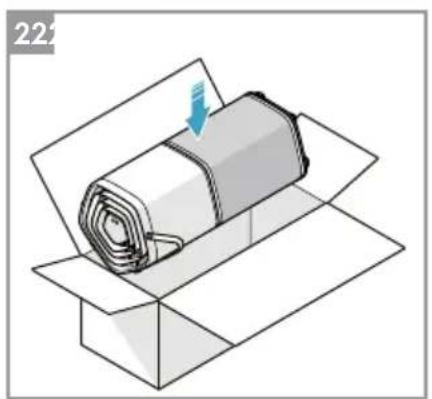

22 If you are not planning to use the appliance for a long time, cover it with plastic or return it to its carton.
Enjoy a great cleaning experience with your Electrolux air purifier PURE A9-40/PURE A9-60!
Electrolux reserves the right to change products, information and specifications without notice.
TROUBLESHOOTING
| PROBLEM | SOLUTION |
| The air purifier does not operate. | ·Check if the power plug is disconnected. Push the power plug firmly into the electrical outlet.·Check if the house fuse is blown or the circuit breaker tripped. Replace the fuse with a time delay type or reset the circuit breaker. |
| The fan does not operate. | ·Ensure that the air intake door (image 8) is closed properly, and the filter is installed correctly, then retry using the purifier. |
| The air quality does not improve. | ·Check if the windows or doors are opened. Close all doors, windows and other openings connecting to the outside of the room. |
| The appliance is very loud. | ·Ensure that there are no obstacles near the appliance and that it has a minimum of 30 cm of clearance around it for optimal operation. |
| The fan speed does not change after selecting a new fan speed. | ·The fan speed will decrease or increase gradually, this is normal. If it does not change after a prolonged period of time after the input then please reach out to an Electrolux authorized servicer for support. |
| The appliance produces a strange smell. | ·The first time you use the purifier, you might perceive a plastic or paint smell. This is normal, but it should disappear quickly. If the smell persist or if you sense a burning smell, please disconnect the purifier and reach out to an Electrolux authorized servicer for support. |
| The app does not operate properly or it is not possible to onboard the appliance on the app. | ·Please reach out to an Electrolux authorized servicer for support on the topic. |
| The Loading LED flashes quickly during operation. | ·If this problem occurs the unit is not working normally. Unplug the unit from the electrical outlet and plug it again after 30 seconds. If the problem remains please reach out to an Electrolux authorized servicer for support. |
| For any further problems, contact an authorized Electrolux service centre. | |
The software in the air purifier is partly based on free and open source software. To see the full copyright information and applicable license terms, please visit: www.electrolux.com/appliance-supplementary
