| Brand | Electrolux |
| Model | Pure A9 PA91605GY |
| Category | Air Purifier |
| Product Type | Air purifier with multi-layer filter |
| Dimensions (approx.) | Height: 60 cm, Width: 40 cm, Depth: 20 cm (estimated based on the Pure A9 range) |
| Net Weight (approx.) | 7.5 kg (estimated) |
| Power Supply | 50-60 Hz, standard wall plug |
| Power Consumption | Not specified in the manual |
| Operating Modes | SMART mode, MANUAL mode with speed slider |
| Air Quality Indicator | Multicolored LED indicator (green, yellow, orange, red, purple, brown) based on PM2.5 |
| Connectivity | WiFi 2.4 GHz for control via Wellbeing app |
| Ionizer Function | Yes, can be activated via app |
| Child Lock | Yes, activate by long pressing both On/Off and Mode buttons simultaneously |
| Filter Replacement Indicator | Yes, lights up to remind replacement |
| Filter Type | Non-washable, replaceable multi-layer filter |
| Maintenance and Cleaning | Clean surfaces with a dry cloth or soft brush vacuum; do not use abrasive products |
| Electrical Safety | Do not use extension cord, do not unplug by pulling the cable, unplug before cleaning |
| Spare Parts | Replacement multi-layer filter (available on Electrolux website) |
| Warranty | Not specified in the manual |
| General Information | Manual available in several languages; Wellbeing smartphone app required for some functions |
Frequently Asked Questions - Pure A9 PA91605GY ELECTROLUX
User questions about Pure A9 PA91605GY ELECTROLUX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air purifier in PDF format for free! Find your manual Pure A9 PA91605GY - ELECTROLUX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Pure A9 PA91605GY by ELECTROLUX.
USER MANUAL Pure A9 PA91605GY ELECTROLUX
PykoBoOCTBO noIb3OBaTeJIa 57
F. Multi-layer filter
J. Loading LED
P. Schedule indicator
C. Air quality light
G. Air intake door
K. Manual mode indicator
Q. Fan speed slider
D. Air quality sensor
G. Air intake door
L. WiFi indicator
R. SMART mode indicator
H. Air intake
M. Child lock indicator
S.Mode button
I. Product handles
N. Filter change indicator
T. On/Off button
O. lonizer indicator
Features might be added or updated with new App releases.
POPIS VASI CISTICKY VZDUCHU PURE A9-40/PURE A9-60
Spotbrebić:
A. Ovladaci panel
B. Vystup vzduchu
C. Kontrolka kvality
vzduchu
D. Snímac kvality
vzduchu
P. Indicator program

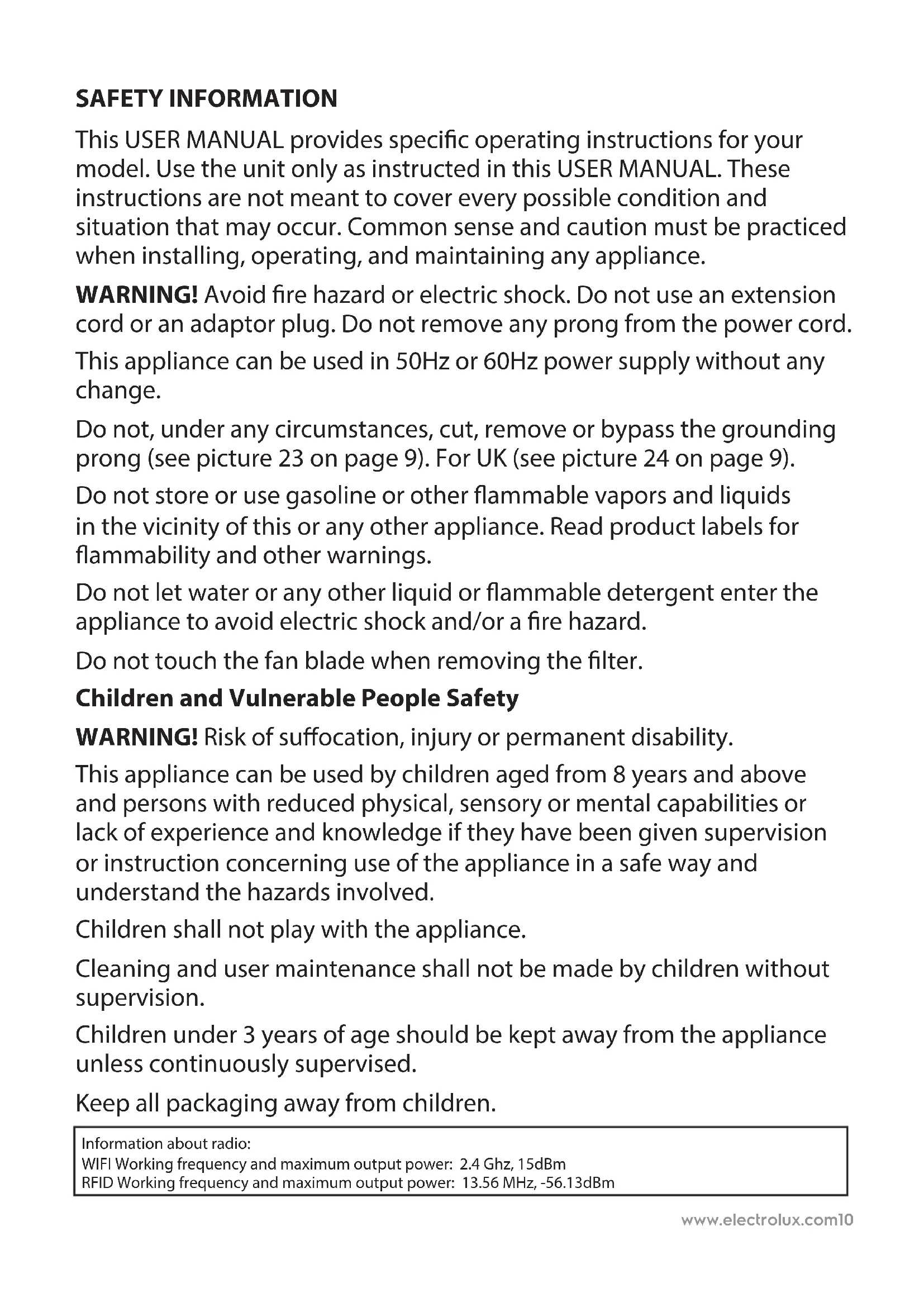

This USER MANUAL provides specific operating instructions for your model. Use the unit only as instructed in this USER MANUAL. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.
WARNING! Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.
This appliance can be used in 50Hz or 60Hz power supply without any change.
Do not, under any circumstances, cut, remove or bypass the grounding prong (see picture 23 on page 9). For UK (see picture 24 on page 9).
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.
Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.
Do not touch the fan blade when removing the filter.
Children and Vulnerable People Safety
WARNING! Risk of suffocation, injury or permanent disability.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children under 3 years of age should be kept away from the appliance unless continuously supervised.
Keep all packaging away from children.
Information about radio:
WIFI Working frequency and maximum output power: 2.4 Ghz, 15dBm
RFID Working frequency and maximum output power: 13.56 MHz, -56.13dBm
Electrical Information
WARNING! Avoid fire hazard or electric shock.
If you are not sure the outlet is adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code and applicable local codes and ordinances.
Do not use an extension cord or an adapter plug.
Never unplug the unit by pulling on the power cord.
Always grip the plug firmly and pull straight out from the receptacle.
Do not pinch, bend, or knot the power cord.
Do not cut or damage the power cord. If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer. This unit contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Be sure to unplug the unit before cleaning to prevent shock or fire hazards.
Safety Precautions
CAUTION! Avoid Serious Injury or Death.
Do not insert or place fingers or objects into the air discharge area or front grille of the unit.
Do not start or stop the unit by unplugging the power cord or turning off the power at the electrical box.
In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized Electrolux servicer.
Do not operate the unit with wet hands.
Do not pull on the power cord.
CAUTION! Avoid Injury or damage to the unit or other property.
Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups.
Do not climb on or place objects on the unit.
Do not hang objects off the unit.
Do not place containers with liquids on the unit.
Turn off the unit at the power source when it will not be used for an extended period of time.
Operate the unit with air filter in place.
Do not block or cover the intake grille, discharge area and outlet ports.
Ensure that any electrical/electronic equipment is 30 cm away from the unit.
DISPOSAL
This symbol on the product or on its packaging indicates that the product may not be treated as household waste.
To recycle your product, please take it to an official collection point or to an Electrolux service center that
can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.
ENGLISH
Thank you for choosing the Electrolux air purifier PURE A9-40/PURE A9-60.
Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.
BEFORE STARTING
- Read this manual carefully.
- Check that all parts described are included.
- Pay special attention to the safety precautions!
Picture pages 8-9
BEFORE FIRST USE
Place the product according to the instructions below for optimal operation and results:
1 Operate the air cleaner in an enclosed area. Close all doors, windows, and other openings connecting to the outside of the room.
2 Place the air cleaner in a location that does not restrict the airflow through the top of the appliance.
3 The appliance must be placed on a leveled floor that can support it.
4 There should be a minimum of 30~cm of clearance around the appliance.
Remove the plastic protective bag from the multi-layer filter:
Pull the Fabric handle outward to remove the air intake door.
6 Take out the multi-layer filter pulling it out by the handle.
7 Remove the plastic protective bag from the multi-layer filter.
8 Reinstall the multi-layer filter into the appliance.
OPERATION INSTRUCTIONS
TO TURN ON THE APPLIANCE
Plug in the appliance and tap (touch and release) the " ⑥ " button to turn it on.
NOTE: It will take about 10 seconds for the sensor to analyze the air quality, during this time the Loading LED and the Air quality light will pulsate slowly in white. Each time the appliance is turned on the SMART mode is activated automatically and the fan runs in low speed until the air quality
analysis is complete.
SMART MODE
10 In this mode, the appliance will choose the fan speed automatically, based on the air quality level. This is the default mode each time the appliance is turned on.
NOTE: In "SMART" mode the fan speed cannot be changed manually.
About the Air quality light
11 The appliance has an air quality sensor that analyzes the air quality.
The air quality light will show the real-time air quality through different colors of light. As shown below:
| LIGHT'S COLOR | PM 2.5 (μg/m3) AIR QUALITY |
| Green | 0-12 Very Good |
| Yellow | 13-35 Good |
| Orange | 36-55 Poor |
| Red | 56-150 Very Poor |
| Purple | 151-250 Bad |
| Maroon | >250 Very Bad |
NOTE: It will take about 10 seconds for the sensor to analyze the air quality each time the appliance is turned on. During this time, the air quality light will pulsate slowly in white.
Very high humidity conditions in the room might produce condensation in the sensors. This could affect the accuracy of the sensor readings.
MANUAL MODE
12 Tap the "MODE" button to switch the appliance to "MANUAL" mode. In this mode, the fan speed can be changed manually by touching the Fan speed slider.
NOTE: The fan speed will change gradually after a new fan speed is selected.
WIFI FUNCTION
This appliance is equipped with a WiFi module, which enables remote control and access to the full functionality of the system via our smartphone app. Download our Wellbeing App and follow the instructions for how to connect it with your appliance. When the connection is stabilized, the WiFi indicator will light up.
CHILD LOCK FUNCTION
14 The Child lock can be activated and deactivated by long pressing the On/Off and the Mode button simultaneously for 4 seconds. When the Child lock is activated, the control panel of the appliance cannot be interacted with and the Child lock indicator light up.
FILTER CHANGE INDICATOR
15 The filter change indicator will light up to remind you to change the filter. Refer to the instructions in the Wellbeing App or the Electrolux website on where to purchase replacement filters. Ensure the plastic protective bag is removed from the replacement filter before use. After the filter is replaced, the filter change indicator will turn off automatically.
NOTE:The multi-layer filter cannot be washed, it can only be replaced.
IONIZER FUNCTION
The ionizer function can only be activated and deactivated by using the Wellbeing App (smartphone application). When this function is activated, the ionizer indicator lights up and the appliance generates ions to improve the unit's performance and with it the room's air quality.
CARE AND CLEANING
Unplug the appliance before cleaning to prevent shock or fire hazards.
17 The plastic parts of the appliance may be cleaned with an oil-free dry cloth or by using a vacuum cleaner with a soft brush.
18 The fabric on the appliance cannot be removed. Clean the fabric by using an oil-free dry cloth or a vacuum cleaner with a soft brush.
19 Dust accumulated in the Air quality sensor can result in incorrect sensor readings and affect performance. Use a vacuum cleaner with a soft brush to remove any dust that might accumulate in this area. Vacuum at least monthly.
20 Never use abrasive, harsh cleaners or wax when cleaning the unit.
21 NOTE:The multi-layer filter can not be washed, it can only be replaced.
CAUTION! Do not touch the fan blade when removing the multi-layer filter.
Storage
22 If you are not planning to use the appliance for a long time, cover it with plastic or return it to its carton.
Enjoy a great cleaning experience with your Electrolux air purifier PURE A9-40/PURE A9-60!
Electrolux reserves the right to change products, information and specifications without notice.
TROUBLESHOOTING
| PROBLEM | SOLUTION |
| The air purifier does not operate. | ·Check if the power plug is disconnected. Push the power plug firmly into the electrical outlet. ·Check if the house fuse is blown or the circuit breaker tripped. Replace the fuse with a time delay type or reset the circuit breaker. |
| The fan does not operate. | ·Ensure that the air intake door (image 8) is closed properly, and the filter is installed correctly, then retry using the purifier. |
| The air quality does not improve. | ·Check if the windows or doors are opened. Close all doors, windows and other openings connecting to the outside of the room. |
| The appliance is very loud. | ·Ensure that there are no obstacles near the appliance and that it has a minimum of 30 cm of clearance around it for optimal operation. |
| The fan speed does not change after selecting a new fan speed. | ·The fan speed will decrease or increase gradually, this is normal. If it does not change after a prolonged period of time after the input then please reach out to an Electrolux authorized servicer for support. |
| The appliance produces a strange smell. | ·The first time you use the purifier, you might perceive a plastic or paint smell. This is normal, but it should disappear quickly. If the smell persist or if you sense a burning smell, please disconnect the purifier and reach out to an Electrolux authorized servicer for support. |
| The app does not operate properly or it is not possible to onboard the appliance on the app. | ·Please reach out to an Electrolux authorized servicer for support on the topic. |
| The Loading LED flashes quickly during operation. | ·If this problem occurs the unit is not working normally. Unplug the unit from the electrical outlet and plug it again after 30 seconds. If the problem remains please reach out to an Electrolux authorized servicer for support. |
| For any further problems, contact an authorized Electrolux service centre. | |
The software in the air purifier is partly based on free and open source software. To see the full copyright information and applicable license terms, please visit: www.electrolux.com/appliance-supplementary
BEZPECNOSTNI INFORMACE
www.electrolux.com/appliance-supplementary
SIKKERHEDSINFORMATION
www.electrolux.com/appliance-supplementary
TURVALLISUUSTIEDOT
www.electrolux.com/appliance-supplementary
INFORMATION SECURITE
He npikacaiTecb K Ionoactn BeHTnIaTopa npu n3BneueHn HnIbTpa.
Be3onacHOCTb dTei n liu c orpaHnueHHbIMN BO3MOXHOCTaMn
IPEyPExKDeHNE! CyueCTByeT pNCK ydyb, NOyuHnRA TpaBM nIN CToiKnx HapuHn Tpyoocno6HOCTn.
3TOT np60p MoKeT 3KcNpyaTnpoBaTbCra DeTbMn BO3paCTOM OT 8 let n IuCaMn C OrpaHnueHHbIMN fI3nueCKmN, CeHCOPHbIMN nIy UMCTBeHHbIMN cNoOC6HOCTaMn IN C HeIOCTaTOUHbIM ONbITOM nIIN 3HaHnA M N TOlbKO NOJ pncmOTpom Iuca, OTBeuaOSeRo 3a INx 6e3ONaChOCTb, INI NOcIe NOlyeHnA COOTBeTCTByIOux INHCTpykCn, PO3BOJIAOUsNX IM 6e3ONaCHO 3KcNpyaTnpoBaTb 3JIeKTPoPnP6Op IN DaIOUsNX IM PpeCTaBLeHne O6 ONaCHOCTN, CBa3aHHoN C eRO 3KcNpyaTaCuNei.
He no3B0JTe deTm nIgpaTb c np6Opom.
OuInCTka IIOCTyINHoe NOIb3OBaTeJIIO TexHnueCKoe O6cnyJXnBaHne He DOJXHbI npOn3BOAnTbCra DeTbMn 6e3 npNCMOtpa.
IeTAM Mnaadwe 3 neT 3aPpeuaaetcHaxoNTbcra prdOM c np6opom,ecnToNbko 3a np6opom He oBeCneuBaetc nOCToHHbI HaD3Op B3pocblx.
ДерхиTe BCE ynaKOBOчье MaTePnAbl BHe DoCraeMoCTn DeTei.
IHHΦopMaζηo paδnOcBzN:
Pa6oay yactota n MaKcImMaJIbHaB BbIXOHaH MoUHocTb WIFl: 2,4 Tt, 15 dBm
Pa6oay yactota n MaKcImaJIbHaB bIXOHaH MaOIOHCTb RFID: 13,56 MΓu, -56,13 d5M
Hhopmaun 063neKtpnuecko qactn
PNEyPEXKDEHNE!N36eraaTe ONaCHOCTe BO3ROPaHn I NopaxHeHr 3JIeKTPnueCKM TOKOM.
Ecnn BbHe yBpeHbBTOM,TO po3eTka DoJHKbIM o6pa30M 3a3emnHa IINI 3auuueHa C NMOOuIIO PnaBKO TpeoXpAHNTeJI C 3aepKkO cp6aTaBbAHnI INN ABtOMaUcECKOr BbIKIOuATEJI, Nopipocnte KbaIInuPObaHHORO 3NeKTpNkA yCTaHOBtB NaIekAuyIO PO3ETky B COOTBeTCTBmC HopMaMn IpoeKtnpoBaHnI, yCTaHOBKn I EKcPiYataun INeKTpuYeCKOr O6OpyDobAHn CIJA, a TaKKe IprimeHmblIM MeCTbIMn HOPMaMn I 3aKOHAMN.
He nCnoJIb3yIte yDIIHnHTeJIbHbIe IHypbl NpexpOdNkN. HIKoRJa He TAHnTe 3a WHyp NTaTHn, YTO6bl OTcoEINHTb ycTpoIcBO.Bcerda HaJeXHO depJXITecb 3a BNky N BbITACKBaIte ee nepneHnKUyIpaHPO po3Etke.
He nepeximmaTe, He nepen6aIte n He cBa3bBaIte y3nom HHyp nHTAHy.
He nepepe3aIte n He nobpekdaIte shypr nHTAHn. Ecnn hyp nITAHnIOBpeKDeH, erO donxKeH 3ameHrTb TOLbKO oOuuaNBbHc cepBnCHbI cHTp Electrolux. DaHHO yCTpoiCTBO He coepKNT deTaneJ, KOtOpbl MOrYt O6CnyKuBaTbCnNb3oBaTelem camocToTbHo. IJI npOBeDEHn peMOHTa BcerDa o6paauTecb B oOuuaNBbHc cepBnCHbI cHTp Electrolux.
B cnyae nobpejdeHn shhpya nntahnBO n36eKaHne HecyactHO r cnyay OH doJxeh 6bIb 3ameHeH n3rTOBNTeEm, CneuAnCTOM aTOpN3oBAHHoro cepBcHOrO ueHTpa JIN CneuAnCTOM CpabHo3HaHOn KBaJIncKaUne.
Bo n36ekaHne onacnocte npaKeHnna 3neKtpnuyeckm TOKOM n Bo3ropaHnna neped NaJom npoBeHnO uocTKn BcerDa oTKNoayTe yCTpoCTBO OT cETN.
Ppabunatexn6e0nacno
OCTOPOXHO!N36eraTce cepBe3HbIX TpaBMn rN6eIN.
He BCTaBnIe Hne NOMEuaTe NaIbUcI IN PpeDMtB I 3OHy BblNyCa BO3dyxa IN PeepHIOU peWTEKy yCTpOInCTBa.
He BkIIOuayTe Hn He BbIKIOUaTe yCTpOcTBO NyTEM OTKIIIOUeHn
Hypa NITAHN O T cETn INI NyTEM BbIKIOUeHn NITAHN Ha
3JIeKTPnueCKOM ⅢNTke.
PnB03HKnHOBeHH HEnCnpaBHOCTe (NCKpeHna, 3anaxe
rapn n T. d.) He3ameDInTeNbHO OCTAHOBnTe pa6Oty np6Opa,
OTKnIOHTe WHyp NITaHnO t CeTN n O6paTnTeCb B OΦuNaIbHbI
cepBnCHbl ueTp Electrolux.
Pn INcNoJIb3OBaHmN yCTpoINCTBa He KacaiTecb eRO MOKpbIMN pyKaMn.
He TaHnTe 3a UHyp nHTaHn.
OCTOPOXHO!I36aTeNoJyHeHnTpaBmNIOBpeKeHn yCTpoIcTBaIIINHOrOIMyIeCTBa.
He HappaBnIte NOTOK BO3dyXHa KaMnHbI INpyrne NCTOCHNKe Tennla, NOCKoBky 3TO MOKeT pINBecT K BO3rOpaHIO.
He 3aIe3aIte Ha yctpoIcTBO n He KlaITe Ha Hrero npedMeTbI.
He BeuainaTe Ha yctpoiCTBO HnkaKne npedMeTbl.
He cTaBbTe Ha yCTpoIcTBo EMKoCTu C XJNkoCTaMn.
OTKIOUaTe yCTpoCTBO OT NCTOCHNka NITaHn, KOrJa np6op He
IpeINoRaTaTcNIOJb3OBAb TB TeueHHe DInTEbHO BPeMeHn.
3KcnNpyaTpyTe yCTpoCTBO C yCTaHOBNeHHbIM BO3dYuHbIM
ΦIbTpom.
He 6Ioknyte n He 3akpbBaIte peWetky Bo3dyxo3a6OpHnKa, 3OHy BbInycka N BbInyckHbIe OTBepCTna.
CneIte 3a Tem, yTo6bI IIO6oe 3JIeKTPnueckoe/3JIeKTPoHHO
obOpyOboHaHHe HaxOuInocb Ha paCCTo8HN He MeHee 30 cm
OT yCTpoiCTBa.
YTNIN3ALIN
JaHHbI CnBON Ha n3dennnn ene rO yNaKOBKe yKa3blBaET, YTO n3dEInne HeJb3aYTNIN3NpObaTb KaK O6blHbIe 6bITOBble OTXoDbI.
IyBtOpuHoi nepepa6OtKn u3dennn npocm OTheTn erO B oHuaNbHbN pyHK T c6opa nn B cepBnchbl qentp Electrolux,
rIe 6aTapei n3JIeKTPnueCKe KOMIOHeHTb6yUT N3BLeYeHbI
npepea6oTaHbI 6eOanachbIM n IpooeCCNOHaBbHM O6pa3OM.
CneyuTe npabuJaM, yctahOBHeHbIM B BaWe cTpaHe dIra
pa3dEInbHorO c6opa 3JIeKTPponp6OpOBn aKKymJITopHbIX
6aTapei.
PYCCKNI
Блардамза Вьбор ВОДухоочтпетя KMпанн Electrolux PURE A9-40/PURE A9-60.
IINONYUeHnHaUNyUHXpe3yJIbTaOB BcERda INCNOB3yIte HInPMeHHbIe BCNOMoRATeNbHbIe PnPCnocO6NeHn I 3aNaChBle DeTaN.3To n3dennpepa6oTaHO C yueTOM EKONOrnuecknx Tpe6oBaHN. BCE nlaactMaCCOBBe dEtaJIMMeIOT o603haueHn C cJeBIOX NocneDyUOeYtJIN3aCNI.
IPEEDIIEPBbIMNCIOJIb3OBAHNEM
-BHIMaTeIbHO npOuHTaJTe daHHoe pyKOBoCTBO.
-86eHNTecb HAnuNnBcex OnncaHbIX DeTaeJe.
- Ydeneite ocoboe BHMmaHne Mepam npedocTopoxKHOCTI!
Unnoctpaun,ctp.8-9
NEPEI INPBBIM NcNOJIb3OBAHnEM
IЯ obecneueHn ONTmAlbHoN pa60tBu 3dennn H nOlyeHn HauLyuXnx pe3yNbTaTOB pacNoIarAte YcTPOIcTBBO CootBetCTBnC PnBBeHbIMn HnKe IHCTpyKUmaMn:
1 Ncnojb3yIte OUHCTnTeB BO3dyxa B 3aKpbItbIX NOMEeHNrX. 3akpoTBe BCE DBepN, OKHa I npOuHe OTBepCTnA, Ype3 KOToPbIe B NOMEeHHe MoKeT NoCTynaTb BO3dyx.
2 PacnonaraiTe ONUCTIeNB Bo3dyxa B TaKOM MeTe, rKe 6yJeT o6ecneuBaTBc8 BeCnpenTCTBHeHHe npoxoJHHe nToKa BO3dyxa Upe3 BepxHIOU YacTb npi6opa.
3 Pn60p Heo6xoJMo pacnoJaraTb Ha poBHOM nOly, cnoc6HOM BbIepKaTaB Bec np6opa.
4 3a3op BOKpyr np60pa JOnJKeH coCTaBnTb He MeHee 30 cm.
CHMNTe NOnN3TNHeOBb3aunTHbI naKeT C MHOROCNoHOrO 0nIbTpA:
5 NotaHnTe pyKoTky C tKaHeBcO6NbKO HApKy, yTo6bl CHaTb DBepuy Bo3dyXo3a6OpHnka.
6 N3BLeKeNTe MHOrocNoHbIyΦnJIbTp,NOTaHyB eTo 3a pyKoTky.
7 CHIMMTE NOIN3TNIEHOBbI 3aUNTHbI NaKeT C MHOROCNIOHOro fNbTpA.
8 Choba yctahOBITE MHOROcIOHbIy fNJIbTp B npn6Op.
MHCTPYKUNIPOKCNJYATAUIM
BKJIOUCHNEIPIUBOPA
9 PoiKJIIOUHTe npIbOp K CeTn HaXMMTe (KoCHNTecb n OTNcyTne) KHONKy ,YTO6bl BKIOUHTb yCTPOIcTB.
PIMMEAHNE. B TeueHne npimepHo 10 ckyH daTnK 6ydt aHaIIN3NPOBaT KaueCTBO Bo3dyxa. PnE TOM CBeTOIOHObI INDkaTOp 3aRpy3KN INDkaTOp KaueCTBa BO3dyxa 6ydt MeJeHHO MIRaTb 6JIbIM CBeTOM. Pn KaJdOM BkIIOUeHIn npnbopa aBtOMaTNeCKn aKTUBnpyeTcN INTEJIKETKyAJIbHbI peKm, N BeHTNJrTOp pa6oTaET Ha Hn3KoI CKOpocTn Do Tex nop, Noka He 6ydt 3abepweH aHaIIIN3 KaueCTBa BO3dyxa.
IHTENJIeKTEyAJIbHbIPEKIM
10 B daHHOM pexKIMe npn6op 6yTeBb6npaTb ckOpocTb BEHTNlAToPA aBTOMaTHueCKn Ha OCHOBAHn yPOBH KaueCTBa BO3dyxa.3To pexKIM, KOToPbI DeiCTByeT NO yMOUHaHIO npn KaJDOM BKJIouHeHN npn6opa.
IPMMEUAHNE.BSMART(《INTENKEKTYAJbHOM）peXnmeCKOpOCTBeHTINATopaHeMOKeT6bTbI3MeHeHaBpyHyIO.
06 mHmkaTope kaueCTBa Bo3dyxa
11 Pnp6Op NmeeT DaTuNK KaueCTBa BO3Dyxa, KOtOpbl aHaHn3NpyTe KaueCTBO BO3Dyxa.
HnIkaTOpKaueCTBaBO3yxa6ydtNOKa3bIBaTB KaueCTBO BO3yxaBpeJbHomBpeMeHN C NOMOuBpo pa3NJUHbIX UBeTOB HnIkaCnn. KAc NOKa3aHO Hxke:
21 PIMMEAHHE. MHorocnoHbI HnBtp Heh3r IpomBaTb, ero MoXHO ToJIbKO 3aMeHArTb. OCTOPOXHO! He npKacaiTeCb K nonactn BeHTnIaTopa npu n3BJeHnn MHOrocNoHOro fNbTpA.
XpaHneHne
22 EcnBHe nHaHpyeTe nCnOb3oBaTb np6Op B TeueHne DnITenbHO BpeMeHN, 3aKpbBaIe erO pHeKoN BO3BpaauTe B Kopo6ky.
HacnaaTaeTcB npeBOcxOAnOH uNCTOToC CBOUM BO3dyxoouNCTnTeJem KOMNaHn Electrolux PURE A9-40/ PURE A9-60!
KomnaHnEletrolux octabTet 3a c6oB npabo N3MeHrB n3dnn, uHfOpMaunu nTexHnueckne xapaKtepuCTNk 6e3 yBeDomnene.
NONCK N YCTPAHEHNE HENCPABHOCTEIN
| HEUNCIPABHOCTh | PEUHEHIE |
| Воздунхоочистеловаьпь работает. | ·Проберъг, He отосоединец ль вилк ритань. ПлOTно Вставыт БИлку пітань В заектуческю розтук. ·Проберъг, He nepergeropel ль домашн рideххалгь и He akTиврован ль АВТOMATУСЕСКУВыклUCYATEь.Заменше плавКУ рideххалгь рideххалгь С заederжков срабатывпь Иль ВОЗВРАТЕ АВТOMATУСЕСКУВыКЛUCYATEь в ICXODHoe паложени. |
| He pa6obtaet вентелятор. | ·УбeДиТeСь,ЧTo Девца ВОзduxoxazabopнИka (pnc.8) ДолЖнБIM образим 3akpbitya, a Фильтpr уstановлиправиьно. 3atem поВТOPипппуп StPуКТуSCOBANHЯ OчИСТИТЕ. |
| КачесТВо ВOSTdУХа He унчшaETСя. | ·Проберъг, He оторьть lь okha Иль DBepn. 3akpoйтse СБдери, OKHA n npocne OTberpctna, чepes KOTOPbIe B NOMeuzehme MOKET NOCTyNaT B OZdux. |
| Прибор сильношуmit. | ·УбeДиТeСь,ЧTo радOM C uSTPOДСВОнnetнИКANKIX PpeяntCTBn, a 3azop BOKpyr Hero dlya обеспechения onТIMмальНою pa6obtBu coSTabJЯт He MeHee 30 cm. |
| Посlete Вьбора Новий скорости ВentUILATopa cskopocstь ВentUILATopa He n3MeHЯETCS. | ·Скорoctь вентелятopa byset Umteьшатьс ль увелчinasься рocstelenho, зTO HopmaЛьно. Есln skorocьг He n3MeHITCS NO IcTechENl PpOДOLKINТeHORo nepnoDA BpeMeHIn NOcNe Вьбора Новий скорostи, образиТeСь 3a NOMOuBbВ OфицalNBHy cepBvCHNу ceHTP Electrolux. |
| Оп пбора Incxodit STpaHнь Зanax. | ·При пerbom IncPONLZOBaHIM OuchTITeRЯ Bbl MoKTe PocYBCTBOBaTb 3aPax ПлactMaccBs lIL Кpackи.ЭТоHopmaЛьнояянEунeHne, Ho 3anax Должeн 6bICTpO pCye3Hny.Есln 3anax coxpaHNTca Илп eclin Bbl NaCyBCTBye TzAnax rapi, OKKIOUChte OuchTITeBи OБразиТeСь 3a NOMOuBb В офицalNBHy cepBvCHNу ceHTP Electrolux. |
| Приложение не pa6obtaet ДолжнБIM obpa3OM lll НебоЗМожно установпь CBЯь с пбором в п�LOжени. | ·ОБразиТeСь 3a NOMOuBb V reшени пбОБlamыВ офицalNBHy cepBvCHNу ceHTP Electrolux. |
| Светонодный Иndикатор Загузки nbс�р мигаet BO Вremя pa6obTu. | ·Есln Bo3HnKaET daHnayПроблema, ЭTO O3HauaeT, ChTo yCtpoIcTBо He pa6obTaETdoJIKHbIM obpa3OM. OTKIQUHITe YcTPOIcTBо OTeKTPuCECKO pO3eTKIи ChOBA noDkLIOUHTe erg uepe3 30 seKUnD.Есln пбОБlamа coxpaHNTcR, образиТeСь 3a NOMOuBbВ OфицalNBHy cepBvCHNу centP Electrolux. |
| При вознknовени Лобьх друг nx Heyonoадok к obpaasai TeCbвснь с capгп electrolux. | |
www.electrolux.com/appliance-supplementary
VARNOSTNA NAVODILA
www.electrolux.com/appliance-supplementary
