CORONA X 120 - Range hood CATA - Free user manual and instructions

Product type	Kitchen hood
Brand	CATA
Model	CORONA X 120
Width	120 cm
Power supply	220-240 V, 50 Hz
Number of speeds	5 + Boost (P)
Boost function	Full power for 5 minutes max
Timer	15-minute program with gradual reduction
Lighting	LED, adjustable intensity (L1 to L5), adjustable color temperature (cool/warm)
Extraction mode	Extraction or recirculation (adjustable)
Filters	Metallic grease filters and activated carbon filters (optional)
Filter cleaning alert	Yes, timer icon flashes red
Renova Air function	Automatic operation 10 min/h
Renova Turbo function	Automatic cleaning cycle
Connectivity	Compatible with connected cooktop
Remote control	Included (already paired)

Frequently Asked Questions - CORONA X 120 CATA

How to set extraction or recirculation mode?

Hood off, press ↑ and ↓ simultaneously to enter setting mode. Press the timer icon (which appears in red). The LED display shows the current mode. Use ↑ or ↓ to choose '--' (extraction) or '-' (recirculation), then press the timer icon to confirm.

How to adjust lighting color temperature?

In setting mode, press the lighting icon (which appears in red). The display shows the current mode: '_' for cool light (default) or '3' for warm light. Use ↑ or ↓ to select, then press the lighting icon to confirm.

How to use the timer?

Fan on, press the timer icon. It flashes red and the display shows the current speed. The fan maintains that speed for 5 min, then decreases by one speed every 2 min until speed 1, then turns off (as well as the lighting). To cancel, press the icon again.

How to clean the filters?

The metallic grease filters can be cleaned in the dishwasher or by hand with detergent. The carbon filters (if used) must be replaced or cleaned according to their type. After cleaning, reset the alert by pressing the timer icon when the hood is off.

What to do if the hood does not work?

Check the power supply (fuses, circuit breaker). If the lighting works but the motor does not, the blade may be blocked or the motor damaged. Contact technical service if necessary.

How to connect the hood to a cooktop?

In setting mode, press the timer and lighting icons simultaneously. The display flashes 'A' while waiting for the cooktop signal. As soon as the signal is received, the display shows a steady 'A'. The cooktop is connected.

How to activate the Renova Air function?

Hood off, press the timer icon. An 'H' flashes. The hood operates for 10 min every hour in standby mode. To deactivate, press the timer icon again while the function is active.

How to activate the Renova Turbo function?

Hood off, press the timer and speed increase (↑) icons simultaneously for 3 seconds. The display shows a steady 'é' then flashes. The hood follows an automatic cycle (5 min at max speed, then 3 min at each speed from 5 to 1) then stops. To exit, press the timer icon.

What does the timer icon flashing red when the hood is off mean?

It is a filter cleaning alert. If the display shows '--', the grease filters need cleaning. If the display shows '-', the carbon filters need cleaning or replacement. After maintenance, press the timer icon to reset.

How to change the fan speed?

Press ↓ to start at speed 1 or reduce speed. Press ↑ to increase speed or activate Boost (P) by holding for more than 2 seconds. Boost lasts 5 min then returns to speed 5.

USER MANUAL CORONA X 120 CATA

EN IMPORTANT - Please read carefully the separate safety guide before use.

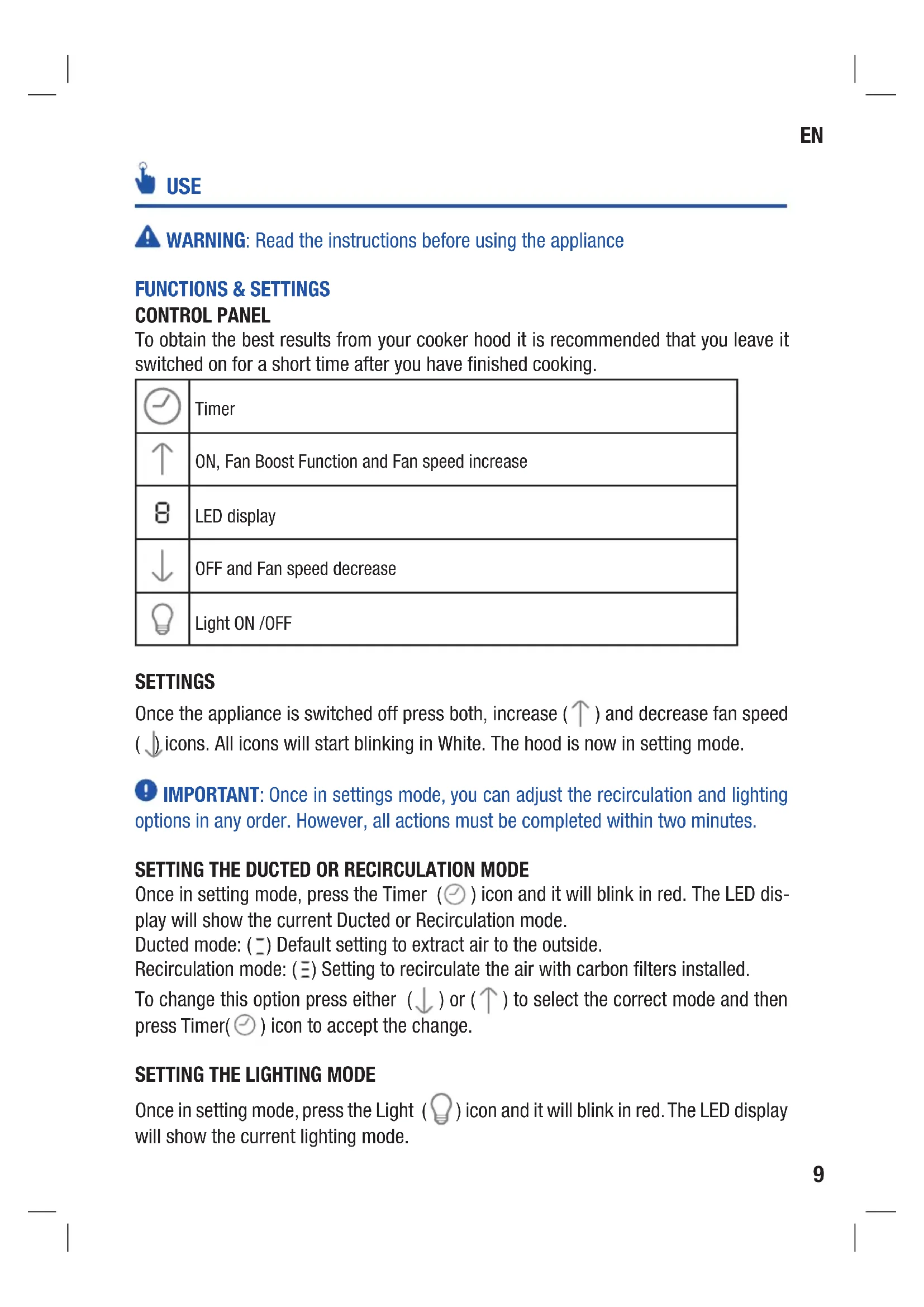

WARNING: Read the instructions before using the appliance

FUNCTIONS & SETTINGS

CONTROL PANEL

To obtain the best results from your cooker hood it is recommended that you leave it switched on for a short time after you have finished cooking.

	Timer
↑	ON, Fan Boost Function and Fan speed increase
8	LED display
↓	OFF and Fan speed decrease
	Light ON /OFF

SETTINGS

Once the appliance is switched off press both, increase (↑) and decrease fan speed (↓) icons. All icons will start blinking in White. The hood is now in setting mode.

IMPORTANT: Once in settings mode, you can adjust the recirculation and lighting

options in any order. However, all actions must be completed within two minutes.

SETTING THE DUCTED OR RECIRCULATION MODE

Once in setting mode, press the Timer ( ) icon and it will blink in red. The LED display will show the current Ducted or Recirculation mode.

Ducted mode: () Default setting to extract air to the outside.

Recirculation mode: (3) Setting to recirculate the air with carbon filters installed.

To change this option press either () or () to select the correct mode and then press Timer( ) icon to accept the change.

SETTING THE LIGHTING MODE

Once in setting mode, press the Light ( ) icon and it will blink in red. The LED display will show the current lighting mode.

EN

Cool light: ( ) Default setting for all lights.

Warm light: (E) Optional setting for all lights.

To change these settings press () or () and press the Light (icon to accept the change.

SETTING CONNECTIVITY MODE

Once in setting mode, press both, the Timer ( ) and the Light ( ) icons. The led display will show (A) blinking waiting hob's signal. Once it receives it, the led display will show (A) fixed.

Note: If the hood controls are manually overridden when the hob and hood are linked, the hood will operate for 5 minutes on this manual setting before returning to control by de hob.

Note: The remote control supplied will already be paired to your ceiling hood.

GENERAL USE

ON/OFF AND INCREASE/DECREASE THE FAN SPEED

Press the decrease fan speed ( icon and the fan will turn on at speed 1.

Press the increase fan speed icon (↑) and the fan will turn on at maximum speed (Booster)

If the fan motor is set at speeds 2,3,4, 5 or P, pressing the Fan Decrease ( ) Icon will reduce the speed by one level at a time. If you press the Fan Decrease ( ) Icon for more than three seconds, the fan will turn down. However, the backlight will remain on 8 if enabled).

If the fan motor is set at speed 1, pressing the Fan Decrease ( ) icon the motor will switch off. However, the downlight will remain on (if enabled) and the display will show the current brightness level.

Boost Function

If the fan motor is set at speeds 1,2,3,4 or 5, pressing the Fan Increase (↑) Icon will increase the speed by one at a time. If you press the Fan Increase (↑) Icon for more than two seconds, the speed will increase to full power from any level and the display will flash "P"

NOTA: Full power or Boost (P) only operates for five minutes maximum to conserve energy and the fan speed will automatically drop to speed level 5 after this time.

Light On/Off (

Touch the Light ( ) Icon to turn on the backlight.

To change the brightness of the backlight, touch and hold the Light ( ) Icon until the display show the brightness sequence. Remove your finger from the Light ( ) Icon when the desired brightness is achieved. The sequence runs from L1 to L5 and back to L1 in steps. The selected brightness will flash for a few seconds and revert to the fan speed display. This lighting setting will be kept for future uses.

Setting the timer (

• When the fan motor is on and the Timer ( ), icon is pressed the icon will turn in red and the display will show the current fan speed.
• The chosen speed level will remain in use for five minutes before dropping down to the next lowest speed. This speed will remain in operation for two minutes before dropping down again. This will be repeated every two minutes unless the speed is already at level 1 and then the fan will turn off. If the light is already on, this will also be turned off.
• Pressing the Fan Decrease ( ) Icon or Fan Increase ( ↑ ) Icon during a current timer program will restart the countdown process again with the first five minutes cycle.
• If the Timer ( ) icon is pressed again during a current timer program, the cycle will be cancelled. The Timer ( ) Icon will revert to white and the current fan speed will remain on indefinitely.
• The maximum timer program cycle is 15 minutes: 5 minutes: 5 minutes on 0 and then 2 minutes each on speed 5 down to speed 1.

RENOVA AIR FUNCTION (This function is not available on all models)

Press the timer button ( ) with the hood switched off. A flashing H will appear. You will have activated Renova Air mode. The hood will operate automatically for 10 minutes every hour. In idle mode, a flashing icon will appear for 1 hour. With this mode activated, the hood can be used as normal. To exit this mode, press the timer button ( ) within the function.

RENOVA TURBO FUNCTION

With the hood switched off. Press and hold the timer and increase speed buttons ( ) at the same time for 3 seconds.

A permanent icon will appear on the display. You have activated the Renova Turbo function.

EN

The icon will start to flash from bottom to top while this function is activated. At this time, the hood will continue with the following sequence automatically:

• 5 minutes at MAX speed
• 3 minutes at 5th speed
• 3 minutes at 4th speed

This sequence will continue down to the first speed. Once the time has come to an end, the hood will stop.

To exit this mode before it ends, press the timer icon () .

During Renova mode, the hood can be used as normal by pressing the (↑) or (↓) icons.

The speed of the Renova function can be increased (↑) or (↓) decreased by pressing the or icons. The Renova

function will automatically continue with the sequence described above from the selected speed.

Filter cleaning warning

Once the cooker hood is off, if the Timer icon () blinks in red and LED display shows () , you should clean the filters. Once they are cleaned or replaced, press the Timer () icon again and the icon will turn off.

(Only in Recirculation mode). Once the cooker hood is off, if Timer (♀) icon blinks in red and the LED display shows “(Ξ)”, you should clean the carbon filters (in case you are using washable carbon filters) or replace them (in case you are using disposable carbon filters). Once they are cleaned or replaced, press the Timer (♂) icon again and the icon will turn off.

Problem Possible cause Solution
Excessive vibration. The appliance	be is not installed properly on the brackets.	Take down the appliance and check it is properly fixed.
	The fan blade is damaged. Switch off the appliance. Repair to be carried out by qualified service personnel only.
	The fan motor is not fixed tightly.
The light is on, but the fan does not work.	The fan blade is jammed.
	The motor is damaged.
Both the light and motor do not work.	Light bulb blown. Contact Customer Services on.
	Power connection loose. Check power supply.
Suction performance reduced.	Speed may be too low. Select a higher speed.
	Optional vent kit might be twisted. Ensure that the vent kit is fitted according to the manufacturer's instructions.
	Top vent might be obstructed. Clear any obstruction.
	The installation may not comply with the manufacturers instructions. The vent hose should be correct diameter throughout with no reductions or restriction. (See installation section).
Works normally but cooking smells linger.	Carbon filter is not fitted in recirculation mode or is full of grease. Fit carbon filter or replace the carbon filter (See Care and maintenance section).
The hood does not work. Check that the hood is connected to power. Check that the fuses or automatic have not jumped.
The hood still does not work	If, after having checked the points mentioned above, your problem has not yet been solved, contact the technical service or your distributor.
