USER MANUAL SORL1300F SCHOLTES

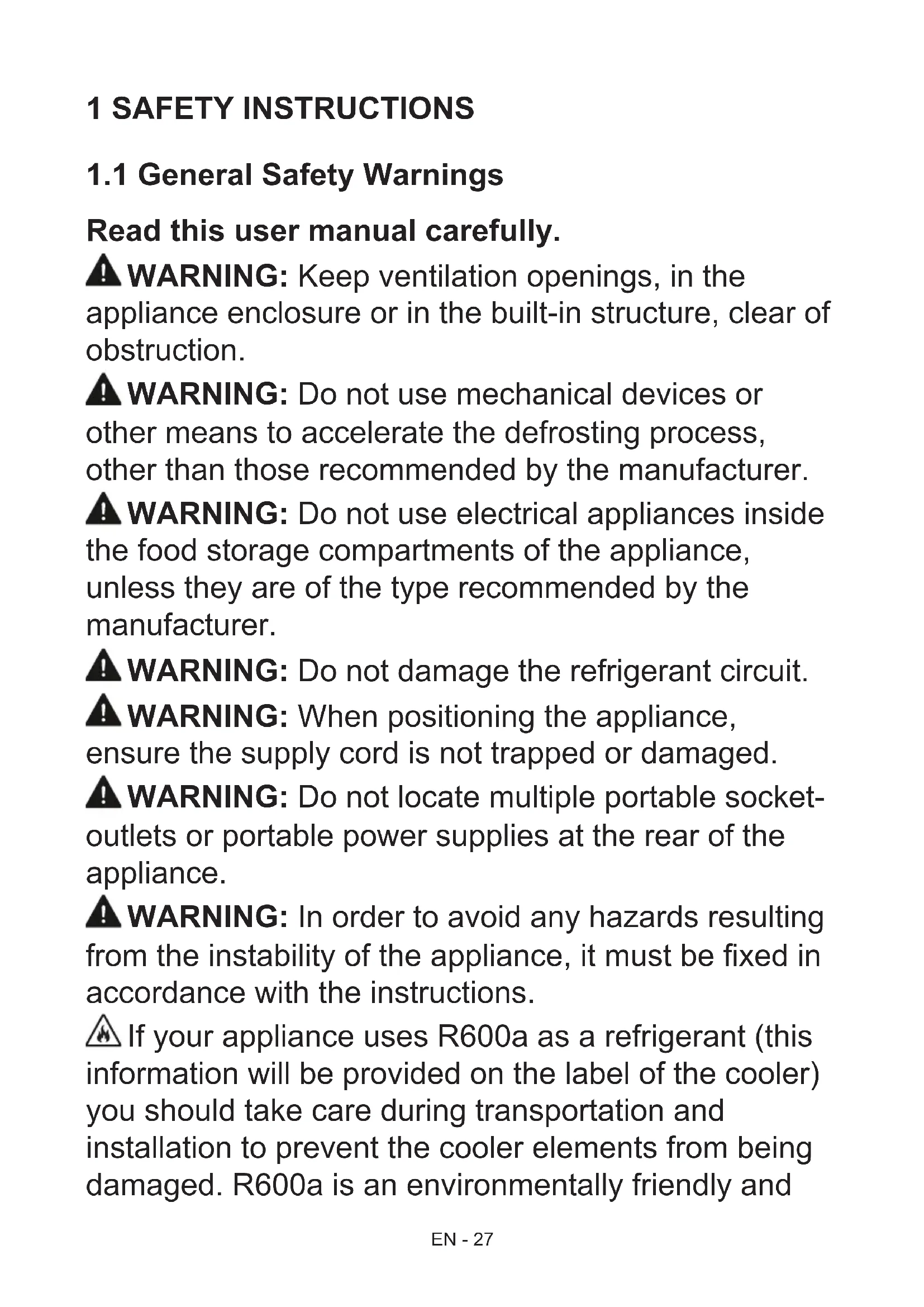

1.1 General Safety Warnings

Read this user manual carefully.

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-

outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting

from the instability of the appliance, it must be xed in accordance with the instructions. If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly andEN - 28 natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open ames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as: – staff kitchen areas in shops, ofces and other working environments. – farm houses and by clients in hotels, motels and other residential type environments. – bed and breakfast type environments; – catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.EN - 29

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualied persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.EN - 30 To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems

• Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.EN - 31

1.2 Installation warnings

Before using your fridge for the rst time, please pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge may have an odour when it is operated for the rst time. This is normal and the odour will fade when your fridge starts to cool.

• Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualied electrician.

• Insert the plug into a socket with an efcient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualied electrician for assistance.

• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge where it will not be exposed to direct sunlight.

• Your fridge must never be used outdoors or exposed to rain.

• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• If your fridge is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge with lace. This will affect the performance of your fridge.

• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.

• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge after cleaning.

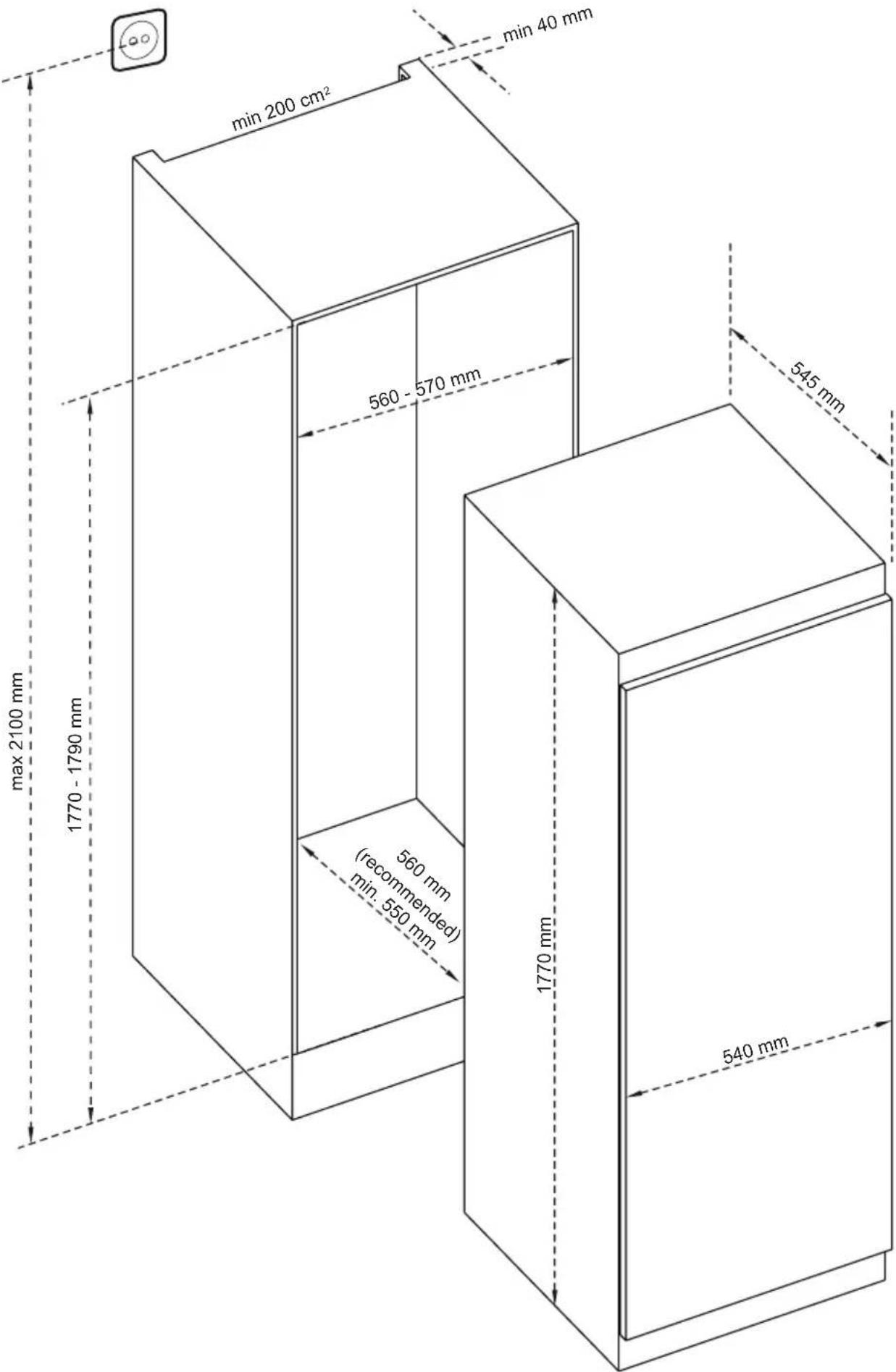

• The installation procedure into a kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

• Do not connect your fridge to the mains electricity supply using an extension lead.

• Do not use damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• Do not use plug adapter.

• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

• Do not place explosive or ammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed. Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.EN - 32 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old appliance The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce, your household waste disposal service or the shop where you purchased the product. Packaging and the Environment Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.EN - 33

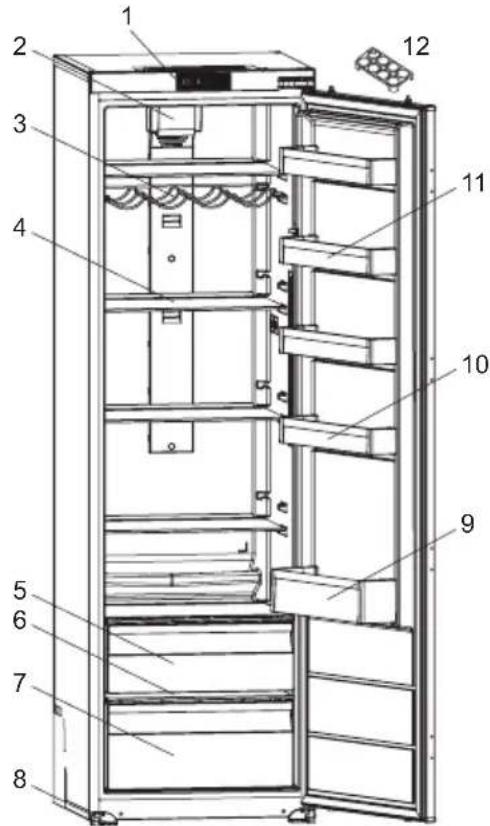

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

8) Left & Right stays

• In some models General notes: Fresh Food Compartment (Fridge): Most efcient use of energy is ensured in the conguration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.EN - 34

3 USING THE APPLIANCE

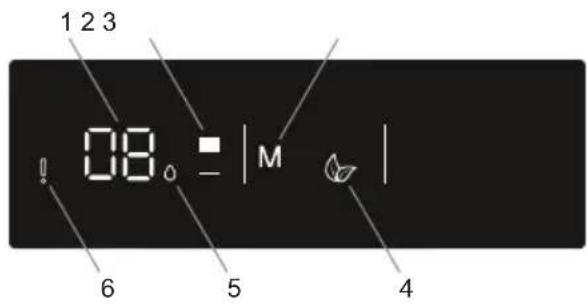

3.1 Display and Control Panel

Using the Control Panel

1. Fridge temperature setting

2. It enables the setting value of cooler to

be modied and super cool mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C, and super cool mode.

3. It enable the economy mode to be

activated if desired.

3.2 Operating your Fridge

If your product has lighting When the product is plugged in for the rst time, the interior lights may turn on 1 minute late due to opening tests.

• To cool and store a large quantity of food in the fridge compartment.

• To quickly cool drinks. How to use Press cooler set button (#2 on control panel diagram) until Super cool symbol (#5) will be seen on the screen. Buzzer will sound beep beep. Mode will be set. During This Mode:

• Economy mode can not be selected.

• Super cool mode can be cancelled by the same operation of selecting.

Purpose Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power. How to Use

• Push "MODE" button (#3 on control panel diagram) until eco symbol appears.

• If no button is pressed for 1 second. Mode will be set. Eco symbol (#4) will blink 3 times. When mode is set, buzzer will sound beep beep.

• Cooler temperature segments (#1) will show "E".

• Economy symbol and E will light till mode nishes. During this mode:

• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.

• Super cool mode can be selected. Economy mode is automatically cancelled and the selected mode is activated.

• To cancel, you will just need to press on mode button.

3.2.3 Screen Saver Mode

Purpose This mode saves energy by switching off all control panel lighting when the panel is left inactive.EN - 36 How to Use

• Screen saver mode will be activated automatically after 30 seconds.

• If you press any key while the lighting of the control panel is off, the current machine settings will reappear on the display to let you make any change you wish.

• If you do not cancel the screen saving mode or press any key for 30 seconds, control panel will remain off. To deactivate the screen saving mode,

• To cancel the screen saving mode, rst of all, you need to press any key to activate the keys and then press and hold the Mode button (#3 on control panel diagram) for 3 seconds.

• To active the screen saving mode, you need to press mode button simultaneously 3 seconds

• To reactivate screen saving mode, press and hold the Mode button (#3 on control panel diagram) for 3 seconds.

3.2.4 Cooler Temperature Settings

Initial temperature value for the cooler setting indicator is +4 °C.

• Press the cooler button once (#2 on control panel diagram).

• When you rst push this button, the last value will appear on the cooler setting indicator (#1).

• Whenever you press this button (#2 on control panel diagram), a lower temperature will be set. (+8 °C, +6 °C, +5 °C, +4 °C, +2 °C, and super cool)

• When you push the cooler set button until the super cool symbol (#5) appears, and if you do not push any button within 1 second, super cool will ash.

• If you continue to press the button (#2 on control panel diagram), it will restart from +8 °C.

• The temperature value selected before super cool mode or economy mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Recommended Temperature Values for Cooler When to adjust Inner Temperature (

For cooling the fridge at minimum capacity

In normal usage 4, 5, 6 For cooling the fridge at maximum capacity

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efciency.

• Do not start another adjustment before completing one adjustment.

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

• When you rst switch on the appliance, allow it to operate for 24 hours in order to reach normal operating temperature. During this time, do not open the door or place a lot of food inside the appliance.

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.EN - 37

• Your fridge is designed to operate within specic ambient temperature ranges, according to the climate class stated on the information label. We do not recommend operating your fridge outside the stated temperatures value limits.

• Your appliance is designed to operate in the ambient temperature (ST/SN = 10°C - 38°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness. Climate class and meaning: T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C. ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C. N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C. SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

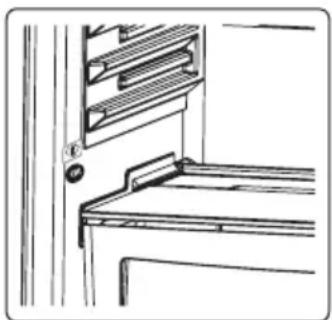

3.4 Temperature indicator

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area. To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly It may be difcult to see the indicator, make sure it is properly lit.Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the

temperature setting device progressively and wait at least 12 hours before starting a new check and potential change. NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again. Store food in the coldest area of the refrigerator. Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper. The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration. The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level. As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.EN - 38 The Turbo Fan Do not block the air inlet and outlet openings when storing food, otherwise air circulation provided by the turbo fan will be impaired. Turbo fan

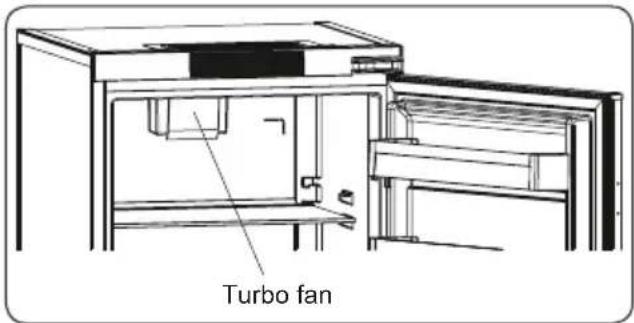

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

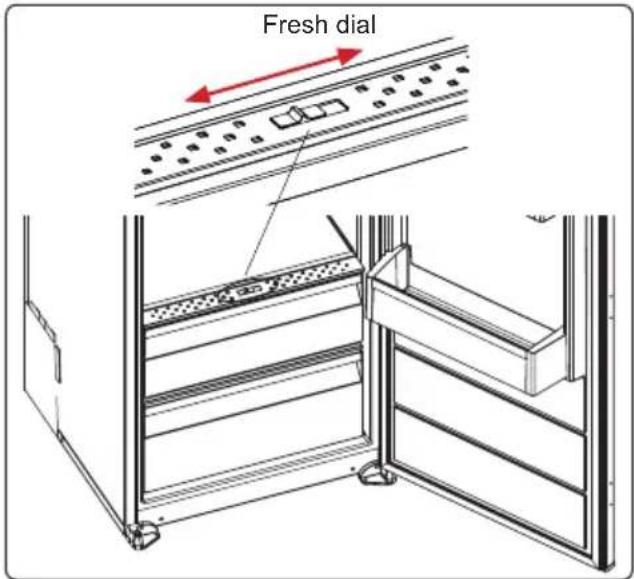

3.5.1 The Fresh Dial

Fresh dial If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within. The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

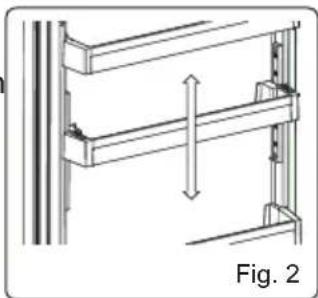

3.5.2 Adjustable Door Shelf

Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow. (Fig.1) Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is xed. Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails. Fig. 1 Fig. 2EN - 39 4 FOOD STORAGE

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.

• We recommend that meat and clean sh are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.

• Store loose fruit and vegetable items in the crisper containers.

• Store loose fruit and vegetables in the crisper.

• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene- releaser fruits (banana, peach, apricot, g etc.).

• Do not put wet vegetables into the refrigerator.

• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.

• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.

• Do not put food in front of the air ow passage.

• Consume packaged foods before the recommended expiry date. NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

• For normal working conditions, it will be sufcient to adjust the temperature setting of your refrigerator to +4 °C.

• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.

• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.

• Meat, sh, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)

• To prevent cross contamination, meat products and fruit vegetables are not stored together.

• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors. The table below is a quick guide to show you the most efcient way to store the major food groups in your refrigerator compartment. Food Maximum storage time How and where to store Vegetables and fruits 1 week Vegetable bin Meat and

Wrap in plastic foil, bags, or in a meat container and store on the glass shelf Fresh cheese

On the designated door shelf Butter and margarine 1 week On the designated door shelfEN - 40 Food Maximum storage time How and where to store Bottled products e.g. milk and yoghurt Until the expiry date recommended by the producer On the designated door shelf Eggs 1 month On the designated egg shelf Cooked food 2 days All shelves 5 CLEANING AND MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity. The power supply must be disconnected during cleaning.EN - 41

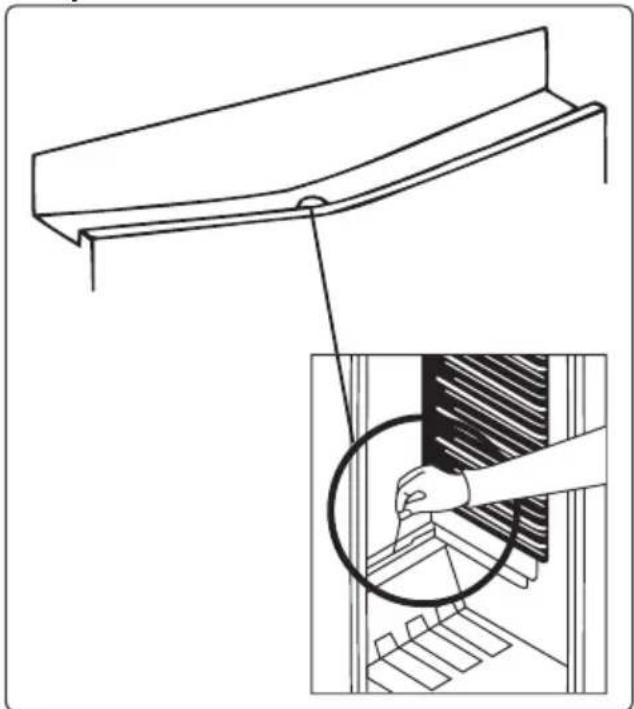

Defrosting the Refrigerator Compartment

• Defrosting occurs automatically in the refrigerator compartment during operation. The water is collected by the evaporation tray and evaporates automatically.

• The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of owing out.

• You can also clean the drain hole by pouring half a glass of water down it. Replacing LED Lighting Depending on the model, one or two LED strip in the cooler is used to illuminate the interior of your appliance. To replace any of the LEDs, please contact the nearest Authorised Service Centre. Note: The numbers and location of the LED strips may change according to the model. ! Some versions may not include cooler illumination. 6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing

• The original packaging and foam may be kept for re-transportation (optional).

• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.

• Remove all movable parts (shelves, accessories, vegetable bins, and so on) or x them into the appliance against shocks using bands when re-positioning or transporting. Always carry your appliance in the upright position.EN - 42

7 BEFORE CALLING AFTER-SALES SERVICE

Errors If you are experiencing problems with your refrigerator, please check the following before contacting the after-sales service. ERROR TYPE MEANING WHY WHAT TO DO E01 Sensor warning Call Service for assistance as soon as possible. E02 Sensor warning Call Service for assistance as soon as possible. E03 Sensor warning Call Service for assistance as soon as possible. E06 Sensor warning Call Service for assistance as soon as possible. E07 Sensor warning Call Service for assistance as soon as possible. E08 Low Voltage Warning Power supply to the device has dropped to below 170 V. - This is not a device failure, this error helps to prevent damages to the compressor. - The voltage needs to be increased back to required levels If this warning continues an authorised technician needs to be contacted. E10 Fridge compartment is not cold enough Likely to occur after: - Long term power failure. - Hot food has been left in the fridge.

1. Set the fridge temperature to

a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.

2. Please empty the location

at the front area of air duct channel holes and avoid putting food close to the sensor. If this warning continues an authorised technician needs to be contacted. E11 Fridge compartment is too cold Various

1. Check is Super Cool mode is

2. Reduce the fridge

compartment temperature

3. Check to see if vents are clear

and not clogged If this warning continues an authorised technician needs to be contacted.EN - 43 If your fridge is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money. Your fridge is not operating Check if:

• The plug is correctly connected to the socket

• The plug or mains fuse has blown

• The socket is faulty. Examine this by plugging your fridge into a working socket. What to do if your appliance performs poorly; Check that;

• You have not overloaded the appliance ,

• The fridge temperature set to 2.

• The door is closed perfectly ,

• There is no dust on the condenser ,

• There is enough place at the rear and side walls. Your fridge is operating noisily Cracking (ice cracking) noise occurs:

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is rst activated. Bubbling noise and splash: Due to the ow of the refrigerant in the tubes of the system. Air blowing noise: Indicates normal operation of the system due to the circulation of air. There is a build-up of humidity inside the cooler Check if:

• All food is packed properly. Containers must be dry before being placed in the fridge.

• The fridge door is opened frequently. Humidity of the room enters the fridge when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high. The door is not opening and closing properly Check if:

• There is food or packaging preventing the door from closing

• The door compartments, shelves and drawers are placed properly

• The door joints are broken or torn

• Your fridge is level. Recommendations To stop the appliance completely, unplug from main socket (for cleaning and when the door is left open).EN - 44

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-

ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.

2. Allow warm food and drinks to cool

before placing them inside the appliance.

3. Drinks or other liquids should be

covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.

4. Avoid keeping the doors open for long

periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.

5. Keep the covers of the different

temperature compartments ( such as the crisper and chiller) closed.

6. The door gasket must be clean and

pliable. In case of wear, replace the gasket. 9 TECHNICAL DATA The technical information is situated in the rating plate on the internal side of the appliance and on the energy label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to nd the same information in EPREL using the link https:// eprel.ec.europa.eu and the model name and product number that you nd on the rating plate of the appliance. See the link www.theenergylabel.eu for detailed information about the energy label.EN - 45

10 INFORMATION FOR TEST

INSTITUTES Appliance for any EcoDesign verication shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at

Chapter 2. Please contact the manufacturer

for any other further information, including loading plans.

11 CUSTOMER CARE AND

SERVICE Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index. The information can be found on the rating plate. You can nd the rating label inside the fridge zone on the left lower side. The original spare parts for some specic components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. Visit our website to: www.scholtès.comEN - 46EN - 47Scholtes.com
