USER MANUAL STC56 H.KOENIG

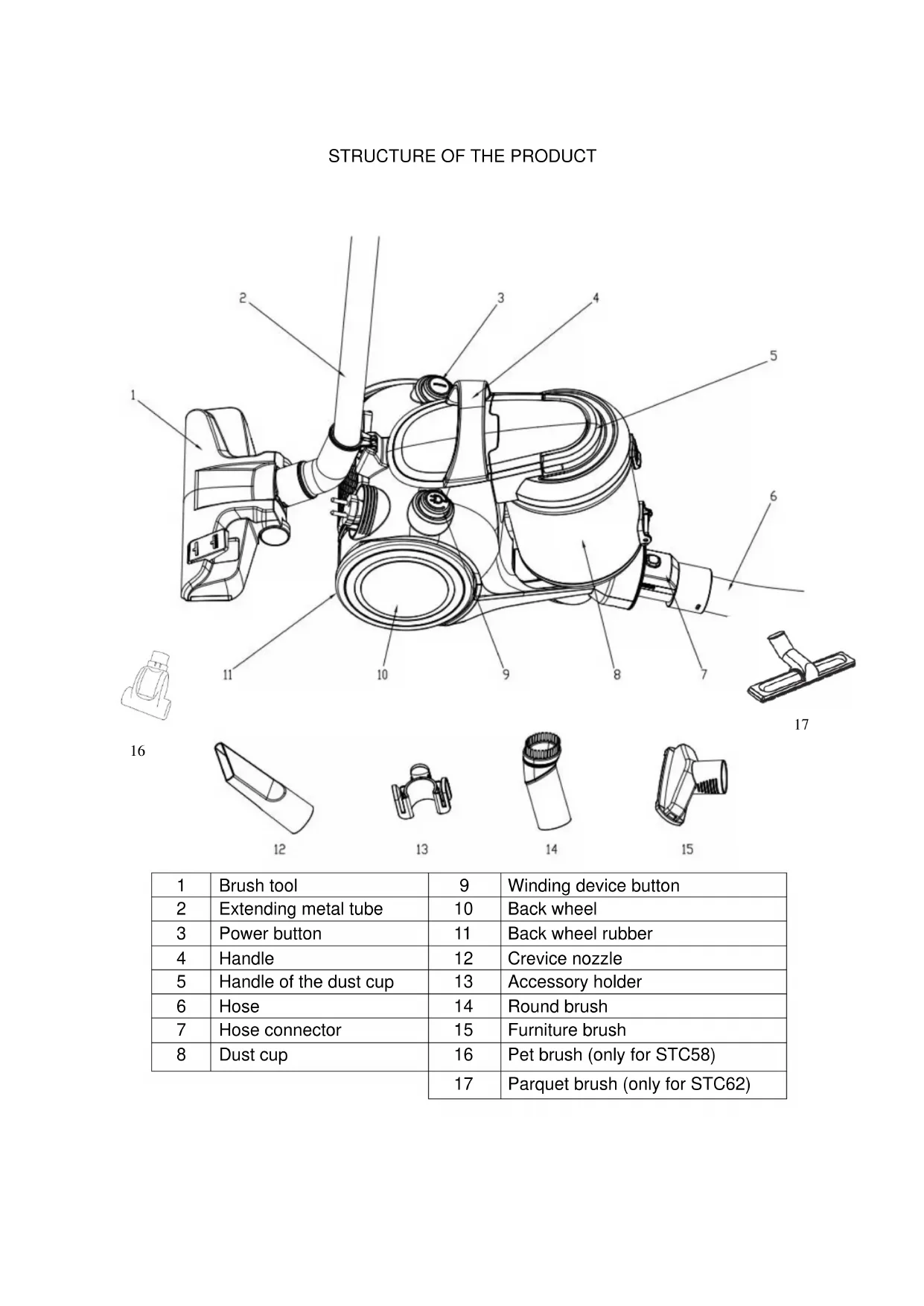

/58/62ENGLISH Product Power (W) Accessories STC56 700 W Crevice nozzle, round and furniture brush STC58 850 W STC56 + pet brush STC62 850 W STC56 + parquet brushSTRUCTURE OF THE PRODUCT

Winding device button

Handle of the dust cup

Pet brush (only for STC58)

Parquet brush (only for STC62)

17Safety warning 1.Be sure to use the cleaner in compliance with the contents of this manual, and use the fittings designated by the manufacturer. 2.Please do not leave the cleaner when it is powered on. Turn off the power switch and pull out the power plug when not using or before maintenance. 3.Please do not pull or carry the cleaner by the power cord, or nip it when closing a door; keep the cord free from the press of the cleaner. 4.Please do not let children take the cleaner as a toy, and close attention is necessary when the cleaner approaches children. 5.Please do not use the cleaner when its power cord or plug is damaged. Send it to the appointed service center. Please do not unplug by pulling the cord or plug. To unplug, grasp the plug, not the cord. 6.Never pull the power plug or use the cleaner with wet hands. 7.When using the cleaner, pay attention to prevent anyhair roll or other rubbish block up the air inlet (including the hose and the spile), otherwise motor failure and housing distortion may be caused. If the matters absorbed in forms a blockage, stop the cleaner by pulling out the power plug immediately to clean the blockage. 8.When using the cleaner, don’t plug up the air outlet by towel or other matters, otherwise the efficiency of dust absorbance will be influenced, and the motor will be at high risk of being burnt out. 9.Never use the cleaner at uneven floor or ground; and be very careful when cleaning stairs to prevent the cleaner from falling down.

10. Never absorb live stumps with the cleaner,

otherwise the motor may be damaged.

11. The cleaner should be kept far away from heat

sources (such as central heating, oven, etc) to avoid the distortion of plastic parts as well as the influence caused by such distortion.

12. Before using the cleaner, please remove big and

sharp matters on the floor to avoid damaging the plastic parts, filter gauzes and motor.13. Never absorb water or other liquid with this cleaner, otherwise, the motor will be damaged.

14. This appliance may be used by persons with

reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

15. If the power cord is damaged, it must be replaced

with an after-sales service to avoid any danger.

16. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

17. This appliance may be used by children of at least 8

years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

18. Cleaning and maintenance should not be carriedout by children unless they are at least 8 years of age

and are supervised by an adult.

19. Keep the appliance and its power cord out of reach

of children under 8 years of age.

20. When using electrical equipment, safety

precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

21. Make sure that the voltage rating on the typeplate

corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

22. Never leave the unit unattended while in operation.

23. Make sure the power supply is 220-240V 50Hz

24. Your appliance has been designed for domestic use

only. It is not intended for use in the following situations which are not covered by the warranty: - in staff kitchen areas in shops, offices and other professional environments, - in farm hostels, - by guests in hotels, motels and other residential environments, - in bed and breakfast type environments.HOW TO USE

Fig.1 shows the connection of the hose and the vacuum cleaner: Put the hose connector in front of the vacuum cleaner .Then insert it into the inlet hole and turn right. If you want to disassemble it, you can turn the hose connection left and then pull it out. Fig.2 shows the connection of the hose and the extending metal tube: Hold the flexural connector of the hose and put it into the bigger hole of the tube. Fig.3 shows the connection of the tube and the brush tool: Put the metal tube into the hole of the brush and rotate it to fasten them. Fig.4 shows how to check the winding of the power cord. You can pull the power cord out of the machine and stop it when you see the yellow mark. Make sure the red mark is not out. When your sweep is over, first turn off the power, pull the plug out of the socket, and then push the winding device button until the cord is completely in the machine. Fig.5 shows the power button Put the plug into the socket, push the power button to control the work of the machine.

CLEANING OF THE DUST CHAMBER

The steps of the chamber cleaning:

1. As in Fig.6, hold the dust chamber and handle and

push the release button.

2. As in Fig.7, take the dust chamber out of the machine.

3. As in Fig.8, put the dust chamber onto the rubbish bin,

push the release button to open the bottom of the dust chamber, and the dirt and dust will fall into the bin by themself.

4. As in Fig.9, shut up the dust chamber for a circular

use after your cleaning. Fig.6 Fig.7Fig.8 Fig.9

1. The filter should be cleaned twice a year, and when

there is obvious dirt on the filter, it is time.

2. You must fix the filter properly before running the

3. The filter can't be cleaned in the washing machine or

baked by the blower.

4. It will reduce the suction power and damge the motor if

you use the wet filter.

5. Steps for maintenance:

1) As in fig.10, press the outlet lock to open the outlet

2) As in fig.11, get out the outlet filter.

3) As in fig.12, rotate the HEPA cover to separate it fromthe chamber cover

4) As in fig.13, get the HEPA cover

5) As in fig.14, If you have any hair

winding removable cleaning.

6) As in fig.15, get the HEPA and

7) Wash the HEPA cover, the

HEPA assembly, the outlet sponge and the dust chamber in the water without detergent and dry them before use.

8) Put the dust chamber assembly into the machine.

And in this process, first you should make the chamber in the right position and then press the handle of the dust chamber, if there is a cluck it means the operation is successful.WARRANTY The warranty period for our products is 2 years. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENTCAUTION Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.
