USER MANUAL CEQLED50SA21B7 CONTINENTAL EDISON

Abstract geometric shapes resembling partial arcs or crescent, rendered in grayscale with no text or symbols.

Continental Edison

Search movies, TV, and more 12:45 Apps YouTube prime video Google Pro huijiech TV Google Pro Pioneer TV Play Next EMMA 10:17 HOBBS SHAW Prime Video JACK RYAN The Boys HANNA

CEQLED50SA21B7

TÉLÉVISEUR LED INTELLIGENT 50 PO

B. Montage mural ....14

Diagram showing a monitor setup with labeled components and a remote control panel below, illustrating navigation or system states.

Vue de dessous

③

NOTE: The screws supplied are used for fixing the stand legs only. If you want to mount the TV on a wall, contact a professional to find out how to install a wall bracket.

Diagram showing three sequential layout views of a room with labeled components and dashed reference lines

USB HDMI1(ARC) CI HEADPHONE

OPTIQUE

OPTICALRJ 45 HDMI4 HDMI3 HDMI2 USB USB AV IN ANT

RJ 45 et HDMI

Welcome Get Exit Save Delete Import

Searching for accessories... Standard Search Available to install accessories of software. Our 2013 version of the Web Services database installed, which is also within a full range of software applications. The order key number of threads used, using, or use the PC location. If playing in all categories, please add a new download tool to again. Close Web/Ctrl you're not necessary writing.

Quickly set up your TV with your Android phone? You can really transfer your Android phones Wi-Fi network and Google Account to your TV

Google Terms of Service Be continuing you approve the Google Terms of Service, the Google https://www.google.com/ and the Google Play Terms of Service This device may also receive and install updates and apply from Google, your device's product features or new devices. Some of these devices may the platform in most purchases. You can now use them or adjust their subscriptions at any time from the device settings. Google also collects an successfully covers the value and audio history from my phone use to deliver the product expression.

Google Location Let Google use your device's location to improve your experience. Device application or provider capabilities, etc. can be creating local context or the programming, may require your devices outside to function correctly. You may choose whether to share this information with a third party app either missing that app is installed or not. You can adjust these permissions at any time from Settings

Google Help improve Android Automatically send diagnostic information to Google, like new reports and usage data from your devices, apps, and Chromocast before. This information will be used to identify users. You can adjust these permissions at any time from device settings, learn more at 200 Android bag/Help and proboard devices/65. Yes No.

Your EU-UK Internet TV is powered by NVIDIA Google Play Get up from Google Play Google Play is used to create a new user's role in the gaming industry. It is also used to create a new user's role in the gaming industry. Get to your TV

Password Please not present. 1000 is invalid Input Password

Input Password New Password

Confirm Password Confirm Password

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized to store demo with fixed settings. Home Retail

Select Home Mode? If you plan to use this TV at home, please select "yes" to proceed Yes No

Chromecast built-in always available Let this device be detected as a Google Cast device and allows Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off. On

Antenna/Cable Please call your answer mode Use: 10K or "Right" help you go to next page Antenna Cable Skip

Channel Scan First, please connect entities Start Channel scan now? If you skip this step, the channel scan could be performed in Menu. Scan Skip Scan

Setup is completed. Enjoy! Compassance Initial Setup is completed Please press $30 to exit the voids. FINISH

Disclaimer Trademark acknowledgements GoogleAndroid TV and Google Play are trademarks of Google LLC.

Screenshot of a media player interface showing navigation menu, play buttons, and video thumbnails with numbered annotations.

Inputs Channels USB HUSB HUSB Light A Compasses

Settings Details Preview

Settings Quick Settings Take log report General Settings Networks & Internet (An internet connection) Channel Accounts & sign-in No accounts Apple Service Preferences Remote Accessories

Network & internet Wi-Fi Available services CTS, WiR Connective China_Mobile DIRECT/CELEMONO-SHINE... See all Under spread Add new network Scanning always available

Network & internet Scan to access networks Scanning always available Can geodes the network with other apps and link switches, even when Wi-Fi is off Water Water can access networks Wol Water can access Ethernet Net connected Proxy settings IP settings

CHAÎNE

Channel Channels Channel Restoration Mode- Reference Auto Channel Update Parental Controls Audio Channel Open Source Licensee Verilog F25.1001/0011001

Channel Installation Mode Antenna Cable

Channel Channels Channel Installation Mode Edit Auto Channel Update Channel Update Message Parental Controls Audio Channel Open Source Licenses Version: 2.03.9 Guide: 1002176

Channels Channel Scan Update Scan Analog Manual Scan Single RP Scan C CN Inflow Channel Scan Type Channel Store Type Channel Network Select

Status Scanning Analog Channels0 Digital Channels0 Antenna 3% Sat

Search for Analog Channels StartUp ScanDown

Scan Single RF Channel (Digital Only) Antenna Digital Channels: 0% RF Channel Signal Level 0% Signal Quality 0%

Channel Installation Mode Adder Delete

Channel Scan Horizontal Bar Other

Scan AI Channels. 0% Scan Mode... Only Digital Channels Channel Scan Type Frequency (kHz) 306/300 Network ID Auto Scan

Scan All Channels. % Scan Rate Apply → plotted Scan Type Only English Channels < > Frequency/0.100 Auto Background ID Auto Scan

Scan Single RF Channel (Digital Only) Case Digital Channels 0% Frequency (GHz) 106/200 Signal Signal Level 0% Signal Quality 0%

Google Make the most of your TV Skip the game from what recommendations come, and more than Google Signs Help Google Play Honey's TV Show me next to her own movies and shows on Google Play Show 2 TV

Apps Community popular apps Live TV Google Play Store Google Play Movie8 & TV See all apps Professional App store addresses Special app store

About System update Device name userTV Nextart Status system, user version and other information Legal Information Model user27 Version Software Version

Date & time Automatic date & time Use artwork provided time Set date: August 6, 2013 Set time: 11:24:48 Set time zone Use broadcasts-provided timeszone Use 24-hour format 1:00 PM

Timer Power On Time Type on Power On Time on Power Off Time Type on Power Off Time on

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Inputs Composite Composite Consumer Electronic Control (CDD) HDMI control From the TV to control HDMI devices Device auto power off Power off HDMI delivers the Tx TV auto power on Power off (to Tx) with HDMI power HDMI EDD Version Auto Bits CBC Device List

Picture Sharpness 12 Gamma Middle Color Temperature HDR 0+ Advanced Video Color Tuler 11 Point White Balance Correction Reset to Default

Sound Sound Style (ISO 1) Balance Sound Source Equalizer Detail Speed limit External Audio System Display Output PSA SPOF Delay Auto Volume Control

Sound Starts Default Equation Detail Speakers External Audio System Digital Output PSA CP/CP Delay Auto Volume Control Downmix Mode Sens Reset to Default

Storage Device storage Internal shared storage Total spence: 4.6 GB Removable storage KINGSTON Total spence: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Recorder apps Recorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off

Google Accounts View permissions Searchable apps Select which apps to include in search results SafeSearch filter Block offensive words Open source licenses

Chromecast built-in About Open source licenses Version number 1.36 145507

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Put device to sleep After 30 minutes of inactivity Start now

Location Location status Use Wi-Fi to estimate location Recent location requests No apps have requested location recently

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Search models: TV set/sports Finish setting up your TV Command this panel is more Accessibility Add/Remove Make new Save Settings Cancel High level and Recommended Get out Browse Settings

Reset This will assess all data from your Internet Internal storage including: new database data set, server and app downloads and downloads, and Downloaded apps Cancel Next

TÉLÉCOMMANDE ET ACCESSOIRES

Searching for accessories... Is available Google browsers into all your remote control, press, and hand click a picture and file capture simultaneously for 6 seconds after the lights on the floor of the remote control app in the open light corner of the screen, screen Windows and printer (Addition). If using an exceptional power tool allow results and to use. Press BACHs to exit necessary testing 5s

Searching for accessories... To address Google Accessories for the most powerful products, which can be done (10% of total) or more better than 30% of the total. It is a key for the best-performing products in the top half of the second quarter, used for the new and new product. If you are not able to download it the store and will apply. From $50K up to all accessories adding.

Supervideo TV, welcome Finish setting up your TV Add to Add video content to your video content on your TV Add access Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video内容 Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video content Add video contain

"I'm searching for 'Movie about the ball" Finish setting up your TV Add a Google Accountable to make the most of your TV Details Show me Apps Netflix MultiMedia Player HOTELIX STANGER HINGS EDUCATION

Two overlapping gray semicircles of different sizes on a white background (no text or symbols)

Continental Edison

www.continentaledison.fr

Abstract geometric shapes resembling partial arcs or crescent, rendered in grayscale with no text or symbols.

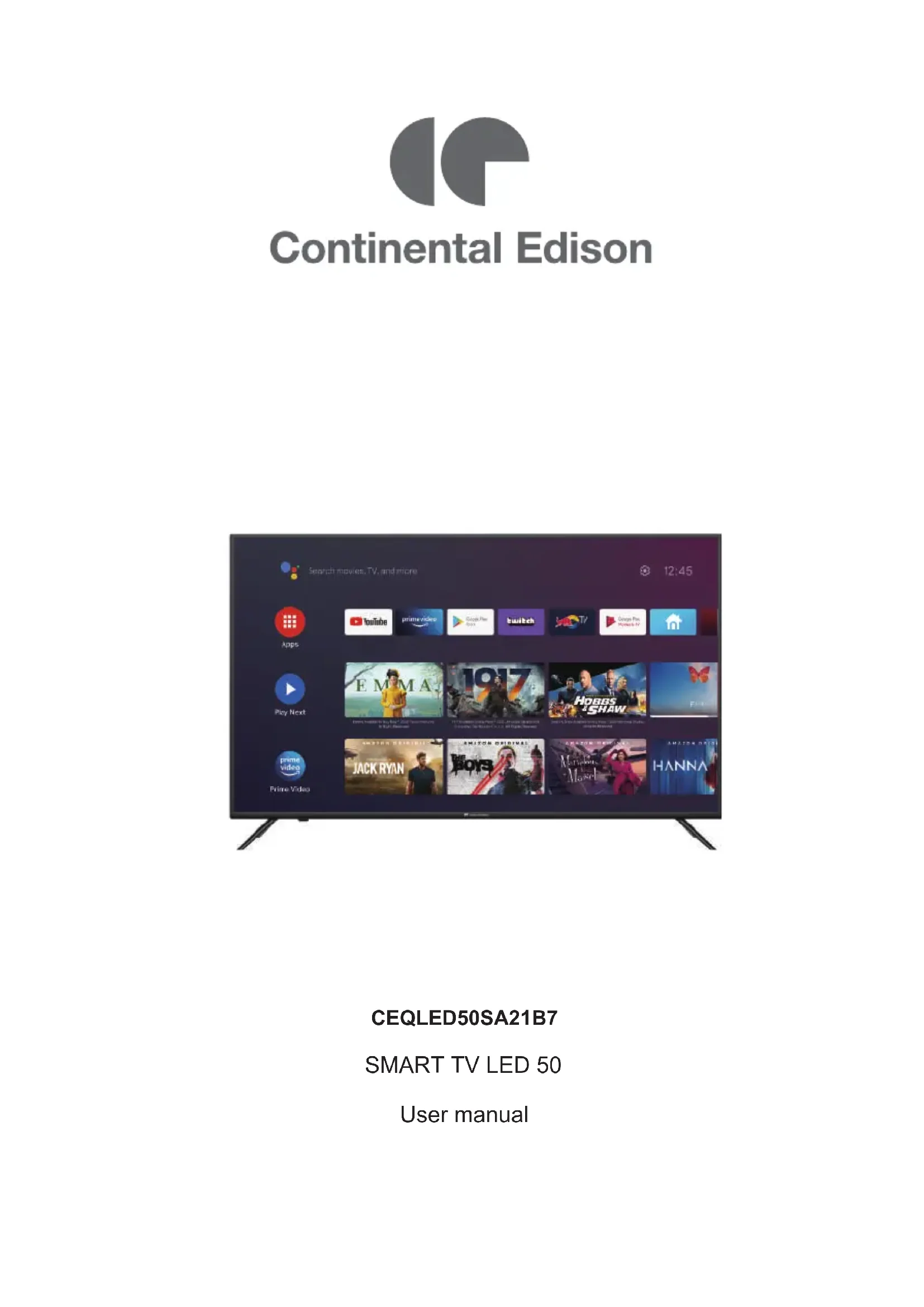

Continental Edison

Search movies, TV, and more 12:45 Apps YouTube prime video Google Pro huijiech TV Google Pro Pioneer TV Play Next EMMA 10:17 HOBBS SHAW Prime Video JACK RYAN The Boys HANNA

CEQLED50SA21B7

SMART TV LED 50

User manual

IMPORTANT WARNINGS AND SAFETY ADVICE

We invite you to read this user manual carefully and completely before installing and using your device.

It is important that this user manual be kept with the device for further consultation. If this device is to be transferred to another person, make sure the user manual follows the device so that the new user can be informed of the operation of the device.

	The warning sign showing a lightning bolt in a triangle indicates that this product contains "dangerous electrical voltages".
	CAUTION:TO AVOID THE RISK OF ELEC-TROCUTION, DO NOT REMOVE THE COVER (OR THE BACK OF THE DEVICE).
NO PARTS ARE REPLACEABLE BY THE USER. PLEASE CONTACT QUALIFIED PERSONNEL IN CASE OF FAILURE.
	The warning sign showing an exclamation point in a triangle indicates that this point of the manual requires special attention.

CAUTION:-TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR SERIOUS INJURY:

- This device must only be connected to a mains network whose characteristics are identical to those shown on the device identification plate.

- If it is a class I appliance, the user's protection is grounded. The appliance must be connected to a power supply base with a connection to the protective earth.

- This device bears the logo , it is a class II electrical device in which the protection against electric shock is not based solely on main insulation but on double insulation. It does not have protec-tive grounding

- The mains plug must always be easily accessible. It serves as a mains disconnecting switch of the device.

- To disconnect the device from the mains, the plug must be disconnected. Hold the mains cable by its plug. Do not pull on the mains cable to disconnect the plug.

- The mains cables must be routed so that they are not trampled upon or pinched by objects placed on or against them.

- If the mains cable of the device is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any danger.

- The device must not be exposed to dripping or splashing water, moisture or liquids.

- Do not place the device near water, for example in a bathroom or near a sink.

- No objects filled with liquids such as vases should be placed on or above the device.

• Never touch the mains cable with wet hands, this could cause a short circuit or electric shock.
• To avoid the risk of fire, do not place sources of open flames, Such as lighted candles, or heat sources such as radiators, on or near the device. The device is intended for use only in a temperate climate.
• If smoke, an unusual odour or strange noise is emitted by the device: unplug the mains cable from the electrical outlet and consult the after-sales service or repair centre. Never attempt to make repairs your self, this could be potentially dangerous.

- Do not attempt to open or disassemble the device. This would expose you to dangerous voltages.

- The slots and openings of the device are intended for ventilation and to ensure its operation. To prevent overheating, these openings must not be obstructed or covered in any way, such as by newspapers, tablecloths or curtains.

●Always leave a minimum distance of 10 cm around the device for sufficient ventilation.

- Never push any object into the device through one of its openings, as it may come into contact with electrical components, which can cause an electric shock or fire.

- In case of thunderstorm or lightning, immediately unplug the mains cable from the wall outlet.

- Always turn off the device when not in use. Unplug the mains cable from the electrical outlet when the device will not be used for a long period of time.

- Unplug the device from the electrical outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry, soft cloth for cleaning.

CAUTION: TO AVOID RISK OF INJURY OR DAMAGE TO THE PRODUCT OR OTHER EQUIPMENT:

• This product is intended for household and personal use only. Do not use this product for commercial, industrial or other purposes.
• Do not subject the product to strong shocks, extreme temperatures or direct sunlight for prolonged periods.
• Keep the product away from magnetic objects, motors and transformers.
• Do not use the product outdoors, regardless of weaths conditions.
• Install the device only on a stand (furniture, wall..., that can support its weight safely.
• WARNING: Never place a TV in an unstable place. This can fall, causing injuries or even the death of a person. Many injuries, especially in the case of children, can be avoided by taking simple precautions such as:

—The use of furniture or stands recommended by the TV manufacturer.
— The exclusive use of furniture that can support the weight of the TV safely.
— Make sure that the device does not protrude from the edge of the furniture on which it is placed.
—Never place the device on a tall piece of furniture (e.g. cabinets or bookcases) without attaching both the furniture and the device to a suitable stand.
— Do not place the device on a trolley or on a stand that is not stable. Do not install the device on any fabric or other materials placed between its base and the supporting furniture. The device could fall and be damaged or seriously injure a person.
—Do not use or watch the TV while driving. This is dangerous, and illegal in some countries.
—Explain to children the dangers they face when climbing on the furniture to reach the device or its controls.

— If you keep this device and change the location, you should apply the same considerations.

—CAUTION: to avoid accidents, this device must be securely attached to the floor or wall according to the installation instructions.

CAUTION: TO AVOID EYE HAZARDS:

- It is best to have soft indirect lighting to watch TV. Avoid completely dark environments and any reflection on the screen, as these can cause eyestrain.

USE AND HANDLING OF BATTERIES:

• CAUTION: danger of explosion if the batteries are not inserted correctly or if they are replaced by a non-similar or incompatible model.
  -Replace the batteries only with batteries of the same type AAA/LR03.
• Batteries must not be exposed to excessive heat such as that from the sun, fire or similar origin.
  ●Never throw batteries into fire and never expose them to heat sources.
• Do not mix different types of batteries, or new and used batteries.

• The batteries must be inserted according to the polarities indicated on the battery and in the battery case of the remote control.
  ●Used batteries must be removed from the remote control.

• The batteries must be disposed of safely at the assigned specific collection points to preserve the environment. Follow the disposal instructions indicated on the batteries and at the collection points.

• Keep batteries out of the reach of children and animals. Only adults are capable of handling the batteries.

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the user manual.

To avoid possible hearing damage, do not listen at a high sound level for a long time.

Cadmium free; concentration values of Cadmium (Cd) by weight in any homogeneous material part of the display do not exceed 0,01 % as defined in Directive 2011/65/EU.

This symbol indicate direct current (DC). This symbol indicate alternative current (AC). This symbol indicate “Indoor use only”.

EU Declaration of Confoemity:

Market Miaker Brand Licensing hereby declares that the device complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The Declaration of Conformity can be viewed at the following address:

http://www.mms-support.net/OTA/ECD_MMBL_CEQLED50SA21B7.pdf

CONTENTS

I. DESCRIPTION OF THE UNIT 8

A. Description of the TV Set ....8

B. Remote control 10

II. TECHNICAL SPECIFICATIONS ......12

III. INSTALLATION 14

A. Unpacking 14

B. Wall mounting 14

C. Installing the stand legs 15

D. Basic connections ......16

IV. USE 19

OPERATIONS 19-28

V. MAINTENANCE AND CLEANING 29

VI. TROUBLESHOOTING TIPS ....30

VII. WARRANTY 32

VIII. DISPOSAL 33

This user guide, any updates or new versions are available on our website. 2011/65/EU (Restriction of the use of certain hazardous substances in electronic

equipment)

The CE marking indicates that the product meets the main requirements of the European Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2014/53/EU (Radio Equipment), 2011/65/EU (Restriction of the use of certain hazardous substances in electronic equipment).

I. DESCRIPTION OF THE UNIT

A.Description of the TV Set

Front View

Diagram showing a monitor setup with labeled components and a small screen displaying a device.

bottom View

③

1: Remote control sensor.
2: Indicator LED: RED ● STANDBY.

3." = "VOL- and move left

“+”VOL+ and move right
“^”CH- and move down
“♥”CH+ and move up

-Short press to confirm or enter the menu

-Long press to Power off

Rear view of the TV set

Black View

200.0 200.0 RJ45 OPTICAL USB HDMI4 HDMI3 HDMI2 AV IN ANT ① ② ③ ④ ⑤ ⑥ HEADPHONE HDMI (ARC) ⑧ ⑦ ④ ③ HDMI (ARC) USB

1.RJ 45
2.OPTICAL
3. USB INPUT
4.HDMI
5.AV IN.
6.ANT
7.CI slot.
8. Headphone output.

B.Remote control

1. POWER: To set the TV to Standby or Power On modes
2. INPUT: Open Input menu (TV, HDMI1, HDMI2, etc)
3. NETFLIX Press to open NETFLIX.
4. YouTube Press to open the YouTube.
5. Subtitle: To turn on subtitles in DTV mode
6. ■(stop): Press to stop multimedia playback
7. To disable or enable the speaker sound output.
8. (Reverse): Reverse Playback rapidly.
9. ▶ (Forward): Advance playback rapidly.
10. ▶ (Play/Pause) : Start playback or Pause playback.
11. TEXT: Press to select the teletext mode
12. GUIDE: Press to display electronic programme guide in TV mode

① ② ③ NETFLIX YouTube ④ ⑤ 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 🎯 ⑥ 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 ⑧ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ → ⑪ TEXTGUIDE ASPECT ⑫ OK ⑬ VOL + CH - ⑭ ⑮ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉦ ㉸ ㉹ ㉻ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟, ANTICENTAL EDISON

13.ASPECT: Press to change the picture aspect ratio.
14. ARROWS: Navigate on-screen menu, OK to confirm selection
15. RETURN: Return to previous menu
16. ☐ : Press to open the Home Page.

1. : Press to open or close the on-screen menu.

2. : Press to open the google assistant or tart a voice search

3. VOL+/- : To adjust sound level

4. CH+/CH- : To access the next or previous channels To access the next or previous Media pictures, videos, audios.

5. NUMBER KEY: For direct access to channels

6. INFO: Display channel information

7. : Jumps to last viewed channel

8. : Operations according to the prompt within menu or while watching TV.

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ OK VOL + - CH - 1 2 3 4 .5 .6 7 8 9 INFO 0 Continental Edison

II.THCHNICAL SPECIFICATIONS

Article number	CEQLED50SA21B7
Model	MUDV5062Y-68860-QLED
Display	SMART TV LED 50
Resolution	3840 x 2160 pixels
Colour display	1.07billion
Constrast	5000:1
Ratio	16:9
Tuner	DvB-T/T2/C
TV power supply	AC 100-240V-50/60Hz
Consumption	138W
Dimensions	1123x231x709.6mm
Weight	Approx. 11.6 kg
Stand	2 piece dismountable
Operating temperature range	-5°C to 45°C
Remote control power supply	3V(2× LR03/AAA 1.5V batteries not included
USB ports voltage and current	5V-0.5A
Speaker	Built-in 2 x 10W
Inputs	HDMIx4,ANT,CI,USBx3,RJ45,AV IN
Outputs	Optical,Headphones
USB functions	Y
USB multimedia playback formats	Video:FLV,MKV,MPEG,MOV,AVI,H.264
	Music:MP3,MAV,M4A,AMR
	Photos:JPG,BMP,PNG,JPEG
	Text:TXT
Frequency range	BT:2402MHz-2480MHzWifi:2400MHz-2483.5MHz/5150MHz-5350MHz/5470MHz-5825MHz
Max RF power output	100mW

These specifications are subject to change without notice.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

ACCWSSORIES:

Stand 2piece

Remote control ....1piece

Instruction manual ....1piece

The image provided in this manual are for information only, refer to the actual product for confirmation.

ENERGY RATING LABEL
Brand	CONTINENTAL EDISON
Article number	CEQLED50SA21B7(Model:MUDV5062Y-68860-QLED)
Energy efficiency class	G
Visible diagonal display	125 cm;49 inches
On mode power demand for standard dynamic Range(SDR)	86kWh/1000h
Power consumption in standby mode (W)	<0.5W
Power consumption in off-mode (W)	0W
Screen resolution(pixels)	3840 x 2160

ENERG Continental Edison CEQLED50SA21B7 A B C D E F G 86 kWh/1000h ABCDEFG HDR 86 kWh/1000h 3840px x 175cm 46" 216px GENERAL

https://eprel.ec.europa.eu/qr/647387

III.INSTALLATION

A. Unpacking

Your TV should be unpacked and handled by 2 people, to avoid any risk of deformation or impact on the LED display.

Start by preparing a flat surface covered with a soft, thick fabric (a blanket, for example).

The prepared surface area must be larger than the size of the TV. This will allow the TV to be laid flat with the LED screen facing the floor.

Before removing the TV from its packaging, read the sections "Wall Mounting" and "Stand Legs Installation" to prepare yourself for the installation operation you have chosen.

Remove the TV from its packaging by lifting it vertically, then place the TV screen flat on the previously protected flat surface so that either the stand legs or a wall mounting bracket(not included) can be attached.

Packaging materials

- The packaging cardboard is recyclable.

- The materials marked with the symbol are recyclable.

->PE<=polyethylene; >PS<=polystyrene; >PP<=polypropylene; ... This means that they can be recycled by disposing of them in appropriate collection containers.

- Other packaging elements (adhesive, fasteners, etc.) should be disposed of with household waste.

For more information: www.quefairedemesdechets.fr

B. Wall mounting

- Contact a professional for assistance with the wall mounting of your TV set. We cannot be held liable for any damage or injury caused by the mounting of the TV set.

- The TV must be mounted on a vertical wall. This TV is not intended for installation on a sloped wall.

- The TV must be turned off and disconnected from the power supply when you mount it to the wall. Failure to comply with these precautions may result in electric shock or electrocution.

- The mounting bracket must correspond to the centre distances indicated below.

NOTE: The screws supplied are used for fixing the stand legs only. If you want to mount the TV on a wall, contact a professional to find out how to install a wall bracket.

Rear view of your TV set

200.0 200.0

C. Installing the stand legs

▲ Your TV set comes with uninstalled stand legs. Before using this TV as a free-standing unit on a furniture, install the stand legs as shown below.

Step 1

Place the TV flat, with the screen facing down, on a flat surface covered with a soft, thick cloth to prevent damage. The bottom edge of the TV should protrude slightly from the edge of the flat surface, to allow the stand legs to be fixed without damaging the LED display.

Step 2

Align the bottom of the TV with the stand legs until they are fully in place (aligned mounting holes).

Step 3

Tighten the supplied screws with a screwdriver.

Diagram showing three sequential layout views of a room with labeled components and dashed reference lines

NOTE: unplug the TV from the AC outlet when installing or removing the TV legs. Contact one of our distributors to learn more about how to install and remove the TV legs.

D. Basic connections

• Ensure all the cables are disconnected from the main unit before connecting to AC power source.
• Read through the instructions before connecting other equipments.

CONNECTING TO AC POWER SOURCE

To power outlet

CONNECT EXTERNAL ANTENNA TO UNIT

Install external antenna into antenna jack for best picture.

Antenna Outdoor antenna amplifier Indoor antenna amplifier Power plug of antenna amplifier 75 OHM antenna plug

HEADPHONE

USB HDMI1(ARC) CI HEADPHONE

OPTICAL

OPTICALRJ 45 HDMI4 HDMI3 HDMI2 USB USB AV IN ANT

RJ 45 and HDMI

OPTICALRJ 45 HDMI HDMI2 USB USB AV IN ANT reticle Us RJ 45 that You can browse video on the Internet. Some TV sets can also download video on the Internet for watching at any time. DVD player Blu-ray computer Digital Video Recorder,DVR The HDMI cable connects the computer to the TV, making the TV a monitor for the computer, capable of synchronizing images and sounds from the computer

USB and ANT

Connection cable or wireless antenna, watch TV OPTICALRJ 45 HDMI4 HDMI3 HDMI2 USB USB AV IN ANT USB

USB interface is used to and other USB devices (such as mobile hard disk, U disk, etc.), direct broadcast audio and video files in USB devices. Turn it also has a memory function, such as on a USB interface with the digital camera, another interface to connect mobile hard disk, you can easily move the photos from digital camera to hard disk.

IV. USE

INITIAL SETUP

The first you turn your TV, the setup wizard will guide you through setting up basic settings.

Please according to the text tip to first time setup.

Welcome English Carls Cosms Banks Search Registrar

Press ▼▲ to select the system language and press OK to confirm the language.

Searching for accessories... To monitor Google Equipment, this is your email account, press and help. On it, it's on and M3600000 times simultaneously by 5 seconds. It has the base on the bank of the remote account extension on the power light center of the server. Select computer and video the On Battery. If closing is unsenberg, you need a few minutes saved to again. Price&OK Key to sell accessories setting 5s

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV. If you don't need to use the Bluetooth remote control, you can press the BACK button to skip this step.

Quickly set up your TV with your Android phone? You can easily transfer your Android phones with the network and Google account to your TV

Connect your Android phone to your TV, select "Continue to continue the connection, and choose "Skip to skip this step.

Select your Wi-Fi network CPU, 900 AVGMAE7_2004 WOR, 365 WOR, 368.95 400 SELECT YOUR WiFi

Press▼▲ to select the the Wifi to connect, press OK and enter the password to confirm the connection is successful. You can also try use Ethernet and skip select network.

Google Terms of Service As continuing you agree with the Google Terms of Service, the Google Privacy Policy and the Google Play Terms of Service. This device may also receive and install updates and again from Google, your product's manufacturing or user services. Some of these apps may be the optional lease certificates. You can remove this service that their participations are any time from the device settings. Google also collects anthropocably stores the value and activity history from microphone size to improve the product expansion.

By accepting the Google Terms of Service to improve the product experience, select "Accept to accept this condition.

Google Location Let Google use your device's location to ignore your experience. Device support or platform capabilities, path admnoring linked content or the programming, may request your devices location to function correctly. You may choose whether to share this information with a third party app active in most that app is installed or run. You can adjust these permissions at any time from Settings.

Agree to Google to get the location information of your device to get more features, choose "YES" to accept.

Google Help improve Android Automatically send diagnostic information to Google, like each report and usage data from your device, apps, and Chromeboard services. This information will be used to identify your, you can adjust these permissions at any time from device settings, as well as a good Android help and quick download devices.

By agreeing to automatically send diagnostic information to Google to improve discriminative power, choose "YES to accept.

Your EU-6 Amazon TV is powered by orders today Google Play Get back from Google Play Google Play Get to your TV

1. Your device is powered by Android TV and press the button to select the browsing feature.
2. You can get more apps from Google Play and press the button to go to the next screen.
3. Transfer photos and other content to the TV via the built-in chromecast, press OK to complete the browsing.

Country Japan (with no visible text) Germany Japan France (1) Italy Australia (2) China Japan (3)

Press▼▲ to select the country of your device and press OK to confirm.

Password Please get password. 1000% to email. Input Password

Used to set your device's password to ensure security and privacy.

Input Password New Password

Press OK to pop up the soft keyboard, and use the remote control to enter the 4-digit password automatically jump to the next interface.

Confirm Password Confirm Password

Confirm the password again and keep it consistent. Use the remote control to enter the password and complete the password confirmation.

Select TV mode "Home" mode is optimized for efficient energy usage for home use "Retail" mode is optimized to store dimps with fixed settings. Home Retail

For selecting the mode, press ▼▲key to select Home mode and press OK to confirm.

Select Home Mode? If you plan to use the TV at home, please select "Yes" to proceed Yes No

Confirm the selected mode again, select "Yes" to confirm the selected mode, and select "No" to return to the previous step.

Chromecast built-in always available Let this device be derived as a Google Cost device and allow Google Assistant and other services to make the deliver up to respond to Cast commands, even when on standby and this screen is off. Off On

Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

Antenna/Cable Plants: battery, power, current Use: 10V or 50V; high voltage in low voltage Antenna Cathion Sky

To select the Tuner mode for searching, press ▼▲to select and press OK to confirm.

Channel Scan Scan Scan, please connect seconds Start Channel scan name? If you shop that step, the channel scan could be performed continuously. Skip Scan

Press ▼S▲"to select whether to search, select can to search, select "Skip Scan to skip the search.

Setup is completed. Enjoy! Complished Initial Setup is completed. Please spread (OK) to exit the record.

PreSK to complete the setup.

Disclaimer Trademark acknowledgements Google Anthony TV and Google Play on Trademarks of Google LLC Reply

Press the OK button to agree to (Disclaimer). After setting is complete, You can watch TV.

HOME SCREEN

Press the HOME button to go to the home page

Screenshot of a media player interface showing navigation tabs, play controls, and video thumbnails with numbered annotations.

① open the google assistant start a voice search or use keyboard search
② Among the applications installed on the TV, the icons for the favourite applications are shown inside here.(Favourite applications can be added/deleted/ changed its order by users.)
Apps: Click to jump to Apps screen where all the installed applications are listed.
③
② Notification : Display the notifications.
Inputs: Icon to select an input source.
Network&Internet: Icon to Setup Network, Such as wifi.
Settings : Various settings can be configured here. For details on the settings, see the next explanation.

INPUT SOURCE

1. In the HOME interface, press ▼▲◀▶ to select the "Inputs" icon, press OK to open the input source list, then press up to highlight an input and press OK to switch.

2 Inputs Details Disen

Inputs Channels HDMI HDMI HDMI Light Compasses

2.Under Live TV, press the SOURCE button to display the list of input sources. You can select the desired source.

1. There are two ways to enter. First, in Live TV, press the menu button to display TV options, press ▼▲

◀▶ select the settings menu and press OK to confirm. Second, in the HOME interface, press the
▶ key to select the icon of the circular settings menu, press OK to confirm.

Display TV options Display Mode Soundline Power Oil Cast Advanced Buttons Settings

11:42 Settings Details Overview

1. Press▼▲button to select what you want set.
2. Press OK to enter setting.

Settings Quick Settings Take bug report General Settings Network & internet for network accounts Channel Accounts & accounts for accounts Apps Device Preferences Remote & accessories

Press BACK to return to the previous menu. If the main menu is displayed, pressing BACK will close the onscreen menu.

Netwo rk & Internet

1. Press ▼▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press OK button to save and return to the previous menu.

Network & internet Wi-Fi Available networks CTS_INF Commerce China_Mobile DIRECTORLENOVO-SHINE. See all Other options Add new network Scaming always available

Network & internet New York Networks Scanning always available cut Goosks-location service and other apps such as networks, over when RIF in all Wow start up wireless network Wolf with an 10% network Ethernet Not connected Proxy settings IP settings

CHANNEL

Channel Channels Channel installation Mode Internal Auto Channel Update Parenteral Console Audio Channel Open Source Libraries Version EN: 100000000000

Channels : Display the scan sub-menu based on different Channel installation modes.

Channel installation mode: Select on-screen display channel sources. You can select the signal type.

- Anten na: Set the signal type to antenna. When set to Antenna, the TV can receive analog and digital (DVB-T/ DVB-T2) broadcasting signals.

•Cable :Set the signal type to cable. When set to Cable, the TV can receive analog and QAM broadcasting signals.

Auto Channel Update

Parental controls: Press ▼▲button to select the option then press OK button to enter the sub-menu. Audio Channel: Press ▼▲button to select the option then press OK button to enter the sub-menu. Open source licenses: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Antenna

Channel Installation Mode Antenna Cable

Channel Channels Channel Installation Mode Access Auto Channel Update Channel Update Message Parental Contents Audio Channel Open Source Licenses Version 2.08.3.047 19521976

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan 1-Cy Default Channel Scan Type Channel Store Type Forward Network Switch

1. Menu->Settings->Channel->Channel Installation Mode enter, choose Antenna or Cable.

2. Enter Menu->Settings->Channel->Channels.

Status: Scanning Analog Channels:0 Digital Channels:0 Antenna 3% Edit

1. Channel Scan directly enters the ATV+DTV automatic search platform interface of Antenna. Update Scan: Re-automatically search for frequency points outside the station.

Search for Analog Channels Start Up Scan Down

Analog Manual Scan: Manual ATV search station. After input the frequency point, you can select up or down search station.

Scan Single RF Channel: (Digital Only) Antenna Digital Channels: 0% M channels 11 <>> Digital Level 0% Signal Quality 0%

Single RF Scan : DTV manual search, left and right after selecting RF Channel, directly OK search.

Cable

Channel Installation Mode Radio Radio

Channel Scan Scanable Other

1. Menu->Settings->Channel->Channel Installation Mode, select Cable.
2. Enter Menu->Settings->Channel->Channels.

Scan AI Channels: 0% Scan Mode ANSO Channel Scan Type Only Digital Channels Frequency (GHz) 305001 Network ID Auto Scan

1. Enter Channel Scan, where Numericable are the local operators, and the default Scan Mode is Advance; Others have Advance, Quick and Full Scan modes.

Scan All Channels: Scan Mode Array Channel Scan Type Only Digital Channels Frequency (MHz) 00000 Network ID Auto Scan

Scan Single RF Channel (Digital Only) Cable Digital Channels: 0% Frequency (kHz) 106000 Signal Level 0% Signal Quality 0%

Single RF Scan : manual search station.

ACCOUNTS&SIGN IN

Google Make the most of your TV Skip it's get new apps, just improvements, sharing, and more from Google Google Play Hawaii's TV Google Play Hawaii's TV Google Play Hawaii's TV

Press UP/DOWN button to select Sign in or Skip.

APPS

Apps Assembly software app Live TV 1 video app Google Play Store 2 video app Google Play Movie8 6 TV 3 video app See all apps App recommendations Special app accounts

In this menu, you can set the APP permissions, and read the app lists.

1. Press▼▲ button to select what you want set.

2. Press OK button to adjust.

3. After finishing your adjustment, Press BACK button to return to the previous menu.

DEVICEPREFERENCES

ABOUT

About System update Device name IconTV Resistant Status Index, size/number of other elements Legal Information Model IconTV Version Software Version

In this menu, you can read the information and settings of TV.

1. Press ▼ ▲ button to select what you want set.

2. Press OK button to adjust.

3. After finishing your adjustment, Press BACK button to return to the previous menu.

DATE&TIME

Date & time Automatic date & time Use artwork provided time Set date August 3, 2019 Set time 11:12 AM Set time zone Use broadcast-provided timezone Use 24-hour format 1:00 PM

Automati c date&time - Press▼▲ button to select the option then press OK button to enter the sub-menu. (Optional:Use network-provided time,Off)

Set date:Press▼▲button to select the option then press OK button to enter the sub-menu.

Set time:Press▼▲button to select the option then press OK button to enter the sub-menu.

Set time zone:Press ▼▲button to select the option then press OK button to enter the sub-menu.

Use 24-hour format :Press ▼▲button to select the option then press OK button to choose ON/OFF.

TIMER:

Timer Power On Time Type Off Power On Type Off Power Off Time Type Off Power Off Time Duration

Power On Timer Type: Press ▼▲ button to select the option then press OK button to choose ON/OFF/ONCE.

Power On Timer :Press ▼▲button to select the option then press OK button to enter the sub-menu.

Power Off Timer Type : Press button to select the option then press OK button to choose ON/OFF/ONCE.

PowerOff Timer :Press▼▲ button to select the option then press OK button to enter the sub-menu.

LANGUAGE:

Language Cataca Catalca Borok Deutsch English Español Frenchos Hervasiki Indahasia

Language :Press▼▲button to select the option then press OK button to enter the select language.

KEYBOARD

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Current keyboard :Press ▼▲button to select the option then press OK button to enter the sub-menu.

Gboard Settings :Press ▼▲button to select the option then press OK button to enter the sub-menu. Manage keyboards :Press ▼▲button to select the option then press OK button to enter the sub-menu.

INPUTS

Inputs HDMI 4 HDMI 4 HDMI 3 HDMI 3 HDMI 2 HDMI 2 HDMI 1 HDMI 1 Composite Composite Compressor Bandwidth Control (CFC) HDMI control Allow the TV to control HDMI network

Inputs Composite Composite Consumer Electronic Control (CCD) HDMI control All in the TV to control HDMI devices Device auto power off Press all HDMI device with the TV TV auto power on Press on by TV with HDMI device HDMI EDD Version out 800 CEC Device List

Input s:Press ▼▲button to select the option then press OK button to enter the sub-menu.

HDMI control I: Press ▼▲ button to select the option then press OK button to choose ON/OFF.

Device auto power off :Press ▼▲button to select the option then press OK button to choose ON/OFF.

TV auto power on :Press ▼▲ button to select the option then press OK button to choose ON/OFF. HDMI EDIDVersion :show EDID version.

CEC DeviceList :Press ▼▲button to select the option then press OK button to enter the sub-menu

POWER

Power Sleep Timer OFF Picture off Switch off timer OFF No Signal Auto Power Off 15 Minutes

Sleep Timer :Press ▼▲button to select the option then press OK button to enter the sub-menu.(Optional: off, 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes).

Picture off :Press ▼▲button to select the option then press OK button to turn off the TV.

Switch off timer :Press ▼▲button to select the option then press OK button to enter sub-menu.(Optional: off, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 150 minutes, 180 minutes, 210 minutes, 240 minutes).

No signal Auto Power Off :Press ▼▲button to select the option then press OK button to enter sub-menu. (Optional: off, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes).


Picture Sharpness 12 Gamma Middle Color Temperature HDR the Advanced Video Color Tuner 11 Point White Balance Correction Reset to Default

Picture Mode:Press▼▲button to select the option then press OK button to enter sub-menu.(Optional: user, Standard, Vivid, Sport, Movie, Game, Energy saving).

Backlight / Brightness / Contrast / Saturation / HUE/ Sharpness : Press ▼ ▲ button to select the option.

Press ◀ to decrease the parameter. Press ▶ to increase the parameter.

Gamma:Press ▼▲button to select the option then press OK button to enter sub-menu.(Optional:

Dark, middle, Bright).

Color Temperature: Press ▼▲ button to select the option then press OK button to enter sub-menu.

HDR:Press ▼▲button to select the option then press OK button to enter the sub-menu.(Optional: on, off)

Advanced Video:Press ▼▲button to select the option then press OK button to enter the sub-menu.

Reset to Default: Reset all settings to the factory defaults.

SOUND

Sound Sound Style (Starter) Balance Sound Surround Equation Detail Equivalent Terminal Audio System Physical Output Filter SPOF Delay Auto Volume Control

Sound Audio/Outsound Econize Detail Speakers Internet Audio/Video Digital Output Fills GPIO/DC Delay Auto Volume Control Downwrite Mode Show Reset to Default

Sound style: Press ▼▲ button to select the option then press OK button to enter the sub-menu. (Optional: user, Standard, Vivid, Sports, Movie, Music, News)

Balance / Bass / Treble: Press ▼▲ button to select the option. press ◀to decrease the parameter. Press ▶to increase the parameter.

Sound Surround : Press▼▲button to select the option then press OK button to choose ON/OFF.

Equalizer Detail: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Speakers Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: TV Speaker, External Audio System)

Digital Output: Press ▼▲button to select the option then press OKbutton to enter the sub-menu. (Optional: Auto, Bypass, PCM, Dolby Digital Plus, Dolby Digital)

SPDIF Delay: Press ▼▲buttons to select the option.

◀ to decrease the parameter. Press ▶ to increase the parameter.

Auto Volume Control: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Down mix Mode: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: Stereo, Surround)

Reset to Default: Reset all settings to the factory defaults.

STORAGE

Storage Device storage Internal shared storage Total spent: 1.6 GB Removable storage KINGSTON Total spent: 15 GB

Internal shared storage: Press ▼▲ button to select the option then press OK button to enter the sub-menu.

Removeable Storage : Press ▼▲ button to select the option then press OK button to enter the sub-menu.(Note: Show external devices if available)

HOME SCREEN

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Recorder apps Recorder games Open source games Android TV Home Android TV Core Services

In this menu, you can set channels, apps, open source licenses.

1. Press ▼▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

RETAIL MODE

Retail Mode Retail Mode Off

Retail mode: Press▼▲ button to select the option then press OK button to choose ON/OFF.

GOOGLE

Google Accounts View permissions Searchable apps Select which apps to include in search results SafeSearch filter Block offensive words Open source licenses

In this menu, you can set searchable apps, safe search filter, block offensive words, open source licenses.

1. Press▼ ▲ button to select what you want set.
2. Press ok button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

CHROMECAST BUILT-IN

Chromecast built-in About Open source licenses Version number 1.36.145507

In this menu, you can read the information and settings of Chromecast.

1. Press▼ ▲ button to select what you want set.
2. Press ok button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

SCREEN SAVER

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Put device to sleep After 30 minutes of inactivity Start now

Screen saver: Press button to select the option then press OK button to enter the sub-menu.(Option Turn screen off, Backdrop, Colors).

When to Start: Press button to select the option then press OK button to enter the sub-menu. (Option 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours). Put device to sleep: Press button to select the option then press OK button to enter the sub-menu. (Optional: 30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, Never).

Start now: Press button to select the option then press OK button to enter screen saver. LOCATION

Location Location status Use Wi-Fi to estimate location Recent location requests No apps have requested location recently

Location status: Press▼▲ button to select the option then press OK button to enter the sub-menu. (Optional: Use Wi-Fi to estimate location, Off).

USAGE & DIAGNOSTICS

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Usage & diagnostics: Press ▼▲ button to select the option then press OK button to choose ON/OFF.

ACCESSIBILITY

Accessibility Audio Description Specific Features Video Buttons Customs High-order user Revised Finish setting up your TV Connect to the following key GETFLIX Internet Customs Customs Customs

Audio Description : Press button to select the option then press OK button to choose ON/OFF.

Visually Impaired : Press button to select the option then press OK button to enter the sub-menu.

Spoken Subtitle : Press button to select the option then press OK button to choose ON/OFF.

Captions: Press button to select the option then press OK button to enter the sub-menu.

High contrast text: Press button to select the option then press OK button to choose ON/OFF.

RESET

Press OK button to enter the sub-menu Reset-Erase everything.

Reset This will create all data from your Demets Internal storage, including your license account, systemd and app-data and earnings, and Downloaded apps Cancel Reset

REMOTE & ACCESSORIES

Searching for accessories... Do enable Google browsers into your remote sensing, mini and hard click. It features and how functions automatically for 5 seconds. When the rays on the back of the remote sensing devices in the upper right corner of the screen, when the screen and gate are included. If using it as a device, the screen will allow navigation and to access. Press BACK Play all accessories setting 5s

Searching for accessories... The following image contains the most powerful visual images and a 3D TV video and 4D TV bottom search engine for 3 seconds when the visual image is built out of the video content. However, the image will cover all the views, which are free and used for the video. If there, BT, Image2.0M would be removed in the minutes and again. From $50K up to all accessories adding.

Supervideo, TV, and video Finish getting up your TV Add to Google's new user video content on your TV Netflix YouTube STAPH DAW! NUKE A CITY

In this menu, you can pair Bluetooth devices.

1. Press the "MENU" and "LEFT buttons at the bottom of the remote control for 5 seconds.
2. When the LED starts to flash, release it. The remote controller will send the pairing signal to the TV and display the information of the remote control on the right side of the screen.
3. Press the OK button to display the pairing. If the paired is displayed, the connection is successful.
4. If the couldn't paappears, the connection fails. Wait 30 seconds and then press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds repeat the previous steps
5. Press BACK button return to the previous menu.

MULTIMEDIA PLAYER

Try searching for "Movies about football" Finish setting up your TV Add a Google Accounts make the most of your TV Details Share this App NETFLIX MWF YouTube + Multi-VideoView Netflix STRANGER THINGS EDUCATION

In the HOME interface, select the MMP APP to display Video, Photo, Audio, Text. After inserting th USB flash drive, you can view the corresponding files in the USB flash drive.

Playback Video Photo Audio Text

NOTE:

The menu may be different depending on when you purchased the TV.

V.MAINTENANCE AND CLEANING

Before servicing your TV, make sure it is turned off and the Power cable is disconnected.

●Wipe the TV with a soft, dry cloth.
- If the surface is very dirty, wipe it with a soft cloth slightly soaked in water. Then wipe again with a dry, soft cloth.
- Never insert objects or liquids into the ventilation openings of your TV. This could damage it, or even cause a short circuit or risk of electric shock.

Never use alcohol, benzene, solvents or other chemicals. Do not compressed air to remove dust.

VI.TROUBLESHOOTING TIPS

Some malfunction can be easily resolved. Before calling on the service department or a repair technician, consult the following information:

Symptoms Solutions
The TV does not tum on.	·Check the connection of the power supply cord. ·Carefully connect the power cord to another power outlet.
No picture or picture of poor quality. Picture is not displayed in full screen.	·Make sure that the equipment is properly connected, especially the ANT antenna or cable from the source used. ·Try another channel. ·Check and adjust the image size option. ·Adjust the antenna or use another antenna. ·Check the contrast and brightness settings. ·Keep the TV away from potential sources of electromagnetic or radio interference. ·Perform a new automatic channel search.
No sound, Its distorted, Poor sound quality.	·Adjust the volume using the VOL+NOL-keys. ·Press the MUTE button to cancel the mute/mute mode. ·Disconnect the headphones. ·If audio equipment is connected, make sure it is properly connected. ·Check that the TV and stereo equipment is properly configured. Check the audio setting.
Noise or other type of interference.	Electronic equipment adjacent to the unit creates interference. ·Check the connections of the equipment cables. ·Move the TV or equipment concerned.
The remote control does not work.	·Use the remote control at a distance of less than 6m. ·Remove any potential obstacles between the remote control and the IR receiver of the TV. ·Clean the lens of the remote control. ·Make sure the batteries are properly installed. ·The batteries may be dead. Replace them. Try again by pointing the remote control at the infrared receiver on the TV.
The buttons do not work (TV or remote control).	·Disconnects the power cord and then carefully reconnect it (the TV may fail due to a storm, static electricity, etc.).
Symptoms (continued) Solutions(continued)
Only some channels are available.	·Check that your area is covered by the DTV broadcast.·Check if channels are not blocked by the "Block program" settings.·Checks to be performed in case of poor image quality.
The USB stick does not work.	·Check the USB connection.·The USB stick is not formatted.·Make sure that the USB stick is compatible and that multimedia data formats can be played back.
The TV turns itself off.	·Check if the "Sleep Timer", "Auto Standby" settings are not activated in the Time menu.·If the TV is used as a PC monitor, check the PC's power and standby settings.
Color dots appear on the screen.	·Although the LED display is manufactured with high-precision technology, black or colored dots (red, blue or green) may appear: this is a structural property of the display and not a malfunction.

VII. WARRANTY

The warranty does not cover product wear parts, problem or damage resulting from:

1. Surface damage due to normal product wear and tear;
2. Defects or damage due to contact of the product with food or liquids and due to corrosion caused by rust;
3. Any incident, misapplication, misuse, alteration, disassembly or unauthorized repair;
4. Any improper maintenance operation, use not in accordance with the instructions concerning the product or connection to an incorrect voltage;
5. Any use of accessories not supplied or approved by CONTINENTAL EDISON.

The warranty will be cancelled if the nameplate and/or product serial number is removed.

VII. DISPOSAL

This logo on the product means that it is an appliance whose treatment as waste falls within the framework of the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), which requires that used rate and recycling of the materials they contain, and reduce the impact on the environment and human health.

Thus, at the end of the life of this device, it must not be disposed of with unsorted household waste.

It must be disposed of in the return and collection systems made available to you by local authorities (waste collection centres) and distributors. As an end consumer, your role is essential in the reuse, recycling and other forms of recovery cycle of this Electrical and Electronic Equipment. You are required to use the selective collection systems available to you.

Continental Edison-120-126 Quai de Bacalan-CS 11584-33000 Bordeaux

Imported by: Market Maker Brand Licensing-79/81 Ancienne Route

Nationale 7-69570 DARDILLY-France

Two overlapping gray semicircles on white background (no text or symbols)

Continental Edison

www.continentaledison.fr
