EMNK5 2238 ES - Microwave Oven BAUKNECHT - Free user manual and instructions

Brand	Bauknecht
Model	EMNK5 2238 ES
Product type	Microwave oven
Color	Stainless steel (estimated)
Capacity	25 liters (estimated)
Microwave power	750 W (max), 500 W, 350 W, 160 W, 0 W (timer)
Functions	Microwave, Auto Steam, Rice & Pasta, Jet Defrost, Timer, Child Lock
Control type	Touch electronic
Display	LED screen (estimated)
Door opening	Side handle (estimated)
Turntable	Glass, included
Included accessories	Turntable, support, steam basket with lid, steamer, rack
Dishwasher compatibility	Yes, for all accessories
Child safety	Automatic lock (Child safety)
Installation type	Freestanding (optional built-in?)
Power supply	230 V / 50 Hz (estimated)
Energy consumption	Not specified
Net weight (approx.)	15 kg (estimated)
Dimensions (W x H x D, approx.)	510 x 350 x 400 mm (estimated)
Recommended cleaning	Microfiber cloth, mild detergent, avoid abrasive products
After-sales service	Contact customer service with the codes on the rating plate

Frequently Asked Questions - EMNK5 2238 ES BAUKNECHT

How to set the time on the Bauknecht EMNK5 2238 ES microwave?

Press the STOP button until the hour digits flash. Use + or - to set the hour, then press START. The minutes flash: set them in the same way and confirm. In case of a power outage, you may need to reset this.

How to use the Jet Defrost function?

Place frozen food directly on the turntable. Press the JET DEFROST button, then use + or - to select the weight. Press START. The oven pauses briefly to allow you to turn the food, then close the door and press START again to finish.

What to do if the screen displays 'Err'?

A software error has occurred. Note the number following the letters 'Err', then contact the After-Sales Service with this code. Turn the oven off and on to check if the problem persists.

How to clean the inside of the oven?

Use a damp microfiber cloth, with a few drops of neutral pH detergent for tough stains. Never use a steam cleaner, steel wool, or abrasive products. Regularly remove the turntable and its support to clean the bottom of the oven.

Can I use metal containers?

No, metal containers for food and drinks should never be used in a microwave oven, as they can cause sparks and damage the appliance.

How to cook rice with the Rice & Pasta function?

Place the rice in the bottom of the steamer, add salt, and pour water up to the indicated level (L1 to L4 depending on weight). Cover with the lid, then select the RICE & PASTA function. Choose P1 (Rice) and the weight level, then confirm. The cooking time is displayed; you can adjust it if necessary.

How to activate the child safety lock?

The safety lock is activated automatically to prevent accidental operation. To use it, open and close the door, press the START button to start the function. No additional settings are required.

What accessories are included with the oven?

The oven comes with a glass turntable, a turntable support, a steam basket (with lid and rack), and a steamer. All these accessories are dishwasher safe.

How to use the Auto Steam function?

Pour 100 ml of drinking water into the bottom of the steam basket, place the food on the rack and cover. Press the AUTO STEAM button, select the food category (root vegetables, fresh vegetables, frozen vegetables, or fish fillets) and set the weight with + or -. Start cooking with START.

The oven is not working, what to check?

Check first that there is no power outage and that the oven is properly plugged in. Turn the appliance off and on. If the problem persists, contact the After-Sales Service with the codes on the rating plate.

USER MANUAL EMNK5 2238 ES BAUKNECHT

THANK YOU FOR BUYING A BAUKNECHT PRODUCT

In order to receive a more complete assistance, please register your product on www.bauknecht.eu/register

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

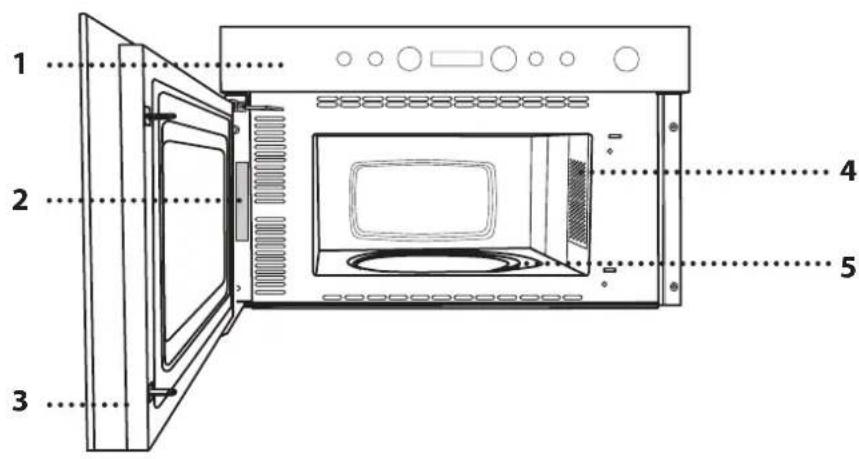

PRODUCT DESCRIPTION

1. Control panel
2. Identification plate (do not remove)
3. Door
4. Light
5. Turntable

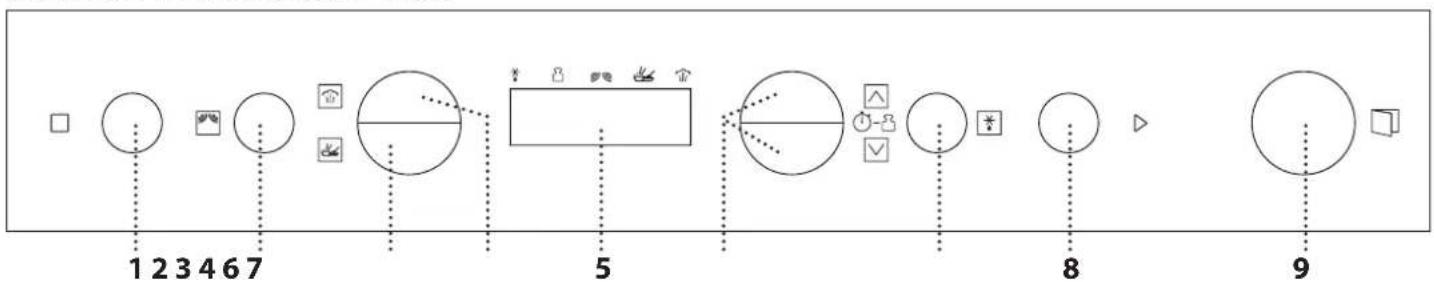

CONTROL PANEL DESCRIPTION

1. STOP

For stopping a function or an audible signal, cancelling the settings and switching off the oven.

2. MICROWAVES FUNCTION/ POWER

For selecting the microwaves function and setting the required power level.

3. RICE & PASTA FUNCTION

4. STEAM FUNCTION

1. DISPLAY

2. • / - BUTTONS

For adjusting the settings of a function (e.g. length, weight).

7.JET DEFROST FUNCTION

8. START

For starting a function.

1. DOOR OPENING BUTTON

ACCESSIONS

TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods. The turntable must always be used as a base for other containers or accessories.

TURNTABLE SUPPORT

Only use the support for the glass turntable. Do not rest other accessories on the support.

The number and the type of accessories may vary depending on which model is purchased.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used during microwave cooking.

STEAMER

To steam foods such as fish or vegetables, place these in the basket (2) and pour drinking water (100ml) into the bottom of the steamer (3) to achieve the right amount of steam. To boil foods such as potatoes, pasta, rice or cereals, place these directly on the bottom of the steamer (the

basket is not required) and add an appropriate amount of drinking water for the amount you are cooking. For best results, cover the steamer with the lid (1) provided. Always place the steamer on the glass turntable and only use it with the appropriate cooking functions, or with microwave function.

Other accessories that are not supplied can be purchased separately from the After-sales Service.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

FUNCTIONS

MICROWAVES

For quickly cooking and reheating food or drinks.

750	Quickly reheating drinks or other foods with a high water content or meat and vegetables.
500	Cooking fish,meaty sauces,or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350	Slow, gently cooking.Perfect for melting butter or chocolate.
160	Defrosting frozen food or softening butter and cheese.

0 When using the minuteminder only.

AUTO-STEAM

For steam-cooking foods such as vegetables

or fish, using the steamer provided. Pour 100ml of drinking water into the bottom of the steamer, place the food on the wire shelf and cover it, then proceed with cooking.

CATEGORY FOOD

1	Tubers and root vegetables (e.g. potatoes, carrots, turnips)
2	Fresh vegetables (e.g. cauliflower, broccoli)
3	Frozen vegetables
4	Fillets of fish

Required accessory: Steamer

RICE & PASTA

To quickly cook rice or pasta. This function must only be used in combination with the steamer.

Weight the desired food, put it in the steamer bottom, add salt and then pour water up to level: The graduation levels marked on the accessory will help you to dose the right amount of drinking water. Cover with lid and insert in the oven.

Required accessory: Steamer

JET DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Food should be placed directly onto the glass turntable. Turn the food when prompted. Food should be placed directly onto the glass turntable. Turn the food when prompted. A standing time after defrosting always improves the result.

DAILYUSE

.JET START

When the oven is switched off, press activate cooking with the microwave function set at full power (750 W) for 30 seconds.

SELECT A FUNCTION

Simply press the button for the function you require to select it.

. SET THE LENGTH

After selecting the function you require, use or set the length for it to run.

The time can be changed during cooking by pressing or by increasing the length for 30 seconds each time by pressing

Press many times as required to select the power level for the microwave.

Please note: You can also change this setting during cooking by pressing

.AUTO-STEAM

Press until the food category you require is shown, then use or to set the weight of the food.

RICE & PASTA

Press the arrow under the icon lights up, then use or to select between RICE (P1) and PASTA (P2).

Press to confirm the selection: "L1" blinks on the display. Use or to select the desired quantity and press

to confirm.

The display shows the rice/pasta cooking duration: if necessary, use to modify the value within a range. Use the same time as indicated on the packaging. Press to confirm and start the cooking.

Please note: The cooking is splitted into two phases. The first heats up the water to boiling and its duration is related to the quantity level set. The second phase is the effective cooking: only this duration can be modified as indicated above.

JET DEFROST

Press, then use or to set the weight of the food. During defrosting, the function will pause briefly to allow

you to turn the food. Once the operation is complete, close the door and press

. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press to activate the function.

Every time the button is pressed again, the cooking time will be increased by a further 30 seconds.

You can press any time to stop the function that is currently active.

. PAUSE

To pause an active function, for example to stir or turn the food, simply open the door.

To start it up again, close the door and press

. SAFETY LOCK

This function is automatically activated to prevent the oven from being switched on accidentally. Open and

close the door, then press to start the function.

. SET THE TIME OF THE DAY

Press until the two digits for the hour (on the left) starting flashing. Use or to set the correct hour

and press to confirm: The minutes will flash on the display. Use or 四 set the minutes and press to confirm.

Please note: You may need to set the time again following lengthy power outages.

. MINUTEMINDER

The display can be used as a timer. To activate the function and set the length of time you require, use or Press to the power to 0W then press to activate the countdown.

Please note: The timer does not activate any of the cooking cycles. To stop the timer at any time, press

CLEANING

Never use steam cleaning equipment. Do not use wire wool, abrasive scourers or abrasive/ corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Clean the glass in the door with a suitable liquid detergent.
• At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.

ACCESSIONS

All accessories are dishwasher safe.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut. Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists.
The display is showing "Err". Software fault.		Contact you nearest After-sales Service Centre and state the letter or number that follows "Err".

Policies, standard documentation and additional product information can be found by: - Visiting our website docs.bauknecht.eu

-Using QR Code
- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.
