Product type	Warming and vacuum sealing drawer
Brand	Atag
Model	BD0792C
Power supply voltage	220-240 V
Frequency	50 Hz
Power	1500 W (estimate)
Dimensions (W x D x H)	60 x 55 x 14 cm (estimate)
Weight	25 kg (estimate)
Main functions	Plate warming, food vacuum sealing
Maximum bag capacity	Up to 30 cm width (estimate)
Materials	Stainless steel, tempered glass
Safety	Overheating safety device, automatic shutdown, child lock
Maintenance and cleaning	Clean with soft damp cloth, do not use steam cleaner
Installation	Built-in, by a certified installer
Spare parts and repairability	Original parts available, repair by approved service
General information	Domestic use, compatible with vacuum bags and jars

Frequently Asked Questions - BD0792C Atag

What are the essential safety precautions for this drawer?

Never use a steam cleaner, do not open the casing, and check the condition of the glass lid before each use. If cracked, unplug and contact customer service.

How to clean the glass lid seal?

Clean the seal with a damp cloth and a little detergent. Do not use sharp or pointed objects that could damage it.

Can I vacuum seal hot food?

No, only vacuum seal cooled food. Hot liquids can boil at low pressure and damage the appliance.

What to do in case of a power outage during vacuum sealing?

The vacuum is maintained. Never try to open the lid with a tool. Wait for power to return to restart the process.

Is it possible to use glass jars with this drawer?

Yes, use jars in good condition and ensure they are not too tall: a gap of at least 1 cm between the lid and the cover is required.

What is the maximum temperature reached in heating mode?

The temperature is not specified, but the drawer is designed to warm plates and keep food warm, generally around 60-80°C.

Can I use abrasive cleaning products?

No, do not use aggressive or abrasive products or sharp objects. This could scratch the glass and damage the appliance.

How to install the appliance correctly?

Installation must be carried out by a certified installer. Never close the cabinet door during operation to avoid heat and moisture buildup.

What to do if the lid seal is defective?

Do not use the appliance. Contact after-sales service for replacement, as a defective seal can cause malfunctions or injuries.

What types of bags to use?

Use plastic bags suitable for vacuum sealing. Never vacuum seal live products such as shellfish.

USER MANUAL BD0792C Atag

Warmingdrawer Vacuum drawer

Sécurité

EN Safety regulations EN 3 - EN 8

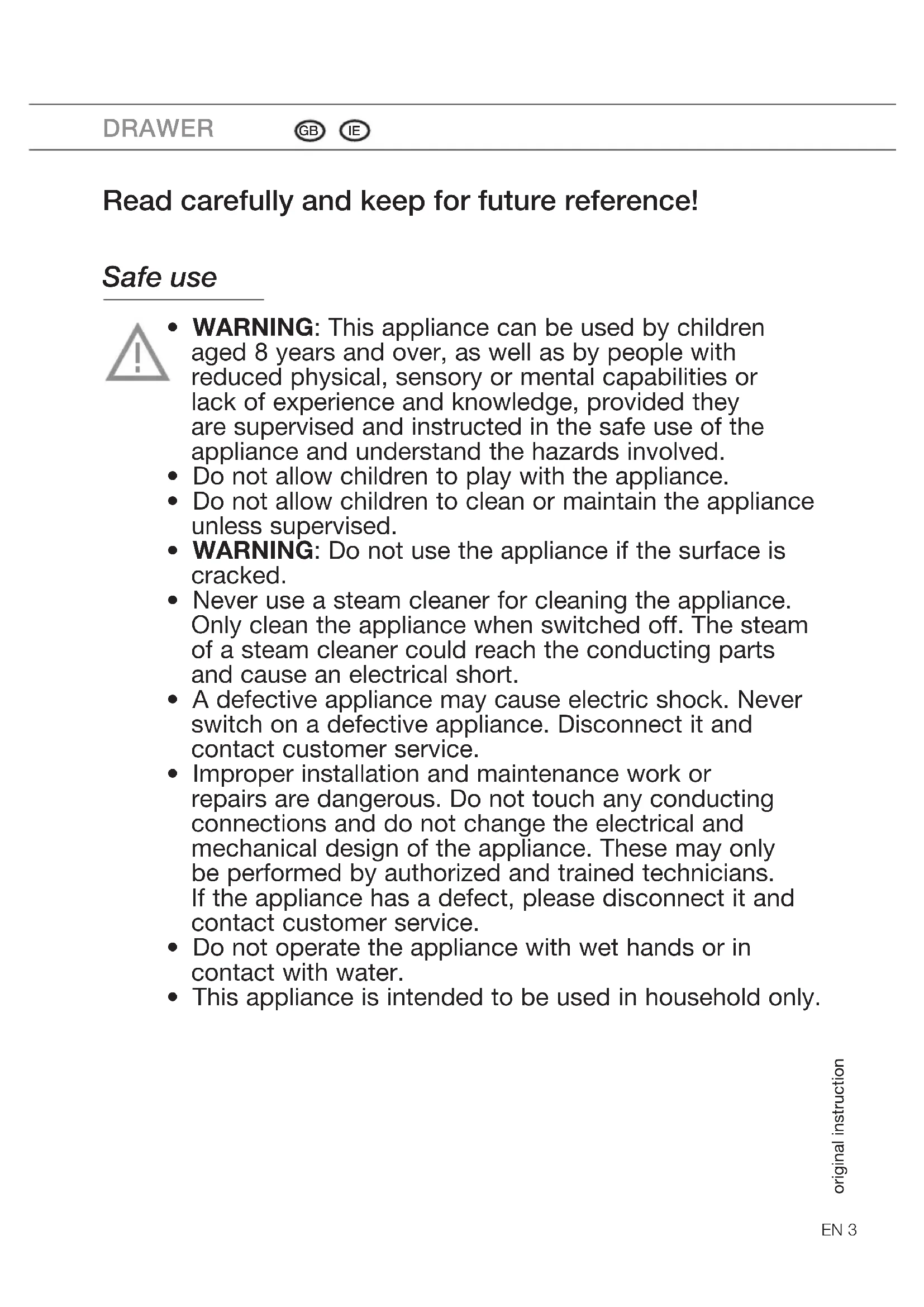

Read carefully and keep for future reference!

Safe use

• WARNING: This appliance can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved.
• Do not allow children to play with the appliance.
• Do not allow children to clean or maintain the appliance unless supervised.
• WARNING: Do not use the appliance if the surface is cracked.
• Never use a steam cleaner for cleaning the appliance. Only clean the appliance when switched off. The steam of a steam cleaner could reach the conducting parts and cause an electrical short.
• A defective appliance may cause electric shock. Never switch on a defective appliance. Disconnect it and contact customer service.
• Improper installation and maintenance work or repairs are dangerous. Do not touch any conducting connections and do not change the electrical and mechanical design of the appliance. These may only be performed by authorized and trained technicians. If the appliance has a defect, please disconnect it and contact customer service.
• Do not operate the appliance with wet hands or in contact with water.
• This appliance is intended to be used in household only.

Vacuum drawer

Danger - risk of burns!

- The sealing strip of the vacuum chamber gets very hot. The sealing seam of the vacuum sealer bags is strongly heated during the sealing process as well. Do not touch the hot sealing strip or other accessible parts. You could suffer a burn. Watch any children and keep them away from the appliance.

Danger - risk of fire!

- The sealing strip can get very hot. Do not keep highly flammable substances in the vicinity of the appliance. This poses a fire and explosion hazard due to the vapours.

Danger - risk of injury!

- Check the appliance before each use for damage. Do not use in case of damage. Contact customer service. - In particular, check the glass lid of the appliance for even the smallest cracks and fissures. It could implode when the vacuum is connected. For this reason, the appliance must not be operated anymore when the lid is damaged. Disconnect it and contact customer service.

Vacuuming glassware with screw-on lids:

- Only use glassware that is in impeccable condition. Make sure before closing the lid that the jars are not too tall. In order to avoid damaging the appliance, the distance between screw-on lid and appliance lid must be at least 1 cm. - Never insert hoses connected to the appliance into bodily openings!

Danger - risk of death! - Suffocation hazard!

- Keep packaging parts out of reach of children. Foils and parts, especially small parts, may be hazardous or might be swallowed.

Causes of damage

- Never pack products that might get damaged by vacuum-packing. You could get injured or might damage the appliance.

- Under vacuum conditions, fluids already start to boil at low temperatures. In the process, steam escapes and malfunctions of the appliance may result. Exclusively vacuum-pack cooled foods.

- Watch the vacuuming process carefully and seal the bag early if bubbles start to form. To stay on the safe side, we recommend to vacuum-pack fluids in sturdy customary vacuuming containers.

- Make sure that during the vacuuming process and during cleaning, no water gets into the interior of the appliance and the suction point of the vacuum pump. This may cause damage to the pump.

- You may use nothing but a soft, moderately damp cloth for cleaning. Never hose down your appliance with water, and do not use a steam cleaner.

- Do not misuse the appliance as a worktop, storage space or seat. Do not put anything on the glass lid of the appliance, especially no extremely hot or cold objects.

- Take care that no objects fall on top of the glass lid. It could suffer damage. Close the drawer when the appliance is not in use. Open and close it slowly when in operation and slide it all the way in or out.

- The vacuum in the vacuuming chamber is maintained during a power outage during the vacuuming process. Do not try in any case to open the glass lid using tools. Wait until the power has returned, and restart the vacuuming process.

- Do not use any aggressive or abrasive cleaners or sharp metal scrapers to clean the glass of the appliance's lid. Resulting scratches on the surface may damage the glass and lead to malfunction or risk of injury.

- Check the correct placement of the rubber gasket of the glass lid. Take care that the bed of the rubber gasket is clean and clear of objects. This could impair the appliance's function.

- Caution: Do not operate the appliance if the rubber gasket is defective. You could damage the appliance or suffer an injury. Please contact customer service.

- Do not damage the glass chamber's rubber gasket, especially not with pointy or sharp objects. Clean the glass lid's rubber gasket with a damp cloth and a little dish detergent. Do not use any sharp or aggressive detergents.

- Never vacuum-pack living goods.

Installation

- This appliance should only be connected by a registered installer!

- The electrical connection must comply with national and local regulations.

- The wall plug socket and plug should always be accessible.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- If you want to make a fixed connection, make sure that a omnipolar switch with a contact separation of at least 3 mm is fitted in the supply cable.

- If a stationary appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- WARNING: Never open the appliance casing. The casing may only be opened by a service technician.

- Prior to connecting the drawer, ensure that all cables in your home's electrical system are of sufficient diameter to supply the appliance properly.

- Complete all electrical connections before building in the appliance.

• Improper installation and maintenance work or repairs are dangerous. These may only be performed by authorized and trained technicians. If the appliance has a defect, please disconnect it and contact customer service.
• If the appliance is mounted behind a furniture front (e.g. a door), never close it while the appliance is in use. Heat and humidity accumulate behind a closed furniture front. This may damage drawer, cupboard and floor.
• Only use original replacement parts. These meet the required safety specifications.
• Please note that the appliance must not be mounted tilted or upended. The design of the appliance includes an oil-containing pump. Please refer to the installation instructions.

If the safety instructions and warnings are not followed, the manufacturer cannot be held responsible for any resulting damage.

If you decide to discontinue using the appliance because of a fault, we recommend you cut off the cable after removing the plug from the plug socket. Take the appliance to your municipality's waste disposal site.
