USER MANUAL ZCGP150PII GE

COMPACTOR SAFETY You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING3 INSTALLATION INSTRUCTIONS Installer: Leave Use and Care Guide with the homeowner. Homeowner: Keep Use and Care Guide for future reference and for local electrical inspector’s use, if required. Unpacking IMPORTANT:■ Do not grasp console to move compactor.■ Begin in the room where the compactor will be located.1. Remove compactor from shipping carton. Remove all packaging materials such as tape and shipping pads. Use a mild detergent and warm water to remove waxy residue caused by shipping material. Dry thoroughly with a soft cloth. For more information, see “Cleaning.”2. Be sure the power cord is attached to the cord clip on the rear of the compactor.3. Place the 2 corner posts from the carton on the floor near the compactor. Open the compactor drawer and remove any shipping materials or other items from the drawer. Do not remove the compactor bag. Grasp the handle and raise the front of drawer until it clears the drawer stops. Grasp sides of drawer and lift drawer out of compactor. Place the drawer on the 2 corner posts. 4. Place the other 2 corner posts on the floor to the side of the compactor. Grasp the sides of the compactor cabinet and put compactor on its side on top of the corner posts. Remove the shipping base from the bottom of the compactor.

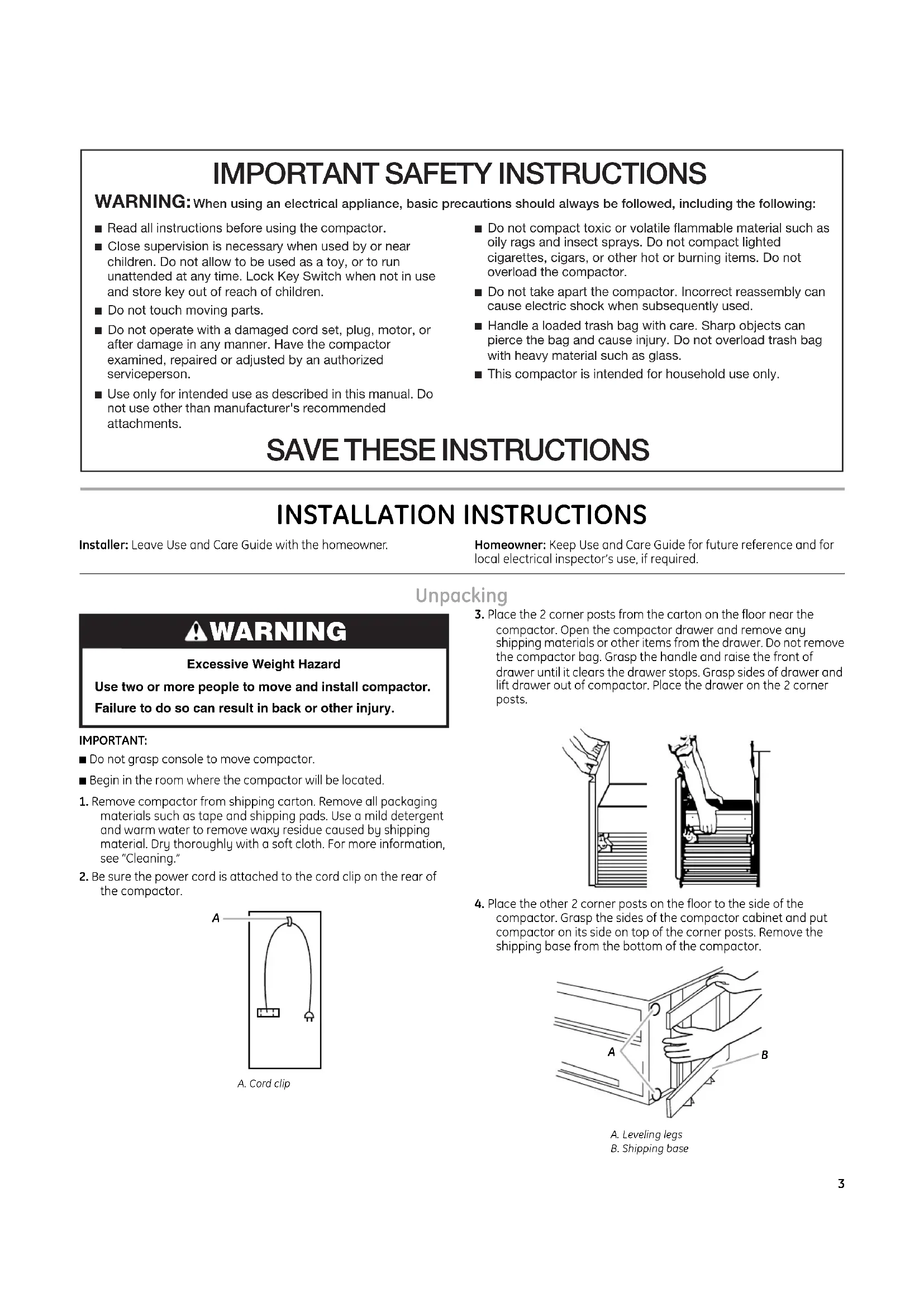

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

■ Read all instructions before using the compactor.■ Close supervision is necessary when used by or near children. Do not allow to be used as a toy, or to run unattended at any time. Lock Key Switch when not in use and store key out of reach of children.■ Do not touch moving parts.■ Do not operate with a damaged cord set, plug, motor, or after damage in any manner. Have the compactor examined, repaired or adjusted by an authorized serviceperson.■ Use only for intended use as described in this manual. Do not use other than manufacturer's recommended attachments.■ Do not compact toxic or volatile flammable material such as oily rags and insect sprays. Do not compact lighted cigarettes, cigars, or other hot or burning items. Do not overload the compactor. ■ Do not take apart the compactor. Incorrect reassembly can cause electric shock when subsequently used. ■ Handle a loaded trash bag with care. Sharp objects can pierce the bag and cause injury. Do not overload trash bag with heavy material such as glass.■ This compactor is intended for household use only.

SAVE THESE INSTRUCTIONS

A. Cord clip WARNING Excessive Weight HazardUse two or more people to move and install compactor.Failure to do so can result in back or other injury.

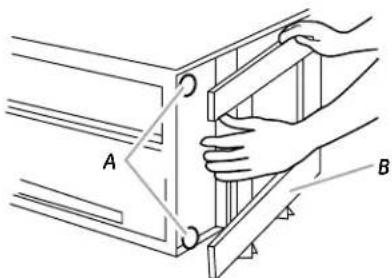

A. Leveling legs B. Shipping base

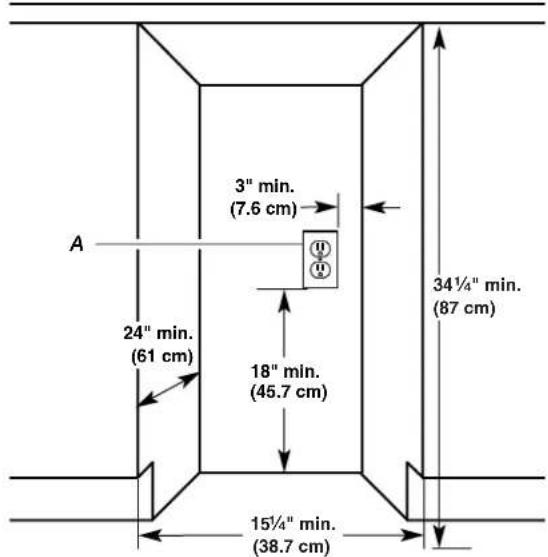

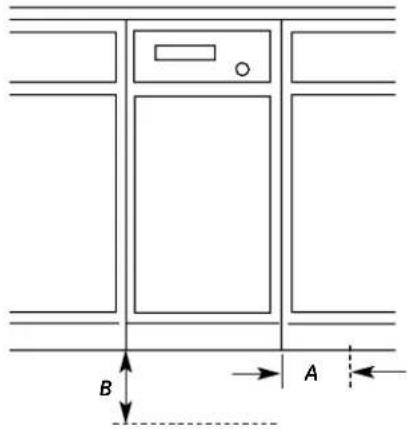

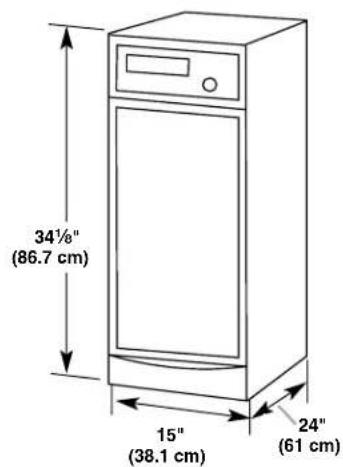

Location Requirements Product Dimensions Cutout Dimensions Clearance Dimensions Electrical Requirements Recommended Grounding Method This compactor is for use on a single phase, 115-volt, 60 Hz, AC only, 15- or 20-amp fused and properly grounded circuit and is equipped with a grounding plug as shown below. It is recommended that a separate circuit serving only this appliance be provided.This compactor must be grounded while in use to reduce the risk of electric shock. The compactor is equipped with a three-conductor cord and 3 prong grounding-type plug to fit the proper grounding-type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. Do not connect the green (or green and yellow) wire to a live terminal. A. Grounded electrical outlet must be a minimum of 3" (7.6 cm) away from surrounding cabinets or nearby walls as shown. It can be placed either to the left or the right side of the compactor.34¹⁄₈"(86.7 cm)24" (61 cm) 15"(38.1 cm) 24" min.(61 cm) ¹⁄₄" min.(87 cm)18" min.(45.7 cm) 3" min. (7.6 cm) ¹⁄₄" min.(38.7 cm)A. Leave 6" (15.2 cm) of clearance space to the right side of the compactor in order to remove the compactor bags. B. Leave 23" (58.4 cm) of clearance in front of the compactor in order to fully open or remove the compactor drawer.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING5 Undercounter Installation NOTE: Proper installation is your responsibility. Make sure you have everything necessary for correct installation. It is the personal responsibility and obligation of the customer to contact a qualified installer to assure that electrical installation meets all national and local codes and ordinances. Tools needed: Gather the required tools and parts before starting installation. IMPORTANT: ■ Do not grasp control panel to move compactor.■ Slide compactor onto cardboard or hardboard before moving compactor across floor to avoid floor covering damage. ■ Do not allow the rear frame of the compactor to touch the floor covering when lifting or moving compactor. Undercounter Installation NOTE: Installation hardware is not provided with full cabinet models.

1. Measure the height of your cabinet opening. The top of the

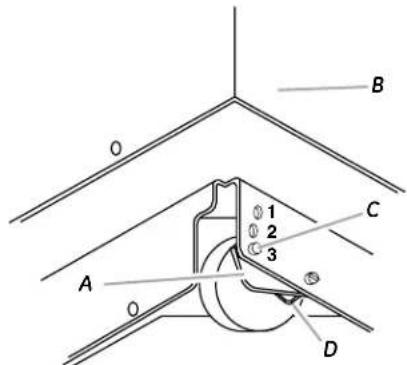

compactor should be at least ¹₈" (3 mm) from the top of the cabinet opening. The rear wheels are preset for a cabinet opening height of 34¹⁄₄" (87 cm) (Position 1). To adjust for other cabinet opening heights: ■ Loosen self-tapping screw just enough to clear stud from hole in position “1.” ■ Move the rear wheel and stud to position “2” or “3” as needed for your cabinet opening measurement: Position 2: 34¹⁄₄" to 34⁷⁄₁₆" (87 to 87.5 cm) Position 3: 34⁷⁄₁₆" to 34⁵⁄₈" (87.5 to 88 cm) NOTE: To level the unit in position “3,” you may need to add shims under the leveling legs. ■ Tighten screw. Repeat for other rear wheel.

2. Use pliers to lower leveling legs away from cabinet. Adjust legs so

there will be a ¹⁄₈" (3 mm) to ¹₄" (6.4 mm) space between the top of the compactor and the top of the cabinet opening. Stand the compactor upright.

3. For model with cabinet, remove the plastic plugs from the

compactor cabinet top.

4. Move the compactor close to its final position.

5. Plug into a grounded 3 prong outlet.

6. Determine if you want the compactor frame or drawer front flush

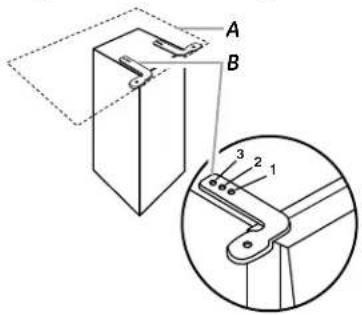

with the cabinet front. Using the two #8-18 x ⁵₁₆" screws, install the retaining brackets to cabinet top as needed: ■ If the compactor frame is to be flush with the cabinet front, place retaining bracket screws through “1.” ■ If the compactor drawer front is to be flush with the cabinet front, place retaining bracket screws through “3.” ■ If the compactor is to be midway between “1” and “3,” place the retaining bracket screws through “2.”

7. Slowly lift the front slightly and roll compactor into the cabinet

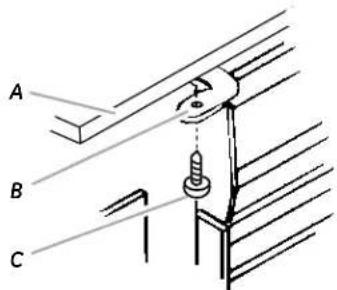

opening. Using the two #8-18 x ¹₂" screws, fasten the retaining brackets to the countertop with the mounting screws. If brackets cannot be attached to the underside of countertop, attach mounting clips to brackets. Fasten compactor to cabinet front with mounting screws through mounting clips. Countertop mounting ■ Level ■ Phillips No. 2 screwdriver ■ Tape measure ■ Flat-blade screwdriver ■ Pliers ■ ⁵⁄₁₆" Box-end wrench ■ Scissors ■ Utility knifeA. Wheel bracket assemblyB. CabinetC. Locating studD. Self-tapping screw (pivot)

A. CountertopB. Retaining bracketA. CountertopB. Retaining bracketC. Mounting screw

Cabinet-front mounting

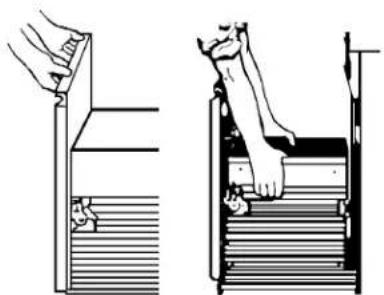

8. Grasp sides of compactor drawer and place bottom of drawer

into tracks. Lift at the handle so drawer will go over drawer stops. Close drawer. Check to see if drawer opens freely. If the toe plate rubs against floor, see “Adjusting the Toe Plate” for further instructions. Adjusting the Toe Plate If the toe plate rubs the floor covering, the toe plate clearance may be changed as follows:

1. Mark on each side of the toe plate the amount of toe plate that

rubs the floor covering.

2. Remove the drawer from the unit. (See Step 3 in the “Unpacking”

3. Use a ruler and a pencil or chalk to draw a line between the

marks on each side of toe plate.

4. Use scissors or utility knife to cut toe plate along line.

5. Replace drawer. If toe plate still rubs floor covering, repeat steps

1-4. Installing a Custom Panel Dimensions Use these dimension drawings to create a custom panel for use without a trim kit. The panel should be a minimum of ¹⁄₂" (13 mm) thick. Installation

1. Remove the 2 rubber bumpers from the lower corners of the

inside drawer front. Set aside the bumpers and discard the screws.

2. Align the bottom of the custom panel with the bottom of the

exterior drawer front and rest the panel on the rest tab. NOTE: The bottom of the custom panel should not extend below the bottom rest tab at the lower center of the exterior drawer front.

3. Secure the custom panel to the exterior drawer front by using

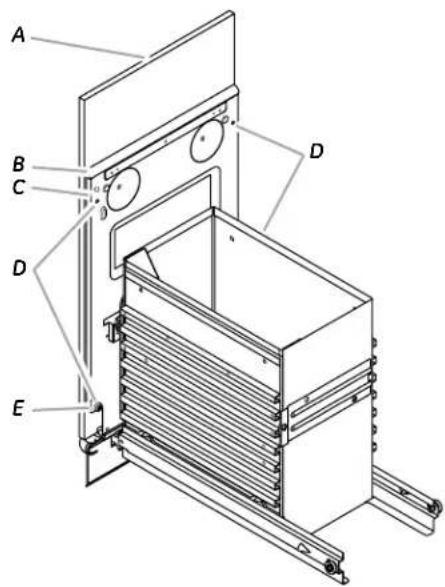

four #8 x 1" wood screws from the inside drawer front. ■ Install the top 2 wood screws as shown. ■ Use the bottom 2 wood screws to also reinstall the 2 rubber bumpers on each side of the lower inside drawer while attaching to the custom panel.

4. Attach a 15" x ¹⁄₂" quarter-round filler along the top inside edge of

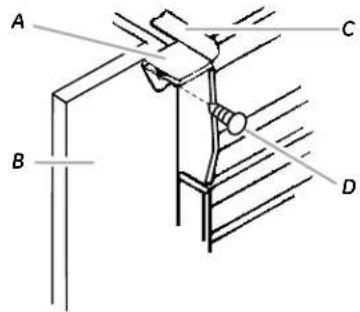

the drawer front using glue or screws. A. Mounting clipB. CabinetC. Retaining bracketD. Mounting screw

29 ³⁄₈"(74.6 cm)A. Custom panelB. 15" x " quarter roundC. Drawer frontD. Four #8 x 1" wood screws placementE. Rubber bumper (one on each side)

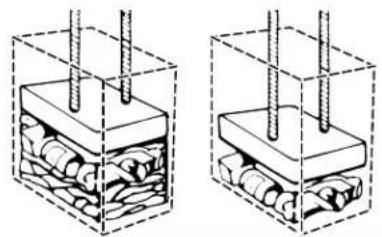

COMPACTOR USE How Your Compactor Works The compacting ram is the part of the compactor which compresses the trash. The compacting ram does not go to the bottom of the drawer. You will not see compacting of trash the first few times you load the compactor. NOTE: The compactor drawer should be more than ¹⁄₂ full before the compactor can begin to compress the load. You may hear a noise when glass breaks. Strong glass bottles may not break at all. The trash in a full compactor bag will be about ¹⁄₄ the size of its original bulk. Load bulky trash, bottles, and cans in the center of the drawer. Bottles or cans not placed in the center may become caught between the ram and the drawer. The Drawer Monitor Switch then senses a “misload” and causes the ram to return to the “up” position without compacting. Loading IMPORTANT: Do not push items down into compactor with hands or feet. NOTE: You will not see compacting of trash the first few times you load the compactor. The compactor drawer should be about ¹⁄₂ full before the compactor can begin to compress the load.

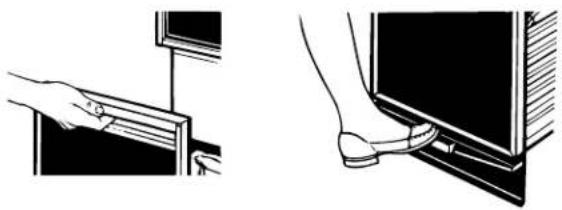

1. Open the drawer. Lift and pull the handle or press the toe bar to

open the drawer. NOTE: Pressing the toe bar opens the container only 3" to 6" (7.6 cm to 15.2 cm), depending on the load.

2. Place trash in compactor.

■ Wrap or cover wet or messy trash. ■ Do not compact items that may develop offensive odors such as raw meat, fish, grapefruit rinds, disposable diapers, or personal hygiene items. ■ Load bottles or cans on their sides in the center of the drawer. Do not load bottles in an upright position.

3. Close the drawer.

Starting Your Compactor

3. Set Solid Cycle switch to OFF.

5. Lift foot pedal UP to START cycle.

Using Solid (Locked) Cycle The Solid (Locked) Cycle extends the use of the bag by putting constant pressure on the trash to keep it from springing back. Regular use of solid cycle can increase bag capacity up to 25 percent. During Solid Cycle, the ram will stay in the down position for extra compacting. The drawer is locked and cannot be opened when the ram is down. For best results, use the Solid Cycle for at least 30 minutes at a time.

1. Open container. Load trash.

2. Set compactor Solid Cycle switch to ON.

4. Lift the foot pedal UP to START cycle.

5. Container remains LOCKED untill you RESET by lifting the foot

the compactor for odor removal. NOTE: The charcoal Air Filter works only when the Key-Knob is in the ON position.

2. Set the Air Filter switch to OFF to turn off the fan.

Removing a Filled Bag When the trash is compacted to the top of the drawer, remove the bag. If the bag is too heavy, compact less trash before emptying it in the future. IMPORTANT: Do not push items down into compactor with hands or feet.

1. Pull the drawer completely open.

2. Remove top of bag from bag retainer buttons. Pull up all four bag

cuffs. Close bag with twist tie provided.

3. Push Side-Lock Latch down and tilt drawer side open.

Installing a New Bag Do not use any kind of bag other than those designed especially for use in your compactor. Order replacement compactor bags through your local dealer or by calling the toll-free number 1-800-626-2002 (U.S.), 1-800-661-1616 (Canada). IMPORTANT: Before installing a new bag, be sure: ■ The drawer side is securely locked. ■ The container is clean and free of debris.

1. Place folded bag into the drawer. Open bag and pull top edges

over the drawer top.

2. Lock bag in place by pulling the four prepunched holes over the

bag retainer buttons. Holes will expand over the buttons without damaging the bag.

3. Press inside of bag against the drawer bottom, sides and corners

for a smooth fit.9 COMPACTOR CARE Your new compactor is designed to give you many years of dependable service. However, there are a few things you are expected to do in order to properly maintain your compactor. This section will tell you how to clean and care for your compactor. Changing the Air Filter It is recommended that you use the charcoal air filter in the filter compartment. To order the correct replacement charcoal filters, call the toll-free number 1-800-626-2002 (U.S.), 1-800-661-1616 (Canada).

1. Insert fingertips in the air filter cover and pull until the side tabs

release. Then, lift the cover to release the bottom tabs.

2. Remove the air filter by pulling the top edge of the filter. The filter

should pull out easily. Throw away used filter.

3. To replace air filter, push the replacement filter into place.

4. Insert the bottom tabs of the air filter cover and push in until the

side tabs snap into place. Cleaning Before cleaning the compactor, turn the Key-Knob (or Key-Switch) to the OFF & LOCK position and remove it. NOTE: Any services other than those outlined in this section should be performed by a designated service representative. Cleaning Exterior Surfaces

1. Wash exterior surfaces (including stainless steel) with a clean

sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Rinse and dry thoroughly with a soft cloth.

2. Wipe up spills right away. Some foods can damage the finish if

left on the compactor surface. Cleaning Inside the Drawer NOTE: You may want to wear gloves since there may be bits of glass in the drawer.

1. Remove the bag. See the “Removing a Filled Bag.”

2. Press down on the lever-action lock (or Side-Lock latch).

3. Hold the lever-action lock down and tilt the side of the drawer out

until the lock clears the drawer front. NOTE: If desired, the drawer side can be removed by tilting it up, then lifting it out.

4. Wash the interior of the drawer with a clean sponge or soft cloth

and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.

5. If the drawer side was removed, slide it back into the tilted

6. Press the lever-action lock (or Side-Lock Latch) down while

pushing the drawer side to the upright position.

7. Latch the drawer side by pushing up the lever-action lock (or

Side-Lock Latch). Cleaning Inside the Cabinet NOTE: You may want to wear gloves since there may be bits of glass in the cabinet.

1. Pull the drawer out until it stops.

NOTE: Look to see how the drawer rollers move in the tracks. It will be easier to replace the drawer after you have finished cleaning.

2. Lift the front of the drawer to clear the stops.

3. Grasp the drawer on the sides and pull it out the rest of the way.

Set the drawer down gently.

4. Vacuum the inside of the cabinet. Liquid spills or wet trash should

be cleaned up by hand, or by using a vacuum designed to pick up liquids.10

5. Wash the inside of the cabinet with a clean sponge or soft cloth

and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.

6. To replace the drawer, grasp it by the sides and insert the rollers

7. Lift the front of the drawer and push it in fully past the stops.

Cleaning the Ram NOTE: You may want to wear gloves since there may be bits of glass on the ram cover.

1. Wipe glass particles off of the ram cover with a cloth or paper

2. Remove foods with a clean sponge or soft cloth and a mild

detergent in warm water. Rinse and dry thoroughly with a soft cloth. Cleaning Before a Vacation If you will be away for more than a couple of days, remove the compactor bag. Remove the Key-Knob (or Key-Switch) and store it out of children’s reach. TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Trash is not compacting ■ Is the drawer less than half-full? Drawer must be more than half full before trash is compacted. Your compactor won’t operate ■ Is the power supply cord unplugged? Plug into a grounded 3 prong outlet. ■ Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Is the drawer completely closed? Close the drawer firmly and start the compactor again. ■ Is the Key-Knob turned all the way to START? Turn the Key-Knob (Key-Switch) fully to START and release (on some models). See “Starting Your Compactor.” ■ Did you press ON before pressing START? Press ON before pressing START (on some models). See “Starting Your Compactor.” The drawer won’t open ■ Is the ram all the way up? Drawer will open only when ram is fully raised. To raise the ram on models with a Key-Knob (or Key-Switch): Turn the Key-Knob (Key-Switch) to START and release. See “Starting Your Compactor.” To raise the ram on models with push button controls: Press OFF, and then press ON. See “Starting Your Compactor.” ■ Is the Solid Cycle engaged? Drawer remains LOCKED until you reset by lifting the foot pedal up. There is not enough compaction or force ■ Do you use the compacting cycle frequently enough? Compacting works best when only a few items are loaded. Bottles don’t break ■ How often do you notice this? Bottles will not break every time. The thickness of the bottle’s glass and the content of the trash load below it may keep the bottle from breaking.YOUR COMPACTOR WARRANTY Staple sales slip or canceled check here. Proof of original

rchase date is needed to obtain service under warranty. WHAT IS COVERED From the Date

the Original Purchase Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company, Louisville, KY 40225.

• Service trips to your home to teach you how to use the product.

• Improper installation, delivery or maintenance.

• Replacement of house fuses or resetting of circuit breakers.

• Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.

• Damage to the product caused by accident,

re, floods or acts of God.

• Incidental or consequential damage caused by possible defects with this appliance.

• Damage caused after delivery.

• Product not accessible to provide required service. Warranty Compactor ONE-Y EAR Any part of the compactor which fails due to a defect in materials or workmanship. During this limi ted one-year warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part. This warranty is extended to the original purchaser and any succeeding owner for the products

rchased for ordinary home use in the 48 mainland states, Hawaii, Washington, D.C.; or Canada.

the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized

Service Location for service. In Alaska the warranty is the same except that it is LIMITED because you must pay to ship the product to the service shop or for the service technician’s travel cost to your home. All warranty service will be provided by our Factory Service Centers or by our authorized Customer

servicers during normal working hours. Should your appliance need service, during warranty period or beyond, in the U.S.A. call

Please have serial number and model number available when calling for service. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. 11Consumer Services Compactor With the purchase of your new appliance, receive the assurance that if you ever need information or assistance from GE, we’ll be there. All you have to do is call—toll-free! GE Answer Cen ter

Whatever your question about any GE major appliance, GE Answer Center

information service is available to help. Your call—and your question—will be answered promptly and courteously. GE Answer Center

service is open 8:00 a.m. to 10:00 p.m. Monday–Friday and 8:00 a.m. to 7:00 p.m. on Saturday.

A GE consumer service professional will provide expert repair service, scheduled at a time that’s convenient for you. Many GE Consumer Service company-operated locations offer you service today or tomorrow, or at your convenience (7:00 a.m. to 7:00 p.m. weekdays, 9:00 a.m. to 2:00 p.m. Saturdays). Our factory-trained technicians know your appliance inside and out —so most repairs can be handled in just one visit. Service Contracts In the USA:

You can have the secure feeling that GE Consumer Service will still be there after your warranty expires. Purchase a GE contract while your warranty is still in effect, and you’ll receive a substantial discount. With a multiple-year contract, you’re assured of future service at today’s prices. Parts and Accessories In the USA:

Individuals qualified to service their own appliances can have parts or accessories sent directly to their home. The GE parts system provides access to more than 47,000 parts…and all GE Genuine Renewal Parts are fully warranted. User maintenance instructions contained in this manual cover procedures intended to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. For Customers With Special Needs… In the USA:

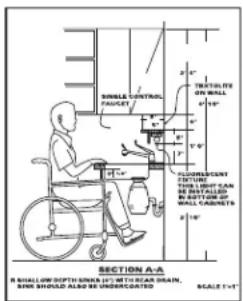

GE offers Braille controls for a variety of GE appliances, and a brochure to assist in planning a barrier-free kitchen for persons with limited mobility. Consumers with impaired hearing or speech who have access to a TDD or a conventional teletypewriter may call 800.TDD.GEAC (800.833.4322) to request information or service. ge.com 12General Electric Company Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150 GE Service Protection Plus

GE, a name recognized worldwide for high quality and dependability, offers you

—comprehensive protection on all of your appliances—

Matter What Brand! Benefits Include:

• Unlimited service calls

• All parts and labor costs included

• No out-of-pocket expenses

• No hidden deductibles

• One 800 number to call You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple. Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even ice maker coverage and food spoilage protection is offered. You can rest easy, knowing that all of your valuable household products are protected against expensive repairs. Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information. *All brands covered, up to 20 years old, in the continental U.S. Please place in envelope and mail to: Cut hereConsumer Product Ownership Registration

GE Consumer & Industrial Appliances General Electric Company Louisville, KY 40225ge.co First Nam

Mr. Ms. Mrs. Miss Street Add ress City StateDate PlacedIn UseMonth Day Year Zip Cod

Consumer Product Ownership Registration Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us.

are proud to have you as a customer! Follow these three steps to protect your new appliance investment: Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at ge.com.

Model Number Serial Number Cut here Complete and mail your Consumer Product Ownership Registration today. Have the peace of mind of knowing we can contact you in the unlikely event of

modification. After mailing the registration below, store this document in a proper place. It contains information you will need should you require service. Our service number is 800 GE CARES (800.432.2737). Read your Owner’s Manual. It will help you operate your new appliance properly. Model Number Serial Number E-mail Address*

• Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA). Check here if you do not want to receive communications from GEA’s selected partners. FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS. For more information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy Policy” or call 800.626.222415
