USER MANUAL IAN 307240 MIOMARE

SHOWER HOSE An additional feature

Assembly instructions

③ ④ ⑤

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Assembly: opening of the door

Page

K&SaIany GmbH
Darlester.45
D-50170 Kersen
GERMANY

IAN 307240 IAN 307240

m = 311

m = 311

Assembly: opening of the door

Page

5

Élimination. Page 18

List of pictograms used. Page 32

Introduction 32
Intended use Page 33
Parts description . Page 33
Package contents . Page 33
Technical data Page 33
Safety instructions.. Page 34
Installation.. Page 34
First use. Page 35
Maintenance and cleaning.. Page 36
Disposal.. Page 36
Warranty and Service.. Page 36

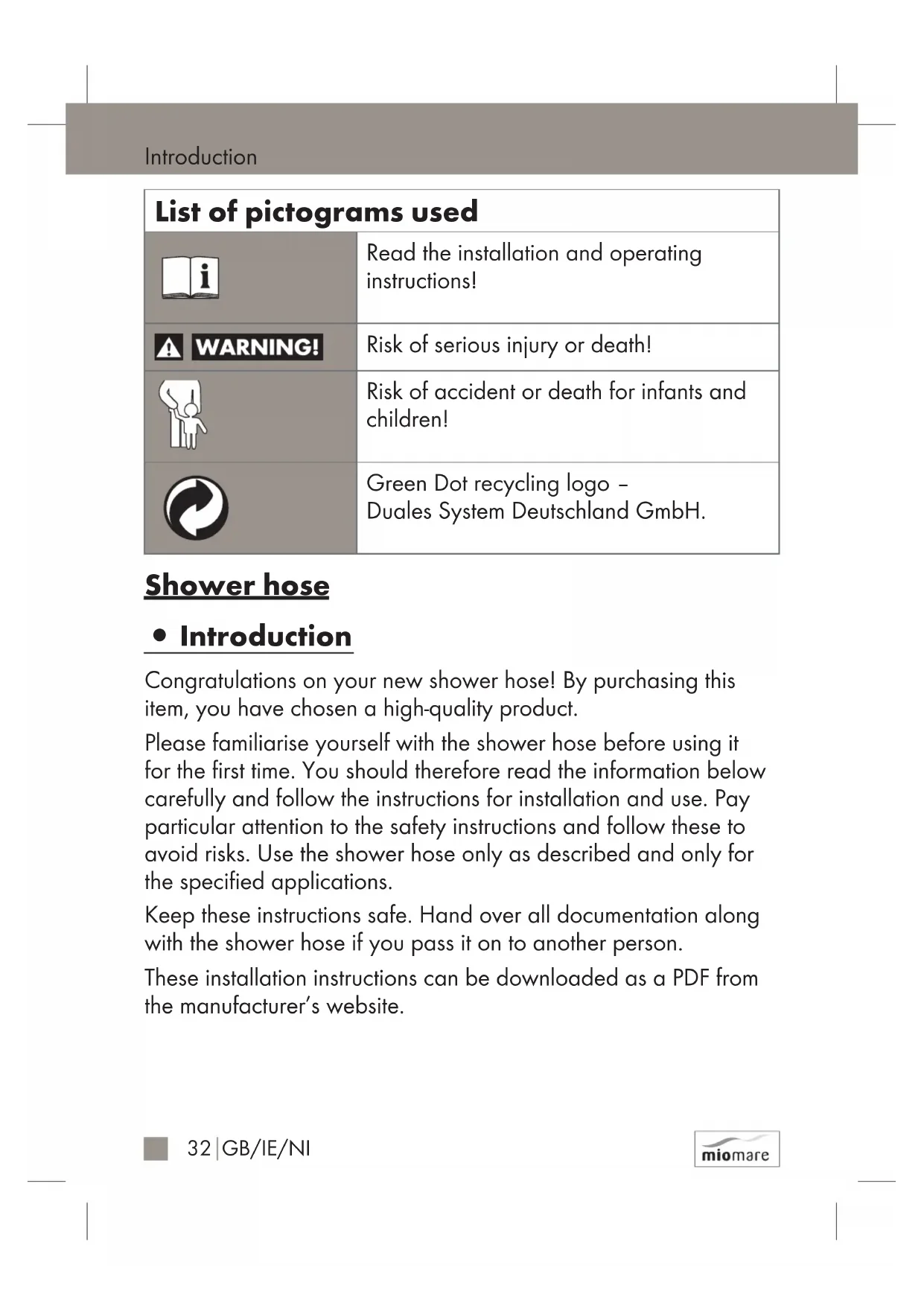

List of pictograms used
i	Read the installation and operating instructions!
WARNING!	Risk of serious injury or death!
	Risk of accident or death for infants and children!
	Green Dot recycling logo - Duales System Deutschland GmbH.

Shower hose

Introduction

Congratulations on your new shower hose! By purchasing this item, you have chosen a high-quality product.

Please familiarise yourself with the shower hose before using it for the first time. You should therefore read the information below carefully and follow the instructions for installation and use. Pay particular attention to the safety instructions and follow these to avoid risks. Use the shower hose only as described and only for the specified applications.

Keep these instructions safe. Hand over all documentation along with the shower hose if you pass it on to another person.

These installation instructions can be downloaded as a PDF from the manufacturer's website.

- Intended use

The shower hose is designed for fixed installation in showers only. If in doubt, please contact a plumber or specialist.

Uses other than described above or modifications to the shower hose are not permitted and may result in damage to the shower hose. In addition, improper use may lead to the risk of injury or death. The shower hose is intended for domestic use only, and not for medical or commercial applications. The manufacturer does not accept any liability for damage caused by improper use.

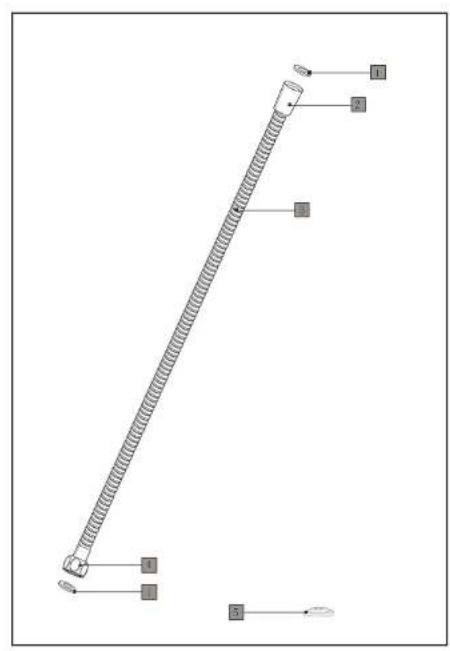

- Parts description

1 2× sealing ring
2 Shower handset threaded connector
3 Flexible hose
4 Thermostat threaded connector
5 Water-saving gasket

Package contents

1 Shower hose
2 Sealing rings
1 Water-saving gasket

- Technical data

Shower hose length: 200~cm

Connectors: G 1/2"

Safety instructions

WARNING! RISK OF ACCIDENT OR DEATH FOR INFANTS AND CHILDREN!

Children could swallow parts of the packaging materials and suffocate, or strangle themselves with the shower hose. Never leave children unattended with the packaging material or shower hose.

CAUTION! PROPERTY DAMAGE! Leaks and water discharge can lead to significant property damage to buildings and household goods. If in doubt, have a specialist perform the installation.

Check carefully that all connections are leak-tight.

Do not continue using the shower hose if it shows signs of damage or the functionality is affected. Dispose of it if this is the case.

During installation, make sure that all seals are correctly positioned against the sealing surface.

Improper installation and use can damage the shower hose. Only finger-tighten each connection, and never use serrated pliers.

Installation

Note: Read these installation instructions carefully before installation, particularly the safety instructions.

If incorrectly installed, the warranty will become invalid - particularly with regard to consequential damages.

CAUTION! Turn off the hot and cold water supply before starting the installation.

Note: To reduce water consumption, you can, in place of one of the sealing rings, fit the water-saving gasket in the threaded connector for the shower handset.

Follow these steps:

Place a sealing ring 1 or the water-saving gasket 5 in the threaded connector 2 for the shower handset.
Screw your shower handset to this connector until finger-tight.
Place a sealing ring in the threaded connector 4 for the thermostat.
- Screw this connector to the shower hose connector on your thermostat.

- First use

Once successfully installed, turn on the hot and cold water supply.
Make sure to carefully check that all connections are leak-tight after the first use.

- Maintenance and cleaning

CAUTION! RISK OF DAMAGE! Follow the instructions below on properly cleaning and maintaining the shower hose to avoid damage. Never use petrol, solvents, harsh cleaning products or hard brushes for cleaning as these could damage the surface of the shower hose.
- Dry your shower hose with a cloth after every use to prevent the build-up of limescale.
- Wipe the shower hose clean with a soft, damp cloth and a mild detergent if necessary.

- Disposal

Packaging can be disposed of with plastics in your recycling collection.

Contact your local authority for information on how to dispose of your worn-out shower hose.

Warranty and Service

The warranty period is three years and begins on the day of purchase. Please keep your receipt as proof of purchase.

However, if defects do occur during the warranty period, a defective fitting may be returned freight forward to the service address specified, provided that the service department is contacted in advance. You will then receive a new or repaired fitting free of charge.

After the warranty period has expired you may also send the defective fitting to the address specified for repair. Repairs made after the warranty period has expired are subject to payment.

Note: K&H Sanitary GmbH will replace defective fittings or supply the respective replacement parts free of charge within the warranty period. K&H Sanitary GmbH is unable to refund the purchase price for defective fittings.

This warranty does not limit your legal rights.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and exchanged parts. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or email. Please contact the service address set up for you before filing a warranty claim for the shower hose with the manufacturer:

K&H Sanitary GmbH

Daimlerstr.45

D-50170Kerpen

Tel.: [phone]

Fax.:[phone]

E-Mail: [e-mail]

IAN 307240

Please have the receipt and item number, e.g. IAN 12345 ready as your proof of purchase when making an enquiry.

Product description: Shower hose

KH Sanitär no. 104-001/104-002
