USER MANUAL TechniRadio RDR TECHNISAT

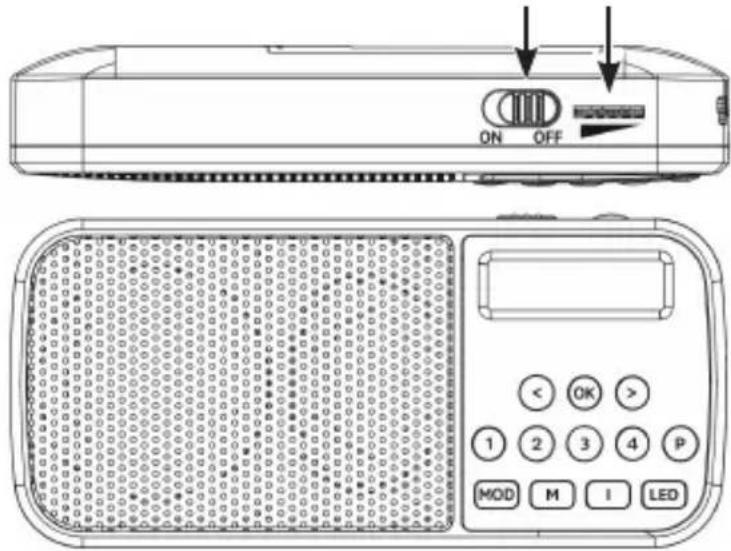

< / > Le/right selection, station list OK Confirm selection.

1 - 4 Favourites memory direct selection buon.

P Favourites memory (1 - 20). MOD Source switching (DAB+, FM, USB, AUX). M Main menu. I Switch display. LED Activates the side LED (torch). The LED also shows the baery charge status: Blue = baery is charging, Green = baery is charged, Red = baery is low.66

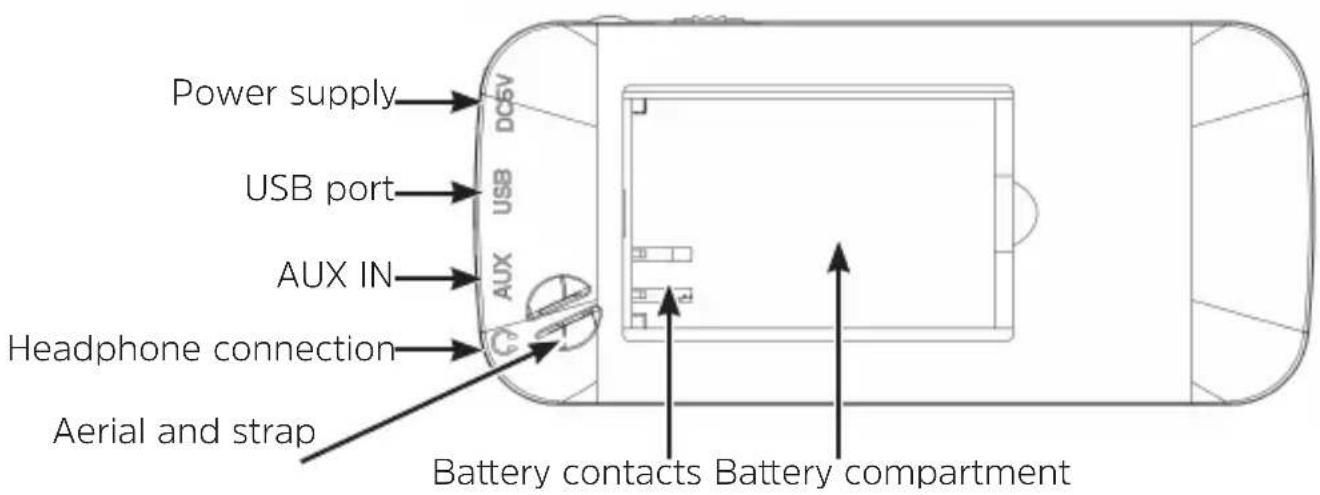

Power supply USB port AUX IN Headphone connection Baery contacts Baery compartment Aerial and strap67

3.1 Scope of delivery

Before start-up, please check whether everything has been delivered. 1 x digital radio 1 x rechargeable baery 1 x USB charging cable 1 x instruction manual73

3.2 Special properties of the digital radio

The digital radio consists of a DAB+/FM receiver with the following functions: - You can store up to 20 DAB+ and 20 FM stations. - The radio receives on the FM 87.5–108 MHz (analogue) and DAB+ 174.9–239.2 MHz (digital) frequencies. - 4 direct selection buons. - Rechargeable baery. - Aerial integrated into strap (please do not remove or cut the strap).74

3.3 Preparing the digital radio for use

> Open the baery compartment at the rear of the device by using the tab to li up the baery compartment lid. Then remove the lid. > Insert the baery observing the alignment of the gold contacts with one another. To do this, push it under the plastic guide inside the baery compartment. The rechargeable baery can also be bought separately in stores.75

> Replace the baery compartment lid on the baery compartment and close it until it audibly engages. The baery is charged as soon as the device is connected to the mains. Use the supplied USB cable to do so. Replace a rechargeable baery that is weak in good time or recharge it.

3.3.2 Connect power supply/Insert baery

> Connect the supplied USB cable to a commercially available 5V USB power supply (not included in delivery) and plug the mini-USB connector into the jack labelled DC IN on the side of the digital76 radio. Then connect the power supply to the mains. The side LED lights up blue when the baery is charging and the display shows the charge status (only when switched o). Ensure that the operating voltage of the power supply unit matches the mains voltage before you insert it into the wall socket. A USB port on a PC can also be used to supply power. When the digital radio is switched on for the first time, "Digital Radio" appears in the display. This will then be followed by a station scan via DAB+.77

3.3.3 Using headphones

Hearing impairment! Do not listen to the radio at high volume with headphones. Doing so can cause permanent hearing impairment. Turn down the radio volume to the lowest volume before using headphones. Only use headphones with a 3.5 mm jack plug. > Insert the headphone plug into the headphone jack on the rear of the device. Sound will now only be heard via the headphones, the speaker is switched to mute. > If you would like to use the speakers again, unplug the headphones from the headphone jack on the radio.78

3.4 General device functions

3.4.1 Switching on the device

> Slide the ON/OFF switch to the ON position. Aer switching on for the first time, the device automatically performs a complete scan in DAB mode. While scanning, the display information shows the progress as well as the number of digital radio stations detected. Aer completing the station scan the first DAB+ channel is played.79

> Slide the ON/OFF switch to the OFF position. The baery will continue to charge when the radio is switched o.

3.4.3 Select the source

> Use the MOD buon to switch between sources: DAB+ (digital radio), FM, AUX and USB (MP3 playback).

Depending on the function or option selected, various pieces of information will appear in the display. The various display modes can be scrolled through using the I buon. 4 Menu operation You can access all of the digital radio functions and seings via the menu. Menu navigation is performed using the M, <, > and OK buons. The menu is divided into submenus and contains dierent menu items or activatable functions depending on the mode (DAB+ or FM). Simply press the M buon briefly to open the menu. To switch to submenus, first press the < or > buons to display a submenu, then press the OK buon to access the submenu.81

To close the menu: Press the M buon several times (depending on which submenu you are in) until the current radio channel is displayed again. Seings are not saved until the OK buon is pressed. If the M buon is pressed instead, the seings are not accepted or saved (in this case the M buon acts as a “Back” buon). The functions and buons to be pressed are shown in bold in this instruction manual. Displays in [square brackets].82 Some text (e.g. menu items, station information) may be too long to show on the display. These will be then shown as running text shortly thereaer. 5 DAB+ (digital radio) function

DAB+ is a new digital format through which crystal clear sound with no noise can be heard. In contrast to conventional analogue radio stations, DAB+ can be used to broadcast multiple stations on one and the same frequency. This is referred to as an ensemble or multiplex. An ensemble is comprised of the radio station, as well as several service components or83

data services, which are broadcast individually by the radio stations. For further information go to www.dabplus.de or www.dabplus.ch.

5.1.1 Data compression

With this, digital radio takes advantage of the properties of human hearing. The human ear does not perceive sounds which are found under a specific minimum volume. Data which are found under the so-called audibility threshold can, therefore, be filtered out. This is possible because, in a digital data stream, the relevant relative volume for other units is saved for every unit of information. Moreover, in an audio signal, the quieter parts are superimposed by louder ones at a specific limit value. All the sound information below the threshold of hearing in a piece of music can be filtered out of the signal to be broadcast. This leads to a reduction of data84 in the data stream to be transmied, with no perceptible dierence in sound for the listener (HE AAC v2 process as a supplementary codification process for DAB+).

With digital radio, audio streams are continuous data streams which contain the MPEG 1 audio layer 2 frames and thereby represent acoustic information. This enables standard radio channels to be broadcast and listened to on the receiver side. Digital radio provides you with not only with excellent sound quality radio but also additional information. This may refer to the programme being broadcast or be independent information (e.g. news, weather, trac, tips).85

> Press the MOD buon until [DAB] appears on the display. If DAB+ is being started for the first time, a complete scan will be performed. Aer the scan is complete, the first station is played back in alphanumeric order.

5.2.1 Performing a complete scan

The automatic scan scans all DAB+ band III channels and thereby finds all stations being broadcast within the reception area.86 Aer the scan is complete, the first station is played back in alphanumeric order. > In order to perform a complete scan, open the menu by pressing the M buon and use the <, > and OK buons to select the [Automatic Scan] menu item. > [Scanning...] appears in the display. During the scan a progress bar and the number of stations found is displayed.87

5.2.2 Selecting stations

> By pressing the <or > buons, the station list can be called up and you can switch between the available stations.

5.2.3 Storing DAB+ stations on a memory slot

The programme memory can save up to 20 stations in the DAB+ range. > First select the desired station (see section 5.2.2). > In order to store this station in a memory slot, hold down the P buon while playing the station. Then use the <, > buons to select a station memory slot (1 - 20). Press the OK buon to save.88 Alternatively you can also save a station directly to one of the direct selection buons (1 - 4) by briefly holding down the respective buon. > Repeat this process to save additional stations.

5.2.4 Retrieving DAB+ stations from a memory slot

> To retrieve a station that you have already stored in the FAV memory, briefly press the P buon and select a station slot (1 - 20) using the < and > buons. Press the OK buon to play the station. > Press one of the direct selection buons (1 - 4) to play the station saved to it.89

5.2.5 Overwriting/deleting a station memory slot

> Simply save a new station to a favourite memory slot as described. When retrieving the factory seings all memory slots are deleted.

> Briefly press the M buon, use the < or > buons to select the [Set DAB manually] item and press the OK buon. > Use the < or > to select a channel (5A to 13F) and press the OK buon to set this channel.90 6 FM mode

6.1 Switching on FM radio mode

> Switch to FM mode by pressing the MOD buon. > [FM] is shown on the display. When switching on for the first time, the frequency is set to 87.50 MHz.91

If you have already set or saved a station, the radio plays the last station set. In the case of RDS stations, the station name appears.

6.2 FM reception with RDS information

RDS is a procedure for broadcasting additional information via FM stations. Broadcasters with RDS broadcast their station name or the programme type, for example. This is shown on the display. The device can show the RDS information RT (Radio text), PS (Station name), PTY (Programme type).92

6.3 Automatic station scan

> Hold down the < or > buons for longer (2 to 3 sec.), in order to automatically search for the next station with a sucient signal. If an FM station with sucient signal intensity is found, the scan stops and the station is played. If an RDS station is received, the station name, and possibly the radio text, appear. Please use the manual station scan for seing weaker stations.93

6.4 Manual station scan

> Briefly press the < or > buons repeatedly to set the desired stations or frequency.

6.5 Saving FM stations to a memory slot

The station memory can save up to 20 stations in the FM range. > First set the desired station frequency (Point 6.3, 6.4).94 > In order to store this station in a memory slot, hold down the P buon while playing the station. Then use the <, > buons to select a station memory slot (1 - 20). Press the OK buon to save. Alternatively you can also save a station directly to one of the direct selection buons (1 - 4) by briefly holding down the respective buon. > Repeat this process to save additional stations.

6.6 Automatic station saving

Automatic station saving (Auto Memory Store, AMS) enables a search to be launched that also saves the station in the favourites memory.95

> Briefly press the M buon and use the < or > buon to select the [AMS] item, then press the OK buon. The FM frequencies are then scanned and the stations found are saved in the favourites memory.

6.7 Retrieving FM stations from a memory slot

> In order to retrieve a station that you have previously stored in the favourites memory, briefly press the P buon and use the < or > buons to select a station memory slot (1 - 20). Press the OK buon to play the station. > Press one of the direct selection buons (1 - 4) to play the station saved to it.96

6.8 Overwriting/deleting a station memory slot

> Simply save a new station to the respective memory slot as described. When retrieving the factory seings all memory slots are deleted. 7 USB playback It is possible to play MP3 music files located on a USB stick via the digital radio.97

> Insert a USB stick with MP3 music files into the USB port on the side of the digital radio. > Switch to USB mode by pressing the MOD buon. > USB appears in the display and the USB stick is scanned for MP3 music files. Playback then starts automatically. > You can use the > buon to skip to the next song. > You can use the < buon to skip to the previous song.98 8 AUX input You can use the AUX input on the digital radio to play music from external devices, e.g. a smartphone, via the digital radio speaker. > Connect the audio output (e.g. headphone socket) on your external device to the AUX input on the side of the digital radio. Use a jack cable (3.5 mm) from the range of optional accessories to do so. The digital radio automatically switches to the AUX input. You can control the playback from your external device.99

9.1 Selecting the language

> Press the M buon and use the < or > buons to select the [Language] item. Press the OK buon. > You can now use the < or > buons to select one of the available languages. Press the OK buon to save the selection.

If you change the location of the device, e.g. when moving house, it is possible that the saved stations can no longer be received. In this case you100 can reset the device to factory seings to delete all the saved stations and then launch a new scan. > Press the M buon and use the < or > buons to select the [Factory seings] item. Press the OK buon. > Using the < or > buons, select the [Yes] item to reset to the factory seing and press the OK buon. All previously stored stations and seings will now be deleted. The device is now in the same status as when delivered. > [Restarting...] appears in the display.101

The device then automatically performs a complete scan in DAB mode. While scanning, the display information shows the progress as well as the number of digital radio stations detected. Aer completing the station scan the first DAB+ channel is played.

Under SW Version you can retrieve the currently installed soware version. > Press the M buon and use the < or > buons to select the [SW Version] item. > Press the OK buon. The current SW version is displayed.102 10 Cleaning To prevent the risk of an electric shock, you may not clean the device using a wet cloth or under running water. Prior to cleaning, pull out the mains plug and switch o the device. You may not use scouring pads, scouring powder and solvents such as alcohol or petrol. Do not use any of the following substances: saltwater, insecticide, chlorine-based or acidic solvents (ammonium chloride).103

Clean the housing using a so, moist cloth. Do not use spirit, thinners, etc.; you could damage the surface of the device. Only clean the display with a so, coon cloth. If required, use a coon cloth with small amounts of non-alkaline, diluted, water or alcohol-based soap solution. Gently clean the surface using the coon cloth.104 11 Legal notices

11.1 Target group for this instruction manual

The instruction manual is intended for anyone who is installing, operating, cleaning or disposing of the device.

The device has been designed to receive DAB+/FM radio programmes. The device has been designed for private use and not for commercial purposes.

11.2 Important information

Please take note of the following information to minimise safety risks, to prevent damage to the device and to make a contribution to environmental protection. Please read all the safety information carefully and keep it for future reference. Always follow all the warnings and instructions in this instruction manual and on the rear of the device. Caution - This identifies important information that must be observed to prevent device defects, data loss/misuse or undesired operation.105

Tip - This identifies information relating to the described function, as well as to another related function that may have to be taken into account, with reference to the corresponding section in the manual.

For your protection, read the safety precautions carefully before operating your digital radio. The manufacturer accepts no liability for damage caused by inappropriate handling, or by non-compliance with the safety precautions. Do not open the device under any circumstances! Touching live parts poses a danger to life! Any required intervention may only be performed by qualified sta. The device must only be operated in an appropriate climate.106 In the event of extended transportation in the cold and subsequent moving to warm rooms, do not switch on immediately; wait for the temperature to equalise. Do not expose the device to dripping or splashing water. If water has penetrated the device, switch it o and inform the Service department. Do not expose the device to heat sources that will heat it up more than normal use.107

In the event of a thunderstorm, disconnect the device from the mains. Overvoltage can damage the device. If you detect a device defect, odour or smoke, considerable malfunctions, or damage to the housing, switch o the device and inform the Service department. Do not put the device into operation in the vicinity of baths, swimming pools or splashing water.108 Never try to repair a faulty device yourself. Always contact one of our customer service locations. Foreign bodies, e.g. nails, coins, etc. must not be allowed to fall inside the device. Do not touch the connection contacts with metal objects or fingers. This could lead to short-circuits. Do not place any open flames, such as burning candles, on the device. Never allow children to use the device unsupervised. Do not listen to music or the radio at high volume. Doing so can cause permanent hearing impairment.109

This device is not intended to be used by people (including children) with limited physical, sensoryormentalcapacities or lackof experienceand/or knowledge,unless they are supervised by a person responsible for their safety or they have been instructed by them as to how to use the device. Children must be supervised to ensure that they do not play with the device. Modifications must not be performed on the device. Damaged devices or damaged accessories must not continue to be used. Handling baeries Make sure that baeries do not get into the hands of children. Children could put their baeries in their mouths and swallow them. This could lead to serious injuries. Seek medical advice immediately if this occurs! Therefore keep baeries out of reach of infants.110 Only operate the device using the baery approved for this device. Normal baeries may not be recharged. Baeries must not be reactivated by other means, not taken apart, heated or thrown into an open fire (danger of explosion!). Clean baery contacts and device contacts before inserting. If the rechargeable baery is inserted incorrectly, there is a risk of explosion! Only replace with rechargeable baeries of the correct type and model number. Caution! Do not expose baeries to extreme conditions.111

Do not place them on radiators, or expose them to direct sunlight. Leaking or damaged baeries can cause burns if they come into contact with the skin. In this case use suitable protective gloves. Clean the baery compartment with a dry cloth. Remove the baery if the device will not be used for a long time,.

The device packaging is exclusively comprised of recyclable materials. Please sort the components appropriately, and dispose of them in line with your local waste disposal regulations. At the end of its service life, this device must not be disposed of with your regular household waste. It must be taken to a recycling collection point for electrical and electronic equipment. This is indicated by the symbol on the product, the instruction manual or the packaging. The materials are recyclable according to their identification.112 An important contribution is made to our environment by recycling, recovery of materials or other kinds of recycling for old devices. Please ask local authorities for the location of the relevant disposal point. Ensure that used baeries/rechargeable baeries as well as electronic waste are not disposed of with domestic waste, but are properly disposed of (returned to the specialist shop, hazardous waste).113

Baeries/rechargeable baeries may contain poisonous substances which cause harm to health and the environment. Baeries/rechargeable baeries are subject to European Directive 2006/66/EC. They must not be disposed of with normal domestic waste. Disposal instructions: Disposal of packaging: Your new device was protected by packaging on its way to you. All materials used are environmentally friendly and recyclable. Please collaborate and dispose of the packaging in an environmentally-friendly114 way. Ask for information from your dealer regarding current disposal means or your local disposal facility. Risk of suocation! Do not give packaging and parts thereof to children. Risk of suocation by films and other packaging materials. Device disposal: Old devices constitute valuable waste. Valuable raw materials can be recovered through environmentally-friendly disposal. Consult your town or local authority as to the possibilities for environmentally-friendly and proper disposal of the device. Prior to disposal of the device, remove the baeries/rechargeable baeries contained therein. This device is identified in accordance with the Waste Electrical and Electronic Equipment (WEEE) Directive2012/19/EU.115

At the end of its service life, this device must not be disposed of with your regular household waste. It must be taken to a recycling collection point for electrical and electronic equipment. The symbol on the product, the operating manual or the packaging indicates this. The materials are recyclable according to their identification. An important contribution is made to our environment by recycling, recovery of materials or other kinds of recycling for old devices. Important information for the disposal of baeries/rechargeable baeries: Baeries/rechargeable baeries may contain poisonous substances which harm the environment. Therefore you must always comply with applicable statutory provisions when you dispose of baeries/rechargeable baeries. Never dispose of baeries in normal household waste. Used baeries/rechargeable baeries can be disposed of at your specialist retailer or at special disposal sites free of charge.116

11.2.3 Legal notices

TechniSat hereby declares that the digital radio equipment complies with the 2014/53/EU Directive. The complete text of the EU Declaration of Conformity is available at the following web address: TECHNIRADIO RDR: hp://konf.tsat.de/?ID=22184 AQINOVA Digital 1: hp://konf.tsat.de/?ID=22188 VIOLA 3: hp://konf.tsat.de/?ID=22189 TechniSat accepts no liability for product damage as a result of external influences, wear or improper handling, unauthorised repairs, modifications or accidents. Changes and printingerrors reserved. Version 12/18. Copying and duplication are subject to the publisher's consent. The respective current version of the manual can be obtained in PDF format in the download area of the TechniSat homepage at www.technisat.de.117

11.2.4 Service instructions

This product is quality-tested and provided with the legal warranty period of 24 months as from the date of purchase. Please keep your receipt as proof of purchase. In the event of warranty claims please contact the product dealer. Note! Should you experience a problem with this device, or for queries and information, our Technical Hotline is available:118 Mon. - Fri. 8:00 am - 8:00 pm on tel.: +49 (0) 3925 9220 1800. If the device needs to be sent back, please use the following address only: TechniSat Digital GmbH Service Centre Nordstr. 4a 39418 Stassfurt, Germany The names of the companies, institutions or makes referred to are trademarks or registered trademarks of the respective owners.119

12 Technical specifications / manufacturer's instructions Subject to technical changes and errors. Reception channels DAB/DAB+, FM, USB, AUX power supply DC: 5V, 500mA Baery 3.7 V/800 mAh Li-Ion, Frequencies FM: 87.5-108 MHz DAB/DAB+: 174-240 MHz Aerial Integrated into strap Audio output performance Mono 3W RMS, 4 Ohm120 LED status Blue = baery is charging Green = baery is fully charged Red = baery is low White = torch mode Weight 124 g Dimensions (W x H x D) 127 mm x 60 mm x 24 mm121
