USER MANUAL ARM8P01 ARDES
PURIFICATORE D'ARIA
AIR PURIFIER
PURIFICATEUR D'AIR
PURIFICADOR DE AIRE
RAUMLUFTREINIGER
ARM8P01
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision. If the power cable gets dam-
aged, it has to be replaced only at a service centre approved by the manufacturer in order to prevent any risks.
Ensure that the appliance is switched off from the supply mains before removing detachable parts or before maintenance.
This appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance (5V DC) by using USB cable provided.
This appliance is intended to improving the air quality in household environments, anyway aeration and ventilation of rooms shall be done and guaranteed.
Warnings GB
ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.
Important instructions to be kept for future reference.
Keep handy the guarantee, receipt of payment and these instructions for future use and reference.
After removing the packaging, check the appliance for any signs of damage.
In case of visible damage, do not use it and contact a qualified technician. Do not leave parts of the packaging with in the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.
Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.
If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons.
Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.
When you don't use the appliance disconnect it from the power supply.
Before each use, check that the appliance (especially the HEPA filter) is in good condition and that the power cord is not damaged. If any doubts consult a qualified professional.
Do not tug on the power cable or on the appliance itself to remove the plug from the socket.
The use of any electrical appliance requires that a number of basic rules are observed, namely:
- Never touch the appliance with wet or humid hands.
- Do not leave the appliance exposed to weathering (rain, sunlight).
- Do not subject it to rough handling.
In case of a breakdown or malfunctioning of the appliance, disconnect it at once.
Do not attempt to repair it, but take it to a service centre approved by the manufacturer.
If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.
The power cable should be extended to its full lenght to avoid over heating.
For safety reasons, the appliance should never be opened.
The appliance has been designed and manufactured to operate in the home.
Any other use is considered inappropriate and dangerous.
Do not insert objects through the safety grill or the air inlets.
Stand the appliance on a flat, horizontal and stable surface, and keep it away from:
- fans
- heat sources (e.g. open flames, gas stoves, fire places etc.), flammable gasses or explosive materials
- liquids (e.g. from bathtubs, showers, sinks etc.) to avoid splashing water and to prevent it from falling into them (the appliance should be kept a minimum of 2 metres away).
- fabrics (curtains, etc.) or floating materials/particles that may block the aspiration grid.

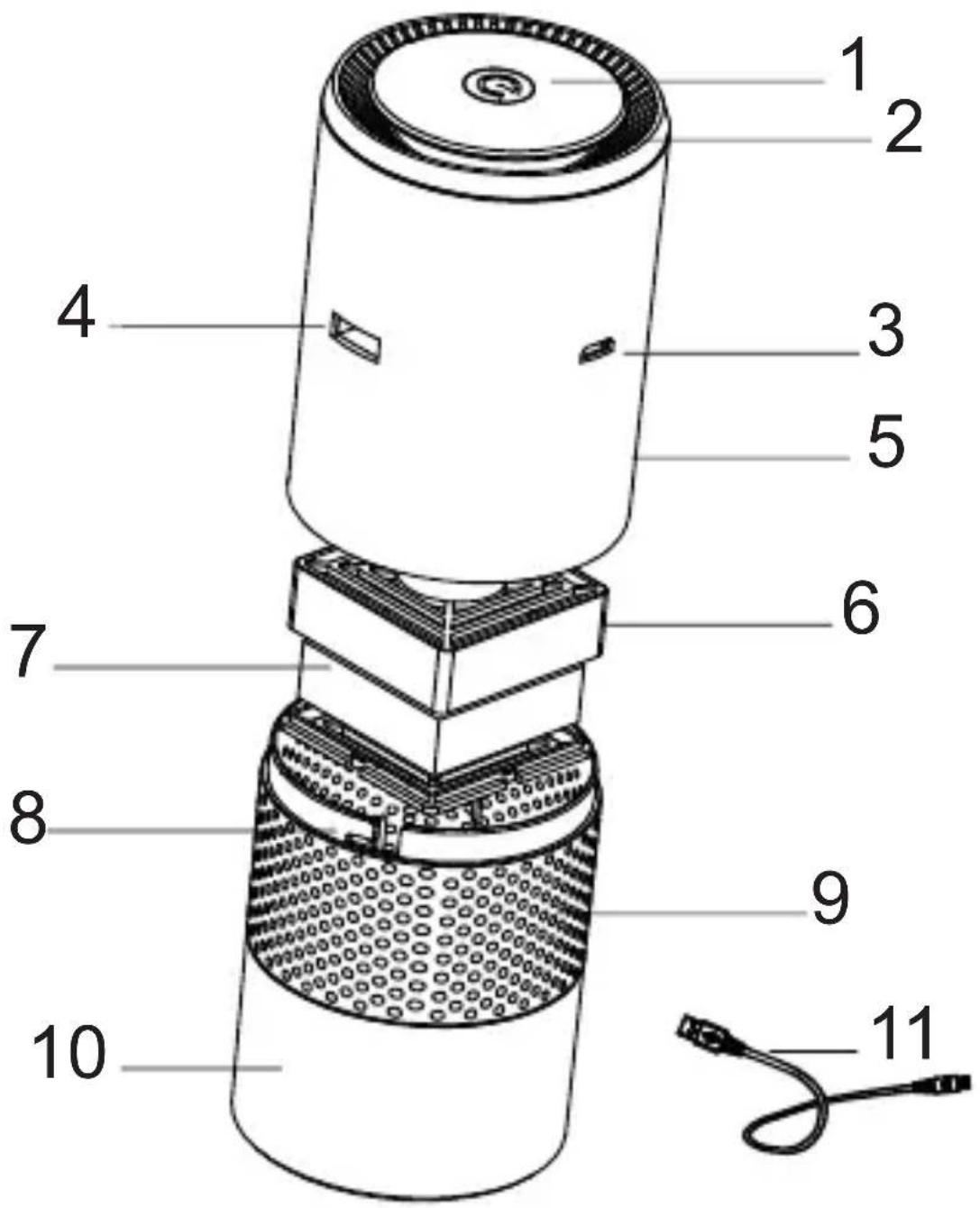

Technical informations GB
1 - Function switch
2 - Air outlet
3 - Input micro USB
4 - Output USB
5 - Main body
6 - Filter box
7 - Filter
8 - Closing
9 - Air inlet
10-Bottom cover
11-USB cable
Instructions for use GB
Before connect the appliance to the main supply be sure the filter is installed into the appliance.
Insert the micro USB in its port (3); insert the USB into the computer port (5V DC) or use an adapter (not supplied) and plug the adapter into the power outlet. Touch the function switch one time: product will turn on at maximum speed and the light behind the switch and air outlet will turn on in colorful gradient.
Touch the function switch another time to select the minimum speed. The light will be on in blue color.
Touch the function switch another time to turn the product off.
The appliance is provided with negative ion function which help to improve the air quality. When the unit is on, the negative ion function will turn on automatically.
The appliance is provided with aroma pad.
Attention: before add aroma turn off the product and disconnect it from the main supply.
To add the desired aroma open the product by turning the bottom cover (10) counterclockwise.

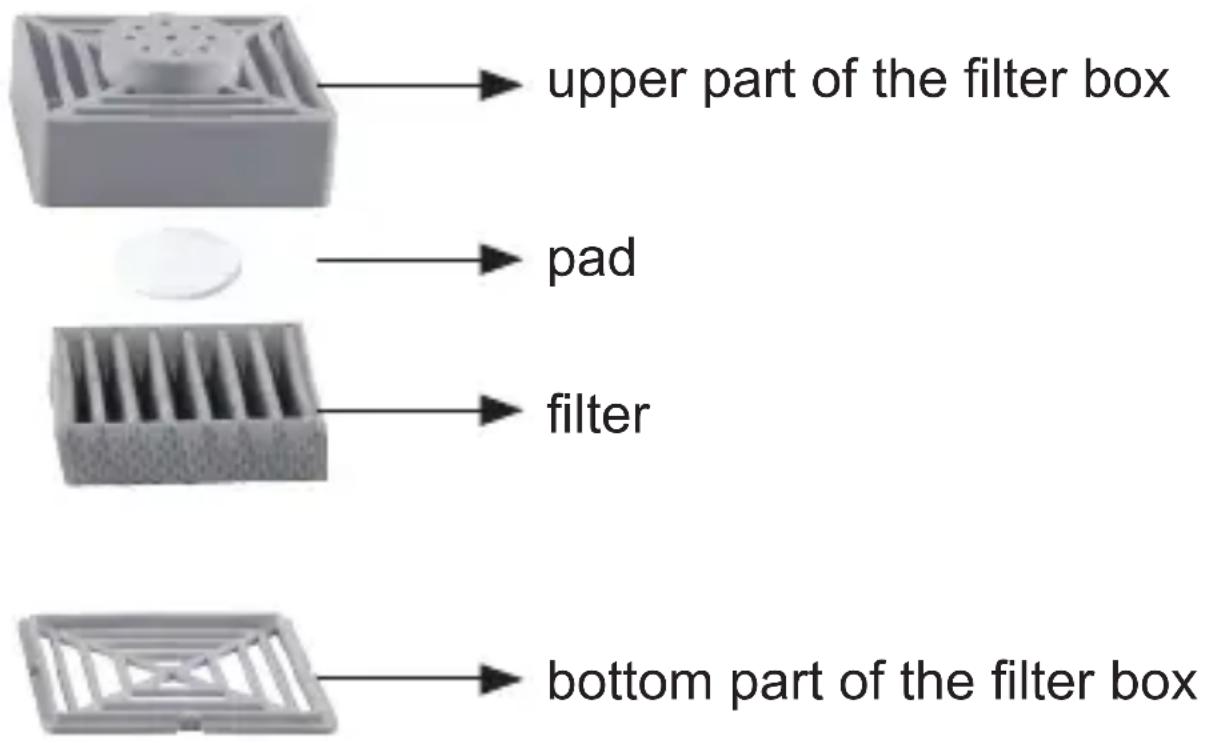

Take out the filter box (6) from the main body (5) and open it as showed in the picture below, take out the filter and add the aroma drops on the pad directly.
NB: add few drops per time; the pad must not be too soaked and must not drip to avoid compromising the filter.
Maintenance GB
Disconnect the plug from the socket and let the appliance cool down well before cleaning it.
This appliance does not require any special maintenance.
In order to clean the appliance, use a soft and dry cloth.
To clean the bottom cover frm the dust, use a soft and slight damp cloth.
Never use abrasives or chemical solvents.
Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it.
NEVER IMMERSE THE APPLIANCE INTO THE WATER.
Filter replacement:
after 2500 hours working, the filter should be changed with a new one. To replace the filter take out the bottom cover (10) from the main body (5) by turning it counterclockwise.
Tacke out the filter box (6) from the main body (5) and open it by removing the grid as showed in the previous picture. Take out the old filter and replace with new one; close the filter box and replace it into the main body. Fix the bottom cover on the main body.
Warning: filter must be placed with the white side facing the bottom cover of the filter box.
Warning: use only original spare parts to avoid compromising the effectiveness of the product.
Do not wash and reuse the filter. Always wash hands carefully after replacing or cleaning the filter.
Terms and Conditions
The guarantee is valid for 24 months.
This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase. The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.
After the guarantee has expired, the appliance will be repaired against payment.
The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.
Limits
All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:
- mishandled by unauthorized persons - improperly used, stored or transported.
The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.
If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.
USER INFORMATION
“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal”.
The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.
The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.
For more details, please contact the appropriate local authority.
Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.
Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
