Product type	Air purifier
Brand	Electrolux
Model	Well A7 WA71305GY
Power supply	50/60 Hz, 220-240 V
Network standby consumption	< 2.0 W
Wi-Fi frequency	2.4 GHz (15 dBm)
RFID frequency	13.56 MHz (30 dBm)
Operating modes	SMART (automatic) and MANUAL
Air quality indicator	Color scale: white (calibration), green (very good), yellow (good), orange (fair), red (very poor), purple (poor), brown (very poor)
Particle sensor	Laser PM sensor (PM1, PM2.5, PM10)
Filters	Mesh pre-filter, Ultrafine particle filter, VOC carbon filter
Ionizer	Integrated, activatable via the Wellbeing app
Connectivity	Wi-Fi, Wellbeing app (iOS/Android)
Child safety	Key lock (activatable via app or POWER+MODE keys for 5 seconds)
Mounting	Wall or on feet (supplied)
Cleaning	Sensor window: vacuum every 4 weeks; front panel: dry or slightly damp soft cloth; fabric cover: machine washable
Filter replacement	Non-washable filters, replace at end of life (light indicator on device and notification in app)
Spare parts	Filters, top handle, feet, customizable front cover
Repairability	No user-serviceable parts. Contact an authorized Electrolux repairer
Recommended use	Indoors, closed room (doors and windows closed) for optimal efficiency

Frequently Asked Questions - Well A7 WA71305GY ELECTROLUX

How to change the operating mode of the air purifier?

Press the MODE key to switch between SMART (automatic) and MANUAL modes. In SMART mode, the fan speed is automatically adjusted according to air quality. In MANUAL mode, you can adjust the speed manually using the speed slider.

What to do if the alert icon lights up?

The alert icon indicates an electrical or electronic problem. First check that the filters are correctly installed (the RFID labels must face the sensor). If the problem persists, consult the Wellbeing app for more details or contact an authorized Electrolux repairer. Have the PNC and serial number handy.

How to clean the air quality sensor?

Use a vacuum cleaner with a narrow nozzle to clean the sensor window (located on the side of the device). Perform this operation every 4 weeks to prevent dust buildup that could distort measurements.

Why does the purifier run constantly at maximum speed?

In MANUAL mode, check that the speed slider is not set to maximum. In SMART mode, if air quality is poor, this is normal. If the PM values constantly display 999-1000, the sensor is likely obstructed: clean the sensor window.

What to do if the purifier does not turn on?

Check that the device is plugged in and the wall outlet is powered. If you have recently replaced a filter, make sure it is correctly inserted and the RFID label is properly positioned. The device will not operate if the filter is not detected (safety mechanism).

How to connect the purifier to the Wellbeing app?

Download the Wellbeing app from iOS or Android. Ensure your home Wi-Fi is 2.4 GHz. On the device, press and hold the POWER key (5 seconds) until the Wi-Fi icon flashes. In the app, scan the Wi-Fi barcode (located on the rating label behind the pre-filter) or manually enter the digits. Follow the instructions to finalize the connection.

When should the filters be replaced?

The Filter change icon lights up on the device to indicate that one or more filters are at end of life. You can also monitor the remaining lifespan in the Wellbeing app. Filters are not washable: replace them with new ones. After replacement, the icon turns off automatically.

The device emits a strange odor, is this normal?

During first use, a slight smell of plastic, glue, or paint may occur (like a 'new smell'). It disappears quickly. If you smell a burning odor, immediately unplug the device and contact Electrolux after-sales service.

How to activate child lock?

Press the POWER and MODE keys simultaneously for 5 seconds. The Child safety icon lights up to confirm activation. To deactivate, repeat the same operation. You can also manage this function via the Wellbeing app.

Can I customize the appearance of the purifier?

Yes, the Well A7 range offers customization kits. You can change the fabric cover of the front panel (machine washable, with elastic), the top handle in polyurethane, and the feet in thermoplastic elastomer. Follow the instructions in the manual to replace them easily.

USER MANUAL Well A7 WA71305GY ELECTROLUX

WA51-303 & WA51-304 series

WA71-304 & WA71-305 series

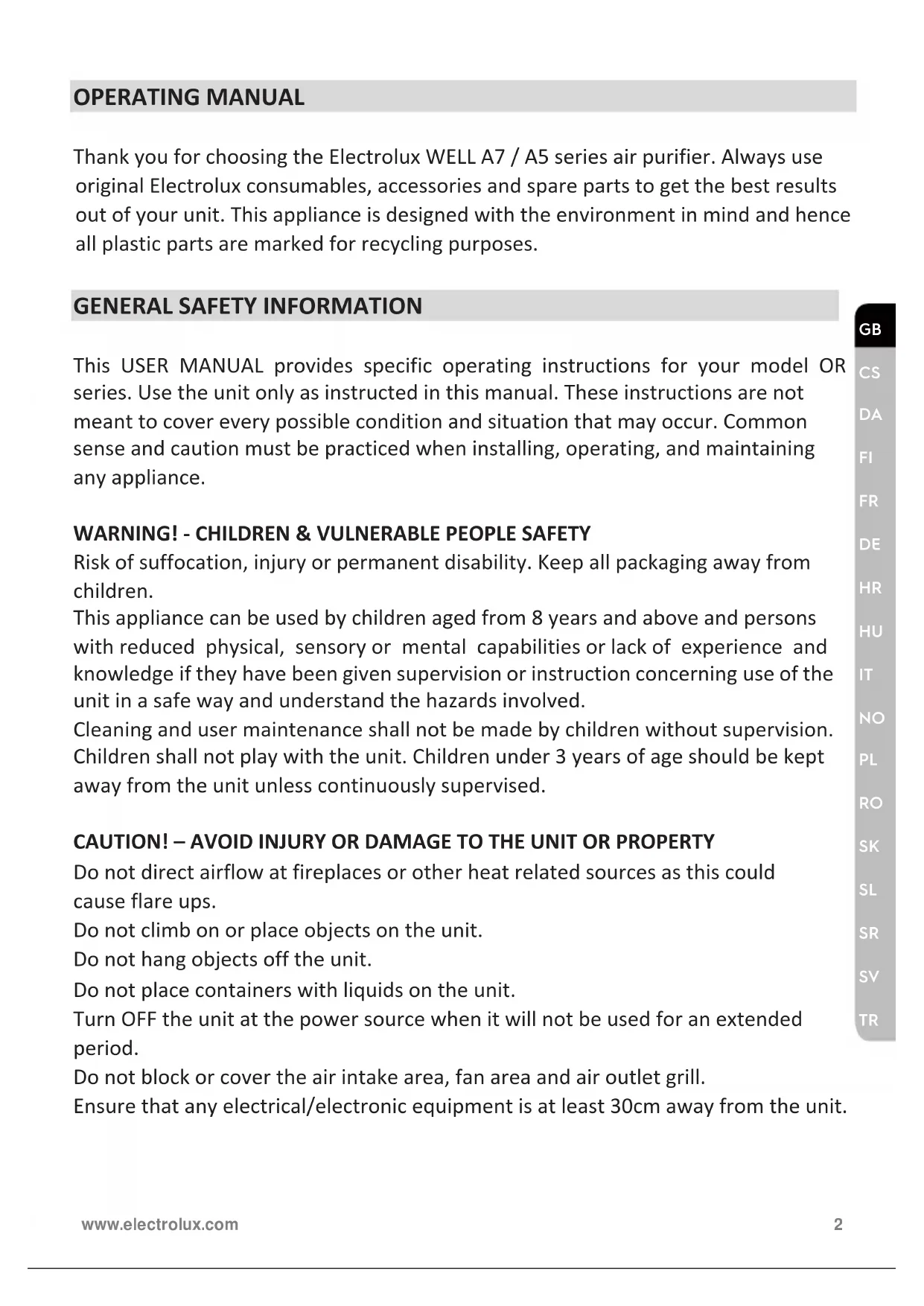

OPERATING MANUAL

Thank you for choosing the Electrolux WELL A7 / A5 series air purifier. Always use original Electrolux consumables, accessories and spare parts to get the best results out of your unit. This appliance is designed with the environment in mind and hence all plastic parts are marked for recycling purposes.

GENERAL SAFETY INFORMATION

This USER MANUAL provides specific operating instructions for your model OR series. Use the unit only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

WARNING! - CHILDREN & VULNERABLE PEOPLE SAFETY

Risk of suffocation, injury or permanent disability. Keep all packaging away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the unit in a safe way and understand the hazards involved.

Cleaning and user maintenance shall not be made by children without supervision. Children shall not play with the unit. Children under 3 years of age should be kept away from the unit unless continuously supervised.

CAUTION! - AVOID INJURY OR DAMAGE TO THE UNIT OR PROPERTY

Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups.

Do not climb on or place objects on the unit.

Do not hang objects off the unit.

Do not place containers with liquids on the unit.

Turn OFF the unit at the power source when it will not be used for an extended period.

Do not block or cover the air intake area, fan area and air outlet grill.

Ensure that any electrical/electronic equipment is at least 30cm away from the unit.

CAUTION! – WALL MOUNTING: AVOID INJURY OR DAMAGE TO PROPERTY

Always use appropriate screw and plastic plug for wall hang hook, depending on the wall material (e.g. nailable plug with screws for concrete OR expandable plug with screws for drywall, etc.). If you are not sure of the type of wall, have a qualified builder OR constructor inspect and recommend the correct screw and plug type according to local or national building standards.

Do not, under any circumstances, use the wall hang hook with only one screw.

Always use appropriate safety precautions and protective gear while drilling holes into the wall OR handling such equipment (e.g. safety gloves, dust mask, etc.).

Do not pull on OR tug on the unit from the power cord while it is wall mounted. Please ensure power cord is snug to the wall and the floor to avoid any undue tangling of objects with the cord and thus accidental tugs to the unit.

Ensure the wall hang hook is secured to the wall firmly and at the correct angle (e.g. parallel to the floor without any leaning) for best results.

If unsure of whether the wall hang hook has been secured correctly on the wall, before mounting the unit, please test the hook by a) applying some pressure on it from the top with your hands to see if it buckles and b) tugging the hook towards you with some pulling motion to see if screws come loose.

INFORMATION ABOUT RADIO

WiFi working frequency and maximum output power: 2.4 GHz; 15dBm
RFID working frequency and maximum output power: 13.56 MHz; 30dBm ± 10%
Power consumption of the product in network standby is less than 2.0W

ELECTRICAL SAFETY INFORMATION

WARNING! - AVOID FIRE HAZARD OR ELECTRIC SHOCK

This unit can be used in 50Hz or 60Hz power supply without any change.

Do not use an extension cord or an adaptor plug.

Do not remove any prong from the power cord. Do not pinch, bend, or knot the power cord.

Do not cut or damage the power cord. If the supplied power cord is damaged, it should only be replaced by Electrolux, its service agent or similarly qualified persons. This unit contains no user serviceable parts. Always call an authorized Electrolux servicer for repairs.

Do not, under any circumstances, cut, remove or bypass the grounding prong (see picture 26 on page 3; for UK see picture 27). If you are not sure the outlet is adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code

OR applicable local codes and ordinances.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.

Do not let water or any other liquid or flammable detergent enter the unit to avoid electric shock and/or a fire hazard. Be sure to unplug he unit before cleaning.

Never unplug the unit by pulling on the power cord. Always grip the plug firmly and pull straight out from the receptacle.

CAUTION! - AVOID SERIOUS INJURY OR DEATH

Do not insert or place fingers or objects into the air discharge area or front facing grille of the unit.

Do not start or stop the unit by unplugging the power cord or turning OFF the power at the electrical box.

In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized Electrolux servicer.

Do not operate the unit with wet hands.

Do not pull on the power cord.

Do not touch the fan blade when removing the filter(s).

DISPOSAL

This symbol on the unit or on its packaging indicates that the unit may not be treated as household waste. To recycle your unit, please take it to an official location where they can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the collection of electrical products and rechargeable batteries.

BEFORE STARTING

Read this manual carefully and pay special attention to safety information.

Pay special attention to the CAUTION sections!

Check that all key components & parts described are included.

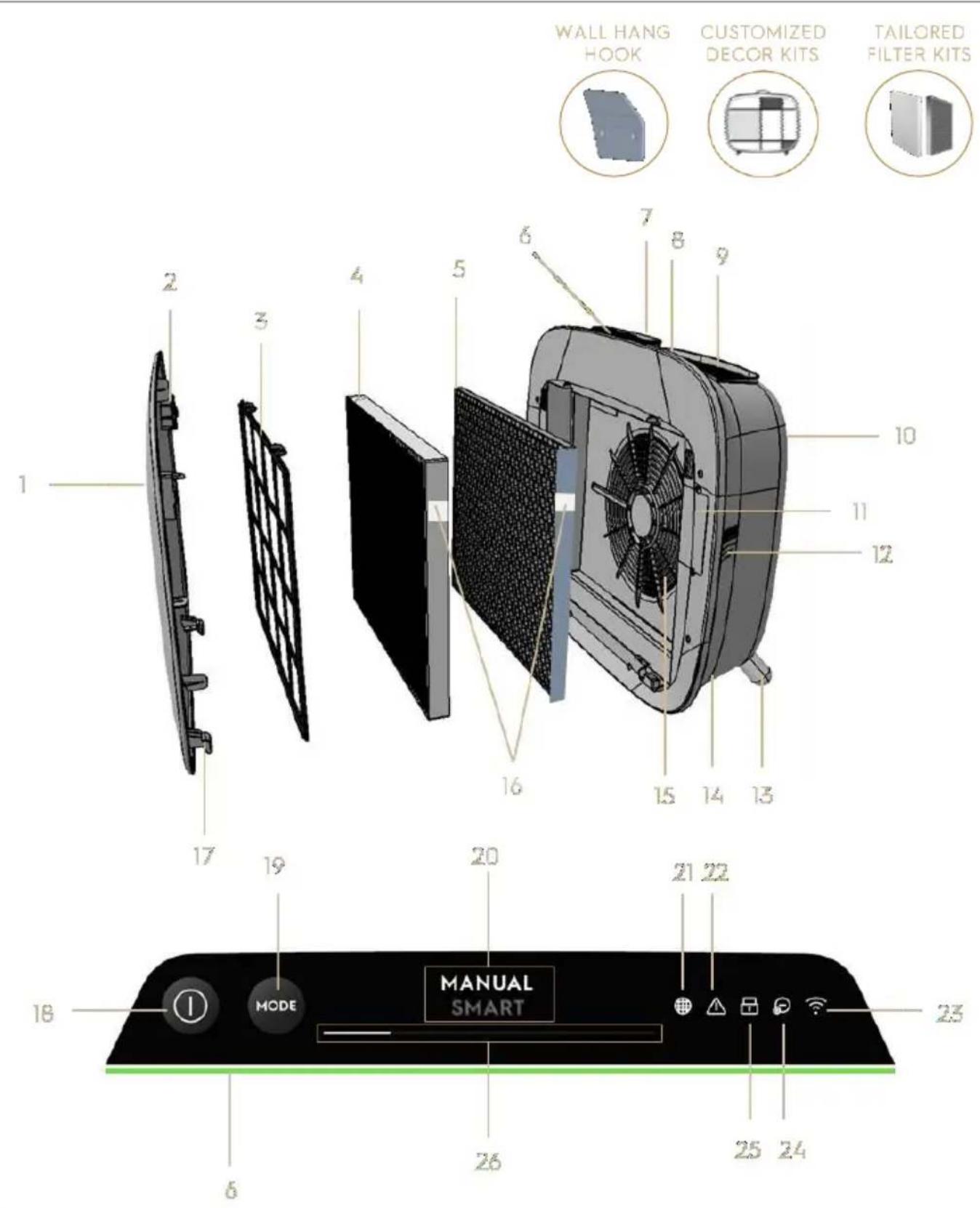

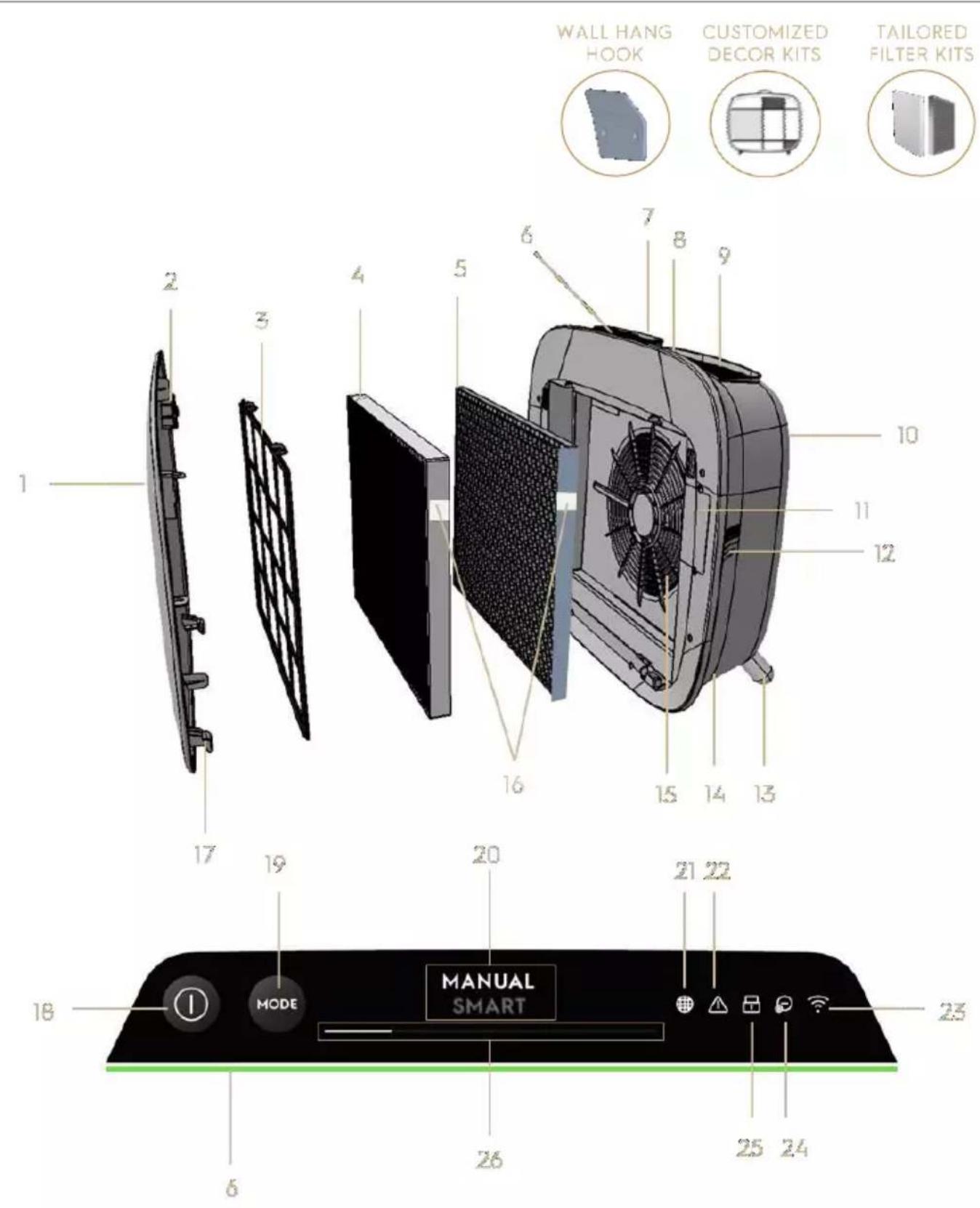

KEY COMPONENTS OF WELL A7 / A5 SERIES AIR PURIFIERS

1	Removable & customizable front panel	14	Power cord cavity
2	Front panel magnets	15	Fan motor cavity, grill
3	Mesh pre-filter	16	RFID tag(s)
4	Ultrafine particle filter	17	Front panel hooks
5	VOC carbon filter	18	POWER button (ON/OFF)
6	Air quality indicator	19	MODE button
7	UI Display (UI: User Interface)	20	Mode display
8	Removable top handle for carrying	21	Filter change icon
9	Air outlet grill	22	Alert icon
10	Back grip for lifting & hanging	23	WiFi icon
11	Sensor box	24	Ionizer icon
12	Sensor window	25	Child lock icon
13	Removable feet x2	26	FAN SPEED slider & indicator

NOTE: Your specific model may not have all the components and features listed within this USER MANUAL. Please check the product packaging OR the product specification page on our website for exact details of your model. Electrolux reserves the right to change information contained herein without notice.

UNBOXING & SETUP - picture pages 6-7

Please be careful while unboxing the air purifier. The unit has several detachable components which may have come loose in transport, so open the box with care and while placed on a large flat surface OR the floor.

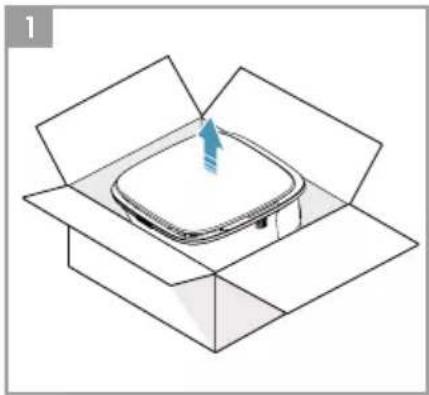

1. Gently remove the unit (e.g. with top handle when available) and the ancillary components from the main box. Remove the plastic packaging and discard as per safety and local recycling instructions.

2. If wall mounting:

a. Please review safety instructions under the GENERAL SAFETY section before proceeding.

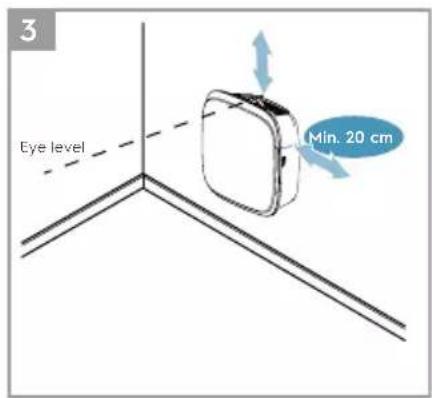

b. Identify a spot on the wall where you would like to mount the unit. The spot should be at least 20~cm below eye level when standing fully upright (even lower is ideal & recommended), for optimal viewing as well as cleanliness under the unit. Also ensure that nearest power socket is max 1,5 mts away and that there is a clearing of at least 20~cm between right side (sensor window) of the unit and other nearby surface.

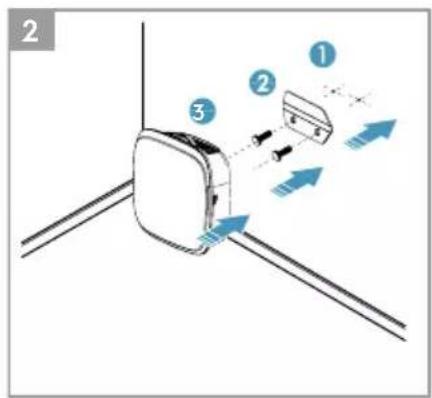

c. Gently place the provided hook flat against the surface of the wall and with a pencil mark the two spots where screws are to be drilled. The hook

should be placed such that the protruding tip (without the holes) is on the top (refer to picture #2).

d. Depending on the wall, please use appropriate drill to make two holes into the wall at the identified marks; and insert any plugs as needed.
e. Depending on the wall, please use appropriate screws for following step. Place the hook flat against the surface of the wall, so that the holes are concentric and the hook sits parallel to the floor without any inclination, and then tighten the screws till the hook is securely in place and does not move if tugged.
f. Lift the unit and place it onto the hook such that the top of the hook securely fits into the inbuilt grip at the back of the unit.
g. Gently adjust the unit to remove any inclinations, just like a painting. Ensure that the unit sits flat up against the wall.
h. When dismounting the unit, remember to disconnect the power cord from the wall socket first.

1. If placing it on the floor:

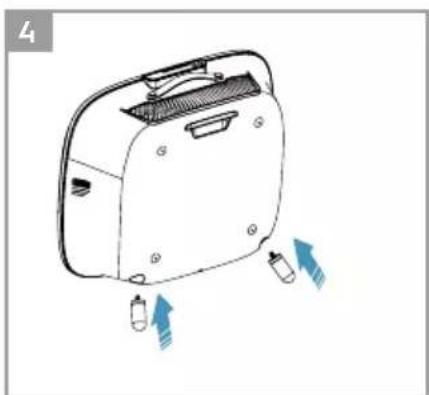

a. Take the cylindrical feet and screw them into the unit by rotating clockwise till you hear a click (or get some resistance).
b. Lift the unit and place it next to the power socket to be used.

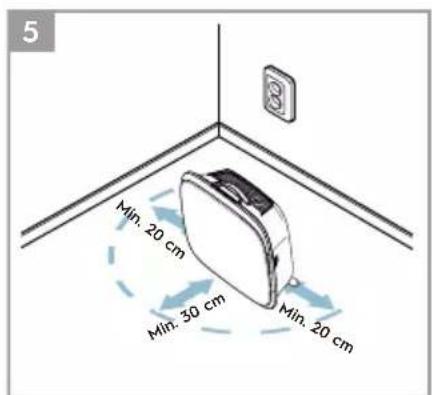

c. Ensure a clearance of at least 30~cm between front (air inlet) and at least 20~cm between right side (sensor window) of the unit and other surfaces. Also ensure ample free space above the top (air outlet grill), so the unit can operate at its best in spreading pure air through the room.
d. When wall mounting, please remove the cylindrical feet from the base of the unit for more efficient air distribution.

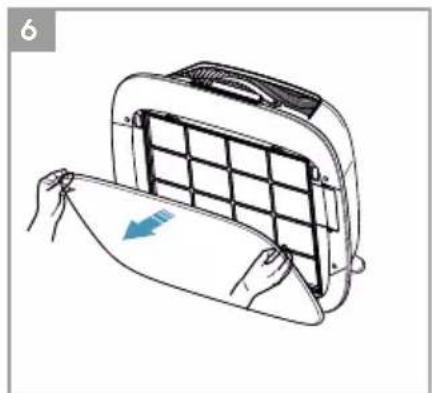

1. Remove the front panel by gently pulling it away from the unit with both hands.

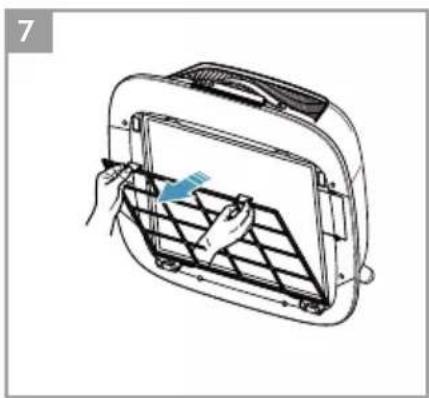

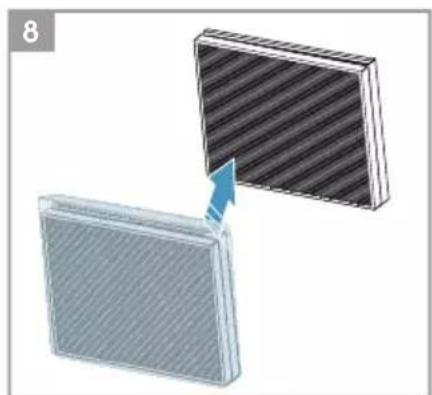

2. Take out the mesh pre-filter, ultrafine particle filter and VOC carbon filter layers and remove all plastic packaging. Discard as per safety and local recycling instructions.

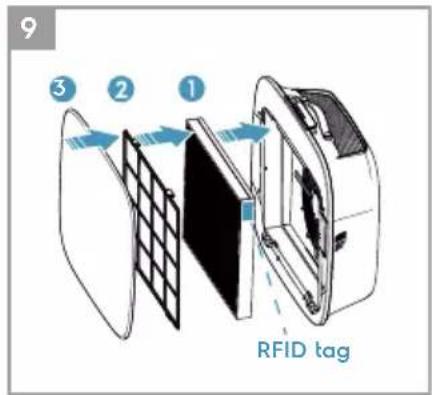

3. Place the filter layers back into the unit in the same order as originally found (i.e. VOC carbon filter goes in first). While inserting, place take care to hold the filter so that the RFID tag on the filter is located at the top-right - it should be near the senor box hatch.

4. Attach the mesh pre-filter and the front panel back to the unit.

5. Plug the unit's power cord to the nearest power socket so that the POWER button

on the product UI gets illuminated.

1. For best results, operate the unit in an enclosed area with doors & windows closed when feasible.

FIRST & ONGOING USE - picture pages 6-7

TURNING ON

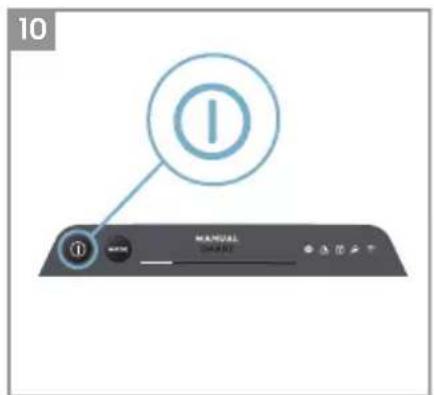

1. Tap the POWER button once to turn ON the air purifier

NOTE: At every new run, it will take about 10 seconds for the sensors to calibrate and analyze the air quality before ramping up to the appropriate fan speed. During this time, the air quality indicator will pulsate slowly in white.

CHANGING MODES & FAN SPEEDS

1. Tap the MODE button once to toggle between the two modes: SMART and MANUAL

SMART: This is the default mode the unit will start in. In the SMART mode the unit will utilize the sensor data as input to decide on the appropriate fan speed and the UI display's type & intensity level. The fan speed cannot be adjusted manually by the user under this mode. Please see the AIR QUALITY INDICATOR section for more details.

NOTE: The AQI light will turn off completely in a dark room when the unit is in smart mode, so as not to disturb.

MANUAL: In the MANUAL mode the unit will utilize the sensor data as input only to show the air quality level via the air quality indicator but will not self-adjust the fan speed. This mode is best utilized for a quick burst of cleaning, especially when the user anticipates an increase in particulate matter in the room due to household chores (e.g. vacuuming).

1. While in MANUAL mode, tap and scroll on the fan speed slider to adjust the speed of cleaning - left most side being the lowest and right most side being the highest speed.

NOTE: The unit will ramp up OR down to chosen speed setting gradually. The slider also acts as the indicator for the current fan speed.

1. STANDBY & WiFi OFF: The air purifier is designed with ECODESIGN principles in mind and hence will aim to limit power consumption to under 2.0W when unit is powered OFF (unless user permission to override). When unit is powered ON, if it has no WiFi connectivity OR is not onboarded, the WiFi radio signal will automatically turn OFF after 30 minutes to conserve power – to bring the WiFi

radio signal back ON manually please initiate ONBOARDING (step 21 only) or unplug and then plug it back in to the socket.

FEATURE ICONS AND INDICATORS

NOTE: Not all indicators OR feature icons might be available on your model. Please consult packaging information or the product specifications on the website for details on available features.

1. FILTER CHANGE: The high efficiency filter(s) in the unit cannot be washed, they can only be replaced. The filter change icon light up to remind you to change your filter(s). Your air purifier may be equipped with more than one filter, so please refer to the Wellbeing App for details on which filter layer is to be replaced. Always ensure the plastic protective bag is removed from the filter before its use in the unit. After the used filter is replaced, the filter change icon will turn off automatically and no reset action is needed.
2. ALERT: The alert icon will light up to alert you of a possible electrical or electronic error with your unit. Please refer to the Wellbeing App for details on the error type, component details and any mitigating actions. More details can be found in the ERRORS & TROUBLESHOOTING section below.
3. CHILD LOCK: The unit is equipped with a safety lock feature to disable the product UI to avoid unintended pressing. The child lock feature can be toggled ON/OFF via the Wellbeing App or by long pressing for 5 seconds the POWER and MODE button simultaneously. The child lock icon light up when the feature is activated.
4. IONZIER: The unit is equipped with an ionizer module, which when enabled generates negative ions to further aid with the air purification process. The ionizer is OFF by default and can only be toggled ON/OFF via the Wellbeing App. When the feature is activated the ionizer icon will light up. For more details on how an ionizer helps reduce airborne particles, please refer to the product information page on the website.

5. WiFi: The unit is equipped with a WiFi module, which enables remote control and access to many more features including time-based tracking of your indoor air quality data. When the unit is connected to the home WiFi, this icon will light up. If the icon is blinking, it indicates a temporary loss of WiFi connectivity – please refer to the Wellbeing App for more details.

6. AIR QUALITY INDICATOR: The unit is equipped with an air quality sensor(s). The laser-based particulate matter (PM) sensor is a high precision particle sensor that can detect PM1, PM2.5 and PM10 levels. The air quality indicator will visually – with the aid of a color scale - show the real-time air quality as per table below. When in SMART mode, the air quality level will also determine the fan speed as per table below.

NOTE: Please ensure regular cleaning of the sensor window to ensure it does not get clogged with dust and sensors keep performing accurately. Also ensure optimal humidity levels (between 35-80%) for accurate reading from the sensors.

LIGHT COLOR	PM 2.5 (μg/m3)	AIR QUALITY STATUS	FAN SPEED
White	Calibrating | Onboarding
Green	0 - 12	Very Good	2
Yellow	13 - 35	Good	3
Orange	36 - 55	Poor	4
Red	56 - 150	Very Poor	5
Purple	151 – 250	Bad	5
Maroon	>250	Very Bad	5

ONBOARDING - picture pages 6-7

NOTE: Some steps in the onboarding flow may have changed, please follow step-step instructions in the latest version of the App as reference in case of discrepancy. Please ensure home WiFi is running on 2.4 GHz band and not 5 GHz band, as this will not be recognized by the air purifier.

1. Please find the Wellbeing App in the iOS App or Google Play store, download it, sign up and login to the App. Here you will be able to 'Add a device' to the App and follow the step-step instructions for onboarding the unit - steps below are indicative.
2. After plugging the unit into the power socket, please long press the POWER button ① for 5 seconds until the WiFi icon ② starts blinking rapidly - this indicates that the unit's hotspot is activated and is ready for being connected to the WiFi.
3. Head over to the Wellbeing App and using the phone's camera to scan the WiFi barcode. The WiFi barcode can be found on the rating label sticker on the unit (typically after the mesh pre-filter, reference image 7). You can also manually enter the digits under the barcode into the App if scanning it does not work.

4. Connect the App to the unit's hotspot.

5. Choose the 2.4 GHz home WiFi that the unit should connect to from available list and then enter the password for this home WiFi into the App - wait for the unit to establish a connection.

6. Complete the steps of naming your newly onboarded air purifier!
7. Later, if you would ever like to reset the WiFi credentials stored on your unit please long press the POWER button for 5 seconds until WiFi icon starts blinking (i.e. like step 20, hotspot activated). While in this state, again, long press the POWER button for 5 seconds until WiFi icon stops blinking and is not lit. Unit's WiFi settings are now reset and it will not aim to connect to your WiFi network.

CLEANING, CARING & STORAGE - picture pages 6-7

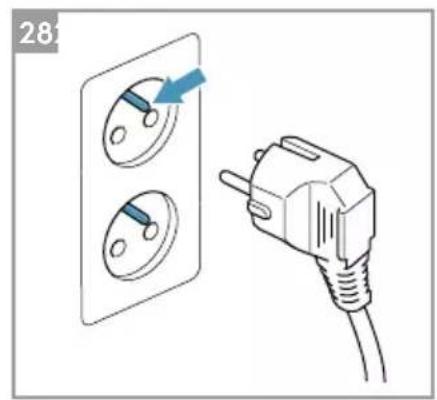

NOTE: Always unplug the air purifier before cleaning to prevent shock or fire hazards. Never use abrasive, harsh detergents OR wax for cleaning the unit. The high efficiency filters cannot be washed, they must always be replaced when at the end of life.

CLEANING & CARING

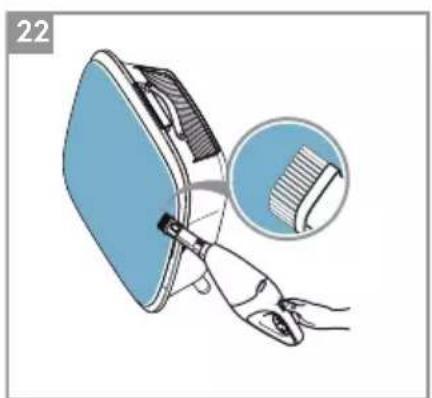

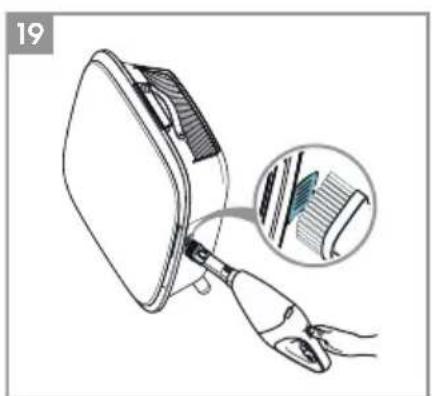

1. Ensure the sensor window is kept unclogged for optimal performance of the unit. It is natural for dust to accumulate in this area, hence ensure regular (e.g. once per 4 weeks) vacuuming of the sensor window with a vacuum cleaner that has a narrow nozzle/brush.

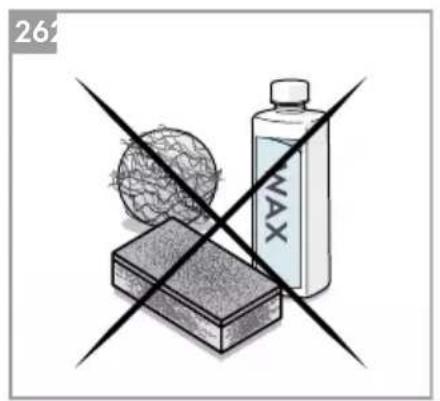

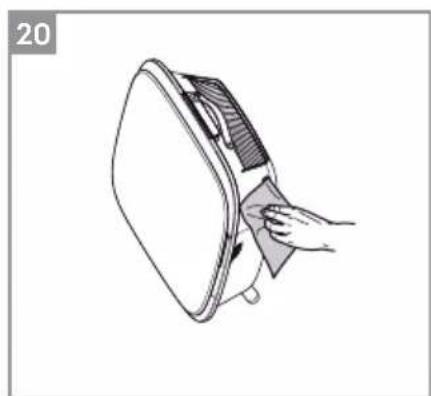

2. The plastic parts of the unit should be cleaned with an oil-free dry cloth. For stains on plastic parts, use a slightly damp soft microfiber cloth to gently rub against the stain.
3. The fabric attached to the front panel should be wiped with an oil-free dry cloth or by using a vacuum cleaner with a soft brush to avoid breaking of the fibers. The area around the air inlet on the front of the unit may accumulate more dust than some other parts and hence may require more frequent cleaning to ensure optimal performance.

STORAGE

1. When storing away, besides unplugging the unit and winding the power cord loosely around the bottom feet, ensure that unit including the high efficiency filters and the fabric front panel are covered up to avoid accumulation of dust.

REPLACING FILTERS - picture pages 6-7

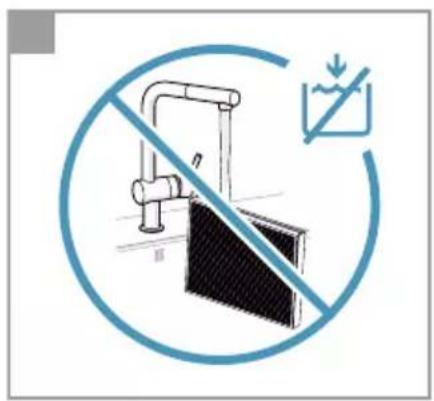

NOTE: The filters - except for the mesh pre-filter - cannot be washed and must always be replaced when at end of life. The WELL A7 / A5 series air purifiers have a variety of filters to choose from, tailored to your lifestyle needs. Each filter layer is equipped with a smart RFID tag to uniquely identify it as well as to track its usage over time. Head over to the Wellbeing App or the product information page on our website for a guide on choosing the appropriate filter for your needs.

1. For the best experience and to secure an uninterrupted use of the air purifier, please monitor the filter's remaining lifetime in the Wellbeing App and order a replacement filter in advance of the lifetime hitting 0% . If you have notifications enabled, the Wellbeing App will inform you when the filter life is close to end of life (e.g. at 5% ).
2. When one or more of the filters is at end of life, the filter change icon will light up on the product UI to indicate the need for replacement. Please head over to the Wellbeing App to correctly identify which filter is at end of life and needs replacement. When filter is at end of life, the unit's fan speed may be capped in SMART mode.
3. The used filter might be heavily coated with dust and particulate matter so before opening the front panel, please ensure a disposable bag or packaging is at hand to place the used filter in.
4. Remove the front panel and the mesh pre-filter and put them aside. Next remove the filter layer which is at end of life and place it in the disposable bag at hand.
5. Next, please remove the plastic packaging from the replacement filter and insert the filter in the appropriate place. Please ensure the VOC carbon filter goes in first inside the unit, followed by the ultrafine particle filter. Reinsert the mesh pre-filter and close the front panel. The filter change icon on the product UI will no longer be lit and the Wellbeing App will indicate the same, with a new filter lifetime reading.

NOTE: In case the change is only reflected on the product UI and not the Wellbeing App, please restart the App and the unit, before further troubleshooting.

1. Discard the used filter as well as any plastic packaging according to local recycling guidelines. The RFID tags contain circuitry and hence are to be disposed separately from the rest of the filter.

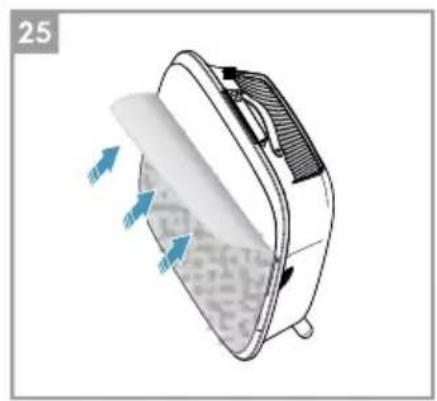

The WELL A7 / A5 series Air Purifier was designed with a unique form and aesthetic sense to ensure it fits in with your home and its furnishings, unlike other appliances. In addition, the series comes with many customization kits for the unit that add to the aesthetics but also functionality of the unit.

TOP HANDLE CUSTOMIZATION

The polyurethane leather (PU) handle at the top of the unit is attached to the unit by way of two screws. Follow the steps below to attach or replace an existing top handle.

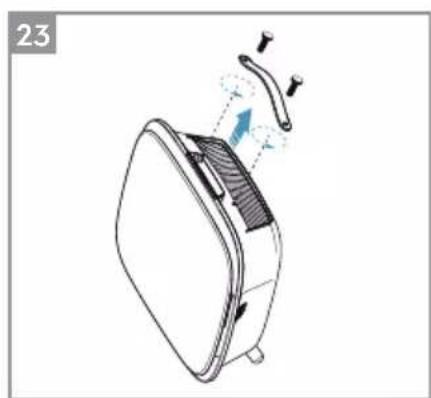

1. If you are replacing an existing top PU handle:

a. Remove the two screws, twisting counterclockwise and set aside along with existing handle.
b. Remove any protective plastic packaging from the new handle and fit it onto the unit by tightening the screws, twisting clockwise, till you meet some resistance. Ensure a snug fit with no gap in between the unit and the screw.
c. Test out the handle by lifting the unit 5-6 cm above the ground with it and giving it a gentle shake.

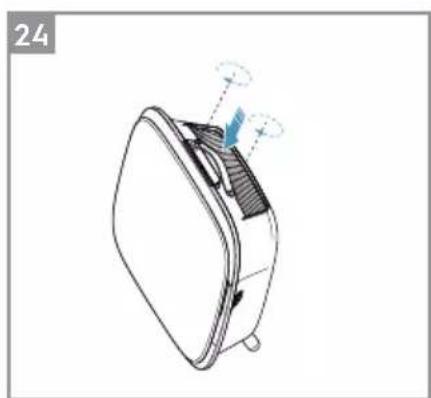

1. If you are adding a top handle for the first time:

a. At the top of the unit, in between the product UI & the air outlet grill you will find two circular cavities secured with a rubber plug. Uncover the cavity by removing these rubber plugs from the unit by gently pulling on the sides of the plug.
b. Follow the steps 37b. and 37c (above).

FRONT PANEL CUSTOMIZATION

The look of the front panel can be customized with a fabric cover to help accentuate it but also to ensure the unit blends well with the decor of the room. The fabric cover has an elastic seam that helps secure it to the front panel, hence no screws or staples are necessary for its installation.

1. Please detach the front panel from the unit and if it already has a removable fabric cover please gently take it off the panel - ensuring not to bend the panel.

NOTE: Some models in the WELL A7 series come with a fabric permanently attached to the front panel, this fabric is not removable from the panel, but you can still customize the panel with another fabric cover on top of the existing fabric.

1. Remove any plastic packaging from the new fabric cover to be used.
2. Starting at the top left corner of the front panel, tuck the elastic band behind the panel and while holding that corner in place work your way with the other hand to the top right corner while continuously tucking the elastic band of the fabric cover behind the edge of the panel. Now pull the fabric cover towards the bottom edge of the panel and securely tug the rest of the fabric edge behind the bottom part of the panel.
3. Smooth out any wrinkles on the fabric cover by pushing against the wrinkles.
4. Attach the front panel with the newly fit fabric cover back to the unit and check the edges to ensure there is no blockage of the air inlet area.

NOTE: Customizable fabric covers are machine washable, as per the care instructions provided with the kit. It is important that the elastic band along the edges of the fabric cover is unbroken and tight as it helps ensure an optimum flow of air into the unit, with minimal decrease in performance. If you notice that the elastic band is broken or very loose, it is time to replace the fabric cover.

FEET CUSTOMIZATION

The thermoplastic elastomer (TPE) feet are attached to the unit by way of inbuilt screws. The feet – like the top handle – are detachable. Follow the steps below to attach or replace an existing set of feet.

1. Place the unit flat on its back, so the front panel faces the ceiling. Unscrew the existing feet, if any, by twisting counterclockwise.
2. Remove any protective plastic covering the new set of feet.
3. Gently nudge the inbuilt screw of the new feet into the cavity at the bottom of the unit and secure them by twisting clockwise till you meet some resistance.
4. Test out the stability of the feet by placing the unit back upright and lifting it about 5 - 6cm above the ground and giving it a gentle shake.

ERRORS & TROUBLESHOOTING

The table below is only a limited list. For the latest and complete section on troubleshooting, FAQ and error guide please refer to the corresponding section on our website or the Wellbeing App.

#	ISSUE	TROUBLESHOOTING	NOTES
1	The air purifier's alert icon is lit	If you have just bought the unit OR inserted new filter(s), please ensure that the filter(s) are positioned in the correct way for the RFID tags to be read by the sensor (refer to point 6 within ONBOARDING & SETUP section above).Generally, the unit comes with a variety of sophisticated sensors, electronics and other electrical components and if one of these is malfunctioning, you will see the alert icon on the product UI light up. For more details on steps to resolve, please head over to the Wellbeing App and check for details whenever you see this icon lit.	Please have at hand the unit's PNC and SERIAL number when calling for support.
2	The air purifier is running at max fan speed all the time for extended periods	If in MANUAL mode, please check the fan speed slider on the product UI or within Wellbeing App and adjust it to desired level.If in SMART mode, please check air quality indicator on the product UI or within Wellbeing App – if all PM values are constantly showing 999-1000 without any reduction then most likely the sensor is clogged.Please use a vacuum cleaner to clean the sensor via the sensor window – detailed instructions in CLEANING, CARING & STORAGE section above.	The PM sensor in the unit is highly accurate and sensitive and it is normal for the purifier to react to poor air quality by ramping up the fan speed – to get your indoor air quality back to safe levels.
3	The air purifier is running at lowest fan speed all the time for extended periods	If in MANUAL mode, please check the fan speed slider on the product UI or within Wellbeing App and adjust it to desired level. If in SMART mode, please check air quality indicator on the product UI or within Wellbeing App – if all PM values are constantly reading very good without any increase then this is normal behavior for the unit - your air quality is very good! If the PM2.5 value is high and the unit is still operating at lowest fan speed, then please check filter change icon on the product UI or within Wellbeing App and if lit please replace used filter with a new one, this should resolve the specific fan speed issue. If neither of the above steps OR instructions in the Wellbeing App help, please refer to item 9 in the table.	The unit is designed so that when a filter is at end of life, at least within the SMART mode, it will discourage usage till the filter is replaced, by limiting the fan speed so as not to reintroduce the captured particulate matter back into the air.
4	The air purifier produces a loud or abnormal noise	Please ensure the air inlet (around front panel) and air outlet grill (top of the unit) are unobstructed and that there is a clearance of at least 30 cm between these areas and the nearest surface. If using a custom fabric cover, try to reapply the fabric cover to the panel tighter OR try operating without it to see if noise pattern becomes normal. If neither of the above steps OR instructions in the Wellbeing App help, please refer to item 9 in the table.	An abnormal pattern of noise OR an unusually high pitch is not by design, hence it is best to rectify this.
5	The air purifier or fan does not operate	Ensure that the house, wall socket being used, and the unit are all receiving power. If needed, try pushing the power plug firmly into the wall socket to check if this resolves the issue. If you have recently (re)placed a filter please remove and reinsert it. Check to make sure that the filter is oriented correctly, so the RFID sensor can detect it. If neither of the above steps OR instructions in the Wellbeing App help, please refer to item 9 in the table.	As a safety mechanism, to avoid risk of injury from the fan blade, the unit will not operate if it does not detect the presence of filter(s).
6	The air purifier is running but the air quality does not improve	If in SMART mode, closely monitor the difference in air quality levels within the Wellbeing App for next 20 minutes – if you do not see any improvement of the air quality values in the Wellbeing App during this period then follow the step below. Change to MANUAL mode and adjust the fan speed to a higher level to see if this helps resolve the issue. If you still do not see any improvement, please try the step below. Try and close any open doors OR windows to the outside of the room and rerun the unit at the highest fan speed for 20 minutes. If this resolves the issue, we recommend that you operate the unit in this sealed environment as much as possible, till the air quality outside (or in other rooms) is also at a good level.	If the unit is placed in a room larger than a minimum recommended size, it will take longer for the air quality to improve – please be patient and maintain the unit at the highest speed feasible. The unit comes with multiple filters – please ensure you have the appropriate filters to tackle the pollutant you seek to remove.
7	The air purifier produces or emits a strange smell	The first time you run the unit, you may perceive a plastic, glue or paint smell – especially near the air outlet grill – this is unavoidable in some cases (like the ‘new car smell’) but should disappear quickly. If you perceive a burning smell, please disconnect the unit and contact Electrolux authorized service center for further support.	Always ensure that the filters are covered in appropriate packaging while stored away between uses.
8	I am unable to onboard the air purifier to the App	If you are unable to onboard the unit and connect it to the Wellbeing App after a couple of attempts following the steps in the Wellbeing App and FAQ, then the best course of action is to contact an Electrolux authorized service center for support.	The WiFi chip in the unit operates only at 2.4Ghz so please ensure your home WiFi is operating at this bandwidth.
9	I have another issue not listed here OR none of the above steps have helped resolve the issue	You can search for more troubleshooting and FAQ guides on our website OR the Wellbeing App under the product information pages, or directly contact Electrolux authorized service center for support. Thank you!	Please have at hand the unit’s PNC and SERIAL number.

NAVOD K OBSLUZE

VIGTIG DELE VED WELL A7/A5-LUFTRENSE

INSTALLATION - billed side 6-7

UDSKIFTNING AF FILTRE - billed side 6-7

REEMPLACEMENT DES FILTRES - illustration pages 6-7

INFORMACije O RADIJU

WiFi radna frekvencija i maksimalna izlazna snaga: 2.4 GHz; 15dBm

RFID radna frekvencija i maksimalna izlazna snaga: 13.56 MHz; 30dBm ± 10%

Potrošnja energije proizvoda u stanju Čekanja mreže manja je od 2,0 W

INFORMACije O ELEKTRICNOJ SIGURNOSTI

UPOZORENJE! - IZBJEGAVAJTE OPASNOST OD POŽARA ILI STRUJNOG UDARA

Ova jedinica se moze koristiti s napajanjem od 50Hz ili 60Hz bez ikakvih

promjena. Ne koristite produkti kabel ili utika adaptera.

m = 311 ;

ONLITE MEPE B3BEOCTN

OBO yIyTCTBO 3A yIOTPE6y npjka cneuФnHa yIyTCTBa 3a kOpniHHe BaWer MoDeLa IIN cepnje. Ypehaj KopnCTte NCKbUynBO KaKo je OnpcaHo y OBOM yIyTCTBy. OBO yIyTCTBO He MoJKe POKPHTN CBe Morye ycNoB e n CInTuaunJe Do KoJnx MoJKe doHn. Prn IHcTaIlnpaHy, KOpniHHeHy n OdpXaBaHy cBAkor ypehaja Tpe6a ce BODNTN 3dpaBm pa3ymom n Mepama Onpe3a.

YI03OPEHbE! - B36EDHOCT DEU E IOCETbBnBX OCOBA

Ioctoj np3nk od ryebe, noBpea nIu TpaJHor nHbAlnDnteTa. CBy am6aJxu yBaJte noDaBe od deue.

Obaj ypehaj mory da kopncte deca stapnja od 8 roDHa n ocobe ca cmaheHm n3nukm, yIHNm nn MeHTaIHNm cnoc6hocTIma, kao n ocobe koJima HeIOCTaJy NCKyCTBO n 3HaHe, yKoJIko nM ce oBe36eDi n Haid3Op nn nM ce dajy yNyTCTBa y Be3n ca yNoTpe6om ypehaja Ha 6e36eDaH nauHH n yKoJIko CXBaTajy mory he onacHOCTn.

Ushhe N Kopncnue OndpkaBaHe He cmej Da oabbajy Dea 6e3 Ha30pa.
Dea He cmej Da ce irpajy ypehajem. Deuy Do 3 roDInHe cTapocTn Tpe6a dpKaTn
daBe OD ypehaja, ocM aKO cy cTaJHo nOd Ha3Opom.

ONPE3! - ИЗБЕГНITE NOВРЕДЕ И OЛТЕŠЕŠЕ YPEŠAJA И ДPyгЕ ИMOВИНDE

He ycmepabajTe Ba3dyx Ka KamHHMa n dpyrHm N3BOpMa TOnIote jep To MoKe DoBeCTn Do noJaHaBa PImaMeHa.

He neHbnte ce Ha ypehaj n He cTabbajte cTbapn Ha Hera.

He kaunte npedmeTe ha ypehaj.

He ctabbajte nocyde ca teuHocTmHa ypehaj.

Ickbuyte ypehaj n3 ctpyjhe yTuHnue aKO ra HeheTe KopncTHTn dyke BpeMe.

He 6IoknajTe n He npekpmbajTe OTBOp 3a ycnc Ba3dYxa, noDpyuJe BeHTnilatopa n peweTky 3a n3dYB Ba3dYxa.

Bodnte paulyha da eIektpnHn/eIektpoHcKn ypehajn 6ydy hajmahe 30 cm ydaJIbeHn od ypehaja.

ONPE3! - MOHTAXA HA 3nД: N36EHNTE NOBPEDE N OwTeHbE NMOBnHE

3iDHy Hocehy Kyky yBek npuBpCTHte 3aBpTbeM n TnILOm nOroHm 3a MaTePnJaI od kora je 3nd n3paJhen (Hnp. ydapHn TnIe ca 3aBpTbHMa 3a 6eToH, npoHrpNtTnIe ca 3aBpTbHMa 3a rnc i cn.). Ako Hncte cnryphn oJ cera je 3n, Heka ra norleda KB rpaJebuHcKn padHnk nll nHxpeBep n npenopyu Ondrobapajhy Bpcty 3aBpTba n TnIa y cKlaady ca loKaJIHOM n HaunOHanHom rpaJebuHcKOM HopMom. Hn nojM ycNoBHaMa He npuBpshyjTe 3ndHy Hocehy KykycamO jeHNM 3aBpTbeM. YBek Kopnstte odroBapajyhe Mepe npedocptpoXHOCTn n 3aHTTHy onpeMy dok 6yUIne pyne y 3ndy nll pykyjete TaKBom onpeMOM (Hnp. cnryphoche rykabuie, macky 3a IInce n cn.).

He ByuTe H He ZmajTe Ka6I 3a HanajaBe DOK je ypehaj Okayeh Ha 3nD. NoppnHnte ce Da Ka6I 3a HanajaBe 6yde npNby6bEn y3 3nD n noD da 6n Ce cnpeuNo HexeJbeHO KaueHe Be pEmTa 3a Ka6I n ZimMaBe ypehaja.

Да 6исте постглн Hajбоьe pe3ултate, уberite ceда ќздна HOceha Куka Do6po npuBpsheha 3a 3nДида ќ по odroBaapajyHm yrIOM (Hnp. napaleHa ca noDom, 6e3 nmaLo HarnbHa).

Ako HnCTe cnrypn Ha da IJ je 3ndHa Hoceha Kyka do6po npuBpshHeHa 3a 3nd, npe MoNTaJge ypejaja nCnpo6ajTe kyka a) npntncajyhni je oO3ro pykama Da 6nCTe BnDeIi Da Ii ce cabnja n 6) noblauehni je Ka ce6n Da 6nCTe BnDeIi Da Ii cy ce 3aBPTbHn Ola6abnIi.

INHΦOPMAUJIJE O PAДИО-EMINTOBAHbY

Радна Фразковецima за WiFi и м akсимална Илала с Chara: 2,4 GHz; 15 dBm Радна Фразковецima за RFID и м akсимална Илала с Chara: 13,56 MHz; 30 dBm ± 10%. Потroduва eнерги щ пасьном ржиму рада щ мана od 2,0 W

INHΦOPMAÇUJE O ELEKTPNUHOOJ B3BEdHOCTN

YNO3OPEHbE! -N36BHTNE ONACHOCT OД NOXAPA N CTPUJHO YdAPA

Obaj ypehaj moxe da ce kopncn ca n3bopor hanajaBa od 50 nnn 60

Hz 6e3 6nlo kaKBe n3meHe. He KopncTe npoDyXHn Ka6I nll

aandaTep.

He BaIte KInHOBe n3 cTpyjHOr yTuKaua. He npo6najTe, He cabNJajTe n He Be3yJTe y YBOp Ka6JI 3a HanaJaHe.

He ceuTe n He ouTeHyjTe Ka6I 3a HanajaJIbe. Ako Ce npIoJKeHn Ka6I 3a HanajaJIbe OwtETn, Cme Da ra 3aMeHN cAmo KomnaHnja Electrolux, HEn cepBncep Nn cInuHO KBaIINΦIKOBaHO Lnue. Obaj ypehaj He caDpxN DeIOBe Koje KopncnK MoJe da onpabN. 3a onpabKy yBek nozOBITE OBlaawheHor cepBncepA KomnaHnje Electrolux. Hn Iod KoJIM ycNoBIma He ceuTe, He yKlaHbAJTe n He npcecnaJTe KInH y3emJbeHa (cI. 26 Na cTp. 3; 3a BeiNky BpntaHnju cy. 27). Ako HnCTe cnrypHn Da nn je yTuHnua

IpaBnH0 y3eMJIbEHa IJI 3aHTnHeHa BpeMeHcKIM OcNrypaYe M IJI npKeiJaCyEM, HeKa KBaJIHΦNKOBaHH eJeKTPnUap NoCTaBn ODROBapajyHy U TnUHnUy Y cKlaNy ca HaOnHOJIHm CTAHApDOM 3a eJeKTPoINHCTaJauNiJe IJI N ODROBapajyHm loKaJIHm 3aKOHMa I NOd3aKOHcKIM aKTtMa.

He dpjnte n He kopnctnte 6en3nH n dpyre 3anaJbNBe npape n TeuHocTn y 6nn3HH oBor n 6nlo kOr dpyror ypehaja. IpochiTajTe halePnue npOn3Boda koje roBOpe o 3anaJbNBOCTn n dpyra yno3OpeHa.

He ByuTe Ka6I 3a HanajaHe.

He do npjte Ionatnce BENTnlaTopa pn Baheby fntepa.

OДЛАГАБE

Obaj cmmboJ ha ypehajy nIi HberoBoj ambaJn yka3yje Ha To da ypehaj He cme da ce odIOxN Kao KyHn OTnaD. Da 6ncTe peuKInpaIIypehaj, Ondecnte ra NaIeJXHOJ cnJXbI rDe Mory da n3 Hera 6e36eHNO n CtpyuHO n3BaJe n peuKInpajy 6aTepnjY n eJeKTpnuHe deNoBe.

NoTuJTe HaunohnHe npOnnce o npKynbAby eJeKtpnHnx npOn3BODa n nyHBnBx 6aTepnja.

PPE NOYETKA

Paxbno npountajte ynytCTBO n noce6Ho o6patnte naKbY ha

6e36eHocHe HOpMaunje. HapouHTy naKbY o6paTnTe Ha OdeJbKe ONPE3!

IpoBepTe da IIN cy CBe OINcaHe KOMNoHEnTe N DeIOBn PpINOJKeHN.

KJbUHHe KOMNoHEHTE INPEuHCTaA BA3dYxA CEPnJE WELL A7/A5

1	Од boйва и прилагорьва predecessor пioча	14	Шулbingа за кабл за нараJAыe
2	Магнети predecessor пioчe	15	Шулbingа за мотор вентilatedога, решетka
3	Решеткаки predecessorпioчe	16	RFID ознake
4	Филтет ултуарфийх чекица	17	Кушице predecessor пioчe
5	Угеляни foamер за История орrationа юденива	18	Дугма нараJAьа (ук./иск.)
6	Инданатор квалитера ваздуха	19	Дугма рекима рада „MODE"
7	Корисcentи Intertорфеяс	20	Прinksа рекима рада
8	Од boюльва горьа ручка за пошевe	21	Слишица замене øлтета
9	Решетka Издува ваздуха	22	Слишица уноzerпьа
10	Задъа ручка за пошевe и пошевe	23	Слишица WiFi-ja
11	Сеньоторска Ктуна	24	Слишица joонзатора
12	Проборчий сенида	25	Слишица блоке за бezбедост deе
13	Од boюльва пошUCE, 2kom	26	Клиоза и Иndеликов ор看法 Вентilatedога

HANOMEHA: Bau konkpehan modeh He mopa umamu cbe komnohehme u dyhnkuje habeedehe y obom YIYTCTBY 3A YNOTPE6Y. 3a mauhan haseb modena noznejme ambaanky npou3boda unu cmpany ca cnepuuckaujom npou3boda ha hawem cajmy. Kompanja Electrolux 3adpkaaba npaeho Ha u3mehy ode u3hemux uHfopmauja be3 npemxodhe hajaee.

PACNAKINBAHbE INIOCTABJbAHbE - cInke Ha cTp. 6-7

BoDnTe paUHa npi pacnKaNbAHy npeunctaHa Ba3dyxa. Ypehaj mHa HeKoJIbKO OdBOJbNX KOMNoHeHaTkoJe MOry Da ce OTKaue TOKOM TpaHcnpTa, 3aTo naKJBNO BO OTBOpIte KyTjy DOK je noLoXeHa Ha BeJIkoJ paBHOJ NOBpUnHn Hn NIOy.

1. Пажьиво ИЗВадиTe ypeй (нр. помену rathe pyuke, ako noctojn) ndoatHe KOMnoHente n3 BeJIne KyTnje. CknHnte n OdIoJNte pIaCTnHy am6aJaKy y cKlaIy ca 6e36eHNCHm n loKaIIHm npOncma o peunKlaJx.

2. Y clyuajy MOHTaKe Ha 3nI:

a. Ппс Hero StTo HacTaBnTe, npOHTajTe 6e36eHocHe Mepe y OdeIbKy ONWTE MEPE 6E36EДHOCTN.
b. OndeTe MeTo Ha 3nDy rIe JKeIte Da MoHTnpaTe ypehaj. To MeTo mopa 6ntn 6ap 20 cm nCnoi HnBOa ounjy KaI cTojnte ycnpabbeHn (HnJke od tora je ndealno i npenopyucho) padn onTImaJIne BnBIOCTn I padn MoryhHOCTn uHHeBa npocToPA nCNOd ypehaja. TaKoHe, Haj6nJa cTpyjHa yTuHnCa mopa 6ntn ydaBeHa hajBnWe 1,5 m n Mopa noctoJatn pa3MaK od 6ap 20 cm n3MeHy deChe cTpaHe ypehaja (npO3OpuHa ceH3Opa) n O6nnKHe NOBpUHe.
c. Пжьнво постаит e пиложену Кку paBHO Ha NOВршHy 3nda И OLOВКOM OЗнaynte DBe TaUKe rde heTe npo6yuHTn pyne 3a 3aBPThe. KykTupe6a постаит TaKo dA nCTypeHn Deo (Ha KOME Hema pyna) 6yde Odo3ro (cI.2).
d. Byprnjom koja oJroBapa BpCTn 3nda n36bUHnte DBe pyne y 3ndy Ha

MeCTnMa Koja CTe O3Haunn I No Notpe6n yByuIte TINIOBe.

e. Y cIeHeHem KOpaky ynoTpe6bTe 3aBpTbe KoJn OndroBapajy BpcTu 3nda. NocTabInTe Kyky paBHO Ha NOBpuHHy 3nda TaKO Da OTBOPn Ha HbOj 6ydy KOHcHTpruHN ca n36yweHm pynAm a Kyka NotnyHO npaJIeHa ca noDom 6e3 IKAKBor Harn6a, a 3aTM npTEKHe 3aBpTbe DOK KyKa He 6yDe UBPCTo pNvBpShena Hne Nomepa ce npn CImMaBy.
f. IOnnHnTe ypehaj n noCTabnte ra Ha KyKy TaKO da rOpBn Deo KyKe do6po lerHe y yrpaheNo lexNtTe ca 3aHbe cTpaHe ypehaja.
g. Пажьиво поеспгуpeйда-he 6удe нагуни на ѳднустрани,баш кao уметнчксclнк.Осигураjetда урehajdo6po hailexe y3 3n.
h. Пп демонтамуpeиа He 3abopabnte da npBO n3Byte Ka6I 3a HanajaHe n3 3nDne yTuHnue.

1. Y clyuajy noctabbaHa Ha nOd:

a. 3aBpTHbHMa npuBpcTne BaJbKacTe HOxNue 3a ypehaj, okpehyh nX y cMepy Ka3aJbKn Ha caty dok ce He 3auyje uKbOuahe (nIi dok He ocTe Te oDpehene H otnp).
b. IopnHnTe ypehaj n cTabte ra nopei ctpyjhe yTuHnue y Koju he 6ntn npNKbUyeH.
c. Ocnrgyapjte pa3mak od 6ap 30 cm n3meh y npedhe ctpahe (ycnc Ba3dyxa), odnocho 6ap 20 cm n3meh y deche ctpahe (npo3opun h ceH3opa) ypehaja n obnHex noBpwnHa. Tako, o6e36einte doBObHO npocTopa n3naD rOpHe noBpwnHe (peweTka n3dyBa Ba3dyxa) da 6n ypehaj morao da padn HajeKacnje i Da y npocToyny nCnyTa uNCT Ba3dyx.
d. Y clyuajy MOHTaKe Ha 3nD cKHNTe BaJbKaCTe HOXnCe ca noctoBa ypehaja paDi eOHKacHJe paCnoDeIe Ba3dyxa.

1. CkHnTe npedby nlouy naKbBm noblauehem od ypehaja c obe pyke.
2. Извашистец решеткаки пенилтор, сенинтурафинх чекши и угьеннипенир за всяпарльners opразнда юедины в уклонто сы пад_STУ amбалжу. Oдюжпесу ckладу ca 6e36edHocHM n lokaHIM npoINcHMa o peuzKlaЖN.
3. Bpnte fntepe y ypehaj tako da 6ydy nopehann kao npe (yrbeHn fntep 3a ncapbna opraHcka jeDnBeHa je npBn). Fntep npn noctabbaHy dpKHTe tako da my RFID or3naka 6yde y ropbem dechom yrny - 6n3y OTbopa ceH3OpCke Kytnje.

4. Bpata Te peWeTkactn npedhny npoeHy naypehaj.

5. Ппкьуне ka6л 3a Hanajahe ypehajya y Haj6mky ctpyjhy yTuHnuy da 6n ce ocBETnIIO dYrme HanajaHa Ha KOpncnukom nHTepfejcy ypehaja.

6. Да бисте постлел Нajбове peултate, уpe Haj no могуности кориспу 3atbopoHOM npocTopy ca 3aTbopoHIM BpATnma n npo3OpHm.

PBAHDAbAUYOTPEBA-cnkeHa ctp.6-7

YKJbUyHBAHbE

1. Довине дугme нараьа ќдомда бисту укыунл пецпатч вадуха HANOMEHA: П pu сбakom порема hy npoин he oko 10 cekydu dok ce ceh3opu kalubpuwuy u analu3upajy kbalumem ba3dyxa пе нео wmo y6p3ajy bohmunamop do nompe6he 6p3une. 3a mo bpe me undukamop kbalumema ba3dyxa cnopo nuncupa bolem bojom.

ПРOMEHA PEXKIMÀ PAДА И БРЗИНÀ BEHTNЛATOPA

1. Довину дугме ржима рада „MODE" „ндом 3a пpeбачиваьеuses hy следа ва ржима: ПAMETHИ и РУНИ

PAMETHN: OBO je noDpa3yMeBaHn peKIM y Kome ce ypehaj nokpehe. Y
PametHom peKIMy ypehaj KopncTn noDaTke cEH3Opa Kao yla3He BpeHocTn 3a
oJpehnuBaHe notpe6He 6p3nHe BeHTnLaTopa N BpCTe N INTeH3NTeTa
KOpnsCHNuKor npka3a. KopnsHK y OBOM peKIMy He MoXe pyuHO da MeBa
6p3nHy BeHTnLaTopa. 3a BnSe HOpMaunja norledaJte oDeJbak INDNKATOP
KBALNTETA BA3dYXA.

HANOMEHA: lamnuca uhdukamopa keanumema ba3dyxa ce nomnyho uckbyyje y mamhoj npocmopju kada jeypehaj y namemHom pekumy da he 6u omemana kopuchuka.

PuyH: y puHOM peKIMy paJa ypehaj KOpNCTn noaTke cEH3Opa kao yla3He BpeHocTn camo Da 6n noka3ao CTepeH KBaJIteTa Ba3dyxa NOMohy INdNKaTopa, aHn He noDeuBa 6p3nHy BeHTnlaTopa. Obaj peKIM je HajboJb 3a 6p3e Type uHneBa, norToBO KaJa KOpNCHK OueKyje NOBeHaHy KOJIuHHy cheTnca y npocToPiJn 36or paOBA y domaHnHCTBy (Hnp. ycncabaHa npaunHe).

1. KaД cTe y ryHOM peKIMy paДa, IDOpHnTe n NOByuIte KIn3aU 6p3nHe BeHTnlaTopa Da 6nCTe NOpEcnIb 6p3nHy uNshHeBa - IeBO je HajMaHa, a Deecho HajBeHa 6p3nHa.

HANOMEHA: Ypehaj he nocmeneho noehamu unu cmahmu 6p3uHy do u3a6pahe 6pehocmu. Knu3au denyje u kao uhdukamop mpehymne 6p3uHe bemulamopa.

1. MIPOBAHbE N ICKJbUyEH WiFi:Пресntaч Ba3dUxa je KoHCTpyuncan y3 npimEnHy npinHcUnna ekOLOwKor dN3ajHa n cTora TeXn OrpaHnueBy notpoShbe

eheprnje do 2,0 W kaJa je ypehaj nckbuyen (cem ako kopncnKdo3BOJn npekopauebe). KaJa je ypehaj ykbuyen, aKO hema moryhnoCT WiFi Be3e nIi Hnje NOBe3an Ha mpeJy,WiFi paAno-cnHaJ he ce ayTomatcKn nckbuytN haKOH 30 MInyTa da 6n yStedeo eheprny - 3a pyuHNo ykbuyBaHe WiFi paAnocnHaIa noKpeHnte IOBE3INBAHbE HA MPEXy (camo Kopak 6p. 21) nIi NCKbuyte ypehaj n3 cTpyjHe yTuHnCe n IIOHO B ra npNKbuyTe.

CINuIe FyHKUNJA INHdNKATOPN

HAIOMEHA: He mopajy cbu undukamopu u ukohe ynkuja 6mu npucymhu ha bawem modeny. 3a unphiopmauje o docmynum ynkujama noznejme unphiopmauje ha ambaanju uu nceuphikaujy npou3boda ha cajmy.

1. 3AMEHA ΦИЛTEPA:Ефикаси Фиntер(n)у урehajу He мoryда ce nepу,Behcamo Da ce 3ameHe.Cnunuza 3a 3amEny Фиntepa e ce ypaIHTn Da BacnoDCETn Da 3ameHnte Фиntep(e).Прeнstaч Ba3dUxa може Имати ВишefinlTepa,па 3a Ифорmaциjу O Tome kojn Фиntep Tpe6a 3ameHNTn NorlejaTe anIIkaциjy Wellbeing.YBek npobepinte Da Iи je пlaCTuHa 3aHTHTHa KecaCKInHyTa ca Фиntepa npe Hero StTo ra cTbInTe y upehaj. Habon 3ameHneNCKOpnsHHeor Фиntepaa, Cnunuza 3a 3ameHy Фиntepa he ce ayTomatcNINCKJbYHTn Hnje notpe6Ho HeHo peceTOBaHbe.
   673.УПОЗОРЕБ:Слунica унозорьа he ce yanaHTn Da 6n Bac ynoZopILA ha Moryhy eIektpnHy nIIeKtpoHcKy rpeWKy ypeJaja.3a HΦopMaunje O BpCTn rpeWKe, KOMNoHENTama n eBentyaJIHM peSeHbMa npO6Iema norleJaTe anLkauniy Wellbeing.ДоDAtHe INΦopMaunje moXeTe HaHn y OdeBJKy TPEUKE I PELABAHbE ПОБLEMA y NaCTaBky.
   674.БLOKAДA 3A 6E36EДHOCT DEUe: Upehaj nMa ΦyHKnju y cnrypHocHor 3aKbYuBaHa Ka oHeMOryHab a pad KOpnschNcKor nHTeppejca n cnpeuBa HexOTnUHO npITnCKaHbe dYrMaHn.ФyHKnja 6LoKaDe 3a 6e36eHocT Deue MoKe Da ce YKbYuH/ncKbYuH nyTeM anlkaunje Wellbeing nIi nCTOBpeMeHm npITnCKOM dYrMaHn HaJaHa b N peXnMa paDa y TpaJbBy od 5 cekyHdN. CInuHa 6loKaDe 3a 6e36eHocT Deue @ ypaJIne ce no akTbVnpaHby fynKcnJe.
2. JOHIN3ATOP: Ypehaj Има мodyл joинзатopa, кojn, kaJ je omoryhen, CTbapa HeratNBHe johe koj ndoaTHO nocneuJy npouec npeunshahBaBa3dyxa. JOHIN3aTOp je cTaHdapdno nckbyuH n MOKe Ja ce yKbUy/NCKbUy n CaMo nyTeMa anIkaunije Wellbeing. CInuHa ja JoHN3atopa ypaJIne ce no akTNBnpaBy yHKzije. 3a doaTHe INΦopMaunje o Tome KaKO joHN3atop nomJaye CMaIbeHy KOJIuHHe YeCTNuA y Ba3DuyxN porJeTe cTpaHy ca HΦopMaunjaMa O

npon3bOdyHa cajTy.

1. WiFi: Ypehaj noceyuje WiFi moyn Kojn omoryhaBa daIbHcKO ynpabbahe n npncTyMnOrHM dpyrIM fYHKunjama, kao wTo je BpemeHcKO npaHebe npataKa O KBaHTety Ba3dyxa y npocstopnju. Oba cInuHa cNaI KAD ce ypehaj nobExe ca KyHm WiFi-jem. Ako cInuHa Tpenhe, To yka3yje Ha npnbpeMeHH r6ntak WiFi cnHana - 3a doaTHe HOpMaunje norleJaTe anlkaunjy Wellbeing.
   HAIOMEHA: Ipey3mume hauy aannkaujuy Wellbeing u npamume nocmynHa ynymcmba 3a noe3uahe da bucme npueucmau b3dyxa noe3alu Ha unhmephem.
2. Инданков CBALNTETA BA3dYxA:Урегaj Иma ceH3op(e) 3a KBaJIntet Ba3dYxa. Лaceрски сензор чесица пpeдстава Високонецан сензор чесица кojи моче за дeteктуе чесице велочиne PM1, PM2,5 и PM10. Инданков CBALNTETA BA3dYxa he Bn3yeJHo - ckaJOM y 6oJN - рпka3NBaTи KBaJIntet BA3dYxa y CTbapHomВрemeHy, пера доюь тбели. Кад je урегaj у памetHom ржиму, стени CBALNTETA BA3dYxa утuahe и на 6рЗИнHy BeHTILATopa, пера доюь тбели.

HANIOMEHA: Pedobho yucmume npo3opuñ ceh3opa da 6ucme cnpeuun Hbe2o8o 3aenjbe npawuHOM u da 6u ceh3opu paduni kaq mpe6a. Takohe, obe3bedume onmumnhy bnaKncm ba3dyxa (35-80%) da 6u ouumaba ha ceh3opa 6una maHa.

БОJA CBETLOCTN	PM2,5 (μg/m3)	КВАЛТET BAЗДУХА	БРЗИHA BEHTИLATOP A
Беля	Кал�брисаны Повezиваны
Зелena	0-12	Яко добар	2
Жута	13-35	Добар	3
Наранцаса	36-55	Слаб	4
Црва Быбоча Смeя	56-150	Яко слаб	5
	151-250	Лош	5
	>250	Яко лош	5

IIOBE3NBAHbEHAMPEKY-cnkeHa ctp.6-7

HANOMEHA: Heku kopaqu nocmynka noe3ubba ha MPey cy mohda npomehehu, 3amo y cnyajy odcmyna ba obabe3no npamume nocmynho ynymcmeo damo y hajnobujo cep3ju anukaueje. Nopunume ce da kyhnu WiFi padu ha once2y 2,4 GHz, a He Ha once2y 5 GHz, koju npeuucmau bazdyxa hehe npeno3hamu.

678.Пробны滥нкаги Wellbeing y подвни iOS App Ип Google Play, пузmites je, Perinctpyjte ce и при jabinte ce у hy. 3atnm heTe moHn da „Додауpe Haj" y anlkaunjy и па nitte noctynho unyTCTBO 3a NOBe3Nbahe ypehaja Na Мржу - корцу n HaCTabkCy opnijectaцноHn.

1. HakoH npNKbUyNBaHa ypehaja y ctpjHy yTnHuCy npNTncHte DyrMe HanajaHa 5 ceKyn, dok cnuHa WiFi He noyHe 6p3o da Tpenhe - To 3NaH da ce akTNBupala npCTynHa TaKa ypehaja n da je OH cnpeMaH 3a NOBe3NuBaHe Ha WiFi mpeKy.
2. Празу уапликции Wellbeing и камером телега сенира对接 WiFi 6ap-koД. WiFi 6ap-КOD можete нан Ha Na HalenHиц ca O3HaKOM npOn3BOda Ha ypehajy (obuHno n3a peшеткacteror прдфптepa, cn. 7).Тakоhoe, можete у.apликцииу руну уnetи сфpe koje ctoje IncpoD 6ap-КOD aKO сенираы he ycne.
3. Повекитулкову са пистуном тачkom уpeйaja.
4. Ca liusTe DoctynHx MpeKa n3a6epnTe KyhHi WiFi Ha 2,4 GHz c KojIm ypehaj Tpe6a Da ce nobExe na y anInkaunjy yHeCnTe lo3nKky 3a Taj kyhHi WiFi n cauekajTe da ypehaj ycnoCTabN Be3y.
5. Пocтупak довшит e унocom Ha3nBa ynpaBO NOBe3aHOr npeuNCTaHa Ba3dUxa!
6. Kacnje, ako HekaI noKeIte da pecetyjete noaTke 3a npnaBbNAbe Ha WiFi cmeTeHe y Bawem ypehajy, npntncHte Dyrme HanaJaBa a 5 ceKyndIn Dok cnuHa WiFi e noUHe da Tpenhe (akTNbnpa ce npicTynHa TaKa, kao y Kopaky 6p. 20). Tada noHOBO npNTcHte Dyrme HanaJaBa a 5 ceKyndIn dok cnuHa WiFi e npcTaHe da Tpenhe uYracn ce. WiFi noDeWabaHa ypehaja cy caDa pecetobHa n OH Hehne NOKywaBatn da ce nobExe ca BaWoM WiFi MpekOM.

YILLHTHeE,ODPXABAHbENCKIAIILITEHbE-cnkeHa ctp.6-7

HANOMEHA: Ipe yuheba yBek uckbuyme npuecmaa ba3dyxa u3 cmpye da 6ucme cnpeuunu cmpjuhu yadpu onacnoem od nokapaa. 3a yuhebe ypehaja hukad he kopucmume abpa3uha cpedcmea, jake demepuenme u bocak. Buokoeukacnu fumepu He mozy da ce nepy, beh Ha kpaJy padHO2 bKa yBek mopajy da ce 3amehe.

UHHeN ODPXABAHbE

1. Пазида се позорчн сензopa He 3aueпд aбисту осигурал nontmaлан pad урehaja. Habynbahe npaшин y obom пocstopy je hopmaли nojaBa, 3ato peidobho (Hnp. cBAke 4 Heebe) ycicajte пozopчн сензopa ycinsBaayem ca y3aHIM NaCTaBkOM/YeTKOM.
   686.Пл actnue He deNoBe ypejaja Tpe6a nctntu cybom Kpnom 6e3 dnauua.Y

cIyauj y IeKa Ha IIaCTnHm DeIOBnMa, NOKBaWeHOM Kpnom Od MnkpoΦn6epa naKbNBO nCTpJbajTe ΦIeKy.

1. TkaHnHy npuBpshEny 3a npedbny nlouy Tpe6a npe6pcatn cybom Kpnom Koja He caDpxn yIbe nIIy ycncatn ycncnbayem ca Mekom Yetkom Da 6n ce cnpeyno Iom BlaKaHa. Y npocstopy oKO ycnca Ba3dyxa Ha npedBoj cTpaHn ypehaja Moxe Da Ce Hakyn Bnwe npaShne Hero Ha HeKIM dpyrIm DeIOBmAm N 3aTO Moxe 3axTeBaTn yeWe hne uWe hneJa da 6n ce ocNrgpao onTImaJahn pad ypehaja.

CKIADNIHTEHe

1. Прилелkom складиштейа, осим Што неся NGьучпгуpeй иструjee И лабаво hamotати кабл за наралье okо дових пошица, пекрочу уретaj, НBEROBЕ Високoeфнікасе Фиntepe иTekctинHy пedingу пючда вп ce спразино накулba hare пашинHe.

3AMEHAФИПЕРА-cnkeHaCtp.6-7

HANOMEHA:Фummepu-ocum pewemkacmo2 npedfummepa-he mozy da ce nepy,beh ybek Mopajy da ce 3amene Ha kpaju padno2 beka.Прчucmaqu ba3dyxa cepuje WELL A7/A5 mozy da umajy pa3nobpche fummepe koju cy npunaojehnu bawum nompebama.Cbaku fumep nocedyje namemHy RFID o3nky koja npedcmaiba he2o8 jeudncmbenu udenmuqukamop u omozhyaba npahebe ynompebe kpo3 bpeme.Ipehume y annukauy Wellbeing unu ha cmpany ca unhfoopmauzjama o npou3body na hawem cajmy da bucme noznedanu boduy 3a u360p fummepa koju od2obapa bawum nompebama.

1. Да бисте обeбеди мakсималу eфн��ост и Heometан рад пpeистача ваздуха, патinte пeoctалу радни Век Фнелега у anecdкаши Wellbeing и hapунITE заменckи Фнелер пе Heroшто стигнedo 0%. Ако сtle omoryнлп сда obabewteha, anecdkaциja Wellbeing he Bac obabecntin kaad ce Фнелер пиближкраjetу рад hor Век (нр. на 5%).
2. KaJa jeDaH ΦnITeR nII BnIe HbIX 6yDu Ha KpaJy paIHor BeKa, Ha KopINCHNcKOM nHTeppejcy npOn3BODa he ce ypaJIITn cInuIca 3a 3aMeHy fIITepa KoJa yKa3yJe Ha Notpe6y 3a 3aMeHOM. IpeHnte y anIIkaunjy Wellbeing da 6ncTe npabInHo odpeDnI N KoJn je fIITep Ha KpaJy padHor BeKa n Mopa Da ce 3aMeHN. KaI FnITePdoHe do Kpaja padHor BeKa, 6p3Ha BeHTnlaTopa ypehaja MoKe 6nTn orpaHnueHa y NaMeTHOM pexnmy pada.
3. Искоршинни силтет може бити jakо зашиан пашиною чесцама, на посядада пedingи пioуприпемпг Кecу ил Кутужу кojу he Te CTaВИТи Искоршени силтет.
4. CkHnTe npedby nlouy n peweTkactn npedqntep n cTaNte nx ca cTpaHe. 3aTm n3BaAdnte qnIte koju je Ha Kpajy paHor Beka n cTaNte ra y

nnpembehy kecy nnn Kytjy 3a odnahe.

1. 3aTnM cKnHnTe pIaCTnHy aMbIaJy ca 3aMeHcKor fHnTepa n CTaBnTe fHnTep Ha odroBaapajyhe MeTo. NobpnHnTe ce da yIbeHn fHnTep 3a nCnapbna OprAhcka jeIbHeBa 6yde npBn yHyTap ypehaja, a da 3a HbIM cIeDn fHnTep yItpaΦHHx YecTuca. BpaHTe peWeTKactn PpeDfHnTep n 3aTBOpHTe npeDhy PloUy. CInuHa 3aMeHe fHnTepa Ha Kopncnukom INTepfejcy Bnwe Hehe 6ntu yNaBeHa, a anIIkaunja Wellbeing he noka3NbaTn nCTo To, Kao n padHn BeK HOBOr fHnTepa.

HAIOMEHA: Ako 3ameha 6yde Ha3nauhe ha cmo Ha KOpuchukom uHmeppejcy, aNu He u y annukaquju Wellbeing, pecmapmyjme annukaqujuy u ypehaj npe daabe peswaba na npobnema.

1. Искорши老人家 сбу пл actуну ambaяу odnoну у скlaу с lokaли посяма о peцклжи. RFID o3nake caдрже eilektpruha koja, na nx Tpe6a odloжитн odbojeho od octatka Флтepa.

PINIAIOTABAHbE-cnkeHaCTp.6-7

IpeuicTau Ba3dyxa cepije WELL A7/A5 nocedyje jeDnHCTBeHy oopMy dN3ajHa n eCTeTKy Koja ocngypaba HberOBO do6po yKlanahe y Baw dom n HameWtaj, 3a pa3nky od npyrnx ypehaja. Cem tora, 3a oby cepiny noctoje 6pojHn kOMnTeN 3a npilaroohabhe koju nobehabajy eCTeTKy, aInn oYHKcnoHaJHocT ypehaja.

ПРИАГОБABAHE TOPHe PУЧКЕ

Поличyperанско-ковна ручка на врху уpeяда причвршениа ќ за у畴aj ca два завтва. 3а причвршнваши постojeh roръе рчкп пати te следен постунak.

1. Ako 3amehbyjete noctojehy rohpby noHypetahcky pyky:

a. ɪЗbaʌnTe ᵠBa 3aBpɪThbɑ Okpehŋhɪnx CynpɒtHo Od, Cmepɑ Ka3aJIbKn Ha caTy i CTaBnte ca cTpaHæ 3ajedHɑ ca noctojehɒm pykɔm.
b. CkHnTe cBy 3aHTTHy nlaCTnHy am6aJMy ca HOBe pyUke n NOCTaBnTe je Ha ypehaj 3aBpTaHem 3aBpTHeBa y cmepy Ka3aJbKn Ha caty DOK He ocTe OdpeHene Htnp. 06e36eHte npnaHaBe na3eHn da n3Mehy ypehaja n 3aBpTbHa He 6yde 3a3opa.
c. Испюбajte ручky поизаьем урehaja 5-6 cm n3над Тla и лаганим npotpecaьem.

1. Ako ropbby pyky npuBpshyjete no npBn nyt:

a. Ha Bpxy ypehaja, n3mehuy Kopnchnukor nHTepcejca n peweTke n3dyBa 3dya, Bndehe Te DBe KpyxHe wynbHne o6e36ehe rymenm Yenom. OtkpnjTe wynbHne BaheBem OBHX rymenx Yenoba n3 ypehaja, naKbNo noblaueh 6OuHe cTpaHe Yena.
b. Празпты корakе 37b и 37c (изар).

PNIJIAROJABAHBE PPEIDHEILOUE

I3rIeI npEiBe IIOue MoKe Da ce npIlaOJn TeKCTINHOM MACKOM KoJa MoKe Da je nCTaKHe, Kao N da oBe36eDi N HeNo Do6po yKlanaBe y DeKOp npocToPije. TeKCTINHa MaKa IMa eJAcTUnHn 1aw KoJn OlanKsAba npuBpuhNbAbe 3a npedBy nIooy, 6e3 Notpe6e 3a 3aBpTHbIma n 3aKOBuCaMa.

1. CkHnTe npedbny nlouy ca ypehaja n ca He naKbNBO CkHnTe TeKCTnHy MaCKy, aKO noctojn, na3eHN da He nckpNBte nlouy.
   HANIOMEHA: Heku modenu u3 cepuje WELL A7 ucnopyuyjy ce ca mkaunom koja je mpajno npuupwheha 3a npedby nloyu u He moke da ce ckuhe ca he, anu u dahe moxeme npulazodumu nlouy cmaabbaem Heke dpye mekcmunhe macke npeko nocmojehe mkaunhe.
2. YKLOHInTe cBy pIaCTnHy am6aJMy ca HOBe TEKCTnHe MaCKe KoJy heTcKopnCTnTn.
3. KpehyBshn od ropber lebor hohka npedhe nloye, rypnte enactnHy TpaKy n3a ploye n 3aTm je, dok npndpkaBaTe taj howak, pyrom pykom npebuynte npeko ropber dechor howka, hepeknidno rypajyh n elactnHy TpaKy TeKCTnIHe Macke npeko nBnue nloye. 3aTm nobuynte TekctnHMy Macky Ka doBoj nBnCn Ploye n 6e36eDHO npebuynte HbEN OCTataK npeko doBe nBnCe nloye.
   700.ИзразовajteсBEнбореHaTeKCTINHOJ Macu pa3BnauehInx.
4. Пичврстпгпдьу плочу са HOBOONCTaBbeHOM TeKCTINHOM MaCKOM Haype Hajи поверпгпсдя He 6n Doшно Do 3auepebeHa yCnCHnx OTbopa 3a Ba3dYx.

HANOHEA: Tekcmunhe mace 3a npulaoohabahe moy da ce nepy y mawuHu y cknady ca ynymcmbma doobujum y3 komnem. Baxno je da enacmuHa mpaKa dyHK uBuua meKcmunHe mace 6yde HnpekuHyma u zamezhyma jep mo donpuHocu onmumHom ynaCky ba3dyxa yypejaj, y3 MuHumAnHO cMaBebe yuHka. Ako npumemume da je enacmuHa mpaKa npekunhyma unu ePno naaba, mo 3NaU da je epeMe 3a zameny meKcmunHe mace.

IODEJABAHEOXNCA

Hoxnue od termonlaactnucn eractomepa npuBpuhehe cy 3a ypehaj ycahehm 3abptbna. Te hoxnue ce - 6aaw kao rohpba pyka - mory oDbojntn. 3a npuBpuhnbabe nll 3amehny noctojehnx Hoxnua npatnte cneedehn noctynak.

1. ПocтавиTe урehaj paBHo Ha lehaj, Тako Дa пpeДьа пLOча ГLEда habишe. OdВрнITE HOЖицe, akO потоJE, okpeTaHbem cynpOTHO od smepa Ka3aJbKN Ha caTu.
2. YKIOHInTe CBy PnlaCTnHy am6aJxCy ca HOBnX HOJnca.
3. Палову вуцпесуcaне завръе HOвих HOжиcaушуньи He Na dHy ypeajn pruврстпесиix 3abpTaHem y cmepy Ka3aJbKn Ha caTy dOK He ocetnte odpehen OTnop.
4. Истajte стблноct Нжиca постаьаьem уpeйaja успраьно, поизаьem 3a oko 5-6 cm n3над тla и лаганим потразьem.

TPEUKE IN PEUABAHbE PPOBJIEMA

Доьа tabел ппсдтавь само оранчен спеск. 3a Hajнови ъ Нajnotуни ънфорmaци ѽ о ршавыnpоблма, odrobope ha Hajweша вodи 3a rpeшke, norleдajte odrobapajи odeьak Ha haem cajty nIn anikauniy Wellbeing.

RENGÖ RING OCH SKÖ TSEL
