Product type	Wine cooler
Brand	Continental Edison
Model	CECWC105C
Dimensions (W x H x D)	480 x 1285 x 575 mm
Weight	Not specified
Power supply	220-240 V ~ 50 Hz, 0.8 A
Energy class	G
Energy consumption	153 kWh/year
Net volume	201 L
Bottle capacity	100 bottles (75cl)
Number of shelves	5 removable wooden shelves
Temperature range	5°C to 20°C
Display	Digital LED
Interior lighting	LED
Child lock	Yes
Door reversal	Yes (right/left)
Adjustable feet	Yes
Noise level	40 dB(A)
Climate class	SN/N/ST (10°C to 38°C)
Alarm	Yes (in case of malfunction)
Maintenance	Clean with a soft cloth and warm water, mild detergent. Do not use abrasive cleaners.
Safety	Do not use electrical appliances inside. Keep out of reach of children. Do not damage the refrigeration circuit. Unplug before cleaning.
Spare parts	Available for at least 7 years
Repairability	Repair by qualified professional. 24-month warranty.
General information	Domestic use only. Install away from heat and sunlight. Leave 10 cm space at the back.
Included accessories	5 shelves, handle with screws, manual, label, hinges

Frequently Asked Questions - CECWC105C CONTINENTAL EDISON

What is the capacity of the CECWC105C wine cooler?

The CECWC105C wine cooler has a capacity of 100 standard 75 cl bottles. A different arrangement can allow up to 105 bottles depending on the layout.

How do I adjust the temperature?

Press the UP or DOWN buttons to adjust the temperature in increments of 1°F (or 1°C depending on setting). The display flashes during adjustment and stops after 5 seconds of inactivity. The adjustment range is 5°C to 20°C. To switch between °C and °F, press the dedicated button.

How do I reverse the door opening direction?

Follow the steps in the manual: remove the upper right hinge cover, unscrew the hinge, remove the door, then install the lower hinge on the left. Replace the door and fix the upper left hinge. Use the screws provided. The operation requires moving the handle to the other side.

How do I clean the wine cooler?

Unplug the appliance and remove all bottles. Clean the outside with a soft cloth and warm water mixed with a mild detergent. Remove and wash the water reservoir at the back. Never use abrasive cleaners or solvents.

What should I do in case of error E1 or E2?

The codes E1 (open circuit) and E2 (short circuit) indicate a temperature sensor failure. Contact the retailer's after-sales service to have the appliance repaired.

Can I store perishable food in this wine cooler?

No. This wine cooler is designed only for wine storage. The temperature may not be cold enough for perishable items. It is not recommended to place food inside.

How do I use the child lock?

To lock the control panel, press the ON/OFF and Light buttons simultaneously for 3 seconds. Do the same to unlock. Once locked, other buttons are inactive.

What should I do if the appliance is noisy?

A noise of flowing liquid is normal (refrigerant circulating). If the noise is excessive, check that the appliance is level by adjusting the front feet, and that it is not in contact with walls. Refer to the troubleshooting table in the manual.

What is the annual electricity consumption?

The annual consumption is 153 kWh according to standardized test conditions. Actual consumption depends on usage and location. The appliance is rated energy class G.

How do I start the appliance for the first time?

After unpacking, clean the interior and let the appliance stand upright for at least 2 hours. Plug it in, then press the ON/OFF button for 3 seconds. The default temperature is 12°C. Wait for the wine cooler to cool down before placing bottles inside.

USER MANUAL CECWC105C CONTINENTAL EDISON

Line drawing of a multi-tiered industrial storage cabinet with cylindrical components (no text or symbols)

Réf:CECWC105C

CAVE ÀVIN - WINE CELLAR

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

Symbol ISO 7010 W021

Technical line drawing of a mechanical enclosure with a 180° rotation indicator (no text or symbols present)

Line drawing of a rectangular cabinet or enclosure with mounting brackets and a side panel (no text or symbols)

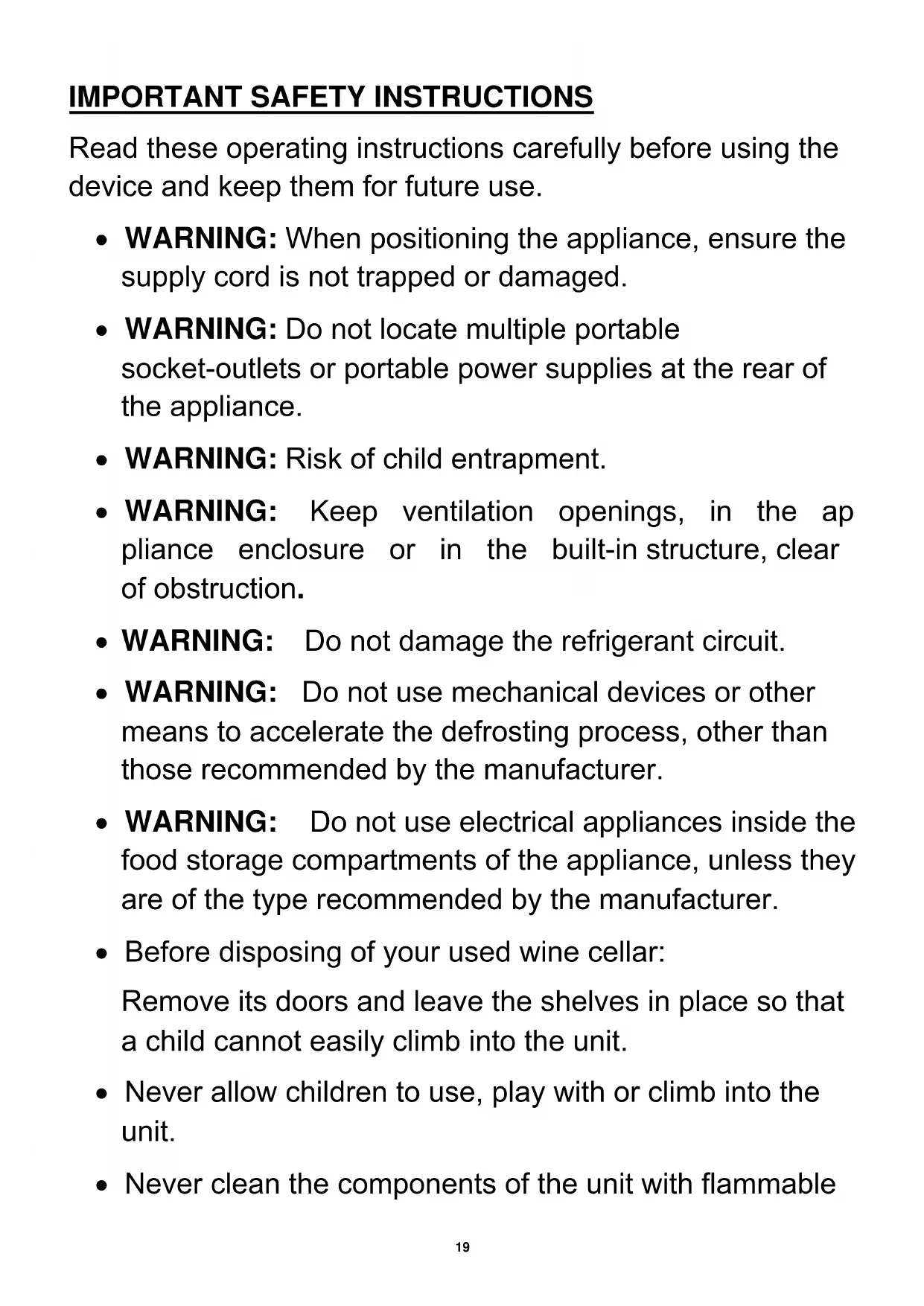

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the device and keep them for future use.

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• WARNING: Risk of child entrapment.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Before disposing of your used wine cellar:

Remove its doors and leave the shelves in place so that a child cannot easily climb into the unit.

• Never allow children to use, play with or climb into the unit.
• Never clean the components of the unit with flammable

liquids.

• Do not store or use gasoline or any other flammable liquids or gases near this or any other appliance. Vapors present a risk of fire or explosion.
• To clean your wine cellar, do not use abrasive cleaners or solvents. Glass cleaners or soapy water give excellent results.

Symbol ISO 7010 W021

This symbolmeansthat a firehazardexists.

• Leave 10cm of free space at the back of the unit to allow for ventilation of the cooling system.
• In order to store your wines at a stable temperature, avoid leaving the door open for too long.
• Do not install your wine cellar near a heat source and avoid direct sunlight.
  • Install your cellar on a flat, clean and stable floor.
• Do not install any other electrical equipment on your cellar.
• To ensure your safety, do not place your cellar in damp places.
• Do not store perishable food in this appliances as the indoor

temperature may not be cold enough for proper storage.

- This appliance is intended to be used in household and similar applications but not in the following cases:

– staff kitchen areas in shops, offices and other working environments;

– farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

– catering and similar non-retail applications.

- This device is designed for use inside a house or apartment. It is essential that the temperature of the room in which it is used is not lower than 10^ C or higher than 38^ C for optimal use.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

- This device may be used by children 8 years of age or older and by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they are properly supervised, experience or knowledge, if they are properly supervised or instructions on the safe use of the device have been given to them and the risks involved have been addressed.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- To avoid contamination of food, please respect the

following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

By purchasing this wine cellar, you own a device that combines unique advantages:

♦ Less vibration: to preserve the quality of the wines.
- Small size, taking up less space.

WARNING: Do not use this product in a place where children can touch it and do not leave children to use it alone.

• This refrigerating appliance is not intended to be used as built-in appliance."
• this refrigerating appliance is not suitable for freezing foodstuffs.

Disposal of waste

To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.

Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

INSTALLATION INSTRUCTIONS

Before putting your wine cellar into service

• Remove all inner and outer packaging components.
• Check that none of the following parts are missing:

■ 5 removable shelves
■ 1 handle with screws
■ 1 ERP lable
■ 1 operating manual
■ 2 door hinges

• Before connecting your device to a power supply, allow it to stand upright for about 2 hours. This reduces the risk of malfunction of the refrigeration system due to handling during transport.

• Clean the inner surfaces of the unit with a soft cloth and warm water.

• Place your unit on a floor strong enough to support the weight of the fully filled unit.
  ● Make sure the unit is level by adjusting the front feet underneath the unit. Make sure that the cellar rests on its feet in a stable manner.

• Install the appliance away from direct sunlight and heat sources (radiator, hot plate, etc.). Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.
• The unit is not designed to be installed in a basement or cellar.
  ● This unit is designed exclusively for indoor use.

Caution: Make sure that the unit is kept away from any substance that may cause combustion.

- Check that the water tank is in place before connecting the unit.

CLEANING AND MAINTENANCE

Cleaning your wine cellar

● Unplug your wine cellar and take out all the bottles.
- Clean the outside of the unit with hot water and a mild detergent.
- Remove the water tank at the bottom of the unit, then wash it.

Moving your wine cellar

• Remove all bottles and disconnect the wine cellar.
• Tape all loose parts inside your wine cellar.
• Turn the feet to adjust their height to the minimum to avoid damage.
  ● Tighten the door to keep it closed.
• Be sure to keep the wine cellar upright during transport.

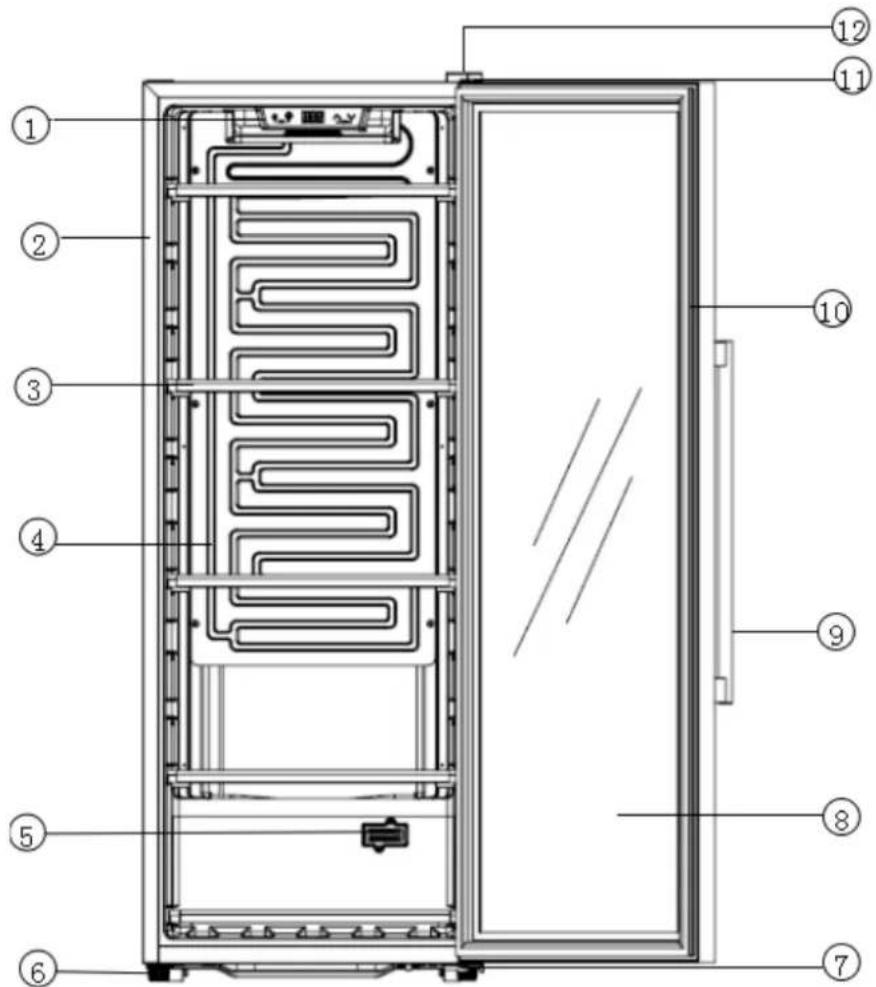

1	Control panel
2	Housing
3	Shelf
4	Evaporator
5	Sensor shield
6	Adjustable foot
7	Lower hinge
8	Door
9	Handle
10	Door seal
11	Upper hinge
12	Upper hinge cover

TECHNICAL SPECIFICATIONS

Model	CECWC105C
Model No.	JC-201
Capacity	100 bottles 75cl
Voltage	220-240V
Current Input	70W
Frequency	50Hz
Dimensions(W x H x D)	480x 575x1285mm
Energy class	G
Energy consumption of 153 kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit.
Storage volume	201L
Climate class	SN/N/ST
This unit is designed for use at an ambient temperature between +10°C and +38°C
Noise emissions	40dB

153 kWh/annum
2019/2016

"This device is intended for wine storage only."

The product information sheet, according to EU Regulation No. 2019/2016 on the energy labeling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product.

Reference CECWC105C: https://eprel.ec.europa.eu/qr/389836

Door reserving

1. Parts for door reversing

①Door hinge cover

②Flange screw

③Door hinge

④Cap

⑤Lower door hinge ⑥

Handle screw ⑦Handle

2. Handle installation

Our wine cooler is delivered with the handle in a separate package.

To install the handle:

① Take out the handle; point it precisely to the two holes on the left side of the door.
② Push aside the door seal to reveal two holes; insert the screws and screw the handle up.

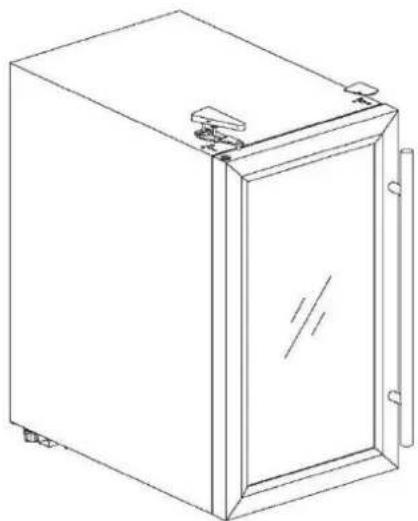

4. Reversing the door

Our wine coolers are delivered with the door opening from left to right. To reverse the opening direction:

1) Close the door.
2) Take off the door hinge cover
①on the up right corner; Unscrew the flange screws②; Take off door hinge③; Remove the up left side cap④.
3) Lift the door up until the door gets off the lower door hinge⑤.
4) Unscrew the lower door hinge.

Line drawing of a rectangular cabinet or enclosure with mounting feet and a side panel (no text or symbols)

5) Fit the lower door hinge⑤ to the down left corner; Put the door above and insert into the lower door hinge.

6) Fit the door hinge③ to the up left corner and screw the flange screws②; Put on the door hinge cover①; Put the cap to the up right side④.

USE YOUR WINE CELLAR

The temperature setting allows you to adjust it according to your needs:

Setting temperature before tasting red wines: Temperature recommended 5-20°C.

If the ambient temperature is higher or lower than the recommended temperatures, this will have a negative impact on its performance. For example, placing the unit in an extremely cold or hot place can cause variations in the internal temperature of the unit.

The internal temperature may vary depending on the location of the bottles, at the top, middle or bottom.

Adjustment may be necessary depending on the ambient temperature.

Do not hesitate to leave a thermometer inside the cellarin order to carry out regular monitoring.

Start operation

1. Cleaning the compartment

Before power on, clean inside of the appliance and check the drainage pipe in good connection. (For details, please refer to the "Maintenance and cleaning")

1. Put the appliance stand still

Before power on, level the appliance on the firm & dry floor for at least 30 minutes.

1. Power on

The appliance start operation and it will cool down inside after 1 hour, otherwise you should check the power connection.

Control panel

If the keys are not active, please unlock first by pressing "on/off" and "Light" simultaneously for 3 seconds.

ON/OFF

1. Keep pressing the key 3 seconds, power down, goes to stand-by mode.
2. Keep pressing the key again 3 seconds to return back to normal working.

Light

Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key is invalid.

UP

Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press increase 1^ F. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside.

Down

Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press reduce 1^ F. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside.

Child Lock (Combination key)

1. Lock: Press both keys at the same time for 3 seconds to lock.
2. Unlock: Press both keys at the same time for 3 seconds to unlock.

Fahrenheit/Celsius display interchange

Switch temperature display between Fahrenheit and Celsius by pressing the key.

Attention

1. The cooling temperature could be set from 5 °C (lowest temperature)-20 °C (highest temperature).
2. When it is used for the first time, the pre-set temperature for both zone is 12°C.
3. Alarm sound: when the system malfunction occur and alarm sound, press any key on the control panel to cancel the alarm sound.
4. Temperature & defrost sensor failure:

When the temperature sensor failures occur, error code displays:

E1 for open circuit, E2 for short circuit of upper zone;

Wine storage

The appliance is equipped with sufficient shelves to allow your collection of wine get mature quietly and peacefully.

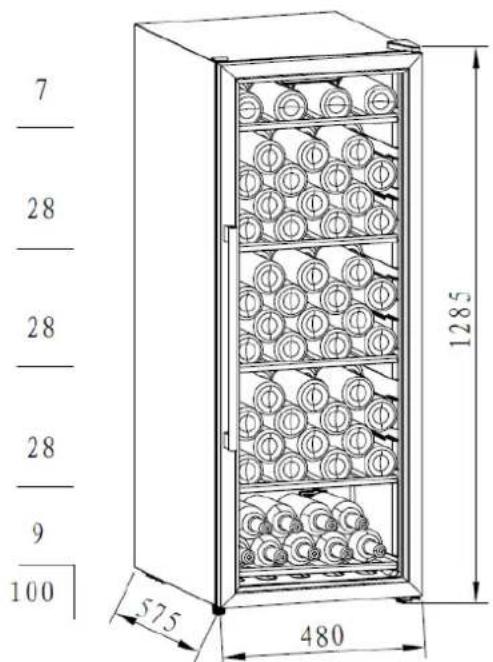

✿ 5 wood shelves loading capacity: 100bottles (standard Bordeaux with 75cl). In order to reach the best energy efficiency, pls refer to the below bottles loading way.

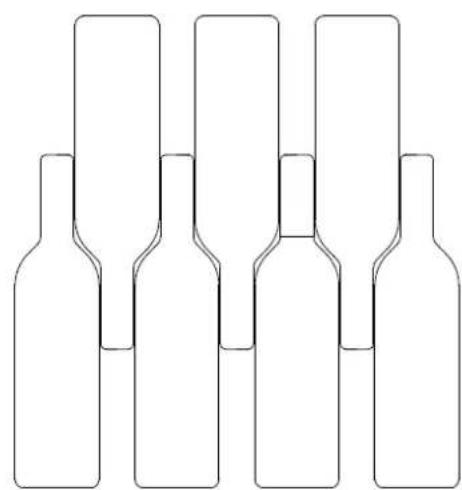

Line drawing of five identical bottles arranged in a row (no text or symbols)

Remark : 4 wood shelf in the bottom loading capacity: 105bottles (standard Bordeaux with 75cl).

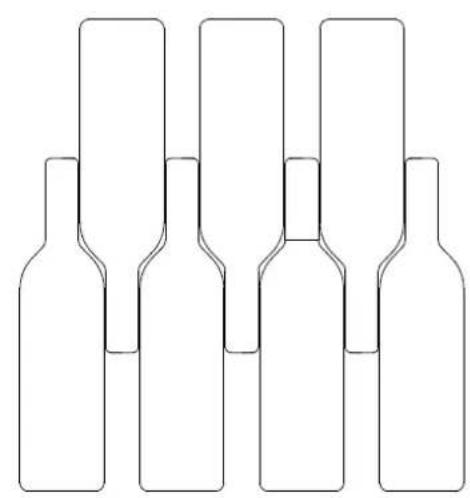

Line drawing of six identical bottles arranged in a row (no text or symbols)

Loading capacity will vary in terms of different way of bottle arrangement or different bottle sizes.
Each shelf is designed to put on 3 or 4 layers of wine bottles. More than 4 layers of bottle arrangement on one shelf are not recommended.
◆ Each shelf could pull out partly to store wine bottles easily.
✨ Open the door straight enough before pulling out shelves.
If the wine cooler would have no load for a long time, it is recommended to power it off, clean it carefully, and open the door for ventilation.
The shelf should be avoided in front of the fan as much as possible to avoid blocking the air inlet and affecting the cooling efficiency.
If it is unnecessary, please avoid to open the door frequently. And it is suggested not to open door for a long time in order to save energy consumption.
Below table is the recommended temperature for wine storing & drinking:

Red Wine	15-18°C
White Wine	9-14°C
Rose wine	10-11°C
Champagne & sparkling wine	5- 8°C

BREAKDOWNS AND SOLUTIONS

Some malfunctions can be easily resolved. Before calling customer service or a repairer, please consult the following table:

PROBLEM	POSSIBLE CAUSES & SOLUTIONS
The appliance makes lots of noise?	● Please adjust the front foot, keep the appliance leveling.● Please keep the appliance a bit space from walls.
Liquid flowing sound inside the cabinet?	● It is normal because of the refrigerant working inside.
The appliance does not start?	● Make sure the appliance is connected to the power properly.● Make sure switch on the power.● The compressor re-starts after 5 minutes for a power cut.
Compressor runs continuously?	● If no cold is being produced, call the retailer's after-sale service.
Door does not seal tightly?	● After long time use, the door seal might get stiff & distorted partially.● Heat the door seal with hot-wind blower or hot towel.● The door seal get softened and close the door.
The appliance does not cool sufficiently?	● Please adjust temperature setting.● Keep the appliance away from sunlight or heat.● Please do not open the door frequently.
Unpleasant smells inside cabinet?	● A little bit plastic smell for newly-buy appliance is normal and will disappear after a short time.● Clean the compartment and ventilate it for a few hours.
Condensate on the glass door?	● Please do not open the door frequently or for a long time.● Please do not set the temperature too low.● High ambient temperature and humidity would cause condensate.
The light is not working?	● Check the power supply first.● Call the retailer's after-sale service if the light is broken.

GUARANTEE

Your refrigerating appliance is guaranteed by the manufacturer during a period of 24 months from the purchasing date (The dated invoice as proof).

EXCLUSIONS OF GUARANTEE :

The guarantee do not cover the normal wear of the product, nor the problems or damages resulting from :

(1) superficial deteriorations due to the normal wear of the product ;
(2) defect or deteriorations due to contact with food or liquids and due to the corrosion generated by rust ;
(3) any incident, abuse, misuse, modification, disassembly or unauthorized repairs ;
(4) any wrong maintenance operation, use not conforming to the instruction for use of the product and connection to an unproper power supply;
(5) any use of not initially provided accessories or approved by the manufacturer.

Information : The guaranteewon't be applicable in case of missing rating plate or/and product serial number.

REPAIRS SERVICES

In case of malfunction during the guarantee period of the manufacturer: any repairs request must be addressed to the professional retailer you purchase your product to.

After the expiry of the manufacturer guarantee period : refer to the document « Spare parts and repairs » in the documentation related to your refrigerating appliance available on the website www.marquepropre.ext

SPARE PARTS

The necessary spare parts for your product repairs are available at least 7 years, in conformity with the European regulation related to the eco-design of refrigerating appliances.

Refer to the document « spare parts and repairs » inside the documentation related to your refrigerating appliance, available on the website www.marquepropre.ext , it will inform you about :

• the availability for each spare part;
• the spare parts purchasing terms;
• someprofessionalrepairs services.

Disposal of the device

To avoid any harm to the environment or human health caused by improper disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for the purpose.Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

Continental Edison

120-126 Quai de Bacalan

CS11584

33000 Bordeaux

LOT #:A.M.C.122020

IMPORTE PAR

A.M.C

123 quai Jules Guesde,

94400, VITRY SUR SEINE,

France

LA NOUVELLE CAVE

-by-

Continental Edison
