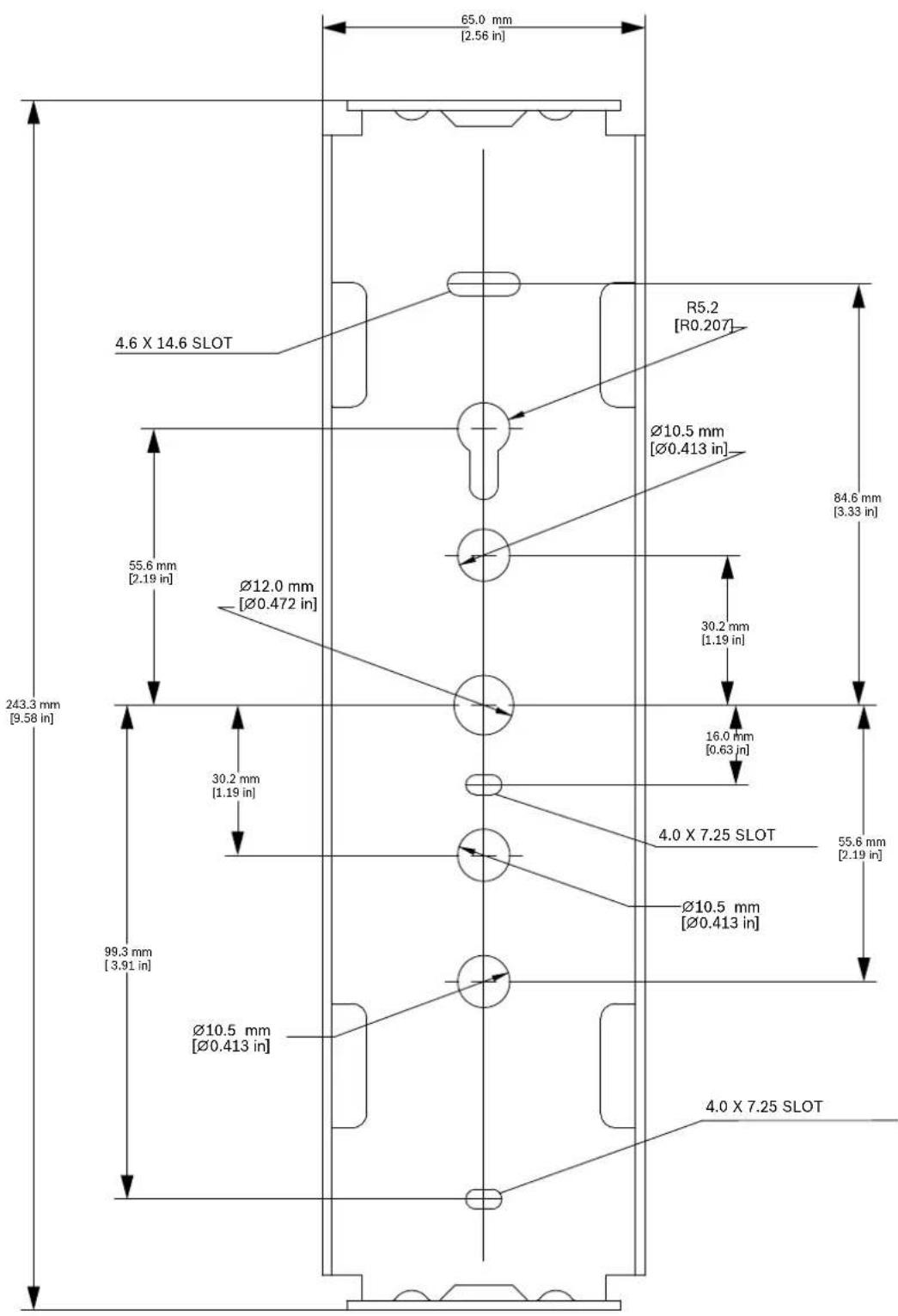

8 U-Bracket dimensions 22

1 Safety

1.1 Suspension

Warning!

Suspended any object is potentially dangerous and should only be attempted by individuals who have a thorough knowledge of the techniques and regulations of suspending objects overhead. Electro-Voice strongly recommends that loudspeakers be suspended taking into account all current national, federal, state, and local laws and regulations. It is the responsibility of the installer to ensure all loudspeakers are safely installed in accordance with all such requirements. When loudspeakers are suspended, Electro-Voice strongly recommends the system be inspected at least once per year or as laws and regulations require. If any sign of weakness or damage is detected, remedial action should be taken immediately. The user is responsible for making sure the wall, ceiling, or structure is capable of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker not associated with Electro-Voice is the responsibility of others.

Safety point

As an added safety measure, it is suggested the user install an extra suspension point back to the building structural supports. This safety point should have as little slack as possible (less than 1-inch is preferable).

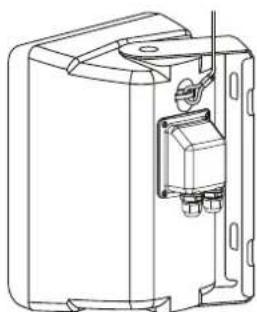

Figure 1.1: Redundant safety point

1.2 Notices

Old electrical and electronic equipment

This product and/or battery must be disposed of separately from household waste. Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment.

Copyright and disclaimer

All rights reserved. No part of this document may be reproduced or transmitted in any form by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of the publisher. For information on getting permission for reprints and excerpts, contact Electro-Voice.

All content including specifications, data, and illustrations in this manual are subject to change without prior notice.

2 Introduction

The EVID-S series, from Electro-Voice, is a line of compact, high-performance, two-way, full-range surface mount speakers, with excellent wide and uniform coverage, and outstanding performance. Their design makes these practically invisible for use in background and foreground music, paging, and sound reinforcement applications, making EVID-S ideal for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look, and flexible mounting options, the EVID-S series is the perfect solution for a wide variety of surface mount applications.

The EVID-S5.2X models are IP65 rated, designed to withstand the toughest weather conditions. They are also UL1480 / ULC-S541, UL1480A / CSA C22.2 NO. 205 / EN54-24, type B certified.

Read through this manual to familiarize yourself with the safety information, features, and applications before you use these products.

2.1 System features

• Carefully engineered for the toughest weather conditions (IP65)
• Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55Hz
• 75 W power handling provides for 108 dB maximum SPL (114 dB Peak)
• 60 W transformer with 8 pass-through

2.2 Product information

Table 2.1: Product information

Item Description

A Grille

B Safety cable loop

C Weather input cover

D Gland nut

E U-Bracket

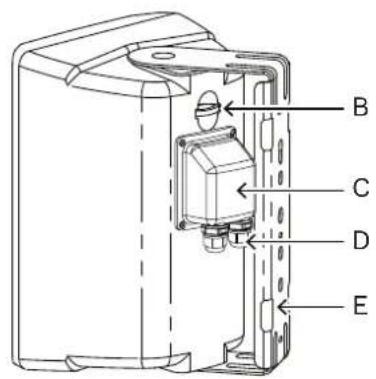

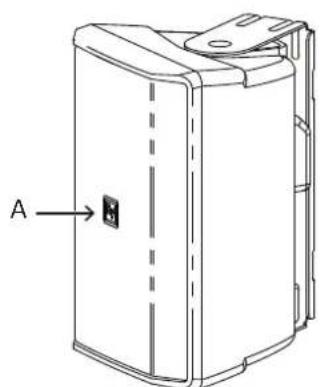

Figure 2.1: Product information

2.3 Packing list

Table 2.2: Components list

Item Quantity	Component
A 2 Speakers
B 1 Allen wrench
C 4 Safety screws for the U-Brackets
D 2 U-bracket
E 2 Weather covers
F 8 Weather cover screws
G 2 Grille logos (spares)
H 1 Installation manual

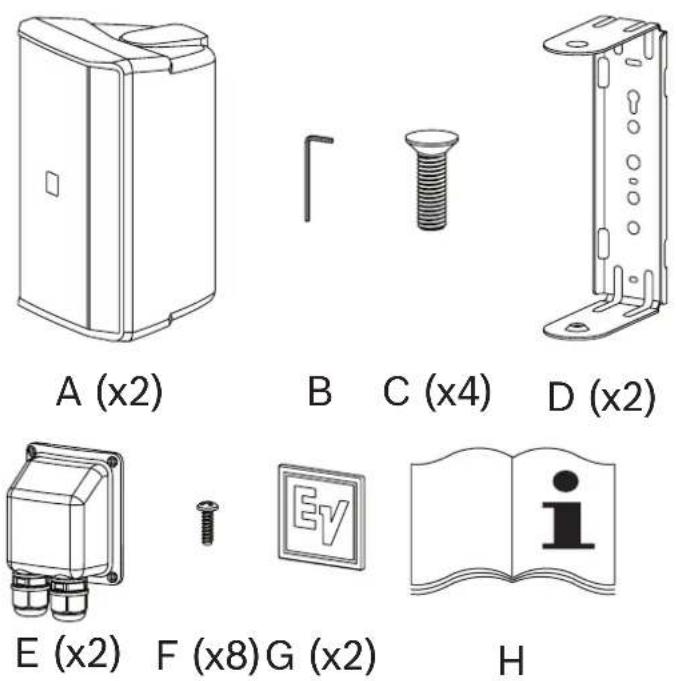

Figure 2.2: Components list

3 Installation and wiring

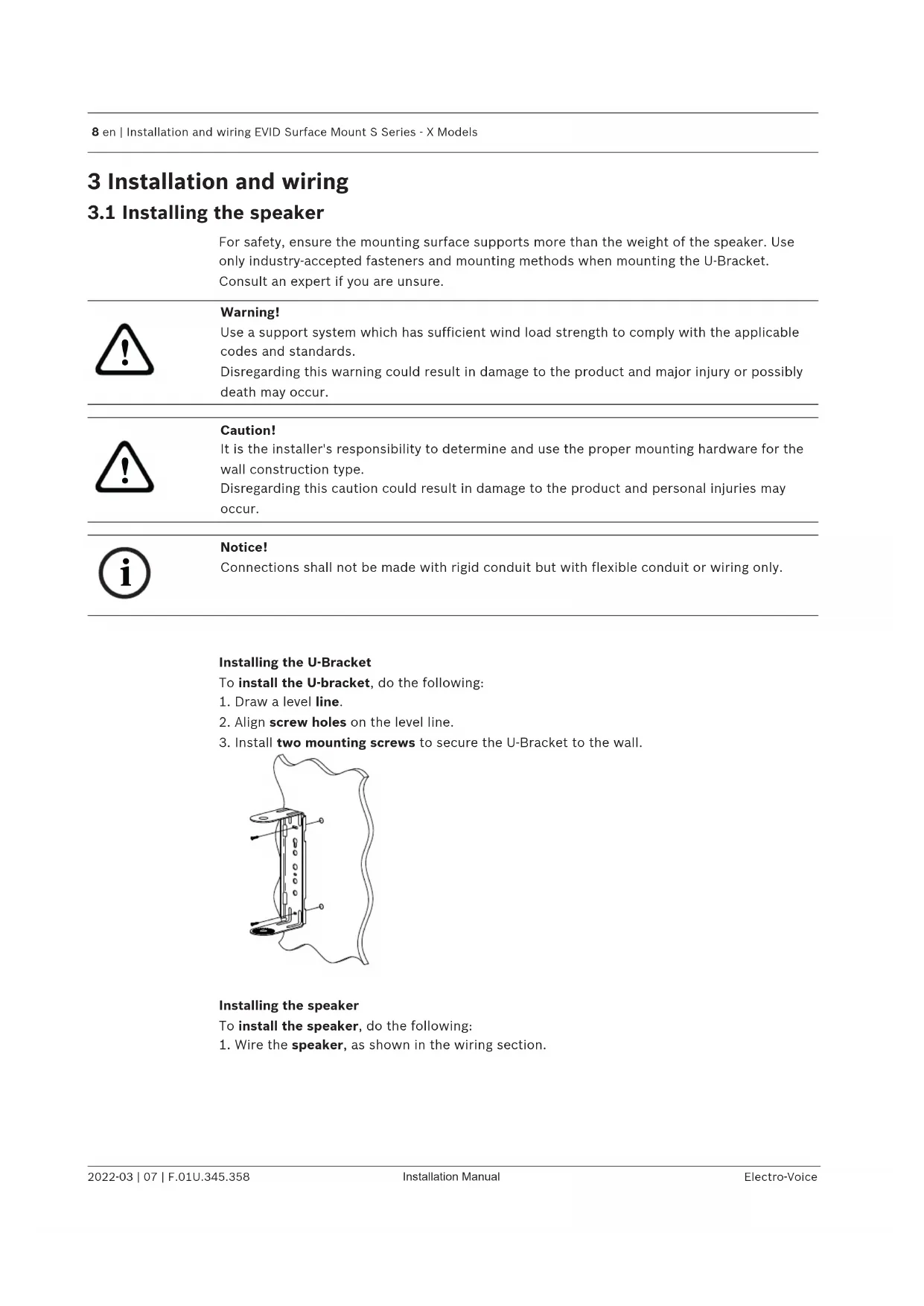

3.1 Installing the speaker

	For safety, ensure the mounting surface supports more than the weight of the speaker. Use only industry-accepted fasteners and mounting methods when mounting the U-Bracket.Consult an expert if you are unsure.
Warning!Use a support system which has sufficient wind load strength to comply with the applicable codes and standards.Disregarding this warning could result in damage to the product and major injury or possibly death may occur.
Caution!It is the installer's responsibility to determine and use the proper mounting hardware for the wall construction type.Disregarding this caution could result in damage to the product and personal injuries may occur.
Notice!Connections shall not be made with rigid conduit but with flexible conduit or wiring only.

Installing the U-Bracket

To install the U-bracket, do the following:

1. Draw a level line.
2. Align screw holes on the level line.
3. Install two mounting screws to secure the U-Bracket to the wall.

Installing the speaker

To install the speaker, do the following:

1. Wire the speaker, as shown in the wiring section.

2. Insert the two screws (provided) into the U-Bracket mounting points. Loosely tighten the two screws using the Allen wrench (provided).

1. Aim the speaker.
2. Tighten the two screws to secure the U-Bracket to the speaker. Ensure the speaker is secured to the U-Bracket.

Safety point

As an added safety measure, it is suggested the user install an extra suspension point back to the building structural supports. This safety point should have as little slack as possible (less than 1-inch is preferable).

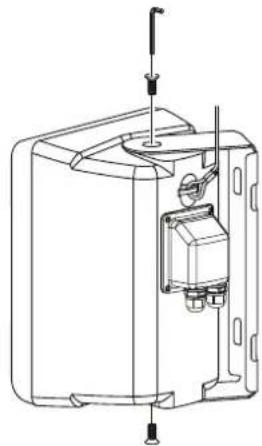

Figure 3.1: Redundant safety point

Refer to

• U-Bracket installation options, page 9
  Wiring, page 11

3.2 U-Bracket installation options

Using a U-Bolt

The U-Bracket can be mounted using a standard 2-inch or 4-inch U-Bolt.

Figure 3.2: U-Bolt - 2-inch

Figure 3.3: U-Bolt -4-inch

Using a threaded rod

The U-Bracket can be installed to a threaded rod.

Figure 3.4: Threaded rod

Using a pole mount

The U-Bracket can be installed to a pole mount using steel band clamps.

Figure 3.5: Pole mount

Using a junction box

The U-Bracket can be installed to a junction box using a 0.25" rubber grommet (not included) for wiring.

Figure 3.6: Junction box

Refer to

• Installing the speaker, page 8

3.3 Recommended wire gauge

Wiring method which shall be in accordance with:

1. In Canada, CSA C22.1, Canadian Electrical Code, Part I Safety Standard for Electrical Installations, Section 32 and ULC-S524, Installation of Fire Alarm Systems;
2. In the United States, the National Electrical Code, NFPA 70, and the National Fire Alarm and Signaling Code, NFPA72;
3. In the EU, national electrical codes apply.

Maximum recommended wiring length (0.5 dB loss)
	100 Watt 40 Watt 10 Watt
18 AWG (1 mm²) 230 ft	560 ft 2300 ft
16 AWG (1.5 mm²) 360	ft 900 ft 3600 ft
14 AWG (2.5 mm²) 560	ft 1400 ft 5600 ft
12 AWG (4.0 mm²) 910	ft 2300 ft 9100 ft

3.4 Wiring

Notice!

The weather cover must be used in all UL1480 and ULC-S541 fire installations.

This speaker cannot be painted when used in UL1480 an ULC-S541 fire installations.

Notice!

The weather cover must be used in all EN54-24 fire installations.

This speaker cannot be painted when used in EN54-24 fire installations.

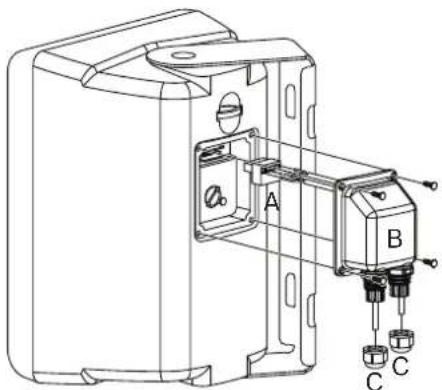

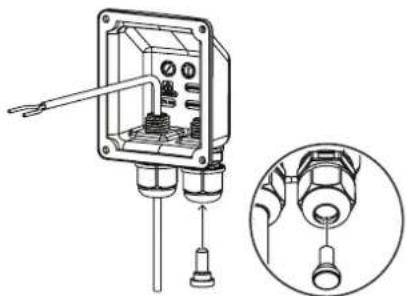

Wiring the speaker

To wire the speaker with two cables, do the following:

1. Loosen both gland nuts.
2. Push the wire through the gland nuts.

1. Wire the Euroblock connector (A).
2. Adjust the tap settings, if needed.
3. Mount the speaker, as shown in the installation section.

1. Plug the Euroblock connector into the speaker.
2. Insert the four screws into the weather cover (B).

Loosely tighten the four screws to keep the weather cover in place.

1. Tighten all four screws to secure the weather cover.

Ensure the weather cover is secure.

1. Adjust the wire length.
2. Tighten the gland nuts (C).

To wire the speaker with one cable, do the following:

1. Loosen both gland nuts.

1. Push the wire through one of the gland nuts.
2. Push the included plug in the other gland nut.
3. Tighten the gland nut with the plug to seal it.

4. Wire the Euroblock connector (A).

5. Adjust the tap settings, if needed.

6. Mount the speaker, as shown in the installation section.
7. Plug the Euroblock connector into the speaker.
8. Insert the four screws into the weather cover (B). Loosely tighten the four screws to keep the weather cover in place.
9. Tighten all four screws to secure the weather cover. Ensure the weather cover is secure.
10. Adjust the wire length.
11. Tighten the remaining gland nut (C).

Refer to

• Installing the speaker, page 8

3.5 Transformer taps

	You can select the mode of operation (70 V/100 V/8 ohm) and power taps using the rotary switch on the input panel.
i	Notice! For UL1480/ULC-S541 fire installations, the speaker is not intended for connection to DC supervised systems. Please refer to the compatible fire alarm control unit manual for additional wiring and supervision instructions.
i	Notice! For EN54-24 fire installations, the speaker is not intended for connection to DC supervised systems.

Configuring the transformer settings

To configure the transformer settings, do the following:

1. Select the desired power tap by using the rotary switch on the input panel.

1. If 8 ohm mode is desired, remove the safety screw. Safety screw (A) is shown in the previous step.

3.6 Replacing the logo

An additional logo is included, horizontal installation is shown.

To replace the logo, do the following:

1. Remove the existing logo.
2. Clean the surface with alcohol.
3. Align the logo with the logo recess on the grille.
4. Remove the paper backing.
5. Insert the logo.

Press firmly to ensure the logo is applied.

4 Troubleshooting

Problem Possible Causes Action
No Sound Amplifier	Connect a known work	ing test speaker to the amplifier outputs. If there is no sound, check all electronics are on, the signal routing is correct, the source is active; the volume is turned up, and so on. Correct/Repair/Replace as necessary. If there is sound, the problem is in the wiring.
	Wiring Verify you have	connected the correct wire pairs to the amplifier. Play something at low level through the amplifier (for example, from a CD player or tuner). Connect the test speaker in parallel with the malfunctioning line. If the sound has gone or is very weak, the line has a short in it (possibly a severe scrape, pinch, or staple puncture). If the sound level is normal the wire is open (possibly a cut wire or missed connection). Using the test speaker, move down the line and test each connection/junction until you find the problem and correct it. Observe proper polarity.
		Verify you have the inputs and outputs connected to the correct wires. If the subwoofer input panel is not correctly wired, there will be little or no sound. Observe proper polarity.
Poor Low-Frequency Response	Speakers Wired Out-of-Polarity	When two speakers are connected out of polarity (out of phase), the low frequencies will cancel each other acoustically. Carefully observe the wire markings or tracers on your speaker wires. Verify the amplifier (+) terminal is connected to the red speaker terminals and the amplifier (-) terminal is connected to the black speaker terminals.
	Improperly Wired Subwoofer Panel	Using a test speaker as described above, verify all amplifier and speaker wires are connected to their proper terminals with the correct polarity. Reversing just one set of amplifier wires can cut out all bass output from the subwoofer.
Intermittent Output such as, Crackling or Distortion	Faulty Connection Check	clean and tight. If the problem persists, it may be in the amplifier or wiring. See other actions above.
Constant Noise such as Buzzing, Hissing, Humming	Defective Amplifier or other Electronic Device	If the noise is present but no program material is playing, the likely cause is the signal chain in the electronics. Evaluate each component as necessary to isolate the problem.
	Poor System Grounding or Ground Loop	Check and correct the system grounding, as required.

If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or Electro-Voice distributor.

5 Technical data (for non-UL, general use installations)

Frequency response (-3 dB):	90 Hz - 20 kHz \( {}^{1} \)
Frequency response (-10 dB):	55 Hz - 20 kHz \( {}^{1} \)
Sensitivity:	89 dB \( {}^{2} \)
Max SPL (calculated):	108 dB (114 dB Peak)
Coverage angle:	Horizontal \( {90}^{ \circ } \) ,Vertical \( {90}^{ \circ } \)
Power handling:	75 W (300 W Peak) Continuous Pink Noise (100 hours) 24.5 Vrms
Low Z:	Yes
Nominal impedance:	8 Ω
Minimum impedance:	6.5 Ω
Recommended high-pass:	60 Hz (24 dB/octave)
Input transformer (70 V/100 V):	60 W
Transformer taps:	70V: 60 W, 30 W, 15 W, 8 W, 8 Ω 100V: 60 W, 30 W, 16 W, 8 Ω
Low frequency transducer:	5.25 in (133 mm)
High frequency transducer:	0.75 in (20 mm)
Connectors:	Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.05 mm Ø)
Environmental:	IP-65 (per IEC-60529)
Color:	Black (RAL 9004) or white (RAL 9003)
Dimensions (H x W x D):	255 mm x 180 mm x 148 mm (10.0 in x 7.1 in x 5.8 in) \( {}^{3} \)
Net weight:	\( {3.2}\mathrm{\;{kg}}{\left( {7.1}\mathrm{{lb}}\right) }^{3} \)
Shipping weight:	9.5 kg (21.0 lb)
Included hardware:	J-Bracket, 5-mm wrench and input cover
Packaged quantity:	2

Half-space (wall mounting).
2Half-space (on wall) averaged 100 Hz - 10 kHz, 1 W.
3Without U-Bracket.

5.1 Dimensions

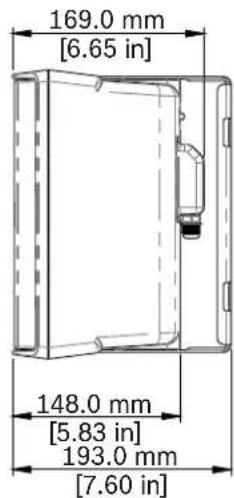

Figure 5.1: EVID-S5.2X dimensions

5.2 Frequency response and impedance

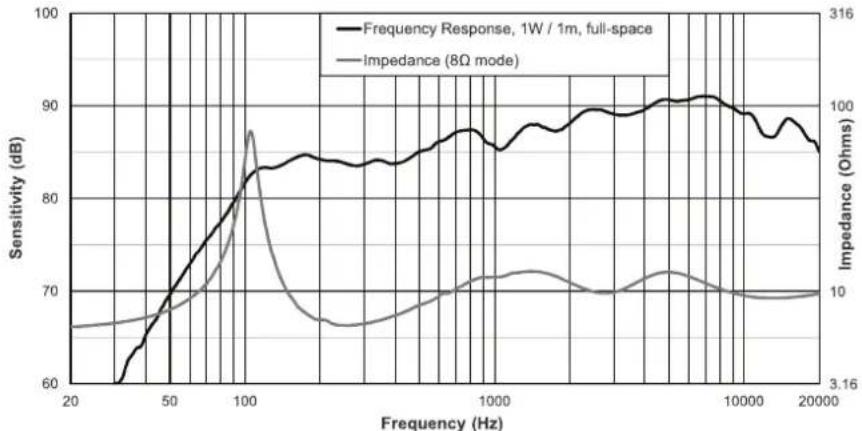

Figure 5.2: EVID-S5.2X frequency response and impedance

6 Technical data for UL1480 / ULC-S541, UL1480A / CSA C22.2 NO.205 installations

UL1480/ULC-S541 rated frequency range:	400 Hz - 4 kHz
UL1480A/CSA C22.2 NO. 205 rated frequency range:	55 Hz - 20 kHz
Sensitivity (SPL 1 W / 1 m)1:	87 dB
Power handling (@ 8 Ω):	30 W
Rated impedance:	8 Ω
Input configuration:	8 Ω; 70 V / 100 V
70 V / 100 V power taps:	8 / 15 / 30 W (70 V) 16 / 30 W (100 V)
	60 W transformer tap not to be used in UL1480 / ULC-S541, UL1480A / CSA C22.2 NO. 205 installations
Mounting system:	U-Bracket
Acoustic design:	Two-way design, internally damped, with passive crossover
Approvals:	UL1480 / ULC-S541, UL1480A / CSA C22.2 NO. 205; CE
Cabinet construction:	UL94-5VB rated enclosure and baffle
Grille construction:	Power-coated Aluminum
Included accessories:	Terminal weather cover

Average 400 Hz to 4 kHz

UL1480 and ULC-S541 Sound level data

Voltage (Vrms) Power	Tap (W) OSPL (dBA)
		UL Reverberant ULC Anechoic
70 8 87,8 88,9
	15 90,2 91,3
	30 92,5 93,9
100 16 90,5 91,8
	30 92,8 94,1
15,5 8Ω (30W) 91 93,1

Directional Characteristic data as per UL1480 and ULC-S541
Table 6.3: Vertical directional characteristic data; broadband 400 Hz to 4kHz

Angle OSPL (dBA)
0° (on-axis) 0 (ref)
± 16° -3
± 40° -6
± 90° -12,6

Table 6.4: Horizontal directional characteristic data; broadband 400 Hz to 4kHz

Angle OSPL (dBA)
0° (on-axis) 0 (ref)
± 33° -3
± 53° -6
± 90° -12,1

7 Technical data for EN54-24, Type B installations

Data measured and expressed as per EN54-24 requirements.

Figure 7.1: EVID-S frequency response and impedance 1 watt/4 meters/on axis
Table 7.5: Reproducibility and coverage angles measured full-space at 4 meters Signal at 1 watt of 1/3 octave band filtered pink noise.

Frequency Reproducibility Horizontal Coverage Vertical Coverage
(HZ) dB/SPL	Degrees Degrees
500 59.3 360	360
630 61.3
800 62.6
1000	62.3 160	145
1250	62.8
1600	63.0
2000	63.4 115	100
2500	63.0
3150	62.5
4000	63.2	80	35

Technical data EN54

Sensitivity per EN54-24 standard (SPL 1 W/4 m):	74 dB
Max measured SPL per EN54-24 standard:	60 watt Transformer coupled @ 4 meters: 92 dB 75 watt Direct coupled @ 4 meters: 92 dB
Impedance:	Direct Coupled: 8 Ω 70V Transformer Coupled: 60 watt/68 Ω, 30 watt/135 Ω, 15 watt/250 Ω, 8 watt/446 Ω 100V Transformer Coupled: 60 watt/135 Ω, 30 watt/250 Ω, 16 watt/446 Ω

Notice!

The specifications data was measured in an anechoic chamber according to EN 54-24. Reference axis: Axis is on the center of grille surface and perpendicular to the grille surface. Reference plane: Plane is on the grille surface and perpendicular to the reference axis. Horizontal plane: Plane is containing the reference axis and perpendicular to the reference plane.

0905 0359

Bosch Security Systems LLC.

130 Perinton Pkwy, Fairport, NY, 14450, USA

0905-CPR-00816

EN 54-24:2008

Loudspeaker for voice alarm systems

for fire detection and fire alarm systems for buildings

Ceiling loudspeakers EVID-S5.2XB, EVID-S5.2XW

Type B

See product manual F.01U.345.358 for further installation information.

22

Bosch Security Systems LLC.

130 Perinton Pkwy, Fairport, NY, 14450, USA

0359-UKCA-CPR-00150

8 U-Bracket dimensions

The U-Bracket dimensions are not to scale and are for reference only.

Table des matieres

1 Sécurité 24

Impedance: Coupledirect:8Ω

Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings

Ceiling loudspeakers EVID-S5.2XB, EVID-S5.2XW Type B

See product manual F 01U.345.358 for further installation information.

22

Bosch Security Systems LLC. 130 Perinton Pkwy, Fairport, NY, 14450, USA 0359-UKCA-CPR-00150

8 Dimensions du support en U

12000 Portland Avenue South

Burnsville MN 55337

USA

www.electrovoice.com

© Bosch Security Systems,

LLC, 2022
